Bilaminar Trilaminar Embryonic Disc Dr Zeenat Zaidi Bilaminar

Bilaminar & Trilaminar Embryonic Disc Dr. Zeenat Zaidi

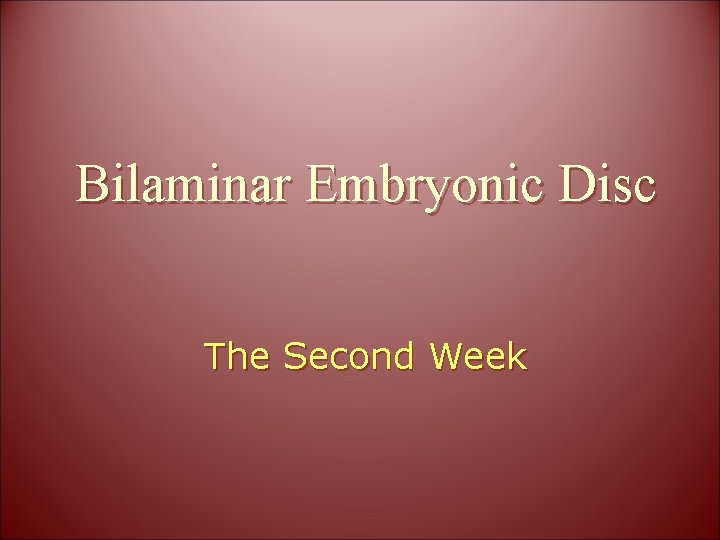

Bilaminar Embryonic Disc The Second Week

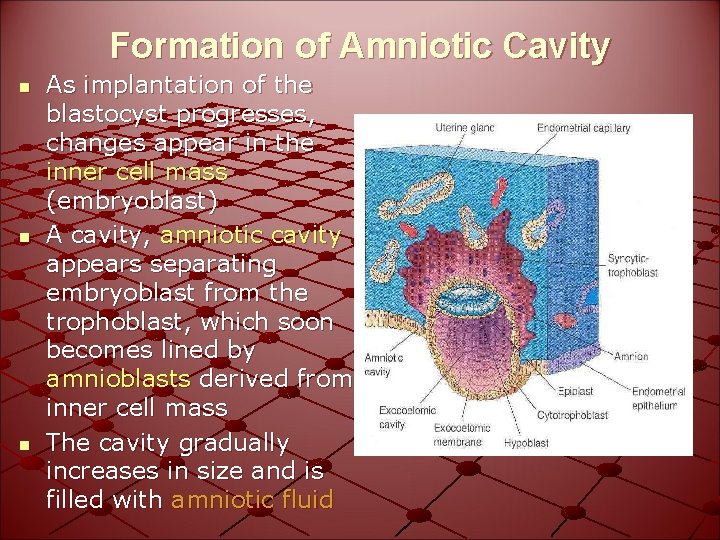

Formation of Amniotic Cavity n n n As implantation of the blastocyst progresses, changes appear in the inner cell mass (embryoblast) A cavity, amniotic cavity appears separating embryoblast from the trophoblast, which soon becomes lined by amnioblasts derived from inner cell mass The cavity gradually increases in size and is filled with amniotic fluid

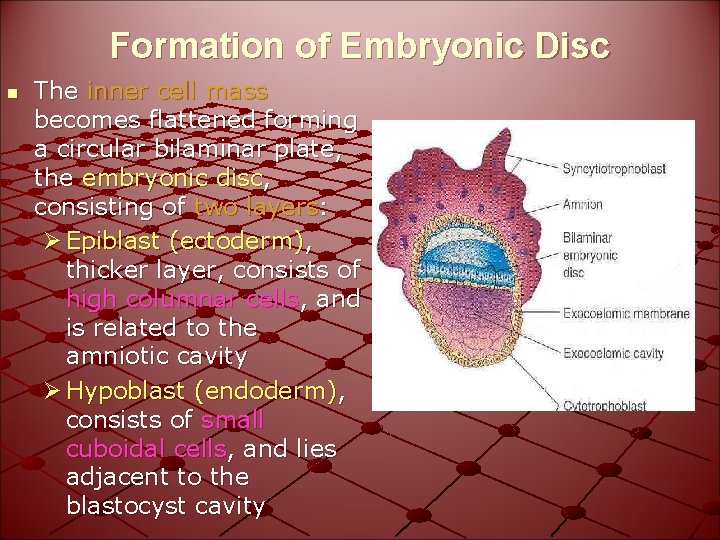

Formation of Embryonic Disc n The inner cell mass becomes flattened forming a circular bilaminar plate, the embryonic disc, consisting of two layers: Ø Epiblast (ectoderm), thicker layer, consists of high columnar cells, and is related to the amniotic cavity Ø Hypoblast (endoderm), consists of small cuboidal cells, and lies adjacent to the blastocyst cavity

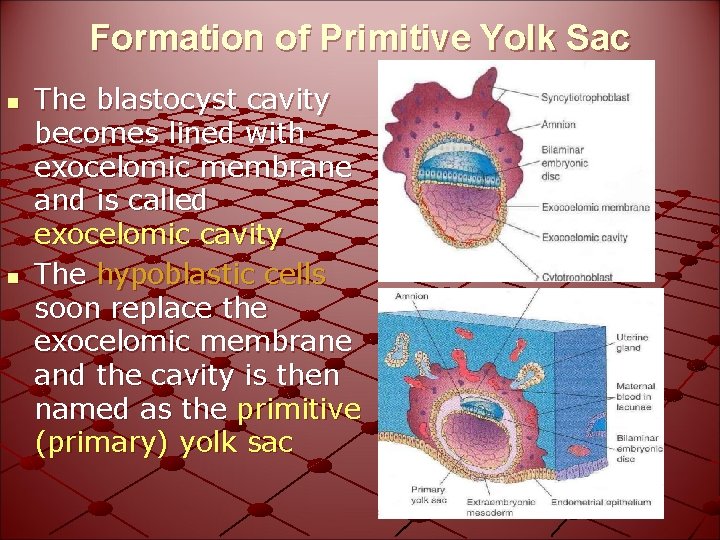

Formation of Primitive Yolk Sac n n The blastocyst cavity becomes lined with exocelomic membrane and is called exocelomic cavity The hypoblastic cells soon replace the exocelomic membrane and the cavity is then named as the primitive (primary) yolk sac

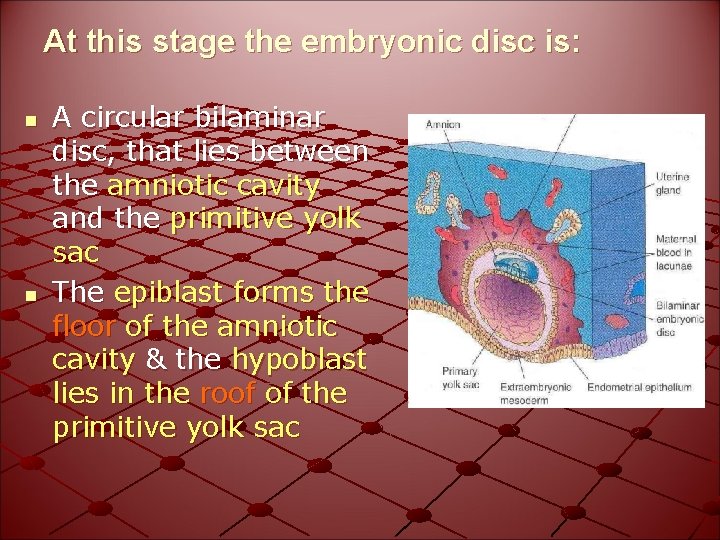

At this stage the embryonic disc is: n n A circular bilaminar disc, that lies between the amniotic cavity and the primitive yolk sac The epiblast forms the floor of the amniotic cavity & the hypoblast lies in the roof of the primitive yolk sac

Formation of Extraembryonic Mesoderm n Endoderm of the yolk sac gives rise to a layer of loosely arranged connective tissue, extraembryonic mesoderm (EEM), which surrounds the amniotic cavity and the yolk sac.

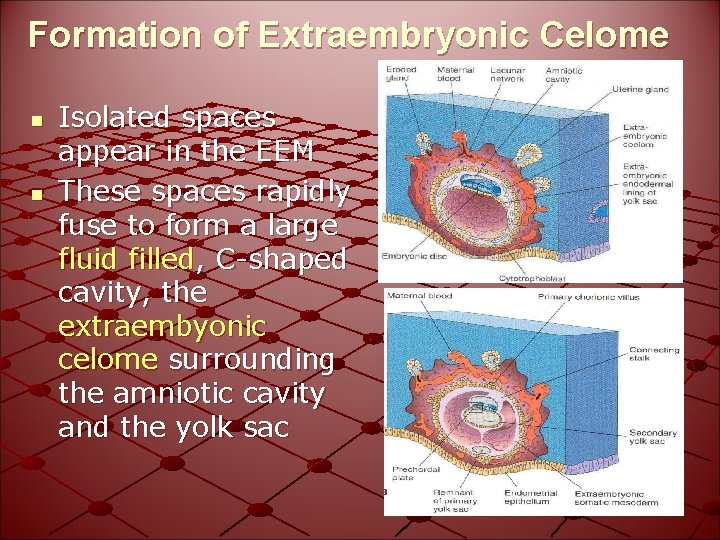

Formation of Extraembryonic Celome n n Isolated spaces appear in the EEM These spaces rapidly fuse to form a large fluid filled, C-shaped cavity, the extraembyonic celome surrounding the amniotic cavity and the yolk sac

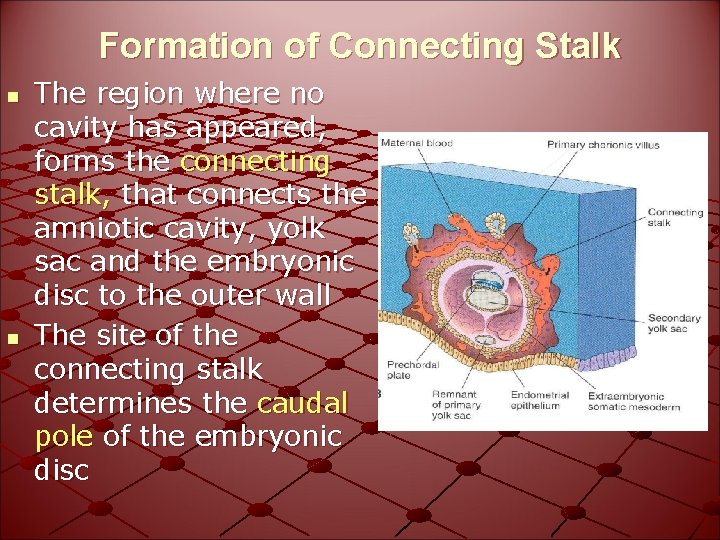

Formation of Connecting Stalk n n The region where no cavity has appeared, forms the connecting stalk, that connects the amniotic cavity, yolk sac and the embryonic disc to the outer wall The site of the connecting stalk determines the caudal pole of the embryonic disc

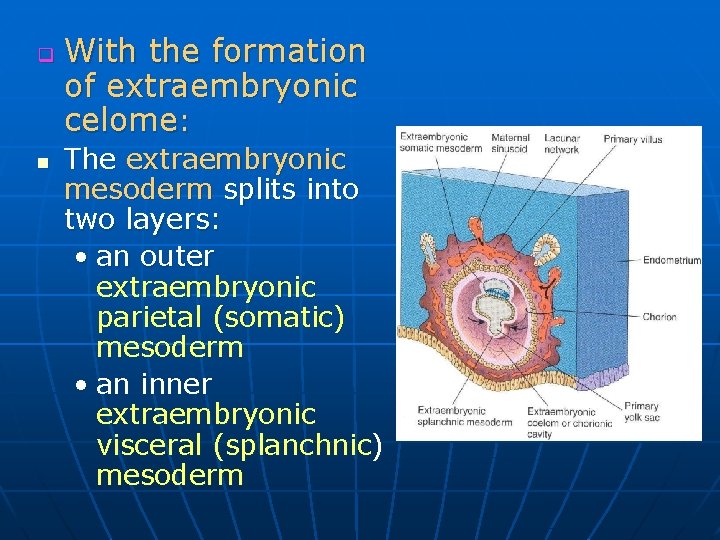

q n With the formation of extraembryonic celome: The extraembryonic mesoderm splits into two layers: • an outer extraembryonic parietal (somatic) mesoderm • an inner extraembryonic visceral (splanchnic) mesoderm

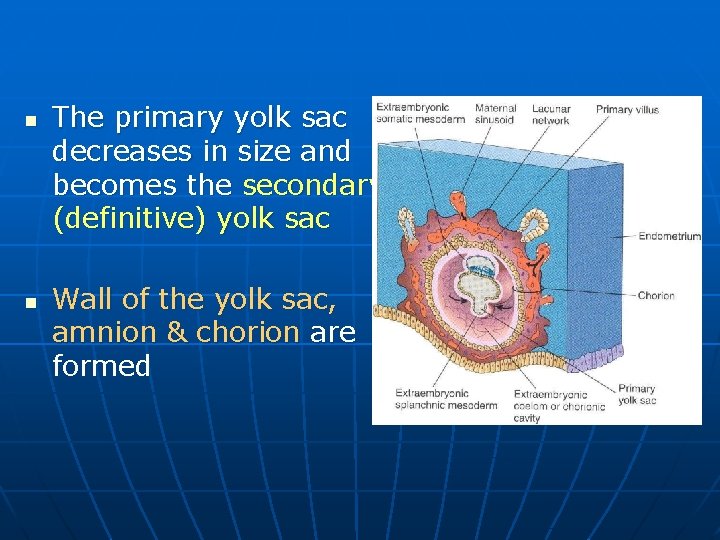

n n The primary yolk sac decreases in size and becomes the secondary (definitive) yolk sac Wall of the yolk sac, amnion & chorion are formed

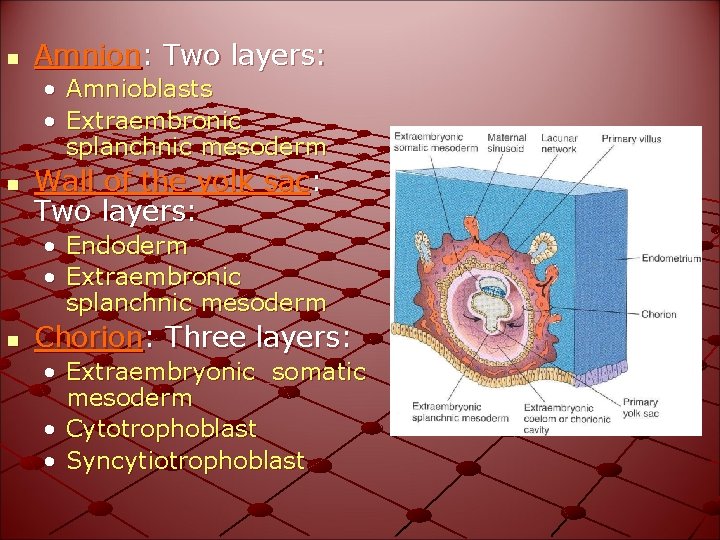

n Amnion: Two layers: • Amnioblasts • Extraembronic splanchnic mesoderm n Wall of the yolk sac: Two layers: • Endoderm • Extraembronic splanchnic mesoderm n Chorion: Three layers: • Extraembryonic somatic mesoderm • Cytotrophoblast • Syncytiotrophoblast

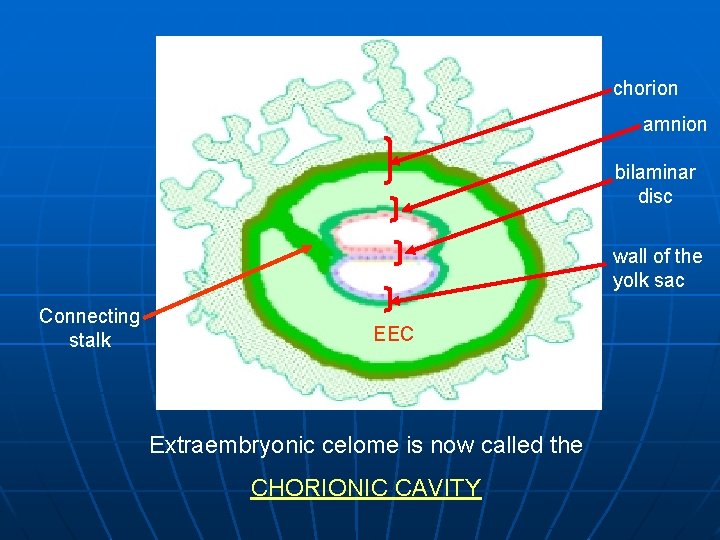

chorion amnion bilaminar disc wall of the yolk sac Connecting stalk EEC Extraembryonic celome is now called the CHORIONIC CAVITY

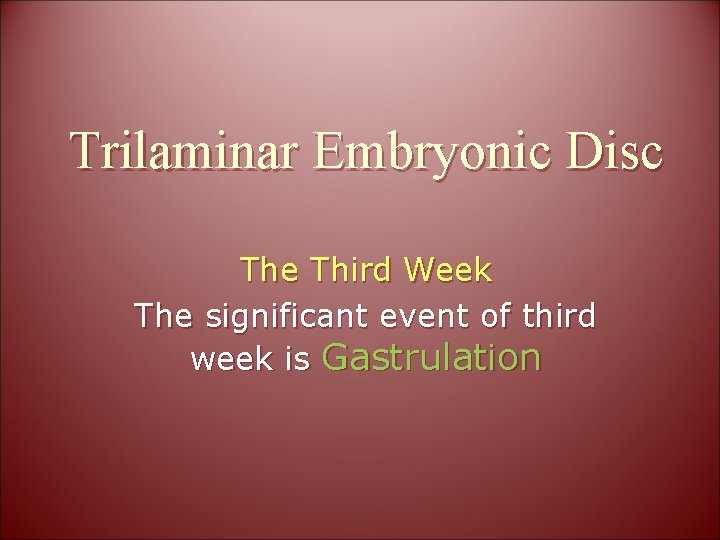

Trilaminar Embryonic Disc The Third Week The significant event of third week is Gastrulation

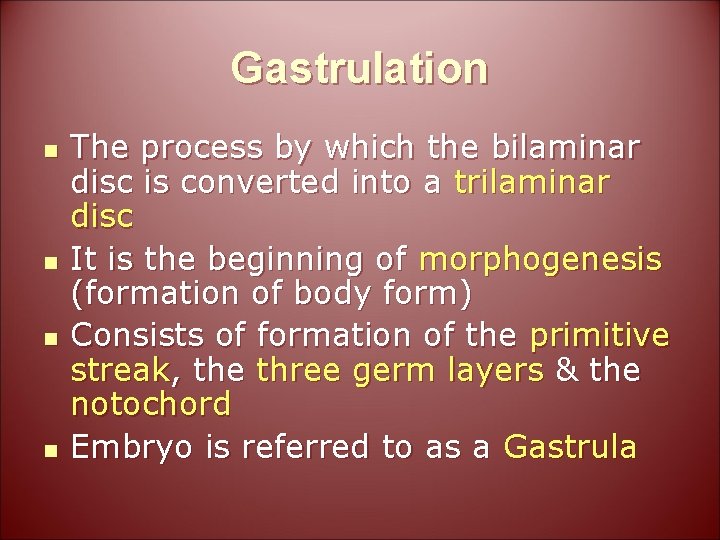

Gastrulation n n The process by which the bilaminar disc is converted into a trilaminar disc It is the beginning of morphogenesis (formation of body form) Consists of formation of the primitive streak, the three germ layers & the notochord Embryo is referred to as a Gastrula

Primitive Streak n n n The primitive streak results from proliferation of the epiblastic cells in the median plane, in the caudal half of the epiblast, and lies along the craniocaudal axis. Its cranial end forms primitive node A groove, primitive groove, appears in the primitive streak, which continues with a small depression, primitive pit, in the primitive node.

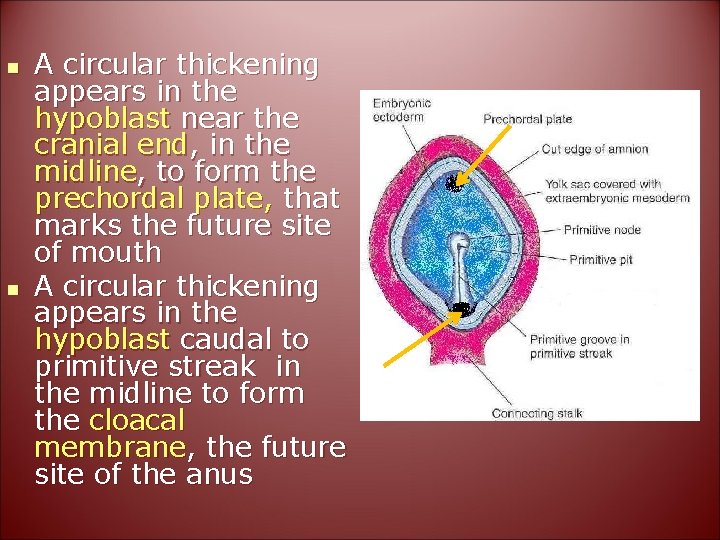

n n A circular thickening appears in the hypoblast near the cranial end, in the midline, to form the prechordal plate, that marks the future site of mouth A circular thickening appears in the hypoblast caudal to primitive streak in the midline to form the cloacal membrane, the future site of the anus

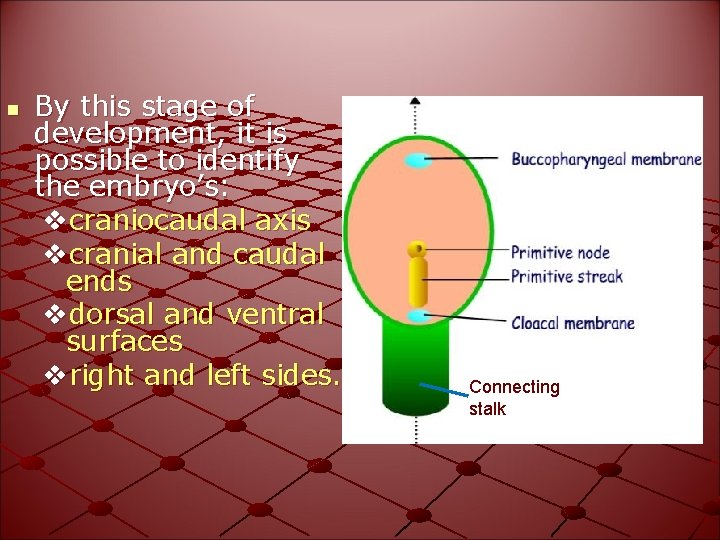

n By this stage of development, it is possible to identify the embryo’s: vcraniocaudal axis vcranial and caudal ends vdorsal and ventral surfaces vright and left sides. Connecting stalk

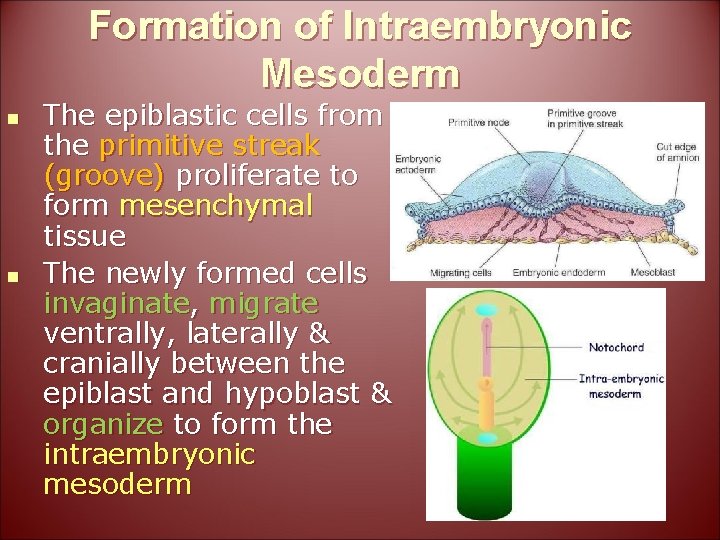

Formation of Intraembryonic Mesoderm n n The epiblastic cells from the primitive streak (groove) proliferate to form mesenchymal tissue The newly formed cells invaginate, migrate ventrally, laterally & cranially between the epiblast and hypoblast & organize to form the intraembryonic mesoderm

Formation of Intraembryonic Mesoderm cont’d n n Intraembryonic mesoderm merges with the extraembryonic mesoderm at the periphery of the embryonic disc By the end of 3 rd week, mesoderm lies between embryonic ectoderm and endoderm everywhere except in the region of prechordal plate and cloacal membrane, as the embryonic ectoderm & endoderm are fused at these regions

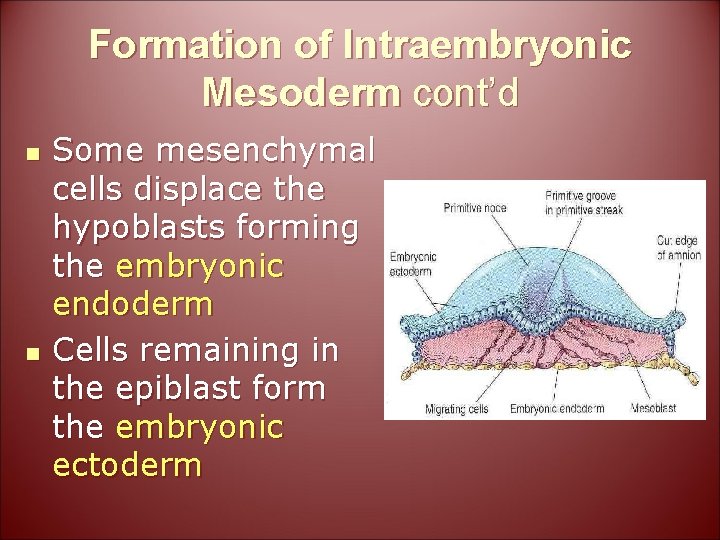

Formation of Intraembryonic Mesoderm cont’d n n Some mesenchymal cells displace the hypoblasts forming the embryonic endoderm Cells remaining in the epiblast form the embryonic ectoderm

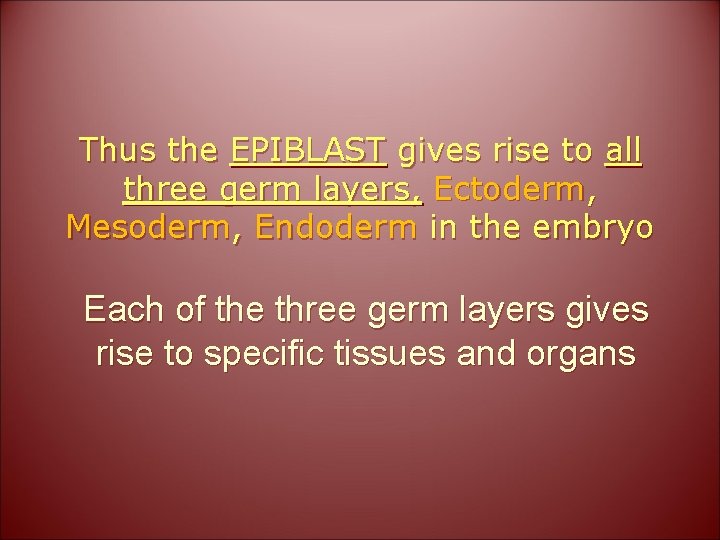

Thus the EPIBLAST gives rise to all three germ layers, Ectoderm, Mesoderm, Endoderm in the embryo Each of the three germ layers gives rise to specific tissues and organs

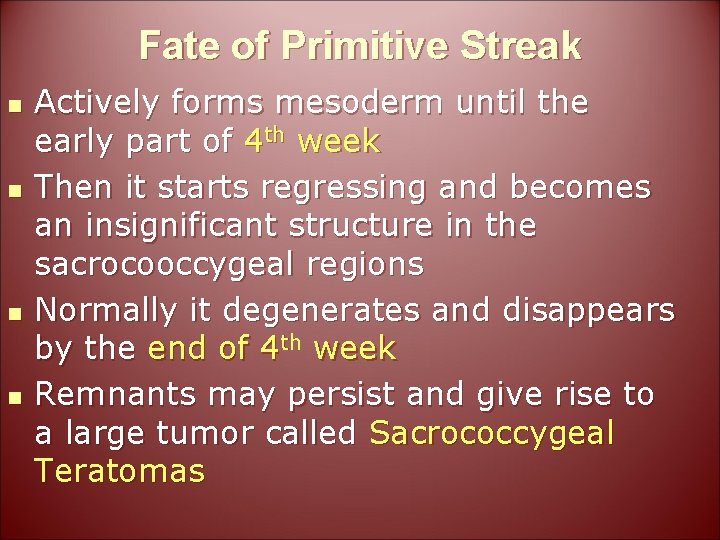

Fate of Primitive Streak n n Actively forms mesoderm until the early part of 4 th week Then it starts regressing and becomes an insignificant structure in the sacrocooccygeal regions Normally it degenerates and disappears by the end of 4 th week Remnants may persist and give rise to a large tumor called Sacrococcygeal Teratomas

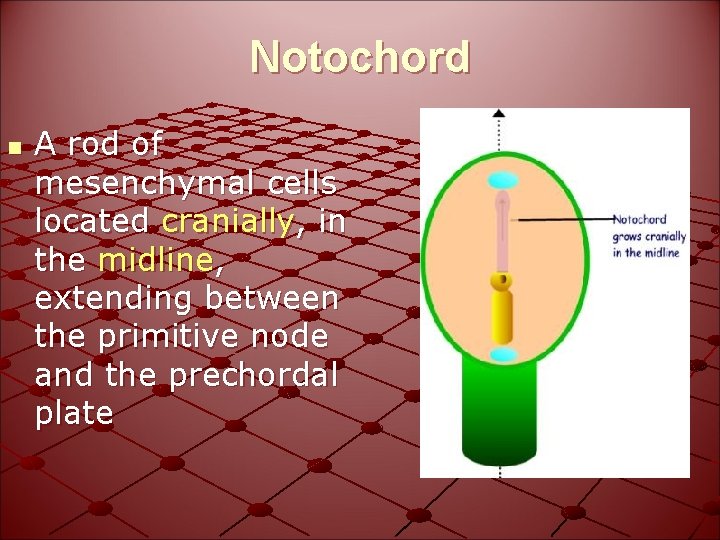

Notochord n A rod of mesenchymal cells located cranially, in the midline, extending between the primitive node and the prechordal plate

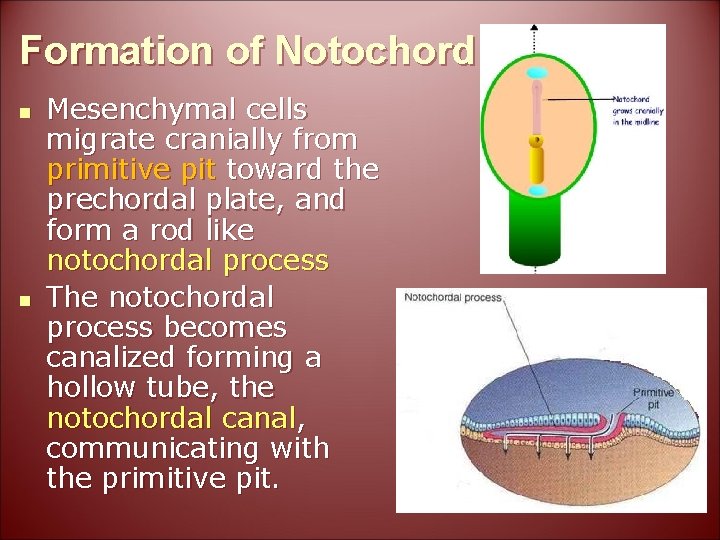

Formation of Notochord n n Mesenchymal cells migrate cranially from primitive pit toward the prechordal plate, and form a rod like notochordal process The notochordal process becomes canalized forming a hollow tube, the notochordal canal, communicating with the primitive pit.

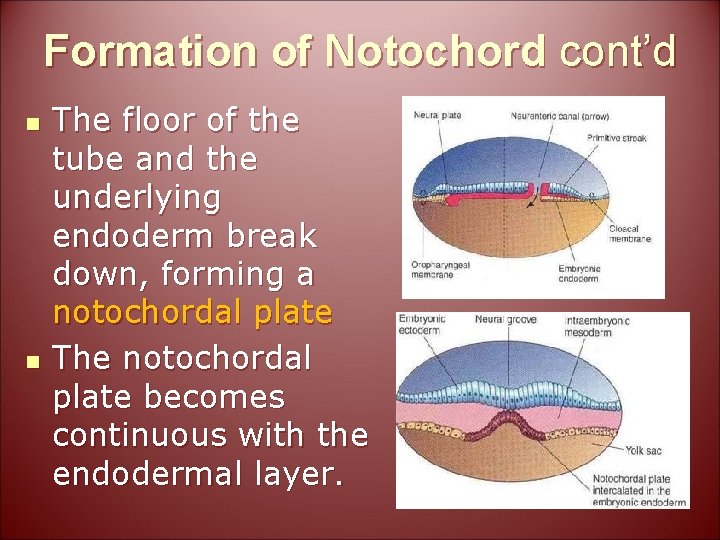

Formation of Notochord cont’d n n The floor of the tube and the underlying endoderm break down, forming a notochordal plate The notochordal plate becomes continuous with the endodermal layer.

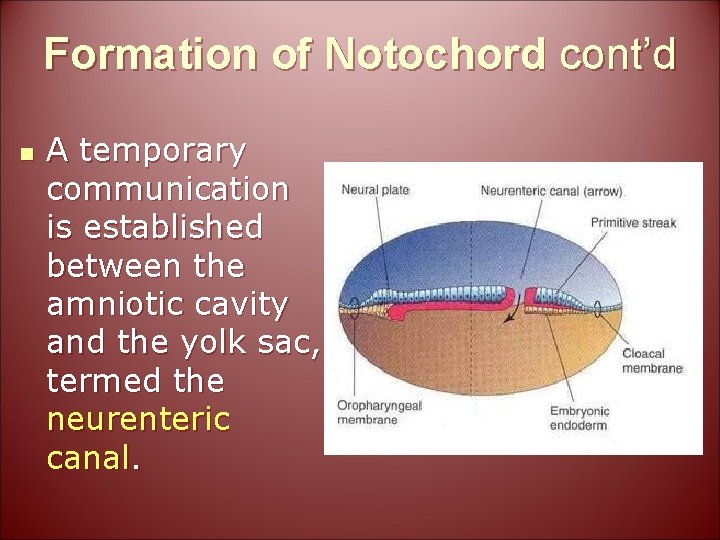

Formation of Notochord cont’d n A temporary communication is established between the amniotic cavity and the yolk sac, termed the neurenteric canal.

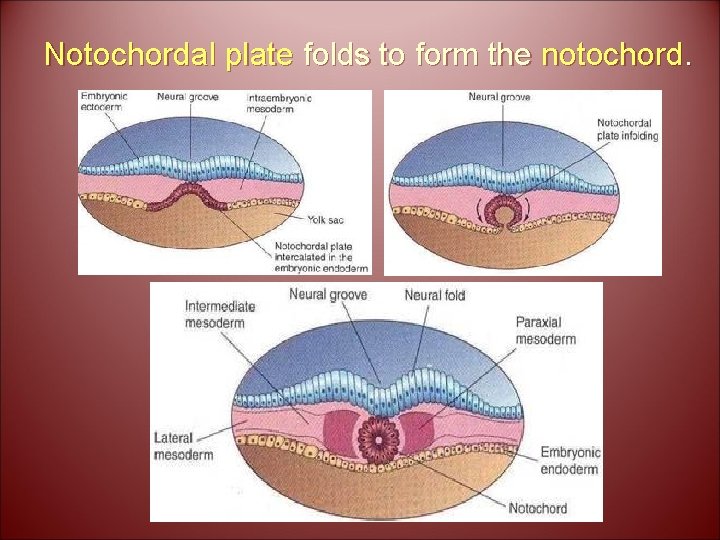

Notochordal plate folds to form the notochord.

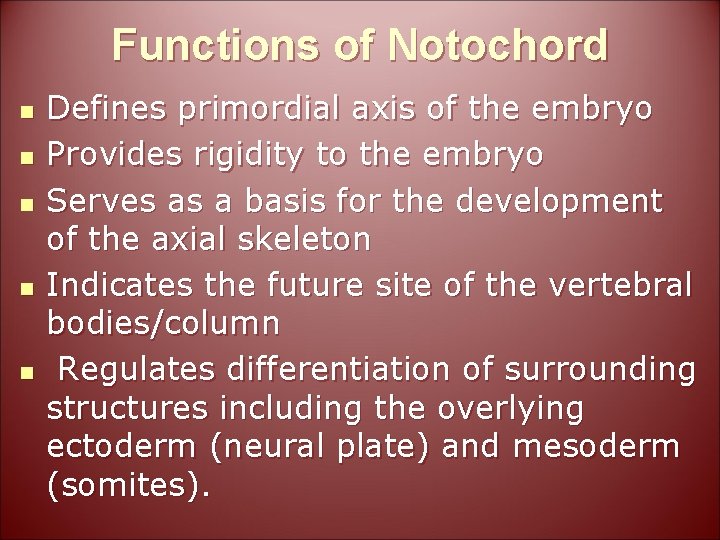

Functions of Notochord n n n Defines primordial axis of the embryo Provides rigidity to the embryo Serves as a basis for the development of the axial skeleton Indicates the future site of the vertebral bodies/column Regulates differentiation of surrounding structures including the overlying ectoderm (neural plate) and mesoderm (somites).

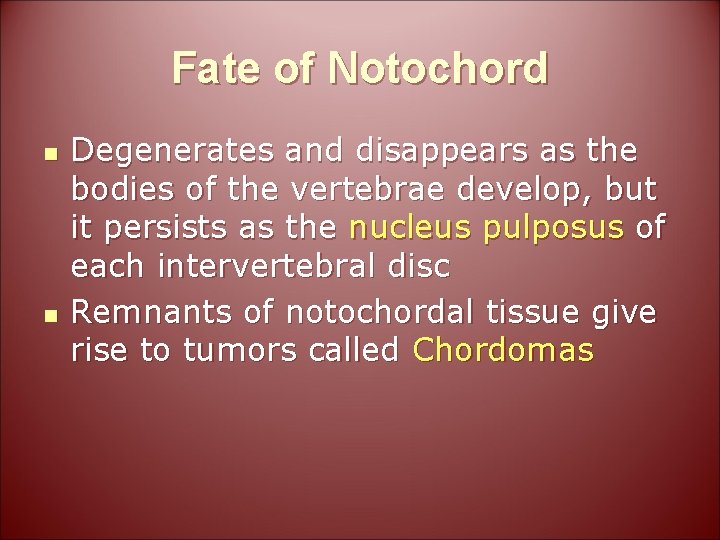

Fate of Notochord n n Degenerates and disappears as the bodies of the vertebrae develop, but it persists as the nucleus pulposus of each intervertebral disc Remnants of notochordal tissue give rise to tumors called Chordomas

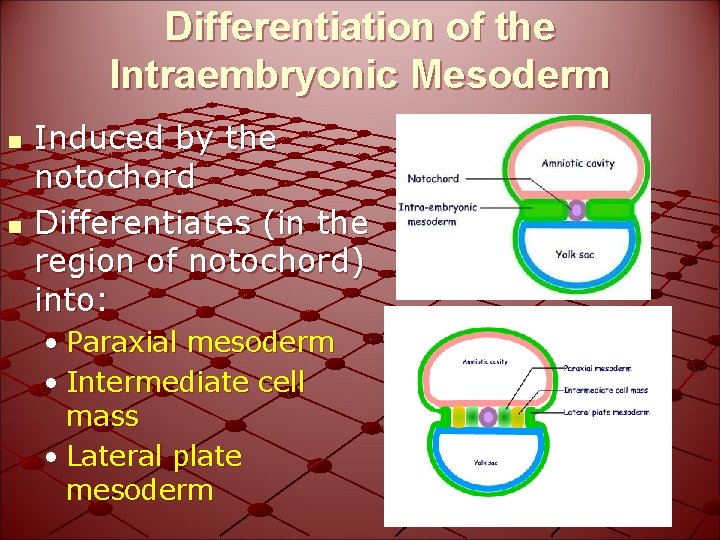

Differentiation of the Intraembryonic Mesoderm n n Induced by the notochord Differentiates (in the region of notochord) into: • Paraxial mesoderm • Intermediate cell mass • Lateral plate mesoderm
