Bike Wash Because we know its a lifestyle

Bike Wash Because we know it’s a lifestyle. . .

Model: Cube Line of equipement: Ø Ø Ø Base Medio Supreme

Ø Base Ø Ø Ø Ø Dimensions: L=2800 mm, W= 1500 mm, H= 2200 mm 2 washing programs: HP washing with chemical product, HP rinse Compressor with 6 lit. tank LED 4 digits display for washing time, dimension 210 x 70 mm Plastic push buttons for programs with light indication Comestero coin reader Hot galvanized structure 2 HP lances, one on each side, with fixed position Air antifrost protection CAT 350 HP pump, 2. 2 k. W/940 rpm motor Side protecting walls made from 30 mm double side „sendwich” panels LED light on central beam with manual ON/OFF system Automatic heating system for technical space Total system power: 4. 5 k. W System requirements: 1” water supply, 5 x 4 mm 2 cable supply, 100 mm outlet drain pipe

Ø Medio Ø Ø Ø Ø Dimensions: L=2800 mm, W= 1500 mm, H= 2200 mm 3 washing programs: HP washing with chemical product, HP rinse, Air drying system + tyre inflator Compressor with 25 lit. tank LED 4 digits display for washing time, dimension 210 x 70 mm Stainless steel push buttons for programs with LED light indication Comestero coin reader Stainless steel or powder coated structure 2 HP lances, one on each side, with fixed position Air antifrost protection CAT 350 HP pump, 2. 2 k. W/940 rpm motor Side protecting walls made from 5 mm plexiglass in color chosen by customer or 30 mm double side „sendwich” panels with stickers on them LED light on central beam with automatic ON/OFF system Automatic heating system for technical space Total system power: 5 k. W System requirements: 1” water supply, 5 x 4 mm 2 cable supply, 100 mm outlet drain pipe

Ø Supreme Ø Ø Ø Ø Dimensions: L=2800 mm, W= 1500 mm, H= 2200 mm 4 washing programs: LP pre-wash chemical, HP washing with chemical product, HP rinse, Air drying system + tyre inflator Compressor with 25 lit. tank LED 4 digits display for washing time, dimension 210 x 70 mm Stainless steel push buttons for programs with LED light indication Comestero coin reader Stainless steel or powder coated structure 2 HP lances, one on each side, with movable position 1 LP lance for chemical pre-wash Air antifrost protection CAT 350 HP pump, 2. 2 k. W/940 rpm motor Double side protecting walls made from 2 x 5 mm plexiglass in color chosen by customer with LED lighting system inside 2 LED lights, one on central beam and one on entry beam with automatic ON/OFF system Automatic heating system for technical space Total system power: 6 k. W System requirements: 1” water supply, 5 x 6 mm 2 cable supply, 100 mm outlet drain pipe

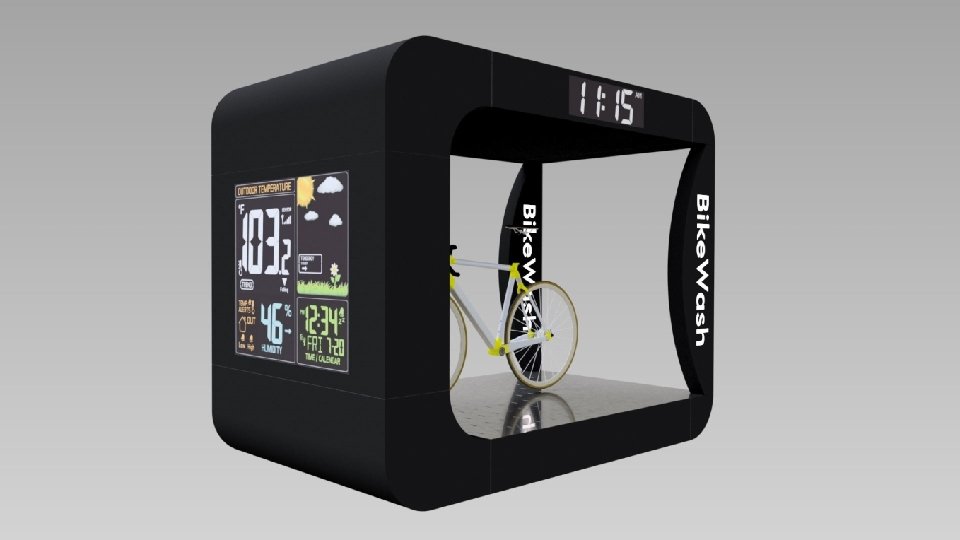

Model: Designo Line of equipement: Ø Ø Ø Base Medio Supreme

Ø Base Ø Ø Ø Ø Dimensions: L=2800 mm, W= 1500 mm, H= 2200 mm 2 washing programs: HP washing with chemical product, HP rinse Compressor with 6 lit. tank LED 4 digits display for washing time, dimension 210 x 70 mm Plastic push buttons for programs with light indication Comestero coin reader Hot galvanized structure Powder coated decorating closures in black, grey, blue or red color 2 HP lances, one on each side, with fixed position Air antifrost protection CAT 350 HP pump, 2. 2 k. W/940 rpm motor Side protecting walls made from 30 mm double side „sendwich” panels LED light modules integrated in top cover with manual ON/OFF system Automatic heating system for technical space Total system power: 4. 5 k. W System requirements: 1” water supply, 5 x 4 mm 2 cable supply, 100 mm outlet drain pipe

Ø Medio Ø Ø Ø Ø Ø Dimensions: L=2800 mm, W= 1500 mm, H= 2200 mm 3 washing programs: HP washing with chemical product, HP rinse, Air drying system + tyre inflator Compressor with 25 lit. tank LED 4 digits display for washing time, dimension 210 x 70 mm Stainless steel push buttons for programs with LED light indication Comestero coin reader Stainless steel or powder coated structure Powder coated decorating closures in any RAL color customer chooses One 42” LCD screen on back wall configured for advertising purposes Internet connection 2 HP lances, one on each side, with fixed position Air antifrost protection CAT 350 HP pump, 2. 2 k. W/940 rpm motor Side protecting walls made from 5 mm plexiglass in color chosen by customer or 30 mm double side „sandwich” panels with stickers on them LED light modules integrated in top cover with automatic ON/OFF system LED light modules integrated in entry poles with Bike. Wash sign Automatic heating system for technical space Total system power: 5 k. W System requirements: 1” water supply, 5 x 4 mm 2 cable supply, 100 mm outlet drain pipe

Ø Supreme Ø Ø Ø Ø Ø Ø Dimensions: L=2800 mm, W= 1500 mm, H= 2200 mm 4 washing programs: LP pre-wash chemical, HP washing with chemical product, HP rinse, Air drying system + tyre inflator Compressor with 25 lit. tank LED 4 digits display for washing time, dimension 210 x 70 mm Stainless steel push buttons for programs with LED light indication Comestero coin reader Stainless steel or powder coated structure Decorating closures made from plexiglass in any color customer chooses, or made from steel and powder coated in any RAL color customer chooses One 42” LCD screen on back wall configured for advertising purposes Two 22” LCD screen displays on top side walls configured to work as a clock Internet connection 2 HP lances, one on each side, with movable position 1 LP lance for chemical pre-wash Air antifrost protection CAT 350 HP pump, 2. 2 k. W/940 rpm motor Double side protecting walls made from 2 x 5 mm plexiglass in color chosen by customer with LED lighting system inside LED light modules integrated in top cover with automatic ON/OFF system LED light modules integrated in entry poles with Bike. Wash sign Automatic heating system for technical space Total system power: 6 k. W System requirements: 1” water supply, 5 x 4 mm 2 cable supply, 100 mm outlet drain pipe
