Big Data Analysis and Mining Lecture 2: Getting to Know Your Data Weixiong Rao �� 雄 Tongji University 同� 大学� 件学院 2015 Fall wxrao@tongji. edu. cn 2020/11/30 1

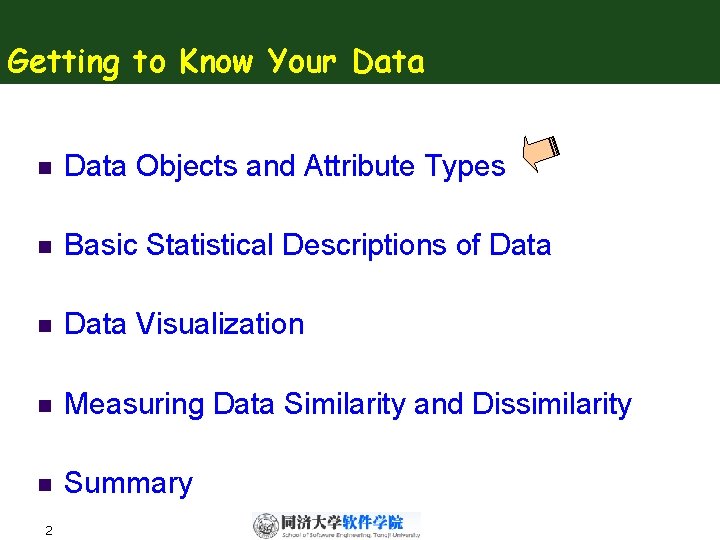

Getting to Know Your Data n Data Objects and Attribute Types n Basic Statistical Descriptions of Data n Data Visualization n Measuring Data Similarity and Dissimilarity n Summary 2

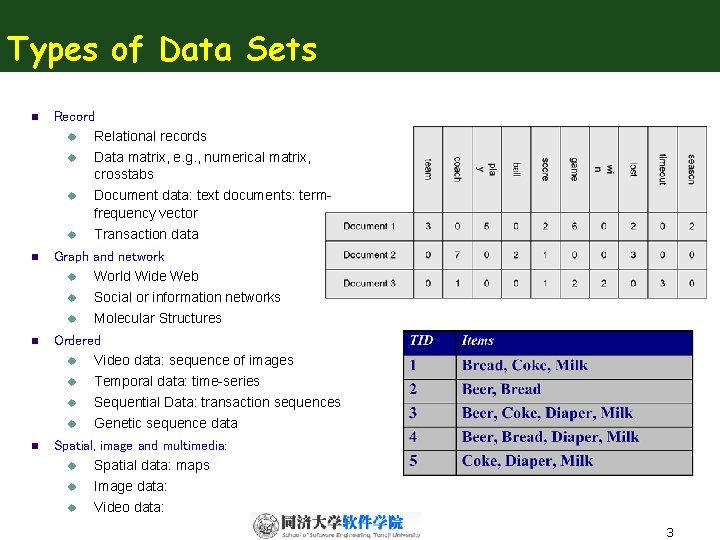

Types of Data Sets n Record u Relational records u u u Data matrix, e. g. , numerical matrix, crosstabs Document data: text documents: termfrequency vector Transaction data n Graph and network u World Wide Web u Social or information networks u Molecular Structures n Ordered u Video data: sequence of images u Temporal data: time-series u Sequential Data: transaction sequences u Genetic sequence data n Spatial, image and multimedia: u Spatial data: maps u Image data: u Video data: 3

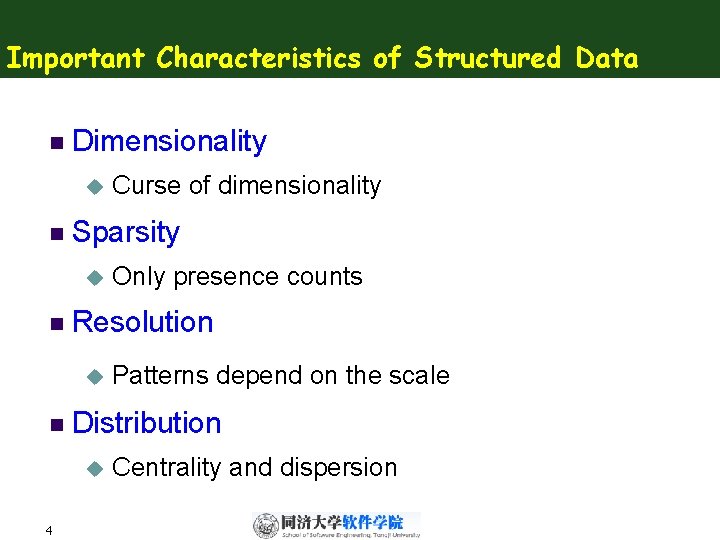

Important Characteristics of Structured Data n Dimensionality u n Sparsity u n Patterns depend on the scale Distribution u 4 Only presence counts Resolution u n Curse of dimensionality Centrality and dispersion

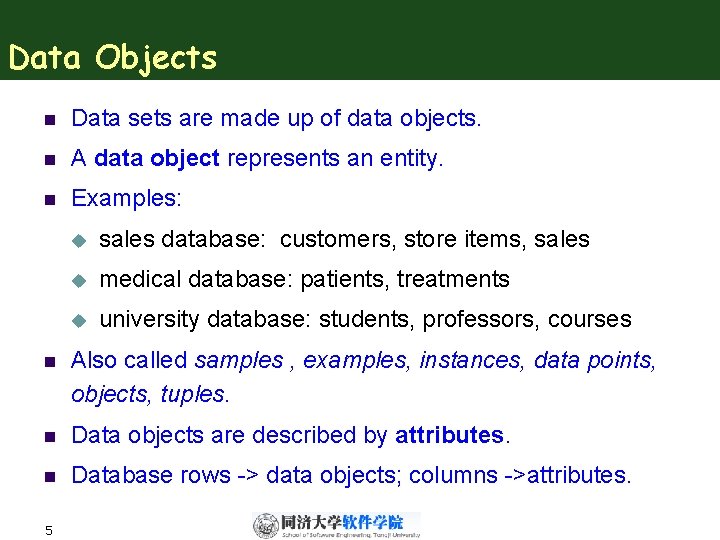

Data Objects n Data sets are made up of data objects. n A data object represents an entity. n Examples: u sales database: customers, store items, sales u medical database: patients, treatments u university database: students, professors, courses n Also called samples , examples, instances, data points, objects, tuples. n Data objects are described by attributes. n Database rows -> data objects; columns ->attributes. 5

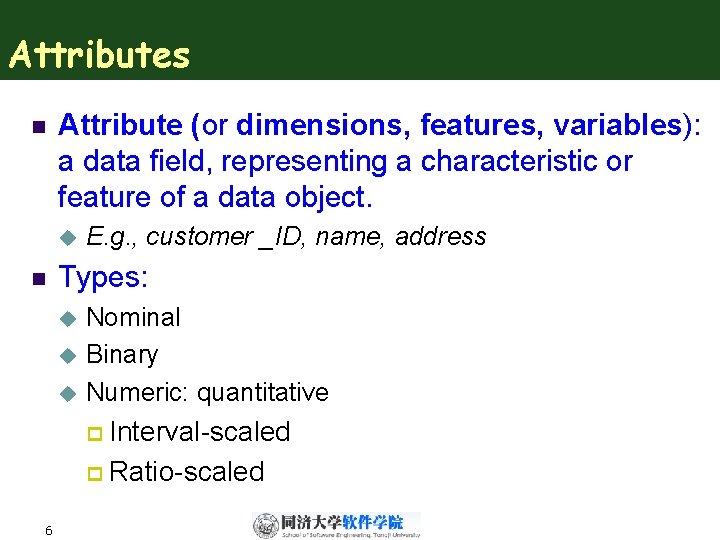

Attributes n Attribute (or dimensions, features, variables): a data field, representing a characteristic or feature of a data object. u n E. g. , customer _ID, name, address Types: u u u Nominal Binary Numeric: quantitative p Interval-scaled p Ratio-scaled 6

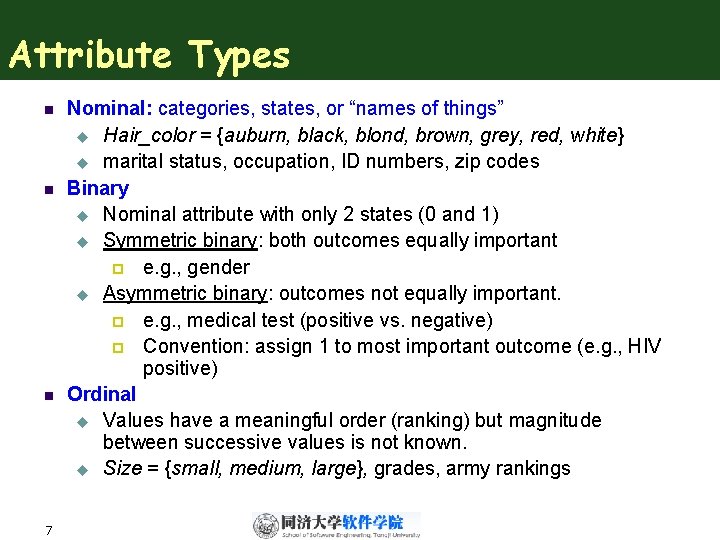

Attribute Types n n n 7 Nominal: categories, states, or “names of things” u Hair_color = {auburn, black, blond, brown, grey, red, white} u marital status, occupation, ID numbers, zip codes Binary u Nominal attribute with only 2 states (0 and 1) u Symmetric binary: both outcomes equally important p e. g. , gender u Asymmetric binary: outcomes not equally important. p e. g. , medical test (positive vs. negative) p Convention: assign 1 to most important outcome (e. g. , HIV positive) Ordinal u Values have a meaningful order (ranking) but magnitude between successive values is not known. u Size = {small, medium, large}, grades, army rankings

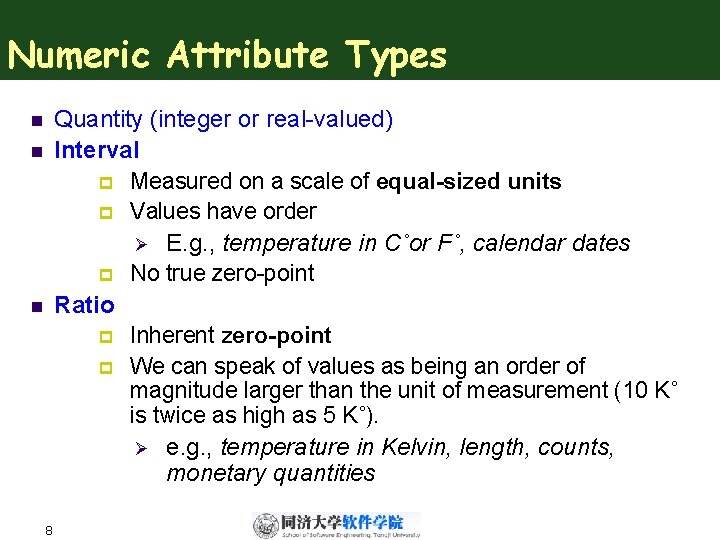

Numeric Attribute Types Quantity (integer or real-valued) Interval p Measured on a scale of equal-sized units p Values have order Ø E. g. , temperature in C˚or F˚, calendar dates p No true zero-point Ratio p Inherent zero-point p We can speak of values as being an order of magnitude larger than the unit of measurement (10 K˚ is twice as high as 5 K˚). Ø e. g. , temperature in Kelvin, length, counts, monetary quantities n n n 8

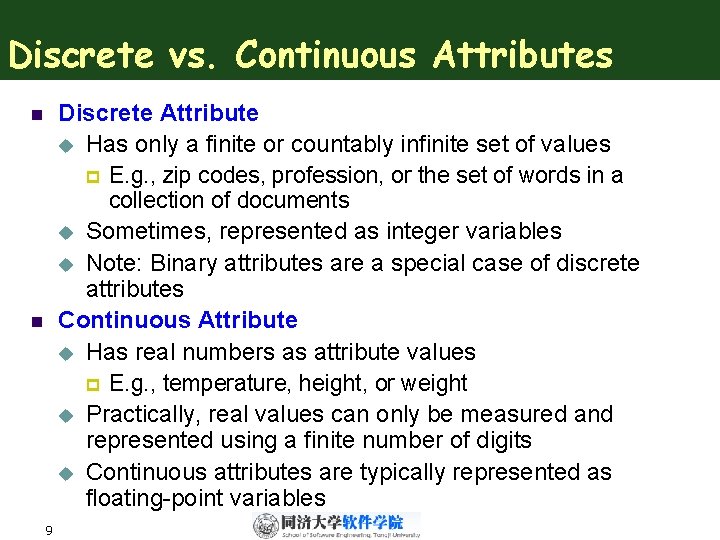

Discrete vs. Continuous Attributes Discrete Attribute u Has only a finite or countably infinite set of values p E. g. , zip codes, profession, or the set of words in a collection of documents u Sometimes, represented as integer variables u Note: Binary attributes are a special case of discrete attributes Continuous Attribute u Has real numbers as attribute values p E. g. , temperature, height, or weight u Practically, real values can only be measured and represented using a finite number of digits u Continuous attributes are typically represented as floating-point variables n n 9

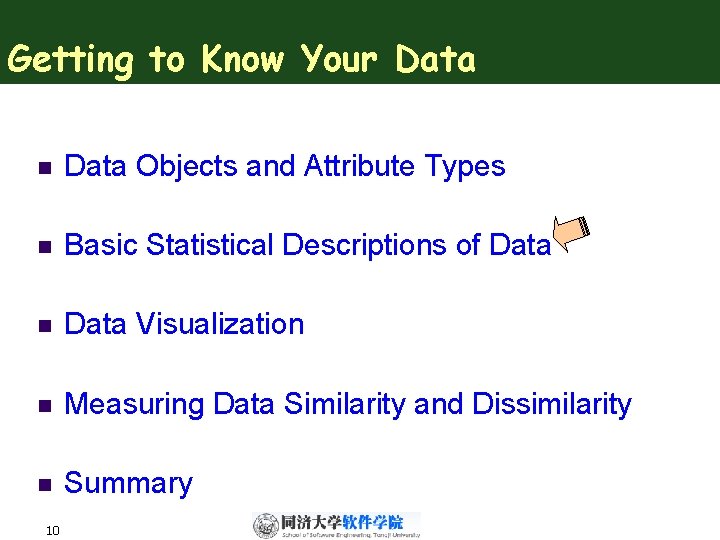

Getting to Know Your Data n Data Objects and Attribute Types n Basic Statistical Descriptions of Data n Data Visualization n Measuring Data Similarity and Dissimilarity n Summary 10

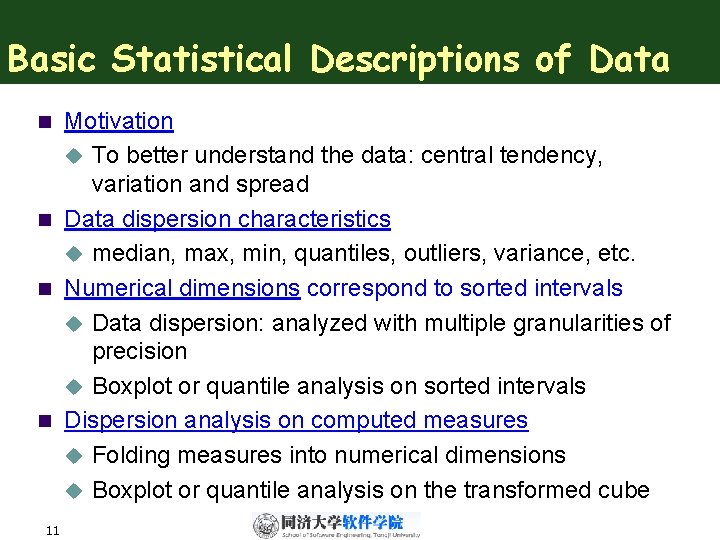

Basic Statistical Descriptions of Data Motivation u To better understand the data: central tendency, variation and spread n Data dispersion characteristics u median, max, min, quantiles, outliers, variance, etc. n Numerical dimensions correspond to sorted intervals u Data dispersion: analyzed with multiple granularities of precision u Boxplot or quantile analysis on sorted intervals n Dispersion analysis on computed measures u Folding measures into numerical dimensions u Boxplot or quantile analysis on the transformed cube n 11

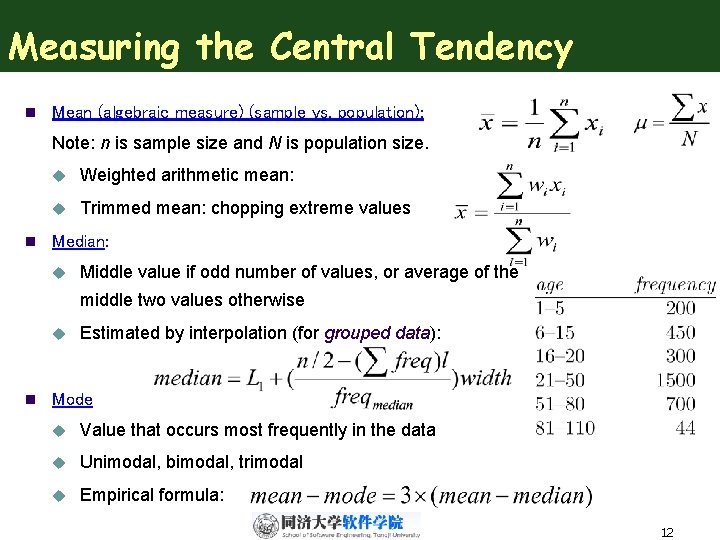

Measuring the Central Tendency n Mean (algebraic measure) (sample vs. population): Note: n is sample size and N is population size. n u Weighted arithmetic mean: u Trimmed mean: chopping extreme values Median: u Middle value if odd number of values, or average of the middle two values otherwise u n Estimated by interpolation (for grouped data): Mode u Value that occurs most frequently in the data u Unimodal, bimodal, trimodal u Empirical formula: 12

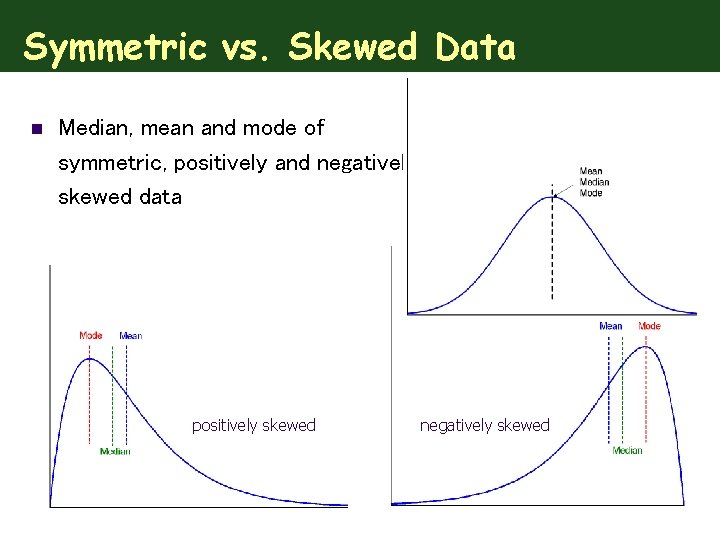

Symmetric vs. Skewed Data n Median, mean and mode of symmetric, positively and negatively skewed data positively skewed 30 November 2020 symmetric negatively skewed Data Mining: Concepts and Techniques 13

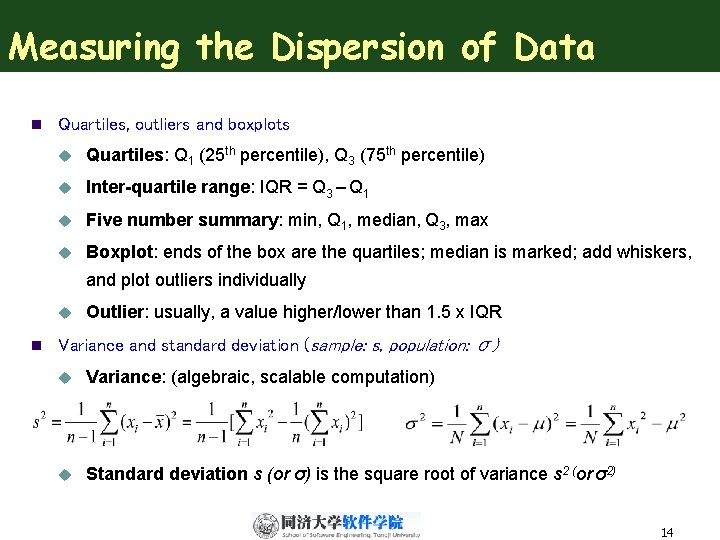

Measuring the Dispersion of Data n Quartiles, outliers and boxplots u Quartiles: Q 1 (25 th percentile), Q 3 (75 th percentile) u Inter-quartile range: IQR = Q 3 – Q 1 u Five number summary: min, Q 1, median, Q 3, max u Boxplot: ends of the box are the quartiles; median is marked; add whiskers, and plot outliers individually u n Outlier: usually, a value higher/lower than 1. 5 x IQR Variance and standard deviation (sample: s, population: σ) u Variance: (algebraic, scalable computation) u Standard deviation s (or σ) is the square root of variance s 2 (or σ2) 14

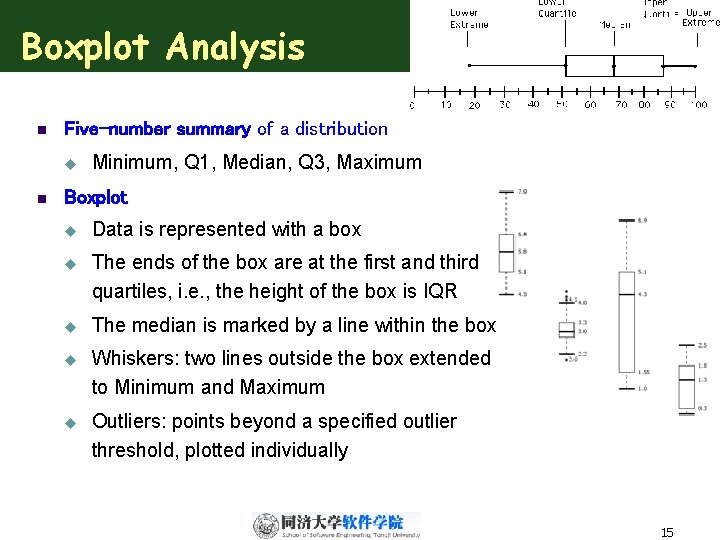

Boxplot Analysis n Five-number summary of a distribution u n Minimum, Q 1, Median, Q 3, Maximum Boxplot u Data is represented with a box u The ends of the box are at the first and third quartiles, i. e. , the height of the box is IQR u The median is marked by a line within the box u Whiskers: two lines outside the box extended to Minimum and Maximum u Outliers: points beyond a specified outlier threshold, plotted individually 15

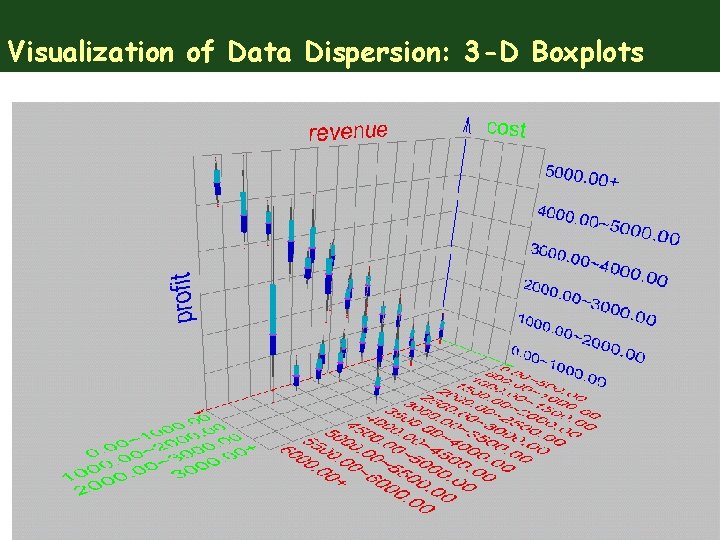

Visualization of Data Dispersion: 3 -D Boxplots 30 November 2020 16 Data Mining: Concepts and Techniques

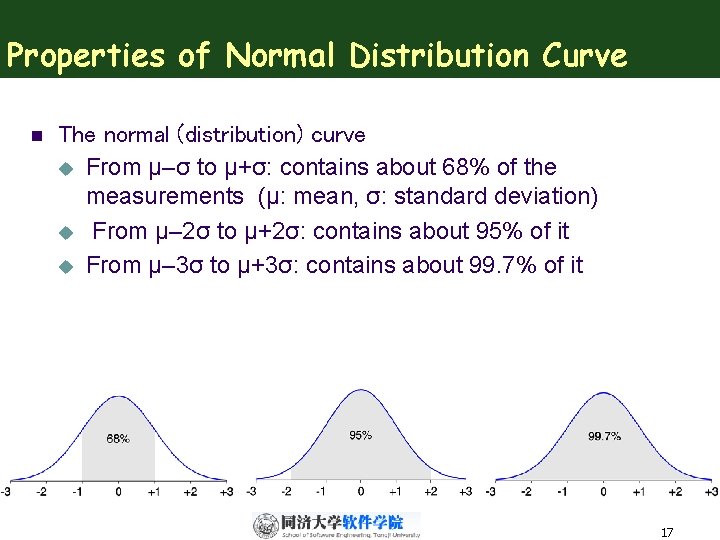

Properties of Normal Distribution Curve n The normal (distribution) curve u From μ–σ to μ+σ: contains about 68% of the measurements (μ: mean, σ: standard deviation) u From μ– 2σ to μ+2σ: contains about 95% of it u From μ– 3σ to μ+3σ: contains about 99. 7% of it 17

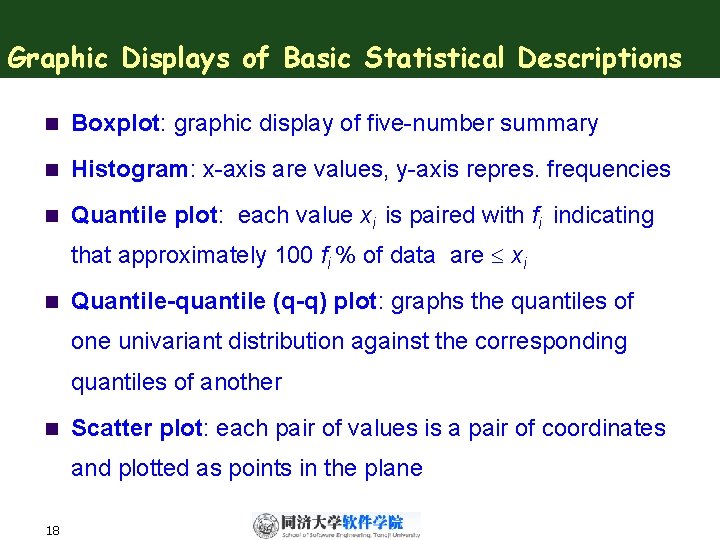

Graphic Displays of Basic Statistical Descriptions n Boxplot: graphic display of five-number summary n Histogram: x-axis are values, y-axis repres. frequencies n Quantile plot: each value xi is paired with fi indicating that approximately 100 fi % of data are xi n Quantile-quantile (q-q) plot: graphs the quantiles of one univariant distribution against the corresponding quantiles of another n Scatter plot: each pair of values is a pair of coordinates and plotted as points in the plane 18

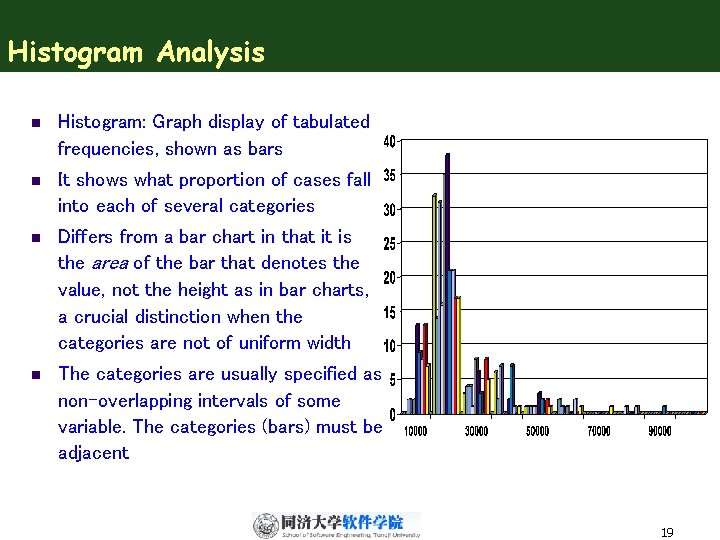

Histogram Analysis n Histogram: Graph display of tabulated frequencies, shown as bars n It shows what proportion of cases fall into each of several categories n Differs from a bar chart in that it is the area of the bar that denotes the value, not the height as in bar charts, a crucial distinction when the categories are not of uniform width n The categories are usually specified as non-overlapping intervals of some variable. The categories (bars) must be adjacent 19

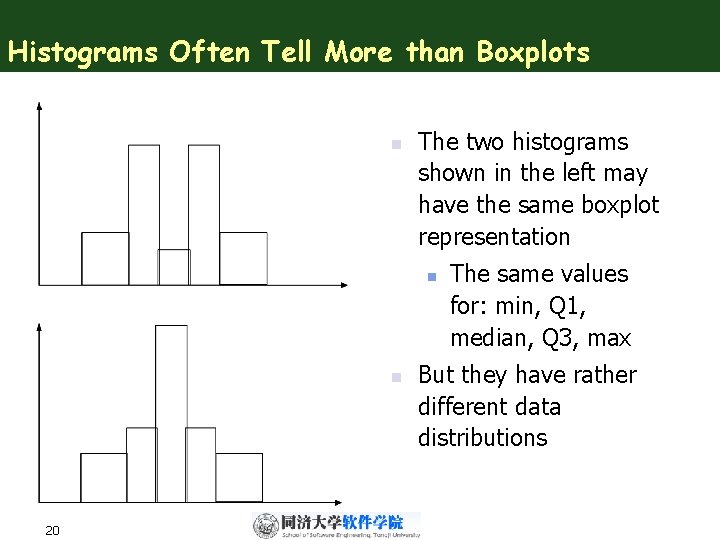

Histograms Often Tell More than Boxplots n The two histograms shown in the left may have the same boxplot representation n n 20 The same values for: min, Q 1, median, Q 3, max But they have rather different data distributions

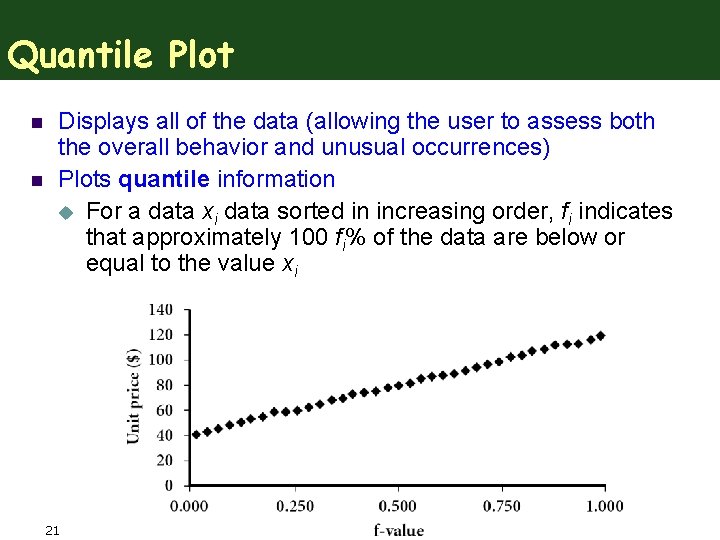

Quantile Plot n n Displays all of the data (allowing the user to assess both the overall behavior and unusual occurrences) Plots quantile information u For a data xi data sorted in increasing order, fi indicates that approximately 100 fi% of the data are below or equal to the value xi 21 Data Mining: Concepts and Techniques

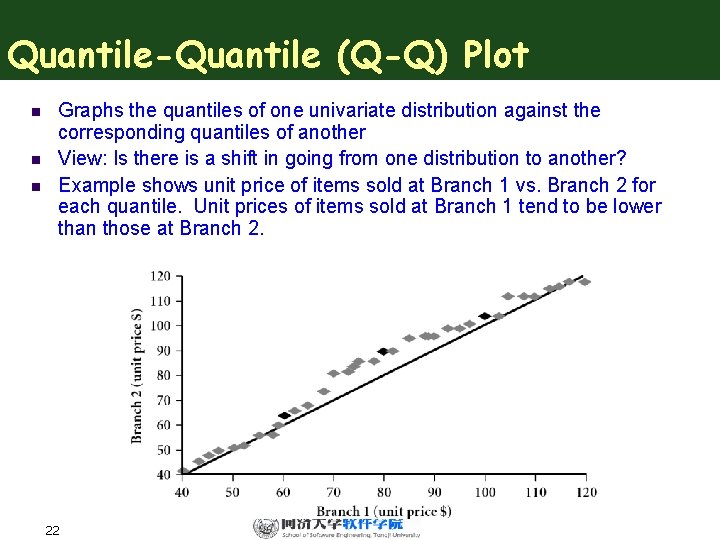

Quantile-Quantile (Q-Q) Plot n n n Graphs the quantiles of one univariate distribution against the corresponding quantiles of another View: Is there is a shift in going from one distribution to another? Example shows unit price of items sold at Branch 1 vs. Branch 2 for each quantile. Unit prices of items sold at Branch 1 tend to be lower than those at Branch 2. 22

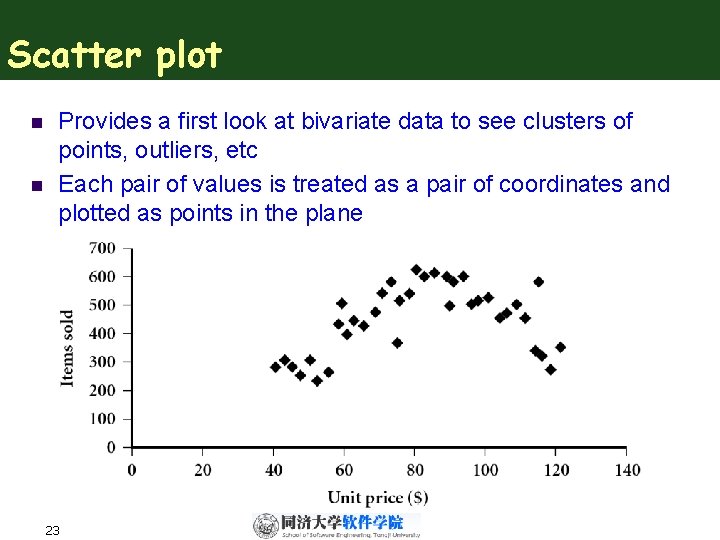

Scatter plot n n Provides a first look at bivariate data to see clusters of points, outliers, etc Each pair of values is treated as a pair of coordinates and plotted as points in the plane 23

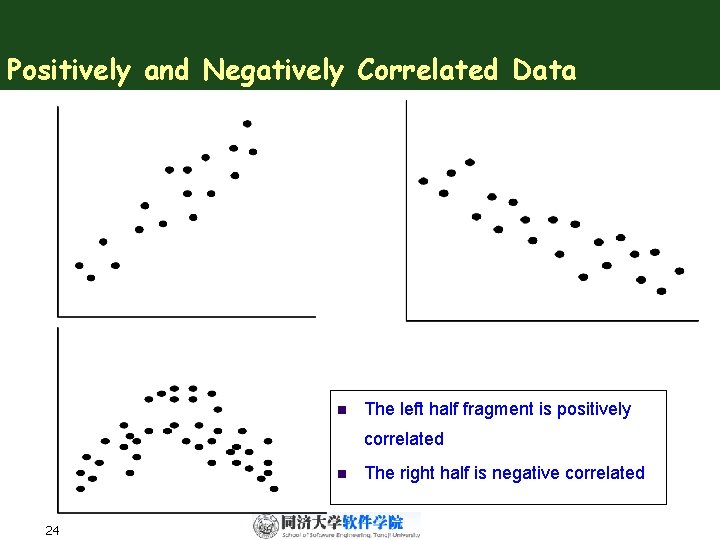

Positively and Negatively Correlated Data n The left half fragment is positively correlated n 24 The right half is negative correlated

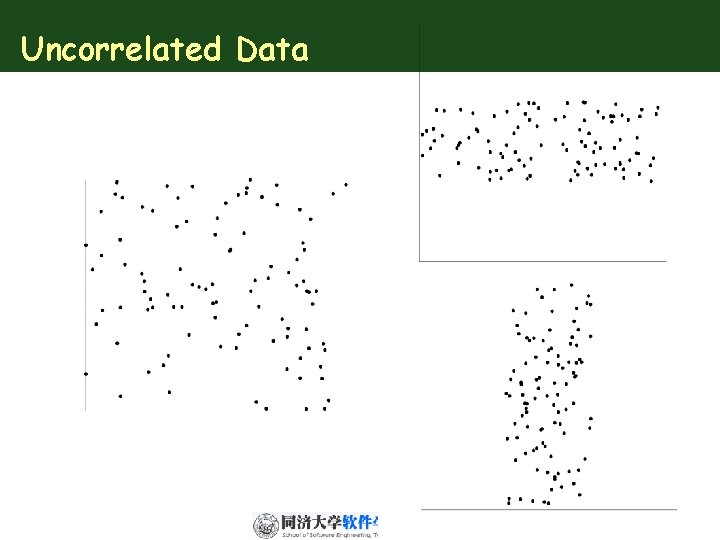

Uncorrelated Data 25

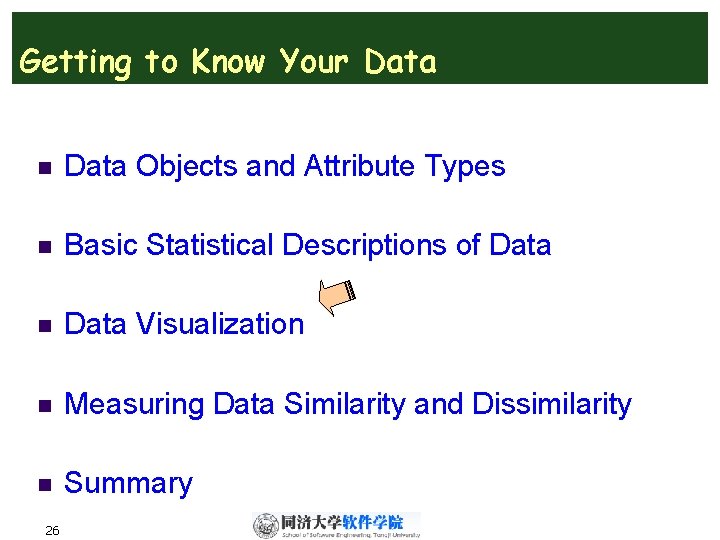

Getting to Know Your Data n Data Objects and Attribute Types n Basic Statistical Descriptions of Data n Data Visualization n Measuring Data Similarity and Dissimilarity n Summary 26

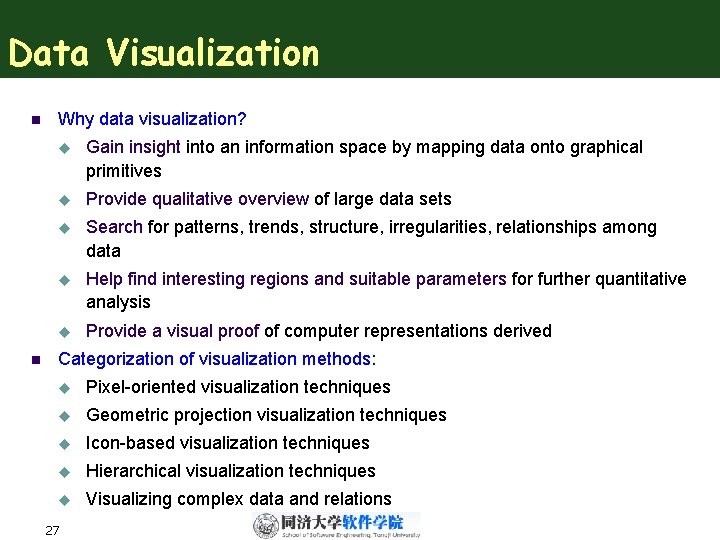

Data Visualization n n Why data visualization? u Gain insight into an information space by mapping data onto graphical primitives u Provide qualitative overview of large data sets u Search for patterns, trends, structure, irregularities, relationships among data u Help find interesting regions and suitable parameters for further quantitative analysis u Provide a visual proof of computer representations derived Categorization of visualization methods: u Pixel-oriented visualization techniques u Geometric projection visualization techniques u Icon-based visualization techniques u Hierarchical visualization techniques u Visualizing complex data and relations 27

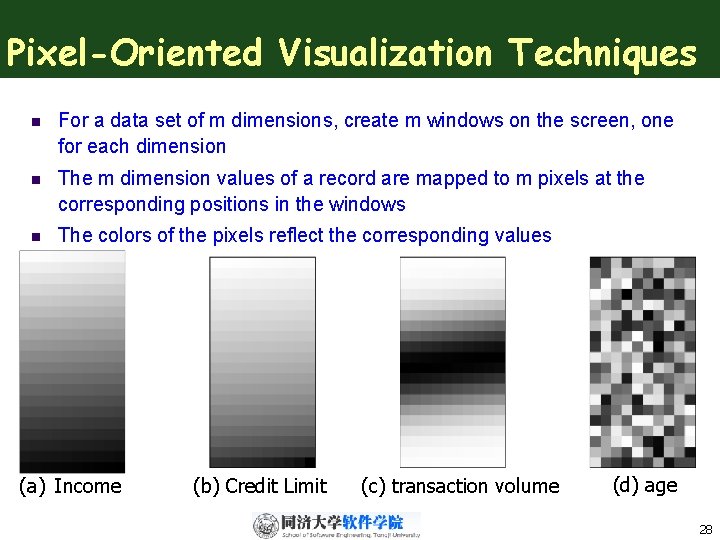

Pixel-Oriented Visualization Techniques n For a data set of m dimensions, create m windows on the screen, one for each dimension n The m dimension values of a record are mapped to m pixels at the corresponding positions in the windows n The colors of the pixels reflect the corresponding values (a) Income (b) Credit Limit (c) transaction volume (d) age 28

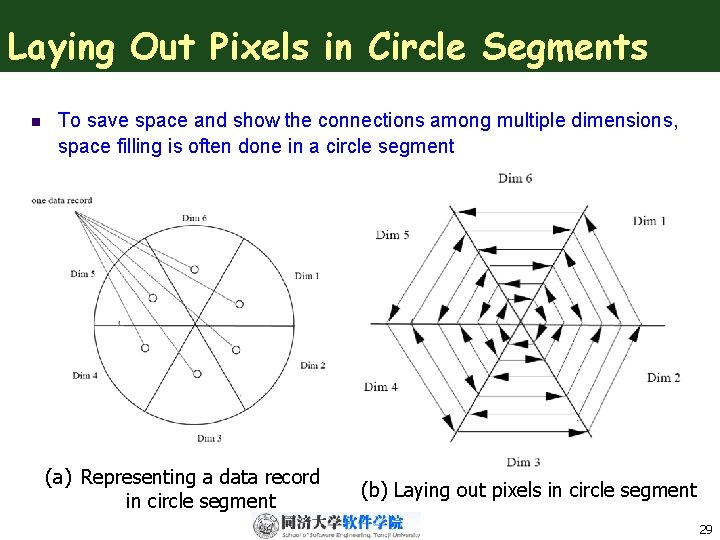

Laying Out Pixels in Circle Segments n To save space and show the connections among multiple dimensions, space filling is often done in a circle segment (a) Representing a data record in circle segment (b) Laying out pixels in circle segment 29

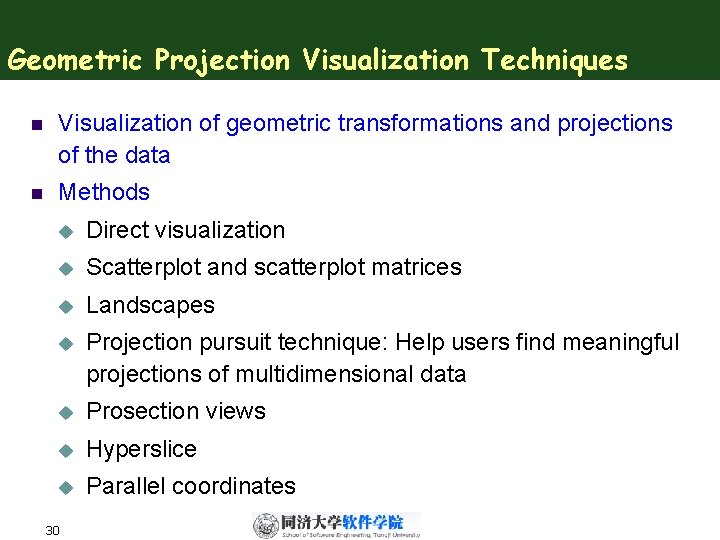

Geometric Projection Visualization Techniques n Visualization of geometric transformations and projections of the data n Methods u Direct visualization u Scatterplot and scatterplot matrices u Landscapes u Projection pursuit technique: Help users find meaningful projections of multidimensional data u Prosection views u Hyperslice u Parallel coordinates 30

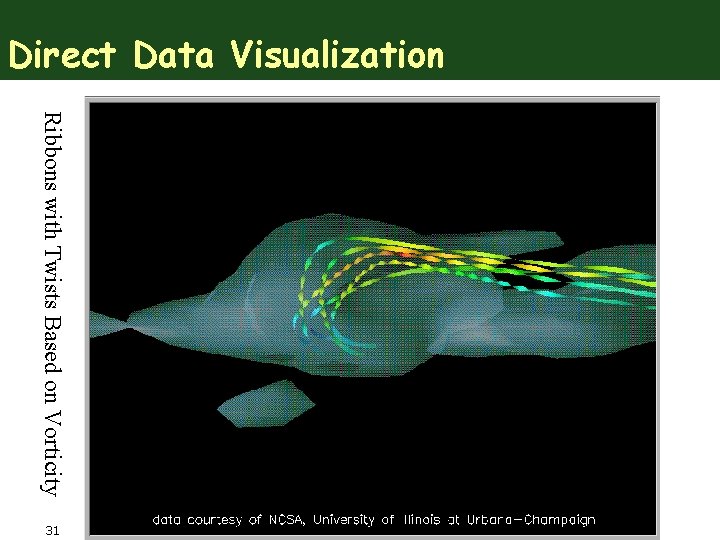

Direct Data Visualization Ribbons with Twists Based on Vorticity 31 Data Mining: Concepts and Techniques

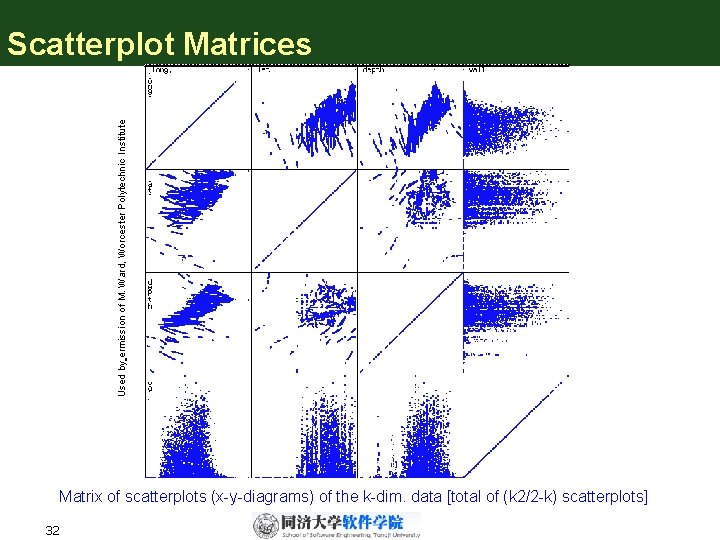

Used by ermission of M. Ward, Worcester Polytechnic Institute Scatterplot Matrices Matrix of scatterplots (x-y-diagrams) of the k-dim. data [total of (k 2/2 -k) scatterplots] 32

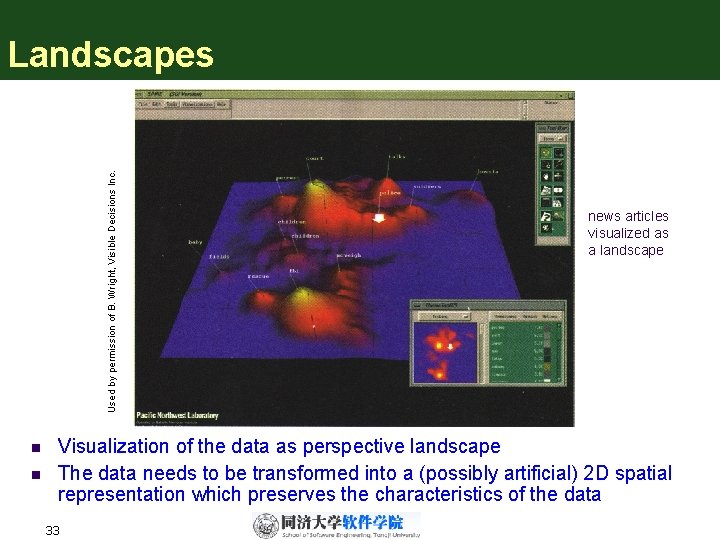

Used by permission of B. Wright, Visible Decisions Inc. Landscapes n n news articles visualized as a landscape Visualization of the data as perspective landscape The data needs to be transformed into a (possibly artificial) 2 D spatial representation which preserves the characteristics of the data 33

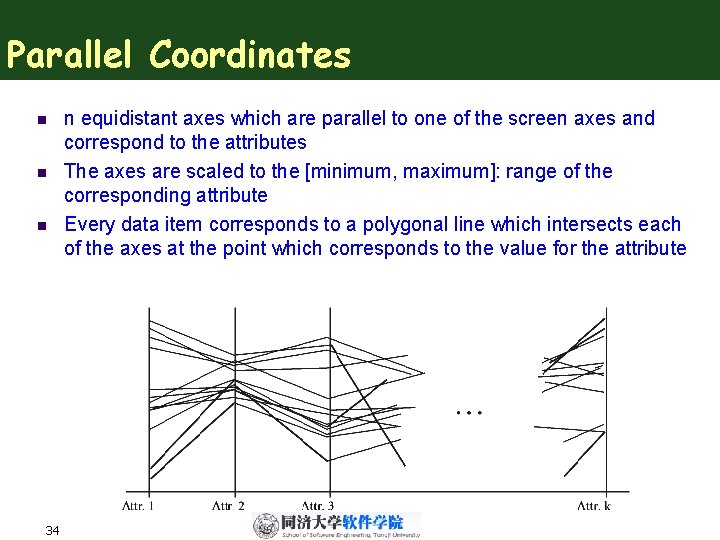

Parallel Coordinates n n n 34 n equidistant axes which are parallel to one of the screen axes and correspond to the attributes The axes are scaled to the [minimum, maximum]: range of the corresponding attribute Every data item corresponds to a polygonal line which intersects each of the axes at the point which corresponds to the value for the attribute

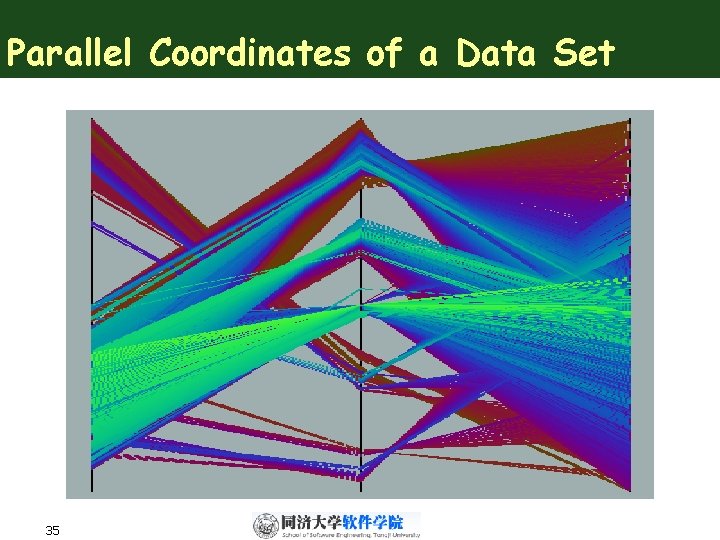

Parallel Coordinates of a Data Set 35

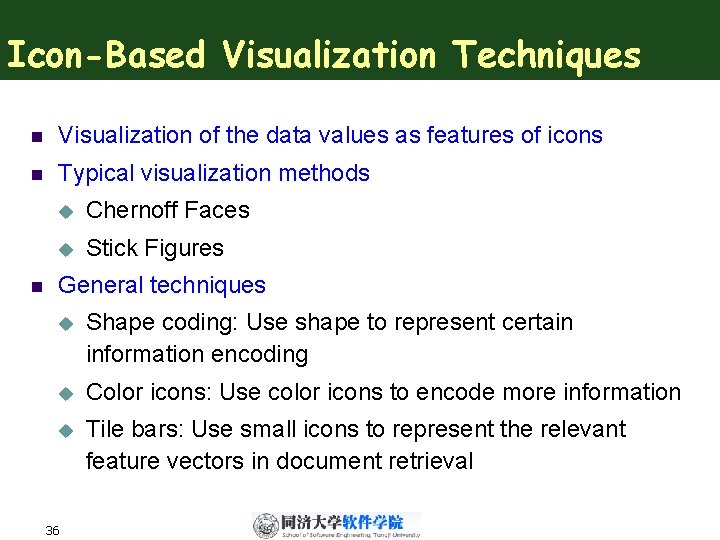

Icon-Based Visualization Techniques n Visualization of the data values as features of icons n Typical visualization methods n u Chernoff Faces u Stick Figures General techniques u Shape coding: Use shape to represent certain information encoding u Color icons: Use color icons to encode more information u Tile bars: Use small icons to represent the relevant feature vectors in document retrieval 36

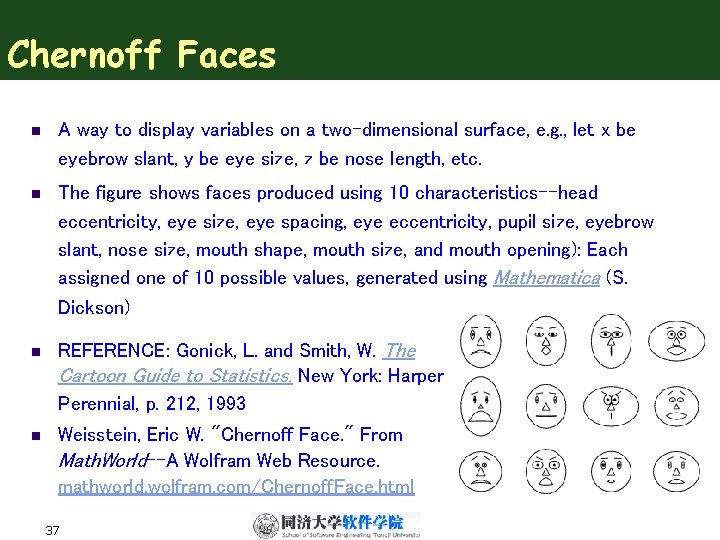

Chernoff Faces n A way to display variables on a two-dimensional surface, e. g. , let x be eyebrow slant, y be eye size, z be nose length, etc. n The figure shows faces produced using 10 characteristics--head eccentricity, eye size, eye spacing, eye eccentricity, pupil size, eyebrow slant, nose size, mouth shape, mouth size, and mouth opening): Each assigned one of 10 possible values, generated using Mathematica (S. Dickson) n REFERENCE: Gonick, L. and Smith, W. The Cartoon Guide to Statistics. New York: Harper Perennial, p. 212, 1993 n Weisstein, Eric W. "Chernoff Face. " From Math. World--A Wolfram Web Resource. mathworld. wolfram. com/Chernoff. Face. html 37

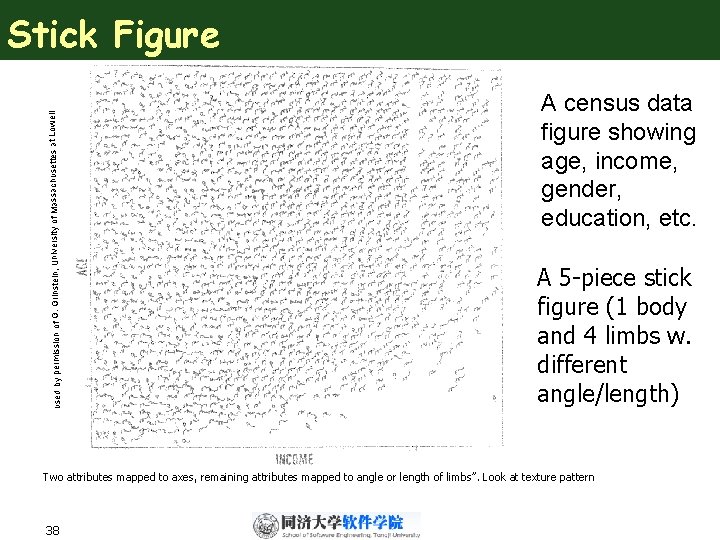

used by permission of G. Grinstein, University of Massachusettes at Lowell Stick Figure A census data figure showing age, income, gender, education, etc. A 5 -piece stick figure (1 body and 4 limbs w. different angle/length) Two attributes mapped to axes, remaining attributes mapped to angle or length of limbs”. Look at texture pattern 38

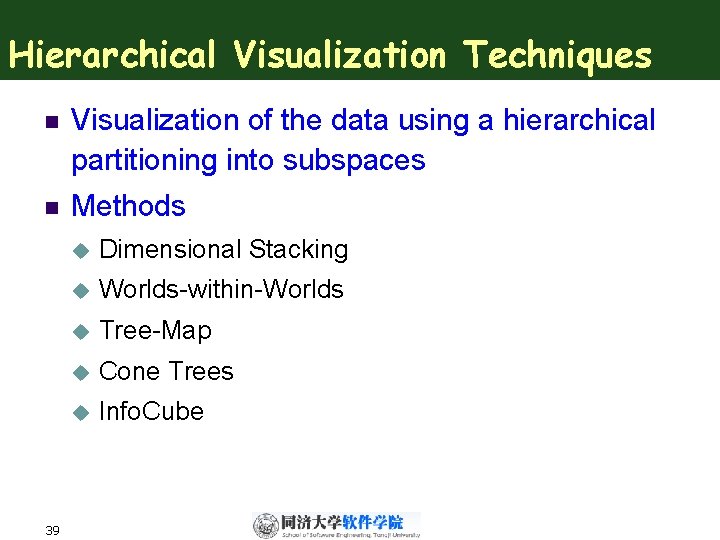

Hierarchical Visualization Techniques n Visualization of the data using a hierarchical partitioning into subspaces n Methods 39 u Dimensional Stacking u Worlds-within-Worlds u Tree-Map u Cone Trees u Info. Cube

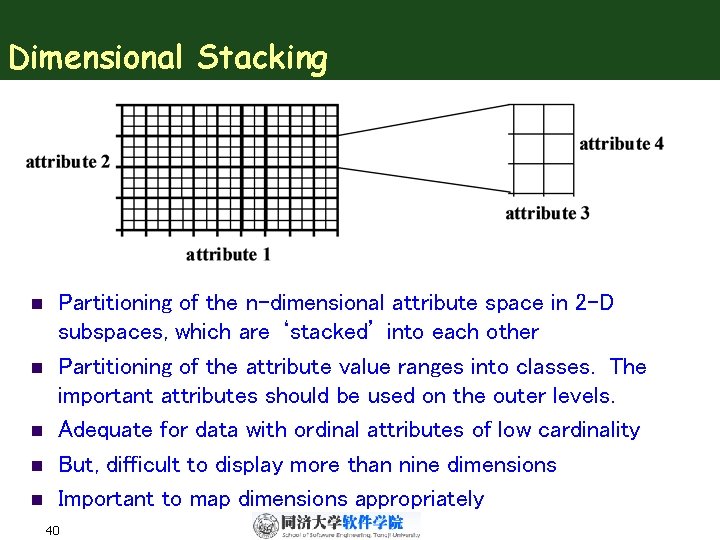

Dimensional Stacking n n n Partitioning of the n-dimensional attribute space in 2 -D subspaces, which are ‘stacked’ into each other Partitioning of the attribute value ranges into classes. The important attributes should be used on the outer levels. Adequate for data with ordinal attributes of low cardinality But, difficult to display more than nine dimensions Important to map dimensions appropriately 40

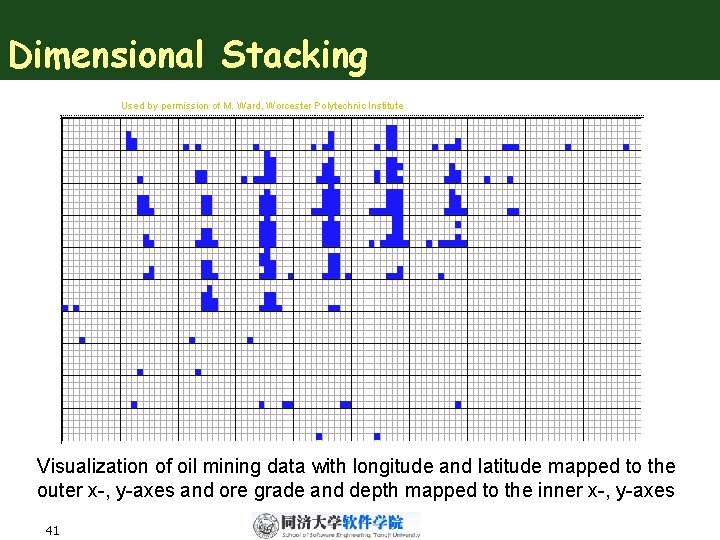

Dimensional Stacking Used by permission of M. Ward, Worcester Polytechnic Institute Visualization of oil mining data with longitude and latitude mapped to the outer x-, y-axes and ore grade and depth mapped to the inner x-, y-axes 41

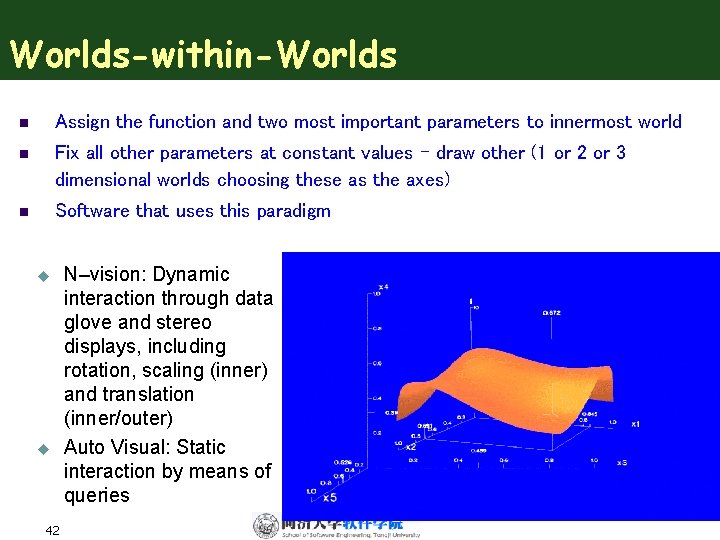

Worlds-within-Worlds n Assign the function and two most important parameters to innermost world n Fix all other parameters at constant values - draw other (1 or 2 or 3 dimensional worlds choosing these as the axes) n Software that uses this paradigm u u 42 N–vision: Dynamic interaction through data glove and stereo displays, including rotation, scaling (inner) and translation (inner/outer) Auto Visual: Static interaction by means of queries

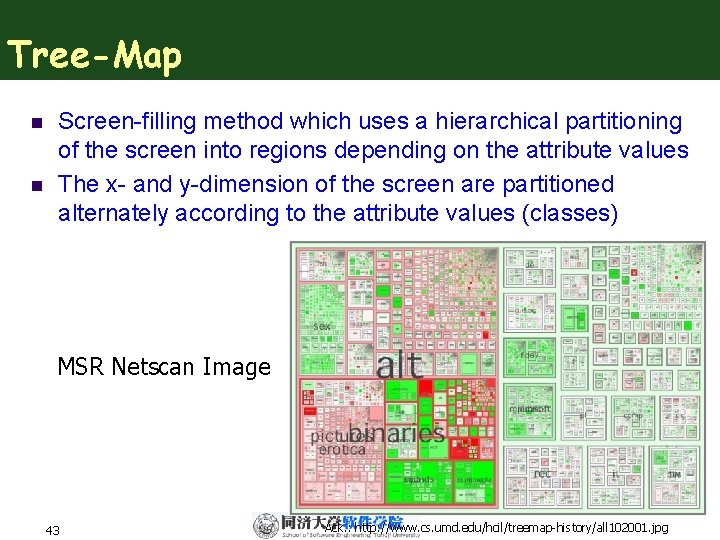

Tree-Map n n Screen-filling method which uses a hierarchical partitioning of the screen into regions depending on the attribute values The x- and y-dimension of the screen are partitioned alternately according to the attribute values (classes) MSR Netscan Image 43 Ack. : http: //www. cs. umd. edu/hcil/treemap-history/all 102001. jpg

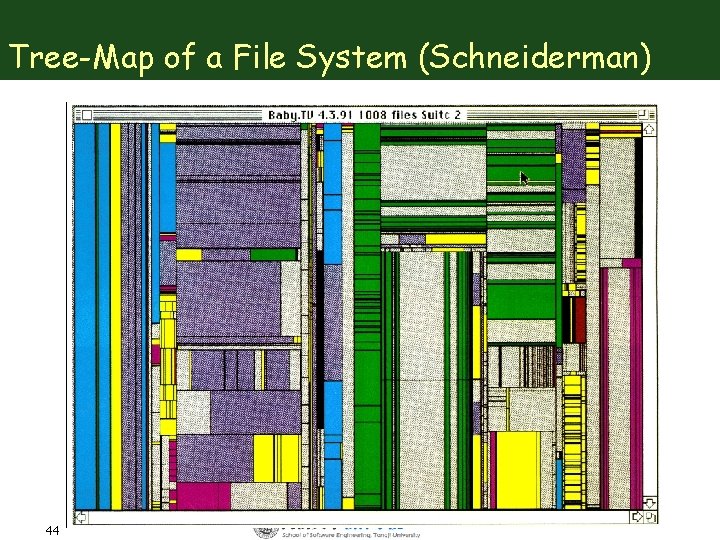

Tree-Map of a File System (Schneiderman) 44

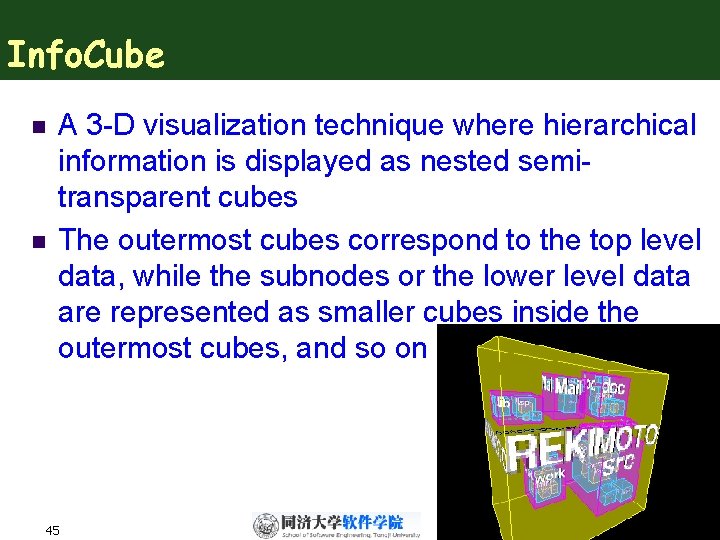

Info. Cube n n A 3 -D visualization technique where hierarchical information is displayed as nested semitransparent cubes The outermost cubes correspond to the top level data, while the subnodes or the lower level data are represented as smaller cubes inside the outermost cubes, and so on 45

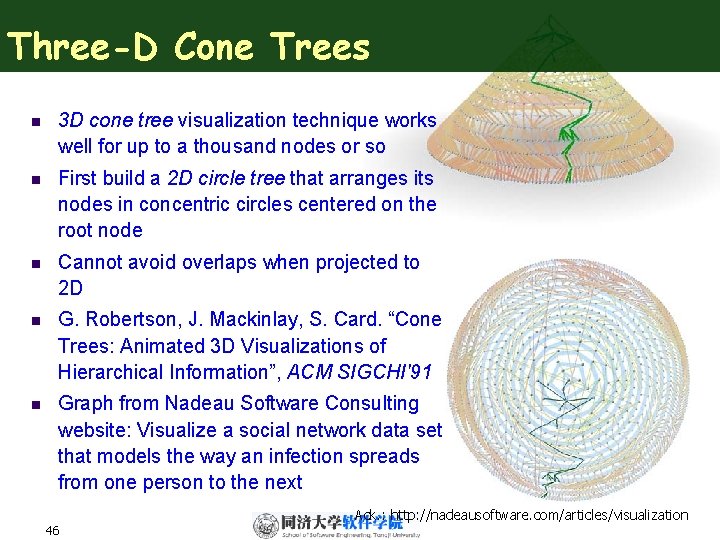

Three-D Cone Trees n 3 D cone tree visualization technique works well for up to a thousand nodes or so n First build a 2 D circle tree that arranges its nodes in concentric circles centered on the root node n Cannot avoid overlaps when projected to 2 D n G. Robertson, J. Mackinlay, S. Card. “Cone Trees: Animated 3 D Visualizations of Hierarchical Information”, ACM SIGCHI'91 n Graph from Nadeau Software Consulting website: Visualize a social network data set that models the way an infection spreads from one person to the next Ack. : http: //nadeausoftware. com/articles/visualization 46

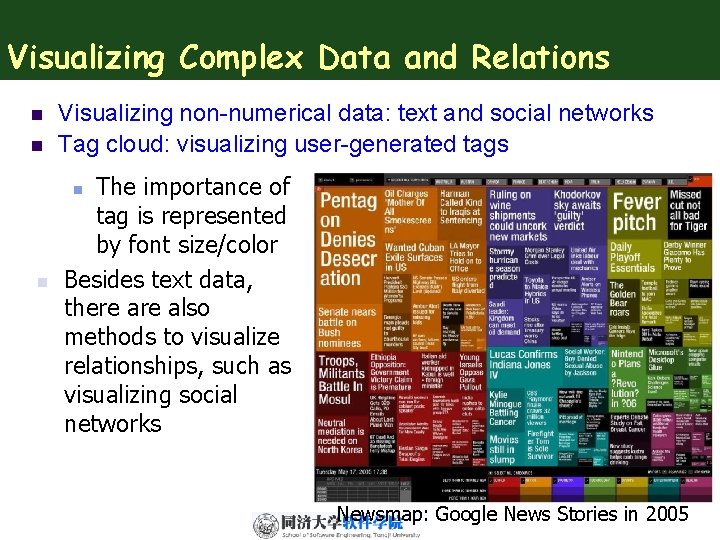

Visualizing Complex Data and Relations n n Visualizing non-numerical data: text and social networks Tag cloud: visualizing user-generated tags The importance of tag is represented by font size/color Besides text data, there also methods to visualize relationships, such as visualizing social networks n n Newsmap: Google News Stories in 2005

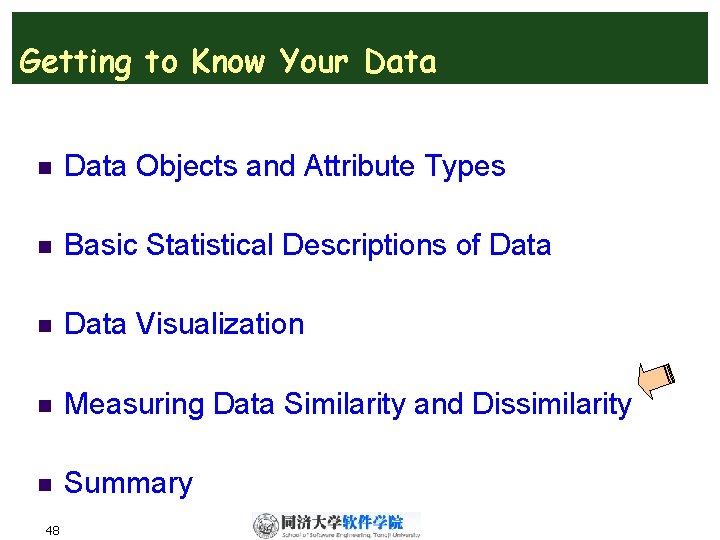

Getting to Know Your Data n Data Objects and Attribute Types n Basic Statistical Descriptions of Data n Data Visualization n Measuring Data Similarity and Dissimilarity n Summary 48

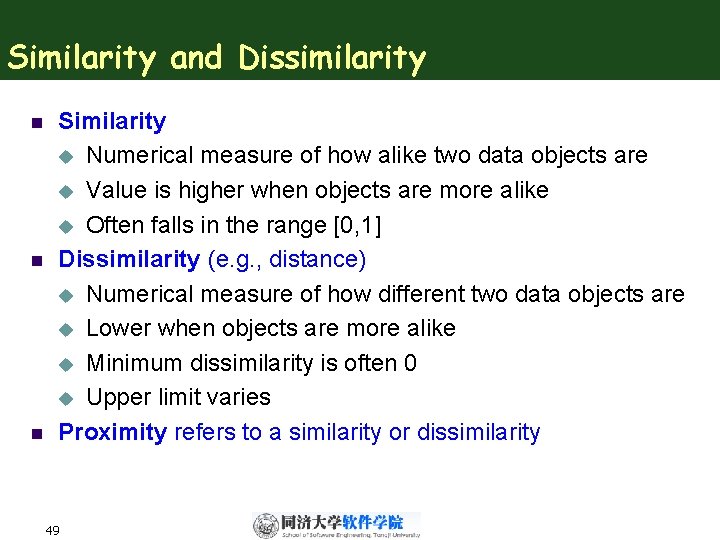

Similarity and Dissimilarity n n n Similarity u Numerical measure of how alike two data objects are u Value is higher when objects are more alike u Often falls in the range [0, 1] Dissimilarity (e. g. , distance) u Numerical measure of how different two data objects are u Lower when objects are more alike u Minimum dissimilarity is often 0 u Upper limit varies Proximity refers to a similarity or dissimilarity 49

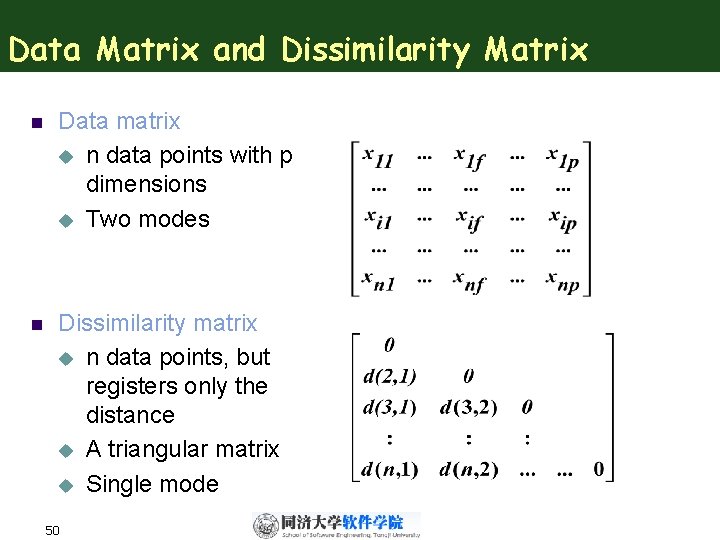

Data Matrix and Dissimilarity Matrix n Data matrix u n data points with p dimensions u Two modes n Dissimilarity matrix u n data points, but registers only the distance u A triangular matrix u Single mode 50

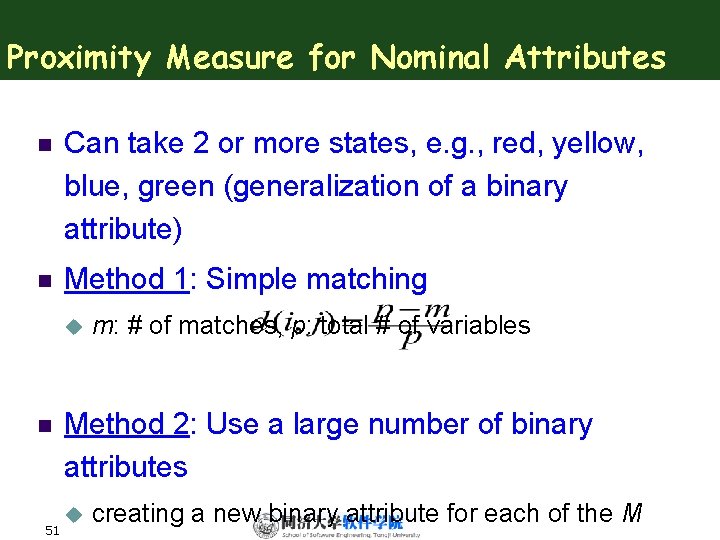

Proximity Measure for Nominal Attributes n Can take 2 or more states, e. g. , red, yellow, blue, green (generalization of a binary attribute) n Method 1: Simple matching u n 51 m: # of matches, p: total # of variables Method 2: Use a large number of binary attributes u creating a new binary attribute for each of the M

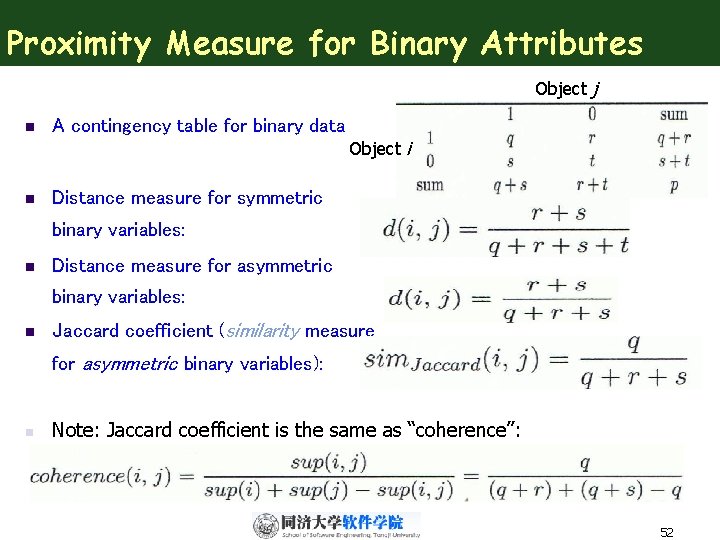

Proximity Measure for Binary Attributes Object j n A contingency table for binary data Object i n Distance measure for symmetric binary variables: n Distance measure for asymmetric binary variables: n Jaccard coefficient (similarity measure for asymmetric binary variables): n Note: Jaccard coefficient is the same as “coherence”: 52

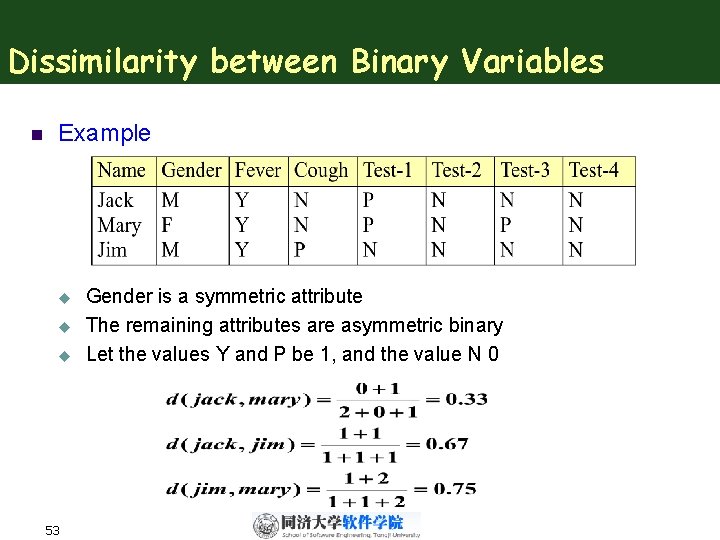

Dissimilarity between Binary Variables n Example u u u 53 Gender is a symmetric attribute The remaining attributes are asymmetric binary Let the values Y and P be 1, and the value N 0

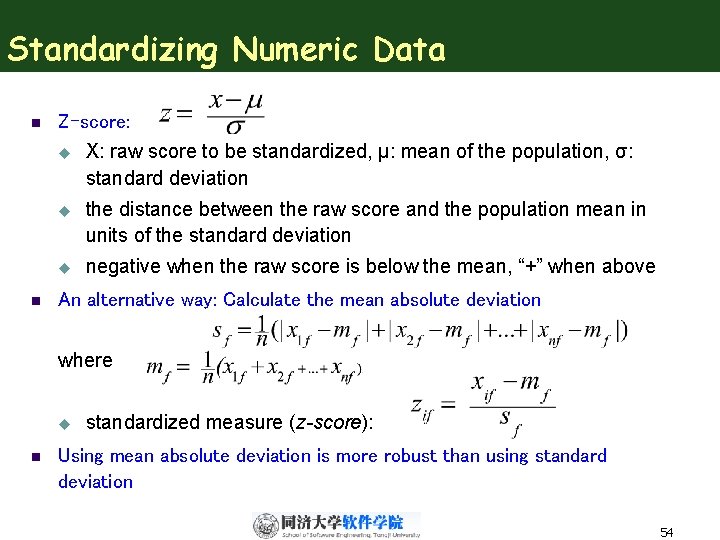

Standardizing Numeric Data n n Z-score: u X: raw score to be standardized, μ: mean of the population, σ: standard deviation u the distance between the raw score and the population mean in units of the standard deviation u negative when the raw score is below the mean, “+” when above An alternative way: Calculate the mean absolute deviation where u n standardized measure (z-score): Using mean absolute deviation is more robust than using standard deviation 54

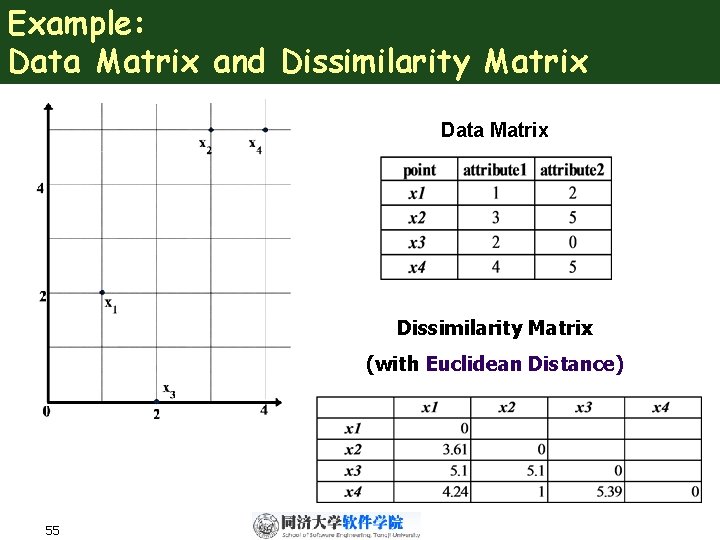

Example: Data Matrix and Dissimilarity Matrix Data Matrix Dissimilarity Matrix (with Euclidean Distance) 55

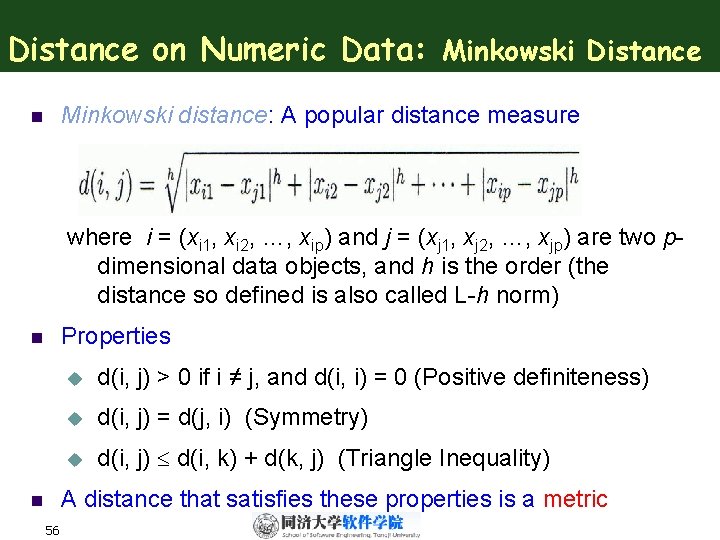

Distance on Numeric Data: Minkowski Distance Minkowski distance: A popular distance measure n where i = (xi 1, xi 2, …, xip) and j = (xj 1, xj 2, …, xjp) are two pdimensional data objects, and h is the order (the distance so defined is also called L-h norm) Properties n u d(i, j) > 0 if i ≠ j, and d(i, i) = 0 (Positive definiteness) u d(i, j) = d(j, i) (Symmetry) u d(i, j) d(i, k) + d(k, j) (Triangle Inequality) A distance that satisfies these properties is a metric n 56

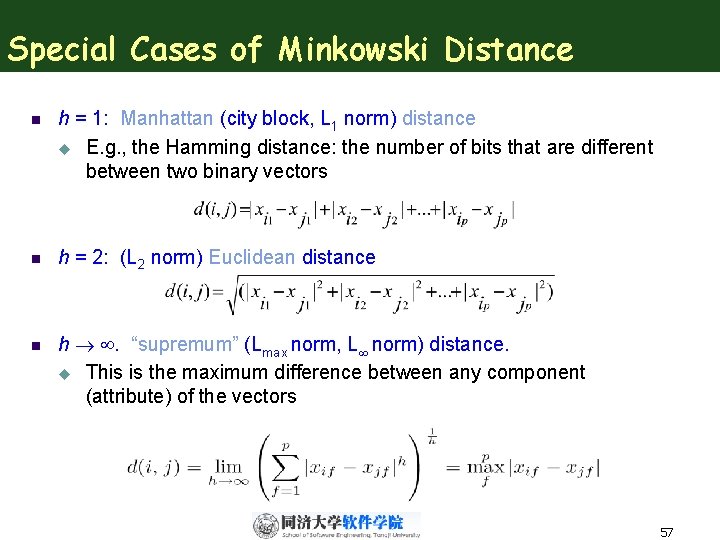

Special Cases of Minkowski Distance n h = 1: Manhattan (city block, L 1 norm) distance u E. g. , the Hamming distance: the number of bits that are different between two binary vectors n h = 2: (L 2 norm) Euclidean distance n h . “supremum” (Lmax norm, L norm) distance. u This is the maximum difference between any component (attribute) of the vectors 57

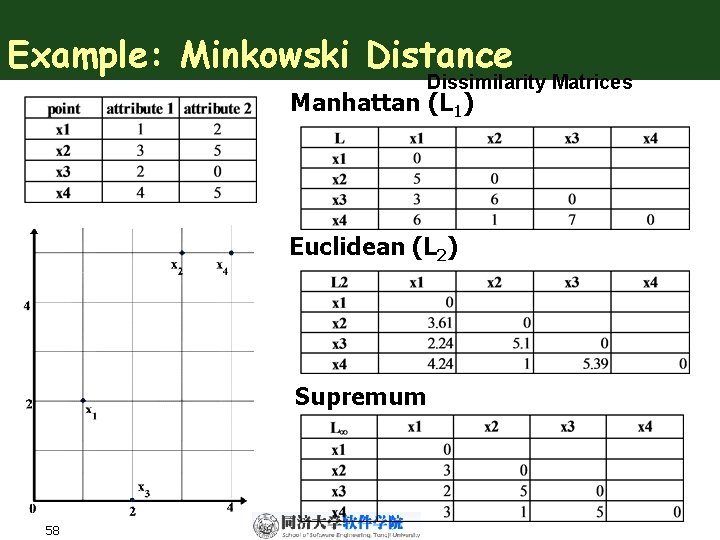

Example: Minkowski Distance Dissimilarity Matrices Manhattan (L 1) Euclidean (L 2) Supremum 58

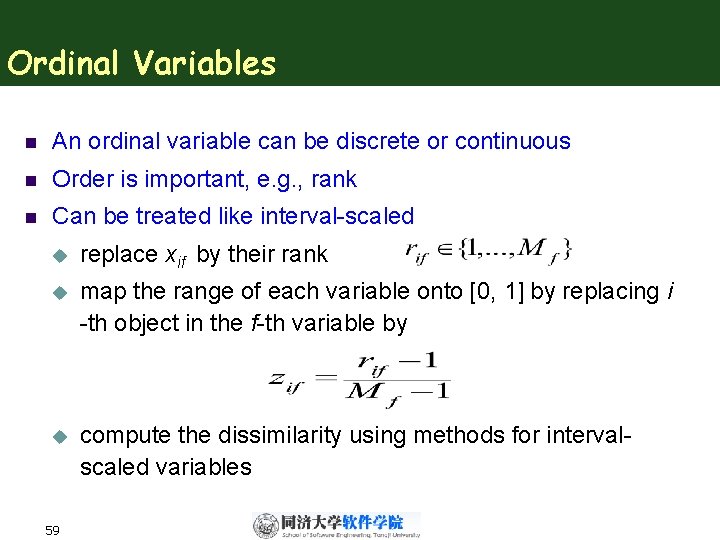

Ordinal Variables n An ordinal variable can be discrete or continuous n Order is important, e. g. , rank n Can be treated like interval-scaled u replace xif by their rank u map the range of each variable onto [0, 1] by replacing i -th object in the f-th variable by u compute the dissimilarity using methods for intervalscaled variables 59

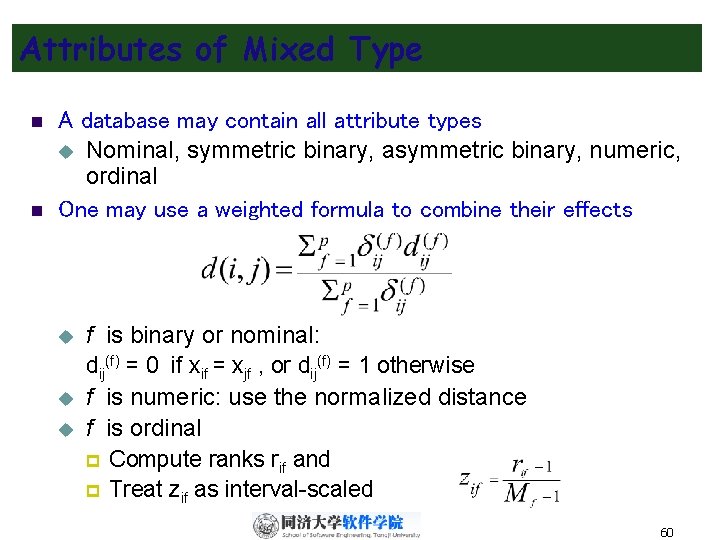

Attributes of Mixed Type n n A database may contain all attribute types u Nominal, symmetric binary, asymmetric binary, numeric, ordinal One may use a weighted formula to combine their effects u u u f is binary or nominal: dij(f) = 0 if xif = xjf , or dij(f) = 1 otherwise f is numeric: use the normalized distance f is ordinal p Compute ranks rif and p Treat zif as interval-scaled 60

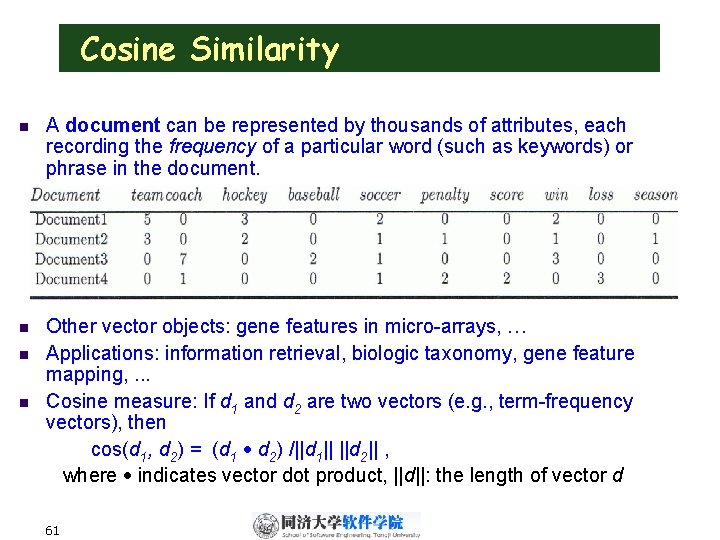

Cosine Similarity n A document can be represented by thousands of attributes, each recording the frequency of a particular word (such as keywords) or phrase in the document. n Other vector objects: gene features in micro-arrays, … Applications: information retrieval, biologic taxonomy, gene feature mapping, . . . Cosine measure: If d 1 and d 2 are two vectors (e. g. , term-frequency vectors), then cos(d 1, d 2) = (d 1 d 2) /||d 1|| ||d 2|| , where indicates vector dot product, ||d||: the length of vector d n n 61

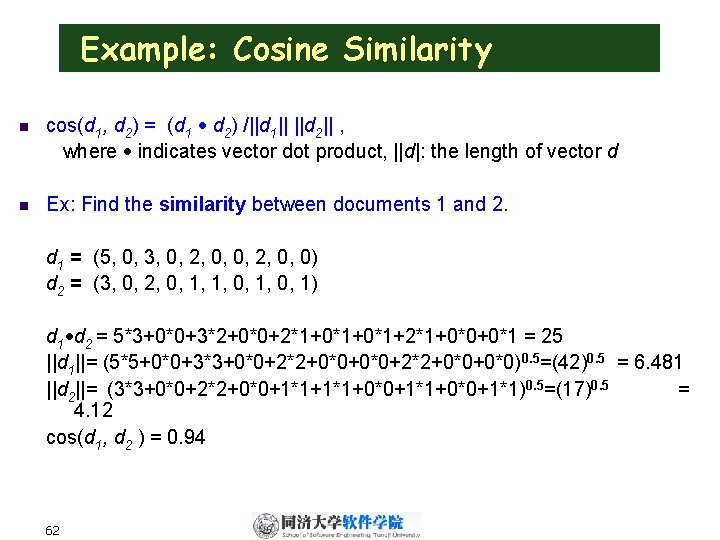

Example: Cosine Similarity n cos(d 1, d 2) = (d 1 d 2) /||d 1|| ||d 2|| , where indicates vector dot product, ||d|: the length of vector d n Ex: Find the similarity between documents 1 and 2. d 1 = (5, 0, 3, 0, 2, 0, 0) d 2 = (3, 0, 2, 0, 1, 1, 0, 1) d 1 d 2 = 5*3+0*0+3*2+0*0+2*1+0*1+2*1+0*0+0*1 = 25 ||d 1||= (5*5+0*0+3*3+0*0+2*2+0*0+0*0)0. 5=(42)0. 5 = 6. 481 ||d 2||= (3*3+0*0+2*2+0*0+1*1+0*0+1*1)0. 5=(17)0. 5 = 4. 12 cos(d 1, d 2 ) = 0. 94 62

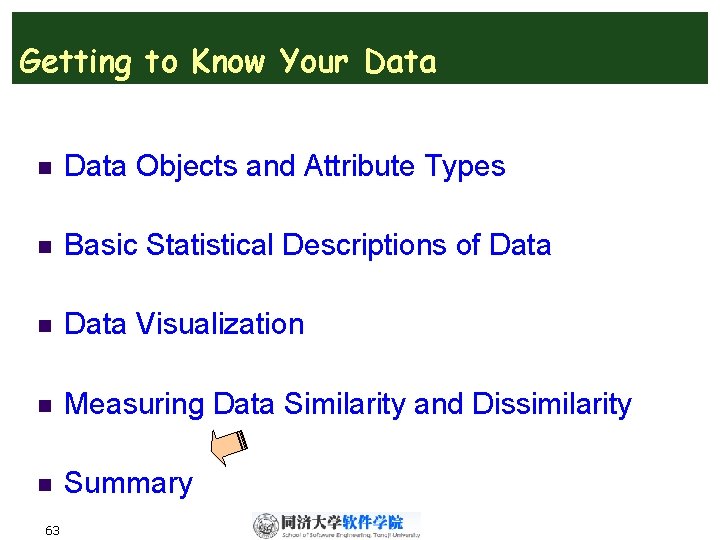

Getting to Know Your Data n Data Objects and Attribute Types n Basic Statistical Descriptions of Data n Data Visualization n Measuring Data Similarity and Dissimilarity n Summary 63

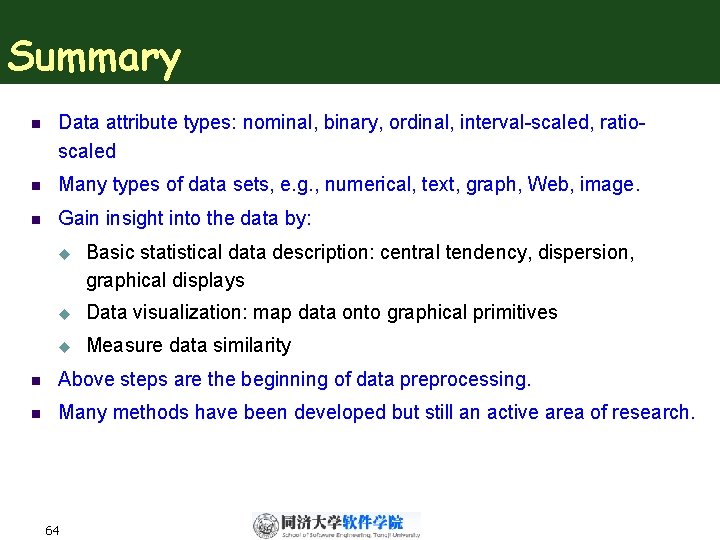

Summary n Data attribute types: nominal, binary, ordinal, interval-scaled, ratioscaled n Many types of data sets, e. g. , numerical, text, graph, Web, image. n Gain insight into the data by: u Basic statistical data description: central tendency, dispersion, graphical displays u Data visualization: map data onto graphical primitives u Measure data similarity n Above steps are the beginning of data preprocessing. n Many methods have been developed but still an active area of research. 64

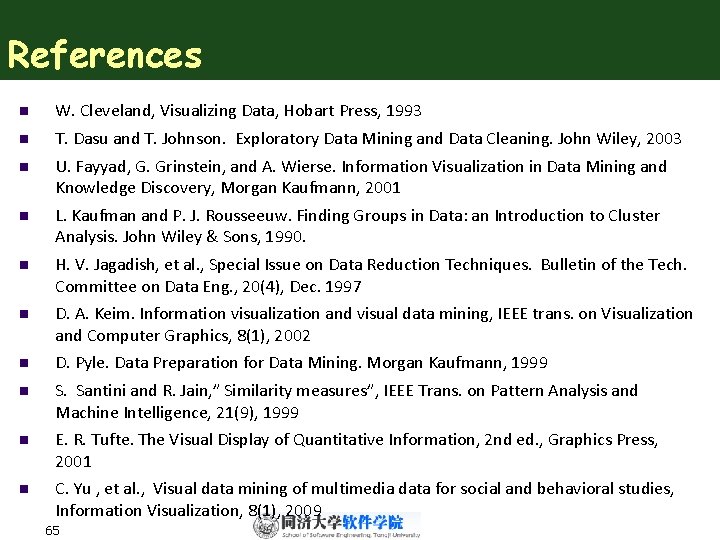

References n W. Cleveland, Visualizing Data, Hobart Press, 1993 n T. Dasu and T. Johnson. Exploratory Data Mining and Data Cleaning. John Wiley, 2003 n U. Fayyad, G. Grinstein, and A. Wierse. Information Visualization in Data Mining and Knowledge Discovery, Morgan Kaufmann, 2001 n L. Kaufman and P. J. Rousseeuw. Finding Groups in Data: an Introduction to Cluster Analysis. John Wiley & Sons, 1990. n H. V. Jagadish, et al. , Special Issue on Data Reduction Techniques. Bulletin of the Tech. Committee on Data Eng. , 20(4), Dec. 1997 n D. A. Keim. Information visualization and visual data mining, IEEE trans. on Visualization and Computer Graphics, 8(1), 2002 n D. Pyle. Data Preparation for Data Mining. Morgan Kaufmann, 1999 n S. Santini and R. Jain, ” Similarity measures”, IEEE Trans. on Pattern Analysis and Machine Intelligence, 21(9), 1999 n E. R. Tufte. The Visual Display of Quantitative Information, 2 nd ed. , Graphics Press, 2001 n C. Yu , et al. , Visual data mining of multimedia data for social and behavioral studies, Information Visualization, 8(1), 2009 65
