BIAS MAGNETRON SPUTTERING FOR NIOBIUM THIN FILMS The
BIAS MAGNETRON SPUTTERING FOR NIOBIUM THIN FILMS The International Workshop on THIN FILMS AND NEW IDEAS FOR PUSHING THE LIMITS OF RF SUPERCONDUCTIVITY A. Frigo, G. Lanza, A. Minarello H. Padamsee, V. Palmieri Università degli Studi di Padova Istituto Nazionale di Fisica Nucleare Cornell University
Bias Magnetron Sputtering for Niobium thin films • Advantages and disadvanteges of the bias tecnique • Preliminary results of a mixed biasmagnetron sputtering configuration for coating Niobium on copper 1. 5 GHz cavities • First applications of a large area cavity shaped cathode in the bias diode sputtering configuration.

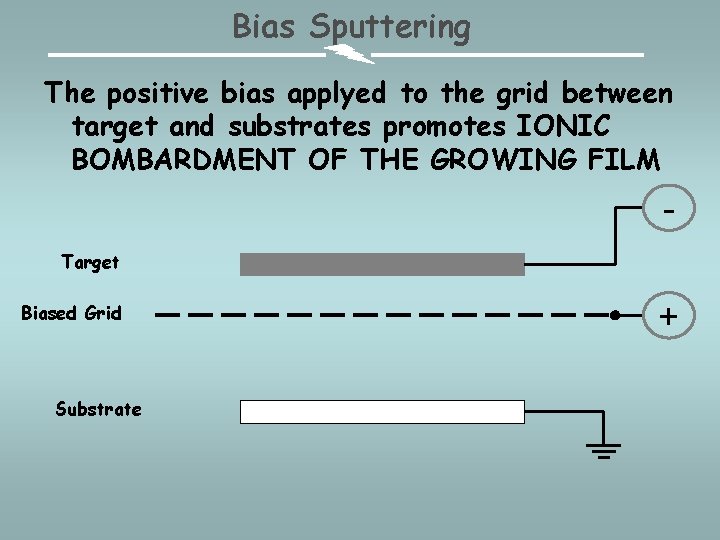

Bias Sputtering The positive bias applyed to the grid between target and substrates promotes IONIC BOMBARDMENT OF THE GROWING FILM Target Biased Grid Substrate +

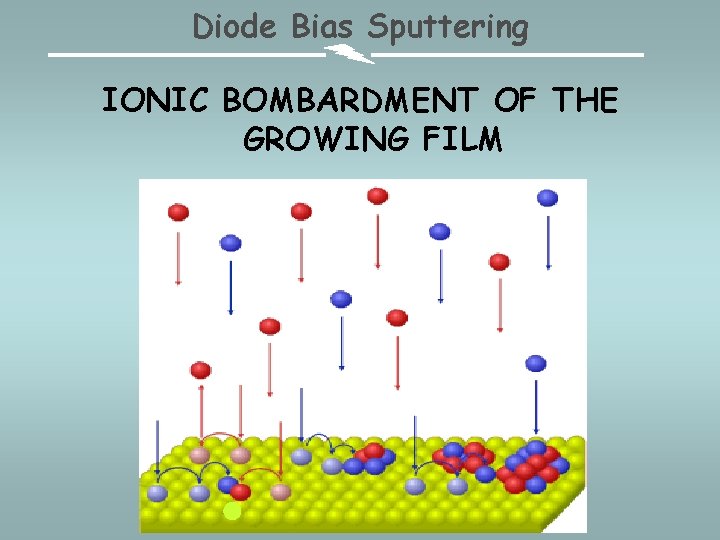

Diode Bias Sputtering IONIC BOMBARDMENT OF THE GROWING FILM

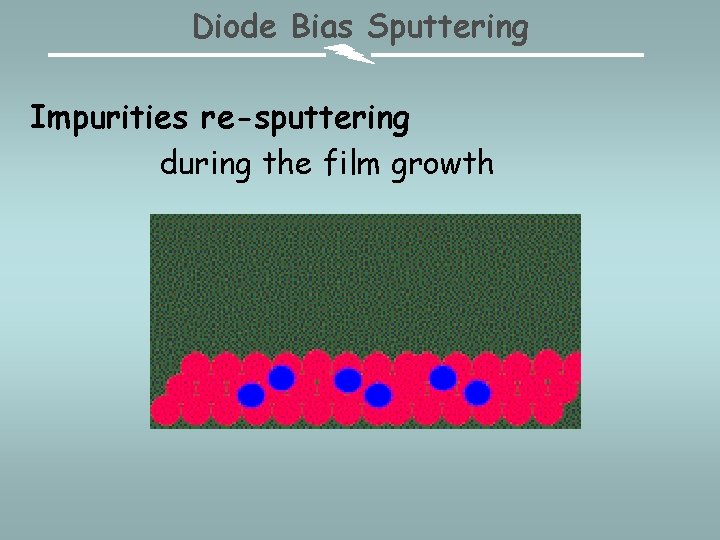

Diode Bias Sputtering Impurities re-sputtering during the film growth

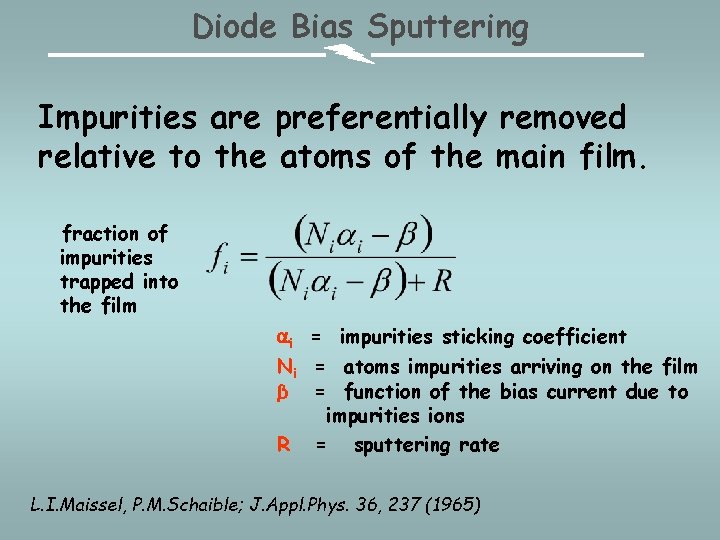

Diode Bias Sputtering Impurities are preferentially removed relative to the atoms of the main film. fraction of impurities trapped into the film i = impurities sticking coefficient Ni = atoms impurities arriving on the film β = function of the bias current due to impurities ions R = sputtering rate L. I. Maissel, P. M. Schaible; J. Appl. Phys. 36, 237 (1965)
Advantages Densification of the crystal structure Higher sputtering rate Lattice rearrangement Films quality improvement

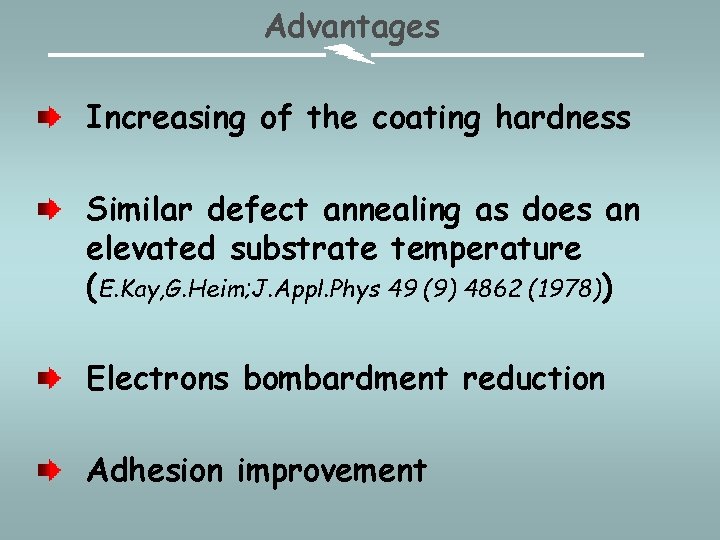

Advantages Increasing of the coating hardness Similar defect annealing as does an elevated substrate temperature (E. Kay, G. Heim; J. Appl. Phys 49 (9) 4862 (1978)) Electrons bombardment reduction Adhesion improvement
Disadvantages Noble gas atoms embedding Lattice defects Thickness reduction Biased grid shadowing Still hydrogen removal is low

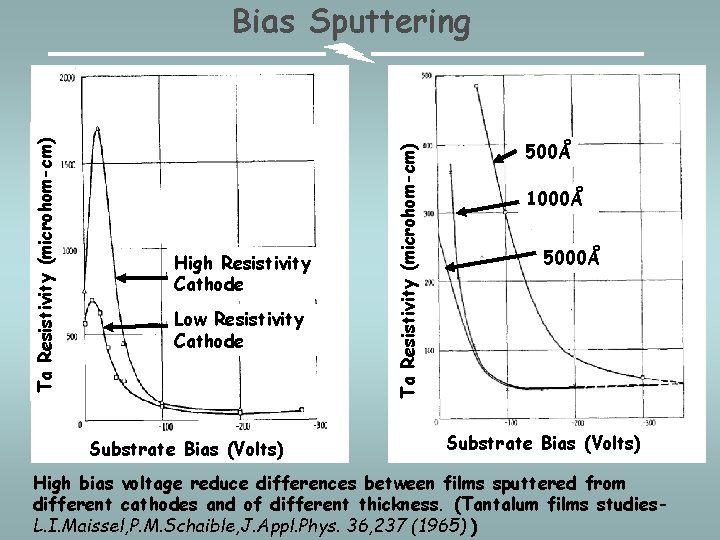

High Resistivity Cathode Low Resistivity Cathode Substrate Bias (Volts) Ta Resistivity (microhom-cm) Bias Sputtering 500Å 1000Å 5000Å Substrate Bias (Volts) High bias voltage reduce differences between films sputtered from different cathodes and of different thickness. (Tantalum films studies. L. I. Maissel, P. M. Schaible, J. Appl. Phys. 36, 237 (1965) )
Ta Resistivity (microhom-cm) Temperature coefficient of resistance (x 10 -3) The Niobium case Negative Bias Potential (Volts) Electrical resistivity and temperature coefficient of resistance of niobium films deposited on negatively biased substrates as a function of bias potential. ( J. Sosniak, J. Appl. Phys. 39, 4157 (1968) )

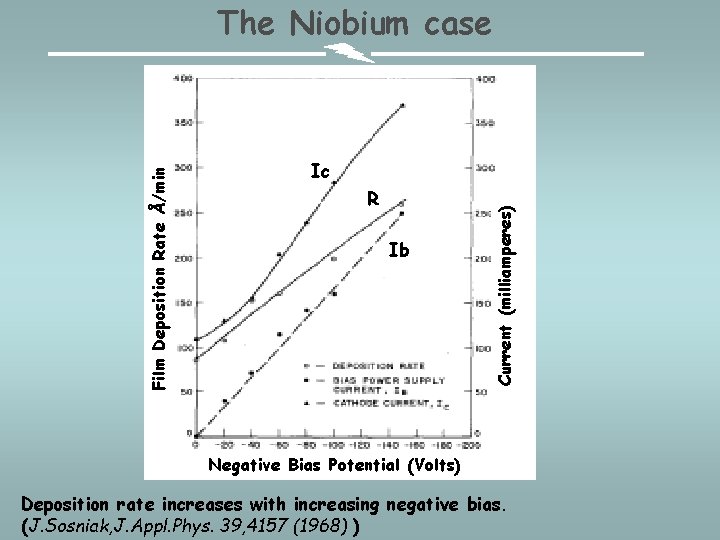

Ic R Ib Current (milliamperes) Film Deposition Rate Å/min The Niobium case Negative Bias Potential (Volts) Deposition rate increases with increasing negative bias. (J. Sosniak, J. Appl. Phys. 39, 4157 (1968) )
How could we apply that to cavities?

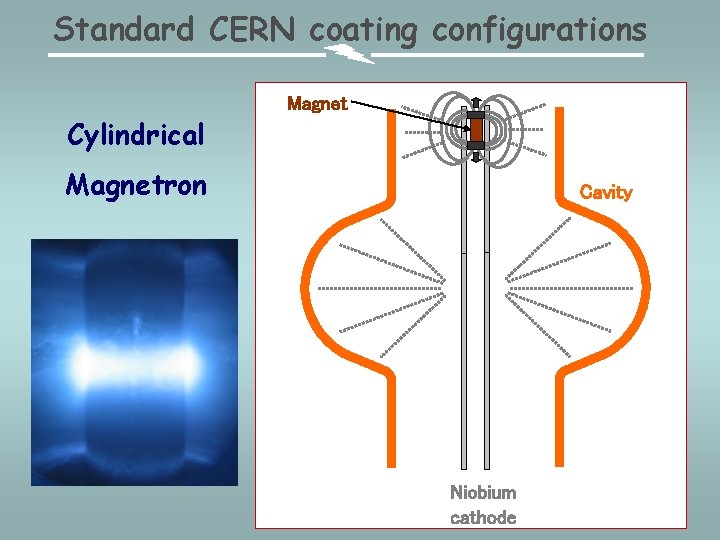

Standard CERN coating configurations Cylindrical Magnetron Cavity Niobium cathode

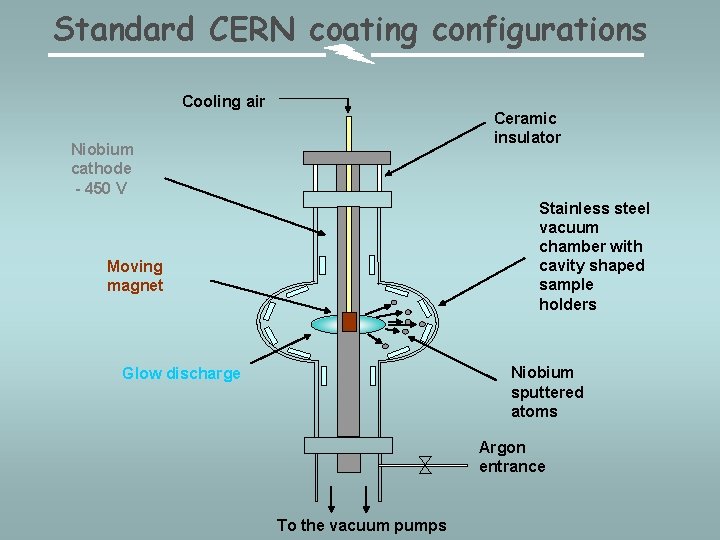

Standard CERN coating configurations Cooling air Ceramic insulator Niobium cathode - 450 V Stainless steel vacuum chamber with cavity shaped sample holders Moving magnet Niobium sputtered atoms Glow discharge Argon entrance To the vacuum pumps
INFN-LNL coating configuration

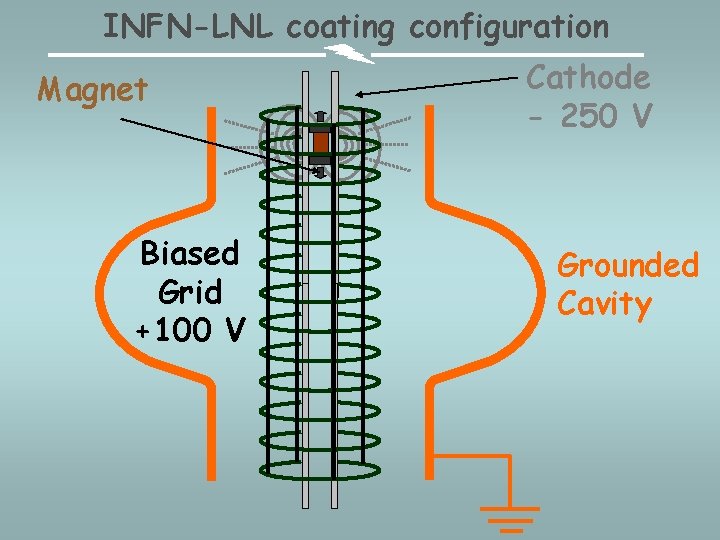

INFN-LNL coating configuration Magnet Biased Grid +100 V Cathode - 250 V Grounded Cavity

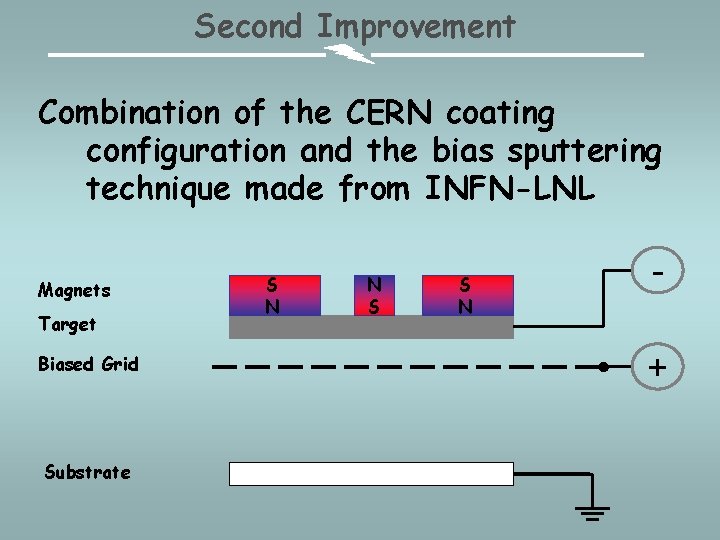

Second Improvement Combination of the CERN coating configuration and the bias sputtering technique made from INFN-LNL Magnets Target Biased Grid Substrate S N N S S N +

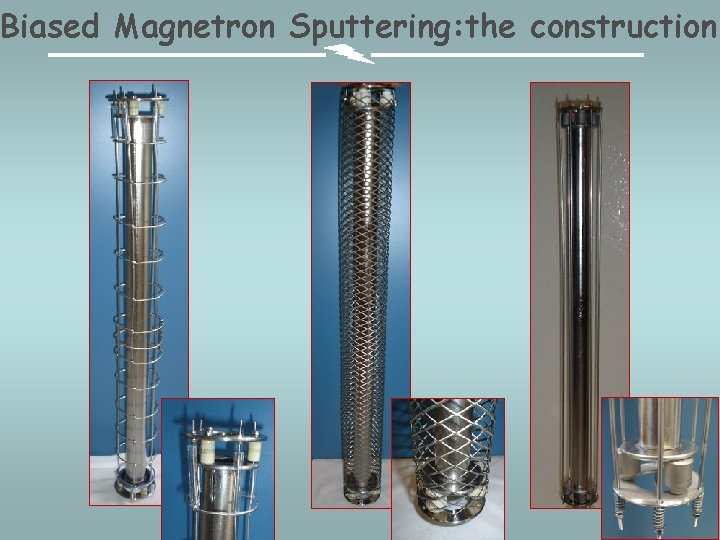

Biased Magnetron Sputtering: the construction
Biased Magnetron Sputtering: the construction Improvement of the cooling system Water in Water out
Biased Magnetron Sputtering: parameters BIAS CERN type INFN-LNL Cathode Current (A) 3 7 Cathode Power (k. W) 1. 38 1. 86 Bias Voltage (V) 0 100 Pressure (mbar) 2 x 10 -3 3 x 10 -3 Time (min) 15 20

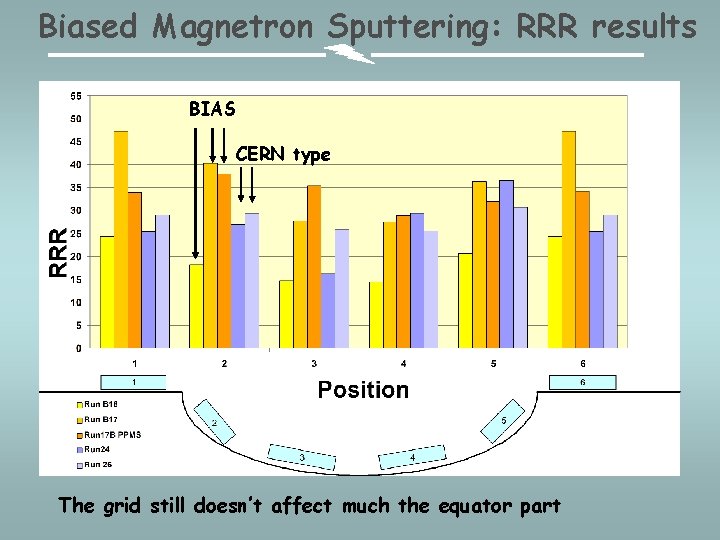

Biased Magnetron Sputtering: RRR results BIAS CERN type The grid still doesn’t affect much the equator part

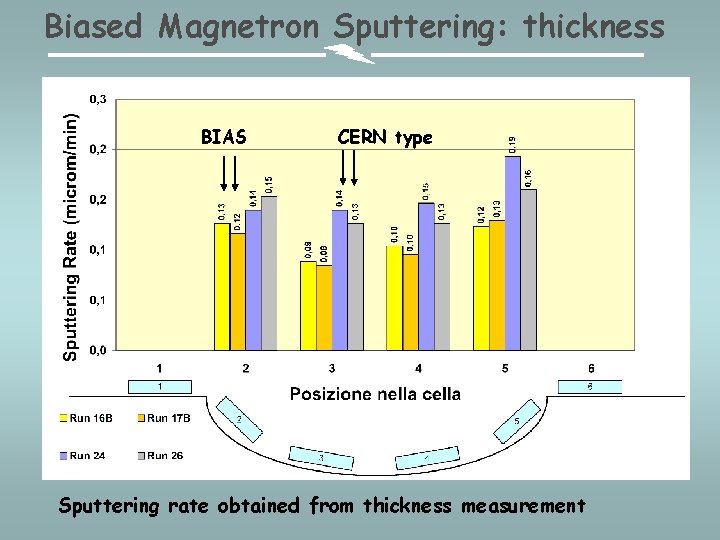

Biased Magnetron Sputtering: thickness BIAS CERN type Sputtering rate obtained from thickness measurement
Biased Magnetron Sputtering: Tc results BIAS All samples with RRR>8 show a Tc higher than 9, 3 K

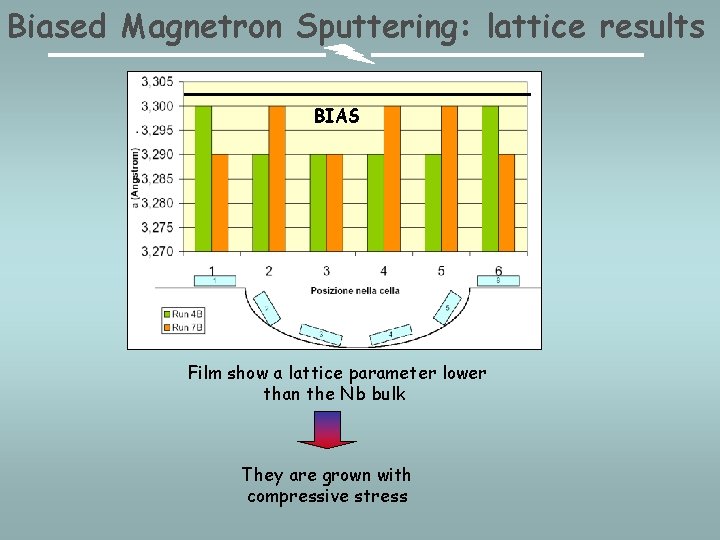

Biased Magnetron Sputtering: lattice results BIAS Film show a lattice parameter lower than the Nb bulk They are grown with compressive stress
INFN-LNL coating configuration II

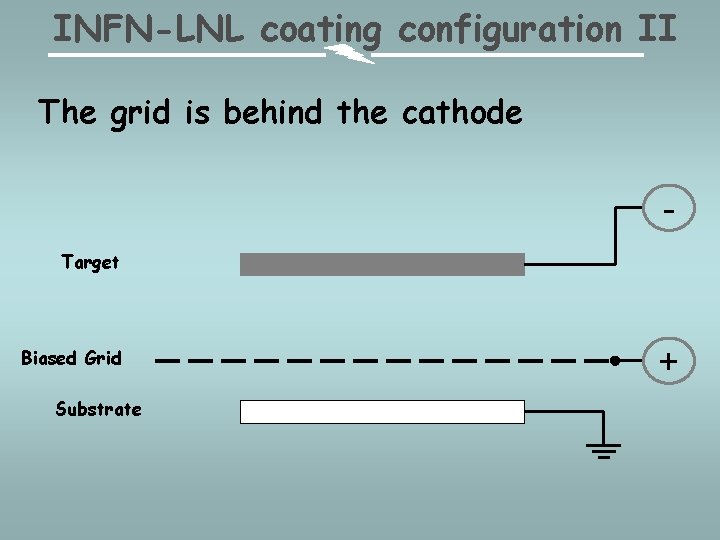

INFN-LNL coating configuration II The grid is behind the cathode Target Biased Grid Substrate +
INFN-LNL coating configuration II The grid is behind the cathode Advantages: • Anode-cathode distance reduction • Higher cathodic area • No shadowing due to the grid

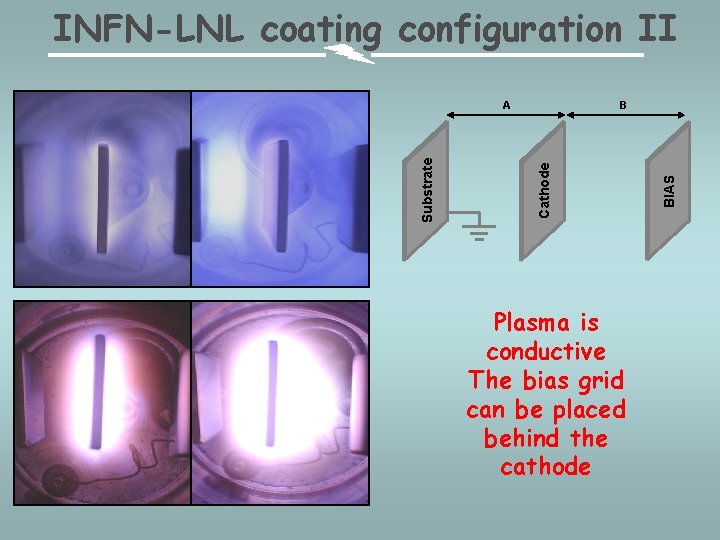

INFN-LNL coating configuration II Plasma is conductive The bias grid can be placed behind the cathode BIAS B Cathode Substrate A

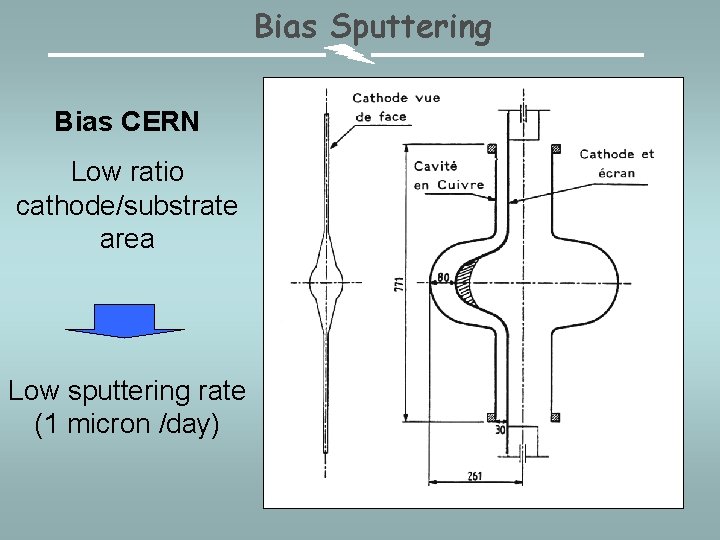

Bias Sputtering Bias CERN Low ratio cathode/substrate area Low sputtering rate (1 micron /day)
Cavity Shaped Cathode High ratio cathode/substrate area
Cavity Shaped Cathode

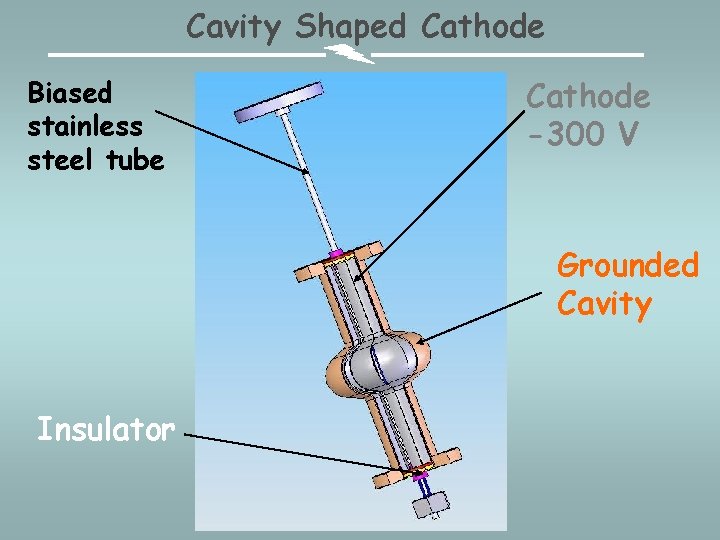

Cavity Shaped Cathode Biased stainless steel tube Cathode -300 V Grounded Cavity Insulator

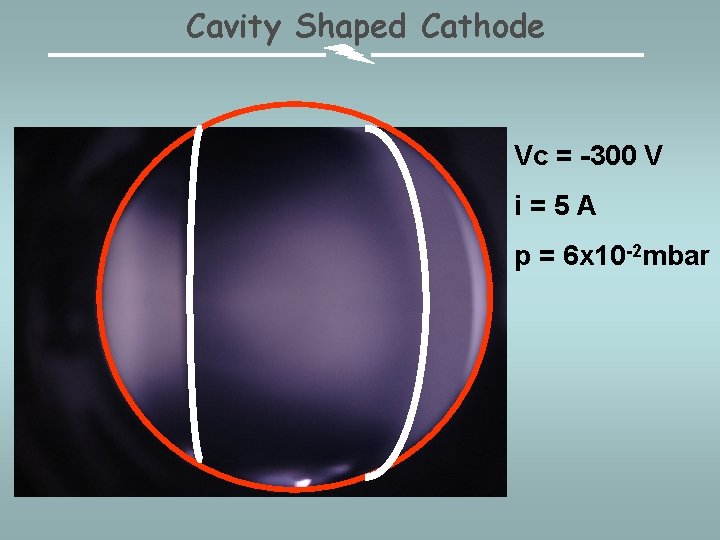

Cavity Shaped Cathode Vc = -300 V i=5 A p = 6 x 10 -2 mbar
Summary • Mixed Bias Magnetron Sputtering √ preliminary results (RRR, Tc, lattice) o studies with different bias and parameters o studies with shaped grid o test the cavity • Large Area Cavity Shaped Cathode √ construction and first run o improvement of the structure stability o characterization of the films o test the cavity
to be continued… Thanks
Cavity Shaped Cathode

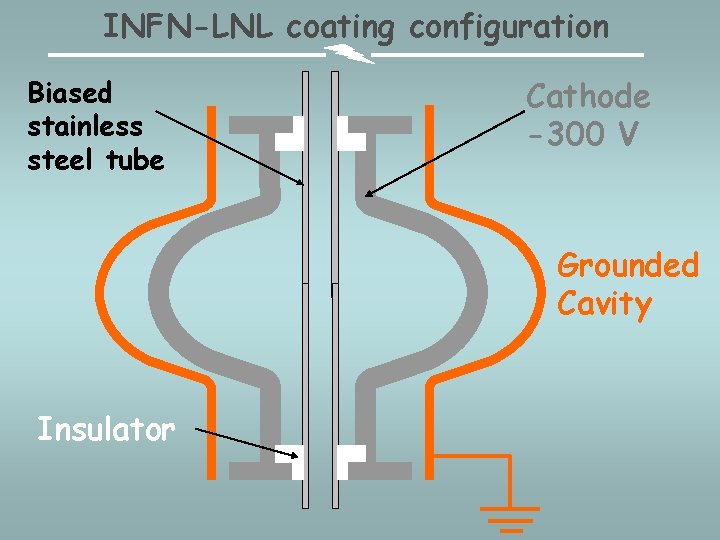

INFN-LNL coating configuration Biased stainless steel tube Cathode -300 V Grounded Cavity Insulator

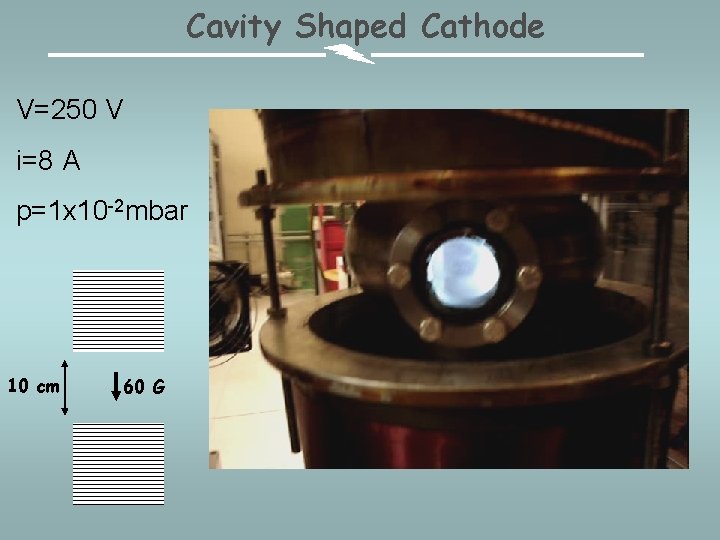

Cavity Shaped Cathode V=250 V i=8 A p=1 x 10 -2 mbar 10 cm 60 G
