BI 420 Introduction to Bioinformatics Introduction to Sequencing

BI 420 – Introduction to Bioinformatics Introduction to Sequencing

The nuclear genome (chromosomes)

The genome sequence • the primary template on which to outline functional features of our genetic code (genes, regulatory elements, secondary structure, tertiary structure, etc. )

Completed genomes Humans, mouse ~3, 000 Mb D. melanogaster ~120 Mb E. coli ~5 Mb C. elegans ~100 Mb

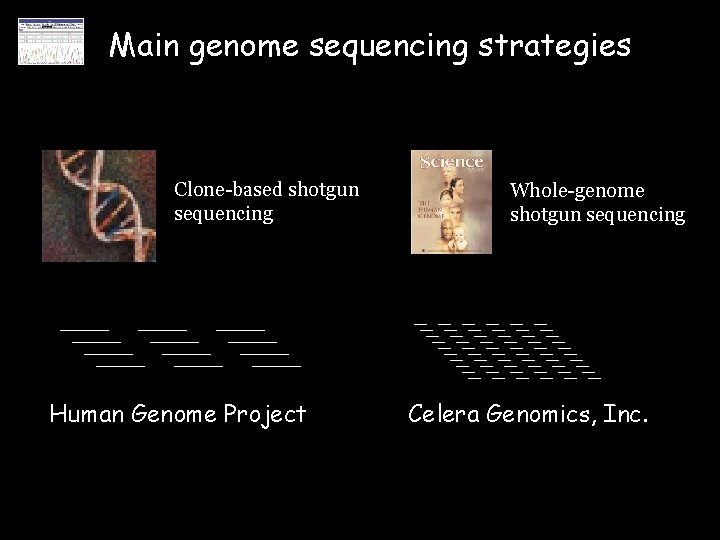

Main genome sequencing strategies Clone-based shotgun sequencing Human Genome Project Whole-genome shotgun sequencing Celera Genomics, Inc.

Hierarchical genome sequencing BAC (bacterial artificial chromosome) library construction clone mapping shotgun subclone library construction sequencing Lander et al. Nature 2001 sequence reconstruction (sequence assembly)

BACs The genome is broken down into chunks 100 -200 kb long, and these are individually integrated into BACs (bacterial artificial chromosomes). The BACs are then grown in bacterial cells to produce a large number of duplicate copies of the 100 -200 kb chunk. The original location of each BAC in the human genome is “fingerprinted” based on the lengths of sequences generated when restriction enzymes are applied.

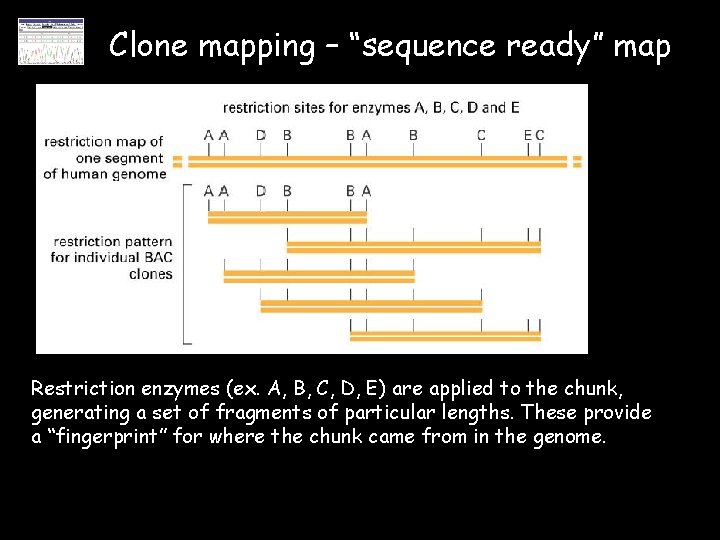

Clone mapping – “sequence ready” map Restriction enzymes (ex. A, B, C, D, E) are applied to the chunk, generating a set of fragments of particular lengths. These provide a “fingerprint” for where the chunk came from in the genome.

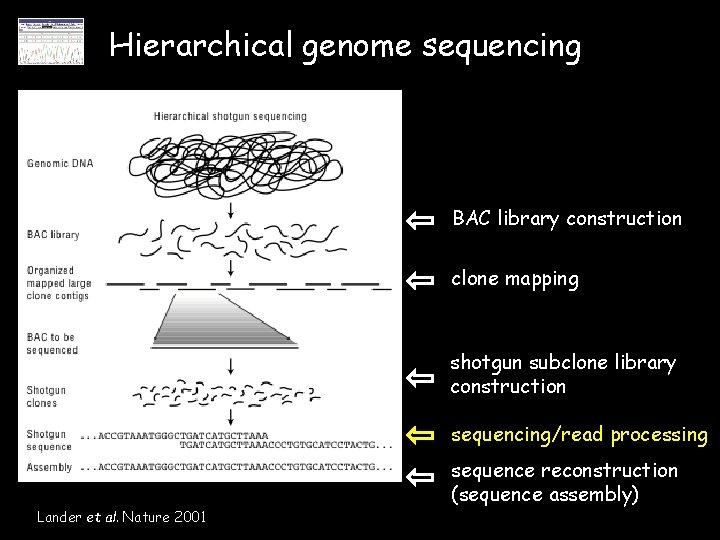

Hierarchical genome sequencing BAC library construction clone mapping shotgun subclone library construction sequencing/read processing Lander et al. Nature 2001 sequence reconstruction (sequence assembly)

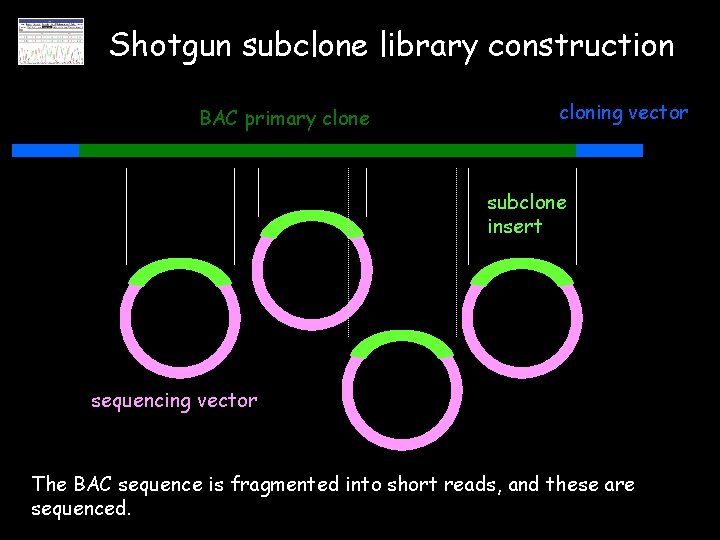

Shotgun subclone library construction BAC primary clone cloning vector subclone insert sequencing vector The BAC sequence is fragmented into short reads, and these are sequenced.

Hierarchical genome sequencing BAC library construction clone mapping shotgun subclone library construction sequencing/read processing Lander et al. Nature 2001 sequence reconstruction (sequence assembly)

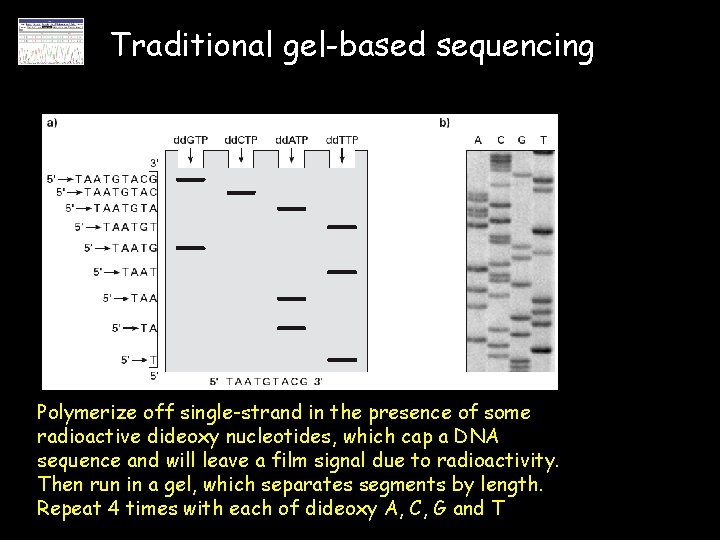

Traditional gel-based sequencing Polymerize off single-strand in the presence of some radioactive dideoxy nucleotides, which cap a DNA sequence and will leave a film signal due to radioactivity. Then run in a gel, which separates segments by length. Repeat 4 times with each of dideoxy A, C, G and T

Sequencing using fluorescence Use dideoxy nucleotides that fluoresce under UV light with a different color for each of A, C, G, T. Instead of gel do electrophoresis in a capillary tube.

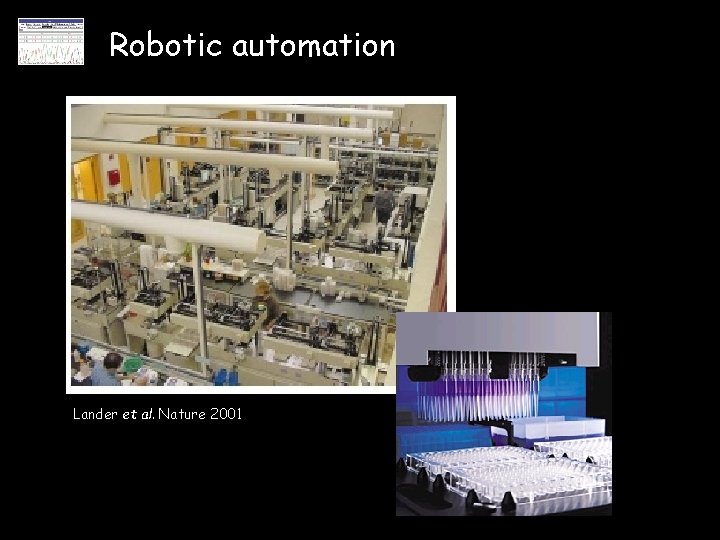

Robotic automation Lander et al. Nature 2001

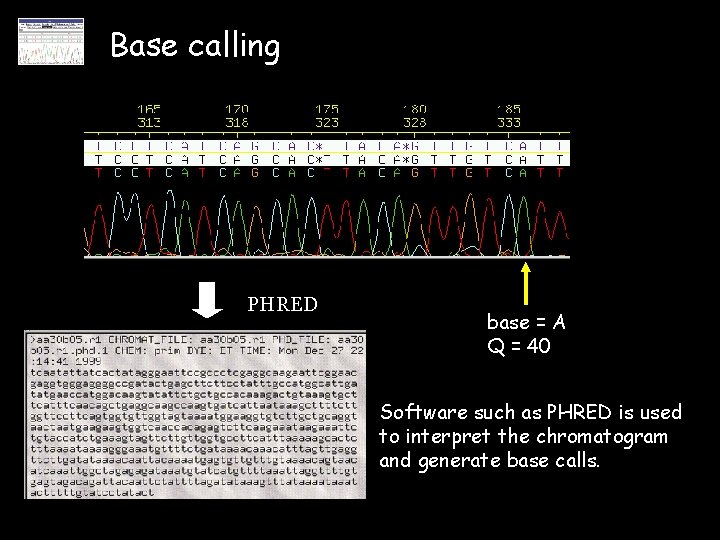

Base calling PHRED base = A Q = 40 Software such as PHRED is used to interpret the chromatogram and generate base calls.

Vector clipping Because the sequence was generated in a BAC, there may be some overhangs of bacterial sequence (pink). These should be removed.

Hierarchical genome sequencing BAC library construction clone mapping shotgun subclone library construction sequencing/read processing Lander et al. Nature 2001 sequence reconstruction (sequence assembly)

Sequence assembly PHRAP Software such as PHRAP is used to find sequences which overlap one another

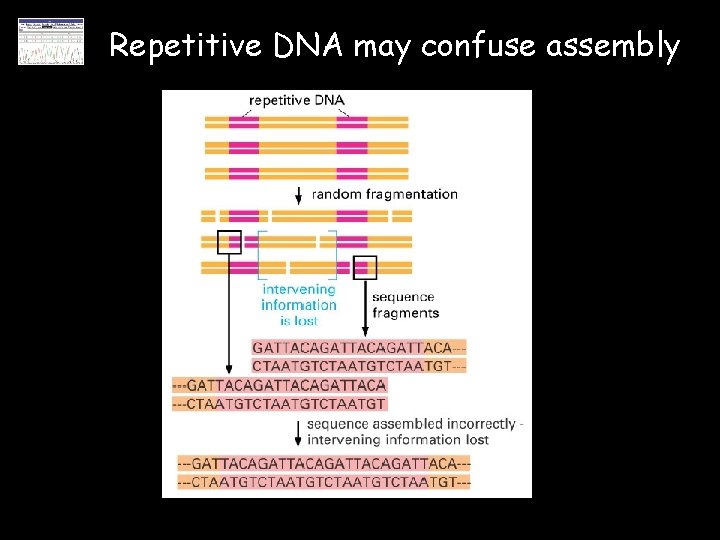

Repetitive DNA may confuse assembly

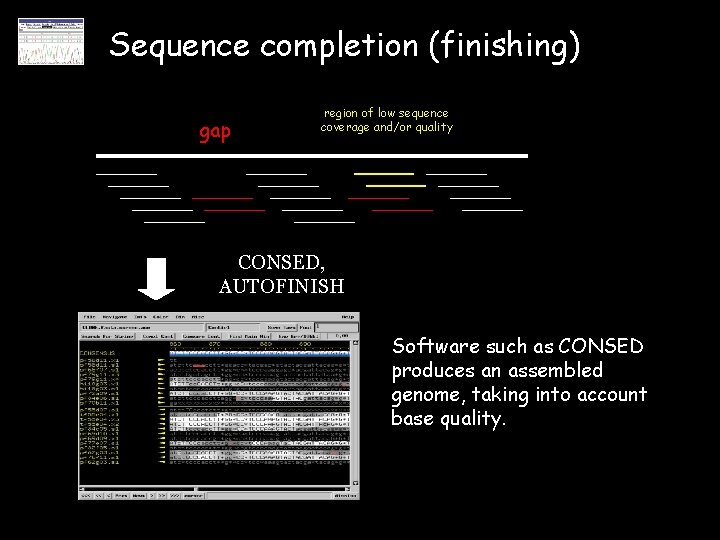

Sequence completion (finishing) gap region of low sequence coverage and/or quality CONSED, AUTOFINISH Software such as CONSED produces an assembled genome, taking into account base quality.

Main genome sequencing strategies Clone-based shotgun sequencing Human Genome Project Whole-genome shotgun sequencing Celera Genomics, Inc.

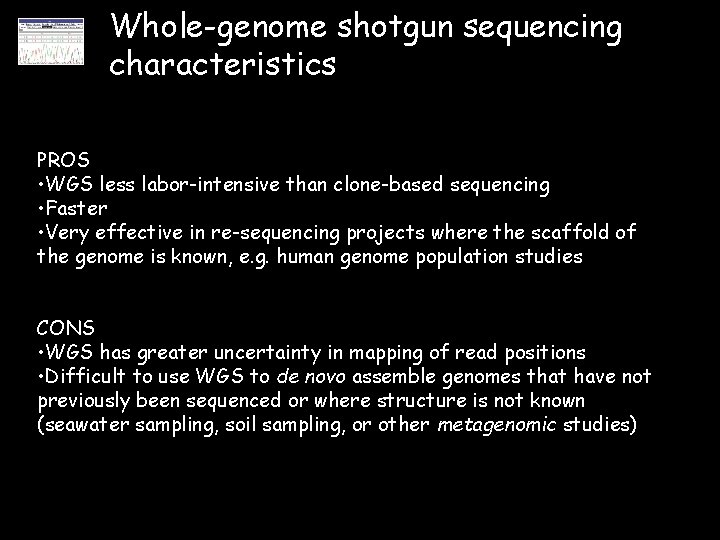

Whole-genome shotgun sequencing characteristics PROS • WGS less labor-intensive than clone-based sequencing • Faster • Very effective in re-sequencing projects where the scaffold of the genome is known, e. g. human genome population studies CONS • WGS has greater uncertainty in mapping of read positions • Difficult to use WGS to de novo assemble genomes that have not previously been sequenced or where structure is not known (seawater sampling, soil sampling, or other metagenomic studies)

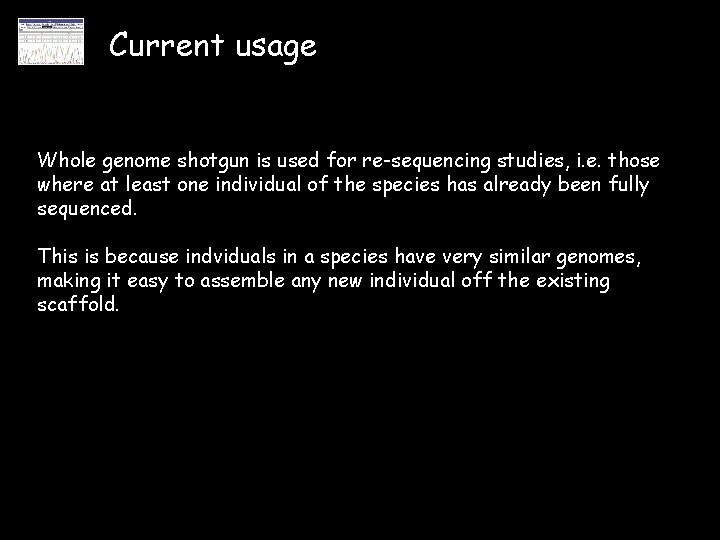

Current usage Whole genome shotgun is used for re-sequencing studies, i. e. those where at least one individual of the species has already been fully sequenced. This is because indviduals in a species have very similar genomes, making it easy to assemble any new individual off the existing scaffold.

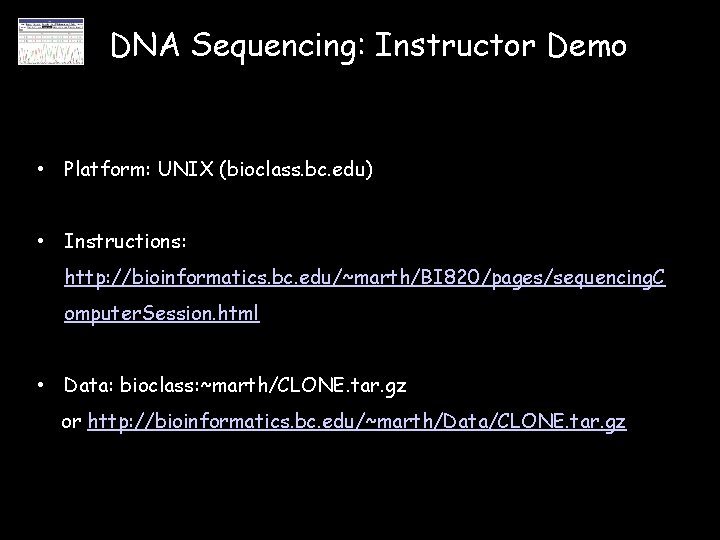

DNA Sequencing: Instructor Demo • Platform: UNIX (bioclass. bc. edu) • Instructions: http: //bioinformatics. bc. edu/~marth/BI 820/pages/sequencing. C omputer. Session. html • Data: bioclass: ~marth/CLONE. tar. gz or http: //bioinformatics. bc. edu/~marth/Data/CLONE. tar. gz
