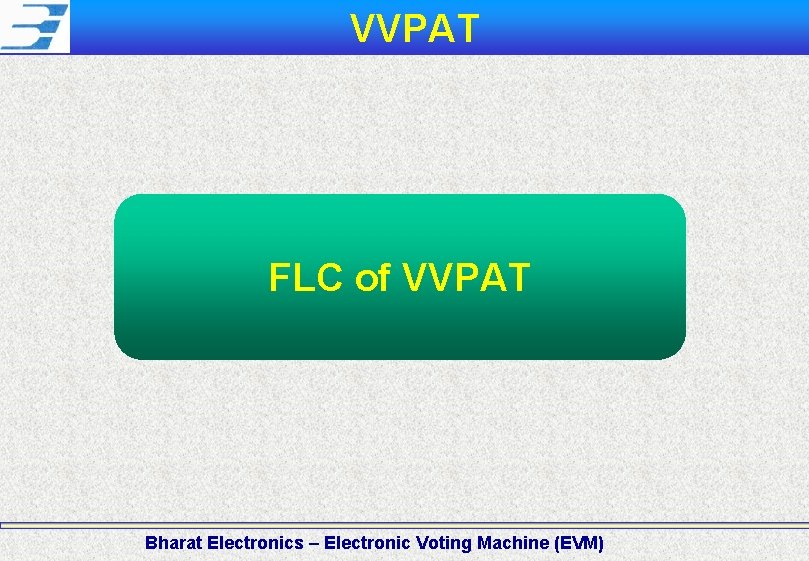

VVPAT FLC of VVPAT Bharat Electronics – Electronic Voting Machine (EVM)
VVPAT FLC PROCEDURE 1. VISUAL INSPECTION a) (i) Open carrying case and take out the VVPAT unit. (ii) Remove all tags, seals, FLC stickers and ballot slips from the drop box. b) (i) Physically check connectors, doors, sealing provisions, latches etc. for breakages and replace wherever possible. (ii) Replace the broken items with good items wherever possible and discard others. Bharat Electronics – Electronic Voting Machine (EVM) 4
VVPAT BATTERY INSTALLATION STEPS Battery Plug 1 3 3 Bharat Electronics – Electronic Voting Machine (EVM) 2 4 5
VVPAT PAPER ROLL INSTALLATION STEPS Open Paper Roll Compartment Remove Spindle Insert Spindle into Thermal Paper Roll Bharat Electronics – Electronic Voting Machine (EVM) 6
VVPAT PAPER ROLL INSTALLATION STEPS Place Thermal Paper Roll with Spindle into position Insert Thermal Paper Roll edge into the Guide paper Entry Move Paper into the slot by rotating the paper feed Bharat Electronics – Electronic Voting Machine (EVM) 7
VVPAT CREATION OF SYMBOLS 1 Create VVPAT Sheet 2 Open Symbol Loading Application 3 Enter the constituency number, constituency name and total number of candidates. Bharat Electronics – Electronic Voting Machine (EVM) 8

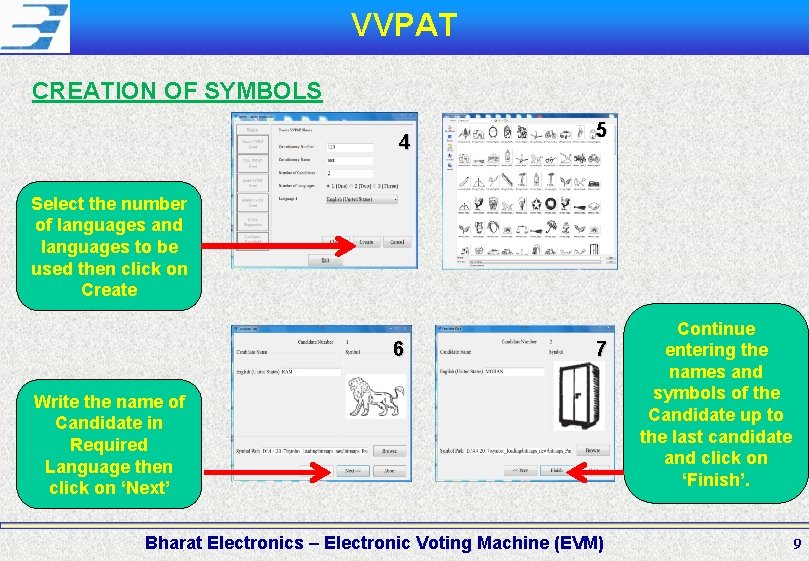

VVPAT CREATION OF SYMBOLS 4 5 Select the number of languages and languages to be used then click on Create 6 7 Write the name of Candidate in Required Language then click on ‘Next’ Bharat Electronics – Electronic Voting Machine (EVM) Continue entering the names and symbols of the Candidate up to the last candidate and click on ‘Finish’. 9
VVPAT LOADING SYMBOLS TO VVPAT 1 Press Load button to load the symbols to VVPAT 3 Bharat Electronics – Electronic Voting Machine (EVM) 2 4 10
VVPAT LOADING SYMBOLS TO VVPAT Bharat Electronics – Electronic Voting Machine (EVM) 11
VVPAT LOADING SYMBOLS TO SYMBOL LOADING UNIT 1. Open the symbol loading application for M 3 VVPAT in PC / Laptop. Select “Load VVPAT Sheet” and Select the constituency name and required details. 2. (i) Connect Symbol Loading Unit to PC through the PC port marked on SLU with the 9 pin serial cable (BU cable). (ii) Select VVPAT M 3 in the main menu of Symbol loading unit. (iii) Select “Load Symbols from PC” in the successive menu. (iv) Select the COM port and click on Load VVPAT slips in the application on PC/Laptop. 3. Wait for the Loading to get completed. Bharat Electronics – Electronic Voting Machine (EVM) 12
VVPAT LOADING SYMBOLS TO VVPAT 1. (a) Connect Symbol Loading Unit to VVPAT with the 9 pin serial cable (BU cable) through the M 3 port marked on SLU. (b) Keep the VVPAT selection switch) Above BU connector in back side of VVPAT) is in Position 1. 2. Switch on the Symbol loading unit. Select VVPAT M 3 in the main menu of Symbol loading unit. Select “Load Symbols to VVPAT” in the successive menu. 3. Connect VVPAT to CU and switch on CU. At this stage, the VVPAT prints the total 7 Self-diagnostic slips. Bharat Electronics – Electronic Voting Machine (EVM) 13

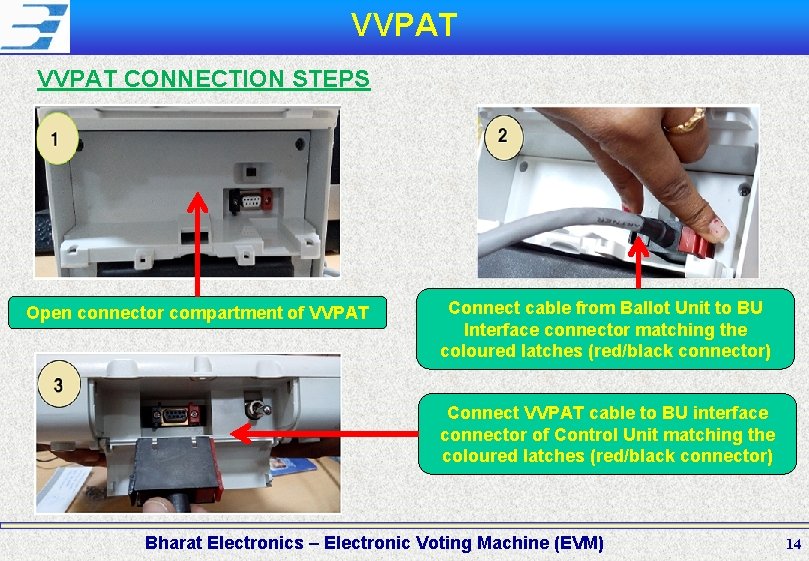

VVPAT CONNECTION STEPS Open connector compartment of VVPAT Connect cable from Ballot Unit to BU Interface connector matching the coloured latches (red/black connector) Connect VVPAT cable to BU interface connector of Control Unit matching the coloured latches (red/black connector) Bharat Electronics – Electronic Voting Machine (EVM) 14
VVPAT CONNECTION Switch is at position 1 CU shows ‘DISCOVERED BU 01 VVPAT 1’ Bharat Electronics – Electronic Voting Machine (EVM) 15
VVPAT CONNECTION Switch is at position 2 When BALLOT key is pressed CU displays message ‘VVPAT 1 NOT CONNECTED’ ‘DISCONNECT VVPAT 2’ Bharat Electronics – Electronic Voting Machine (EVM) 16
VVPAT SENSOR PERFORMANCE TEST a. PURPOSE First purpose is to verify that the VVPAT Error log history based on earlier Polling (“VVPAT Error History” as mentioned in POST slip) is absent before start of printing of Self diagnostics reports. b. TEST APPLICABILITY This test is applicable to all the VVPATs in the batch. c. TEST PREPARATION One VVPAT with 16 symbols loaded, 1 BU and 1 CU are needed. The test has to be performed under standard conditions where a new battery (Voltage > 22 V) with measured dynamic impedance and No load voltage stamped on it and new paper roll is used. Bharat Electronics – Electronic Voting Machine (EVM) 17
VVPAT TEST PROCEDURE 1. Check whether the Paper roll lock switch is in “unlock” (working) position Paper roll lock in unlock position Bharat Electronics – Electronic Voting Machine (EVM) 18
VVPAT TEST PROCEDURE 2. Connect the VVPAT to the CU. 3. Switch on the CU. 4. Power ON LED of CU and VVPAT glow green. 5. A series of display messages will come on CU while power ON. 6. VVPAT prints 7 Self-diagnostic slips after Power ON. Display Sequence EVM IS ON DATE and TIME SL NO of the Control Unit NO OF CANDIDATES BATTERY STATUS Discovering Units Discovered BUXX (where XX denotes number of BU connected to CU) Discovered BUXX VVPATXX BU 01 GN 1 Testing BU 01 GN 1 OK VVAPAT 01 GN 1 Testing VVPAT 01 GN 1 OK EVM IS READY Bharat Electronics – Electronic Voting Machine (EVM) 19
VVPAT Bharat Electronics – Electronic Voting Machine (EVM) 20
VVPAT Bharat Electronics – Electronic Voting Machine (EVM) 21
VVPAT Bharat Electronics – Electronic Voting Machine (EVM) 22
VVPAT ERROR HISTORY BASED ON EARLIER POLL DATA SL NO Parameter in the POST Comment Against Action Required 1 slip VVPAT Error History Parameter Absent Continue testing VVPAT Present Test VVPAT after Loading the symbols to VVPAT THERMAL PRINTERNAL DIAGNOSTICS RESULTS SL NO Parameter in the POST Comment Against Action Required 2 slip Paper Under Head 3 Printer Head Temperature 4 Platen Parameter Present Absent OK Not OK Closed Open Continue testing VVPAT Reject VVPAT Bharat Electronics – Electronic Voting Machine (EVM) 23
VVPAT SENSOR'S STANDARDIZATION RESULTS SL NO 5 Parameter in the Comment Against POST slip Parameter Length Sensor Std Passed Failed 6 7 8 Fall Sensor Std Passed Failed Contrast Sensor Std Passed Failed Deplete Sensor Std Passed Failed Bharat Electronics – Electronic Voting Machine (EVM) Action Required Continue testing VVPAT Reject VVPAT 24
VVPAT POST SLIP DEPLETE DIAGNOSTICS REPORT Status of sensors in VVPAT Bharat Electronics – Electronic Voting Machine (EVM) Laser Current @ std White level @ std 25
VVPAT CONTRAST DIAGNOSTICS REPORT FALL DIAGNOSTICS REPORT LED Current @ std LED Current White level @ std Paper Present @ POST slip Contrast Ratio Paper absent level Bharat Electronics – Electronic Voting Machine (EVM) 26
VVPAT LENGTH DIAGNOSTICS REPORT BATTERY REPORT Laser Current@ std White level @std Battery No Load Battery R_battery Contrast Ratio Bharat Electronics – Electronic Voting Machine (EVM) 27
VVPAT FUNCTIONAL TEST POLLING TEST Ø One VVPAT with 16 dummy symbols loaded, 1 BU and 1 CU are needed. Make connections and operate the VVPAT. Ø Switch on the CU. After the VVPAT is turned ON, the seven selfdiagnostics reports are printed. Ø Put the CU in clear state. Set the number of candidates to 16. Ø Press Ballot Button on CU and Cast vote for first candidate on BU. On the selection of candidate, VVPAT prints the selection on ballot slip. Bharat Electronics – Electronic Voting Machine (EVM) 28
VVPAT FUNCTIONAL TEST POLLING TEST Ø The ballot slip is displayed behind a transparent window of VVPAT for 7 seconds. Ø Verify the candidate number, symbol and name of the candidate in the slip. Ø After that, ballot slip will automatically cut and fall into the Ballot slip compartment. Ø Continue polling for total of 96 votes (cast 6 votes against each 16 candidates). Note down the casted vote. Ø Remove Paper Roll and Battery Pack from VVPAT after Polling Test. Ø Disconnect the connections and paste FLC OK sticker in side of VVPAT. Ø keep VVPAT in carrying case. Bharat Electronics – Electronic Voting Machine (EVM) 29

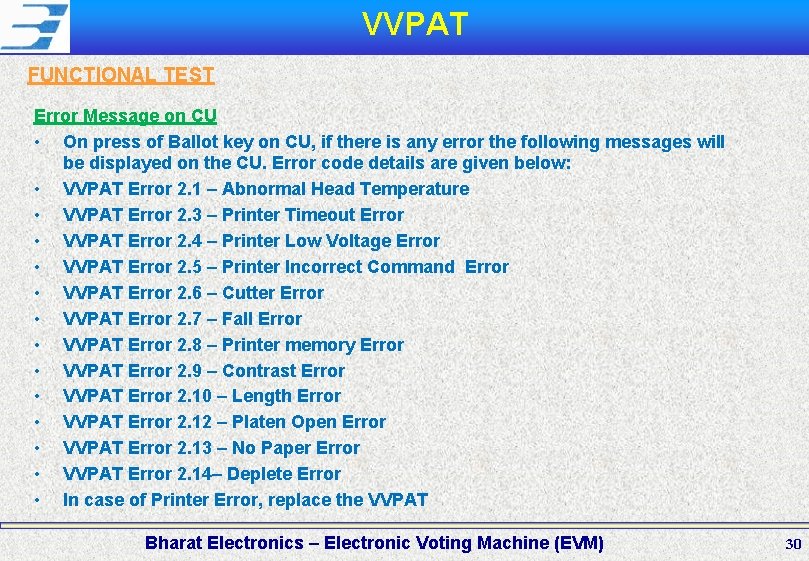

VVPAT FUNCTIONAL TEST Error Message on CU • On press of Ballot key on CU, if there is any error the following messages will be displayed on the CU. Error code details are given below: • VVPAT Error 2. 1 – Abnormal Head Temperature • VVPAT Error 2. 3 – Printer Timeout Error • VVPAT Error 2. 4 – Printer Low Voltage Error • VVPAT Error 2. 5 – Printer Incorrect Command Error • VVPAT Error 2. 6 – Cutter Error • VVPAT Error 2. 7 – Fall Error • VVPAT Error 2. 8 – Printer memory Error • VVPAT Error 2. 9 – Contrast Error • VVPAT Error 2. 10 – Length Error • VVPAT Error 2. 12 – Platen Open Error • VVPAT Error 2. 13 – No Paper Error • VVPAT Error 2. 14– Deplete Error • In case of Printer Error, replace the VVPAT Bharat Electronics – Electronic Voting Machine (EVM) 30
VVPAT CONNECTION OF VVPAT WITH MULTIPLE BUS Port at backside of BU to interconnect next BU Bharat Electronics – Electronic Voting Machine (EVM) 31

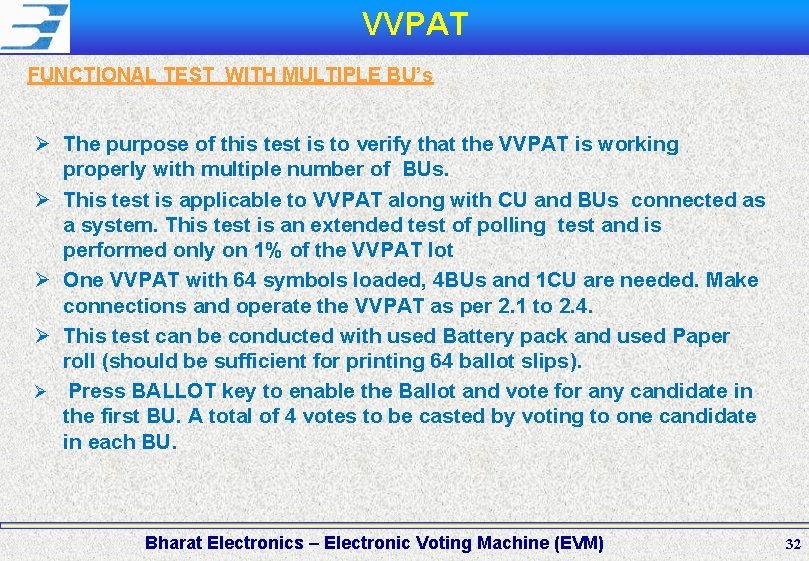

VVPAT FUNCTIONAL TEST WITH MULTIPLE BU’s Ø The purpose of this test is to verify that the VVPAT is working properly with multiple number of BUs. Ø This test is applicable to VVPAT along with CU and BUs connected as a system. This test is an extended test of polling test and is performed only on 1% of the VVPAT lot. Ø One VVPAT with 64 symbols loaded, 4 BUs and 1 CU are needed. Make connections and operate the VVPAT as per 2. 1 to 2. 4. Ø This test can be conducted with used Battery pack and used Paper roll (should be sufficient for printing 64 ballot slips). Ø Press BALLOT key to enable the Ballot and vote for any candidate in the first BU. A total of 4 votes to be casted by voting to one candidate in each BU. Bharat Electronics – Electronic Voting Machine (EVM) 32
VVPAT CHECKLIST FOR WORKS TO BE DONE DURING FLC of VVPAT M 3 SL. NO. PROCEDURE YES/NO REMARKS IF ANY 1. Remove Old Address Tags and stickers. Handover any existing Ballot slips to DEO or his representative. 2. Inspect VVPAT to check all Latches, doors, cables, Transparent window and other Plastic parts. Read Do’s & Don’ts. Follow operation sequence accordingly. Insert Battery Pack & Paper Roll. Check the VVPAT selection switch) Above BU connector in back side of VVPAT) is in Position 1 and Load Dummy Symbols of 16 candidates in all VVPATs with Symbol Loading Unit/PC. Make Connections and Switch ON CU. Observe all POST and Diagnostic Test slips of VVPAT. Enter sensor measurements in First Level Check Sensor Test Report Format. Cast 96 votes (6 votes against each 16 candidate buttons) in Each VVPAT & tally the results of Electronic count and printed Ballot slips. Store slips in envelope. Enter the results in First Level Check Report Format. Remove Ballot Slips, Paper Roll & Battery Pack from respective Compartment of VVPAT after Polling Test. Paste Green FLC sticker for the VVPATs found Ok. Conduct Multiple BU Test by Connecting VVPAT with 4 BUs. Set 64 Candidates in CU & Load 64 dummy symbols in VVPAT. Cast total of 4 votes by voting to any one candidate in each BU. This has to be performed in 1% of VVPAT lot. Keep aside Defective VVPATs and maintain the record in VVPAT failed Report. Enter the details in VVPAT Checking Certificate. 3. 4. 5. 6. 7. 8. 9. 10. 11. Bharat Electronics – Electronic Voting Machine (EVM) 33
