BGV Integration Vacuum layout G Bregliozzi TEVSCLBV BGV
BGV Integration Vacuum layout G. Bregliozzi – TE-VSC-LBV BGV Meeting #19 11/09/2013
Vacuum Sector A 7 L 4. R Divided in 3 vacuum sectors • C 7 L 4. R: Q 7 (ARC) Side • B 7 L 4. R: For the BGV installation • A 7 L 4. R: Q 6 Side Q 7 C 7 L 4. R ≈30 m B 7 L 4. R A 7 L 4. R ≈30 m A 7 L 4. B Q 6
Simplified layout for the B 7 L 4. R sector
Pressure Profile around the BGV Neon injection
Detailed changes in the layout
New vacuum sector C 7 L 4. R • Need to install: • VGI (ionization) gauge - VSC Stock • All metal DN 63 valve for the pump down and bake-out - VSC Stock • VGRB (pirani) gauge - VSC Stock • Exchange vacuum module VMAAB. E 7 L 4. R in DCUM 9758. 26 with a VAMVD (For the it will be installed at 180 )
New vacuum sectorization for the BGV Vacuum sector 2 x VAEHL Sector valve assembly 4 VGPB (Penning gauge) – VSC Stock 2 VPIA (Ion pump) – VSC Stock 4 x Bellow modules – To be ordered 2 VGRB – VSC Stock 2 all metal valves – VSC Stock 2 Sector valve – Ordered 2 Support - To be ordered
NEG vacuum chambers needed • NEG coated copper tube: 80 – DN 100 • • 1 x 6. 655 m 1 x 4. 243 m 2 x 2. 112 m 1 x 4. 588 m (spare chamber for BGV) • Stainless steel NEG coated chambers: 50 – DN 100 • 1 x 1. 1 m (BI? ) • 2 x Stainless steel Conical NEG coated inox transition 50 - 80
4 Additional pumping station: VAMFQ • VAMFQ (-, -, -, VPIC) 4 + 1 VPIC (ion pump) – To be ordered 4 + 1 Transition – To be ordered 4 x Bellow modules – To be ordered 4 + 1 Support – To be ordered
BGV Tank Overview 1 DN 63 CF Flange 1 DN 16 CF Flange DN 63 + Elbow for VGI 212 3100 1100 DN 16 CF Flange for Injection line Maybe we can think to install an additional DN 63 CF flange (? )
New vacuum sector A 7 L 4. R • Need to install: • VGRB (pirani) gauge - VSC Stock

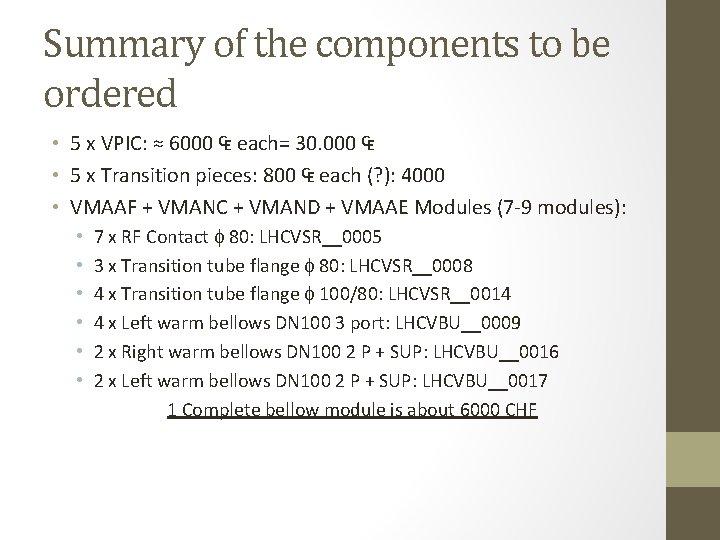

Summary of the components to be ordered • 5 x VPIC: ≈ 6000 ₠ each= 30. 000 ₠ • 5 x Transition pieces: 800 ₠ each (? ): 4000 • VMAAF + VMANC + VMAND + VMAAE Modules (7 -9 modules): • • • 7 x RF Contact 80: LHCVSR__0005 3 x Transition tube flange 80: LHCVSR__0008 4 x Transition tube flange 100/80: LHCVSR__0014 4 x Left warm bellows DN 100 3 port: LHCVBU__0009 2 x Right warm bellows DN 100 2 P + SUP: LHCVBU__0016 2 x Left warm bellows DN 100 2 P + SUP: LHCVBU__0017 1 Complete bellow module is about 6000 CHF
Summary of the components to be ordered • NEG coated copper chambers: 80 – DN 100 • • 1 x 6. 655 m 1 x 4. 243 m 2 x 2. 112 m 1 x 4. 588 m (spare chamber for BGV) • Stainless steel NEG coated chambers: 50 – DN 100 • 1 x 1. 1 m (BI? ) • Stainless steel conical transition NEG coated • 2 x 0. 194 m: 80 to – 50 – CF DN 100 • All supports for bellow modules+ Ion pumps + sector valve must be prepared and integrated
