Border Gateway Protocol • ASes exchange info about who they can reach – IP prefix: block of destination IP addresses – AS path: sequence of ASes along the path • Policies configured by the AS’s operator – Path selection: which of the paths to use? – Path export: which neighbors to tell? 3 “ 12. 34. 158. 0/24: path (2, 1)” “ 12. 34. 158. 0/24: path (1)” 1 2 data traffic 12. 34. 158. 5
Applying Policy to Routes • Import policy – Filter unwanted routes from neighbor E. g. prefix that your customer doesn’t own – Manipulate attributes to influence path selection E. g. , assign local preference to favored routes • Export policy – Filter routes you don’t want to tell your neighbor E. g. , don’t tell a peer a route learned from other peer – Manipulate attributes to control what they see E. g. , make a path look artificially longer than it is
BGP Policy: Influencing Decisions Open ended programming. Constrained only by vendor configuration language Receive Apply Policy = Based on filter routes & BGP Attribute Updates tweak attributes Values Apply Import Policies Best Route Selection Apply Policy = Best filter routes & Routes tweak attributes Best Route Table Apply Export Policies Install forwarding Entries for best Routes. IP Forwarding Table Transmit BGP Updates
BGP Decision Process on a Router • Routing Information Base – Store all BGP routes for each destination prefix – Withdrawal message: remove the route entry – Advertisement message: update the route entry • Selecting the best route – Consider all BGP routes for the prefix – Apply rules for comparing the routes – Select the one best route Use this route in the forwarding table Send this route to neighbors
BGP Decision Process • Highest local preference – Set by import policies upon receiving advertisement • Shortest AS path – Included in the route advertisement • Lowest origin type – Included in advertisement or reset by import policy • Smallest multiple exit discriminator – Included in the advertisement or reset by import policy • Smallest internal path cost to the next hop – Based on intradomain routing protocol (e. g. , OSPF) • Smallest next-hop router id – Final tie-break
Hot-Potato Routing multiple egress points dest New York San Francisco ISP network 10 9 Dallas Hot-potato routing = route to closest egress point when there is more than one best BGP route to destination
Routing Policies • Economics – Enforce business relationships – Pick routes based on revenue and cost – Get traffic out of the network as early as possible • Traffic engineering – Balance traffic over edge links – Select routes with good end-to-end performance • Security and scalability – Filter routes that seem erroneous – Prevent the delivery of unwanted traffic – Limit the dissemination of small address blocks 10
BGP Stability Without Global Coordination http: //www. cs. princeton. edu/courses/archive/ fall 18/cos 561/papers/BGPstability 01. pdf 11
Customer-Provider Relationship • Customer pays provider for Internet access – Provider exports customer’s routes to everybody – Customer exports only to downstream customers Traffic to the customer Traffic from the customer d provider advertisements provider traffic customer d customer
Peer-Peer Relationship • Peers exchange traffic between customers – AS exports only customer routes to a peer – AS exports a peer’s routes only to its customers Traffic to/from the peer and its customers advertisements peer d traffic peer
Three Restrictions on Policies • Route export – Do not export a route learned from one peers or provider, to another • Route selection – Prefer a route learned from a customer over a route learned from a peer or provider • AS graph – No cycle of provider-customer relationships • Together: guarantee convergence to unique, stable route assignment 14
Valid and Invalid Paths Valid paths: “ 6 “ 1 4 23 d”d” and “ 7“ 8 d” 5 d” Invalid paths: path: “ 6 5 “ 5 d” 8 and d” “ 1 4 3 d” 1 d 5 Provider-Customer Peer-Peer 4 3 2 7 8 6
Solving the Convergence Problem • Result – Safety: guaranteed convergence to unique stable solution – Inherent safety: holds under failures and policy changes • Definitions – System state: current best route at each AS – Activating AS: re-do decision based on neighbor choices • Sketch of (constructive) proof – Find an activation sequence that leads to a stable state – Any “fair” sequence (eventually) includes this sequence

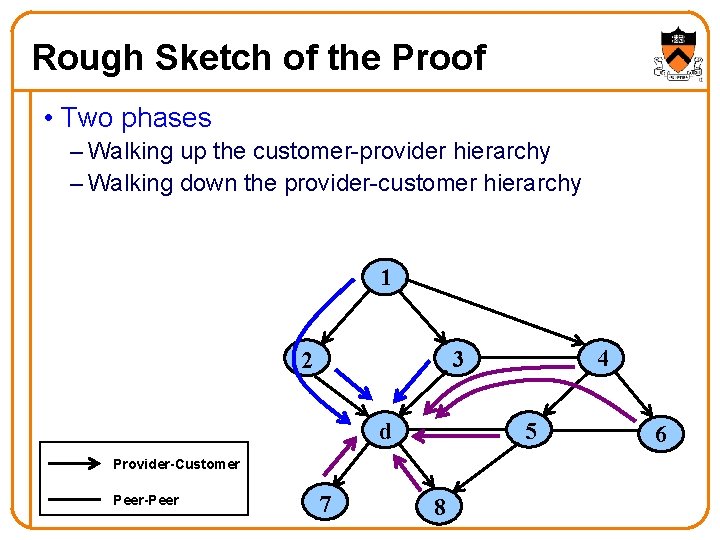

Rough Sketch of the Proof • Two phases – Walking up the customer-provider hierarchy – Walking down the provider-customer hierarchy 1 d 5 Provider-Customer Peer-Peer 4 3 2 7 8 6
Two Interpretations • System is stable because ASes act like this – High-level argument Export and topology assumptions are reasonable Path selection rule matches with financial incentives – Empirical results BGP routes for popular prefixes stable for ~10 days Most instability from a few flapping destinations • ASes should follow rules for system stability – Encourage operators to obey these guidelines – … and provide ways to verify the configuration – Need to consider more complex relationships
Multi-Homing 19
Why Connect to Multiple Providers? • Reliability – Reduced fate sharing – Survive ISP failure • Performance – Multiple paths – Select the best • Financial – Leverage through competition – Game 95 th-percentile billing model Provider 1 Provider 2
Outbound Traffic: Pick a BGP Route • Easier to control than inbound traffic – IP routing is destination based – Sender determines where the packets go • Control only by selecting the next hop – Border router can pick the next-hop AS – Cannot control selection of the entire path Provider 1 “(1, 3, 4)” Provider 2 “(2, 7, 8, 4)”

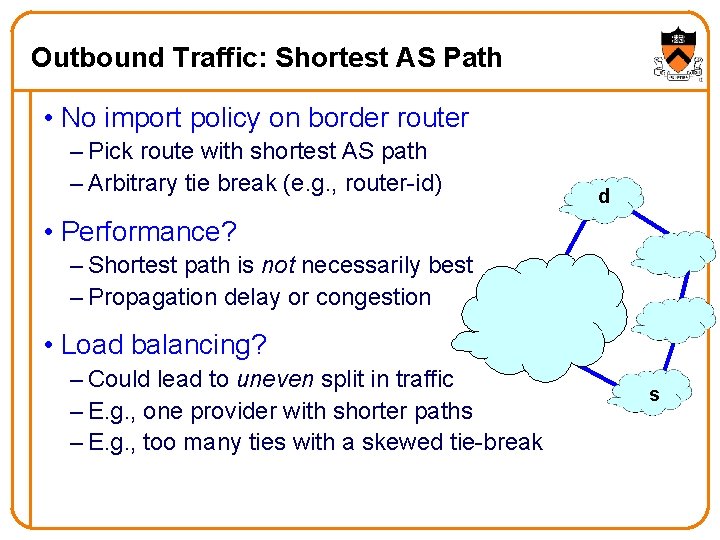

Outbound Traffic: Shortest AS Path • No import policy on border router – Pick route with shortest AS path – Arbitrary tie break (e. g. , router-id) d • Performance? – Shortest path is not necessarily best – Propagation delay or congestion • Load balancing? – Could lead to uneven split in traffic – E. g. , one provider with shorter paths – E. g. , too many ties with a skewed tie-break s
Outbound Traffic: Primary and Backup • Single policy for all prefixes – High local-pref for session to primary provider – Low load-pref for session to backup provider • Outcome of BGP decision process – Choose the primary provider whenever possible – Use the backup provider when necessary • But… – What if you want to balance traffic load? – What if you want to select better paths?
Outbound Traffic: Load Balancing • Selectively use each provider – Assign local-pref across destination prefixes – Change the local-pref assignments over time • Useful inputs to load balancing – End-to-end path performance data E. g. , active measurements along each path – Outbound traffic statistics per destination prefix E. g. , packet monitors or router-level support – Link capacity to each provider – Billing model of each provider

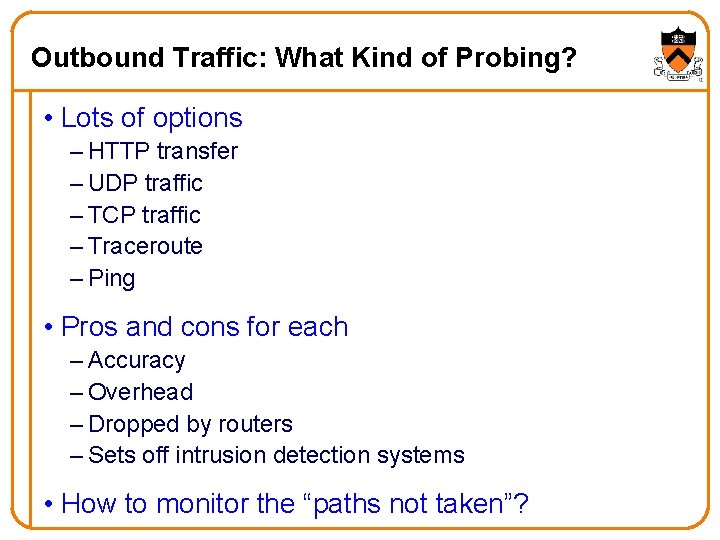

Outbound Traffic: What Kind of Probing? • Lots of options – HTTP transfer – UDP traffic – TCP traffic – Traceroute – Ping • Pros and cons for each – Accuracy – Overhead – Dropped by routers – Sets off intrusion detection systems • How to monitor the “paths not taken”?
Outbound Traffic: How Often to Change? • Stub ASes have no BGP customers – So, routing changes do not trigger BGP updates • TCP flows that switch paths – Out-of-order packets during transition – Change in round-trip-time (RTT) • Impact on the providers – Uncertainty in the offered load – Interaction with their own traffic engineering? • Impact on other end users – Good: move traffic off of congested paths – Bad: potential oscillation as other stub ASes adapt?
Propane Paper 27
