BEYOND COLOR GLOSS OTHER BENEFITS OF FEVE FLUOROPOLYMER

BEYOND COLOR & GLOSS: OTHER BENEFITS OF FEVE FLUOROPOLYMER TECHNOLOGY

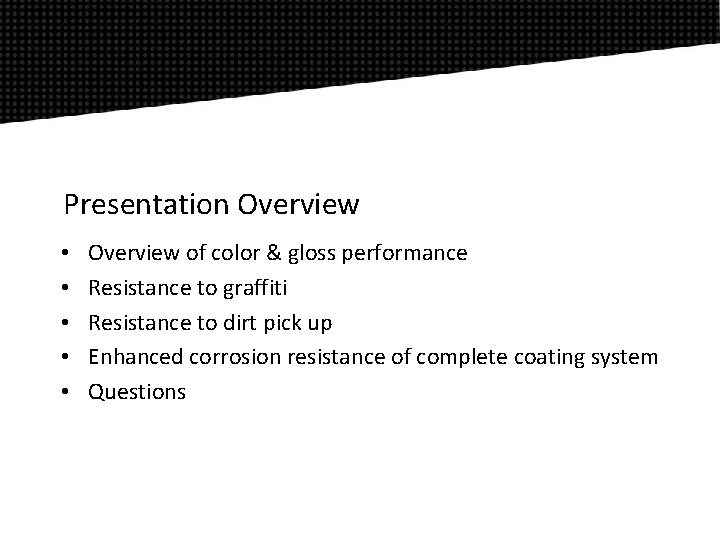

Presentation Overview • • • Overview of color & gloss performance Resistance to graffiti Resistance to dirt pick up Enhanced corrosion resistance of complete coating system Questions

A Holistic Approach to Coatings Selection

A Holistic Approach to Coatings Selection UV-Resistant Topcoat Intermediate Barrier Coat Corrosion-Resistant Primer

COLOR & GLOSS PEFORMANCE OF FEVE FLUOROPOLYMERS

Georgia Dome – Atlanta, GA (2008)

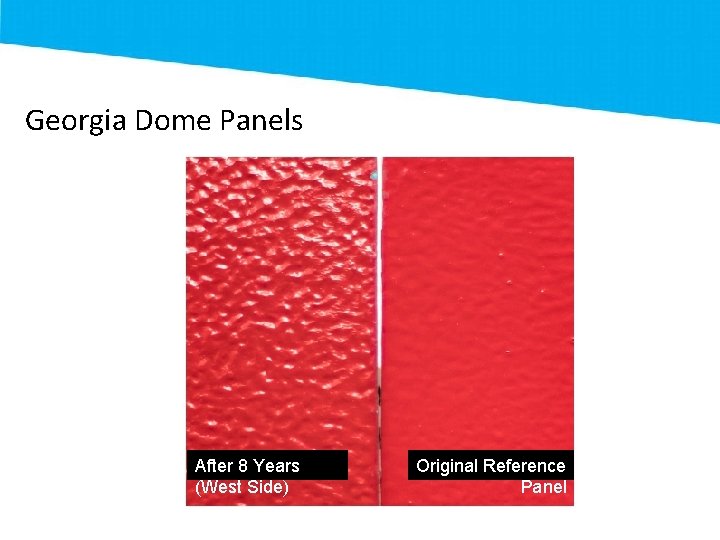

Georgia Dome Panels After 8 Years (West Side) Original Reference Panel

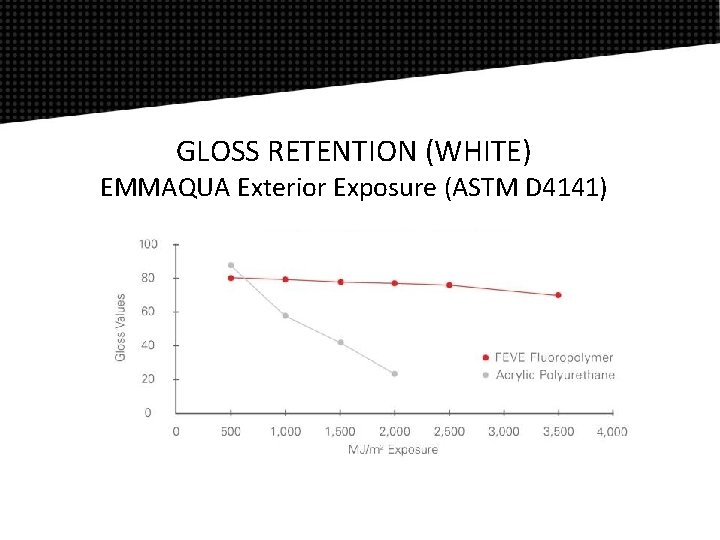

GLOSS RETENTION (WHITE) EMMAQUA Exterior Exposure (ASTM D 4141)

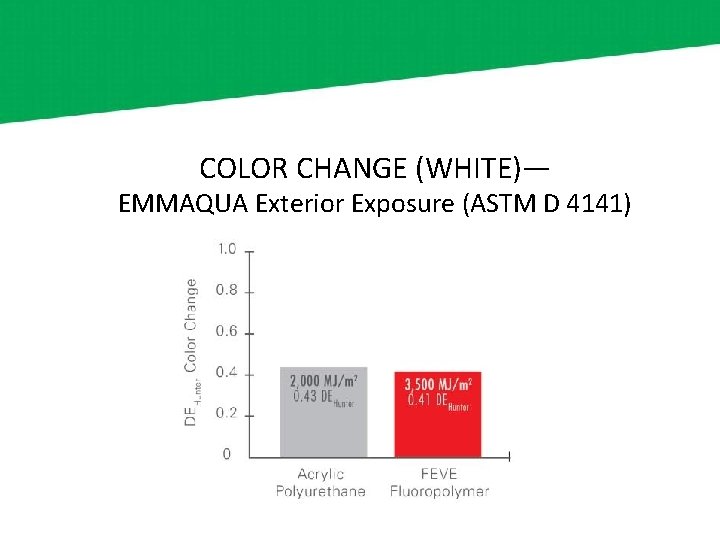

COLOR CHANGE (WHITE)— EMMAQUA Exterior Exposure (ASTM D 4141)

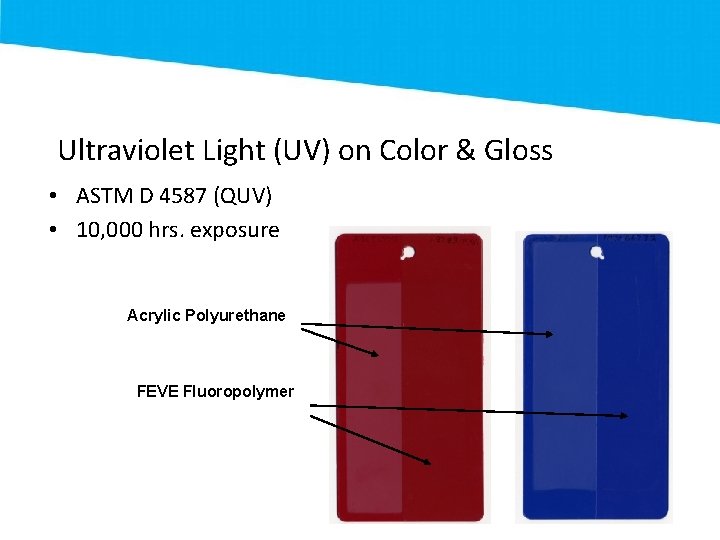

Ultraviolet Light (UV) on Color & Gloss • ASTM D 4587 (QUV) • 10, 000 hrs. exposure Acrylic Polyurethane FEVE Fluoropolymer

OTHER BENEFITS: # 1 — RESISTANCE TO GRAFFITI

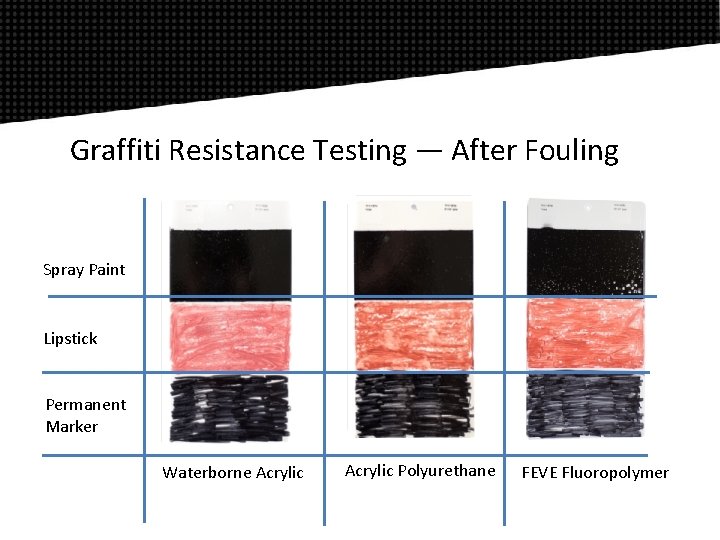

Graffiti Resistance Testing — After Fouling Spray Paint Lipstick Permanent Marker Waterborne Acrylic Polyurethane FEVE Fluoropolymer

Graffiti Resistance Testing — Initial Cleaning

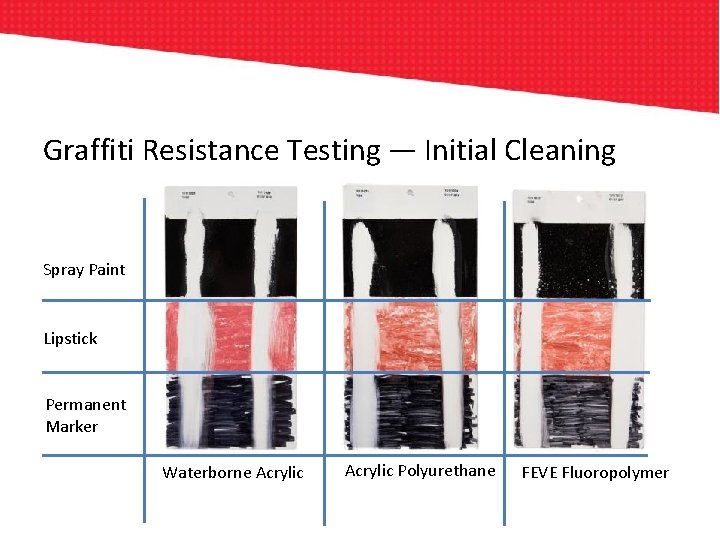

Graffiti Resistance Testing — Initial Cleaning Spray Paint Lipstick Permanent Marker Waterborne Acrylic Polyurethane FEVE Fluoropolymer

Graffiti Resistance Testing —Thorough Cleaning Spray Paint Lipstick Permanent Marker Waterborne Acrylic Polyurethane FEVE Fluoropolymer

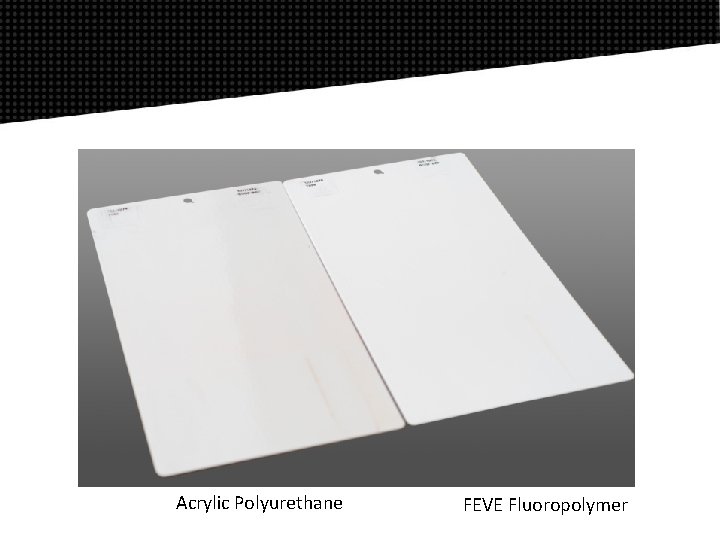

Acrylic Polyurethane FEVE Fluoropolymer

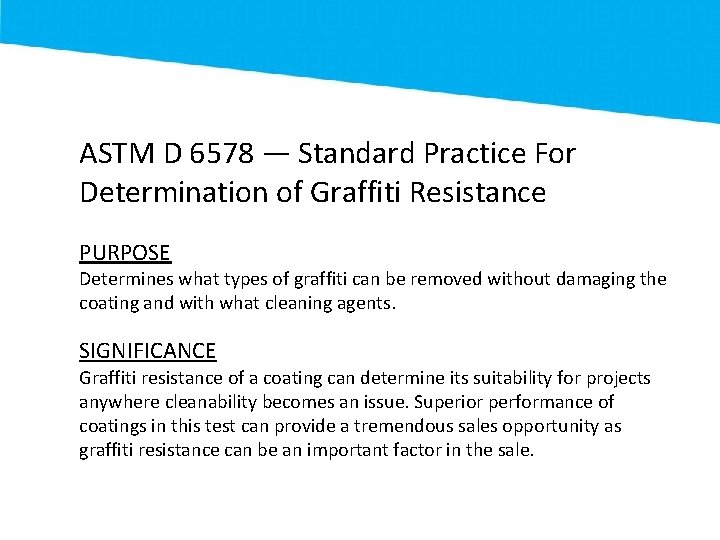

ASTM D 6578 — Standard Practice For Determination of Graffiti Resistance PURPOSE Determines what types of graffiti can be removed without damaging the coating and with what cleaning agents. SIGNIFICANCE Graffiti resistance of a coating can determine its suitability for projects anywhere cleanability becomes an issue. Superior performance of coatings in this test can provide a tremendous sales opportunity as graffiti resistance can be an important factor in the sale.

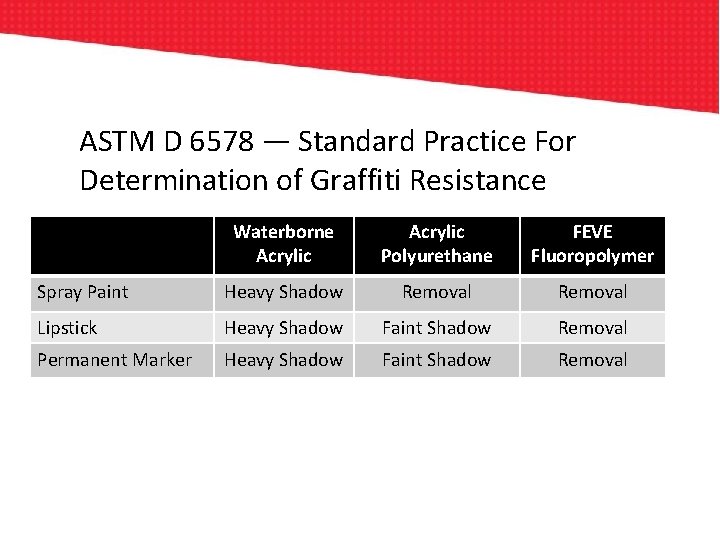

ASTM D 6578 — Standard Practice For Determination of Graffiti Resistance Waterborne Acrylic Polyurethane FEVE Fluoropolymer Spray Paint Heavy Shadow Removal Lipstick Heavy Shadow Faint Shadow Removal Permanent Marker Heavy Shadow Faint Shadow Removal

OTHER BENEFITS: # 2 — RESISTANCE TO DIRT PICKUP

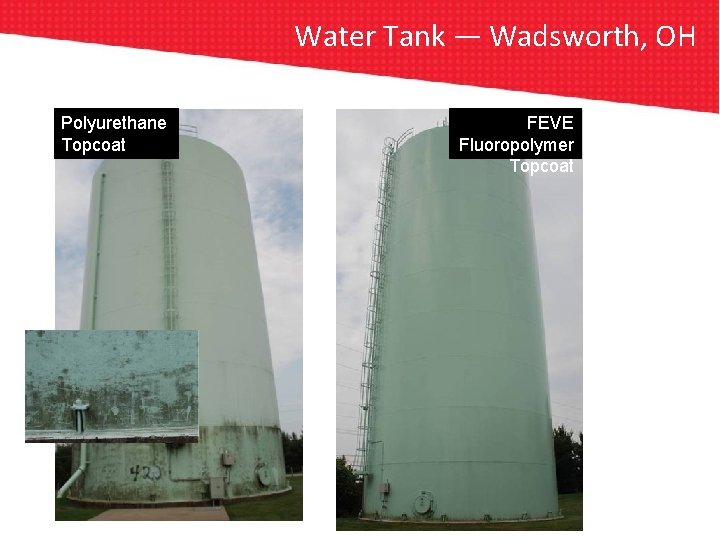

Water Tank — Wadsworth, OH Polyurethane Topcoat FEVE Fluoropolymer Topcoat

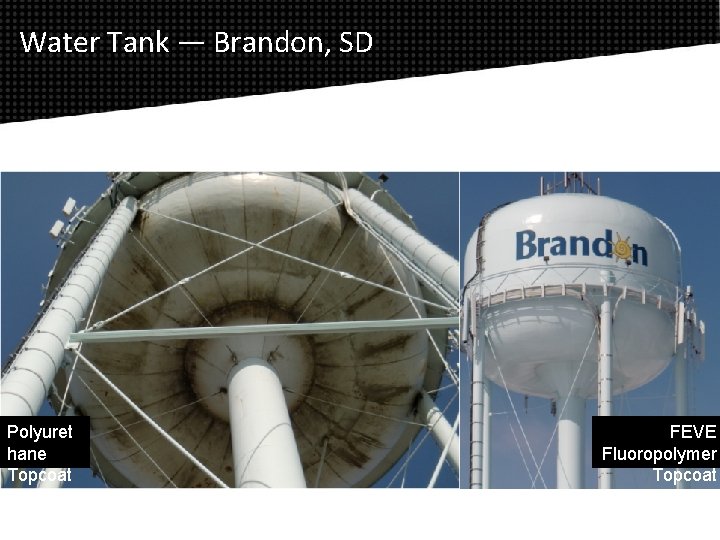

Water Tank — Brandon, SD Polyuret hane Topcoat FEVE Fluoropolymer Topcoat

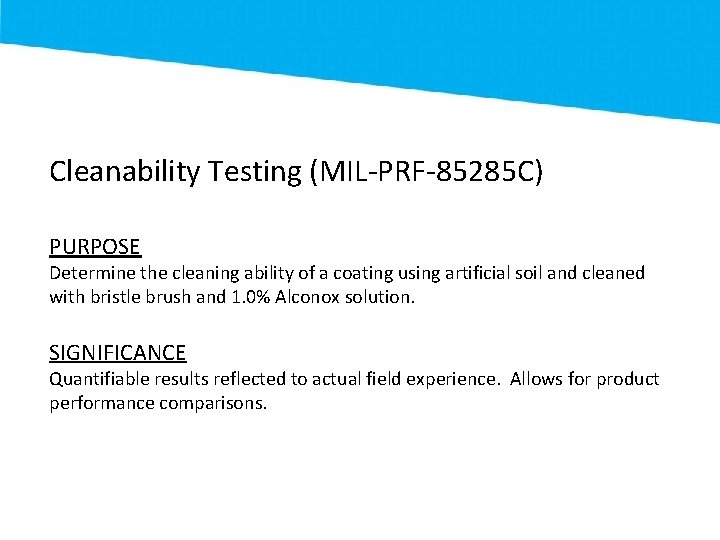

Cleanability Testing (MIL-PRF-85285 C) PURPOSE Determine the cleaning ability of a coating using artificial soil and cleaned with bristle brush and 1. 0% Alconox solution. SIGNIFICANCE Quantifiable results reflected to actual field experience. Allows for product performance comparisons.

Cleanability Testing (MIL-PRF-85285 C) Average Cleaning Efficiency Waterborne Acrylic Polyurethane FEVE Fluoropolymer 7. 55% 73. 35% 97. 80%

OTHER BENEFITS: # 3 — ENHANCED CORROSION RESISTANCE OF COMPLETE COATING SYSTEM

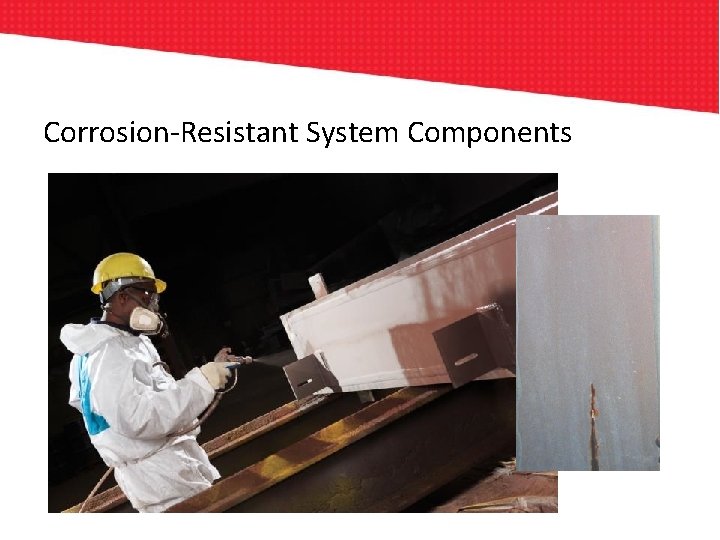

Corrosion-Resistant System Components

Coating System Symbiosis Corrosion-Resistant Primer Intermediate Barrier Coat UV-Resistant Topcoat

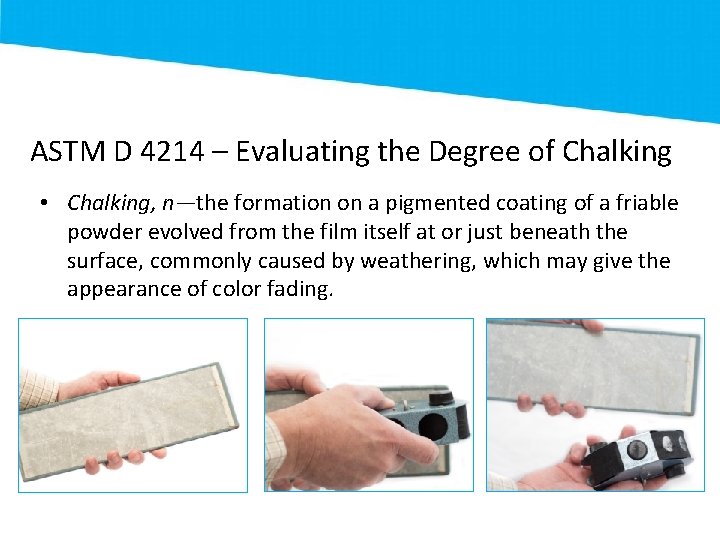

ASTM D 4214 – Evaluating the Degree of Chalking • Chalking, n—the formation on a pigmented coating of a friable powder evolved from the film itself at or just beneath the surface, commonly caused by weathering, which may give the appearance of color fading.

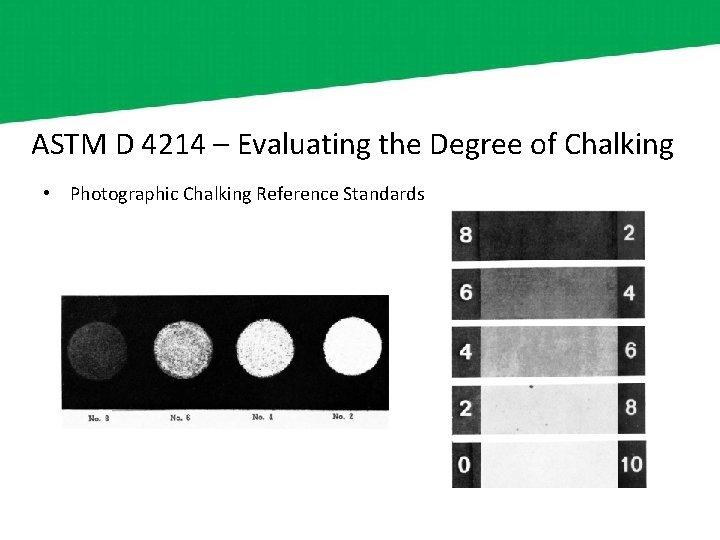

ASTM D 4214 – Evaluating the Degree of Chalking • Photographic Chalking Reference Standards

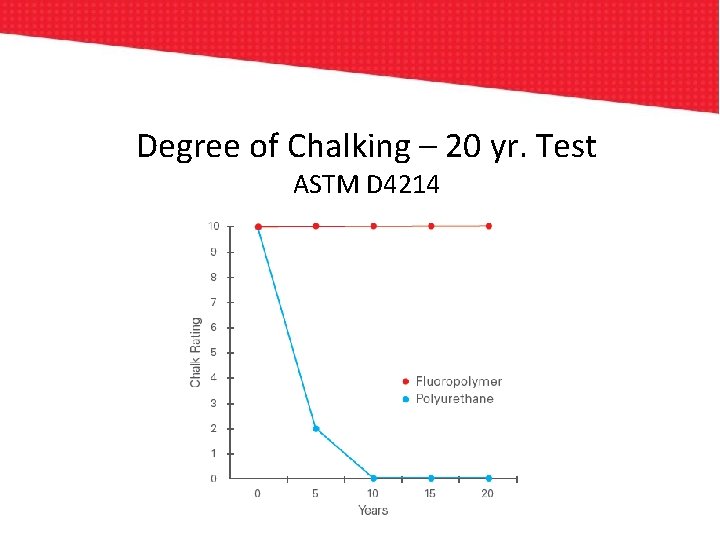

Degree of Chalking – 20 yr. Test ASTM D 4214

Film Thickness Retention Real Time Weathering Testing Off-Shore Marine Test Station - Suruga Bay, Japan

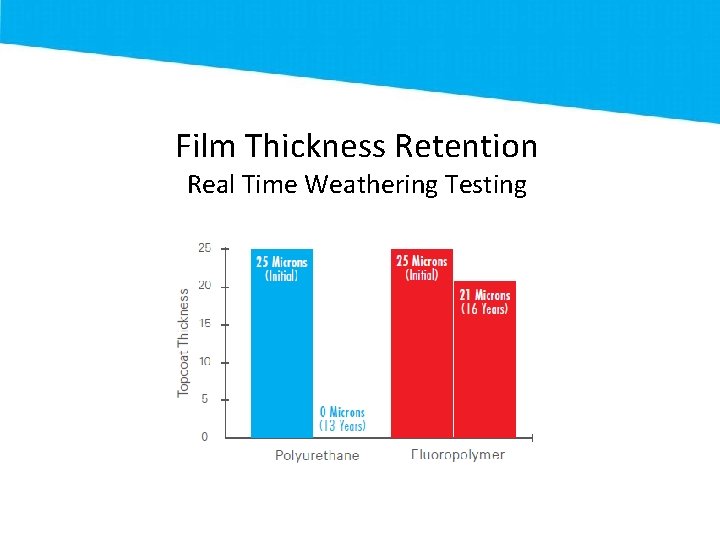

Film Thickness Retention Real Time Weathering Testing

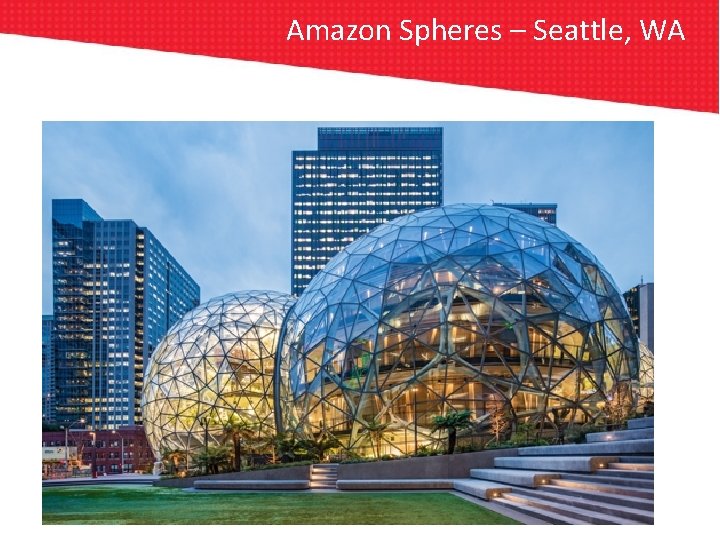

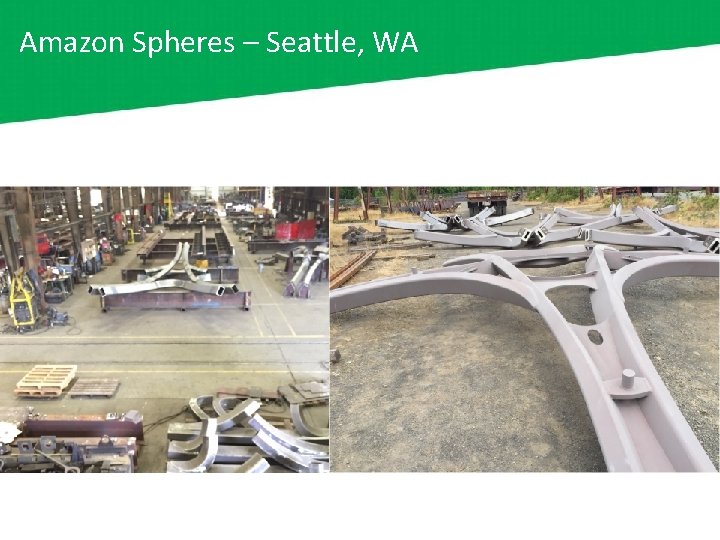

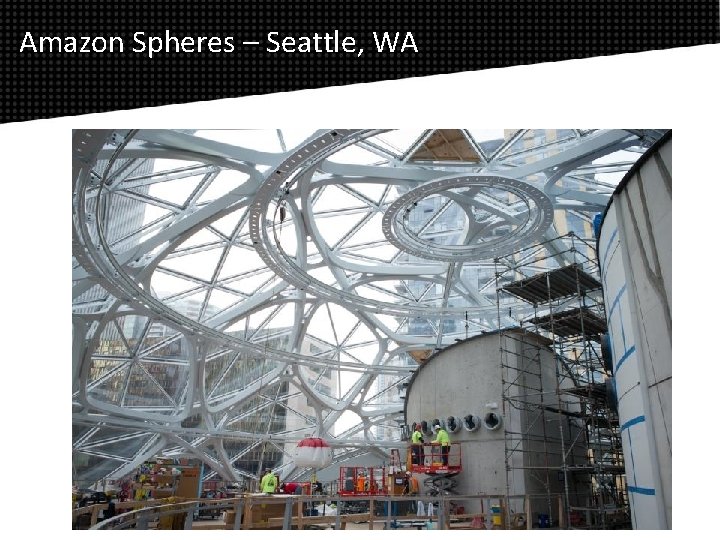

Amazon Spheres – Seattle, WA

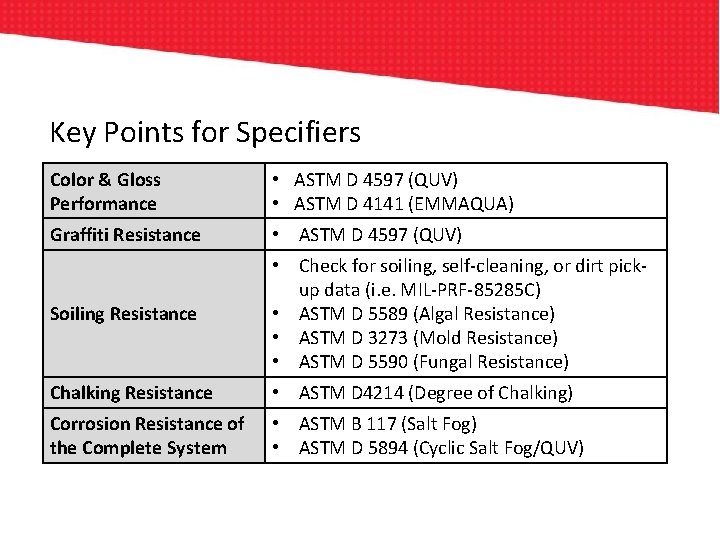

Key Points for Specifiers Color & Gloss Performance • ASTM D 4597 (QUV) • ASTM D 4141 (EMMAQUA) Graffiti Resistance • ASTM D 4597 (QUV) Soiling Resistance • Check for soiling, self-cleaning, or dirt pickup data (i. e. MIL-PRF-85285 C) • ASTM D 5589 (Algal Resistance) • ASTM D 3273 (Mold Resistance) • ASTM D 5590 (Fungal Resistance) Chalking Resistance • ASTM D 4214 (Degree of Chalking) Corrosion Resistance of the Complete System • ASTM B 117 (Salt Fog) • ASTM D 5894 (Cyclic Salt Fog/QUV)

Thank you for your participation in today’s presentation. QUESTIONS?
