BETWEEN SAM AND THE SUBSTRATE A SMART VALVE

BETWEEN SAM AND THE SUBSTRATE – A SMART VALVE FOR Ne. SSI Seventeenth International Forum Process Analytical Chemistry IFPAC 2003 Scottsdale, Arizona 1/23/2003 Richard A. Ales, David M. Simko, Swagelok Company, Solon, Ohio

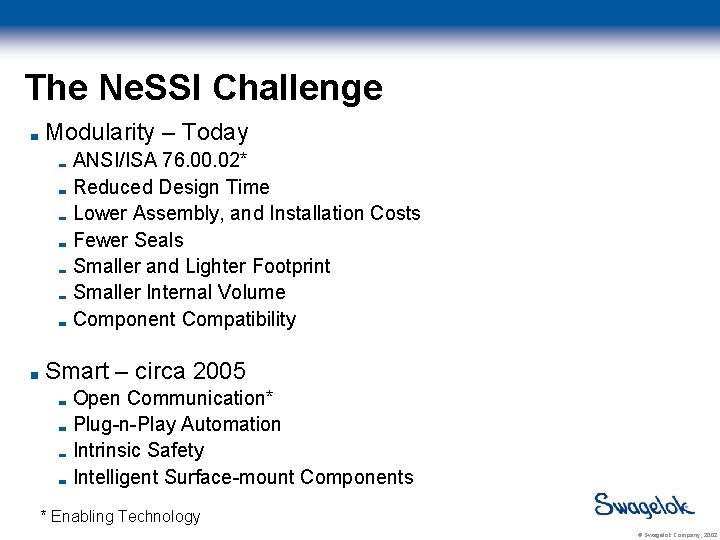

The Ne. SSI Challenge Modularity – Today ANSI/ISA 76. 00. 02* Reduced Design Time Lower Assembly, and Installation Costs Fewer Seals Smaller and Lighter Footprint Smaller Internal Volume Component Compatibility Smart – circa 2005 Open Communication* Plug-n-Play Automation Intrinsic Safety Intelligent Surface-mount Components * Enabling Technology © Swagelok Company, 2002

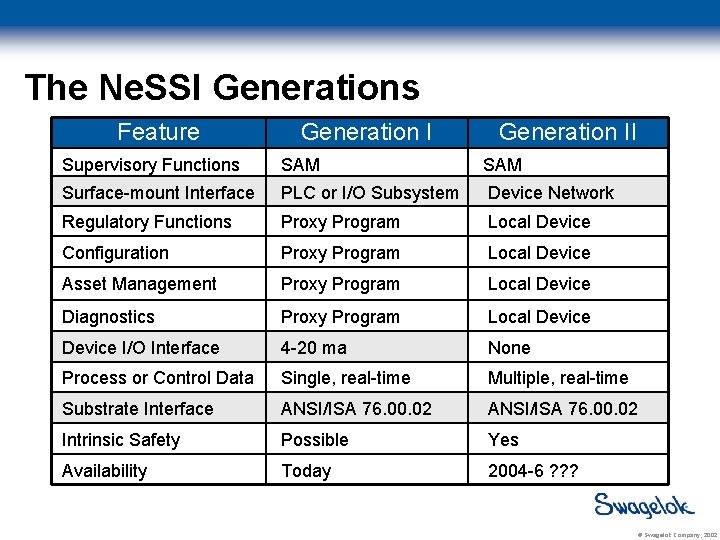

The Ne. SSI Generations Feature Generation II Supervisory Functions SAM Surface-mount Interface PLC or I/O Subsystem Device Network Regulatory Functions Proxy Program Local Device Configuration Proxy Program Local Device Asset Management Proxy Program Local Device Diagnostics Proxy Program Local Device I/O Interface 4 -20 ma None Process or Control Data Single, real-time Multiple, real-time Substrate Interface ANSI/ISA 76. 00. 02 Intrinsic Safety Possible Yes Availability Today 2004 -6 ? ? ? © Swagelok Company, 2002

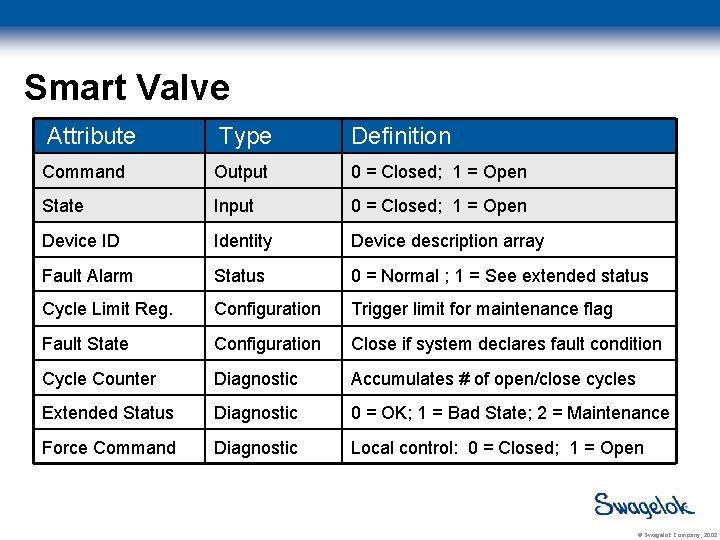

Smart Valve Attribute Type Definition Command Output 0 = Closed; 1 = Open State Input 0 = Closed; 1 = Open Device ID Identity Device description array Fault Alarm Status 0 = Normal ; 1 = See extended status Cycle Limit Reg. Configuration Trigger limit for maintenance flag Fault State Configuration Close if system declares fault condition Cycle Counter Diagnostic Accumulates # of open/close cycles Extended Status Diagnostic 0 = OK; 1 = Bad State; 2 = Maintenance Force Command Diagnostic Local control: 0 = Closed; 1 = Open © Swagelok Company, 2002

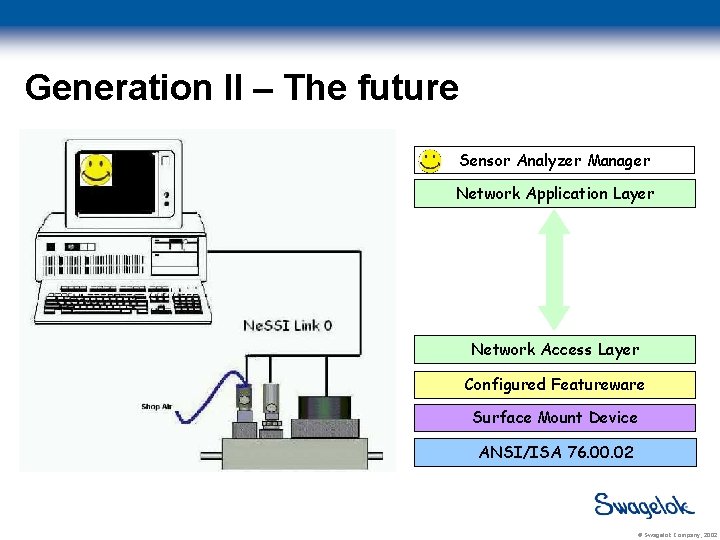

Generation II – The future Sensor Analyzer Manager Network Application Layer Network Access Layer Configured Featureware Surface Mount Device ANSI/ISA 76. 00. 02 © Swagelok Company, 2002

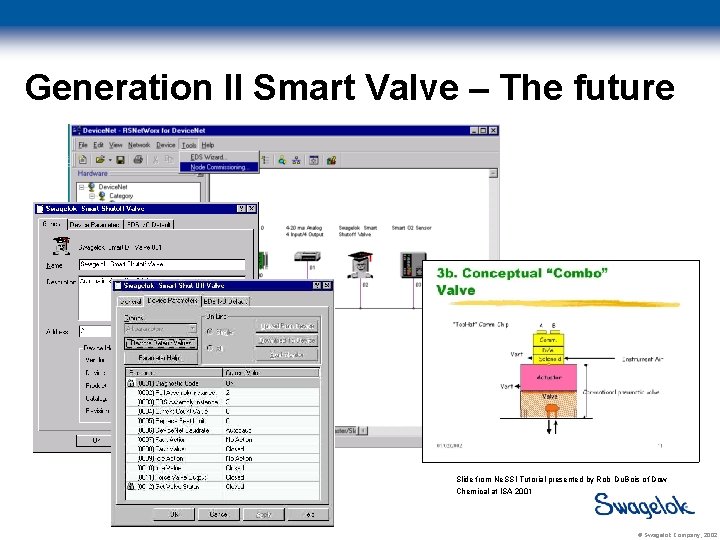

Generation II Smart Valve – The future Slide from Ne. SSI Tutorial presented by Rob Du. Bois of Dow Chemical at ISA 2001 © Swagelok Company, 2002

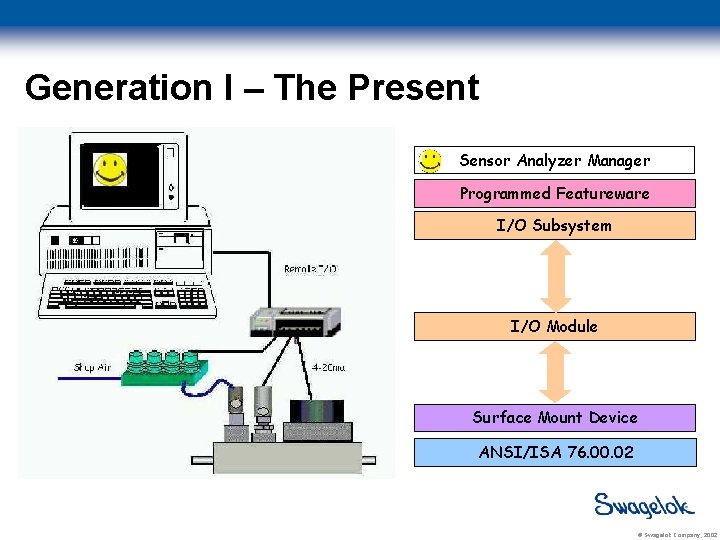

Generation I – The Present Sensor Analyzer Manager Programmed Featureware I/O Subsystem I/O Module Surface Mount Device ANSI/ISA 76. 00. 02 © Swagelok Company, 2002

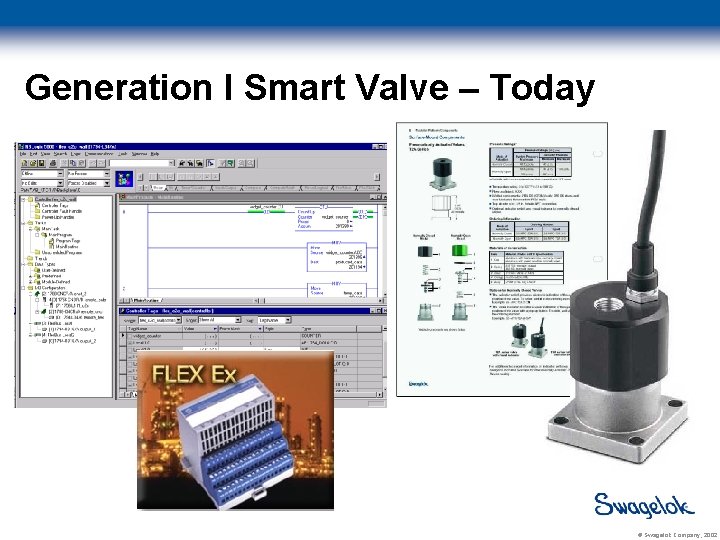

Generation I Smart Valve – Today © Swagelok Company, 2002

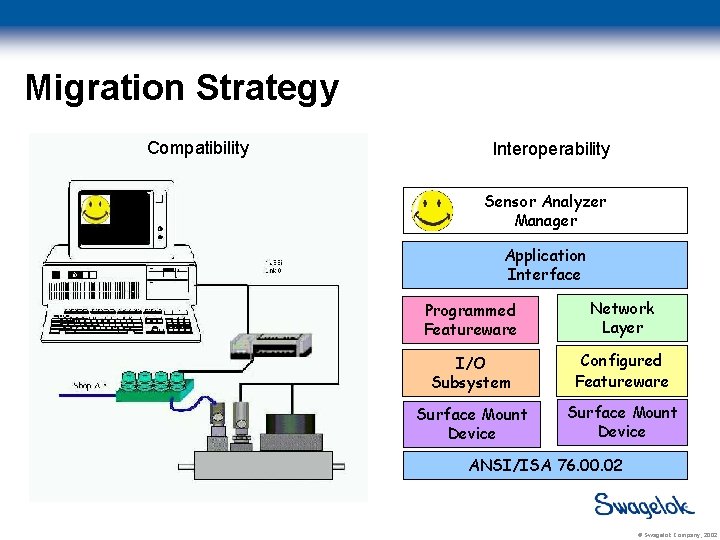

Migration Strategy Compatibility Interoperability Sensor Analyzer Manager Application Interface Programmed Featureware Network Layer I/O Subsystem Configured Featureware Surface Mount Device ANSI/ISA 76. 00. 02 © Swagelok Company, 2002

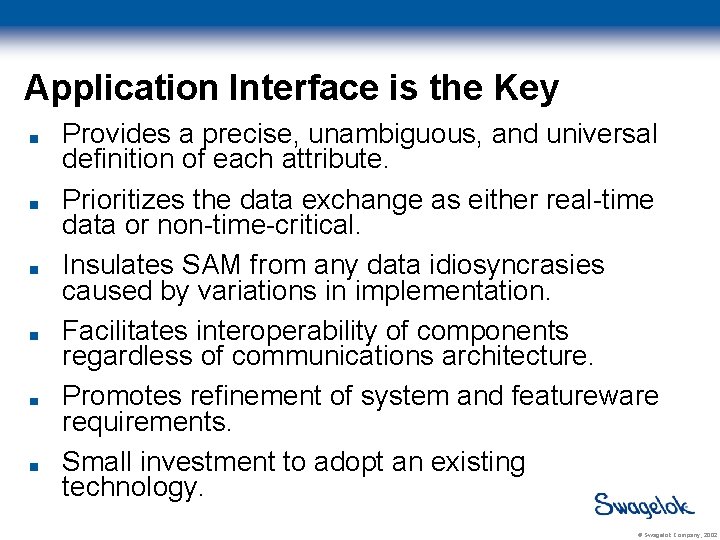

Application Interface is the Key Provides a precise, unambiguous, and universal definition of each attribute. Prioritizes the data exchange as either real-time data or non-time-critical. Insulates SAM from any data idiosyncrasies caused by variations in implementation. Facilitates interoperability of components regardless of communications architecture. Promotes refinement of system and featureware requirements. Small investment to adopt an existing technology. © Swagelok Company, 2002
