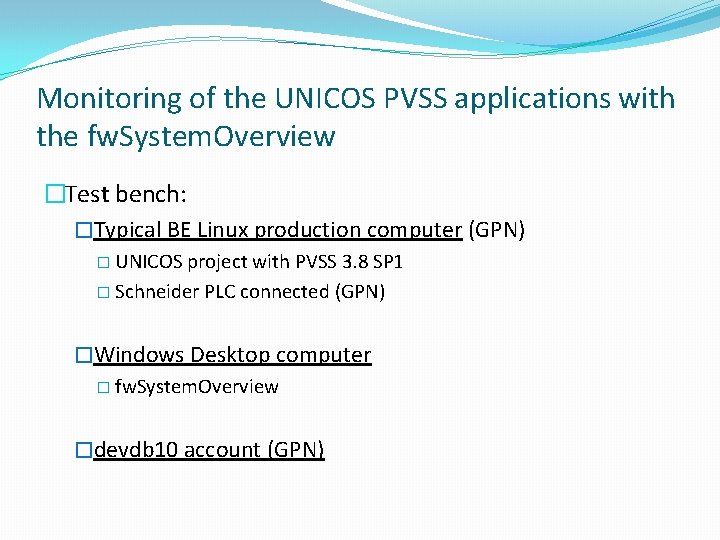

Monitoring of the UNICOS PVSS applications with the fw. System. Overview �Test bench: �Typical BE Linux production computer (GPN) � UNICOS project with PVSS 3. 8 SP 1 � Schneider PLC connected (GPN) �Windows Desktop computer � fw. System. Overview �devdb 10 account (GPN)

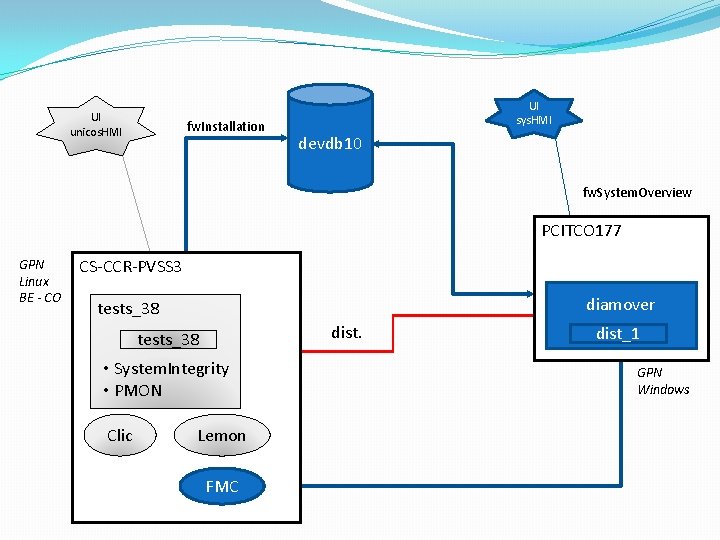

UI unicos. HMI fw. Installation UI sys. HMI devdb 10 fw. System. Overview PCITCO 177 GPN Linux BE - CO CS-CCR-PVSS 3 diamover tests_38 dist. tests_38 • System. Integrity • PMON Clic Lemon FMC dist_1 GPN Windows

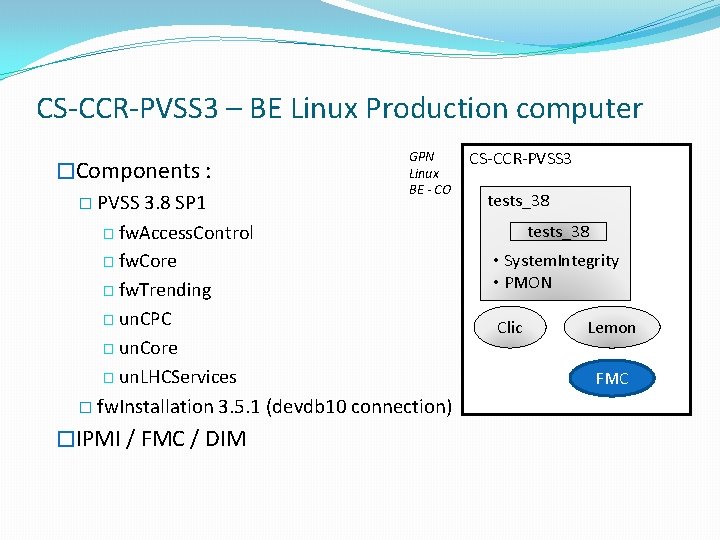

CS-CCR-PVSS 3 – BE Linux Production computer GPN Linux BE - CO �Components : � PVSS 3. 8 SP 1 � fw. Access. Control � fw. Core � fw. Trending � un. CPC � un. Core � un. LHCServices � fw. Installation 3. 5. 1 (devdb 10 connection) �IPMI / FMC / DIM CS-CCR-PVSS 3 tests_38 • System. Integrity • PMON Clic Lemon FMC

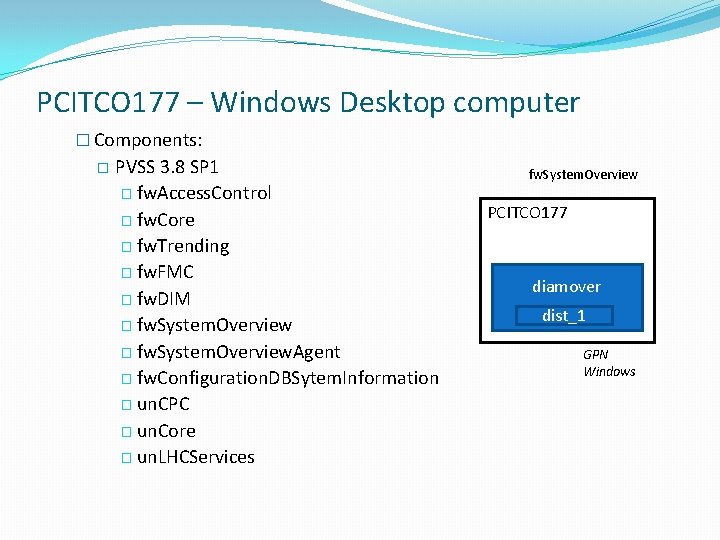

PCITCO 177 – Windows Desktop computer � Components: � PVSS 3. 8 SP 1 � fw. Access. Control � fw. Core � fw. Trending � fw. FMC � fw. DIM � fw. System. Overview. Agent � fw. Configuration. DBSytem. Information � un. CPC � un. Core � un. LHCServices fw. System. Overview PCITCO 177 diamover dist_1 GPN Windows

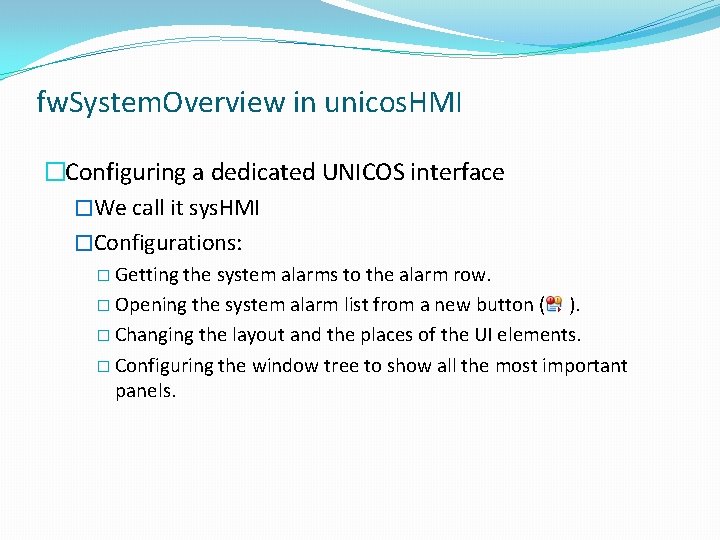

fw. System. Overview in unicos. HMI �Configuring a dedicated UNICOS interface �We call it sys. HMI �Configurations: � Getting the system alarms to the alarm row. � Opening the system alarm list from a new button ( ). � Changing the layout and the places of the UI elements. � Configuring the window tree to show all the most important panels.

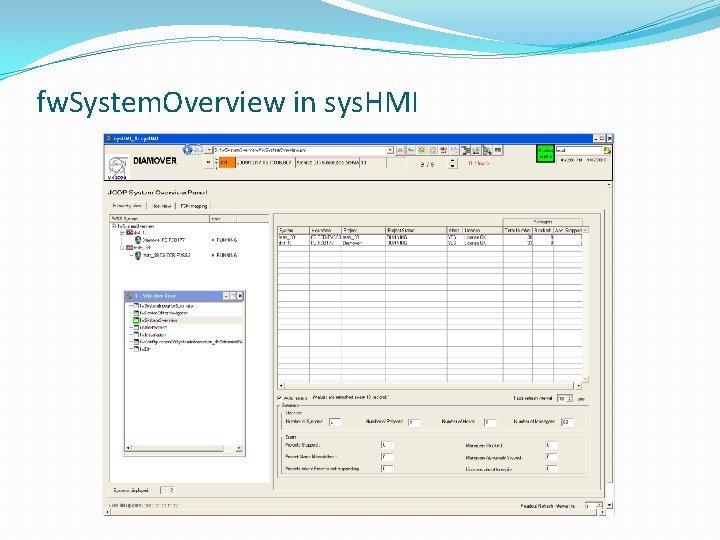

fw. System. Overview in sys. HMI

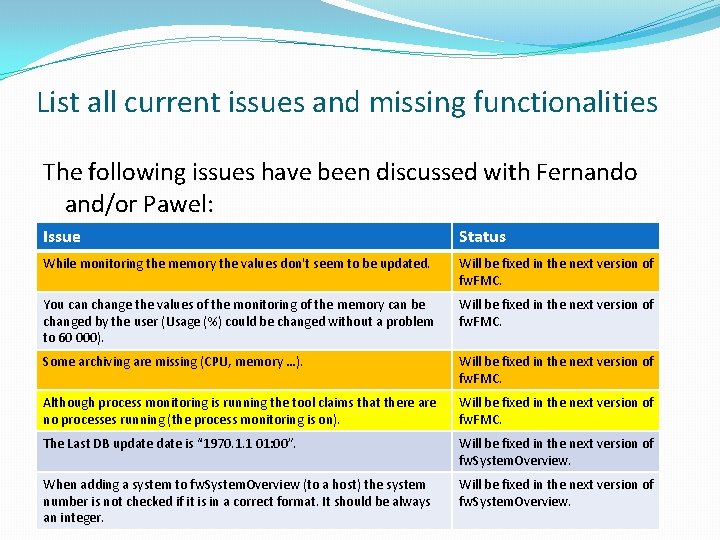

List all current issues and missing functionalities The following issues have been discussed with Fernando and/or Pawel: Issue Status While monitoring the memory the values don't seem to be updated. Will be fixed in the next version of fw. FMC. You can change the values of the monitoring of the memory can be changed by the user (Usage (%) could be changed without a problem to 60 000). Will be fixed in the next version of fw. FMC. Some archiving are missing (CPU, memory …). Will be fixed in the next version of fw. FMC. Although process monitoring is running the tool claims that there are no processes running (the process monitoring is on). Will be fixed in the next version of fw. FMC. The Last DB update is “ 1970. 1. 1 01: 00”. Will be fixed in the next version of fw. System. Overview. When adding a system to fw. System. Overview (to a host) the system number is not checked if it is in a correct format. It should be always an integer. Will be fixed in the next version of fw. System. Overview.

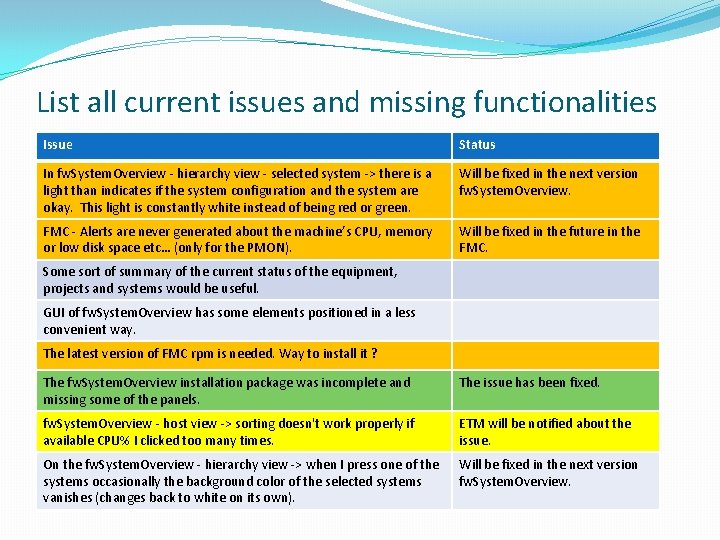

List all current issues and missing functionalities Issue Status In fw. System. Overview - hierarchy view - selected system -> there is a light than indicates if the system configuration and the system are okay. This light is constantly white instead of being red or green. Will be fixed in the next version fw. System. Overview. FMC - Alerts are never generated about the machine’s CPU, memory or low disk space etc… (only for the PMON). Will be fixed in the future in the FMC. Some sort of summary of the current status of the equipment, projects and systems would be useful. GUI of fw. System. Overview has some elements positioned in a less convenient way. The latest version of FMC rpm is needed. Way to install it ? The fw. System. Overview installation package was incomplete and missing some of the panels. The issue has been fixed. fw. System. Overview - host view -> sorting doesn't work properly if available CPU% I clicked too many times. ETM will be notified about the issue. On the fw. System. Overview - hierarchy view -> when I press one of the systems occasionally the background color of the selected systems vanishes (changes back to white on its own). Will be fixed in the next version fw. System. Overview.

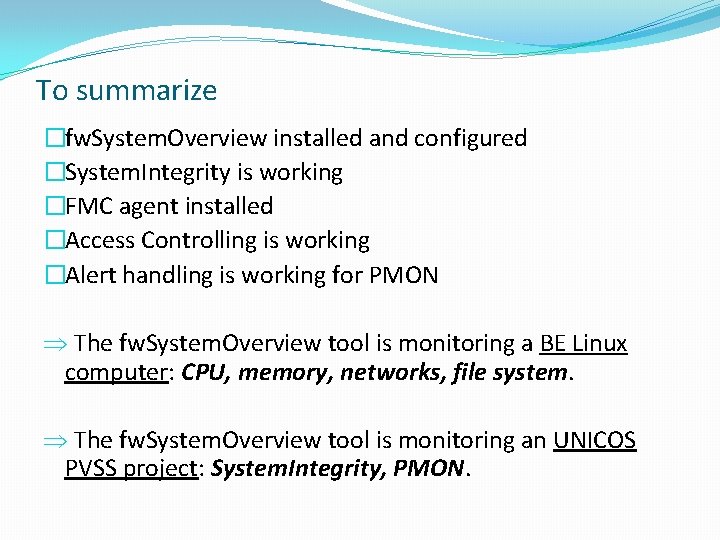

To summarize �fw. System. Overview installed and configured �System. Integrity is working �FMC agent installed �Access Controlling is working �Alert handling is working for PMON Þ The fw. System. Overview tool is monitoring a BE Linux computer: CPU, memory, networks, file system. Þ The fw. System. Overview tool is monitoring an UNICOS PVSS project: System. Integrity, PMON.

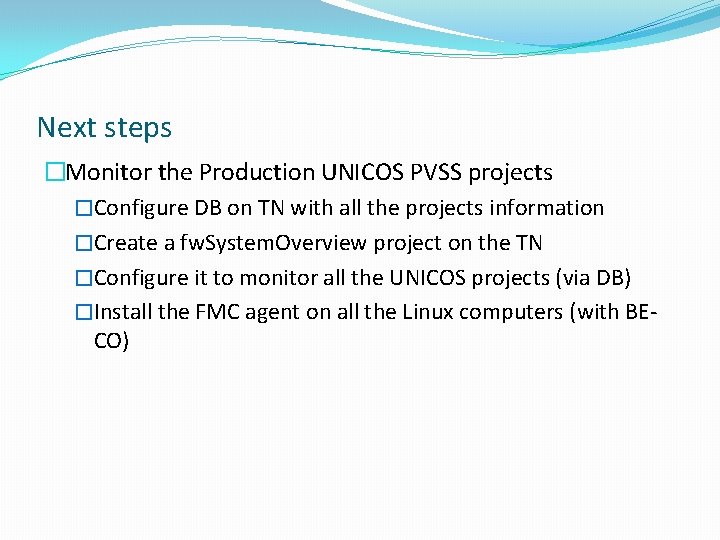

Next steps �Monitor the Production UNICOS PVSS projects �Configure DB on TN with all the projects information �Create a fw. System. Overview project on the TN �Configure it to monitor all the UNICOS projects (via DB) �Install the FMC agent on all the Linux computers (with BECO)
