Bell Work Answer the following review questions You

Bell Work Answer the following review questions. You may use your notes. What does the term “scale” mean? What does the term “proportion” mean?

Floor Plans

Objectives Define scale drawing Identify interior zones Identify different types of floor plan layouts Define architectural symbols

Orthographic Drawings Diagrams Types Floor or drawings that are drawn to scale of orthographic drawings used in interior design Plans Interior Elevations Sections

Scale Drawing A drawing that shows a real object with accurate sizes reduced or enlarged by a certain amount (called the scale). Something that is drawn to scale has the same proportions has the original.

Scales 1”=1’ (every 1 inch of the drawing represents 1 foot in real space) ½”=1’ (every ½ inch of the drawing represents 1 foot in real space) ¼”=1’ (every ¼ inch of the drawing represents 1 foot in real space) There are many scales that can be used but these are the easiest and most common. The scale that is used depends on what is being drawn to scale, the level of accuracy and how much detail is needed.

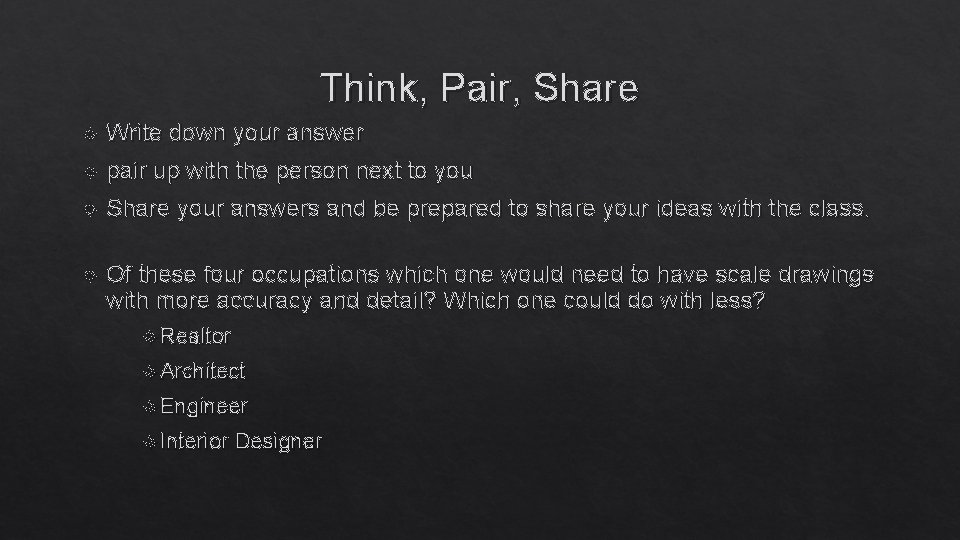

Think, Pair, Share Write down your answer pair up with the person next to you Share your answers and be prepared to share your ideas with the class. Of these four occupations which one would need to have scale drawings with more accuracy and detail? Which one could do with less? Realtor Architect Engineer Interior Designer

Floor Plan A visual of a room or building scaled and viewed from above. 2 -dementional “bird’s eye view” of the layout of the space. Exact placement and measurements of architectural features and utilities

Why do designers use floor plans? Determine architectural detail placement in a room Study Suitability to lifestyle Judge space dimensions in a room

1. Determine architectural details placement in a room. Architectural Symbols symbols that represent specific features related to architecture and construction Universal symbols understood by everyone in housing and construction industry .

Architectural Symbols Building features Walls Doors Windows Stairs Utilities Shower Toilet Stove Fridge Washer Dryer

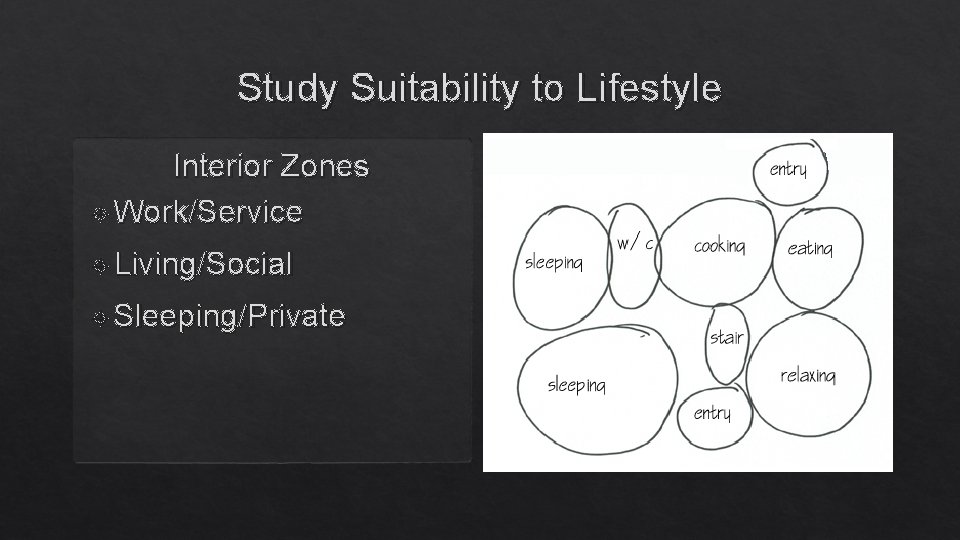

Study Suitability to Lifestyle Interior Zones Work/Service Living/Social Sleeping/Private

Types of Floor Plans Closed Floor Plans- most Open Floor Plans- has Combination- both closed or all of the rooms are open to each other through a door and when the door is closed the room is completely enclosed several areas that are open to each other without walls or only partial walls and open spaces

Judge space dimensions in a room Furniture Arrangement Plan for furnishing a room. Furniture is drawn in the same scale as the floor plan Determine if specific pieces of furniture will fit in the room Develop traffic flow and circulation patterns

Hand Drafting Computer Aided Drafting
