Behold Einthovens Triangle Each of the 6 frontal

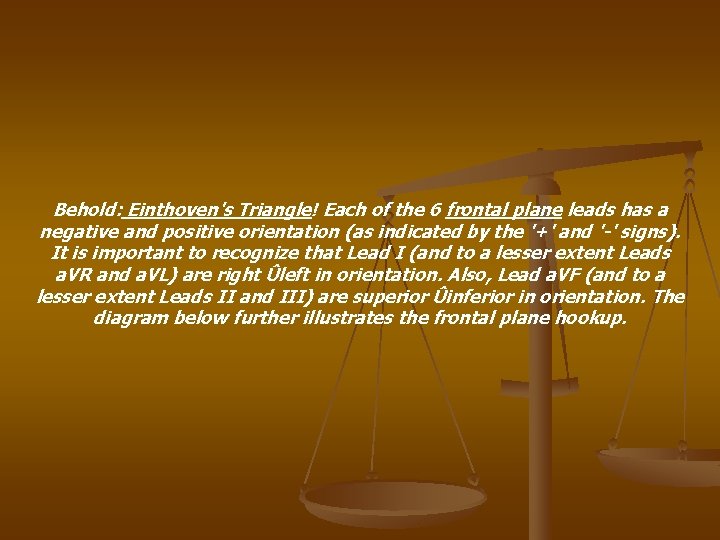

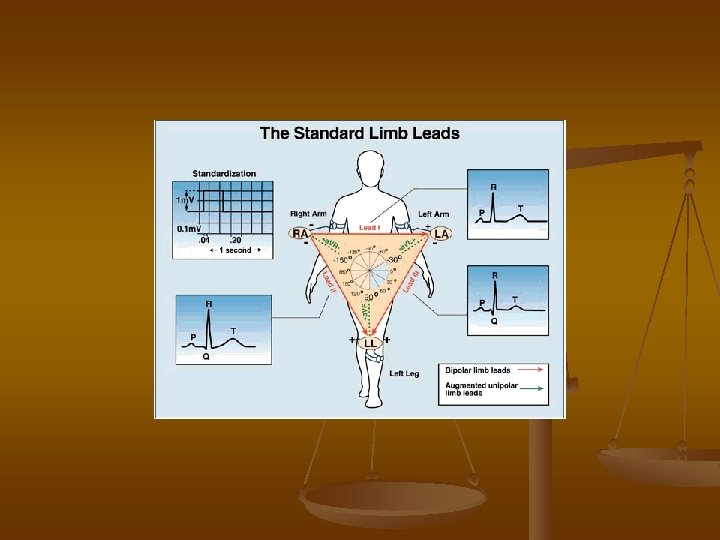

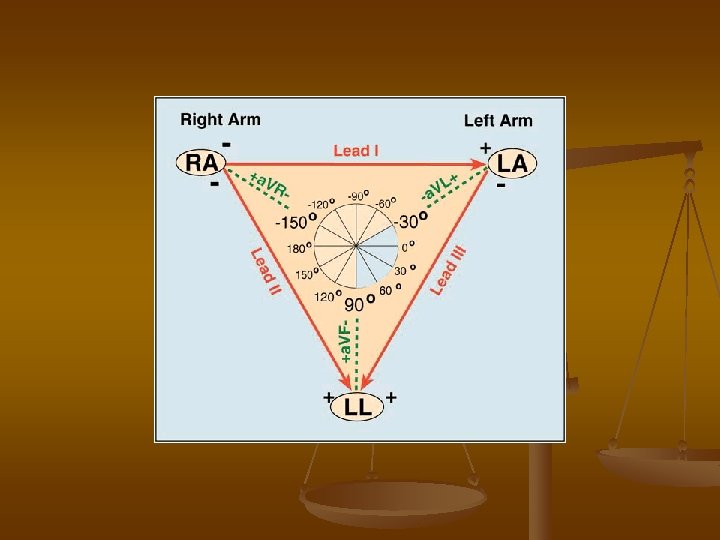

Behold: Einthoven's Triangle! Each of the 6 frontal plane leads has a negative and positive orientation (as indicated by the '+' and '-' signs). It is important to recognize that Lead I (and to a lesser extent Leads a. VR and a. VL) are right Ûleft in orientation. Also, Lead a. VF (and to a lesser extent Leads II and III) are superior Ûinferior in orientation. The diagram below further illustrates the frontal plane hookup.

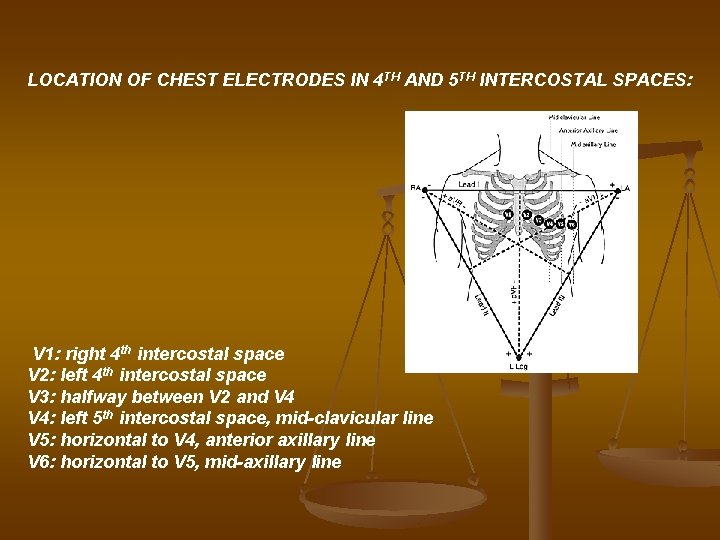

LOCATION OF CHEST ELECTRODES IN 4 TH AND 5 TH INTERCOSTAL SPACES: V 1: right 4 th intercostal space V 2: left 4 th intercostal space V 3: halfway between V 2 and V 4: left 5 th intercostal space, mid-clavicular line V 5: horizontal to V 4, anterior axillary line V 6: horizontal to V 5, mid-axillary line

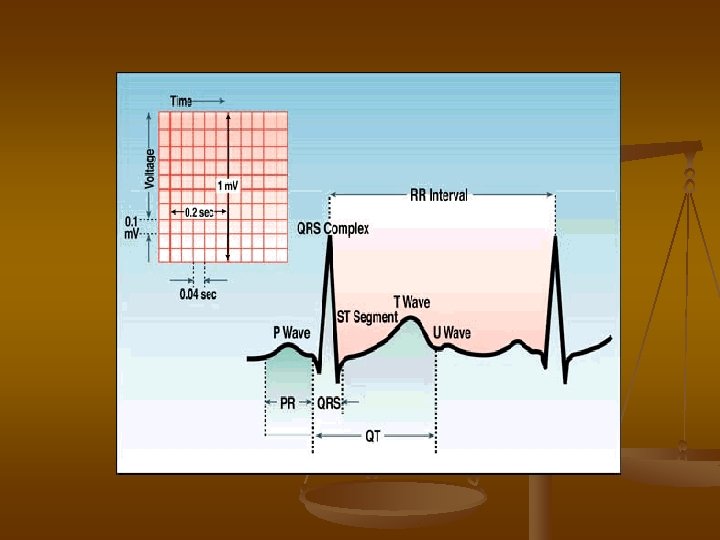

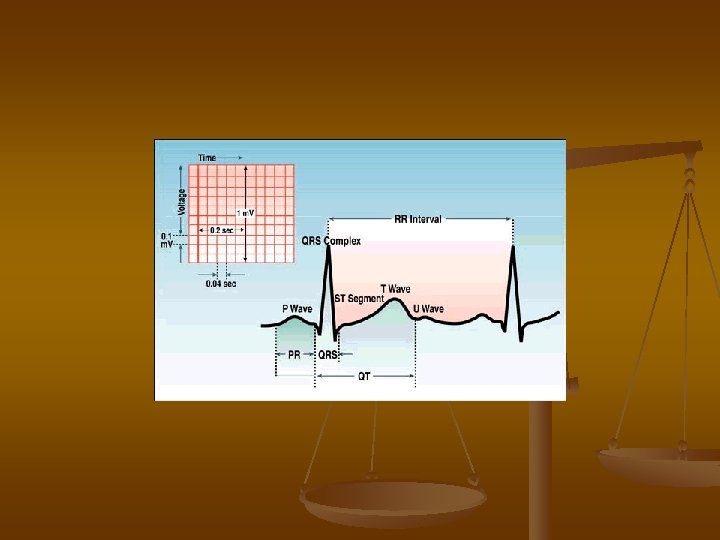

1. ECG Waves and Intervals: What do they mean? P wave: the sequential activation (depolarization) of the right and left atria QRS complex: right and left ventricular depolarization (normally the ventricles are activated simultaneously) ST-T wave: ventricular repolarization U wave: origin for this wave is not clear - but probably represents "afterdepolarizations" in the ventricles PR interval: time interval from onset of atrial depolarization (P wave) to onset of ventricular depolarization (QRS complex) QRS duration: duration of ventricular muscle depolarization QT interval: duration of ventricular depolarization and repolarization RR interval: duration of ventricular cardiac cycle (an indicator of ventricular rate) PP interval: duration of atrial cycle (an indicator of atrial rate)

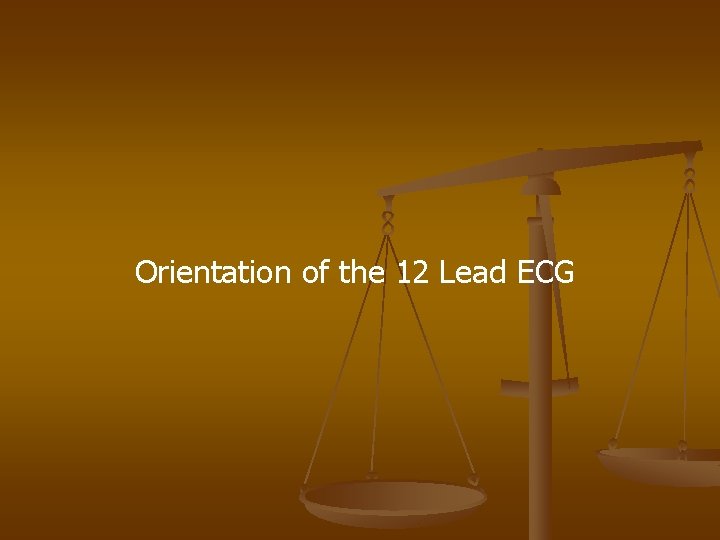

Orientation of the 12 Lead ECG

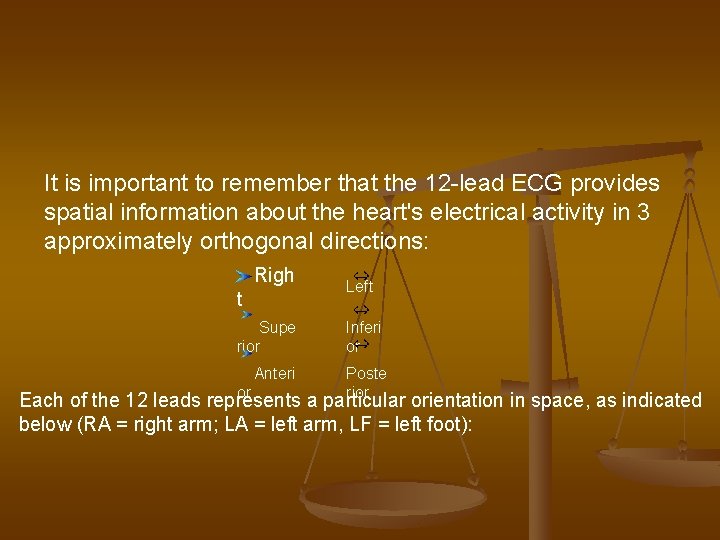

It is important to remember that the 12 -lead ECG provides spatial information about the heart's electrical activity in 3 approximately orthogonal directions: Righ t Supe rior Anteri Left Inferi or Poste rior or Each of the 12 leads represents a particular orientation in space, as indicated below (RA = right arm; LA = left arm, LF = left foot):

Bipolar limb leads (frontal plane): Lead I: RA (-) to LA (+) (Right Left, or lateral) Lead II: RA (-) to LF (+) (Superior Inferior) Lead III: LA (-) to LF (+) (Superior Inferior)

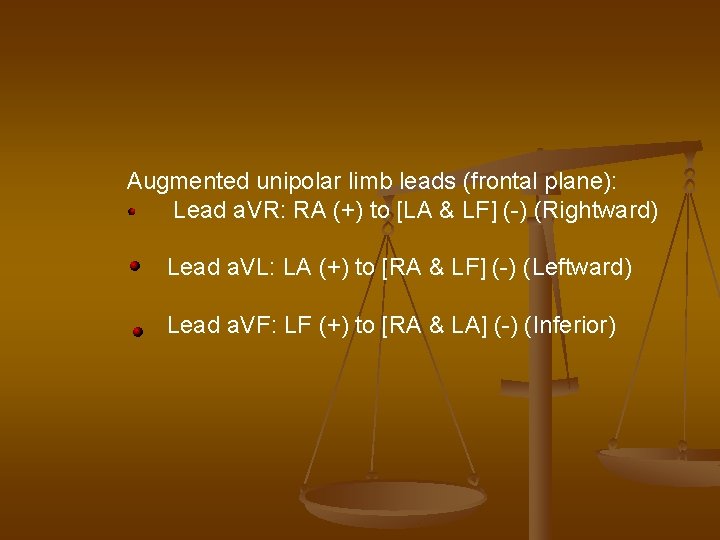

Augmented unipolar limb leads (frontal plane): Lead a. VR: RA (+) to [LA & LF] (-) (Rightward) Lead a. VL: LA (+) to [RA & LF] (-) (Leftward) Lead a. VF: LF (+) to [RA & LA] (-) (Inferior)

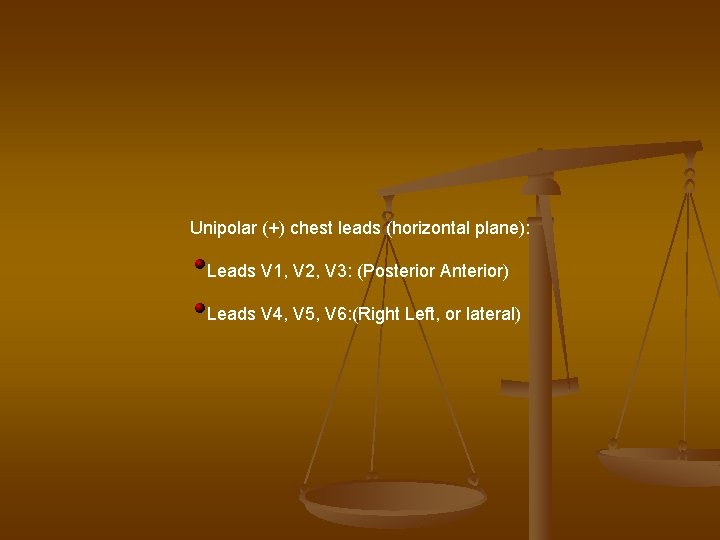

Unipolar (+) chest leads (horizontal plane): Leads V 1, V 2, V 3: (Posterior Anterior) Leads V 4, V 5, V 6: (Right Left, or lateral)

Measurements (usually made in frontal plane leads): Heart rate (state atrial and ventricular, if different) PR interval (from beginning of P to beginning of QRS) QRS duration (width of most representative QRS) QT interval (from beginning of QRS to end of T) QRS axis in frontal plane (go to: "How To Determine Axis")

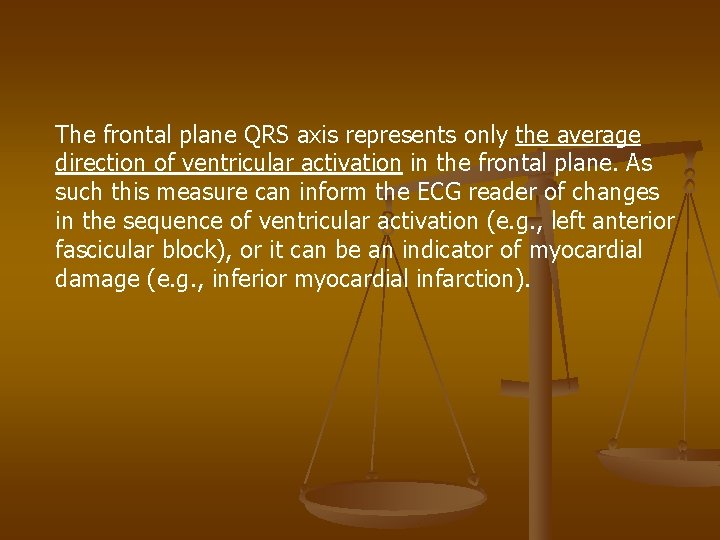

The frontal plane QRS axis represents only the average direction of ventricular activation in the frontal plane. As such this measure can inform the ECG reader of changes in the sequence of ventricular activation (e. g. , left anterior fascicular block), or it can be an indicator of myocardial damage (e. g. , inferior myocardial infarction).

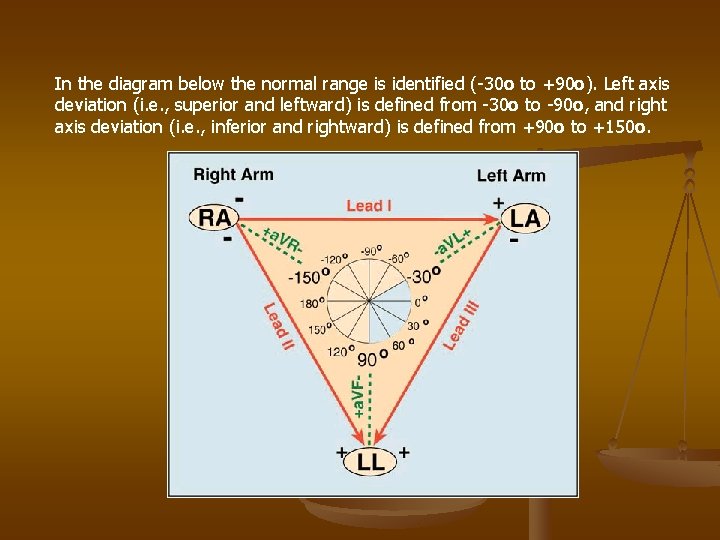

In the diagram below the normal range is identified (-30 o to +90 o). Left axis deviation (i. e. , superior and leftward) is defined from -30 o to -90 o, and right axis deviation (i. e. , inferior and rightward) is defined from +90 o to +150 o.

QRS Axis Determination n First find the isoelectric lead if there is one; i. e. , the lead with equal forces in the positive and negative direction. Often this is the lead with the smallest QRS. The QRS axis is perpendicular to that lead's orientation (see above diagram). Since there are two perpendiculars to each isoelectric lead, chose the perpendicular that best fits the direction of the other ECG leads. If there is no isoelectric lead, there are usually two leads that are nearly isoelectric, and these are always 30 o apart. Find the perpendiculars for each lead and chose an approximate QRS axis within the 30 o range. Occasionally each of the 6 frontal plane leads is small and/or isoelectric. The axis cannot be determined and is called indeterminate. This is a normal variant. n

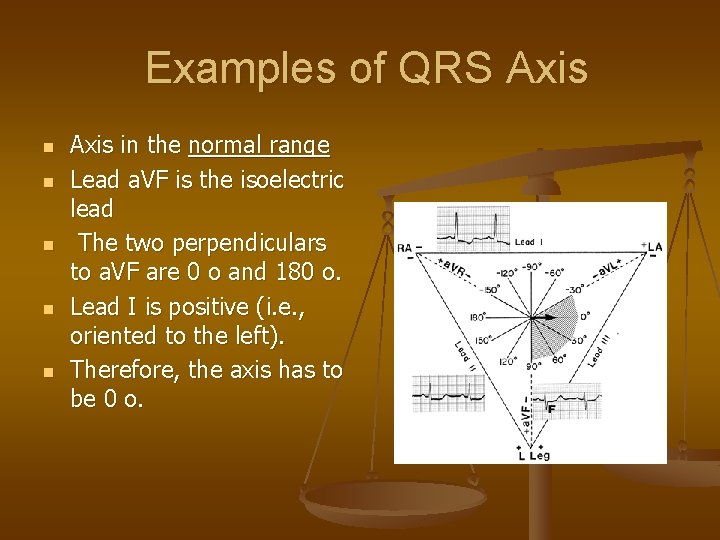

Examples of QRS Axis n n n Axis in the normal range Lead a. VF is the isoelectric lead The two perpendiculars to a. VF are 0 o and 180 o. Lead I is positive (i. e. , oriented to the left). Therefore, the axis has to be 0 o.

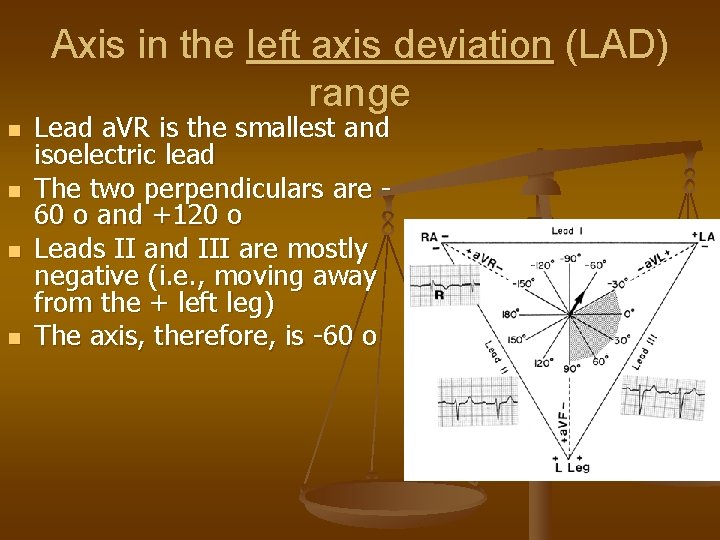

Axis in the left axis deviation (LAD) range n n Lead a. VR is the smallest and isoelectric lead The two perpendiculars are 60 o and +120 o Leads II and III are mostly negative (i. e. , moving away from the + left leg) The axis, therefore, is -60 o

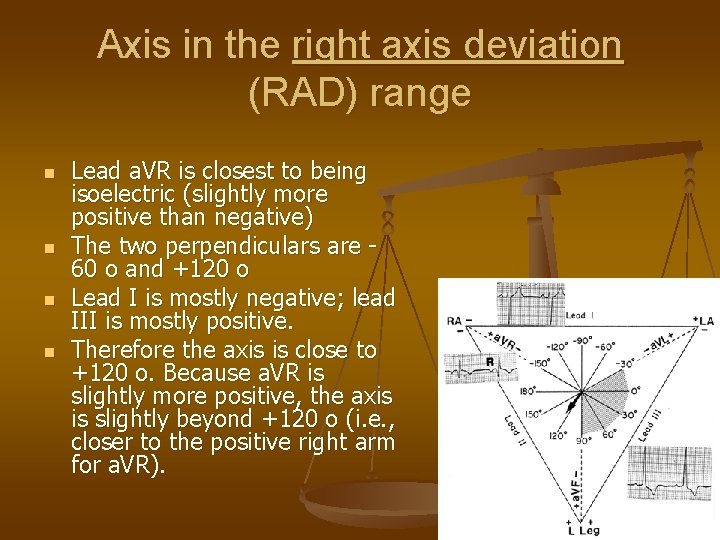

Axis in the right axis deviation (RAD) range n n Lead a. VR is closest to being isoelectric (slightly more positive than negative) The two perpendiculars are 60 o and +120 o Lead I is mostly negative; lead III is mostly positive. Therefore the axis is close to +120 o. Because a. VR is slightly more positive, the axis is slightly beyond +120 o (i. e. , closer to the positive right arm for a. VR).

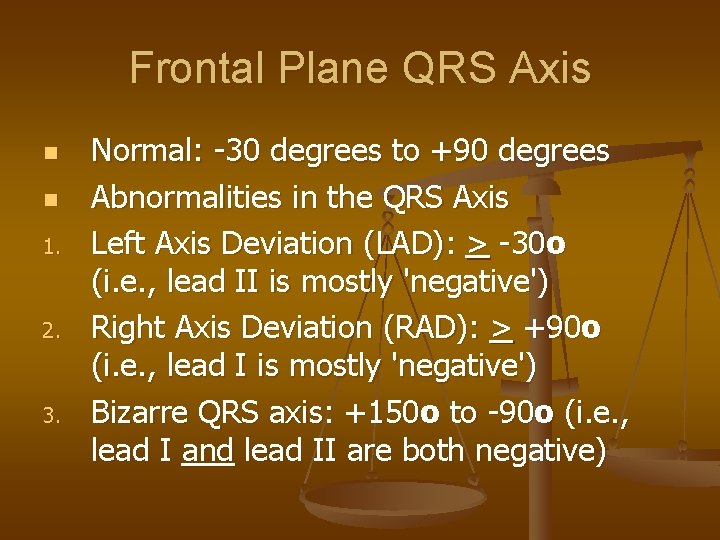

Frontal Plane QRS Axis n n 1. 2. 3. Normal: -30 degrees to +90 degrees Abnormalities in the QRS Axis Left Axis Deviation (LAD): > -30 o (i. e. , lead II is mostly 'negative') Right Axis Deviation (RAD): > +90 o (i. e. , lead I is mostly 'negative') Bizarre QRS axis: +150 o to -90 o (i. e. , lead I and lead II are both negative)

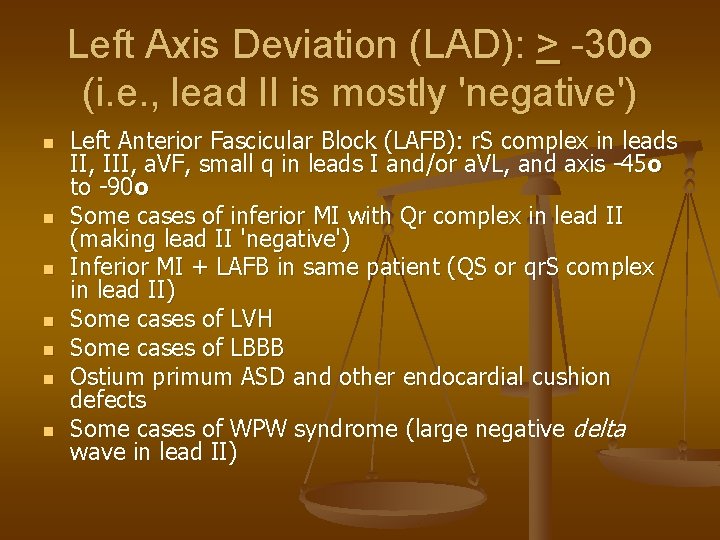

Left Axis Deviation (LAD): > -30 o (i. e. , lead II is mostly 'negative') n n n n Left Anterior Fascicular Block (LAFB): r. S complex in leads II, III, a. VF, small q in leads I and/or a. VL, and axis -45 o to -90 o Some cases of inferior MI with Qr complex in lead II (making lead II 'negative') Inferior MI + LAFB in same patient (QS or qr. S complex in lead II) Some cases of LVH Some cases of LBBB Ostium primum ASD and other endocardial cushion defects Some cases of WPW syndrome (large negative delta wave in lead II)

Right Axis Deviation (RAD): > +90 o (i. e. , lead I is mostly 'negative') n Left Posterior Fascicular Block (LPFB): r. S complex in lead I, q. R in leads II, III, a. VF (however, must first exclude, on clinical basis, causes of right heart overload; these will also give same ECG picture of LPFB n n n Many causes of right heart overload and pulmonary hypertension High lateral wall MI with Qr or QS complex in leads I and a. VL Some cases of RBBB Some cases of WPW syndrome Children, teenagers, and some young adults

Bizarre QRS axis: +150 o to -90 o (i. e. , lead I and lead II are both negative) Consider limb lead error (usually right and left arm reversal) n Dextrocardia n Some cases of complex congenital heart disease (e. g. , transposition) n Some cases of ventricular tachycardia n

Rhythm Analysis n n n State basic rhythm (e. g. , "normal sinus rhythm", "atrial fibrillation", etc. ) Identify additional rhythm events if present (e. g. , "PVC's", "PAC's", etc) Consider all rhythm events from atria, AV junction, and ventricles

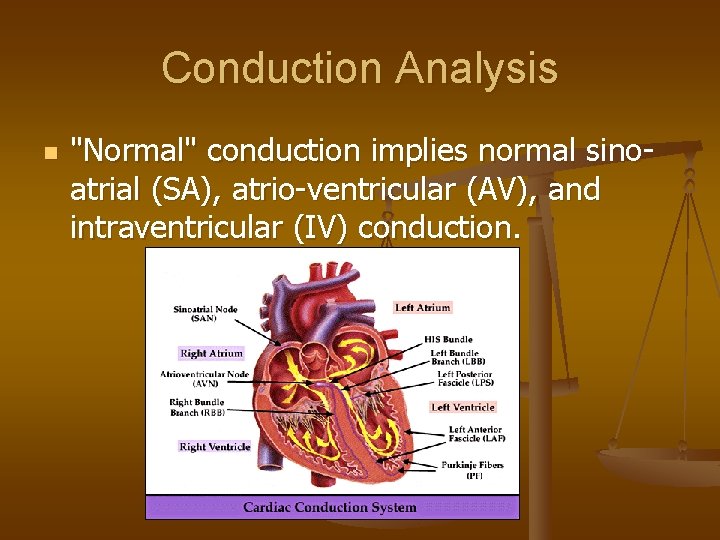

Conduction Analysis n "Normal" conduction implies normal sinoatrial (SA), atrio-ventricular (AV), and intraventricular (IV) conduction.

The following conduction abnormalities are to be identified if present n n n SA block: 2 nd degree (type I vs. type II) AV block (lesson VI): 1 st, 2 nd (type I vs. type II), and 3 rd degree IV blocks (lesson VI): bundle branch, fascicular, and nonspecific blocks Exit blocks: blocks just distal to ectopic pacemaker site

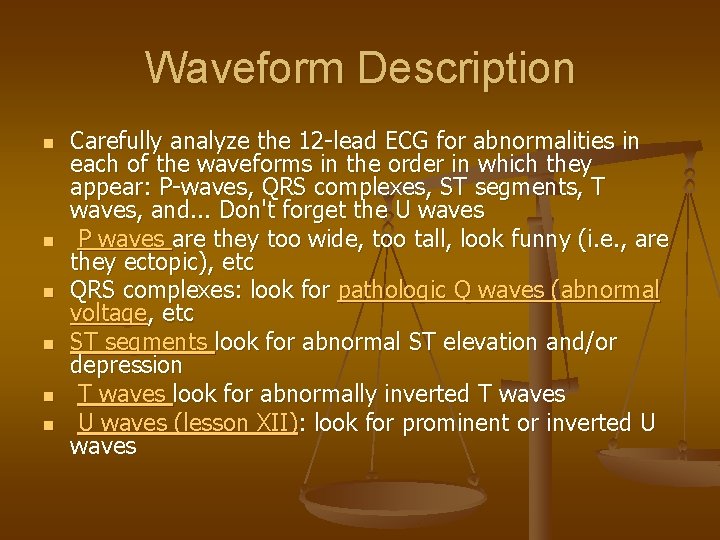

Waveform Description n n n Carefully analyze the 12 -lead ECG for abnormalities in each of the waveforms in the order in which they appear: P-waves, QRS complexes, ST segments, T waves, and. . . Don't forget the U waves P waves are they too wide, too tall, look funny (i. e. , are they ectopic), etc QRS complexes: look for pathologic Q waves (abnormal voltage, etc ST segments look for abnormal ST elevation and/or depression T waves look for abnormally inverted T waves U waves (lesson XII): look for prominent or inverted U waves

ECG Interpretation n This is the conclusion of the above analyses. Interpret the ECG as "Normal", or "Abnormal". Occasionally the term "borderline" is used if unsure about the significance of certain findings. List all abnormalities. Examples of "abnormal" statements are

n n n Inferior MI, probably acute Old anteroseptal MI Left anterior fascicular block (LAFB) Left ventricular hypertrophy (LVH) Nonspecific ST-T wave abnormalities Any rhythm abnormalities

Left Anterior Fascicular Block (LAFB)-KH HR=72 bpm; PR=0. 16 s; QRS=0. 09 s; QT=0. 36 s; QRS axis = -70 o (left axis deviation) Normal sinus rhythm; normal SA and AV conduction; r. S in leads II, III, a. VF Interpretation: Abnormal ECG: 1)Left anterior fascicular block

Comparison with previous ecg n If there is a previous ECG in the patient's file, the current ECG should be compared with it to see if any significant changes have occurred. These changes may have important implications for clinical management decisions.

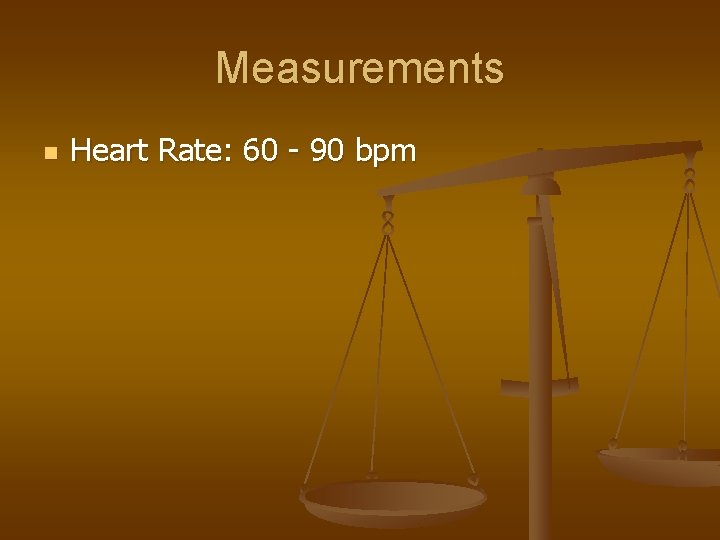

Measurements n Heart Rate: 60 - 90 bpm

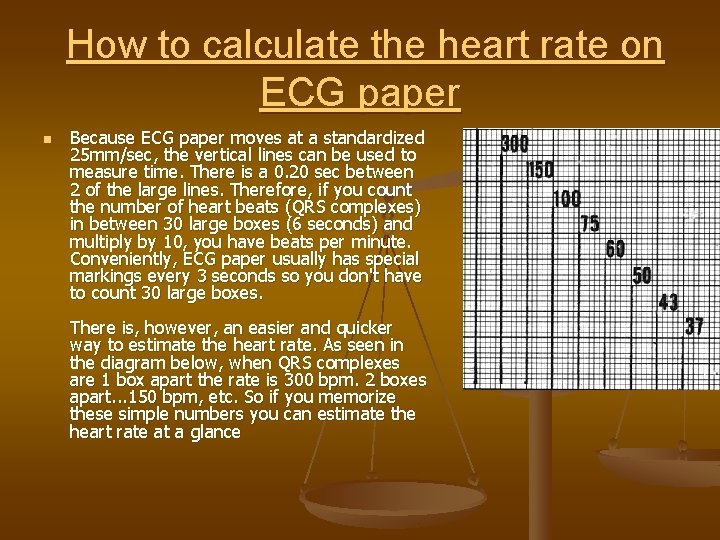

How to calculate the heart rate on ECG paper n Because ECG paper moves at a standardized 25 mm/sec, the vertical lines can be used to measure time. There is a 0. 20 sec between 2 of the large lines. Therefore, if you count the number of heart beats (QRS complexes) in between 30 large boxes (6 seconds) and multiply by 10, you have beats per minute. Conveniently, ECG paper usually has special markings every 3 seconds so you don't have to count 30 large boxes. There is, however, an easier and quicker way to estimate the heart rate. As seen in the diagram below, when QRS complexes are 1 box apart the rate is 300 bpm. 2 boxes apart. . . 150 bpm, etc. So if you memorize these simple numbers you can estimate the heart rate at a glance

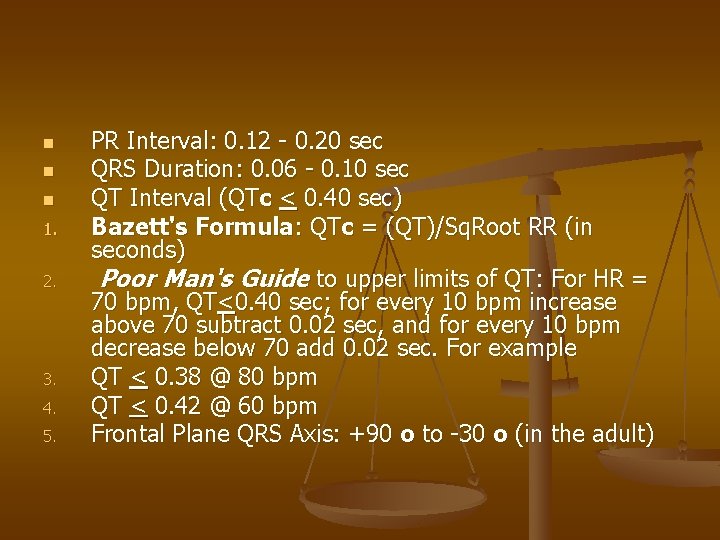

n n n 1. 2. 3. 4. 5. PR Interval: 0. 12 - 0. 20 sec QRS Duration: 0. 06 - 0. 10 sec QT Interval (QTc < 0. 40 sec) Bazett's Formula: QTc = (QT)/Sq. Root RR (in seconds) Poor Man's Guide to upper limits of QT: For HR = 70 bpm, QT<0. 40 sec; for every 10 bpm increase above 70 subtract 0. 02 sec, and for every 10 bpm decrease below 70 add 0. 02 sec. For example QT < 0. 38 @ 80 bpm QT < 0. 42 @ 60 bpm Frontal Plane QRS Axis: +90 o to -30 o (in the adult)

Rhythm n Normal sinus rhythm The P waves in leads I and II must be upright (positive) if the rhythm is coming from the sinus node.

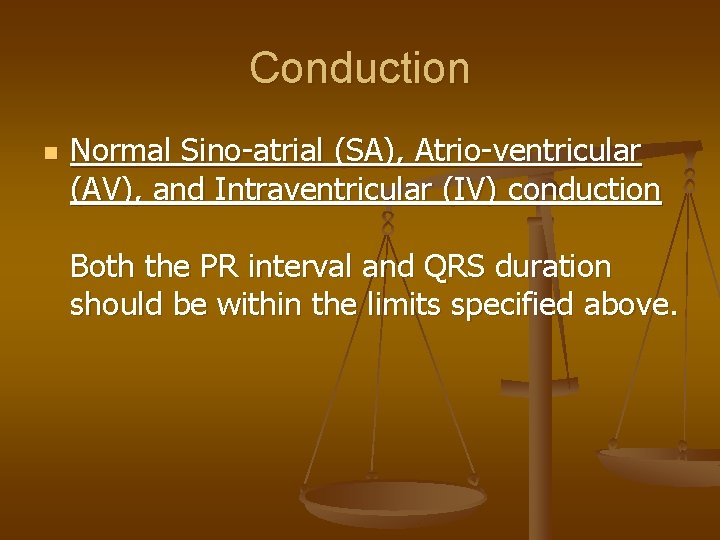

Conduction n Normal Sino-atrial (SA), Atrio-ventricular (AV), and Intraventricular (IV) conduction Both the PR interval and QRS duration should be within the limits specified above.

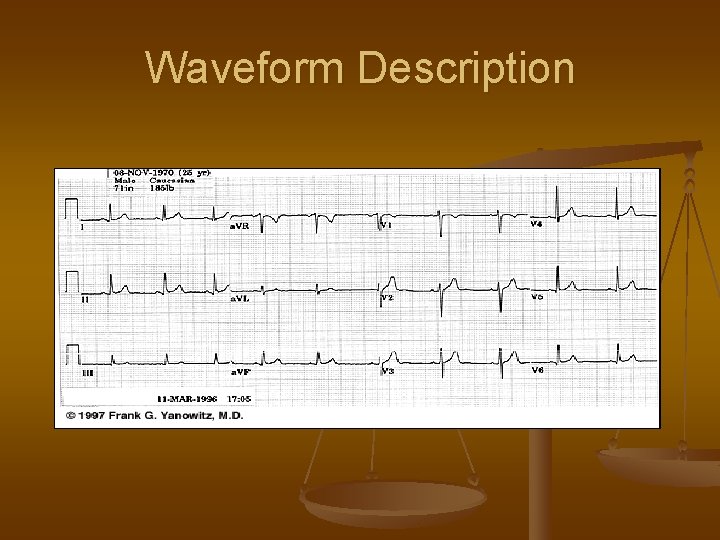

Waveform Description

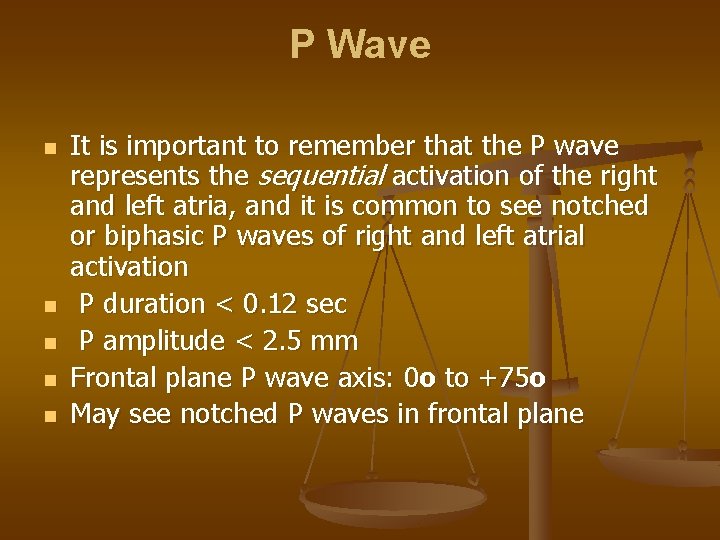

P Wave n n n It is important to remember that the P wave represents the sequential activation of the right and left atria, and it is common to see notched or biphasic P waves of right and left atrial activation P duration < 0. 12 sec P amplitude < 2. 5 mm Frontal plane P wave axis: 0 o to +75 o May see notched P waves in frontal plane

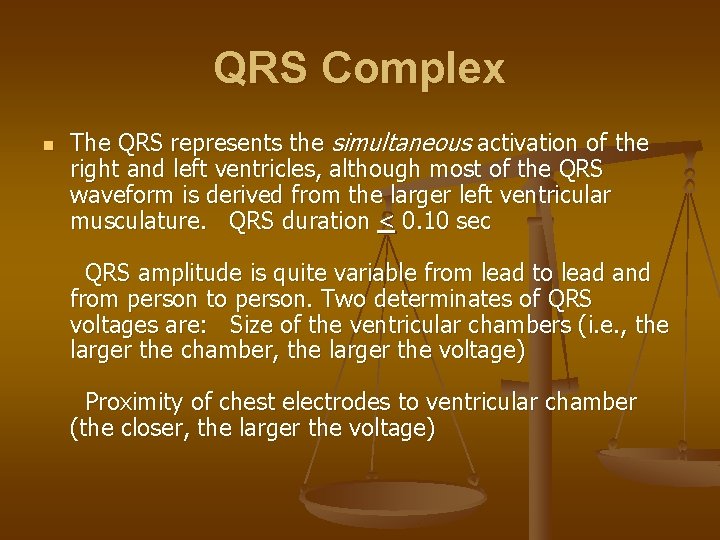

QRS Complex n The QRS represents the simultaneous activation of the right and left ventricles, although most of the QRS waveform is derived from the larger left ventricular musculature. QRS duration < 0. 10 sec QRS amplitude is quite variable from lead to lead and from person to person. Two determinates of QRS voltages are: Size of the ventricular chambers (i. e. , the larger the chamber, the larger the voltage) Proximity of chest electrodes to ventricular chamber (the closer, the larger the voltage)

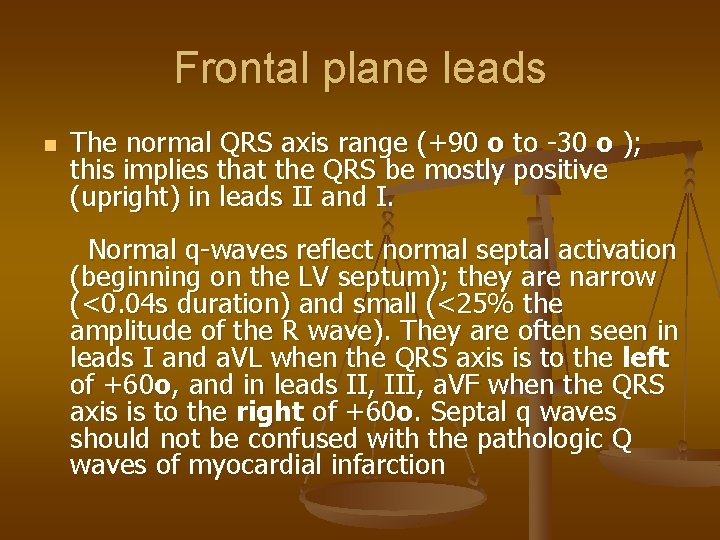

Frontal plane leads n The normal QRS axis range (+90 o to -30 o ); this implies that the QRS be mostly positive (upright) in leads II and I. Normal q-waves reflect normal septal activation (beginning on the LV septum); they are narrow (<0. 04 s duration) and small (<25% the amplitude of the R wave). They are often seen in leads I and a. VL when the QRS axis is to the left of +60 o, and in leads II, III, a. VF when the QRS axis is to the right of +60 o. Septal q waves should not be confused with the pathologic Q waves of myocardial infarction

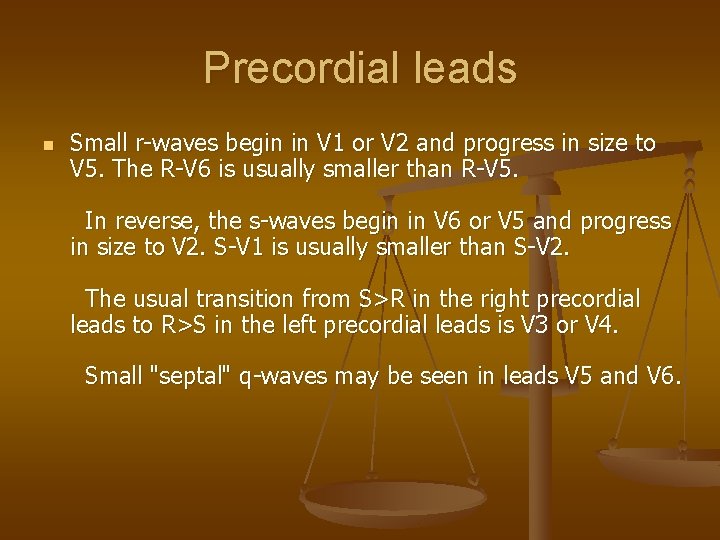

Precordial leads n Small r-waves begin in V 1 or V 2 and progress in size to V 5. The R-V 6 is usually smaller than R-V 5. In reverse, the s-waves begin in V 6 or V 5 and progress in size to V 2. S-V 1 is usually smaller than S-V 2. The usual transition from S>R in the right precordial leads to R>S in the left precordial leads is V 3 or V 4. Small "septal" q-waves may be seen in leads V 5 and V 6.

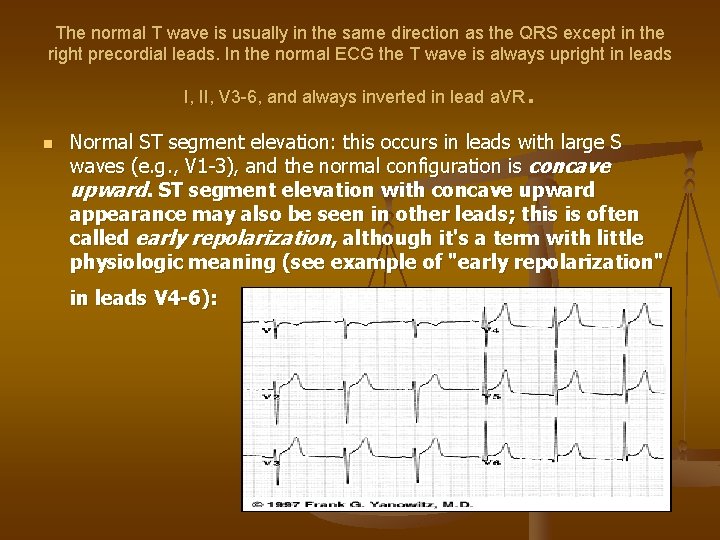

The normal T wave is usually in the same direction as the QRS except in the right precordial leads. In the normal ECG the T wave is always upright in leads . I, II, V 3 -6, and always inverted in lead a. VR n Normal ST segment elevation: this occurs in leads with large S waves (e. g. , V 1 -3), and the normal configuration is concave upward. ST segment elevation with concave upward appearance may also be seen in other leads; this is often called early repolarization, although it's a term with little physiologic meaning (see example of "early repolarization" in leads V 4 -6):

ST Segment and T wave n In a sense, the term "ST segment" is a misnomer, because a discrete ST segment distinct from the T wave is usually absent. More often the ST-T wave is a smooth, continuous waveform beginning with the J-point (end of QRS), slowly rising to the peak of the T and followed by a rapid descent to the isoelectric baseline or the onset of the U wave. This gives rise to an asymmetrical T wave. In some normal individuals, particularly women, the T wave is symmetrical and a distinct, horizontal ST segment is present

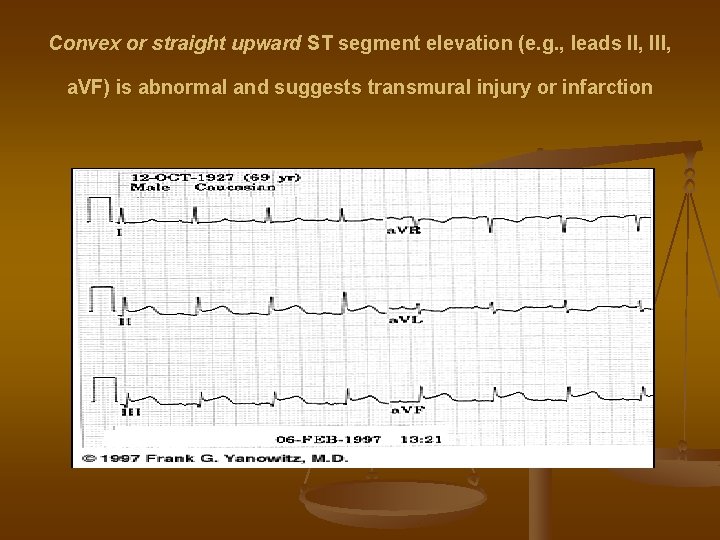

Convex or straight upward ST segment elevation (e. g. , leads II, III, a. VF) is abnormal and suggests transmural injury or infarction

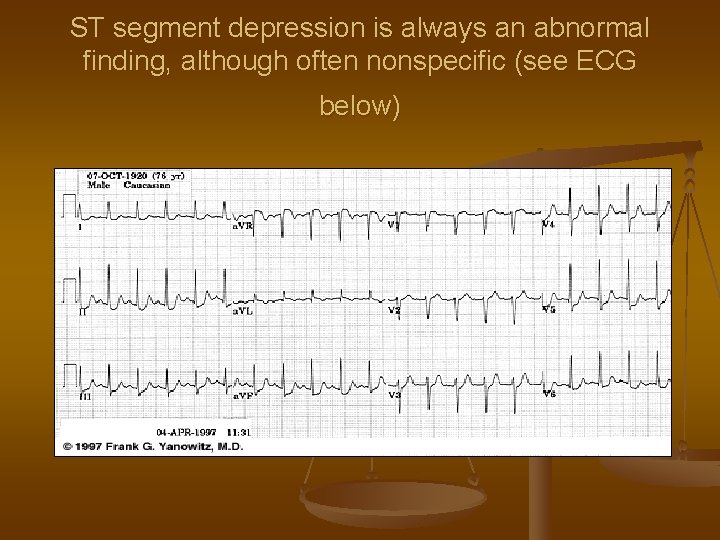

ST segment depression is always an abnormal finding, although often nonspecific (see ECG below)

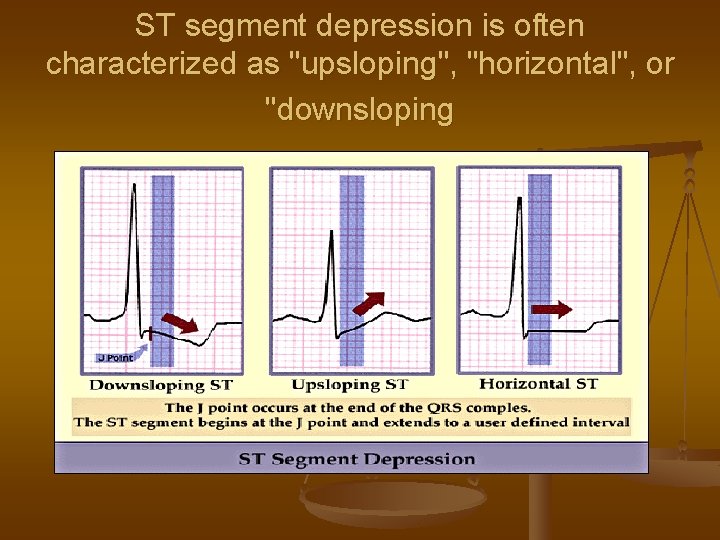

ST segment depression is often characterized as "upsloping", "horizontal", or "downsloping

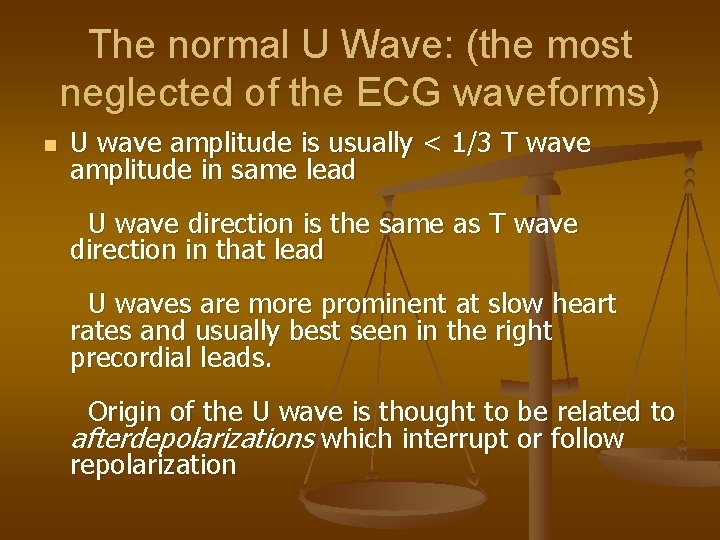

The normal U Wave: (the most neglected of the ECG waveforms) n U wave amplitude is usually < 1/3 T wave amplitude in same lead U wave direction is the same as T wave direction in that lead U waves are more prominent at slow heart rates and usually best seen in the right precordial leads. Origin of the U wave is thought to be related to afterdepolarizations which interrupt or follow repolarization

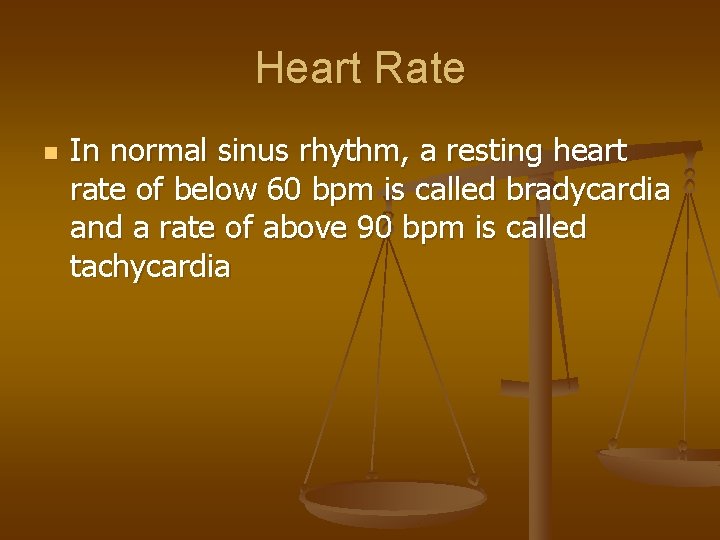

Heart Rate n In normal sinus rhythm, a resting heart rate of below 60 bpm is called bradycardia and a rate of above 90 bpm is called tachycardia

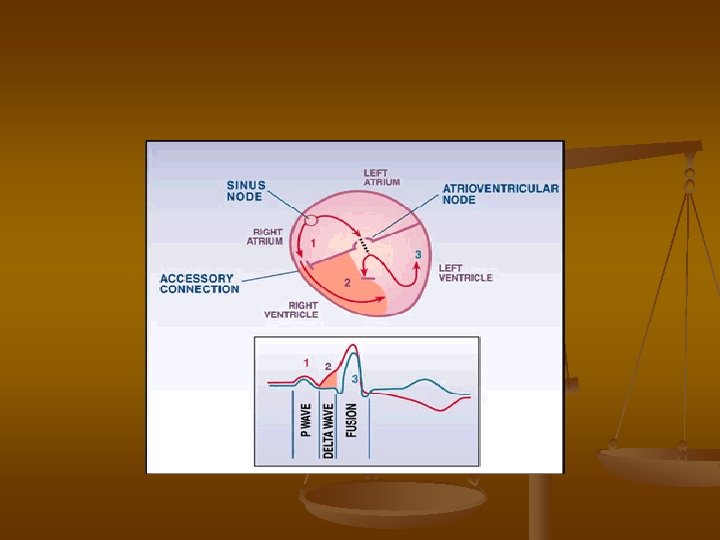

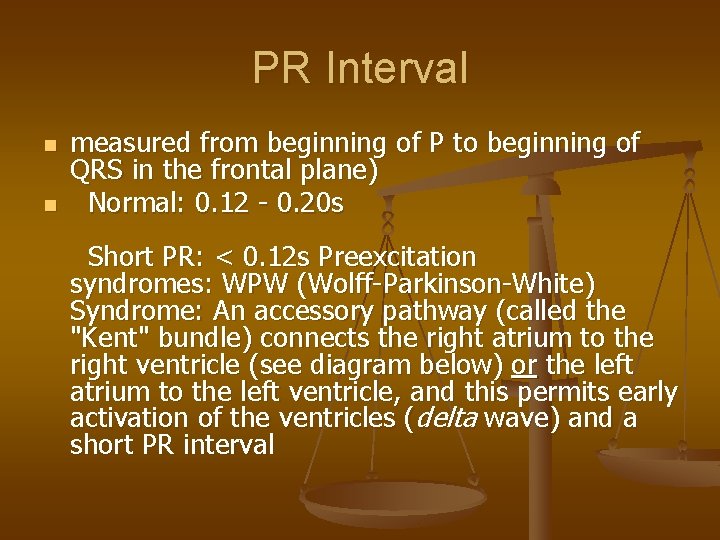

PR Interval n n measured from beginning of P to beginning of QRS in the frontal plane) Normal: 0. 12 - 0. 20 s Short PR: < 0. 12 s Preexcitation syndromes: WPW (Wolff-Parkinson-White) Syndrome: An accessory pathway (called the "Kent" bundle) connects the right atrium to the right ventricle (see diagram below) or the left atrium to the left ventricle, and this permits early activation of the ventricles (delta wave) and a short PR interval

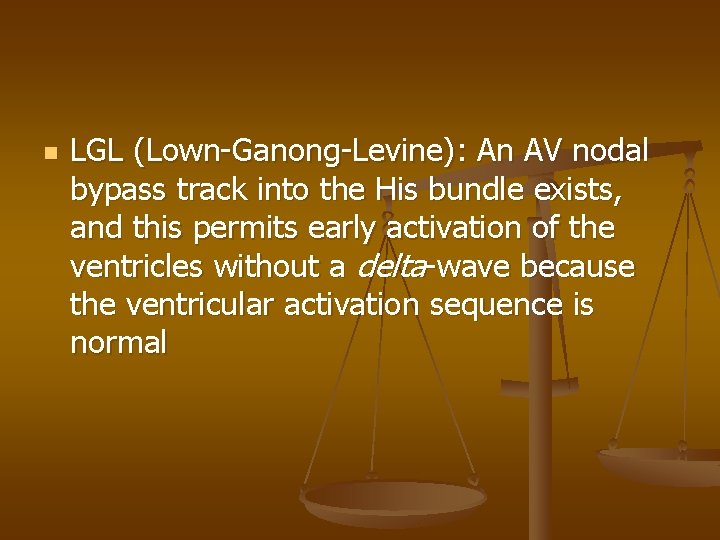

n LGL (Lown-Ganong-Levine): An AV nodal bypass track into the His bundle exists, and this permits early activation of the ventricles without a delta-wave because the ventricular activation sequence is normal

n AV Junctional Rhythms with retrograde atrial activation (inverted P waves in II, III, a. VF): Retrograde P waves may occur before the QRS complex (usually with a short PR interval), in the QRS complex (i. e. , hidden from view), or after the QRS complex (i. e. , in the ST segment).

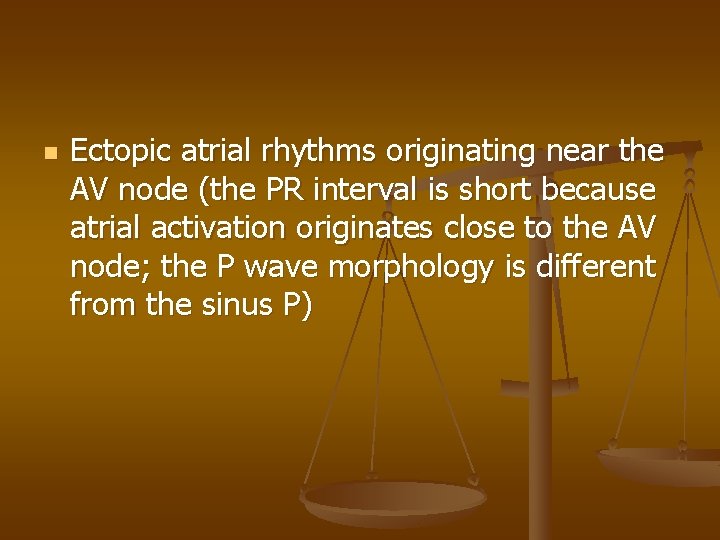

n Ectopic atrial rhythms originating near the AV node (the PR interval is short because atrial activation originates close to the AV node; the P wave morphology is different from the sinus P)

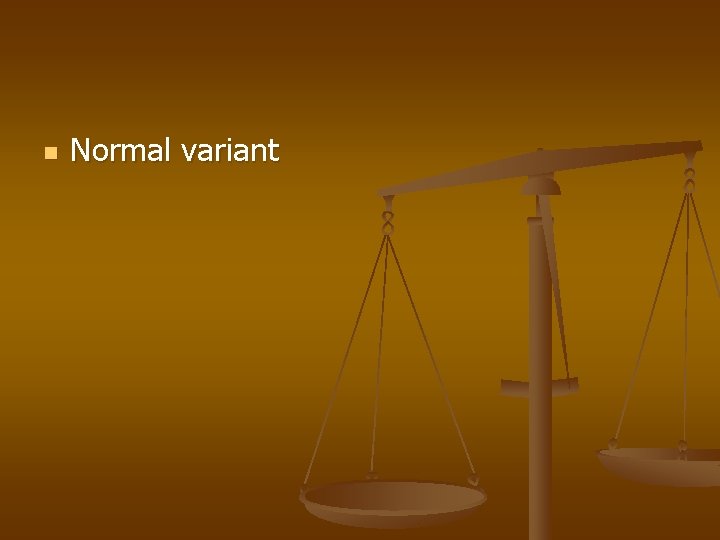

n Normal variant

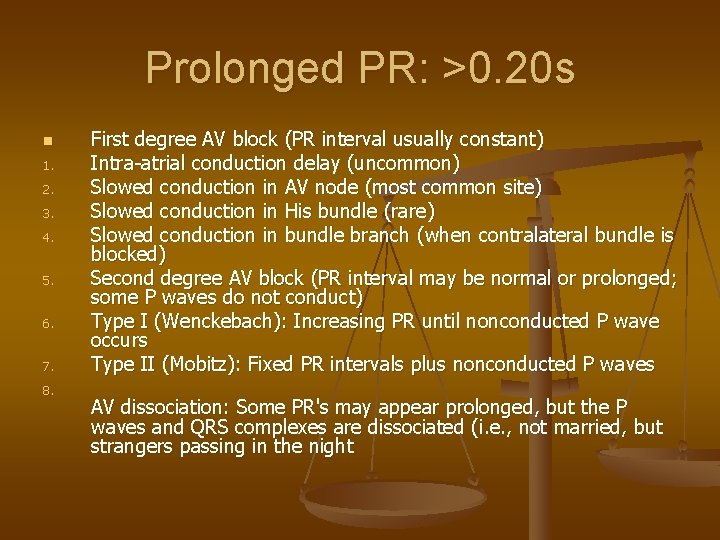

Prolonged PR: >0. 20 s n 1. 2. 3. 4. 5. 6. 7. 8. First degree AV block (PR interval usually constant) Intra-atrial conduction delay (uncommon) Slowed conduction in AV node (most common site) Slowed conduction in His bundle (rare) Slowed conduction in bundle branch (when contralateral bundle is blocked) Second degree AV block (PR interval may be normal or prolonged; some P waves do not conduct) Type I (Wenckebach): Increasing PR until nonconducted P wave occurs Type II (Mobitz): Fixed PR intervals plus nonconducted P waves AV dissociation: Some PR's may appear prolonged, but the P waves and QRS complexes are dissociated (i. e. , not married, but strangers passing in the night

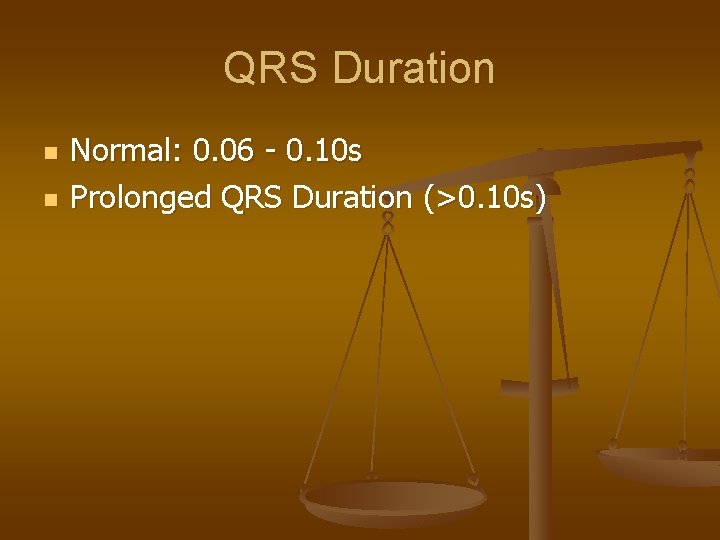

QRS Duration n n Normal: 0. 06 - 0. 10 s Prolonged QRS Duration (>0. 10 s)

QRS duration 0. 10 - 0. 12 s n n n Incomplete right or left bundle branch block Nonspecific intraventricular conduction delay (IVCD) Some cases of left anterior or posterior fascicular block

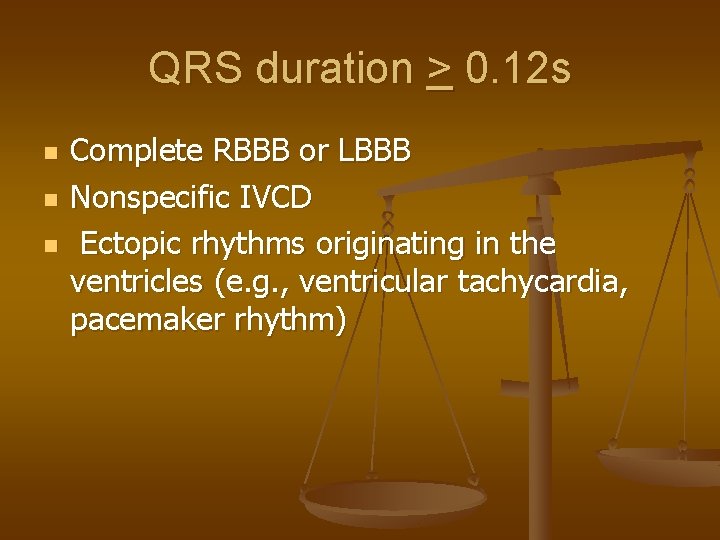

QRS duration > 0. 12 s n n n Complete RBBB or LBBB Nonspecific IVCD Ectopic rhythms originating in the ventricles (e. g. , ventricular tachycardia, pacemaker rhythm)

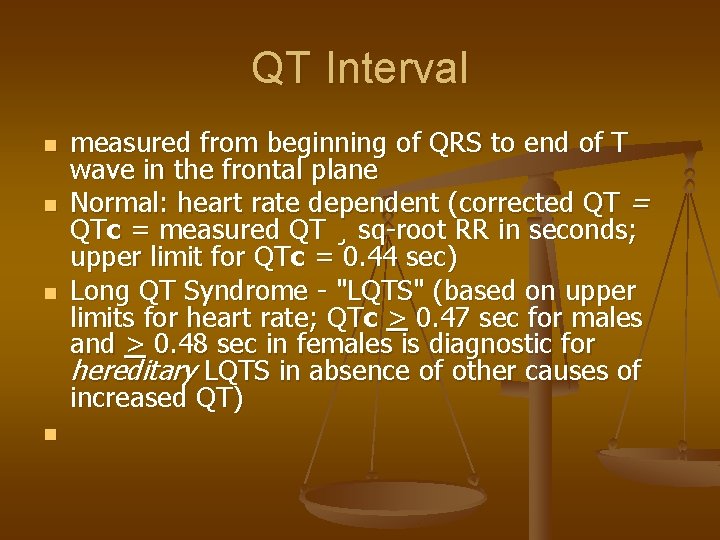

QT Interval n n measured from beginning of QRS to end of T wave in the frontal plane Normal: heart rate dependent (corrected QT = QTc = measured QT ¸ sq-root RR in seconds; upper limit for QTc = 0. 44 sec) Long QT Syndrome - "LQTS" (based on upper limits for heart rate; QTc > 0. 47 sec for males and > 0. 48 sec in females is diagnostic for hereditary LQTS in absence of other causes of increased QT)

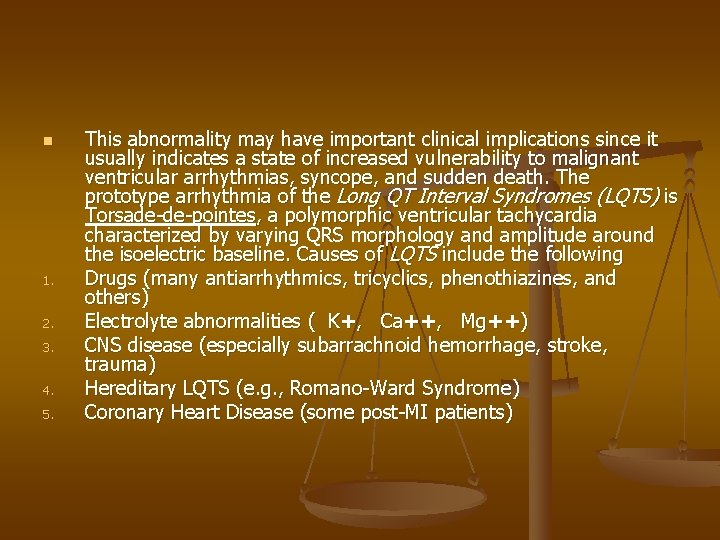

n 1. 2. 3. 4. 5. This abnormality may have important clinical implications since it usually indicates a state of increased vulnerability to malignant ventricular arrhythmias, syncope, and sudden death. The prototype arrhythmia of the Long QT Interval Syndromes (LQTS) is Torsade-de-pointes, a polymorphic ventricular tachycardia characterized by varying QRS morphology and amplitude around the isoelectric baseline. Causes of LQTS include the following Drugs (many antiarrhythmics, tricyclics, phenothiazines, and others) Electrolyte abnormalities ( K+, Ca++, Mg++) CNS disease (especially subarrachnoid hemorrhage, stroke, trauma) Hereditary LQTS (e. g. , Romano-Ward Syndrome) Coronary Heart Disease (some post-MI patients)
