Behavioral Buffer Modeling with HSPICE Intel Buffer 10

Behavioral Buffer Modeling with HSPICE – Intel Buffer 10 -08 -03 12/4/2002

Objective 2 § Demonstrate alternative HSPICE behavioral simulation methods. § Can be used when the present features of IBIS models are insufficient. § Can be used for pre-silicon feature design characterization in a system environment. Introduction 12/4/2002

Topics 3 § Behavioral Driver models Close gap between technology and IBIS § Convergence Advisory Circuits with that use switches and G elements tend to be more susceptive to convergence problems. § High speed differential behavioral buffer and input characterization is an extension of these methods Introduction 12/4/2002

4 Simple CMOS Model Rp Components: • Complementary Pulse source • Switch • Resistor Cn • Capacitor Rn • DC source • Ground Introduction 12/4/2002

Assignment - 1 § Create simple CMOS model 5 Use Pspice § Rp=10 ohm, Rn=10 ohms § Adjust Cn to get a 1 ns risetime (20% to 80%) with a 50 ohm load and 1 pf tied to ground Hint: Use a 100 MHz, 50% duty cycle for the pulse source. Introduction 12/4/2002

6 Behavioral Model Test Program § Start with “testckt” file from pervious class § MYBUFF will be our new generator § DATAS will modified for different rise and fall times. “DATAS” package Data generator Buffers Printed Wiring Board Receiver “MYBUF” Introduction 12/4/2002

Level 1 Behavioral Model 7 Vdd 01001100 PWL source Control 1. 0 V PWL VCCS Profile conditioner 1. 0 V Math Process to create edges Buffer Pad Profile conditioner “DATAS” Control PWL VCCS “MYBUF” Vss Introduction 12/4/2002

Data pattern generator 8 § Syntax: changed to yield different bit waveforms with different rise and fall times. Introduction 12/4/2002

9 Bit data waveform Introduction 12/4/2002

Creating a simple equation based V-T wave 1. 0 V 01001100 bits pulse(t) § The bit pattern is used to create a representative PWL data wave. § A proportional unity driving waveform (v-t wave) is created out of the PWL pulse. The edge of the ramp of the PWL pulse is proportional to the time for the bit transition. The entire transition of the pulse is related to the rise/fall time of the wave. Introduction 12/4/2002 10

11 Syntax HSPICE for driver The circuit is completed with the voltage profile derived from the unity driving waveform which controls a dependant resistor tied to the n and p loads. In this case the loads are 50 ohms. We need to insure we don’t divide by zero and also do not result in an exact 0 ohm resistance. Introduction 12/4/2002

Convert the n & p resistors to I/V devices § The next task is to create I/V subciruits: IVN and IVP § To do this we use voltage controlled current source (VCCS) The G element is a piecewise linear (PWL) VCCS To create a I/V device, the control nodes and the output nodes are shorted Introduction 12/4/2002 12

13 I/V subcircuit example § The columns are voltage on the left and current on the right § This forms a table based I/V device since the control voltage imposed and current are across the same nodes Introduction 12/4/2002

If rising and falling edge shape differs, another method is required § If the bit pattern is not known a priori, controlling positive and negative shapes independently is difficult. In the previous example we controlled only slew rates not shapes. Will describe how to do this for the 2 nd order buffer § We will use the pulse source created as homework for the first HSPICE class. § The edge for the pulse, if scaled correctly, can be made equal to the time of the bit transition. This is an important concept Introduction 12/4/2002 14

15 Level 2 Behavioral Model Block Diagram Vdd V-T I-V Control PWL VCCS 1. 0 V P Voltage Profile Generator I-V Dynamic Profile conditioner Clamp Write enable Bit Pattern Buffer Pad N Voltage Profile Generator Profile conditioner 1. 0 V I-V V-T Control PWL VCCS simplify Vss Introduction 12/4/2002

Simplify for example 16 Vdd I-V Control PWL VCCS 1. 0 V Profile conditioner Fall V-T Rise V-T Bit Pattern Write enable Buffer Pad Voltage. Time Profile Generator Profile conditioner 1. 0 V I-V Control PWL VCCS Vss Introduction 12/4/2002

Voltage-Time Profile Generator Delay falling edge by falling edge transition time 17 Rising VT Positive Edge Voltage Profile Generator 1. 0 V Rising Volt - Time Ramp Generator Falling Volt - Time Ramp Generator • Voltage controlled voltage source • Ramp voltage used to look up output voltage base on v-t table Negative Edge Voltage Profile Generator Data in P 1. 0 V Falling VT Introduction 12/4/2002

18 Voltage Time Ramp § The voltage-time ramp is a ramp that starts at a specified time and whose voltage is proportional to the time from the specified starting point. § In our case, we will create a voltagetime ramp on the detection of each bit edge transition. Introduction 12/4/2002

19 Explore the voltage across a capacitor § If current, I is constant and is equal to the capacitance, then the voltage across the capacitor is equal to time. § If the I does not equal C, the voltage is across the capacitor proportional to I/C. Introduction 12/4/2002

Define Characteristics of voltage time ramp relative t=0 Time=t 1 V v 1=I/C*t 1 t § A unity voltage time ramp is when I/V = 1 so that § t 1=v 1 Since this voltage is usually small, I/C may be set to 1 e 9. This means 1 nanosecond corresponds to 1 volt. Introduction 12/4/2002 20

Circuit to create unit ramp § The one input of a differential amp is connected to a dc reference and the other input is our input pulse wave. § The switch shorts the cap at t=0 and opens when the edge is detected. Introduction 21 1 V 1 p. A 1 p. F 12/4/2002

Delay falling edge. . digitally… well almost § Since we will use a threshold detector to determine an edge, we can add signals together and only use the portion of the signal that we deem important. § Triggering at the reference threshold delays the negative edge Introduction in In delayed S 2 edge in progress Threshold out X 12/4/2002 22

Put the circuit together for positive edge ramp. § The processed signal is in In delayed used to drive the switch which in turn creates the positive edge ramp. 1 V 1 p. A S 2 edge in progress out X THRESHOLD_0_1_DETECT 1 p. F 1 n. V = 1 n. S after positive edge Introduction 12/4/2002 23

Put the circuit together for negative edge ramp. § The negated data is used to drive the switch which in turn creates the negative edge ramp. in 1 V 1 p. A In negated out X THRESHOLD_0_1_DETECT 1 p. F 1 n. V = 1 n. S after positive edge Introduction 12/4/2002 24

25 Positive Voltage-Time Ramp Generator – HSPICE CODE * delay in by tf Edelay in_delayed 0 DELAY in 0 TD='tf' * create step shaped waveform for delaying by tf Equalify_r edge_in_progress 0 + VOL='V(in)+V(in_delayed)' * switch on edge in progress is above 0. 5 v Gswitch_r shunt_c_r 0 + VCR PWL(1) edge_in_progress 0. 5 v, . 00001. 501 v, 1 g Vone_volt 0 100 v * charge rate is 1 v/ns (I/C) Ccharge_r shunt_c_r 0 1 pf Icharge_r one_volt shunt_c_r 1 ma Introduction 12/4/2002

26 Negative Voltage-Time Ramp Generator – HSPICE CODE * Create complement of in Eneg_in in_bar 0 vol='1 -v(in)' * switch on edge in progress is above 0. 5 v Gswitch_f shunt_c_f 0 + VCR PWL(1) in_bar 0. 5 v, . 00001. 501 v, 1 g * charge rate is 1 v/ns (I/C) Ccharge_f shunt_c_f 0 1 pf Icharge_f one_volt shunt_c_f 1 ma Introduction 12/4/2002

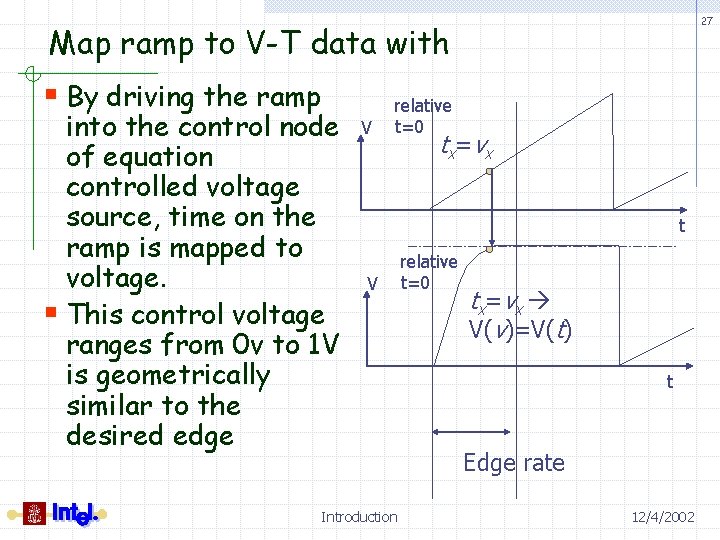

27 Map ramp to V-T data with § By driving the ramp into the control node of equation controlled voltage source, time on the ramp is mapped to voltage. § This control voltage ranges from 0 v to 1 V is geometrically similar to the desired edge V relative t=0 t x = vx t V Introduction relative t=0 t x = vx V(v)=V(t) t Edge rate 12/4/2002

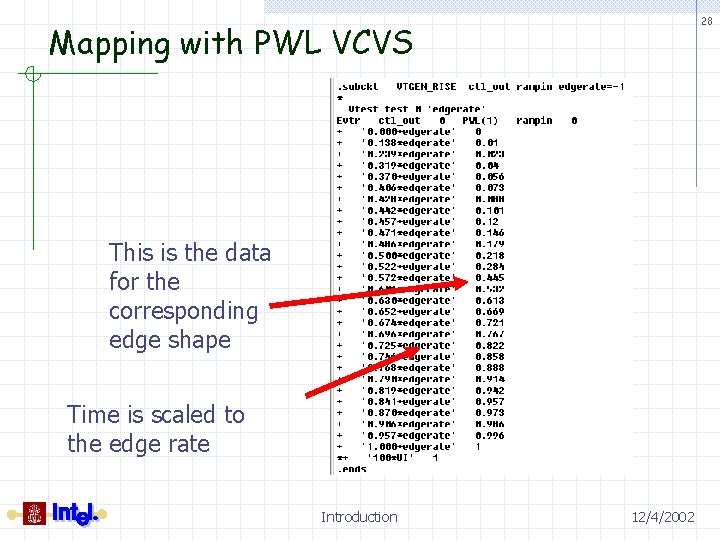

28 Mapping with PWL VCVS This is the data for the corresponding edge shape Time is scaled to the edge rate Introduction 12/4/2002

Putting edge together with v-t data Voltage Controlled Voltage Sources. SUBCKT VT_RISE_GEN_mid_n in out_ref Fall time Rising V-t curve Edatar out_ref PWL(1) in 0 + '0. 000*Tr_mid_n' + '0. 185*Tr_mid_n' + '0. 315*Tr_mid_n' + '0. 398*Tr_mid_n'. . . + '0. 917*Tr_mid_n' + '0. 944*Tr_mid_n' + '0. 991*Tr_mid_n' + '1. 000*Tr_mid_n'. ENDS VT_RISE_GEN_mid_n 0. 000 0. 006 0. 017 0. 030 0. 988 0. 994 0. 999 1. 000 P. SUBCKT VT_FALL_GEN_mid_n in out_ref Edatar out_ref PWL(1) in 0 + + '0. 000*Tf_mid_n' '0. 023*Tf_mid_n' '0. 034*Tf_mid_n' '0. 057*Tf_mid_n' 1. 000 0. 996 0. 985 0. 957 + + +. ENDS '0. 739*Tf_mid_n' 0. 016 '0. 773*Tf_mid_n' 0. 008 '0. 841*Tf_mid_n' 0. 003 '0. 989*Tf_mid_n' 0. 000 '1. 000*Tf_mid_n' 0. 000 VT_FALL_GEN_mid_n Introduction Falling V-t curve 12/4/2002 29

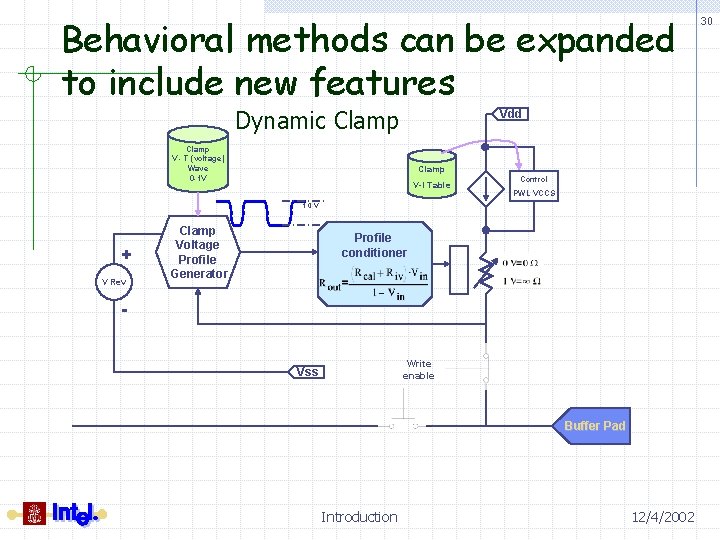

Behavioral methods can be expanded to include new features Dynamic Clamp Vdd Clamp V - T (voltage) Wave 0 -1 V Clamp V-I Table Control PWL VCCS 1. 0 V + V Rev Clamp Voltage Profile Generator Profile conditioner Write enable Vss Buffer Pad Introduction 12/4/2002 30

31 Voltage-Time Profile Generator Review Delay negative edge by negative edge transition time Bit Pattern Positive V - T (voltage) Wave 0 -1 V Positive Volt - Time Ramp Generator V=time after edge Positive Edge Voltage Profile Generator • Voltage controlled voltage source • Ramp voltage used to look up output voltage base on v-t table Negative Volt - Time Ramp Generator V=time after edge 1. 0 V • Caveat: any ramp P value > edge time returns 1 volt Negative Edge Voltage Profile Generator Negative V - T (voltage) Wave 0 -1 V * P profile is the 180 degrees out of phase compared to the N profile Introduction 1. 0 V Waveform Voltage Profile* 12/4/2002

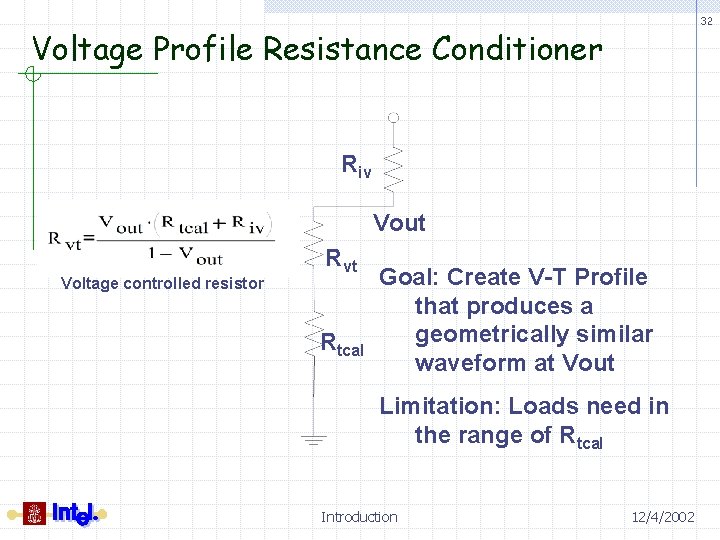

32 Voltage Profile Resistance Conditioner Riv Vout Voltage controlled resistor Rvt Rtcal Goal: Create V-T Profile that produces a geometrically similar waveform at Vout Limitation: Loads need in the range of Rtcal Introduction 12/4/2002

Assignment 2– Create HSPICE Buffer Model § Rp = 100 ohms, Rn=10 ohms § Rise time 20%-80% 1. 5 ns when driving a 50 ohms load ground You need to adjust the pulse transition time You should use sweep results in you report. § Use wave shape as follows '(1 -exp(-1*(pwr(abs(v(in))*2. 4, wf))))' wf=2, v(in) is pulse wave § Vcc = 2. 5 V, Vss = 0 V § Check simulation against calculations of Vol and Voh with 50 ohm to Vss load Introduction 12/4/2002 33

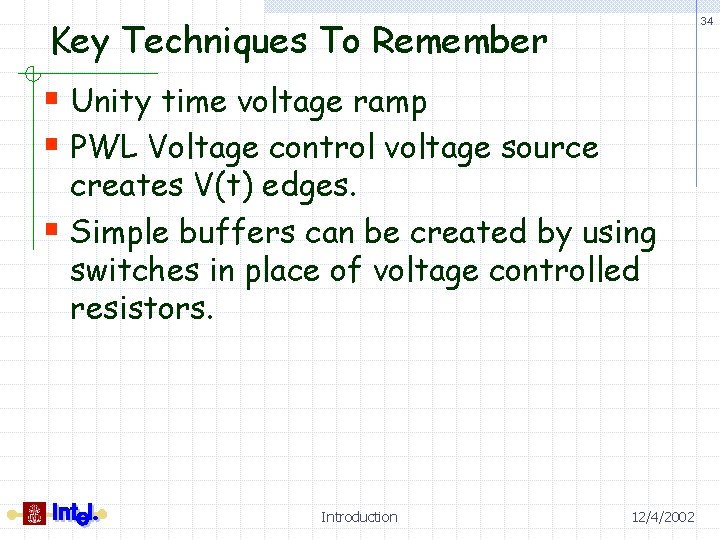

Key Techniques To Remember 34 § Unity time voltage ramp § PWL Voltage control voltage source creates V(t) edges. § Simple buffers can be created by using switches in place of voltage controlled resistors. Introduction 12/4/2002
