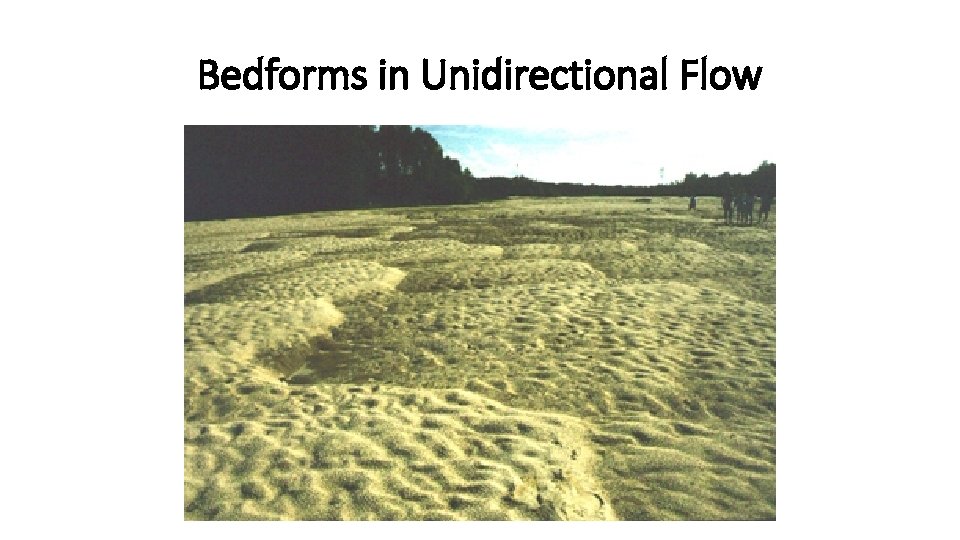

Bedforms in Unidirectional Flow

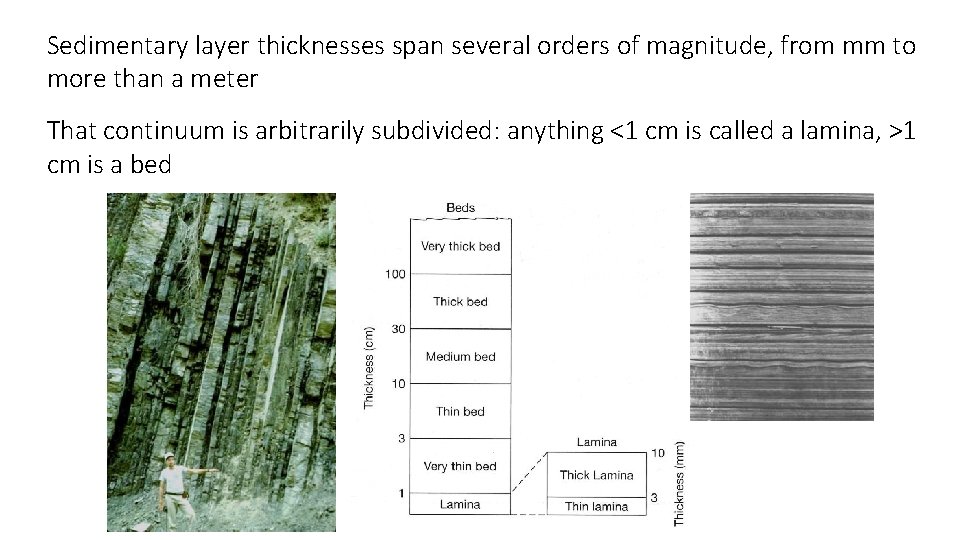

Sedimentary layer thicknesses span several orders of magnitude, from mm to more than a meter That continuum is arbitrarily subdivided: anything <1 cm is called a lamina, >1 cm is a bed

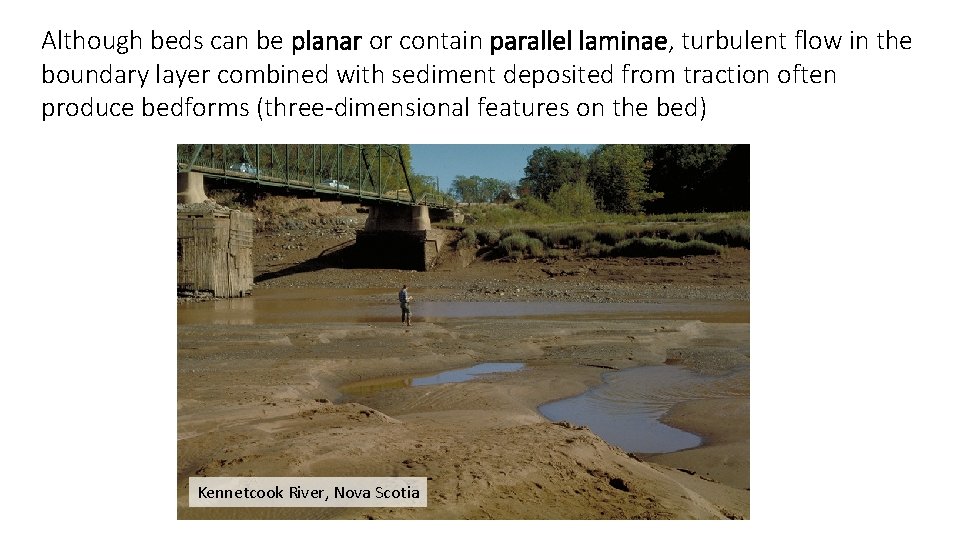

Although beds can be planar or contain parallel laminae, turbulent flow in the boundary layer combined with sediment deposited from traction often produce bedforms (three-dimensional features on the bed) Kennetcook River, Nova Scotia

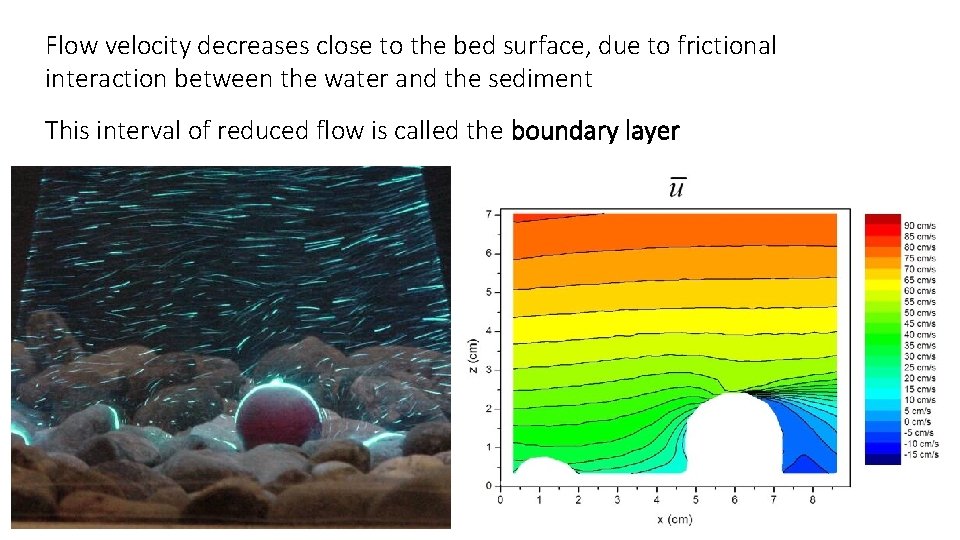

Flow velocity decreases close to the bed surface, due to frictional interaction between the water and the sediment This interval of reduced flow is called the boundary layer

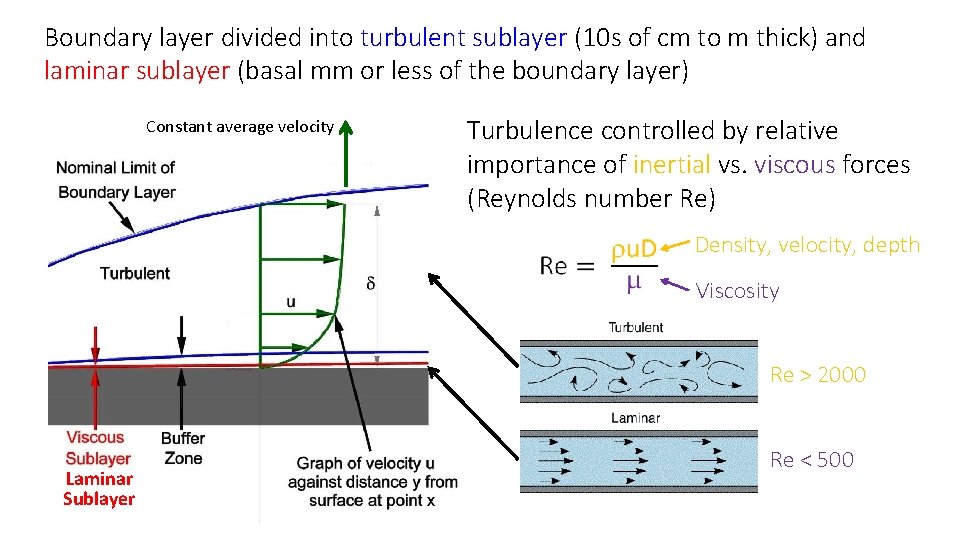

Boundary layer divided into turbulent sublayer (10 s of cm to m thick) and laminar sublayer (basal mm or less of the boundary layer) Constant average velocity Turbulence controlled by relative importance of inertial vs. viscous forces (Reynolds number Re) Density, velocity, depth Viscosity Re > 2000 Laminar Sublayer Re < 500

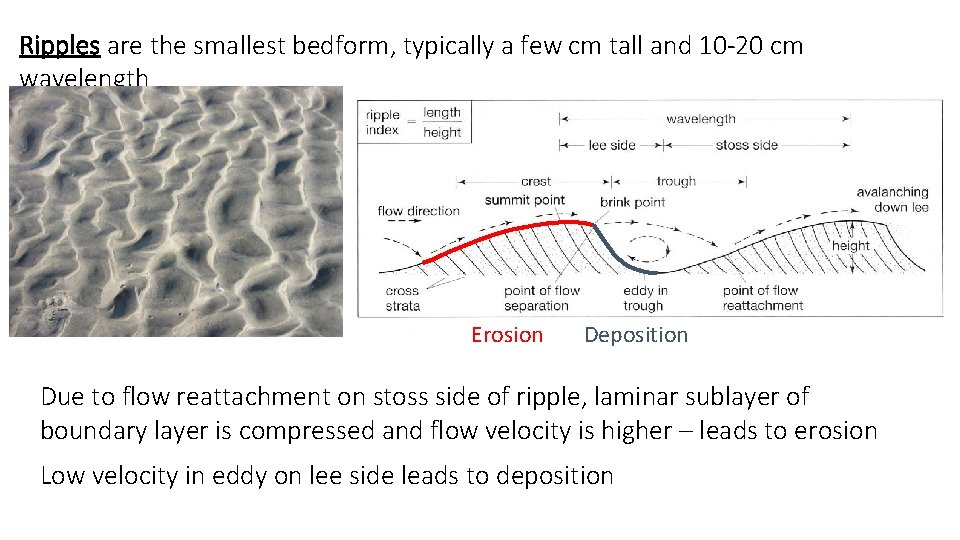

Ripples are the smallest bedform, typically a few cm tall and 10 -20 cm wavelength Erosion Deposition Due to flow reattachment on stoss side of ripple, laminar sublayer of boundary layer is compressed and flow velocity is higher – leads to erosion Low velocity in eddy on lee side leads to deposition

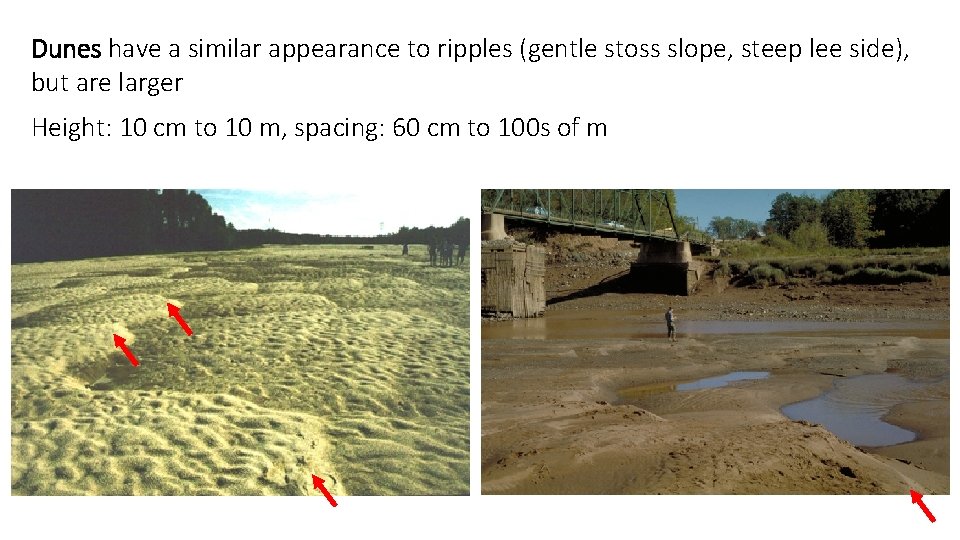

Dunes have a similar appearance to ripples (gentle stoss slope, steep lee side), but are larger Height: 10 cm to 10 m, spacing: 60 cm to 100 s of m

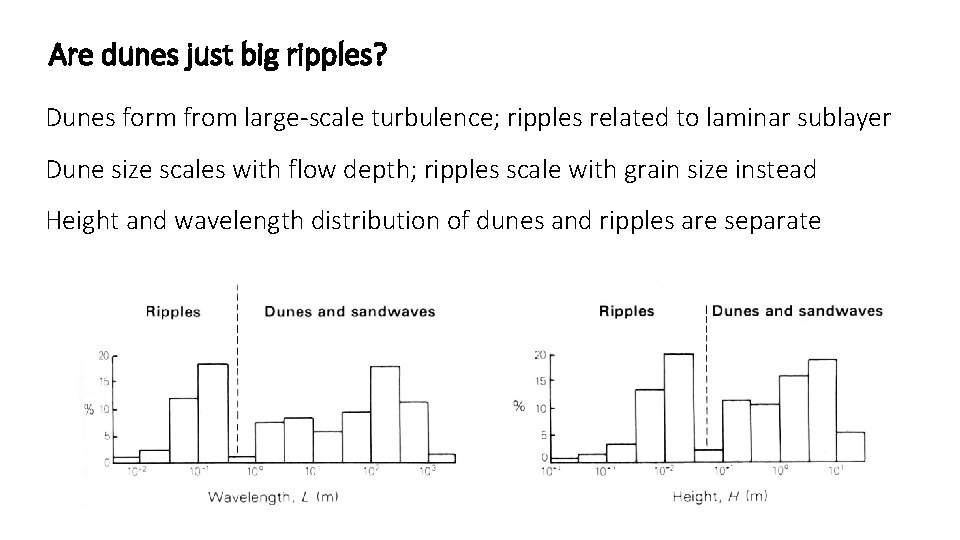

Are dunes just big ripples? Dunes form from large-scale turbulence; ripples related to laminar sublayer Dune size scales with flow depth; ripples scale with grain size instead Height and wavelength distribution of dunes and ripples are separate

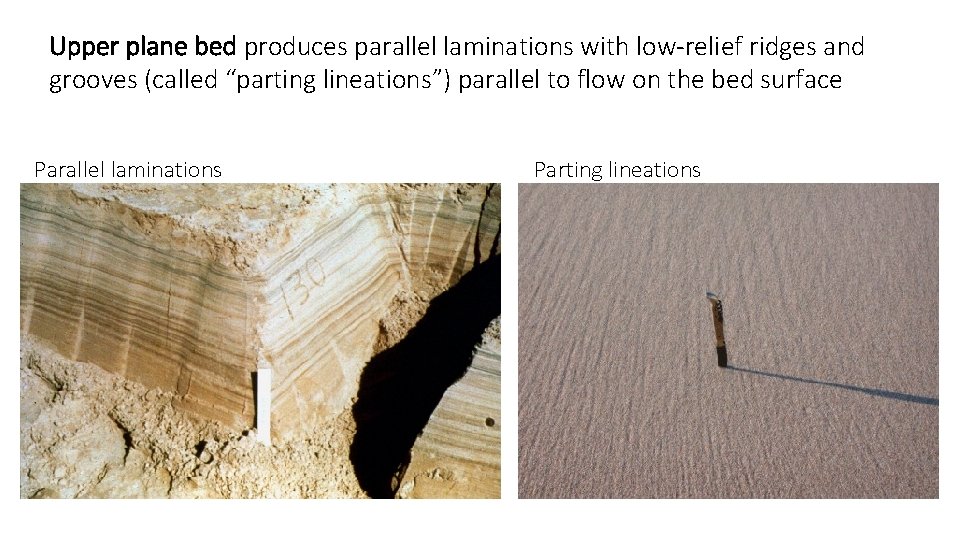

Upper plane bed produces parallel laminations with low-relief ridges and grooves (called “parting lineations”) parallel to flow on the bed surface Parallel laminations Parting lineations

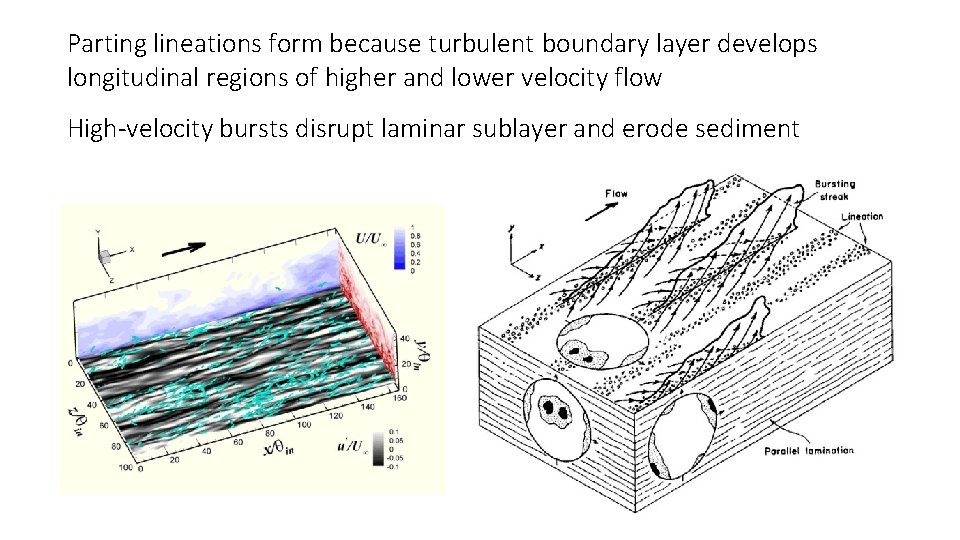

Parting lineations form because turbulent boundary layer develops longitudinal regions of higher and lower velocity flow High-velocity bursts disrupt laminar sublayer and erode sediment

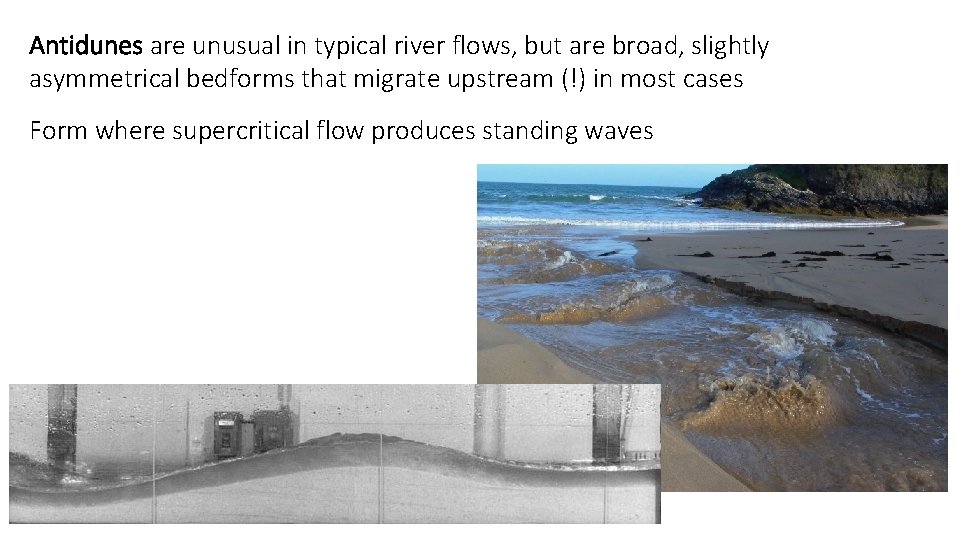

Antidunes are unusual in typical river flows, but are broad, slightly asymmetrical bedforms that migrate upstream (!) in most cases Form where supercritical flow produces standing waves

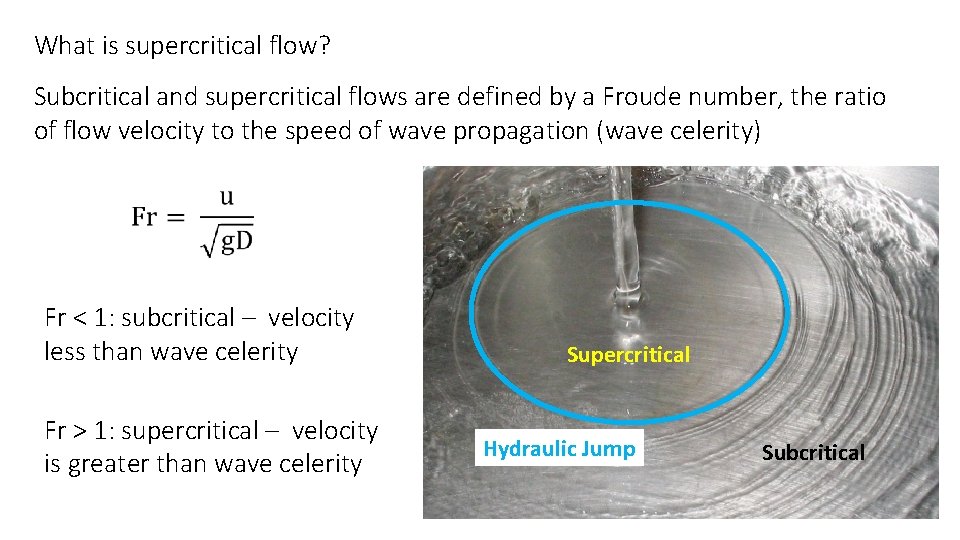

What is supercritical flow? Subcritical and supercritical flows are defined by a Froude number, the ratio of flow velocity to the speed of wave propagation (wave celerity) Fr < 1: subcritical – velocity less than wave celerity Fr > 1: supercritical – velocity is greater than wave celerity Supercritical Hydraulic Jump Subcritical

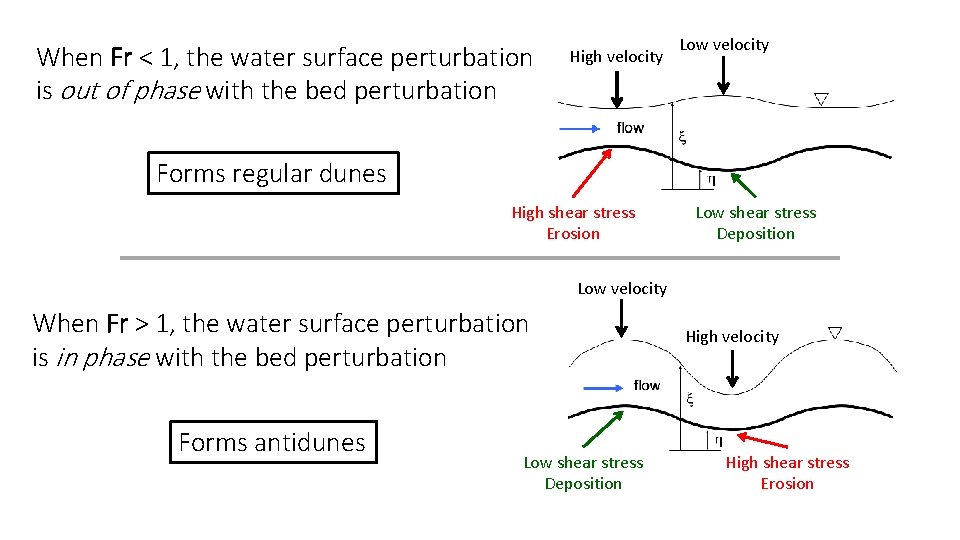

When Fr < 1, the water surface perturbation is out of phase with the bed perturbation High velocity Low velocity Forms regular dunes High shear stress Erosion Low shear stress Deposition Low velocity When Fr > 1, the water surface perturbation is in phase with the bed perturbation Forms antidunes Low shear stress Deposition High velocity High shear stress Erosion
