Bed Washing System Innova Care Concepts The Innova

Bed Washing System Innova Care Concepts The Innova Bed Washing System is an automated washing system that uses precision robotics to provide thermal cleaning and disinfection. As the only system on the market that doesn’t use chemicals, it can clean IPX 4 beds with advanced electronics. On average, to clean a hospital bed and mattress by hand takes around 30 minutes. With the Innova Bed Washing System, beds can be washed, dried, and ready for patient use in just 6 minutes! Dimensions Height of the cleaning booth Width of the cleaning booth 2, 700 mm 4, 000 mm Total length of the unit 10, 000 mm Input unit 3, 100 mm Cleaning booth 3, 800 mm Output Unit 3, 100 mm 1

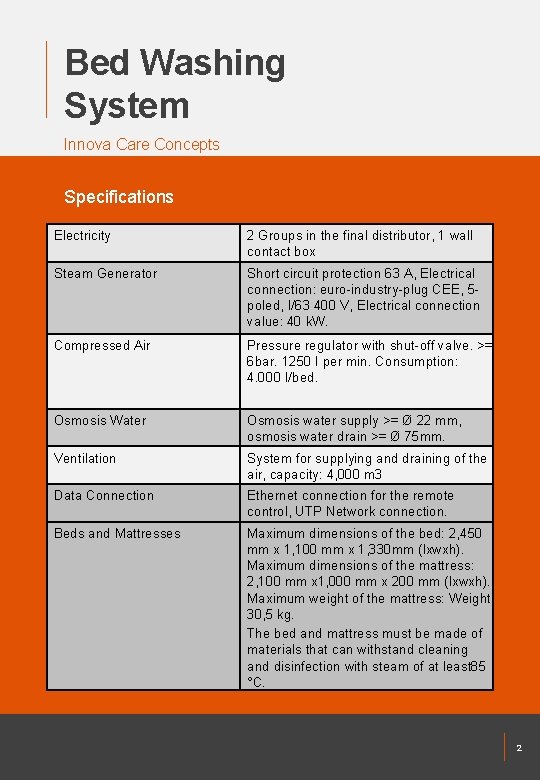

Bed Washing System Innova Care Concepts Specifications Dimensions Continued Electricity 2 Groups in the final distributor, 1 wall contact box Steam Generator Short circuit protection 63 A, Electrical connection: euro-industry-plug CEE, 5 poled, I/63 400 V, Electrical connection value: 40 k. W. Compressed Air Pressure regulator with shut-off valve. >= 6 bar. 1250 I per min. Consumption: 4. 000 I/bed. Osmosis Water Osmosis water supply >= Ø 22 mm, osmosis water drain >= Ø 75 mm. Ventilation System for supplying and draining of the air, capacity: 4, 000 m 3 Data Connection Ethernet connection for the remote control, UTP Network connection. Beds and Mattresses Maximum dimensions of the bed: 2, 450 mm x 1, 100 mm x 1, 330 mm (lxwxh). Maximum dimensions of the mattress: 2, 100 mm x 1, 000 mm x 200 mm (lxwxh). Maximum weight of the mattress: Weight 30, 5 kg. The bed and mattress must be made of materials that can withstand cleaning and disinfection with steam of at least 85 °C. Technical Data 2 2
