Beam Wire Scanner for PSB Update 5 Sep2016
Beam Wire Scanner for PSB Update 5 -Sep-2016 Dmitry Gudkov BE-BI-ML
Contents § Motors (Status by 5 -Sep-2016) § Production Status (BI-ML, EN-MME) § ECR § Optical disks status
Status of motors 1. Three motors (vacuum compatible rotor, stator 300 V) order DAI 6363752: • Fully delivered on 29 -Aug-2016 • 1 rotor is under vacuum test (results by beginning of October)

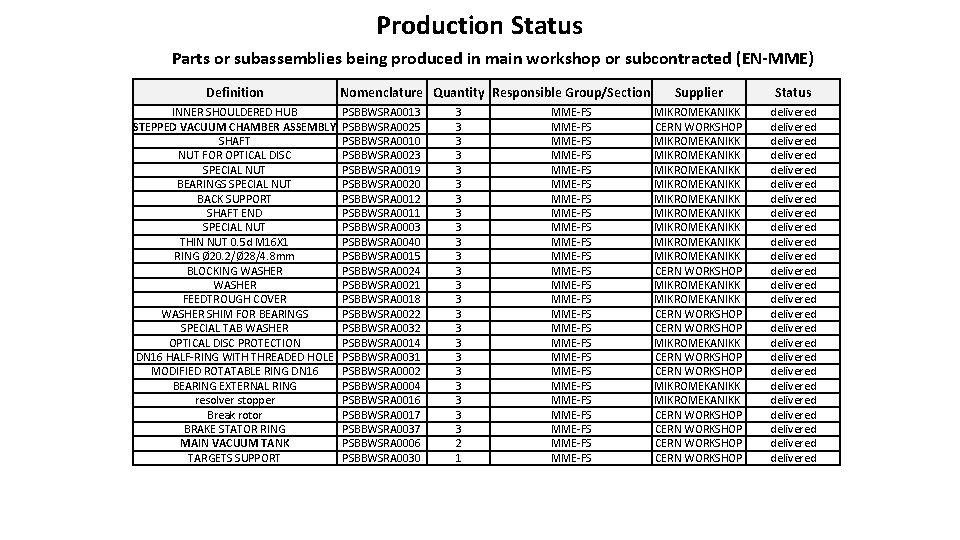

Production Status Parts or subassemblies being produced in main workshop or subcontracted (EN-MME) Definition INNER SHOULDERED HUB STEPPED VACUUM CHAMBER ASSEMBLY SHAFT NUT FOR OPTICAL DISC SPECIAL NUT BEARINGS SPECIAL NUT BACK SUPPORT SHAFT END SPECIAL NUT THIN NUT 0. 5 d M 16 X 1 RING Ø 20. 2/Ø 28/4. 8 mm BLOCKING WASHER FEEDTROUGH COVER WASHER SHIM FOR BEARINGS SPECIAL TAB WASHER OPTICAL DISC PROTECTION DN 16 HALF-RING WITH THREADED HOLE MODIFIED ROTATABLE RING DN 16 BEARING EXTERNAL RING resolver stopper Break rotor BRAKE STATOR RING MAIN VACUUM TANK TARGETS SUPPORT Nomenclature Quantity Responsible Group/Section PSBBWSRA 0013 PSBBWSRA 0025 PSBBWSRA 0010 PSBBWSRA 0023 PSBBWSRA 0019 PSBBWSRA 0020 PSBBWSRA 0012 PSBBWSRA 0011 PSBBWSRA 0003 PSBBWSRA 0040 PSBBWSRA 0015 PSBBWSRA 0024 PSBBWSRA 0021 PSBBWSRA 0018 PSBBWSRA 0022 PSBBWSRA 0032 PSBBWSRA 0014 PSBBWSRA 0031 PSBBWSRA 0002 PSBBWSRA 0004 PSBBWSRA 0016 PSBBWSRA 0017 PSBBWSRA 0037 PSBBWSRA 0006 PSBBWSRA 0030 3 3 3 3 3 3 2 1 MME-FS MME-FS MME-FS MME-FS MME-FS MME-FS MME-FS Supplier Status MIKROMEKANIKK CERN WORKSHOP MIKROMEKANIKK MIKROMEKANIKK MIKROMEKANIKK CERN WORKSHOP CERN WORKSHOP MIKROMEKANIKK CERN WORKSHOP delivered delivered delivered delivered delivered delivered delivered

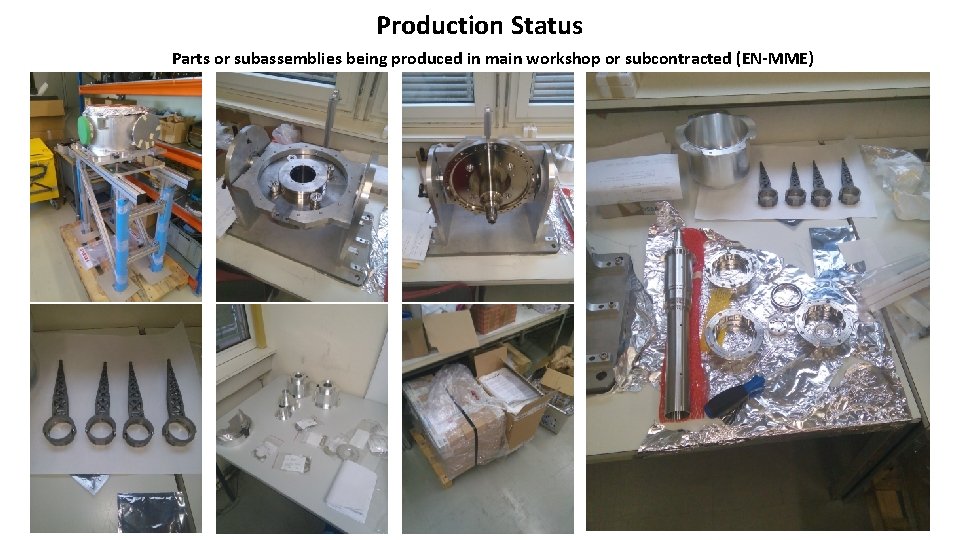

Production Status Parts or subassemblies being produced in main workshop or subcontracted (EN-MME)

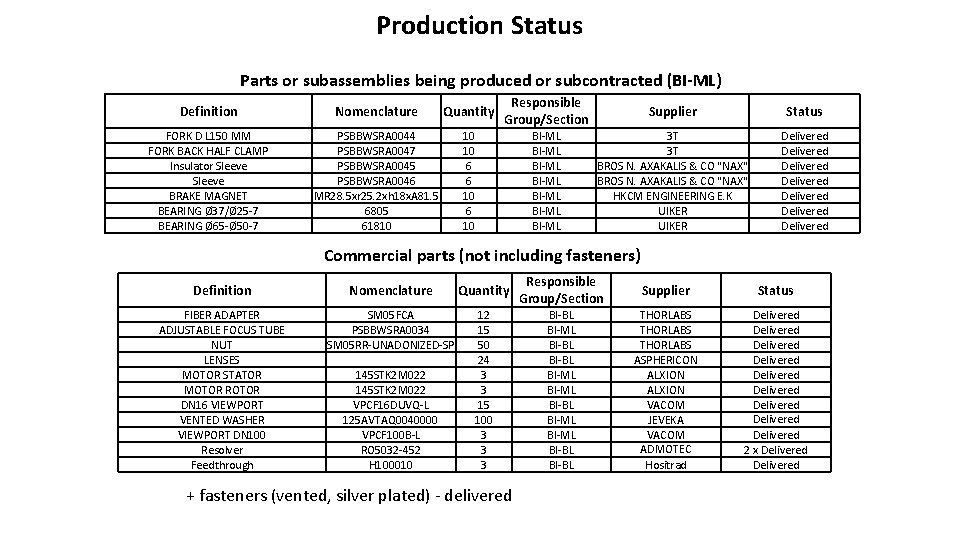

Production Status Parts or subassemblies being produced or subcontracted (BI-ML) Definition Nomenclature Quantity Responsible Group/Section Supplier Status FORK D L 150 MM FORK BACK HALF CLAMP Insulator Sleeve BRAKE MAGNET BEARING Ø 37/Ø 25 -7 BEARING Ø 65 -Ø 50 -7 PSBBWSRA 0044 PSBBWSRA 0047 PSBBWSRA 0045 PSBBWSRA 0046 MR 28. 5 xr 25. 2 xh 18 x. A 81. 5 6805 61810 10 10 6 6 10 BI-ML BI-ML 3 T 3 T BROS N. AXAKALIS & CO "NAX" HKCM ENGINEERING E. K UIKER Delivered Delivered Commercial parts (not including fasteners) Definition Nomenclature Quantity Responsible Group/Section Supplier Status FIBER ADAPTER ADJUSTABLE FOCUS TUBE NUT LENSES MOTOR STATOR MOTOR ROTOR DN 16 VIEWPORT VENTED WASHER VIEWPORT DN 100 Resolver Feedthrough SM 05 FCA PSBBWSRA 0034 SM 05 RR-UNADONIZED-SP 12 15 50 24 3 3 15 100 3 3 3 BI-BL BI-ML BI-ML BI-BL THORLABS ASPHERICON ALXION VACOM JEVEKA VACOM ADMOTEC Hositrad Delivered Delivered Delivered 2 x Delivered 145 STK 2 M 022 VPCF 16 DUVQ-L 125 AVTAQ 0040000 VPCF 100 B-L RO 5032 -452 H 100010 + fasteners (vented, silver plated) - delivered

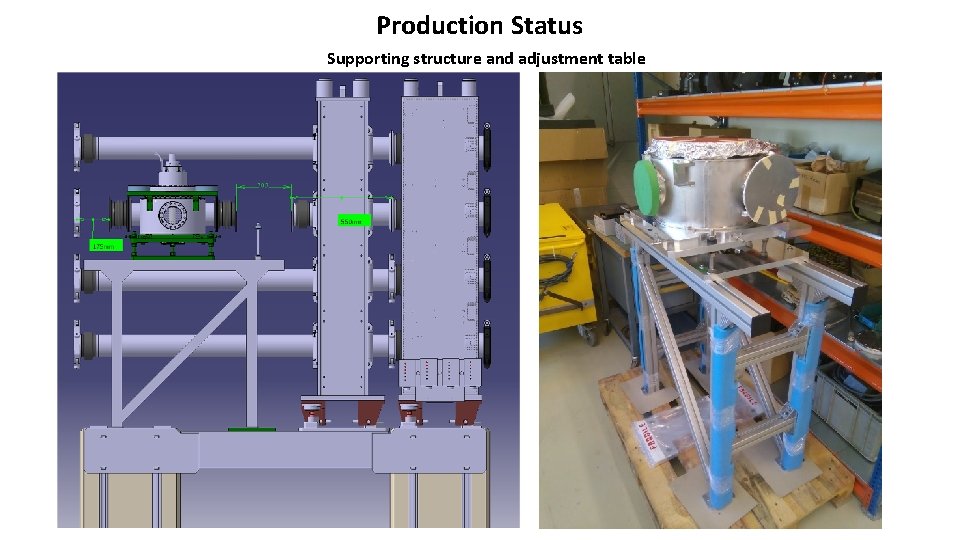

Production Status Supporting structure and adjustment table
ECR PSB-BWSRA-EC-0001 ECR was approved on 2 -Sep during the 181 st IEFC meeting: https: //indico. cern. ch/event/567039/ Link to presentation: https: //indico. cern. ch/event/567039/contributions/2291510/attachments/1330530/1999 429/ECR-PS-SPS-IEFC-2016 -09 -02 -V 3. pdf

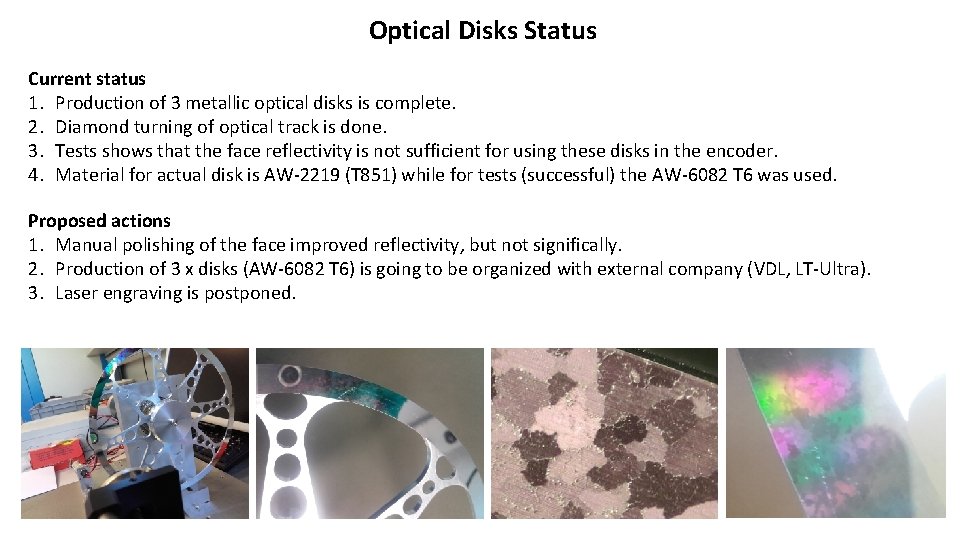

Optical Disks Status Current status 1. Production of 3 metallic optical disks is complete. 2. Diamond turning of optical track is done. 3. Tests shows that the face reflectivity is not sufficient for using these disks in the encoder. 4. Material for actual disk is AW-2219 (T 851) while for tests (successful) the AW-6082 T 6 was used. Proposed actions 1. Manual polishing of the face improved reflectivity, but not significally. 2. Production of 3 x disks (AW-6082 T 6) is going to be organized with external company (VDL, LT-Ultra). 3. Laser engraving is postponed.

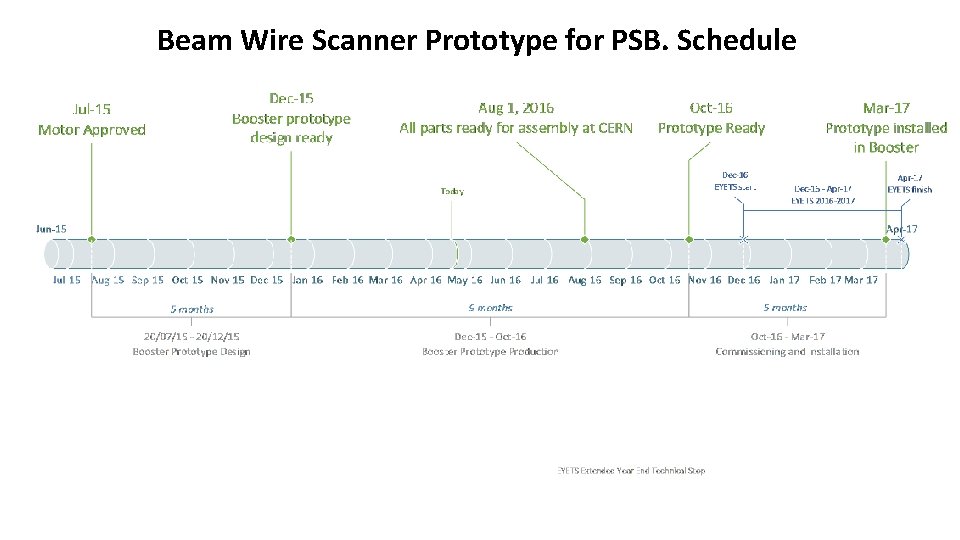

Beam Wire Scanner Prototype for PSB. Schedule
