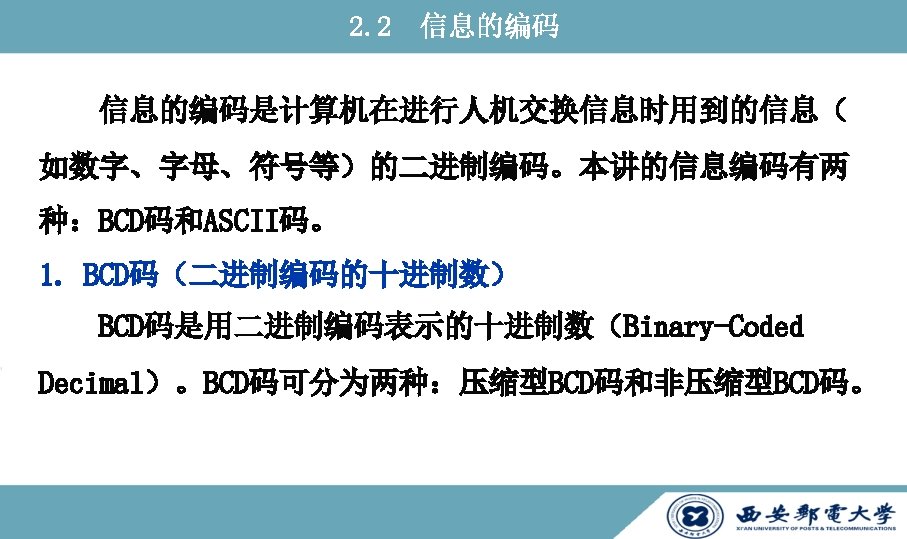

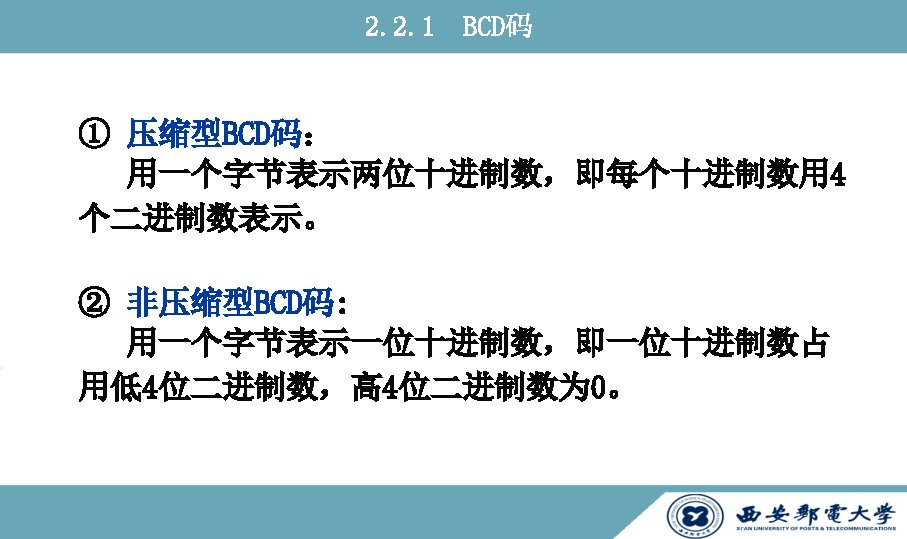

![压缩型和非压缩型BCD码对照表 十进制数 压缩型BCD码 非压缩型BCD码 0 0000 1 0000 0001 2 0010 0000 0010 … 压缩型和非压缩型BCD码对照表 十进制数 压缩型BCD码 非压缩型BCD码 0 0000 1 0000 0001 2 0010 0000 0010 …](http://slidetodoc.com/presentation_image_h2/728854b18e1a65bf2f54c84b468e90ce/image-5.jpg)

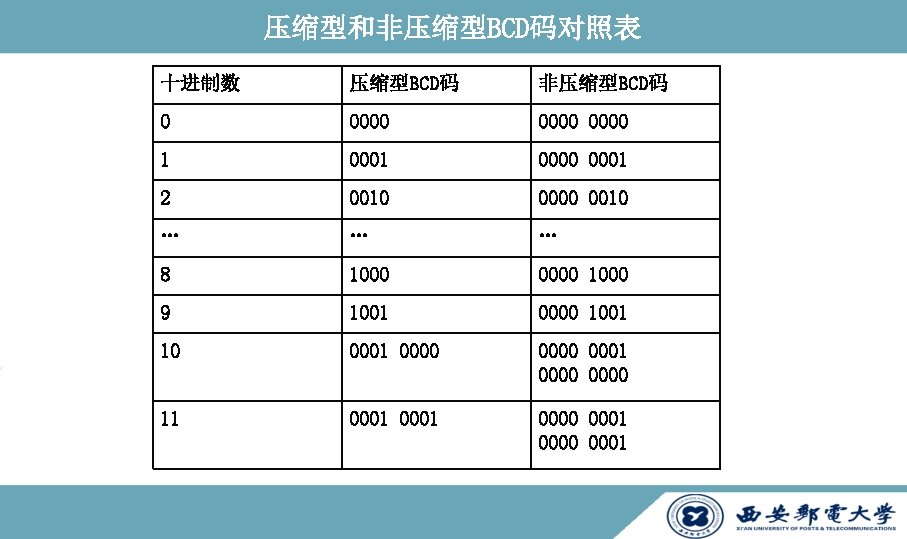

压缩型和非压缩型BCD码对照表 十进制数 压缩型BCD码 非压缩型BCD码 0 0000 1 0000 0001 2 0010 0000 0010 … … … 8 1000 0000 1000 9 1001 0000 1001 10 0001 0000 11 0001 0000 0001

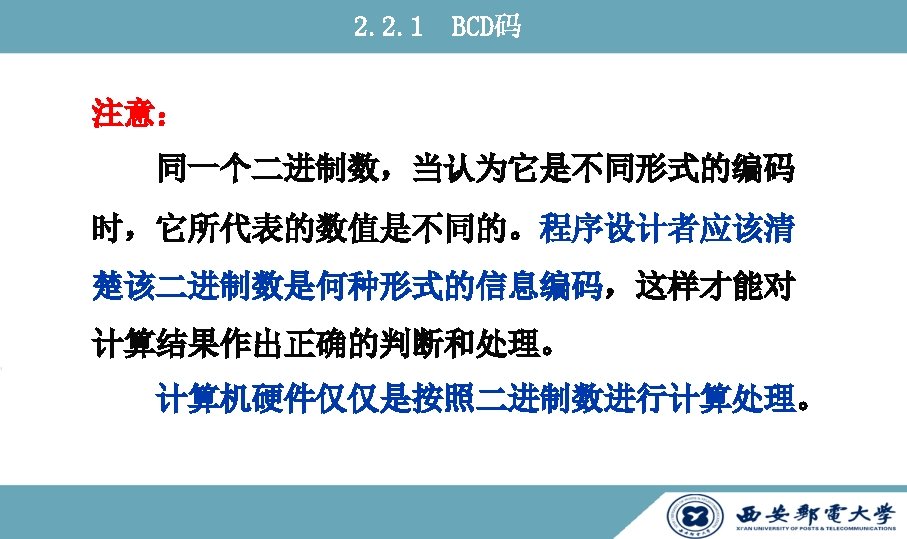

![](http://slidetodoc.com/presentation_image_h2/728854b18e1a65bf2f54c84b468e90ce/image-6.jpg)

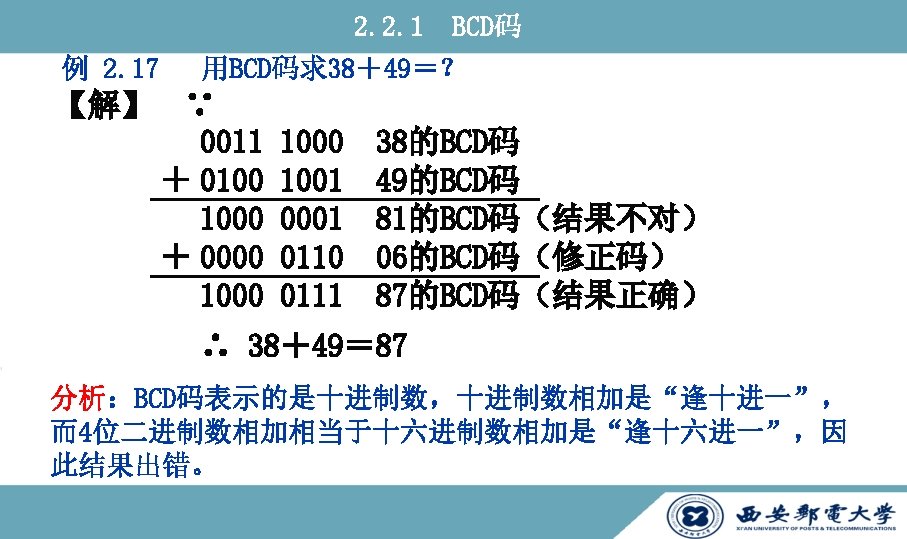

![](http://slidetodoc.com/presentation_image_h2/728854b18e1a65bf2f54c84b468e90ce/image-7.jpg)
![2. 2. 1 BCD码 ① 若一位BCD码的运算结果小于或等于9,则该位不需要修正 ② 若得到的运算结果大于9且小于16,则该位需要加 6修正 ③ 若得到的运算结果向高位有进位,则该位需要加 6修正 0001 0010 2. 2. 1 BCD码 ① 若一位BCD码的运算结果小于或等于9,则该位不需要修正 ② 若得到的运算结果大于9且小于16,则该位需要加 6修正 ③ 若得到的运算结果向高位有进位,则该位需要加 6修正 0001 0010](http://slidetodoc.com/presentation_image_h2/728854b18e1a65bf2f54c84b468e90ce/image-8.jpg)

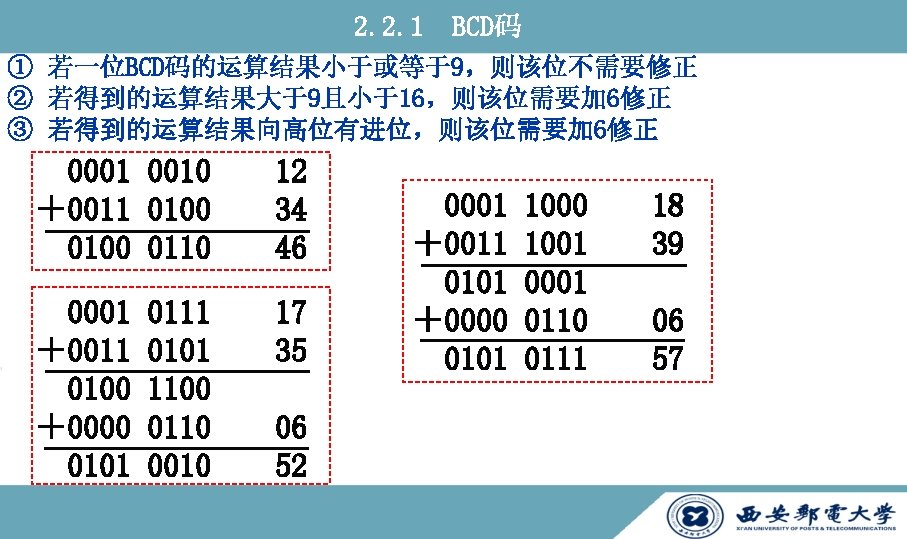

2. 2. 1 BCD码 ① 若一位BCD码的运算结果小于或等于9,则该位不需要修正 ② 若得到的运算结果大于9且小于16,则该位需要加 6修正 ③ 若得到的运算结果向高位有进位,则该位需要加 6修正 0001 0010 +0011 0100 0110 12 34 46 0001 +0011 0100 +0000 0101 17 35 0111 0101 1100 0110 0010 06 52 0001 +0011 0101 +0000 0101 1000 1001 0110 0111 18 39 06 57

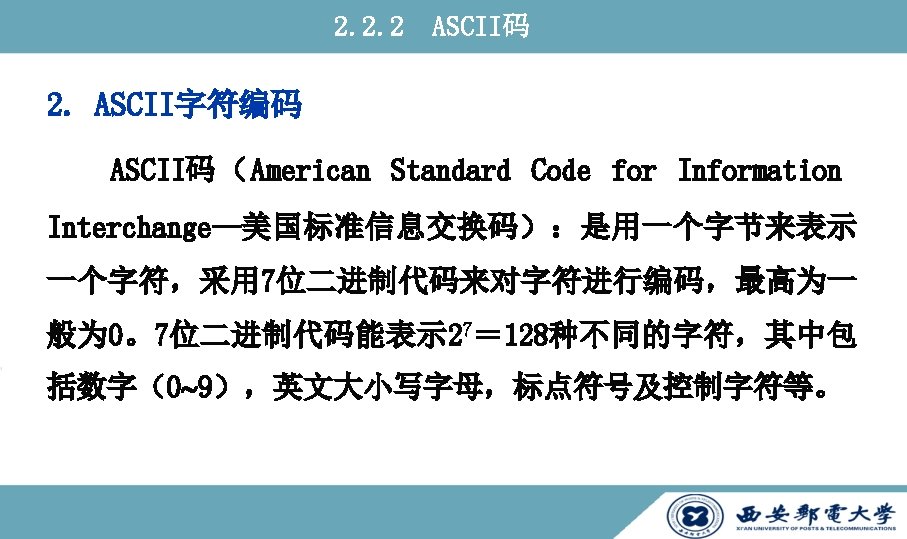

![](http://slidetodoc.com/presentation_image_h2/728854b18e1a65bf2f54c84b468e90ce/image-9.jpg)

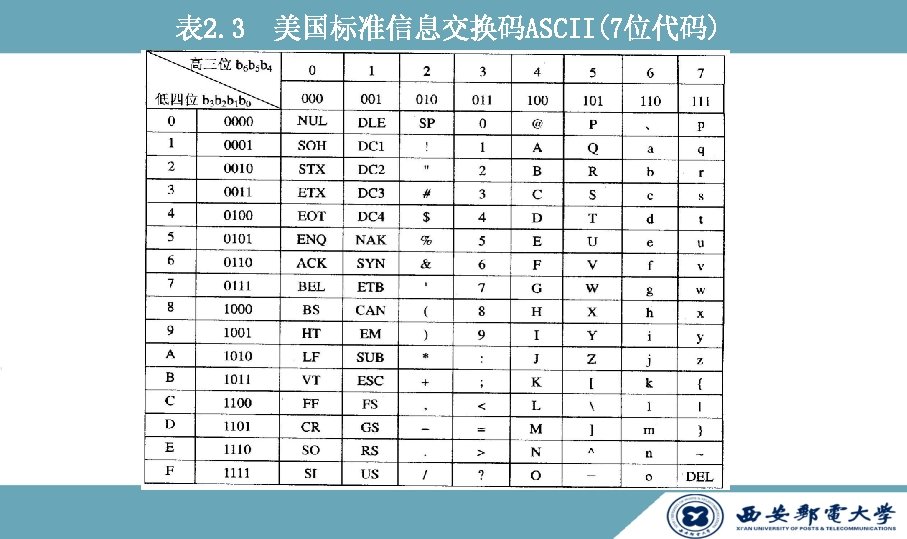

![](http://slidetodoc.com/presentation_image_h2/728854b18e1a65bf2f54c84b468e90ce/image-10.jpg)

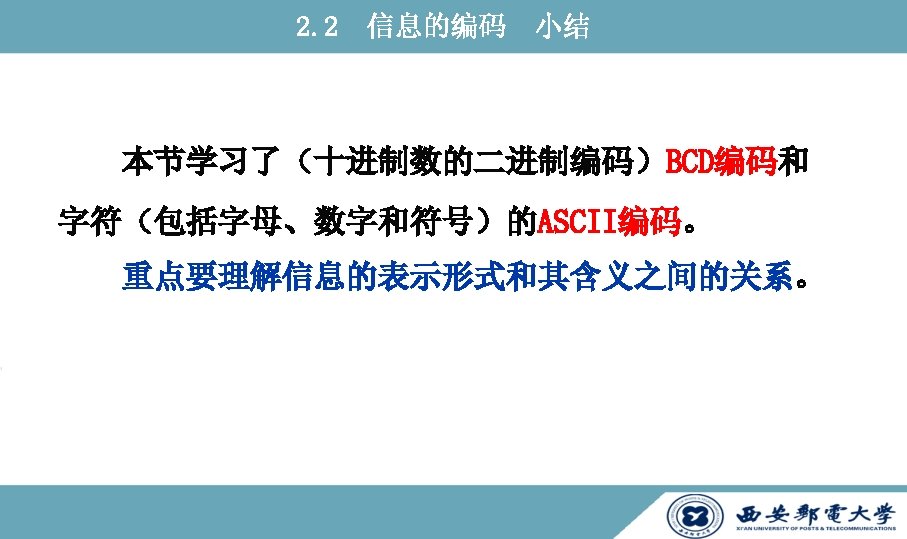

![](http://slidetodoc.com/presentation_image_h2/728854b18e1a65bf2f54c84b468e90ce/image-11.jpg)
