BC 1008 Structure and Function of Biomolecules Devaka

BC 1008 - Structure and Function of Biomolecules Devaka Weerakoon (18 L) and Dilrukshi de Silva (12 L) Department of Zoology (3 Cr – 30 L + 30 P)

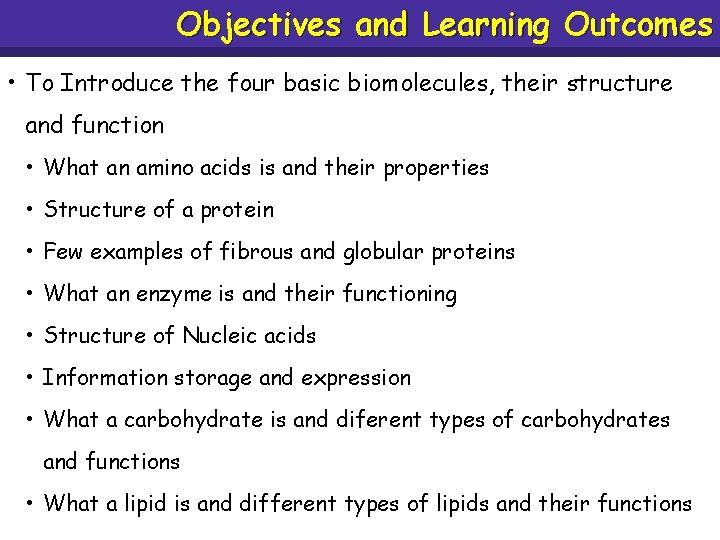

Objectives and Learning Outcomes • To Introduce the four basic biomolecules, their structure and function • What an amino acids is and their properties • Structure of a protein • Few examples of fibrous and globular proteins • What an enzyme is and their functioning • Structure of Nucleic acids • Information storage and expression • What a carbohydrate is and diferent types of carbohydrates and functions • What a lipid is and different types of lipids and their functions

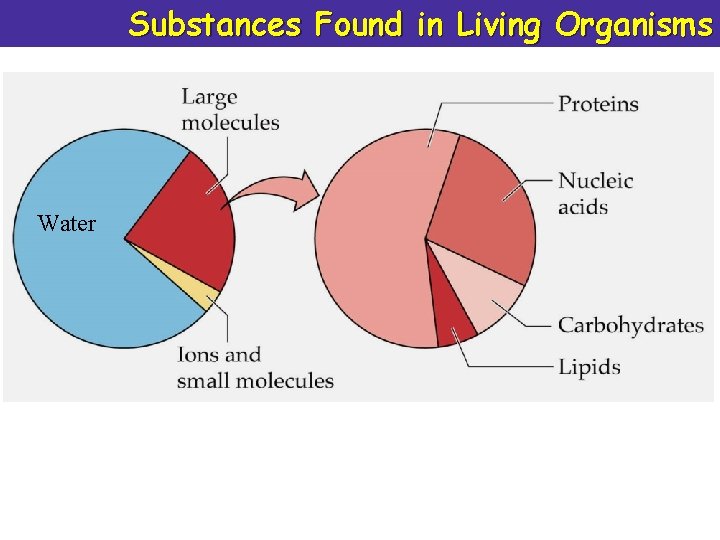

Substances Found in Living Organisms Water

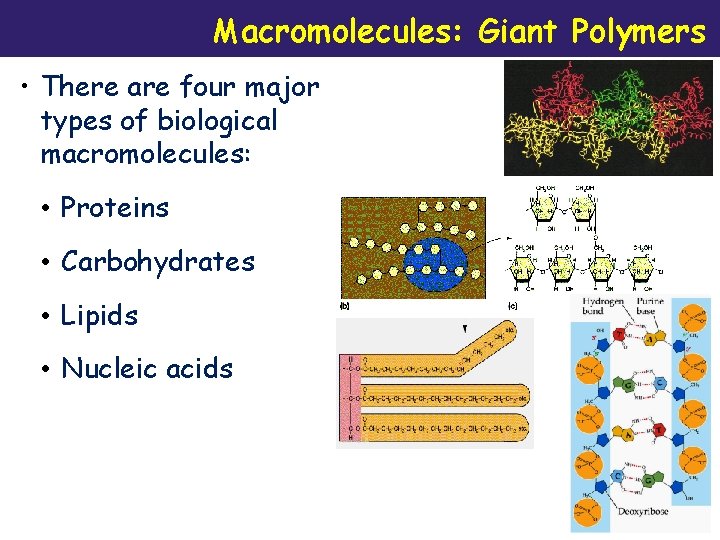

Macromolecules: Giant Polymers • There are four major types of biological macromolecules: • Proteins • Carbohydrates • Lipids • Nucleic acids

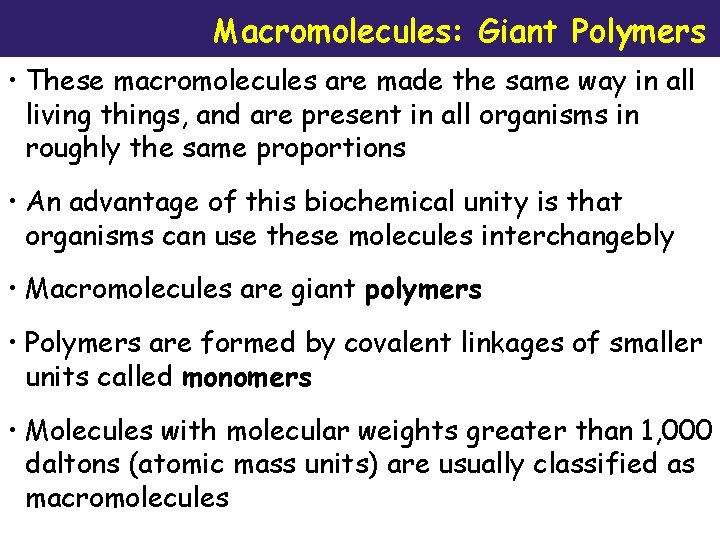

Macromolecules: Giant Polymers • These macromolecules are made the same way in all living things, and are present in all organisms in roughly the same proportions • An advantage of this biochemical unity is that organisms can use these molecules interchangebly • Macromolecules are giant polymers • Polymers are formed by covalent linkages of smaller units called monomers • Molecules with molecular weights greater than 1, 000 daltons (atomic mass units) are usually classified as macromolecules

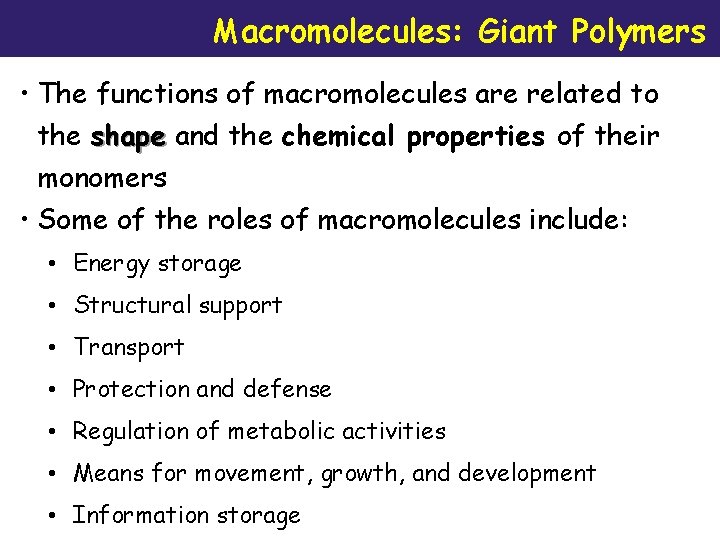

Macromolecules: Giant Polymers • The functions of macromolecules are related to the shape and the chemical properties of their monomers • Some of the roles of macromolecules include: • Energy storage • Structural support • Transport • Protection and defense • Regulation of metabolic activities • Means for movement, growth, and development • Information storage

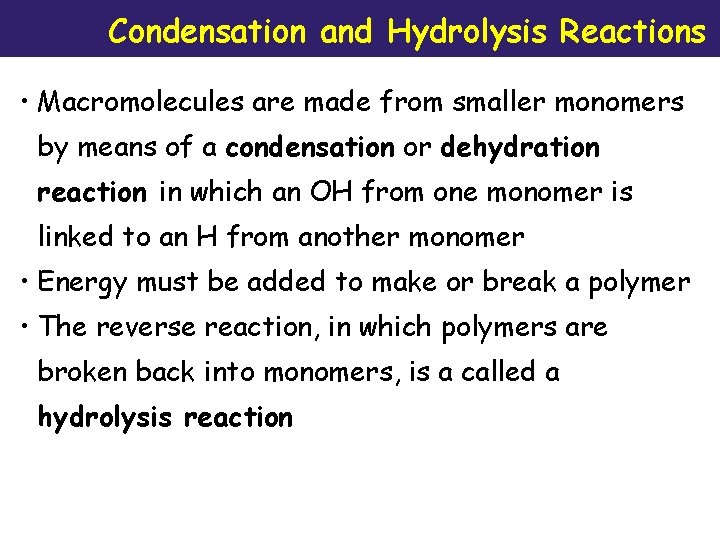

Condensation and Hydrolysis Reactions • Macromolecules are made from smaller monomers by means of a condensation or dehydration reaction in which an OH from one monomer is linked to an H from another monomer • Energy must be added to make or break a polymer • The reverse reaction, in which polymers are broken back into monomers, is a called a hydrolysis reaction

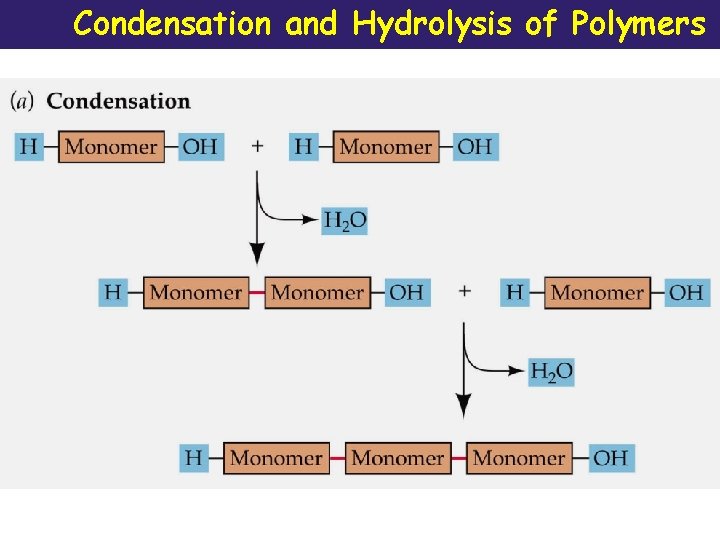

Condensation and Hydrolysis of Polymers

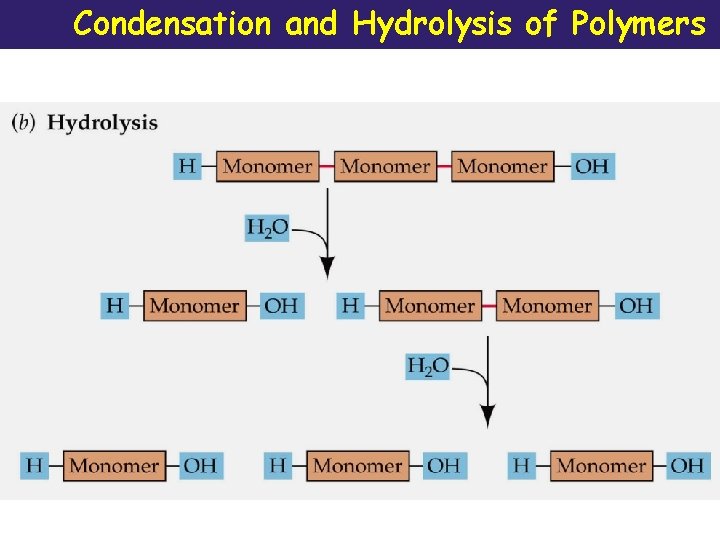

Condensation and Hydrolysis of Polymers

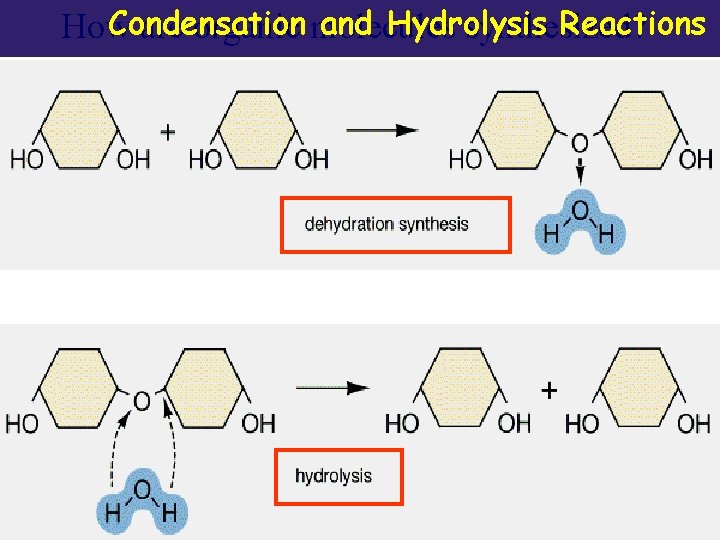

Condensation and Hydrolysis Reactions How are organic molecules synthesized? Molecules can be metabolized (broken down)

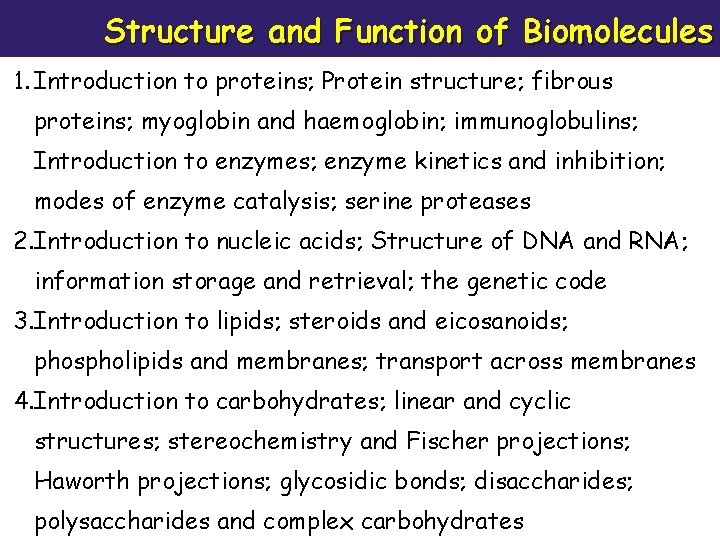

Structure and Function of Biomolecules 1. Introduction to proteins; Protein structure; fibrous proteins; myoglobin and haemoglobin; immunoglobulins; Introduction to enzymes; enzyme kinetics and inhibition; modes of enzyme catalysis; serine proteases 2. Introduction to nucleic acids; Structure of DNA and RNA; information storage and retrieval; the genetic code 3. Introduction to lipids; steroids and eicosanoids; phospholipids and membranes; transport across membranes 4. Introduction to carbohydrates; linear and cyclic structures; stereochemistry and Fischer projections; Haworth projections; glycosidic bonds; disaccharides; polysaccharides and complex carbohydrates

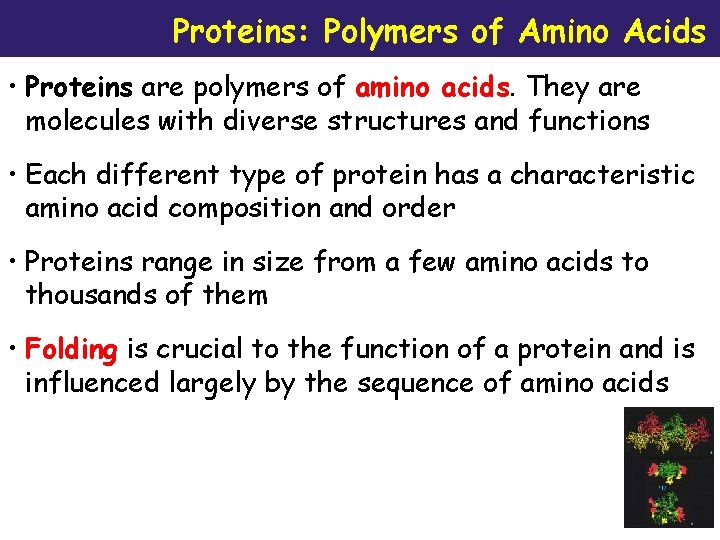

Proteins: Polymers of Amino Acids • Proteins are polymers of amino acids. They are molecules with diverse structures and functions • Each different type of protein has a characteristic amino acid composition and order • Proteins range in size from a few amino acids to thousands of them • Folding is crucial to the function of a protein and is influenced largely by the sequence of amino acids

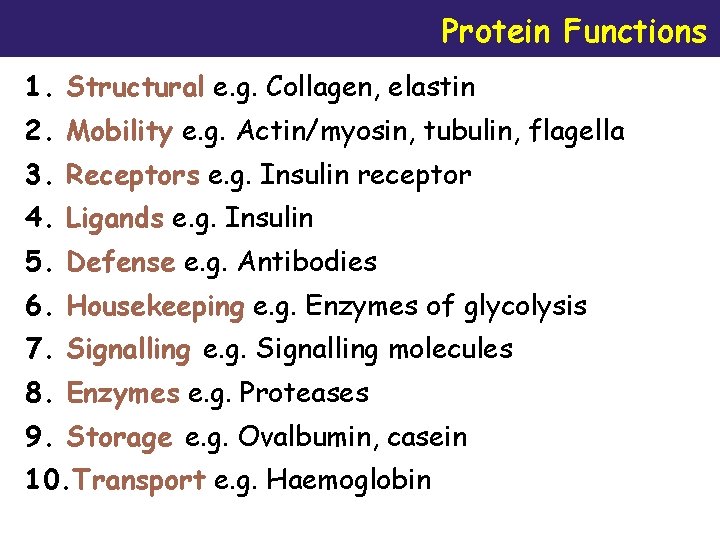

Protein Functions 1. Structural e. g. Collagen, elastin 2. Mobility e. g. Actin/myosin, tubulin, flagella 3. Receptors e. g. Insulin receptor 4. Ligands e. g. Insulin 5. Defense e. g. Antibodies 6. Housekeeping e. g. Enzymes of glycolysis 7. Signalling e. g. Signalling molecules 8. Enzymes e. g. Proteases 9. Storage e. g. Ovalbumin, casein 10. Transport e. g. Haemoglobin

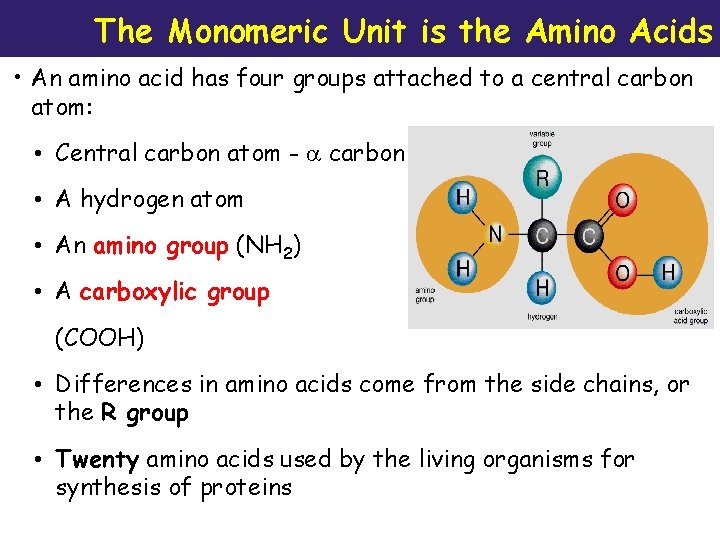

The Monomeric Unit is the Amino Acids • An amino acid has four groups attached to a central carbon atom: • Central carbon atom - carbon • A hydrogen atom • An amino group (NH 2) • A carboxylic group (COOH) • Differences in amino acids come from the side chains, or the R group • Twenty amino acids used by the living organisms for synthesis of proteins

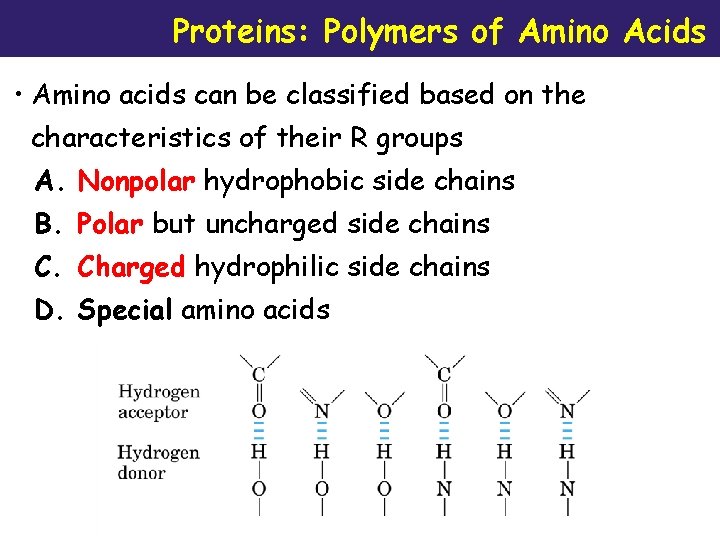

Proteins: Polymers of Amino Acids • Amino acids can be classified based on the characteristics of their R groups A. Nonpolar hydrophobic side chains B. Polar but uncharged side chains C. Charged hydrophilic side chains D. Special amino acids

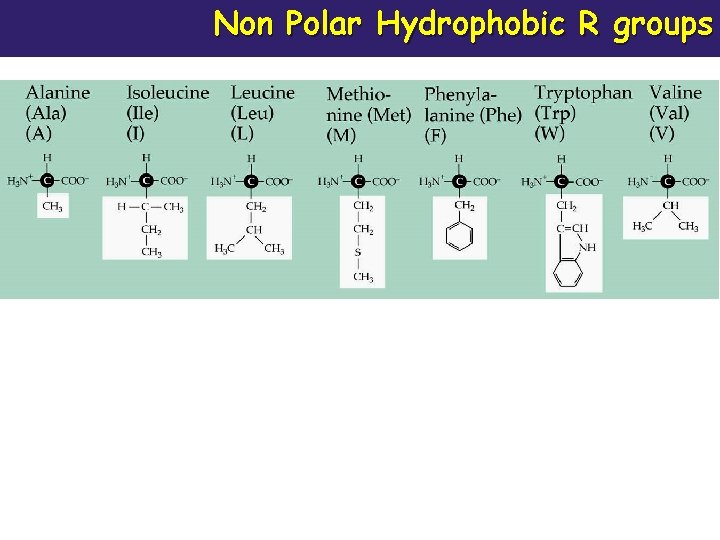

Non Polar Hydrophobic R groups

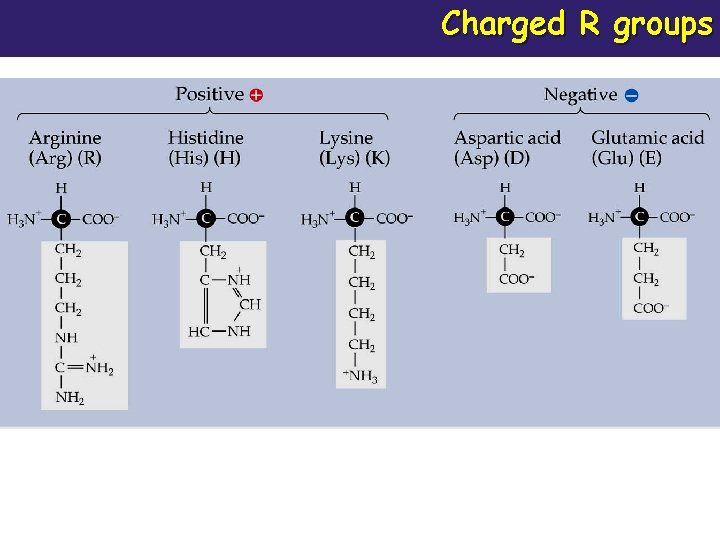

Charged R groups

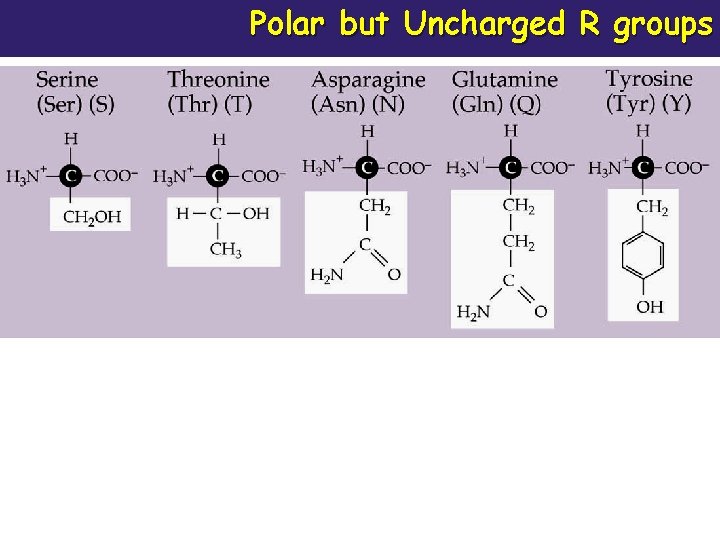

Polar but Uncharged R groups

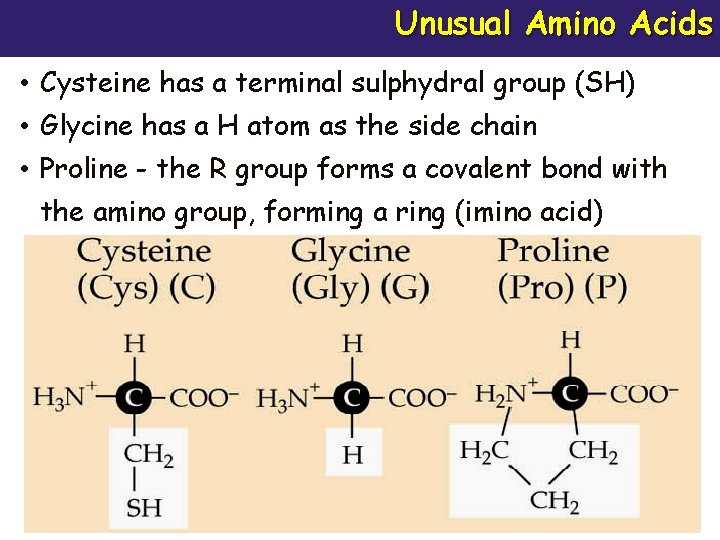

Unusual Amino Acids • Cysteine has a terminal sulphydral group (SH) • Glycine has a H atom as the side chain • Proline - the R group forms a covalent bond with the amino group, forming a ring (imino acid)

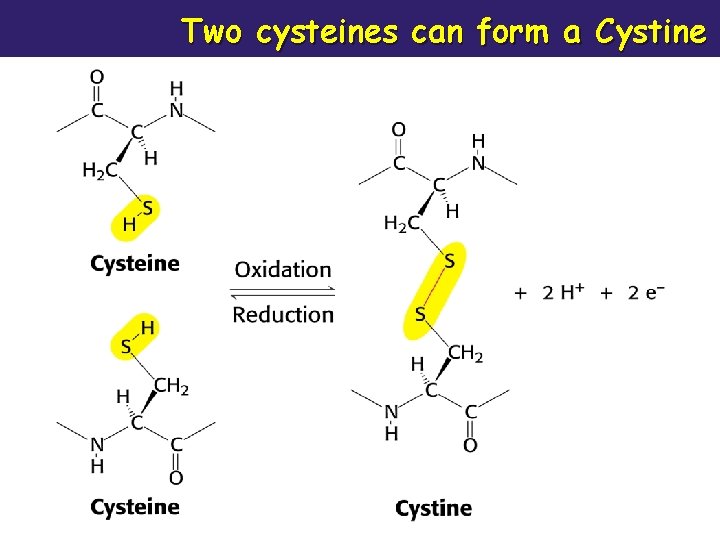

Two cysteines can form a Cystine

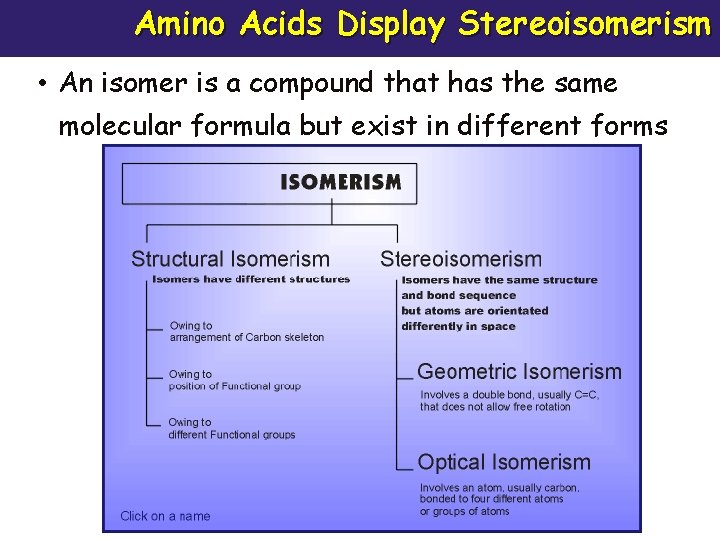

Amino Acids Display Stereoisomerism • An isomer is a compound that has the same molecular formula but exist in different forms

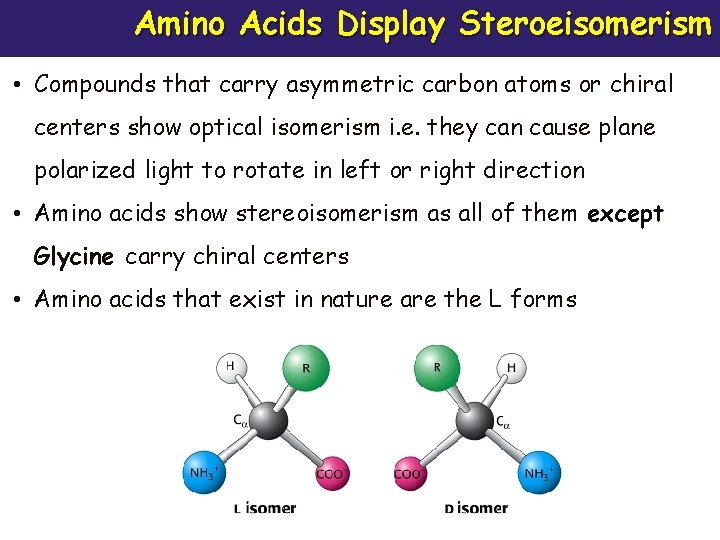

Amino Acids Display Steroeisomerism • Compounds that carry asymmetric carbon atoms or chiral centers show optical isomerism i. e. they can cause plane polarized light to rotate in left or right direction • Amino acids show stereoisomerism as all of them except Glycine carry chiral centers • Amino acids that exist in nature are the L forms

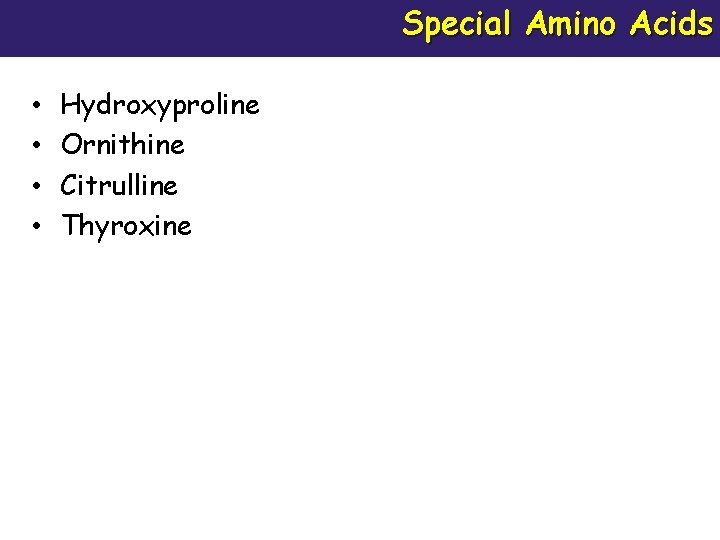

Special Amino Acids • • Hydroxyproline Ornithine Citrulline Thyroxine

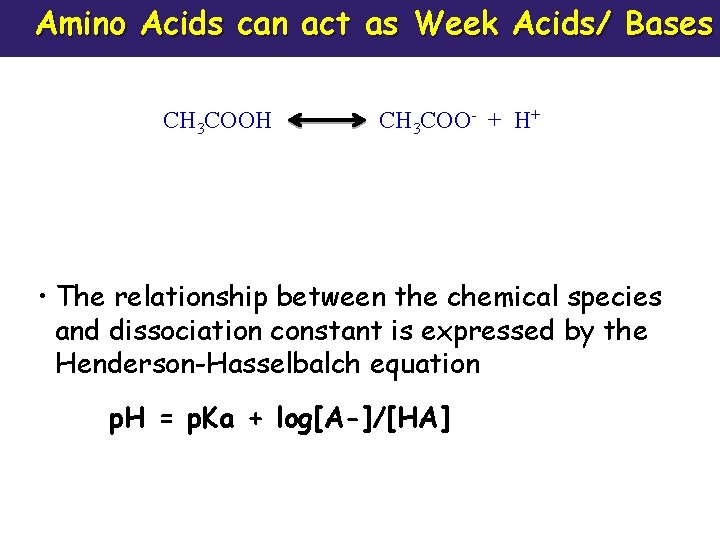

Amino Acids can act as Week Acids/ Bases CH 3 COOH CH 3 COO- + H+ • The relationship between the chemical species and dissociation constant is expressed by the Henderson-Hasselbalch equation p. H = p. Ka + log[A-]/[HA]

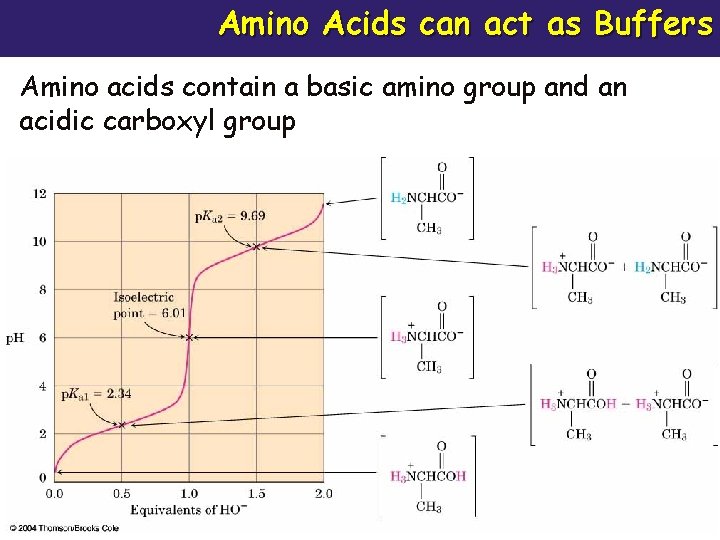

Amino Acids can act as Buffers Amino acids contain a basic amino group and an acidic carboxyl group

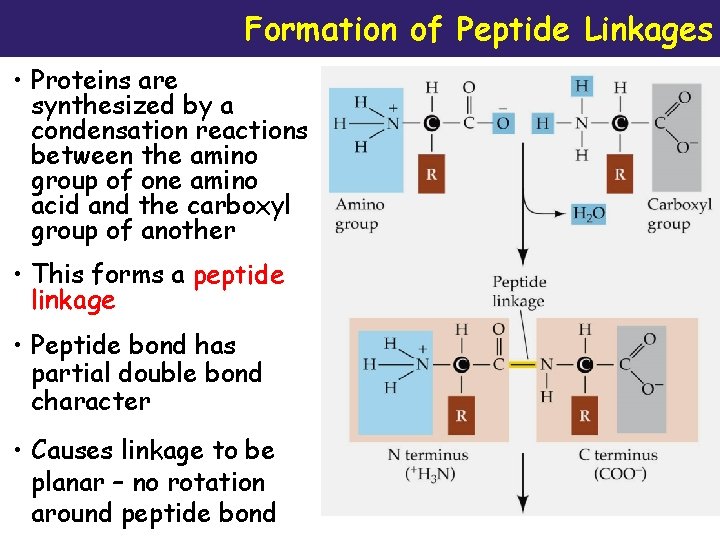

Formation of Peptide Linkages • Proteins are synthesized by a condensation reactions between the amino group of one amino acid and the carboxyl group of another • This forms a peptide linkage • Peptide bond has partial double bond character • Causes linkage to be planar – no rotation around peptide bond

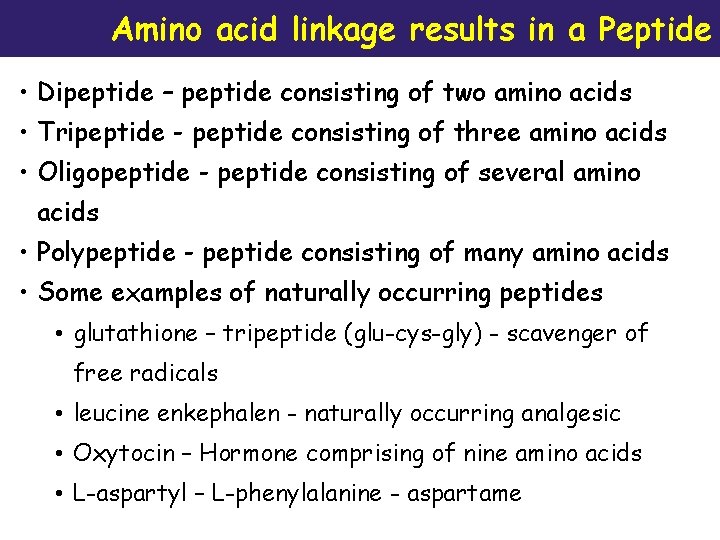

Amino acid linkage results in a Peptide • Dipeptide – peptide consisting of two amino acids • Tripeptide - peptide consisting of three amino acids • Oligopeptide - peptide consisting of several amino acids • Polypeptide - peptide consisting of many amino acids • Some examples of naturally occurring peptides • glutathione – tripeptide (glu-cys-gly) - scavenger of free radicals • leucine enkephalen - naturally occurring analgesic • Oxytocin – Hormone comprising of nine amino acids • L-aspartyl – L-phenylalanine - aspartame

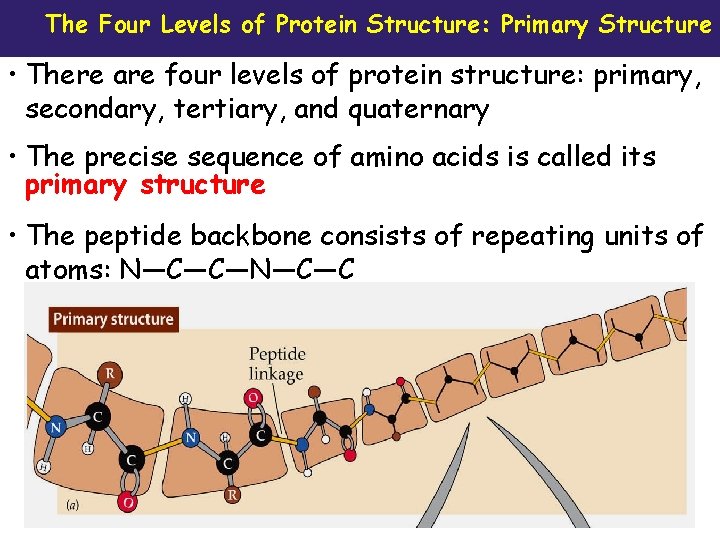

The Four Levels of Protein Structure: Primary Structure • There are four levels of protein structure: primary, secondary, tertiary, and quaternary • The precise sequence of amino acids is called its primary structure • The peptide backbone consists of repeating units of atoms: N—C—C—N—C—C

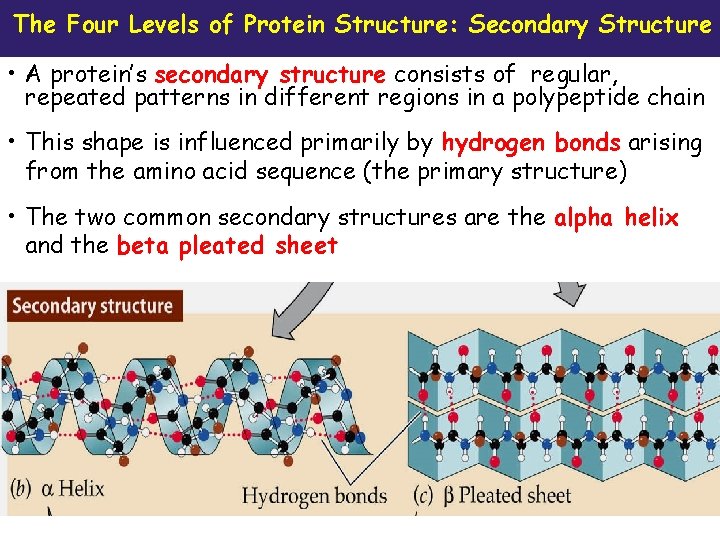

The Four Levels of Protein Structure: Secondary Structure • A protein’s secondary structure consists of regular, repeated patterns in different regions in a polypeptide chain • This shape is influenced primarily by hydrogen bonds arising from the amino acid sequence (the primary structure) • The two common secondary structures are the alpha helix and the beta pleated sheet

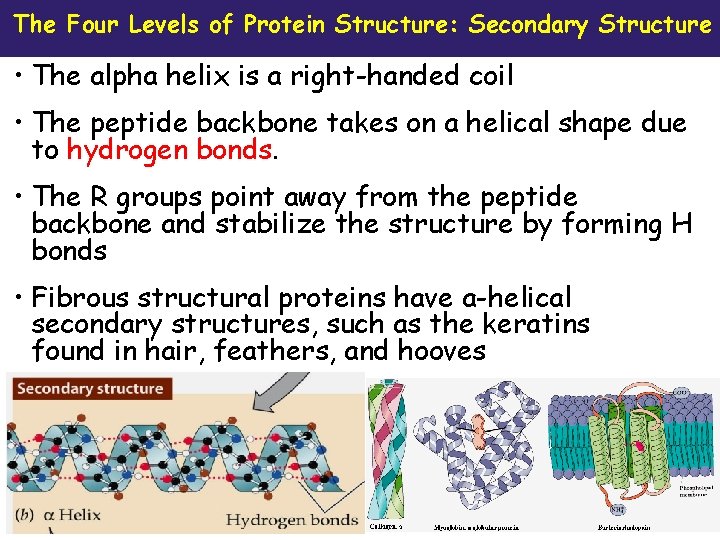

The Four Levels of Protein Structure: Secondary Structure • The alpha helix is a right-handed coil • The peptide backbone takes on a helical shape due to hydrogen bonds. • The R groups point away from the peptide backbone and stabilize the structure by forming H bonds • Fibrous structural proteins have a-helical secondary structures, such as the keratins found in hair, feathers, and hooves

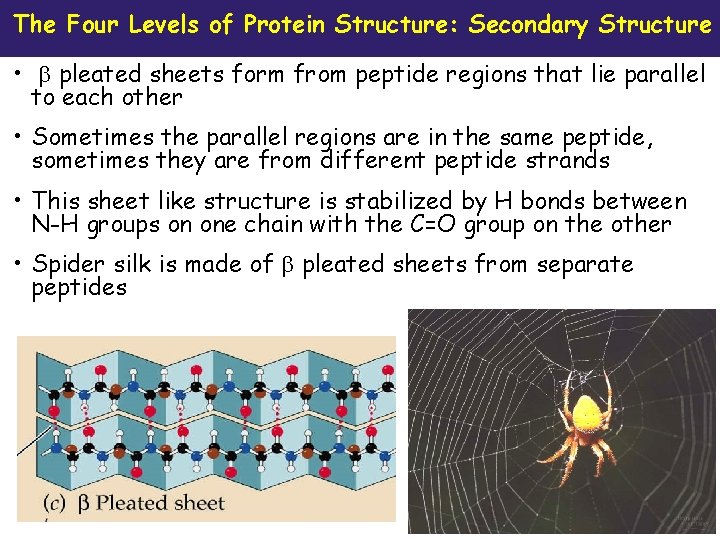

The Four Levels of Protein Structure: Secondary Structure • pleated sheets form from peptide regions that lie parallel to each other • Sometimes the parallel regions are in the same peptide, sometimes they are from different peptide strands • This sheet like structure is stabilized by H bonds between N-H groups on one chain with the C=O group on the other • Spider silk is made of pleated sheets from separate peptides

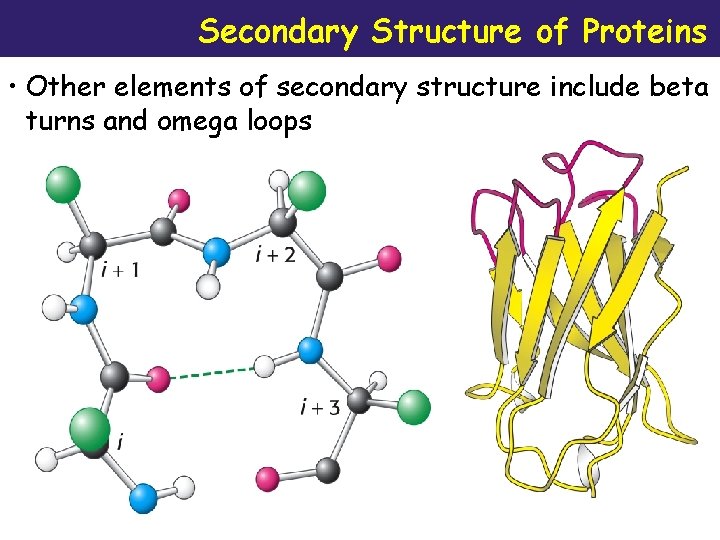

Secondary Structure of Proteins • Other elements of secondary structure include beta turns and omega loops

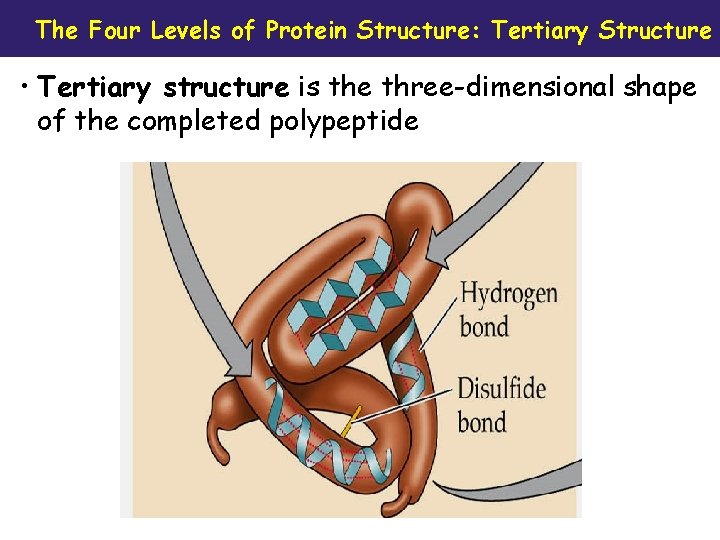

The Four Levels of Protein Structure: Tertiary Structure • Tertiary structure is the three-dimensional shape of the completed polypeptide

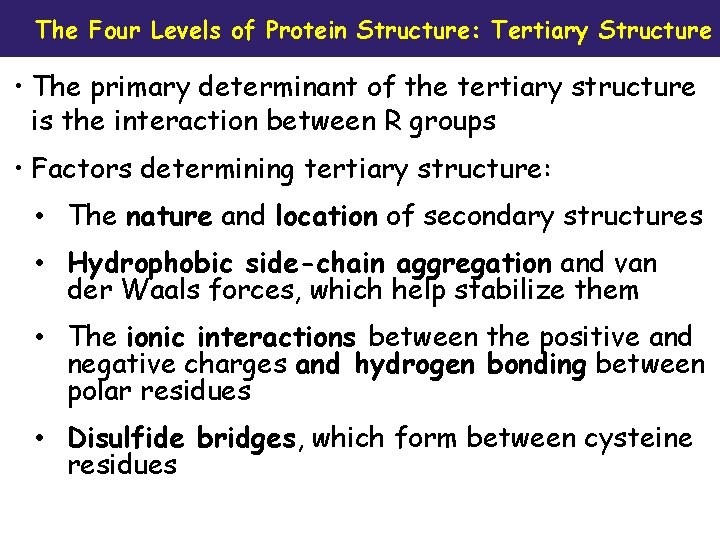

The Four Levels of Protein Structure: Tertiary Structure • The primary determinant of the tertiary structure is the interaction between R groups • Factors determining tertiary structure: • The nature and location of secondary structures • Hydrophobic side-chain aggregation and van der Waals forces, which help stabilize them • The ionic interactions between the positive and negative charges and hydrogen bonding between polar residues • Disulfide bridges, which form between cysteine residues

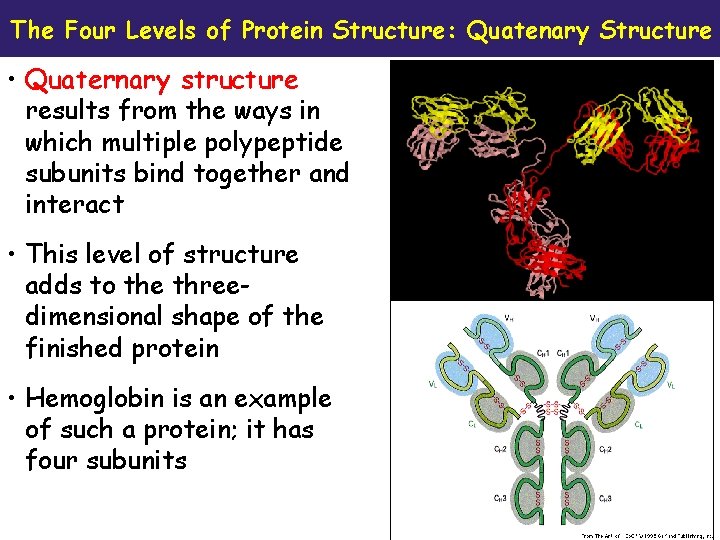

The Four Levels of Protein Structure: Quatenary Structure • Quaternary structure results from the ways in which multiple polypeptide subunits bind together and interact • This level of structure adds to the threedimensional shape of the finished protein • Hemoglobin is an example of such a protein; it has four subunits

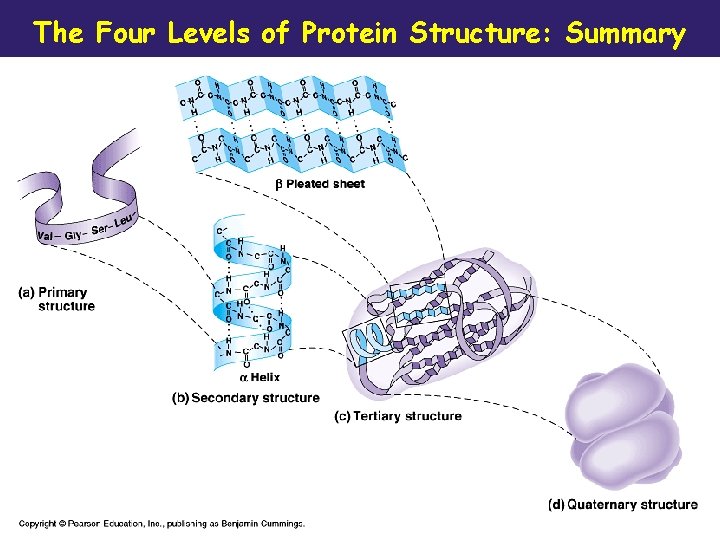

The Four Levels of Protein Structure: Summary

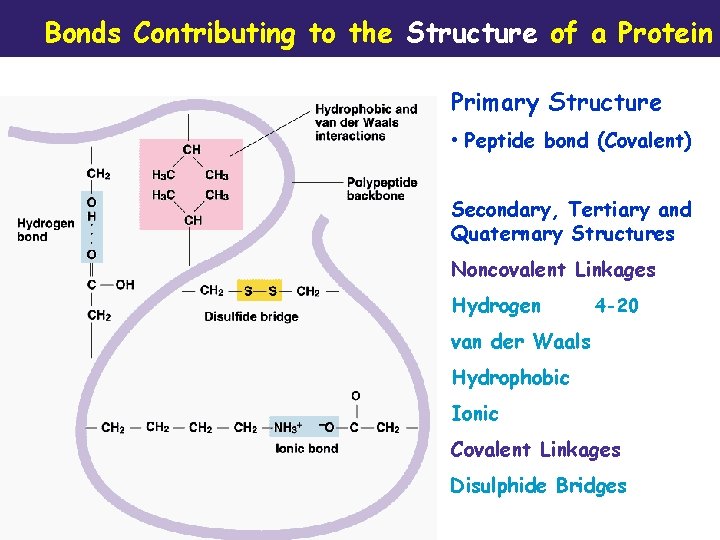

Bonds Contributing to the Structure of a Protein Primary Structure • Peptide bond (Covalent) Irregular contortions Secondary, Tertiary and from bondings Quaternary Structures between side Noncovalent Linkages chains. 4 -20 Hydrogen van der Waals Hydrophobic clusters at the Ionic core of Covalent Linkages proteins Disulphide Bridges

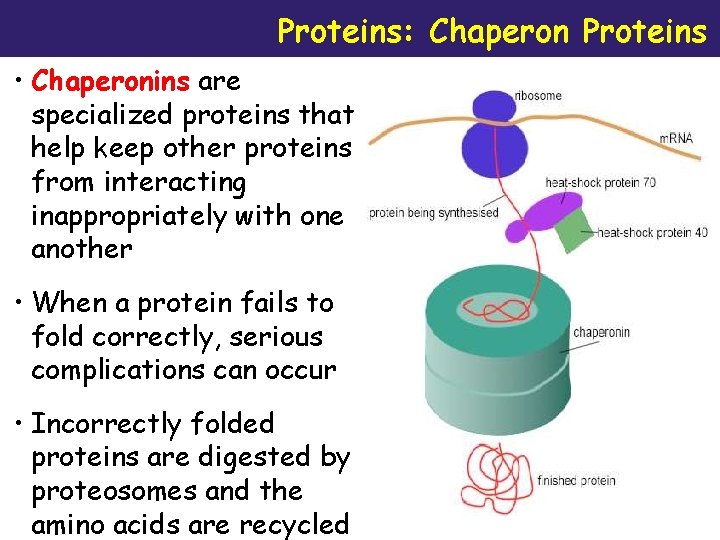

Proteins: Chaperon Proteins • Chaperonins are specialized proteins that help keep other proteins from interacting inappropriately with one another • When a protein fails to fold correctly, serious complications can occur • Incorrectly folded proteins are digested by proteosomes and the amino acids are recycled

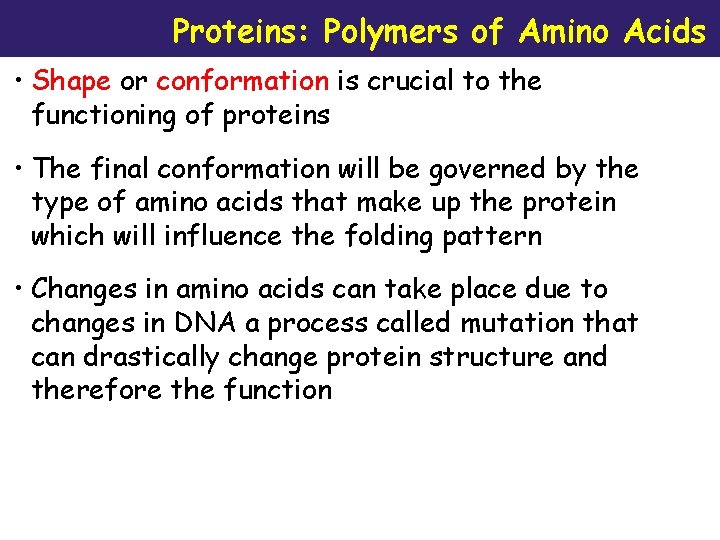

Proteins: Polymers of Amino Acids • Shape or conformation is crucial to the functioning of proteins • The final conformation will be governed by the type of amino acids that make up the protein which will influence the folding pattern • Changes in amino acids can take place due to changes in DNA a process called mutation that can drastically change protein structure and therefore the function

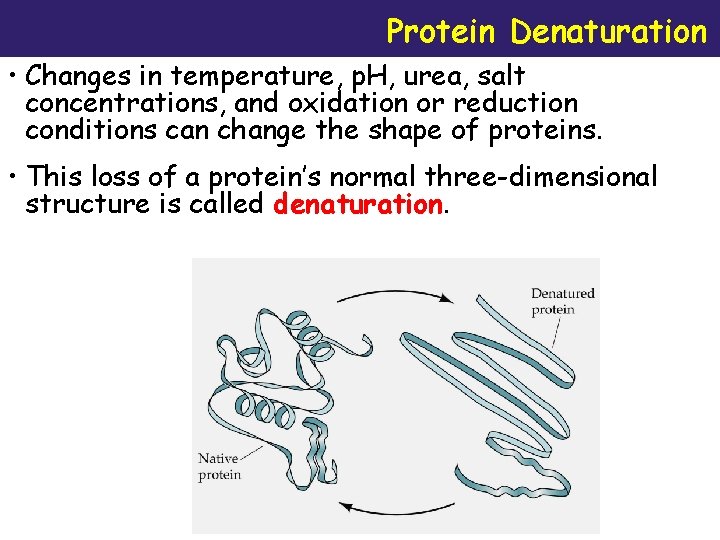

Protein Denaturation • Changes in temperature, p. H, urea, salt concentrations, and oxidation or reduction conditions can change the shape of proteins. • This loss of a protein’s normal three-dimensional structure is called denaturation.

Protein Modification • In some proteins further modification is needed for functioning • Glycosylation – adding carbohydrate moieties which takes place in the golgi complex • Adding lipid moieties especially in membrane proteins

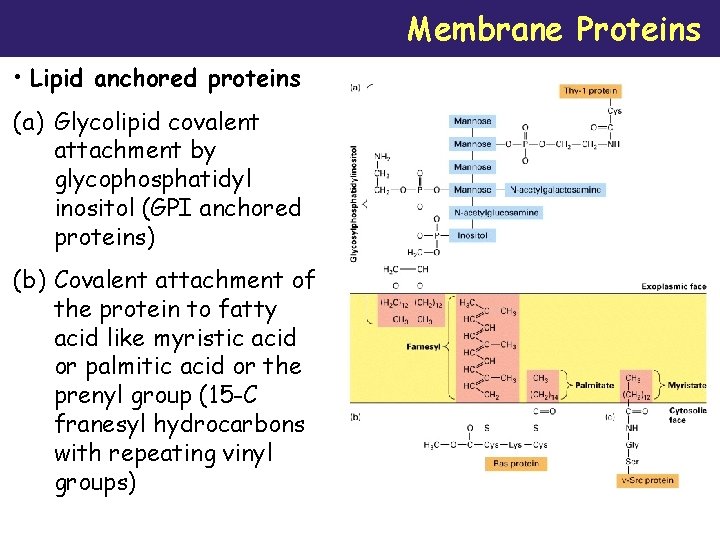

Membrane Proteins • Lipid anchored proteins (a) Glycolipid covalent attachment by glycophosphatidyl inositol (GPI anchored proteins) (b) Covalent attachment of the protein to fatty acid like myristic acid or palmitic acid or the prenyl group (15 -C franesyl hydrocarbons with repeating vinyl groups)

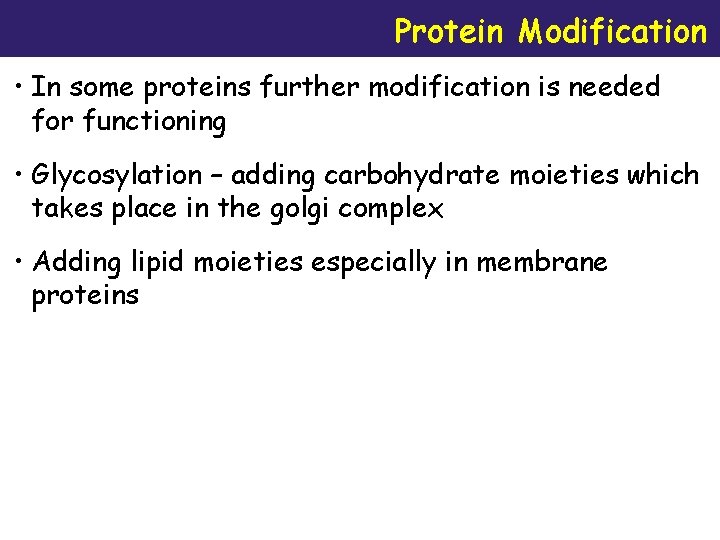

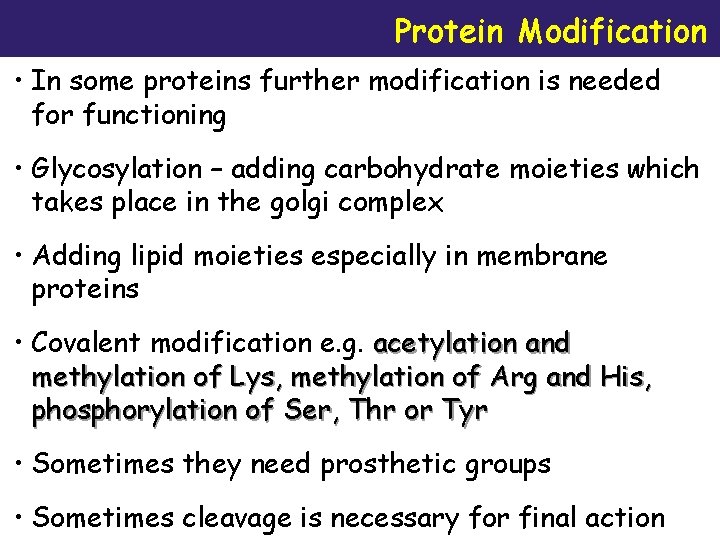

Protein Modification • In some proteins further modification is needed for functioning • Glycosylation – adding carbohydrate moieties which takes place in the golgi complex • Adding lipid moieties especially in membrane proteins • Covalent modification e. g. acetylation and methylation of Lys, methylation of Arg and His, phosphorylation of Ser, Thr or Tyr • Sometimes they need prosthetic groups • Sometimes cleavage is necessary for final action

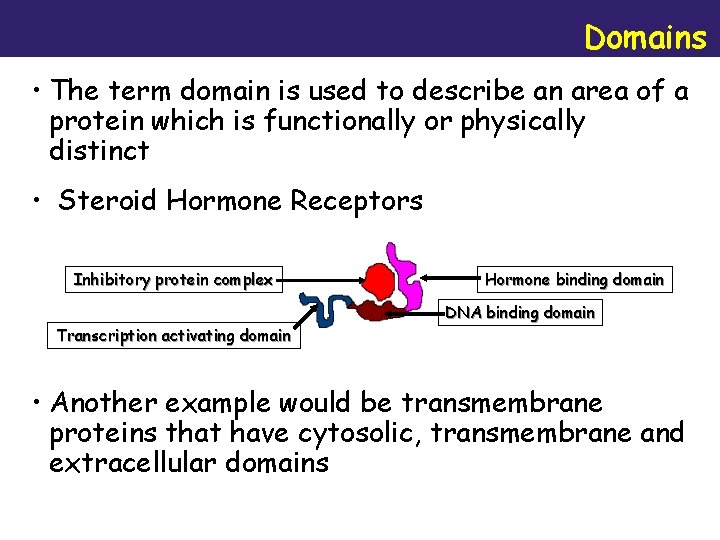

Domains • The term domain is used to describe an area of a protein which is functionally or physically distinct • Steroid Hormone Receptors Inhibitory protein complex Transcription activating domain Hormone binding domain DNA binding domain • Another example would be transmembrane proteins that have cytosolic, transmembrane and extracellular domains

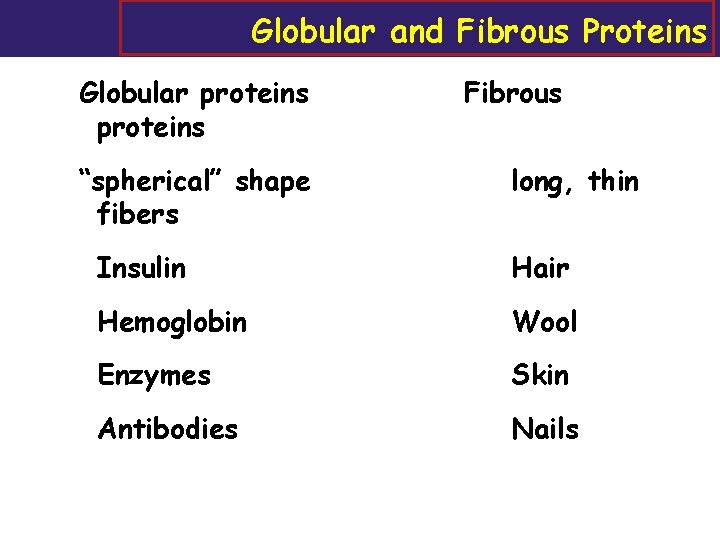

Globular and Fibrous Proteins Globular proteins “spherical” shape fibers Fibrous long, thin Insulin Hair Hemoglobin Wool Enzymes Skin Antibodies Nails 47

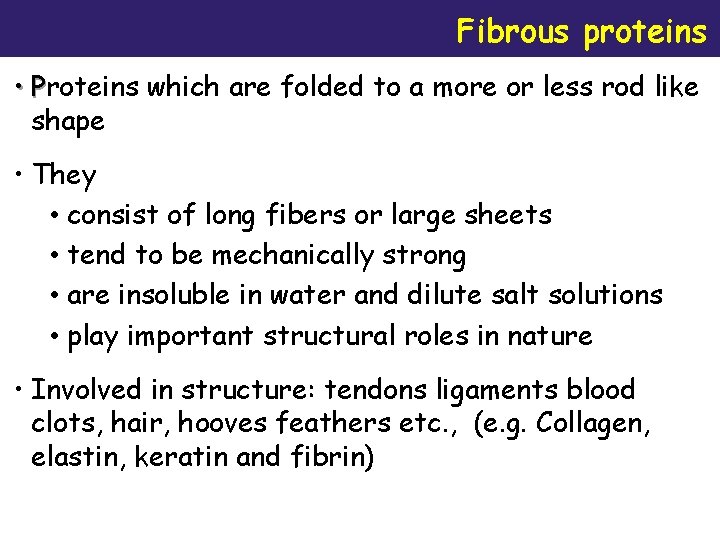

Fibrous proteins • Proteins which are folded to a more or less rod like shape • They • consist of long fibers or large sheets • tend to be mechanically strong • are insoluble in water and dilute salt solutions • play important structural roles in nature • Involved in structure: tendons ligaments blood clots, hair, hooves feathers etc. , (e. g. Collagen, elastin, keratin and fibrin)

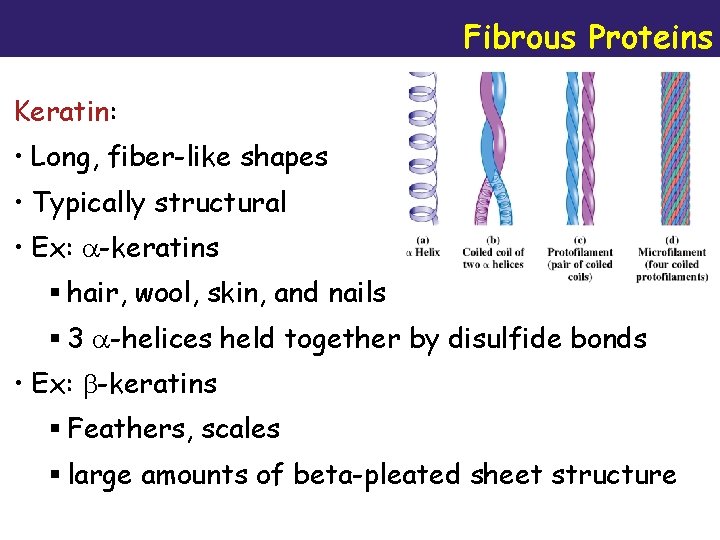

Fibrous Proteins Keratin: • Long, fiber-like shapes • Typically structural • Ex: -keratins § hair, wool, skin, and nails § 3 -helices held together by disulfide bonds • Ex: -keratins § Feathers, scales § large amounts of beta-pleated sheet structure

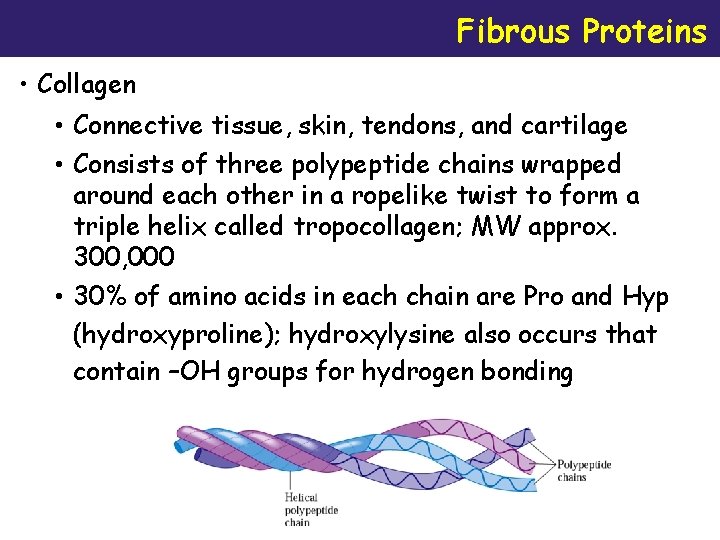

Fibrous Proteins • Collagen • Connective tissue, skin, tendons, and cartilage • Consists of three polypeptide chains wrapped around each other in a ropelike twist to form a triple helix called tropocollagen; MW approx. 300, 000 • 30% of amino acids in each chain are Pro and Hyp (hydroxyproline); hydroxylysine also occurs that contain –OH groups for hydrogen bonding

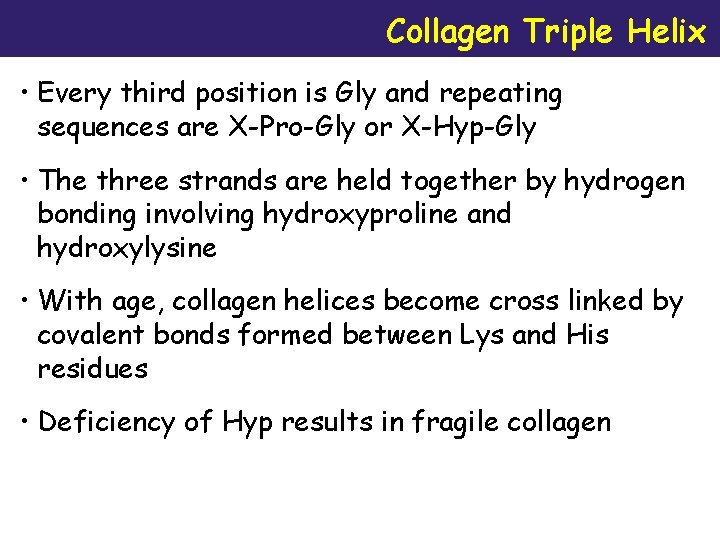

Collagen Triple Helix • Every third position is Gly and repeating sequences are X-Pro-Gly or X-Hyp-Gly • The three strands are held together by hydrogen bonding involving hydroxyproline and hydroxylysine • With age, collagen helices become cross linked by covalent bonds formed between Lys and His residues • Deficiency of Hyp results in fragile collagen

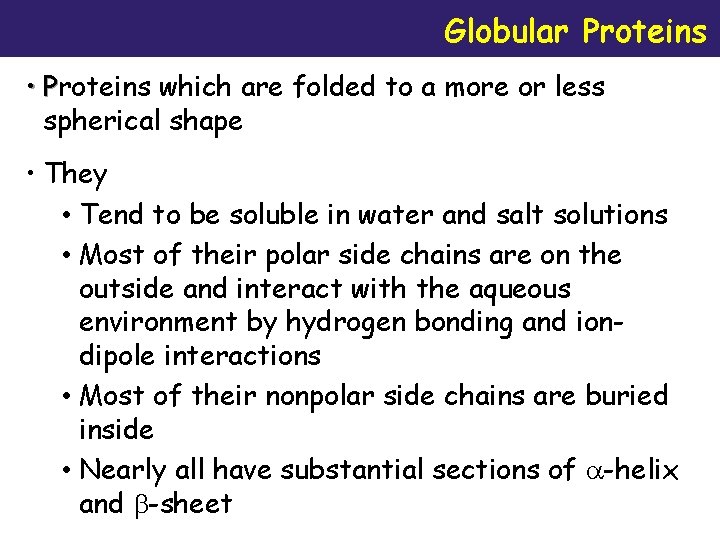

Globular Proteins • Proteins which are folded to a more or less spherical shape • They • Tend to be soluble in water and salt solutions • Most of their polar side chains are on the outside and interact with the aqueous environment by hydrogen bonding and iondipole interactions • Most of their nonpolar side chains are buried inside • Nearly all have substantial sections of -helix and -sheet

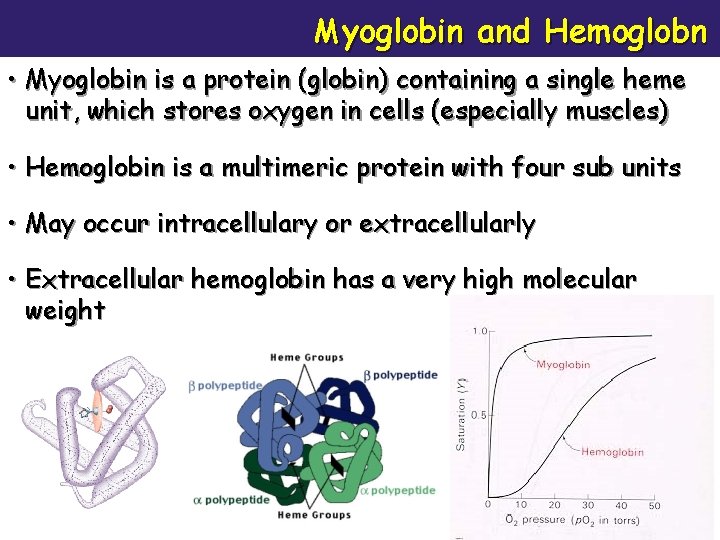

Myoglobin and Hemoglobn • Myoglobin is a protein (globin) containing a single heme unit, which stores oxygen in cells (especially muscles) • Hemoglobin is a multimeric protein with four sub units • May occur intracellulary or extracellularly • Extracellular hemoglobin has a very high molecular weight

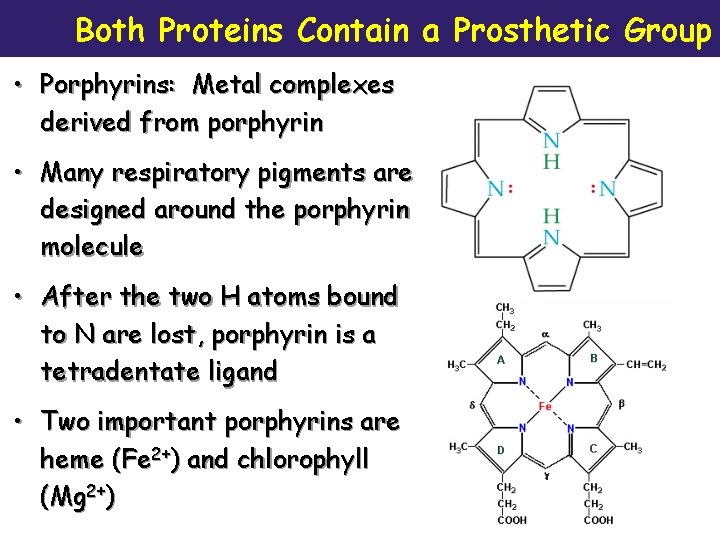

Both Proteins Contain a Prosthetic Group • Porphyrins: Metal complexes derived from porphyrin • Many respiratory pigments are designed around the porphyrin molecule • After the two H atoms bound to N are lost, porphyrin is a tetradentate ligand • Two important porphyrins are heme (Fe 2+) and chlorophyll (Mg 2+)

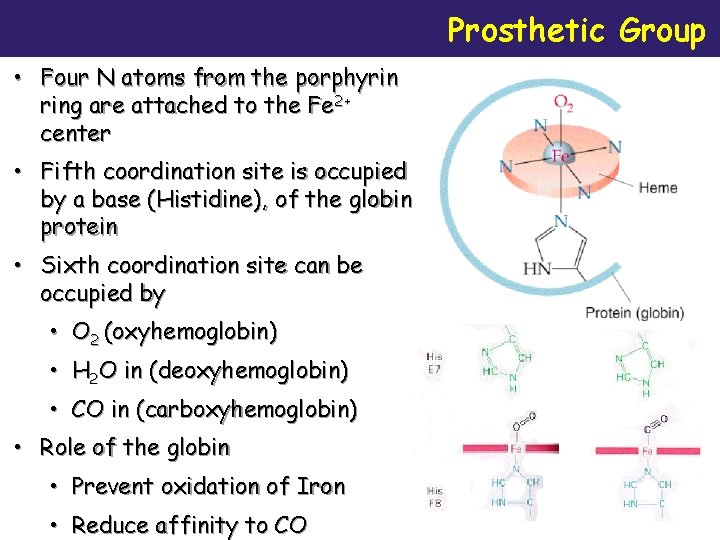

Prosthetic Group • Four N atoms from the porphyrin ring are attached to the Fe 2+ center • Fifth coordination site is occupied by a base (Histidine), of the globin protein • Sixth coordination site can be occupied by • O 2 (oxyhemoglobin) • H 2 O in (deoxyhemoglobin) • CO in (carboxyhemoglobin) • Role of the globin • Prevent oxidation of Iron • Reduce affinity to CO

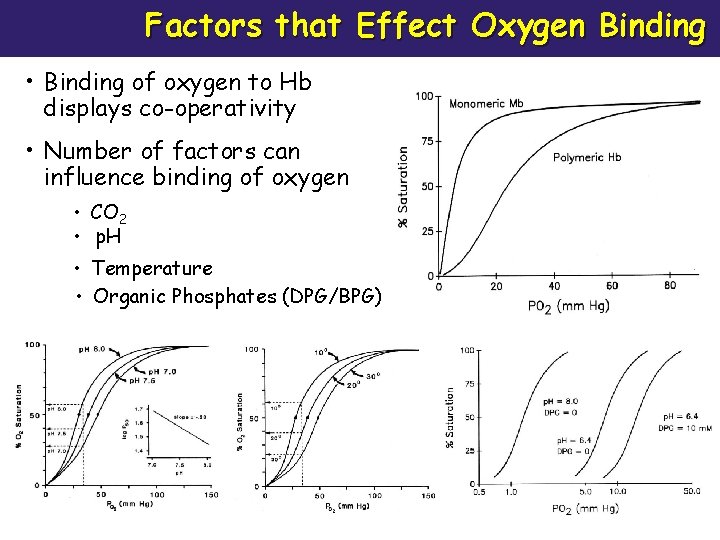

Factors that Effect Oxygen Binding • Binding of oxygen to Hb displays co-operativity • Number of factors can influence binding of oxygen • CO 2 • p. H • Temperature • Organic Phosphates (DPG/BPG)

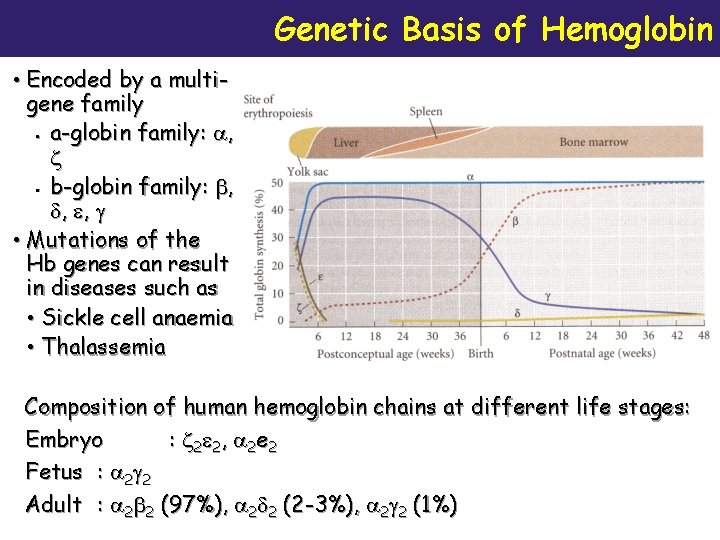

Genetic Basis of Hemoglobin • Encoded by a multigene family § a-globin family: , § b-globin family: , , , • Mutations of the Hb genes can result in diseases such as • Sickle cell anaemia • Thalassemia Composition of human hemoglobin chains at different life stages: Embryo : 2 2 , 2 e 2 Fetus : 2 2 Adult : 2 2 (97%), 2 2 (2 -3%), 2 2 (1%)

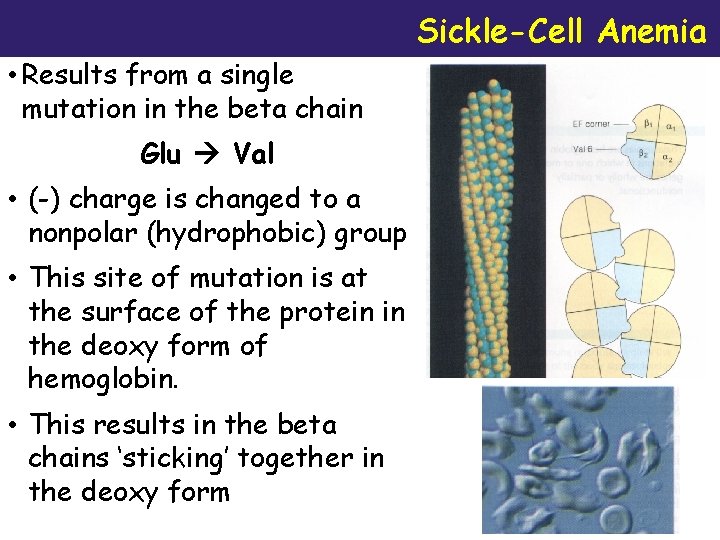

Sickle-Cell Anemia • Results from a single mutation in the beta chain Glu Val • (-) charge is changed to a nonpolar (hydrophobic) group • This site of mutation is at the surface of the protein in the deoxy form of hemoglobin. • This results in the beta chains ‘sticking’ together in the deoxy form

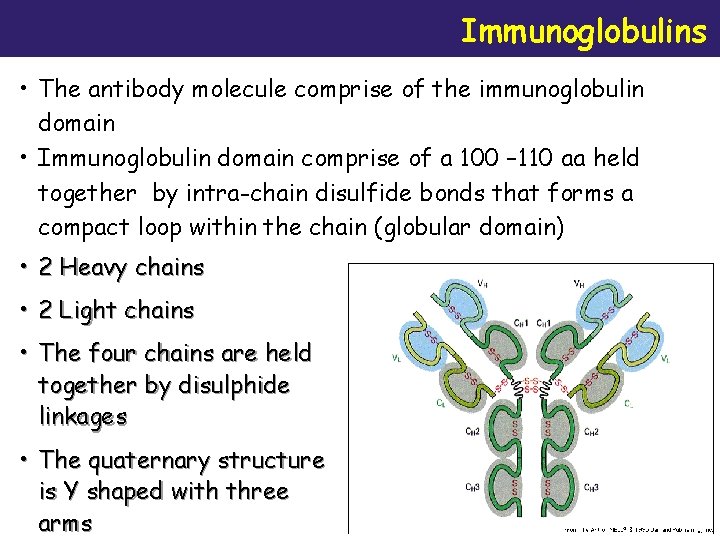

Immunoglobulins • The antibody molecule comprise of the immunoglobulin domain • Immunoglobulin domain comprise of a 100 – 110 aa held together by intra-chain disulfide bonds that forms a compact loop within the chain (globular domain) • 2 Heavy chains • 2 Light chains • The four chains are held together by disulphide linkages • The quaternary structure is Y shaped with three arms

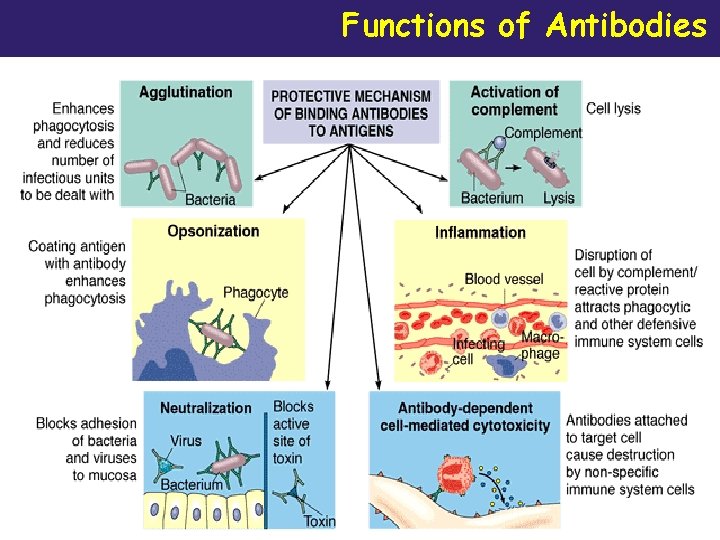

Functions of Antibodies

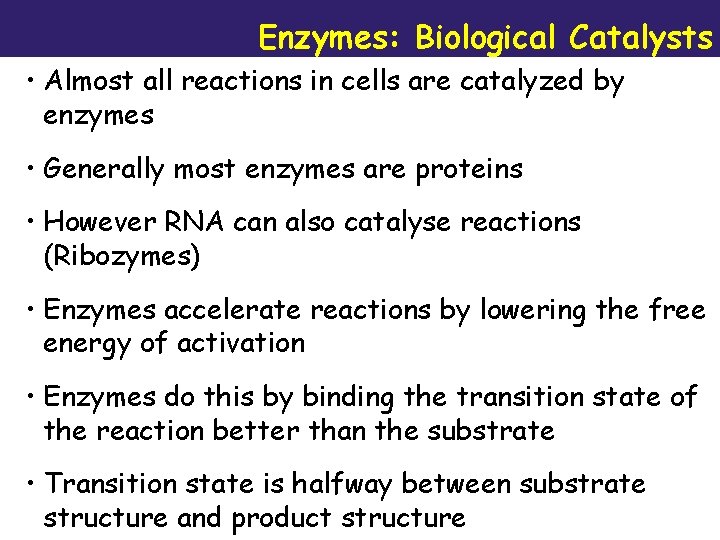

Enzymes: Biological Catalysts • Almost all reactions in cells are catalyzed by enzymes • Generally most enzymes are proteins • However RNA can also catalyse reactions (Ribozymes) • Enzymes accelerate reactions by lowering the free energy of activation • Enzymes do this by binding the transition state of the reaction better than the substrate • Transition state is halfway between substrate structure and product structure

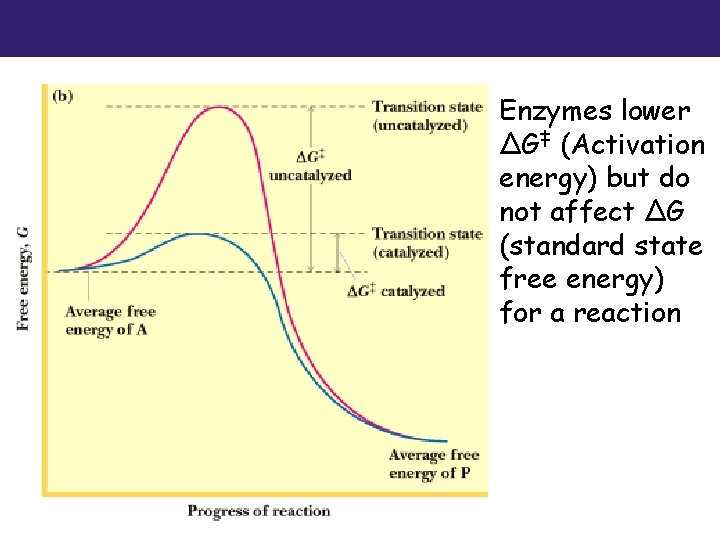

Enzymes lower ∆G‡ (Activation energy) but do not affect ∆G (standard state free energy) for a reaction Lect. 11 -62

How Enzymes Aid in the Catalytic Process • Bind substrates • Lower the energy of the transition state • Directly promote the catalytic event • Either through acidic or basic side chains that promote addition or removal of protons • Or through holding ions in correct position to participate in the catalysis • Release the products

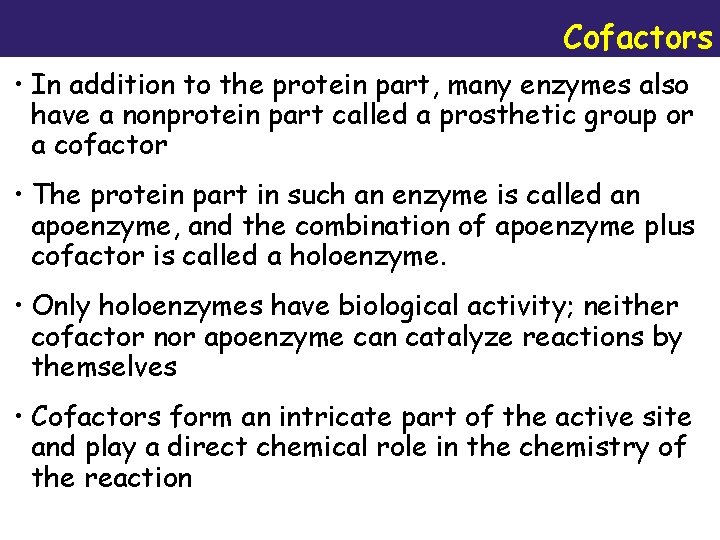

Cofactors • In addition to the protein part, many enzymes also have a nonprotein part called a prosthetic group or a cofactor • The protein part in such an enzyme is called an apoenzyme, and the combination of apoenzyme plus cofactor is called a holoenzyme. • Only holoenzymes have biological activity; neither cofactor nor apoenzyme can catalyze reactions by themselves • Cofactors form an intricate part of the active site and play a direct chemical role in the chemistry of the reaction 64

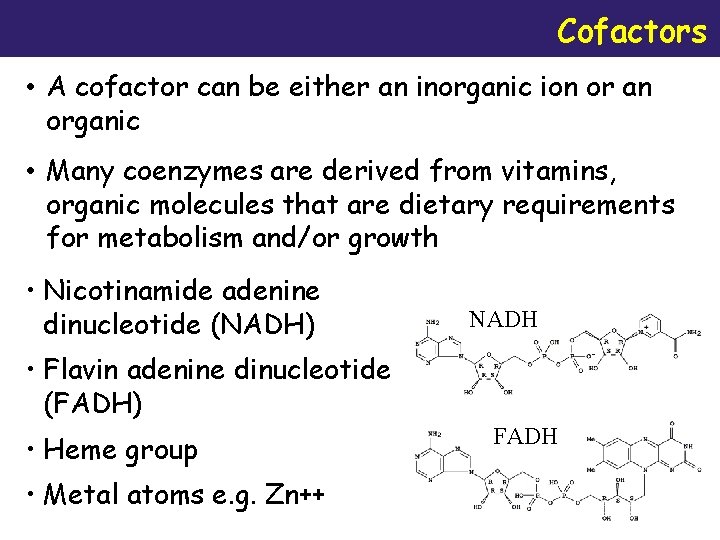

Cofactors • A cofactor can be either an inorganic ion or an organic molecule, called a coenzyme • Many coenzymes are derived from vitamins, organic molecules that are dietary requirements for metabolism and/or growth • Nicotinamide adenine dinucleotide (NADH) NADH • Flavin adenine dinucleotide (FADH) • Heme group • Metal atoms e. g. Zn++ FADH

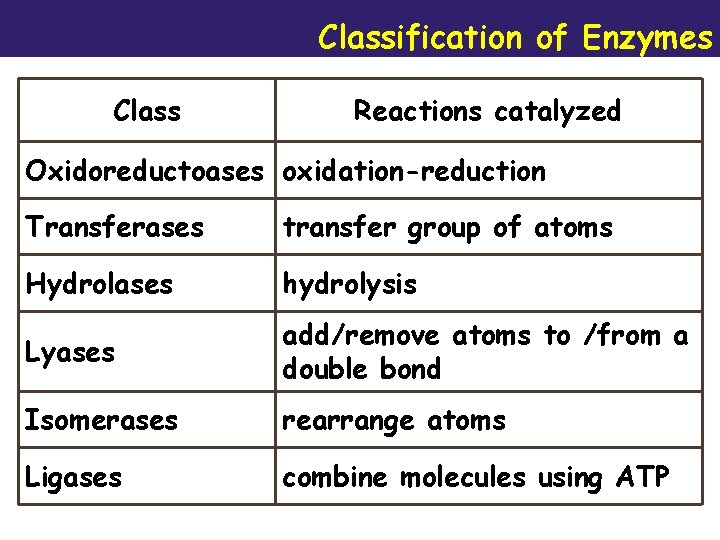

Classification of Enzymes Class Reactions catalyzed Oxidoreductoases oxidation-reduction Transferases transfer group of atoms Hydrolases hydrolysis Lyases add/remove atoms to /from a double bond Isomerases rearrange atoms Ligases combine molecules using ATP 66

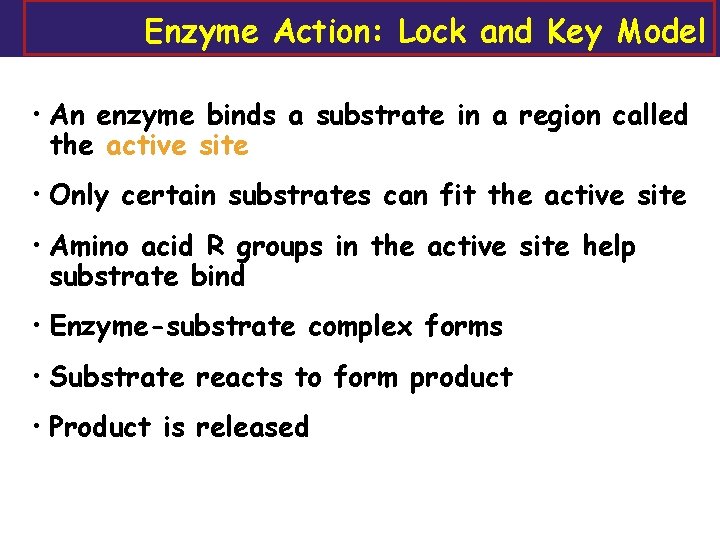

Enzyme Action: Lock and Key Model • An enzyme binds a substrate in a region called the active site • Only certain substrates can fit the active site • Amino acid R groups in the active site help substrate bind • Enzyme-substrate complex forms • Substrate reacts to form product • Product is released 67

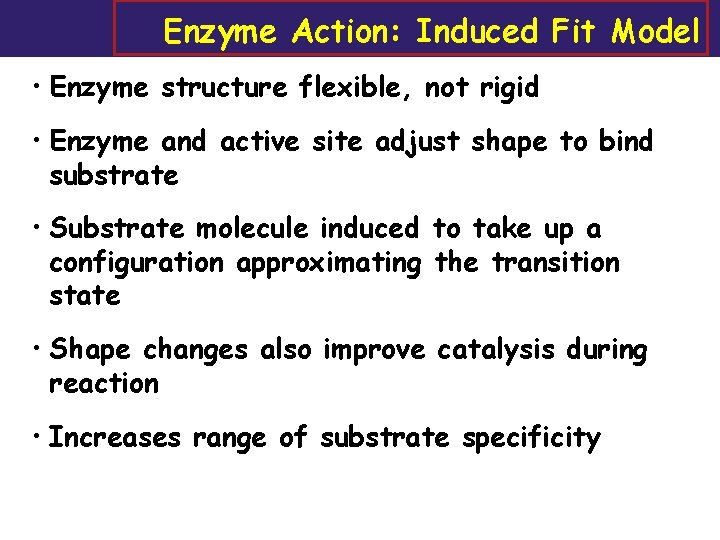

Enzyme Action: Induced Fit Model • Enzyme structure flexible, not rigid • Enzyme and active site adjust shape to bind substrate • Substrate molecule induced to take up a configuration approximating the transition state • Shape changes also improve catalysis during reaction • Increases range of substrate specificity 68

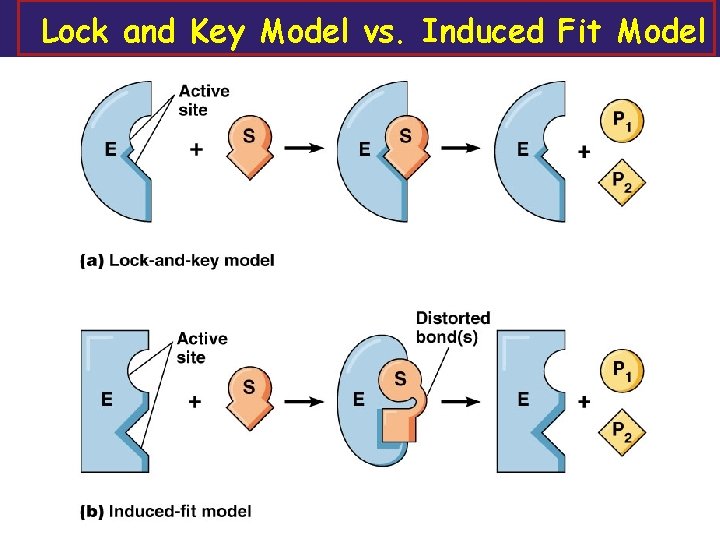

Lock and Key Model vs. Induced Fit Model E + S ES complex E + 69 P

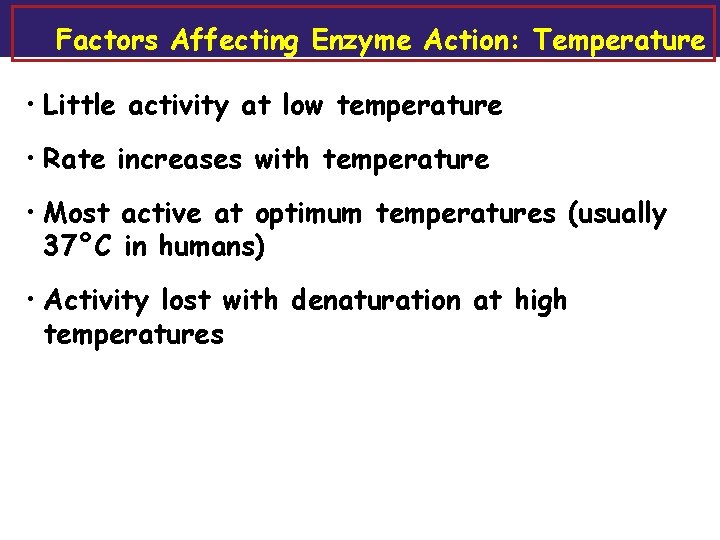

Factors Affecting Enzyme Action: Temperature • Little activity at low temperature • Rate increases with temperature • Most active at optimum temperatures (usually 37°C in humans) • Activity lost with denaturation at high temperatures 70

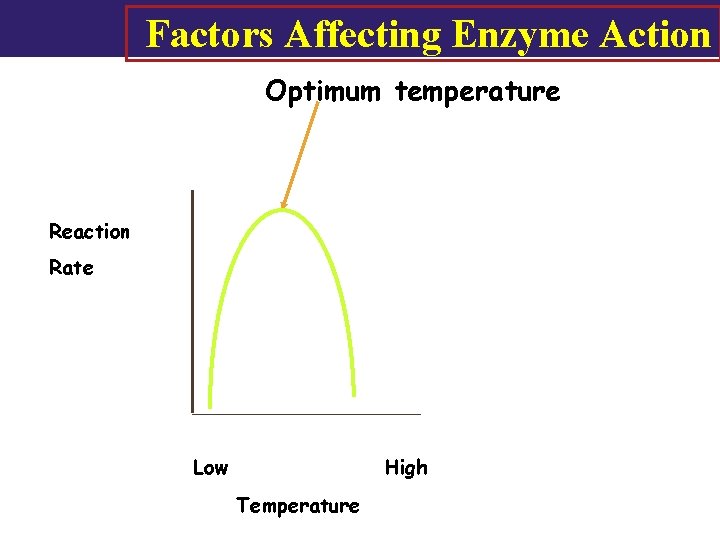

Factors Affecting Enzyme Action Optimum temperature Reaction Rate Low High Temperature 71

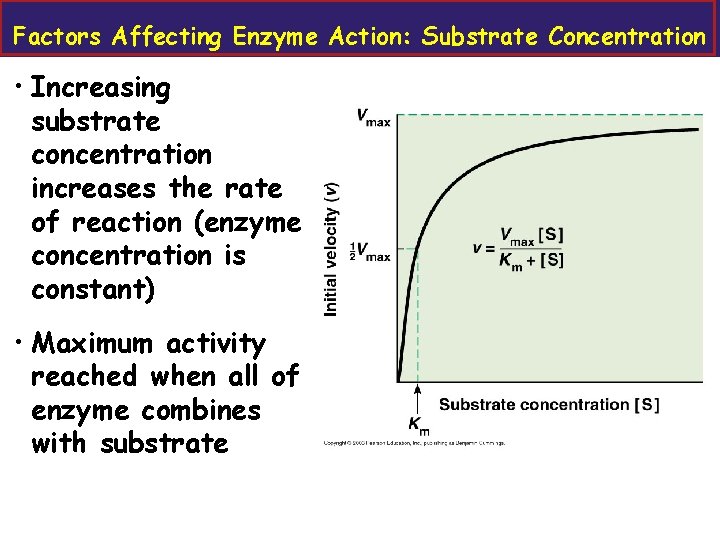

Factors Affecting Enzyme Action: Substrate Concentration • Increasing substrate concentration increases the rate of reaction (enzyme concentration is constant) • Maximum activity reached when all of enzyme combines with substrate 72

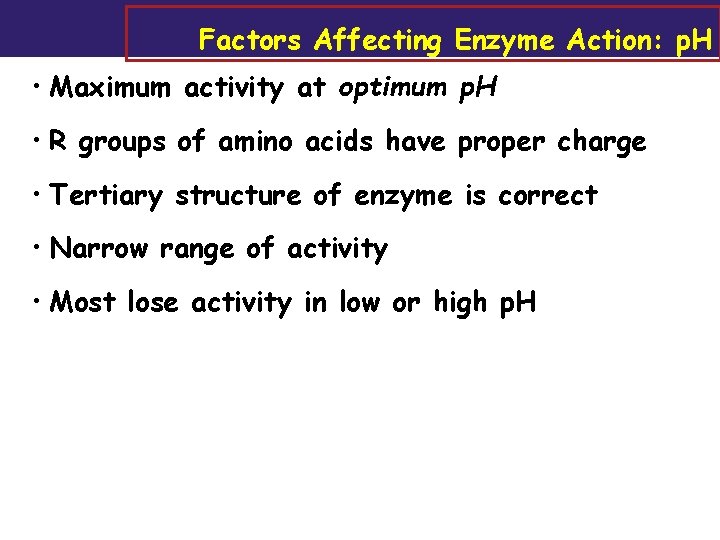

Factors Affecting Enzyme Action: p. H • Maximum activity at optimum p. H • R groups of amino acids have proper charge • Tertiary structure of enzyme is correct • Narrow range of activity • Most lose activity in low or high p. H 73

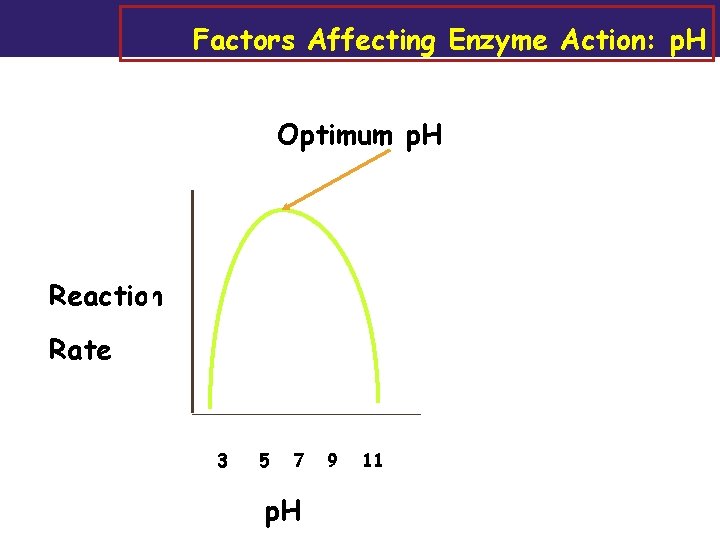

Factors Affecting Enzyme Action: p. H Optimum p. H Reaction Rate 3 5 7 p. H 9 11 74

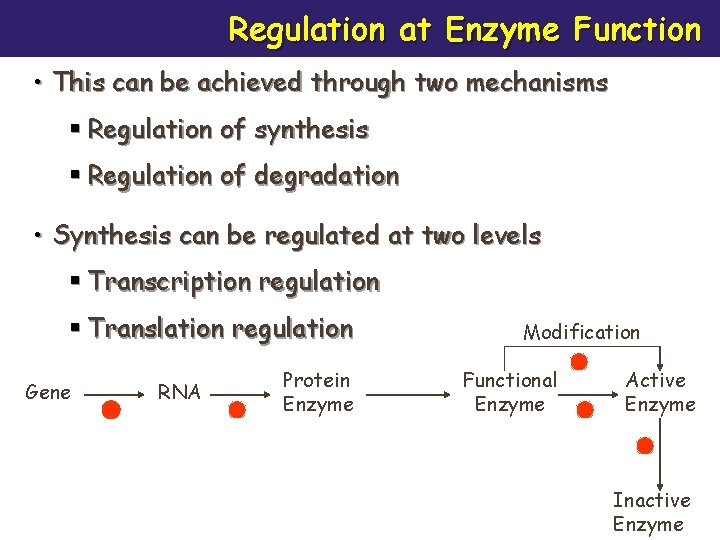

Regulation at Enzyme Function • This can be achieved through two mechanisms § Regulation of synthesis § Regulation of degradation • Synthesis can be regulated at two levels § Transcription regulation § Translation regulation Gene RNA Protein Enzyme Modification Functional Enzyme Active Enzyme Inactive Enzyme

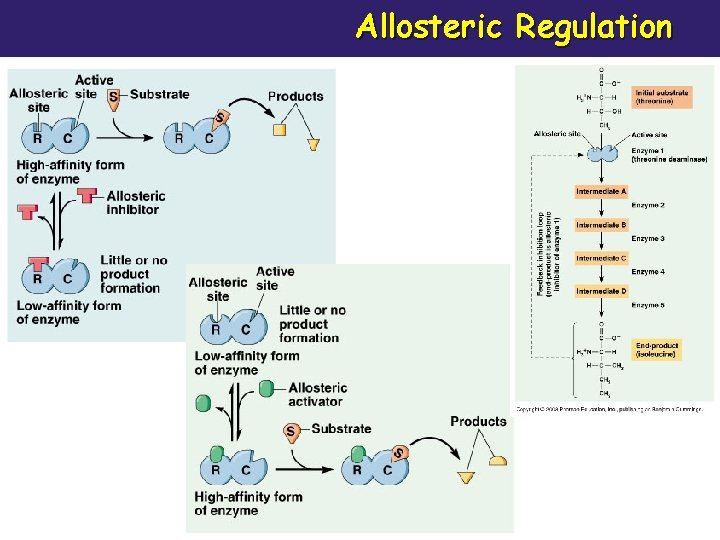

Allosteric Regulation

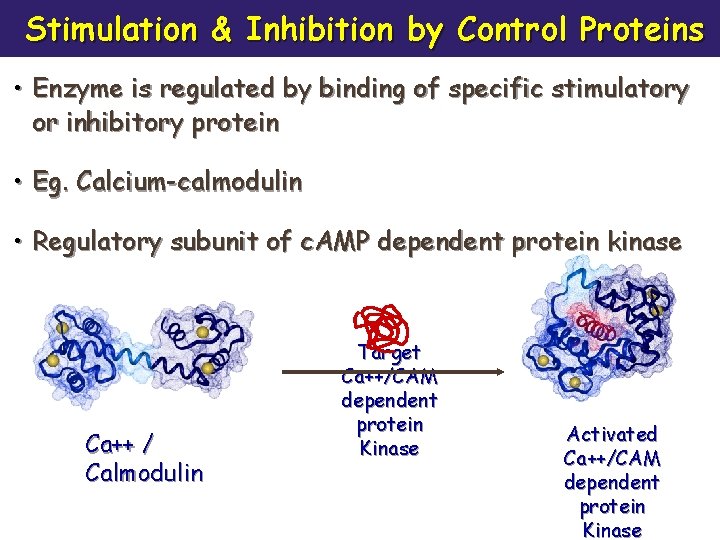

Stimulation & Inhibition by Control Proteins • Enzyme is regulated by binding of specific stimulatory or inhibitory protein • Eg. Calcium-calmodulin • Regulatory subunit of c. AMP dependent protein kinase Ca++ / Calmodulin Target Ca++/CAM dependent protein Kinase Activated Ca++/CAM dependent protein Kinase

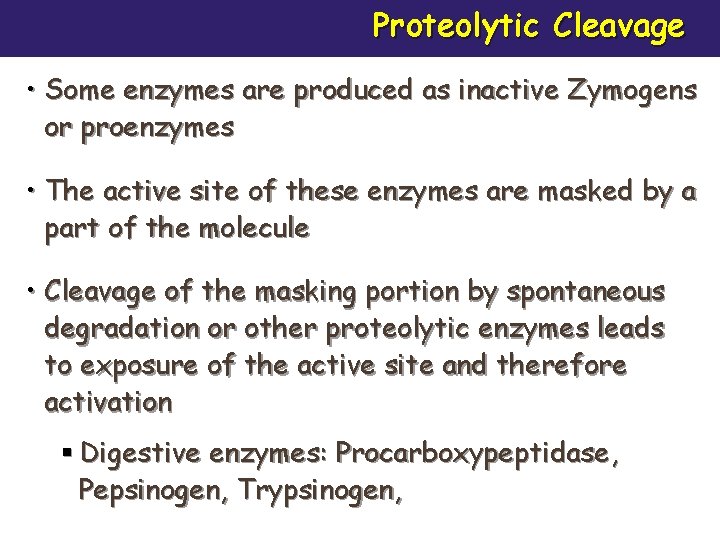

Proteolytic Cleavage • Some enzymes are produced as inactive Zymogens or proenzymes • The active site of these enzymes are masked by a part of the molecule • Cleavage of the masking portion by spontaneous degradation or other proteolytic enzymes leads to exposure of the active site and therefore activation § Digestive enzymes: Procarboxypeptidase, Pepsinogen, Trypsinogen,

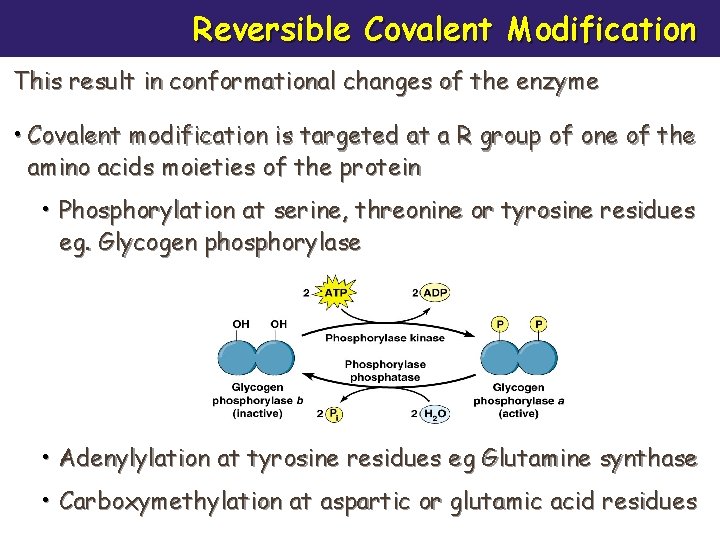

Reversible Covalent Modification This result in conformational changes of the enzyme • Covalent modification is targeted at a R group of one of the amino acids moieties of the protein • Phosphorylation at serine, threonine or tyrosine residues eg. Glycogen phosphorylase • Adenylylation at tyrosine residues eg Glutamine synthase • Carboxymethylation at aspartic or glutamic acid residues

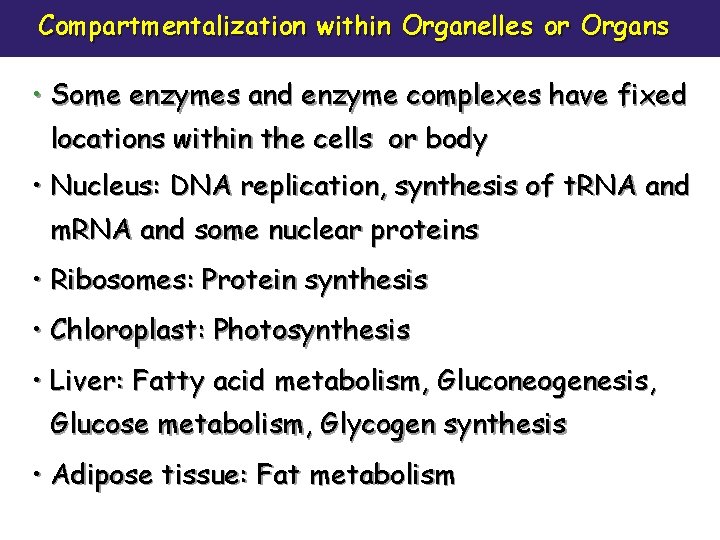

Compartmentalization within Organelles or Organs • Some enzymes and enzyme complexes have fixed locations within the cells or body • Nucleus: DNA replication, synthesis of t. RNA and m. RNA and some nuclear proteins • Ribosomes: Protein synthesis • Chloroplast: Photosynthesis • Liver: Fatty acid metabolism, Gluconeogenesis, Glucose metabolism, Glycogen synthesis • Adipose tissue: Fat metabolism

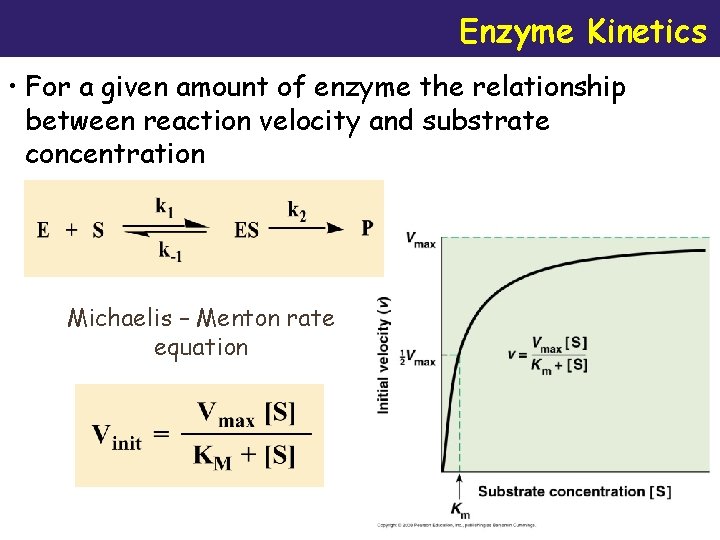

Enzyme Kinetics • For a given amount of enzyme the relationship between reaction velocity and substrate concentration Michaelis – Menton rate equation

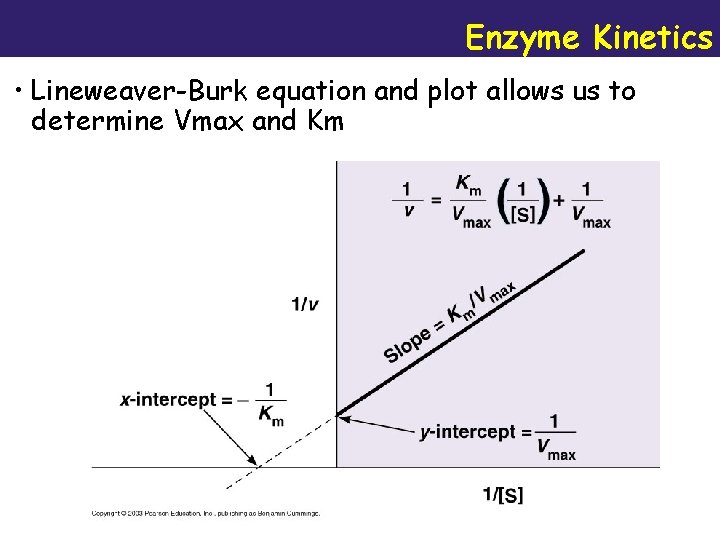

Enzyme Kinetics • Lineweaver-Burk equation and plot allows us to determine Vmax and Km

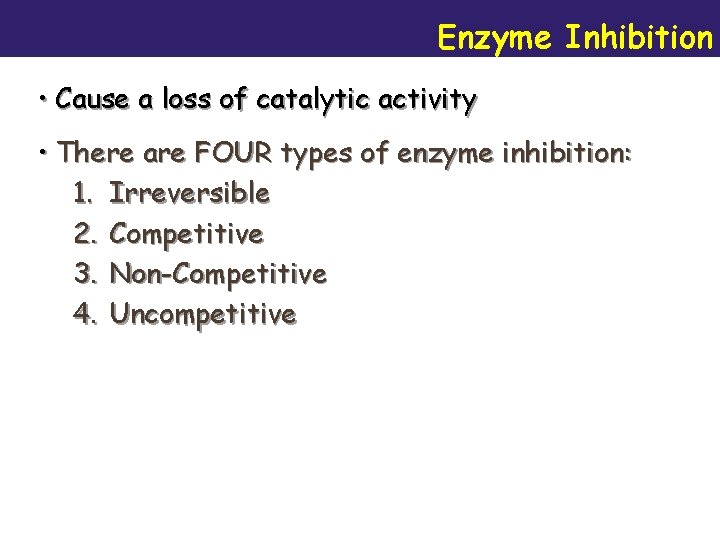

Enzyme Inhibition • Cause a loss of catalytic activity • There are FOUR types of enzyme inhibition: 1. Irreversible 2. Competitive 3. Non-Competitive 4. Uncompetitive 83

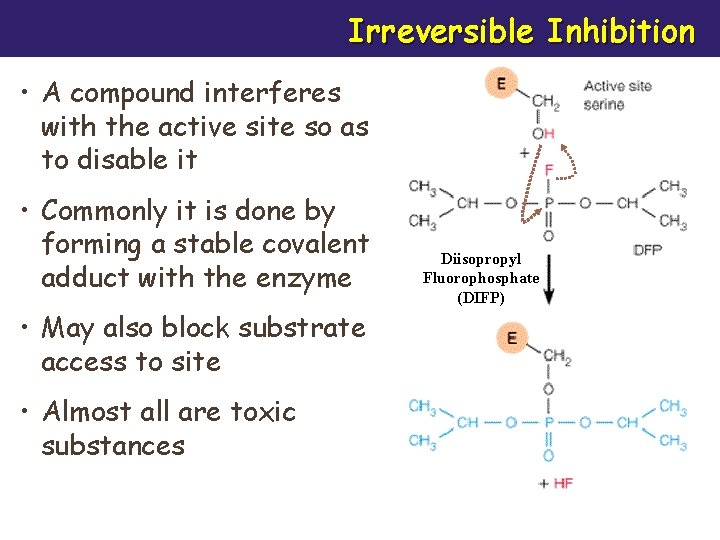

Irreversible Inhibition • A compound interferes with the active site so as to disable it • Commonly it is done by forming a stable covalent adduct with the enzyme • May also block substrate access to site • Almost all are toxic substances Diisopropyl Fluorophosphate (DIFP)

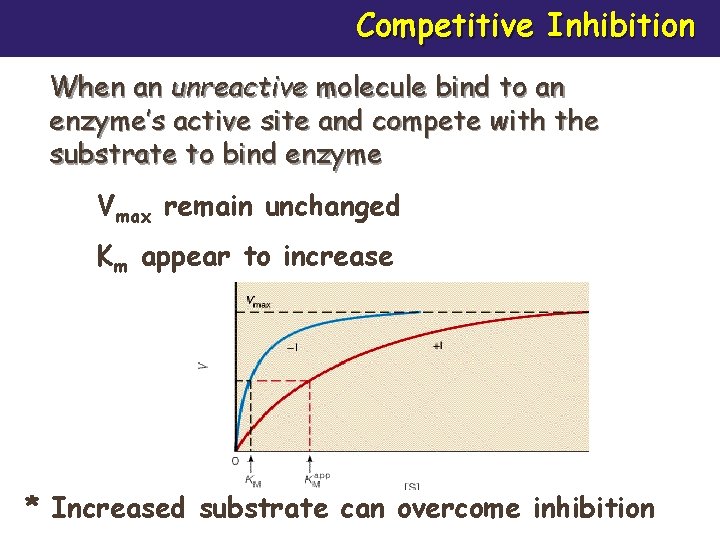

Competitive Inhibition When an unreactive molecule bind to an enzyme’s active site and compete with the substrate to bind enzyme Vmax remain unchanged Km appear to increase * Increased substrate can overcome inhibition

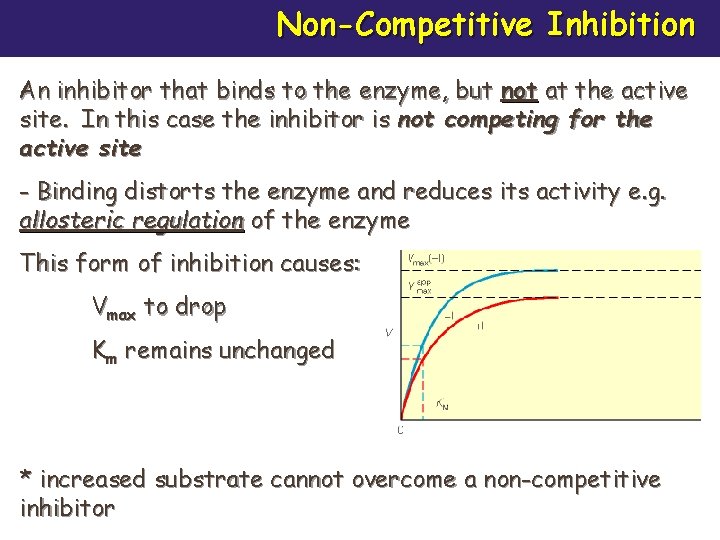

Non-Competitive Inhibition An inhibitor that binds to the enzyme, but not at the active site. In this case the inhibitor is not competing for the active site - Binding distorts the enzyme and reduces its activity e. g. allosteric regulation of the enzyme This form of inhibition causes: Vmax to drop Km remains unchanged * increased substrate cannot overcome a non-competitive inhibitor

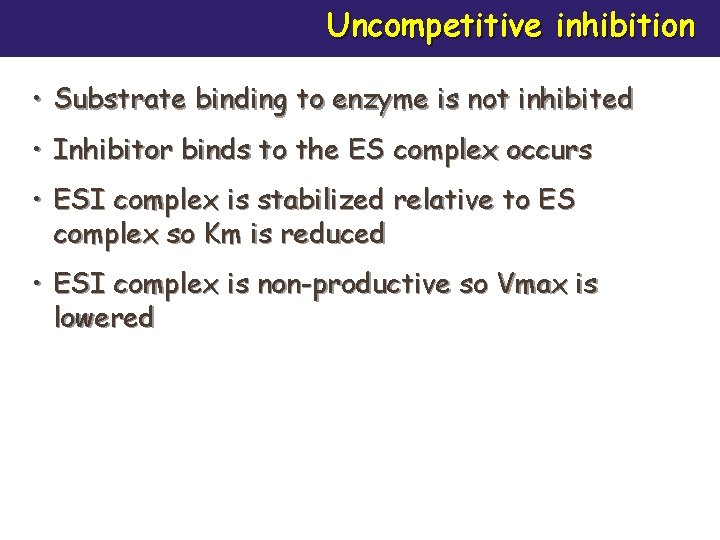

Uncompetitive inhibition • Substrate binding to enzyme is not inhibited • Inhibitor binds to the ES complex occurs • ESI complex is stabilized relative to ES complex so Km is reduced • ESI complex is non-productive so Vmax is lowered

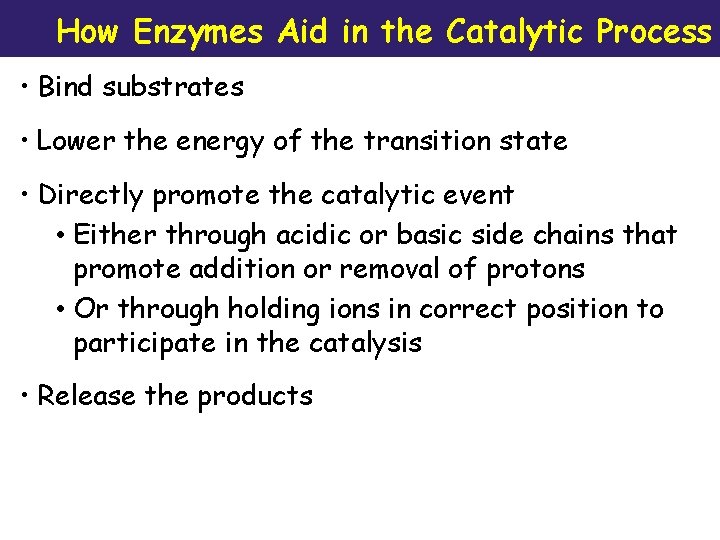

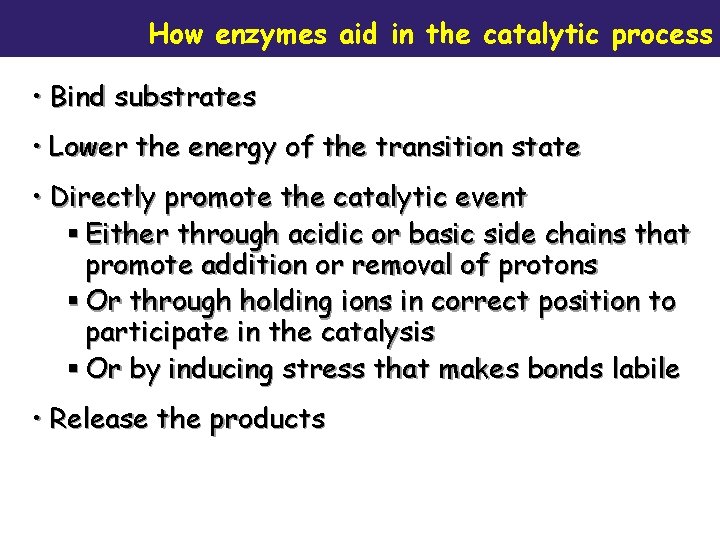

How enzymes aid in the catalytic process • Bind substrates • Lower the energy of the transition state • Directly promote the catalytic event § Either through acidic or basic side chains that promote addition or removal of protons § Or through holding ions in correct position to participate in the catalysis § Or by inducing stress that makes bonds labile • Release the products
