Batteries Capacitors And How They Work What are

Batteries & Capacitors And How They Work!

What are the ways we store electricity? What are some objects that require batteries that you use?

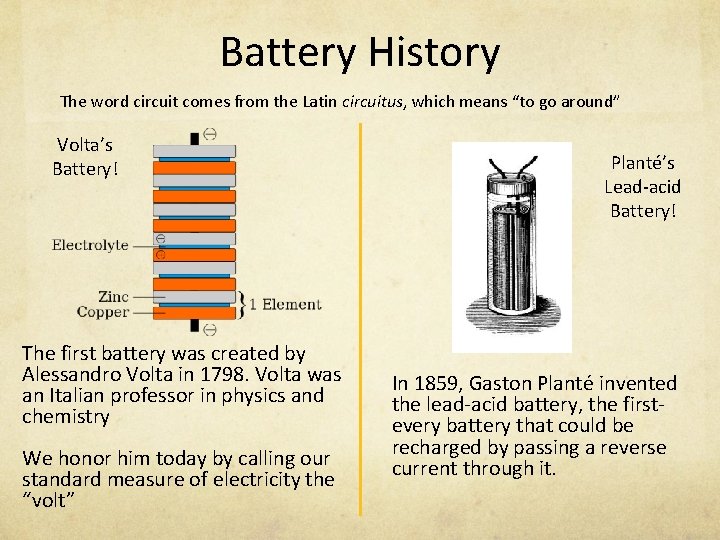

Battery History The word circuit comes from the Latin circuitus, which means “to go around” Volta’s Battery! The first battery was created by Alessandro Volta in 1798. Volta was an Italian professor in physics and chemistry We honor him today by calling our standard measure of electricity the “volt” Planté’s Lead-acid Battery! In 1859, Gaston Planté invented the lead-acid battery, the firstevery battery that could be recharged by passing a reverse current through it.

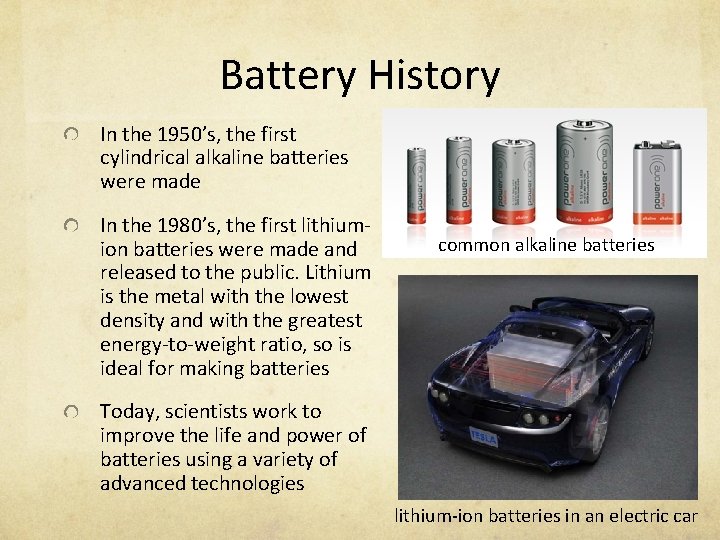

Battery History In the 1950’s, the first cylindrical alkaline batteries were made In the 1980’s, the first lithiumion batteries were made and released to the public. Lithium is the metal with the lowest density and with the greatest energy-to-weight ratio, so is ideal for making batteries common alkaline batteries Today, scientists work to improve the life and power of batteries using a variety of advanced technologies lithium-ion batteries in an electric car

Battery Basics A battery uses chemistry, not mechanical movement, to create a continuous flow of electricity. A battery is able to create a continuous flow of DC (direct current) electricity until all of the energy in the battery is used. Americans purchase nearly 3 billion batteries every year to power radios, toys, watches, laptops, tools and more.

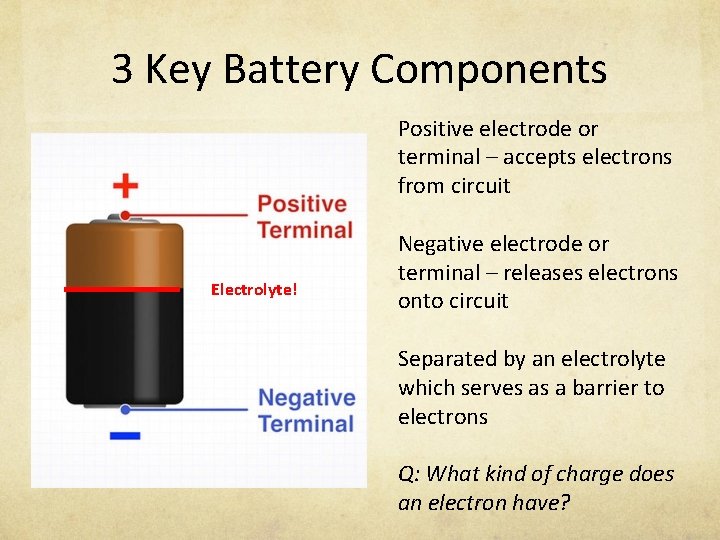

3 Key Battery Components Positive electrode or terminal – accepts electrons from circuit Electrolyte! Negative electrode or terminal – releases electrons onto circuit Separated by an electrolyte which serves as a barrier to electrons Q: What kind of charge does an electron have?

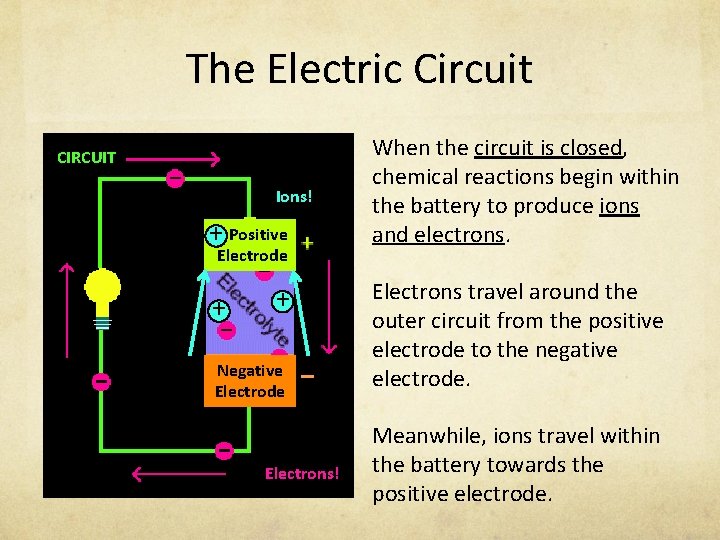

The Electric Circuit CIRCUIT Ions! + Positive Electrode + + Negative Electrode Electrons! When the circuit is closed, chemical reactions begin within the battery to produce ions and electrons. Electrons travel around the outer circuit from the positive electrode to the negative electrode. Meanwhile, ions travel within the battery towards the positive electrode.

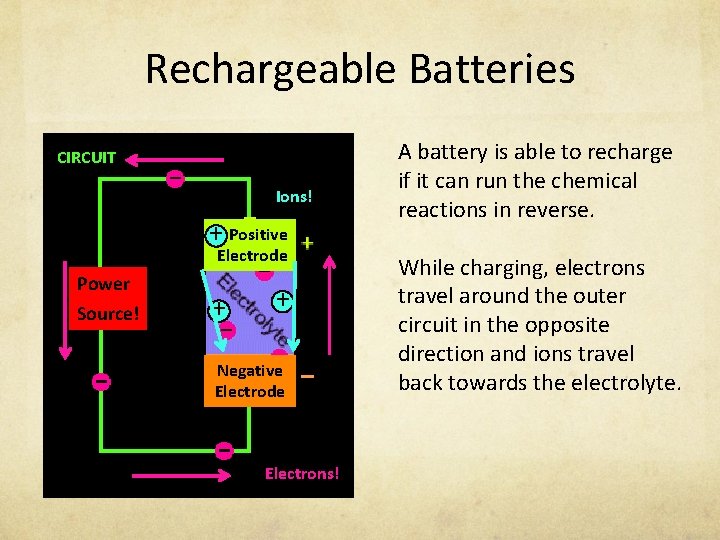

Rechargeable Batteries CIRCUIT Ions! Positive +Positive Electrode Power Source! + + Negative Electrode Electrons! A battery is able to recharge if it can run the chemical reactions in reverse. While charging, electrons travel around the outer circuit in the opposite direction and ions travel back towards the electrolyte.

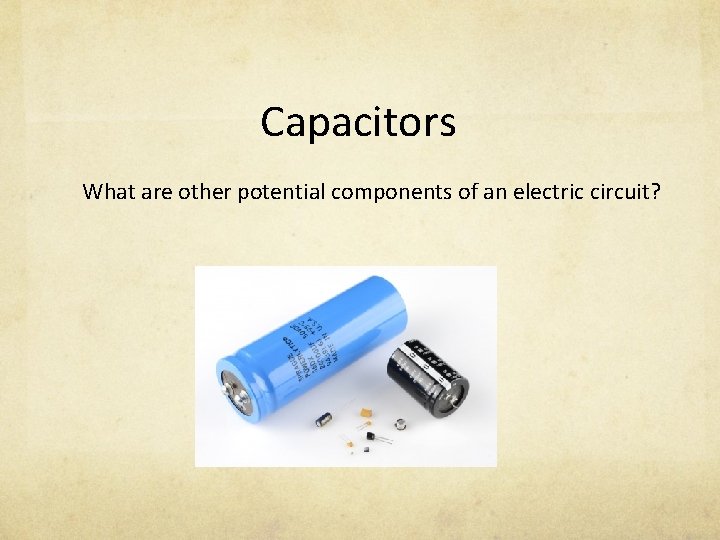

Capacitors What are other potential components of an electric circuit?

Capacitors are another way we store energy, this time electrically instead of chemically. Capacitors are just as common and important as batteries in powering modern society They are created by 2 metal plates separated by an insulating called a dielectric.

How Capacitors Work The plate on the capacitor that attaches to the negative terminal of the battery accepts electrons the battery produces. The charges get “stuck” on the plate because they can’t travel through the dielectic, giving that plate a strong negative charge. The plate on the capacitor that attaches to the positive terminal loses electrons to the battery, causing it to develop a strong positive charge. When it’s charged, the capacitor has the same voltage as the battery.

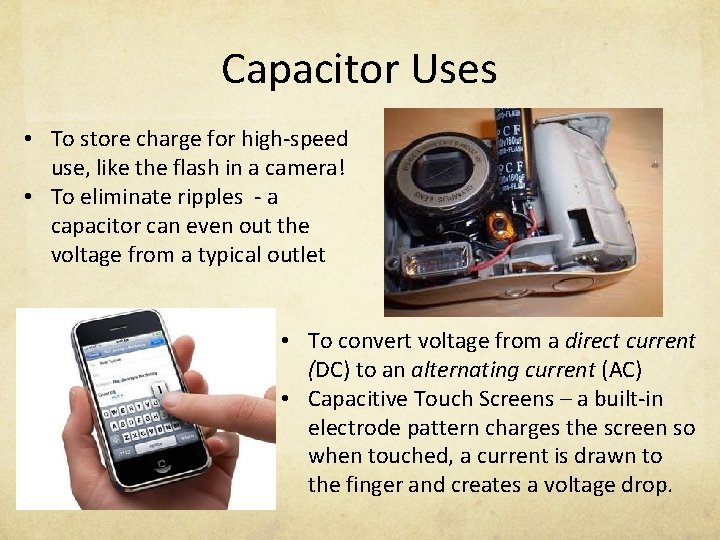

Capacitor Uses • To store charge for high-speed use, like the flash in a camera! • To eliminate ripples - a capacitor can even out the voltage from a typical outlet • To convert voltage from a direct current (DC) to an alternating current (AC) • Capacitive Touch Screens – a built-in electrode pattern charges the screen so when touched, a current is drawn to the finger and creates a voltage drop.

Let’s act our own electric circuit!

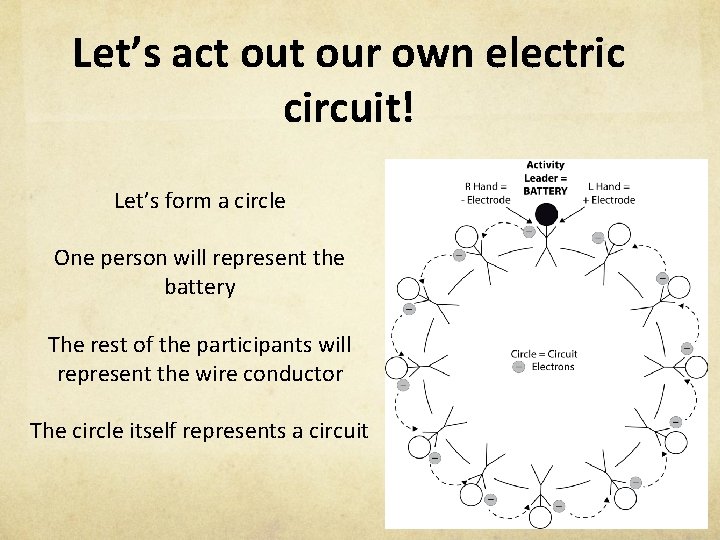

Let’s act our own electric circuit! Let’s form a circle One person will represent the battery The rest of the participants will represent the wire conductor The circle itself represents a circuit
