Batch Queue The Possibilities Presented by Warren Lord

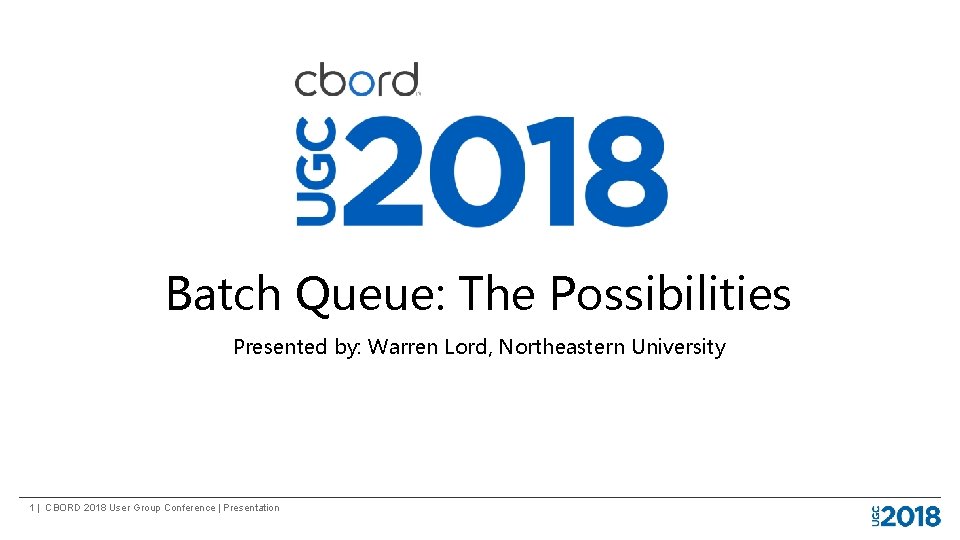

Batch Queue: The Possibilities Presented by: Warren Lord, Northeastern University 1 | CBORD 2018 User Group Conference | Presentation

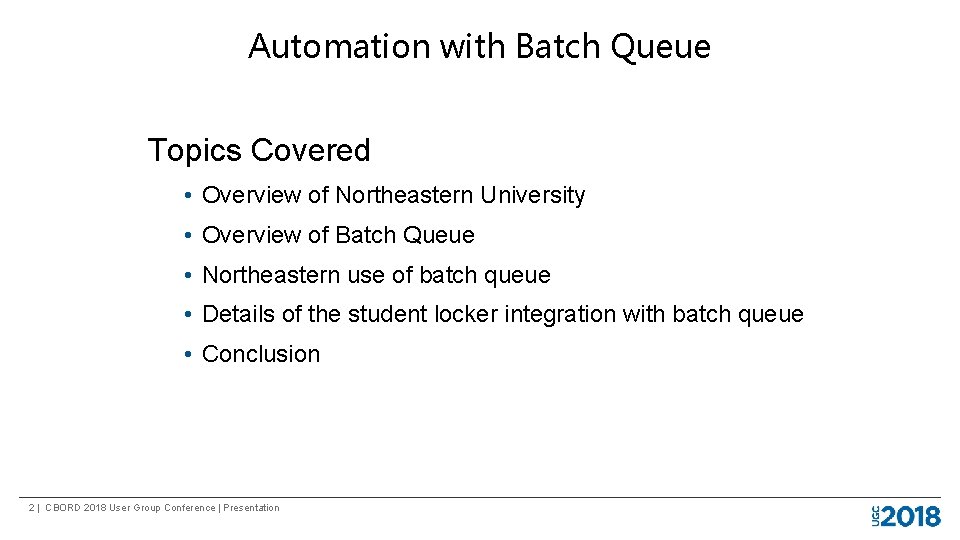

Automation with Batch Queue Topics Covered • Overview of Northeastern University • Overview of Batch Queue • Northeastern use of batch queue • Details of the student locker integration with batch queue • Conclusion 2 | CBORD 2018 User Group Conference | Presentation
Northeastern University Quick Facts • Founded in 1898 • Campuses in Boston, Charlotte, Seattle, San Jose, Toronto • 38, 000 total enrollment • 13, 500 undergraduates • 8, 300 students in resident halls • 37 Residence Halls 3 | CBORD 2018 User Group Conference | Presentation
Overview of Batch Queue • Used for nightly processing • Used to schedule running of scripts • Can use it to spool files, such as creating mp files • Can use it to insert, update, and delete records • Can use it to automate sending of emails • Anything you can do with SQL 4 | CBORD 2018 User Group Conference | Presentation
Batch Queue via CS Gold GUI 5 | CBORD 2018 User Group Conference | Presentation
Batch Queue via CS Gold GUI 6 | CBORD 2018 User Group Conference | Presentation
Batch Queue via Command Line • Run on the TPS • bq /? – for help screen • bq show – shows queues/jobs/status • bq start /manager – start queue manager • bq stop /manager – stop queue manager 7 | CBORD 2018 User Group Conference | Presentation
Batch Queue via Command Line bq show 8 | CBORD 2018 User Group Conference | Presentation
Batch Queue via Command Line bq /? 9 | CBORD 2018 User Group Conference | Presentation
Northeastern Batch Queue Jobs 3 TPSs run batch queue jobs – share load of Fullmerge and Inc. Merge 10 | CBORD 2018 User Group Conference | Presentation
Northeastern Batch Queue Jobs • RMS Import (every 2 mins) • Housing Sync Procedure (as needed) • Updating Pins (once a day) • Deactivating access (once every week day) • Integrating student lockers with CS Gold (multiple times a day) • Integrating EMS with unlocking AD 400 locks (once a day) • Donating meal swipes (every 5 mins) 11 | CBORD 2018 User Group Conference | Presentation
Integrating Student Lockers • Student flag/patron group to allow access to a web page • Students use a web page to pick a locker • Locker reservations stored in local_locker table in the Diebold schema • Gave iqtps select, update privileges on the local_locker table • Batch Queue job used to extract reservations • Student Locker system consumes the reservations 12 | CBORD 2018 User Group Conference | Presentation
Student Lockers – lockerupdate. sql file (1) set newpage 0 set serveroutput off set termout off set linesize 500 set trimspool on set space 0 set echo off set heading off set feedback off set verify off set pagesize 0 13 | CBORD 2018 User Group Conference | Presentation
Student Lockers – lockerupdate. sql file (2) update local_locker set exportdate=sysdate where patronid is not null and leffective is not null and lexpiry is not null and exportdate is null and rentstatus='R'; commit; 14 | CBORD 2018 User Group Conference | Presentation
Student Lockers – lockerupdate. sql file (3) spool \nunet. neu. eduSHARESgriffinRelaxxlockerinfo. csv select suid || ', ' || val_univ_id|| ', ' ||val_nam_last || ', ' || val_nam_first || ', ' || to_char(leffective, 'DD/MM/YYYY') || ', ' || to_char(lexpiry, 'DD/MM/YYYY') || ', ' || smagid || ', ' || lockernumber || ', ' || lockergroupname || ', ' || to_char(exportdate, 'DD/MON/YYYY HH 24: MI') from local_locker, pers where patronid=id_pers and exportdate > (sysdate - 1/192) and patronid is not null; spool off; / EXIT; 15 | CBORD 2018 User Group Conference | Presentation
Student Lockers – lockerupdate. cmd file SQLPLUS %RDBMS_USER%@oraclegold/%RDBMS_PASSWORD% @%csg_server%customlockerupdate. sql 16 | CBORD 2018 User Group Conference | Presentation
Batch Queue via CS Gold GUI 17 | CBORD 2018 User Group Conference | Presentation
Student Lockers – sample output record 1252933143056000, 001447878, Doe, John, 10/09/2018, 15/12/2018, 6015247566129178, 202 00, 20 -RI, 11/SEP/2018 14: 32 18 | CBORD 2018 User Group Conference | Presentation
Conclusion • Batch queue is a very useful utility • You can use batch queue to schedule jobs or run jobs on demand • You can use SQL data manipulation commands • You spool mp files, insert records, update tables, and more • Batch queue helps to distribute load of Fullmerge, and Inc. Merge • If you create tables that need to used, give permissions to iqtps • Batch Queue in CS Gold GUI vs Batch Queue on the TPS command line 19 | CBORD 2018 User Group Conference | Presentation
w. lord@northeastern. edu Senior Director, Student Affairs Technology Thank You! 20 | CBORD 2018 User Group Conference | Presentation
