Basics of Project Planning Concepts Construction Planning Setting

Basics of Project Planning Concepts

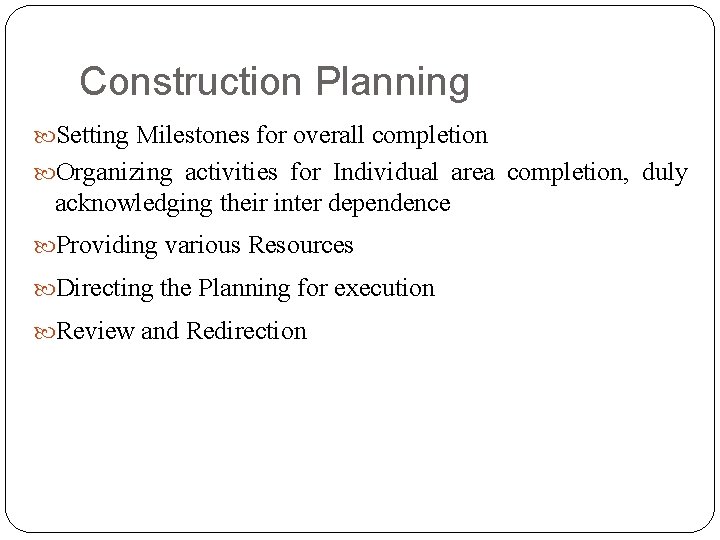

Construction Planning Setting Milestones for overall completion Organizing activities for Individual area completion, duly acknowledging their inter dependence Providing various Resources Directing the Planning for execution Review and Redirection

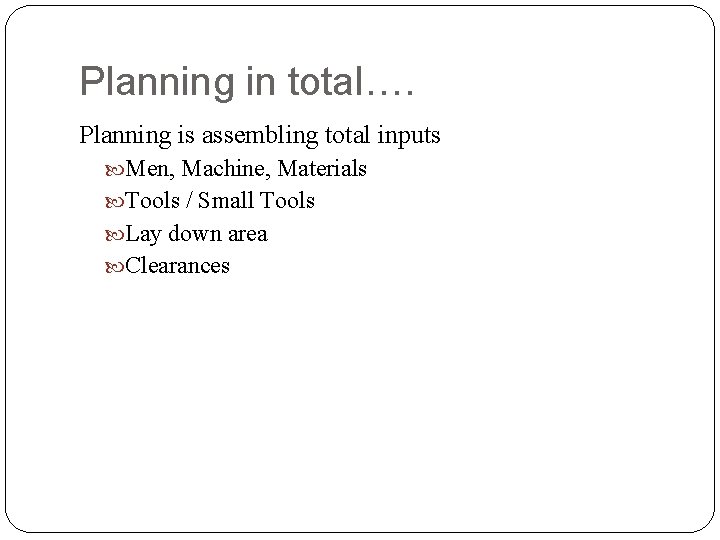

Planning in total…. Planning is assembling total inputs Men, Machine, Materials Tools / Small Tools Lay down area Clearances

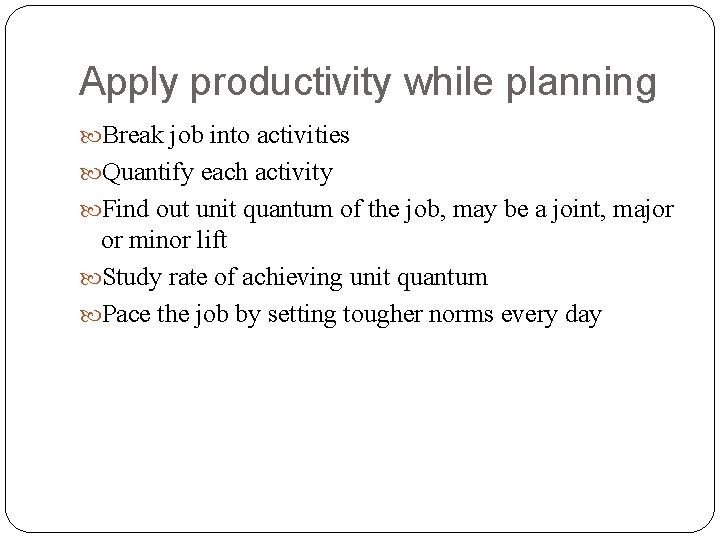

Apply productivity while planning Break job into activities Quantify each activity Find out unit quantum of the job, may be a joint, major or minor lift Study rate of achieving unit quantum Pace the job by setting tougher norms every day

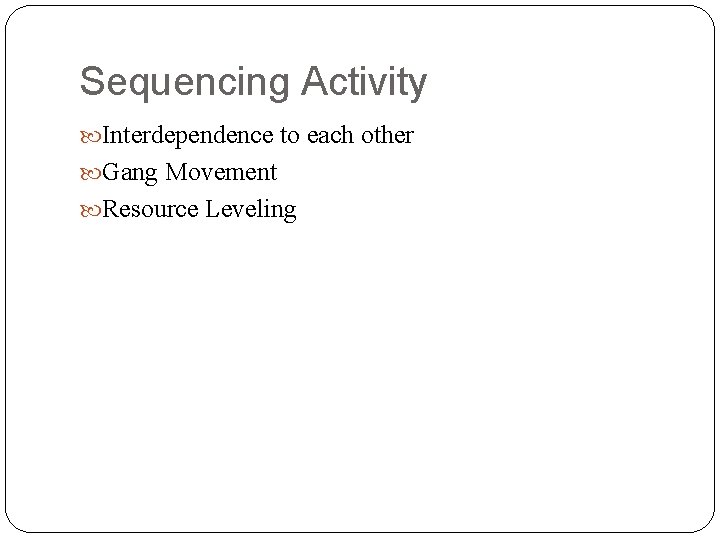

Sequencing Activity Interdependence to each other Gang Movement Resource Leveling

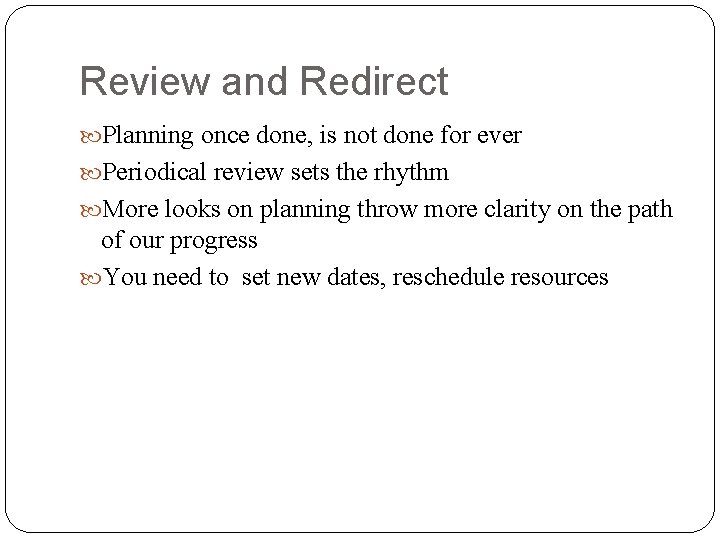

Review and Redirect Planning once done, is not done for ever Periodical review sets the rhythm More looks on planning throw more clarity on the path of our progress You need to set new dates, reschedule resources

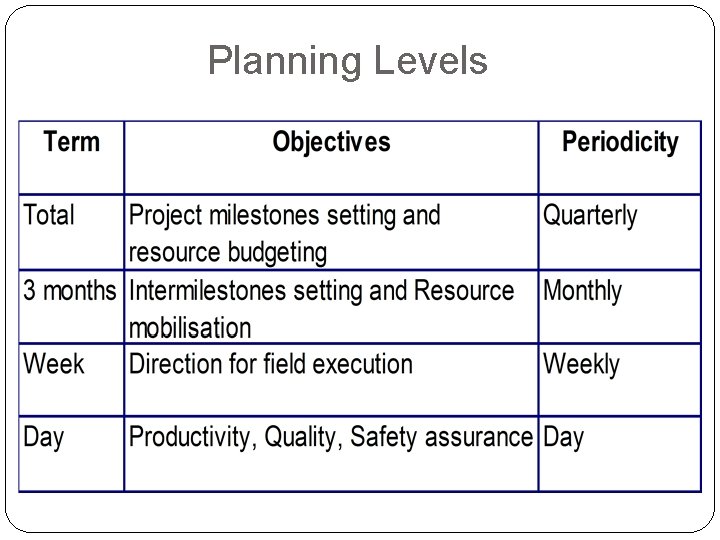

Planning Levels

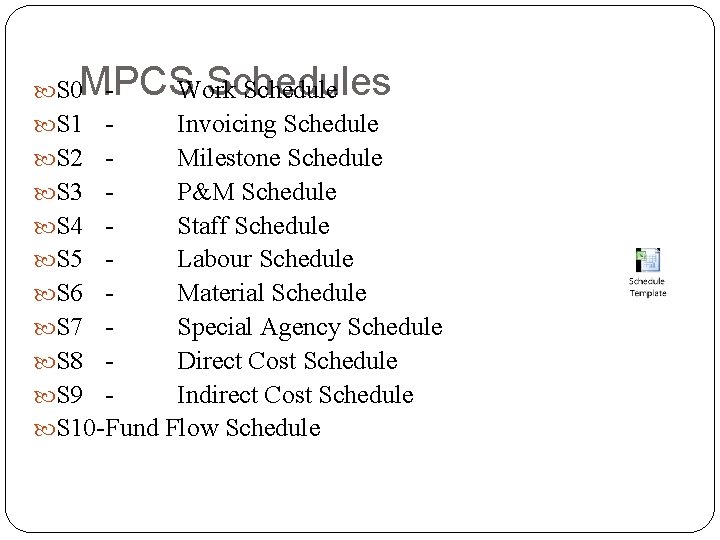

MPCS Schedules S 0 Work Schedule S 1 Invoicing Schedule S 2 Milestone Schedule S 3 P&M Schedule S 4 Staff Schedule S 5 Labour Schedule S 6 Material Schedule S 7 Special Agency Schedule S 8 Direct Cost Schedule S 9 Indirect Cost Schedule S 10 -Fund Flow Schedule

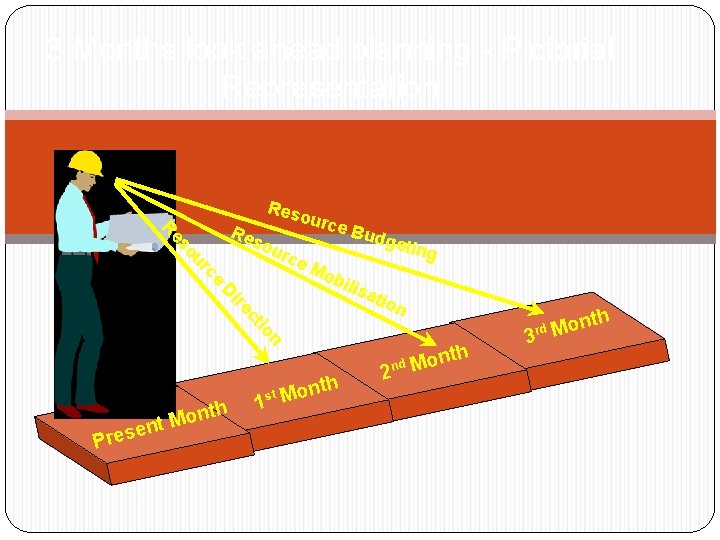

3 Months look ahead planning - Pictorial Representation Res R Re rce e rc ou es sou ourc e Bu Mo ct ire D bili dget ing sat ion n io en s e r P th n o t. M th on M 1 st onth M 2 nd th on 3 M rd

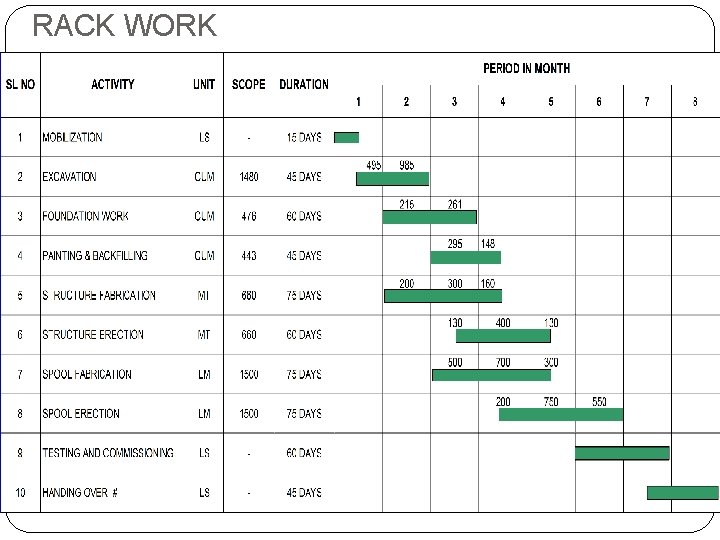

RACK WORK

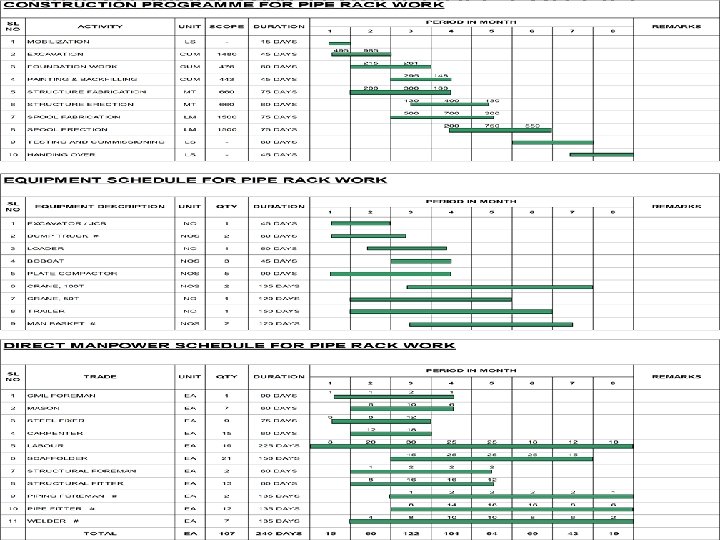

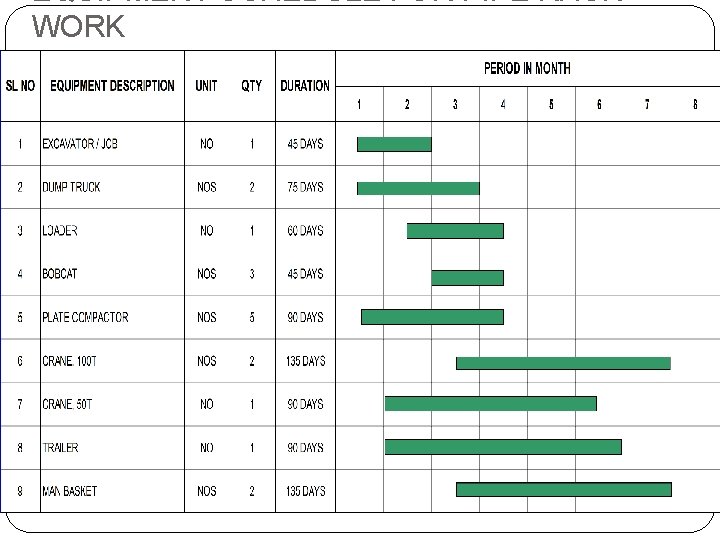

EQUIPMENT SCHEDULE FOR PIPE RACK WORK

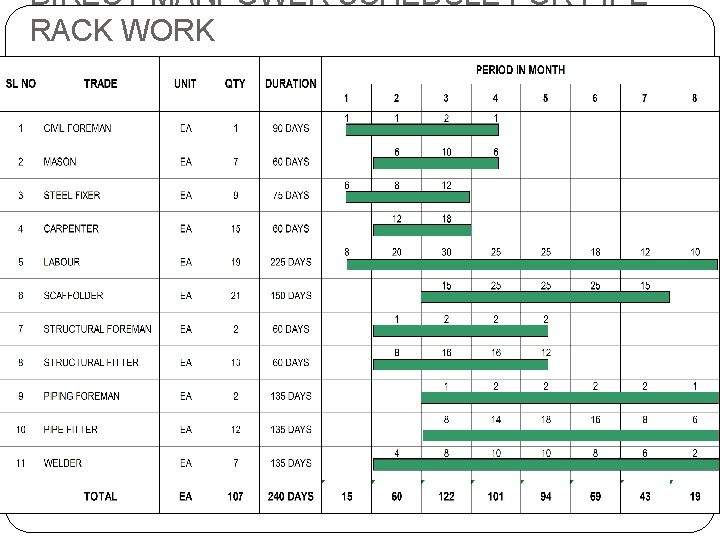

DIRECT MANPOWER SCHEDULE FOR PIPE RACK WORK

DIRECT MANPOWER SCHEDULE FOR PIPE RACK WORK

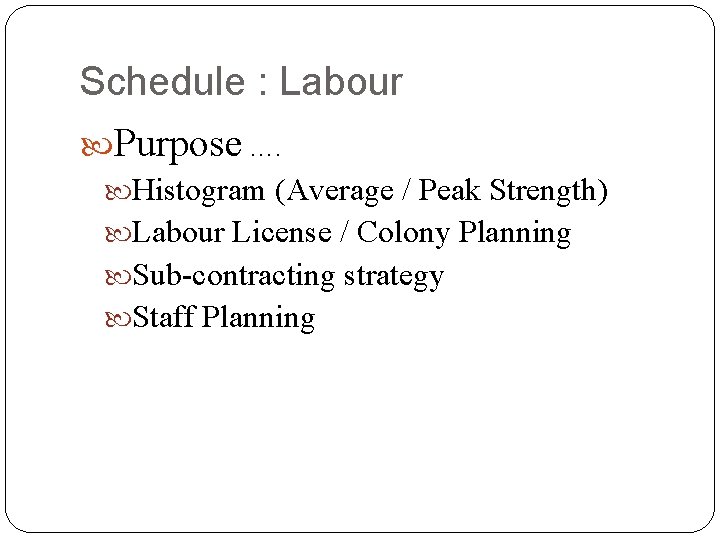

Schedule : Labour Purpose …. Histogram (Average / Peak Strength) Labour License / Colony Planning Sub-contracting strategy Staff Planning

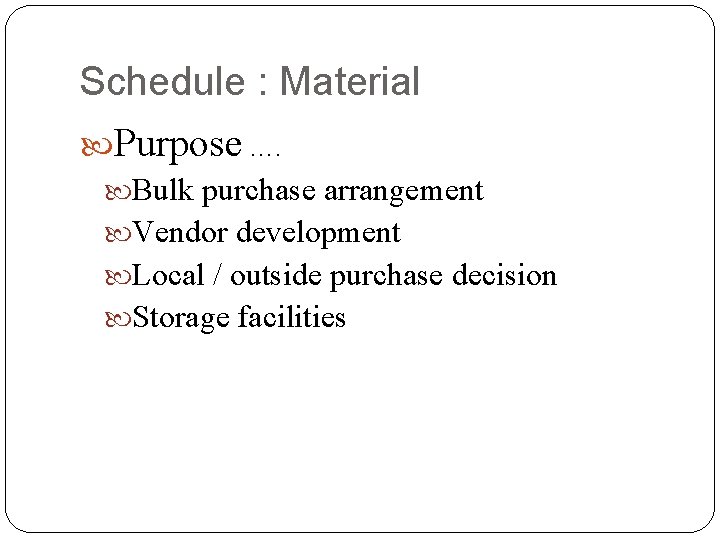

Schedule : Material Purpose …. Bulk purchase arrangement Vendor development Local / outside purchase decision Storage facilities

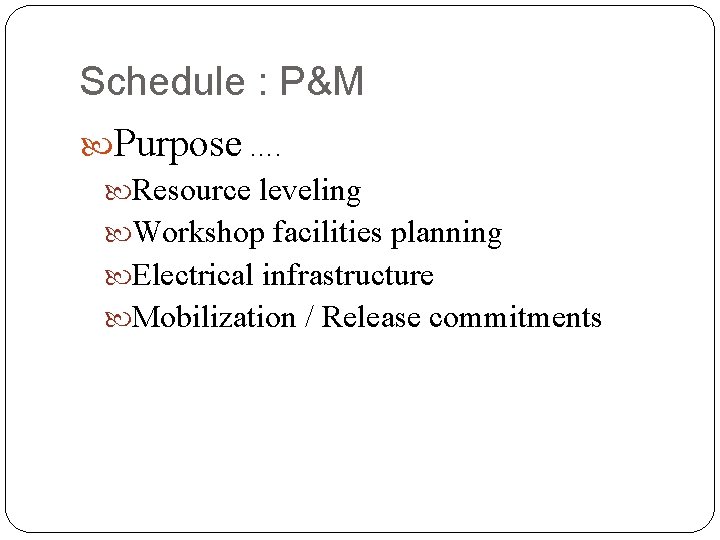

Schedule : P&M Purpose …. Resource leveling Workshop facilities planning Electrical infrastructure Mobilization / Release commitments

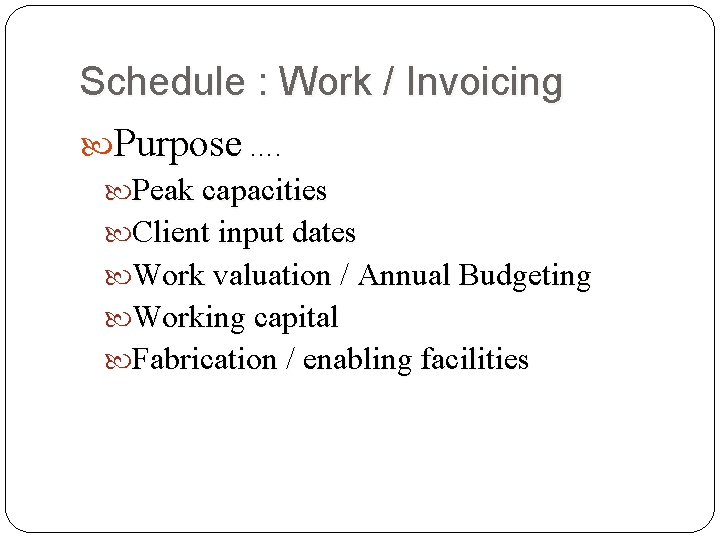

Schedule : Work / Invoicing Purpose …. Peak capacities Client input dates Work valuation / Annual Budgeting Working capital Fabrication / enabling facilities
