Basic Surveying Training Module A refresher course in
Basic Surveying Training Module A refresher course in basic surveying procedures for Tri-State Land Surveying
Background • Old equipment vs New equipment • Accuracy of measuring. Sokkisha TM 20 C Trimble R 6 GPS base
Presentation Objective At the conclusion of this presentation you will be able to: v Check your tribrach for level. v Check your surveying rods bubble for level. v To properly set-up and collect data for a control network.
Leveling Q. Why is it important to make sure that the equipment that I am using is level.
Parts of the Tribrach Optical plummet Tripod Level bubble Thumbscrew

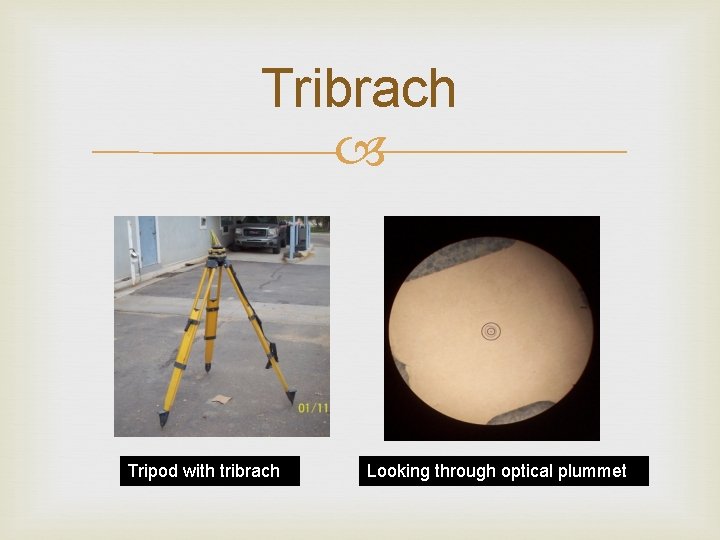

Tribrach Tripod with tribrach Looking through optical plummet
Tribrach cont. Tribrach level on tripod Tribrach tracing on tripod
Survey Rod Checking the survey rod for level Method 1 Using a True Plumb™ to check for level

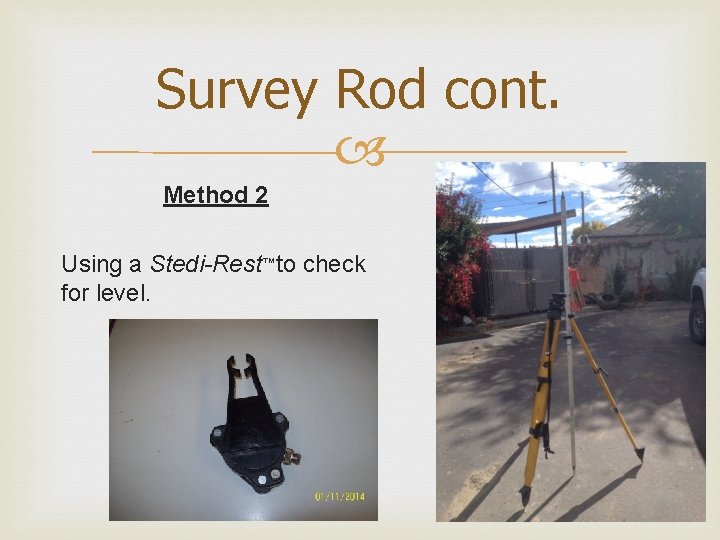

Survey Rod cont. Method 2 Using a Stedi-Rest™ to check for level.
Survey Rod cont. Some of the reasons that a level bubble will not properly adjust are: Ø That the rod has been dropped, damaging the bubble vile beyond repair. Ø You may have a slightly bent survey rod. Ø The adjustment screws have become worn beyond the ability to be used. If any of these reasons are found to be the cause of the problem, notify the surveying supervisor for a replacement.
Control Networks Q. Why would I create a control network for my project.

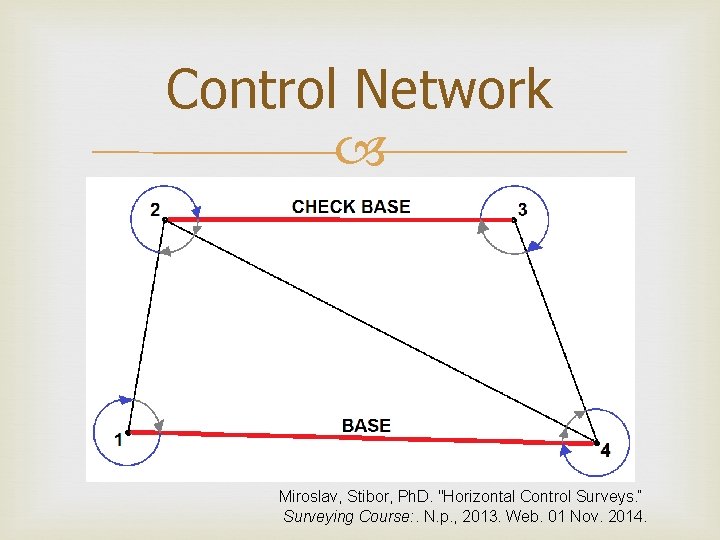

Control Network Miroslav, Stibor, Ph. D. "Horizontal Control Surveys. “ Surveying Course: . N. p. , 2013. Web. 01 Nov. 2014.
Control Network Wolf, Paul R. , and Charles D. Ghilani. “Chapter 19 Control Surveys and Geodetic Reductions. “ Elementary Surveying: An Introduction to Geomatics. Upper Saddle River, NJ: Prentice Hall, 2002. 561. Print.
Control Network cont. The base units Trimble 5700 Base Trimble R 6 Base
Control Network cont. The Collector Trimble TSC 3 Data Collector Make sure this is set to receiver

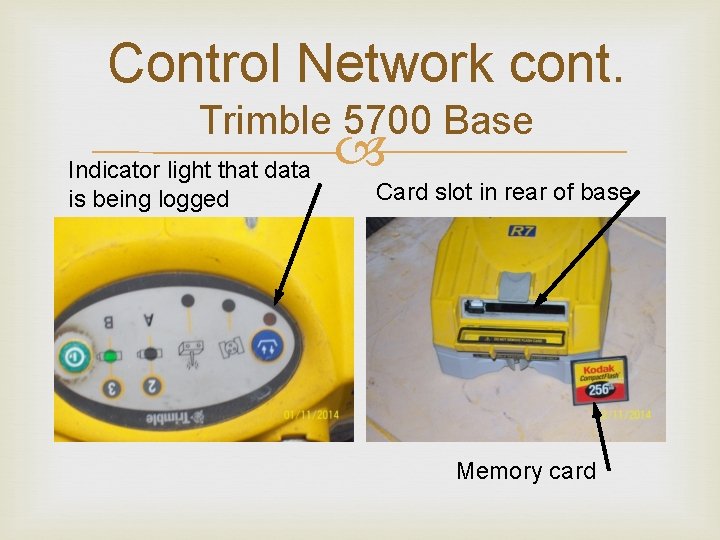

Control Network cont. Trimble 5700 Base Indicator light that data is being logged Card slot in rear of base Memory card
Control Network cont. Trimble R 6 Base Indicator light that Data is being logged

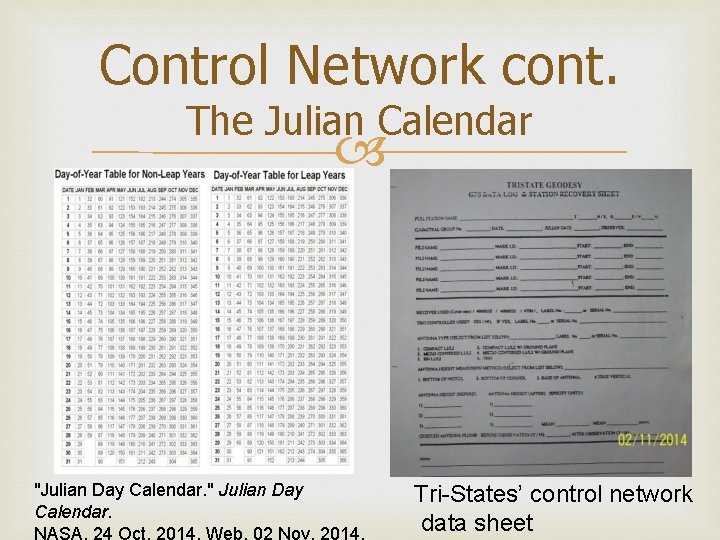

Control Network cont. The Julian Calendar "Julian Day Calendar. " Julian Day Calendar. NASA, 24 Oct. 2014. Web. 02 Nov. 2014. Tri-States’ control network data sheet
In Conclusion You should now be able to complete the following tasks: • Be able to check and determine if the tribrach you are using is able to reliably be leveled. • Check and correct the error in you survey rods level bubble vile. • Know how to collect control networking data.
Questions? "NOAA 200 th Feature Stories: The High-precision Transcontinental Traverse: Bridge Misalignment. " NOAA 200 th Feature Stories: The High-precision Transcontinental Traverse: Bridge Misalignment. NOAA, 19 July 2012. Web. 02 Nov. 2014.
References Miroslav, Stibor, Ph. D. "Horizontal Control Surveys. “ Surveying Course: . N. p. , 2013. Web. 01 Nov. 2014. Wolf, Paul R. , and Charles D. Ghilani. “Chapter 19 Control Surveys and Geodetic Reductions. “ Elementary Surveying: An Introduction to Geomatics. Upper Saddle River, NJ: Prentice Hall, 2002. 561. Print "Julian Day Calendar. " Julian Day Calendar. NASA, 24 Oct. 2014. Web. 02 Nov. 2014. "NOAA 200 th Feature Stories: The High-precision Transcontinental Traverse: Bridge Misalignment. " NOAA 200 th Feature Stories: The Highprecision Transcontinental Traverse: Bridge Misalignment. NOAA, 19 July 2012. Web. 02 Nov. 2014.
