Basic Structure of a most Neurons Dendrites ell

  • Slides: 23
Download presentation
Basic Structure of a (most) Neurons Dendrites ell body Axon

Basic Structure of a (most) Neurons Dendrites ell body Axon

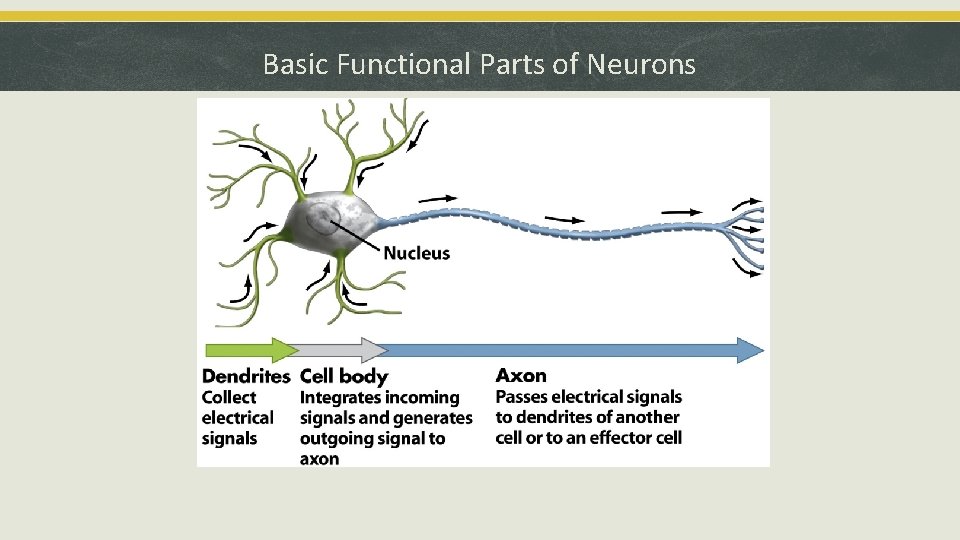

Basic Functional Parts of Neurons

Basic Functional Parts of Neurons

Neurons come in different shapes

Neurons come in different shapes

Neurons normalky have a small electrical charge “Resting Membrane Potential” Time. Voltage Display

Neurons normalky have a small electrical charge “Resting Membrane Potential” Time. Voltage Display

Source of the Resting Membrane Potential (Because this quite technical , Feel free to

Source of the Resting Membrane Potential (Because this quite technical , Feel free to not pay any attention to this slide) § Specialized molecules pump ions into and out of the neuron (Na+ out, K+ in), yielding different concentrations of these ions inside vs. outside of the cell. In effect, the pump creates Na+ and K+ “batteries”. (A big part of the neuron energy demand) § Specialized channels allow more or less of these ions to flow in (or out) of the cell, in effect “dialing in” more or less of each “battery”

Feel free to not follow the next two slides…

Feel free to not follow the next two slides…

Membrane potential, Sodium (Na+) & Potassium (K+) Na+ Outside (Outside) Na+ K+ RNa+ (Inside)

Membrane potential, Sodium (Na+) & Potassium (K+) Na+ Outside (Outside) Na+ K+ RNa+ (Inside) Inside K+ K+ RNa+ RK+ -90 m. V Outside (Outside) RK+ +40 m. V Na+ (Inside) Inside K+

Source of the Resting Membrane Potential (Because this quite technical , Feel free to

Source of the Resting Membrane Potential (Because this quite technical , Feel free to not pay any attention to this slide) § Other ions also contribute, so it’s not as simple as just Na+ and K+… § Equivalent electrical circuit: Membrane Potential +40 -90 -70

Okay – no more electrical circuits

Okay – no more electrical circuits

How Neurons communicate (basically) § If a neuron’s membrane potential gets sufficiently LESS negative

How Neurons communicate (basically) § If a neuron’s membrane potential gets sufficiently LESS negative (~ 50 m. V), this can trigger an “Action Potential” § The Action Potential goes down the axon, and at the end (synapse) causes the release of chemicals onto the next cell § The Action Potential is an “all or none” signal (i. e. , the neuron can send only one size action potential) § Those chemicals then either excite or inhibit that cell. § “Excitatory” or “Inhibitoty Post Synaptic Potential”

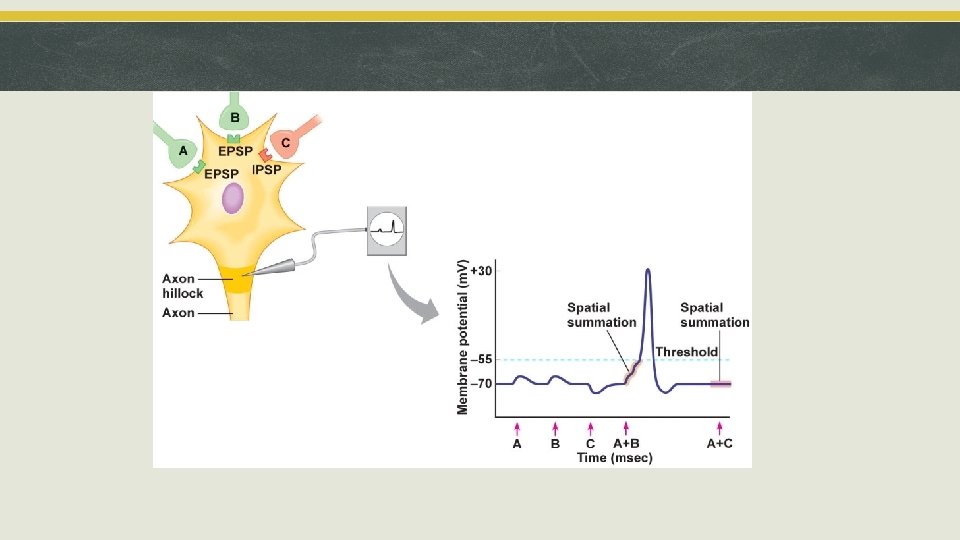

“Integration” of excitatory inputs http: //web. lemoyne. edu/~hevern/psy 340_11 S/lectures/psy 340. 03. 1. synapse.

“Integration” of excitatory inputs http: //web. lemoyne. edu/~hevern/psy 340_11 S/lectures/psy 340. 03. 1. synapse. outline. html

The best analogy for an action potential § There is a threshold for triggering

The best analogy for an action potential § There is a threshold for triggering action § It is self limiting § It is “all-or-none” § There is a minimum inter-flush interval § If you flush too soon after previous flush you can get only a partial flush

Action Potential Propagation – like a burning fuse

Action Potential Propagation – like a burning fuse

How neurons ultimately send a signal – Synaptic Transmission http: //commons. wikimedia. org/wiki/File: Synapse.

How neurons ultimately send a signal – Synaptic Transmission http: //commons. wikimedia. org/wiki/File: Synapse. Illustration 2. png

Neurotransmitters § Glutamate – the major excitatory neurotransmitter in the brain § GABA -

Neurotransmitters § Glutamate – the major excitatory neurotransmitter in the brain § GABA - major inhibitory neurotransmitter in the brain § Acetylcholine - many different actions in the brain; neuromuscular junction transmitter § Serotonin – many different actions; associated with mood, sleep, perception (LSD) § Dopamine – many different effects; associated with reward, movement (PD) § Opioid peptides (endorphins) – modulate pain signals § Substance P – pain signaling § Many others (adrenaline, noradrenaline, oxytocin…)

Summary of basic information processing in the brain Action Potential Synapse…

Summary of basic information processing in the brain Action Potential Synapse…

Analogy of how neurons communicate

Analogy of how neurons communicate

Physiological plasticity § Synapses are not static: § With repeated use can show “habituation”

Physiological plasticity § Synapses are not static: § With repeated use can show “habituation” § With intense use can become stronger (“long-term potentiation”) Harris & Cotman, 1986 § Simultaneous strong inputs can potentiate each other (“fire together, wire together”)

How neurons send a signal – The “Action Potential” § http: //neuroscience. uth. tmc.

How neurons send a signal – The “Action Potential” § http: //neuroscience. uth. tmc. edu/s 1/chapter 01. html

But it’s not so simple - Excitation and Inhibition

But it’s not so simple - Excitation and Inhibition

Spindel Cells – aka “Von Economo Neurons” Constantin von. Economo San Serff Constantin Alexander

Spindel Cells – aka “Von Economo Neurons” Constantin von. Economo San Serff Constantin Alexander Freiherr von Economo Constantin Freiherr von Example of “Fork cell” found with VENs

Excitement about Von Economo Neurons § Much early excitement at their re-discovery § Originally

Excitement about Von Economo Neurons § Much early excitement at their re-discovery § Originally found only in humans and great apes § Then also found in dolphins, whales and elephants § Implications in higher order social interactions!? § Most recent evidence is that they are also found in: § hippopotamus, cow, manatees, seals, sheep, deer, horse, pig, rock hyrax § Still interesting because their numbers are reduced in early-onset schizophrenia, and behavioral variant of FTD in which empathy, social awareness and selfcontrol are seriously compromised
