Basic Structure of a Cell Cytoplasm Cell Membrane

Basic Structure of a Cell Cytoplasm Cell Membrane Nucleolus 1

The cell is the Basic Unit of Life • Cell is the smallest unit of living organisms • Unicellular organisms are made of one cell only • The cells of multicellular organisms are specialized to perform different functions – e. g. mesophyll cells for photosynthesis and root hair cells for water absorption 2

Introduction to Cells are the basic units of organisms Cells can only be observed under microscope Basic types of cells: Animal Cell Plant Cell Bacterial Cell 3

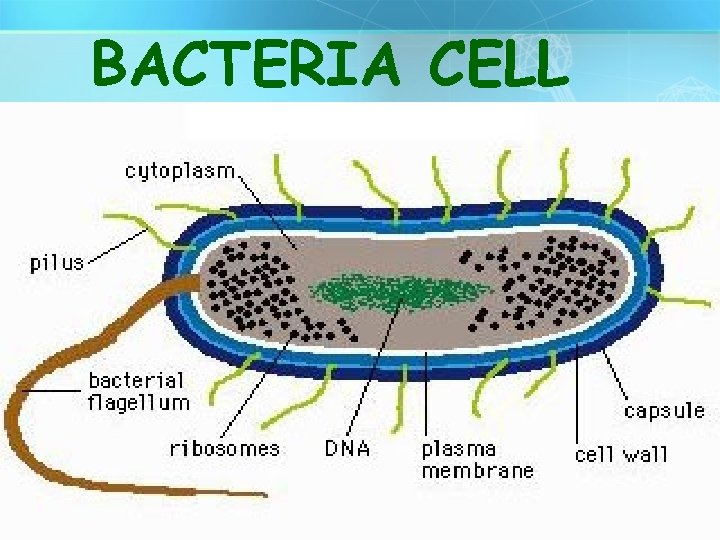

BACTERIA CELL copyright cmassengale 4

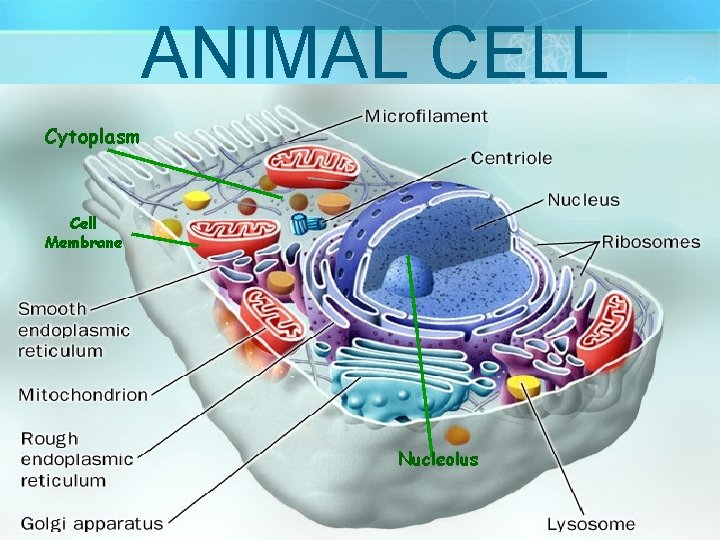

ANIMAL CELL Cytoplasm Cell Membrane Nucleolus 5

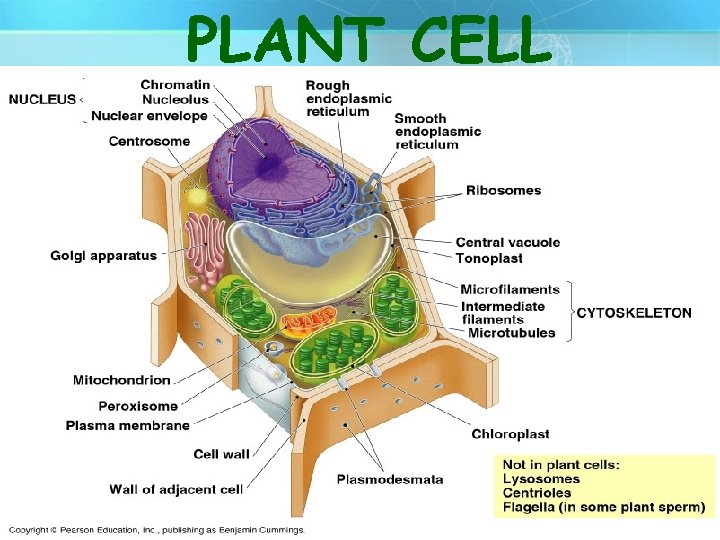

PLANT CELL 6

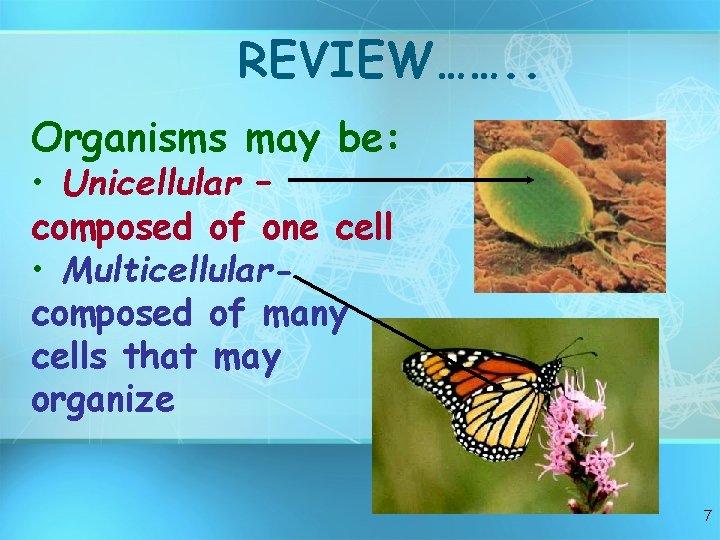

REVIEW……. . Organisms may be: • Unicellular – composed of one cell • Multicellularcomposed of many cells that may organize 7

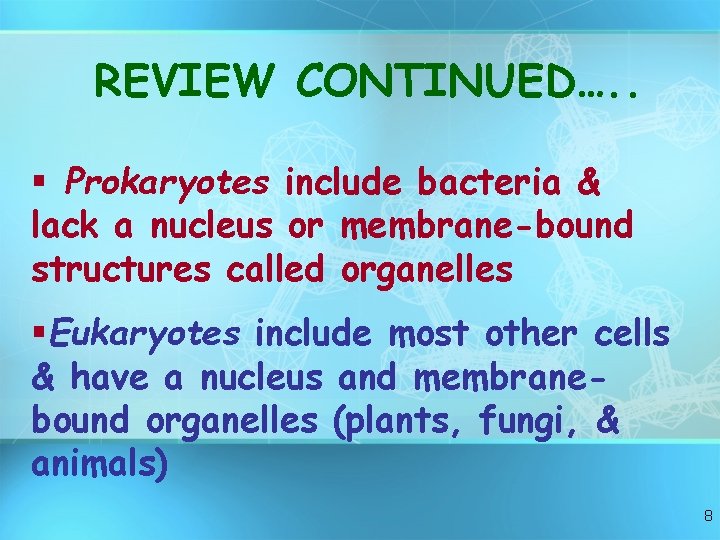

REVIEW CONTINUED…. . § Prokaryotes include bacteria & lack a nucleus or membrane-bound structures called organelles §Eukaryotes include most other cells & have a nucleus and membranebound organelles (plants, fungi, & animals) 8

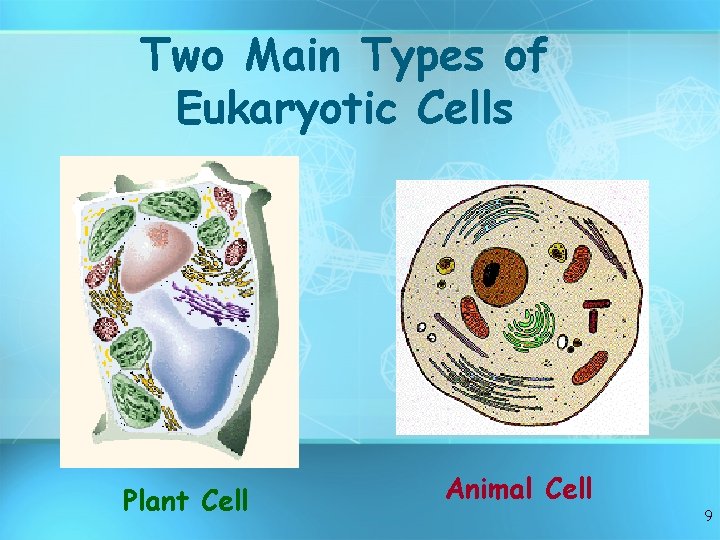

Two Main Types of Eukaryotic Cells Plant Cell Animal Cell 9

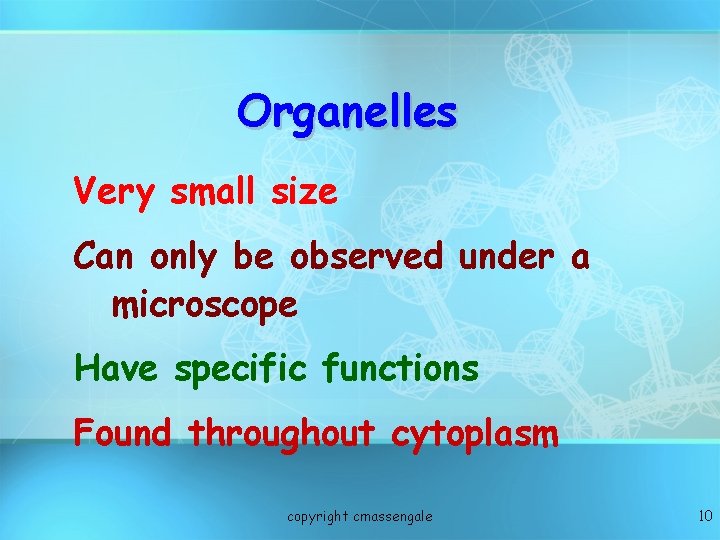

Organelles Very small size Can only be observed under a microscope Have specific functions Found throughout cytoplasm copyright cmassengale 10

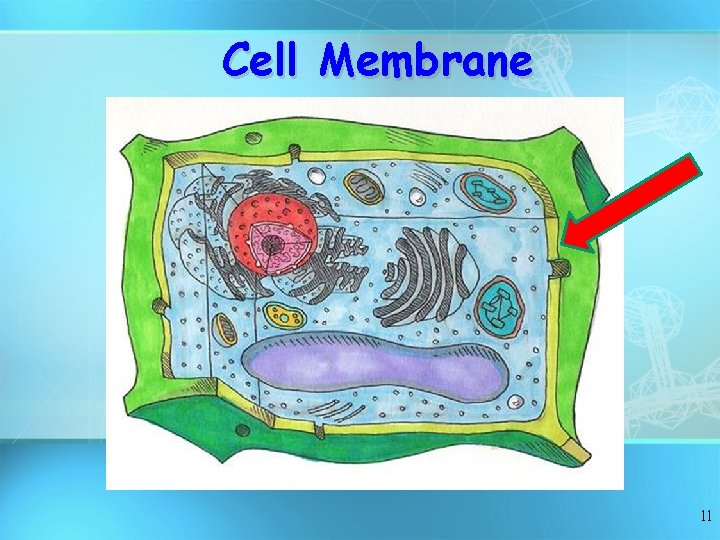

Cell Membrane 11

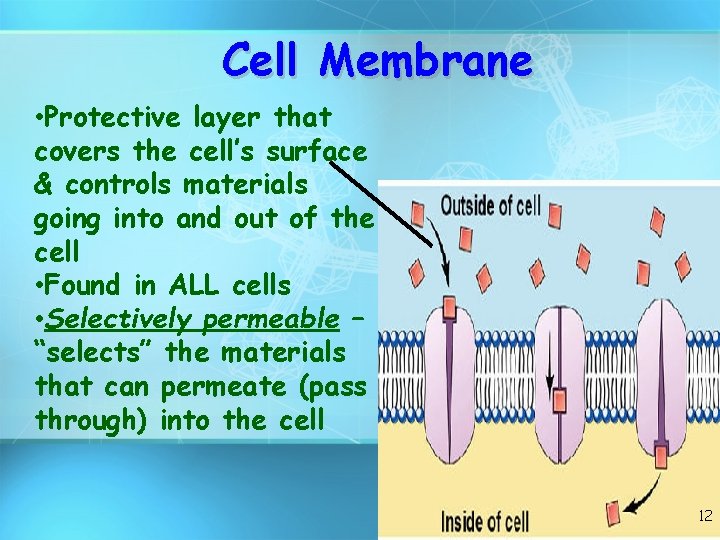

Cell Membrane • Protective layer that covers the cell’s surface & controls materials going into and out of the cell • Found in ALL cells • Selectively permeable – “selects” the materials that can permeate (pass through) into the cell 12

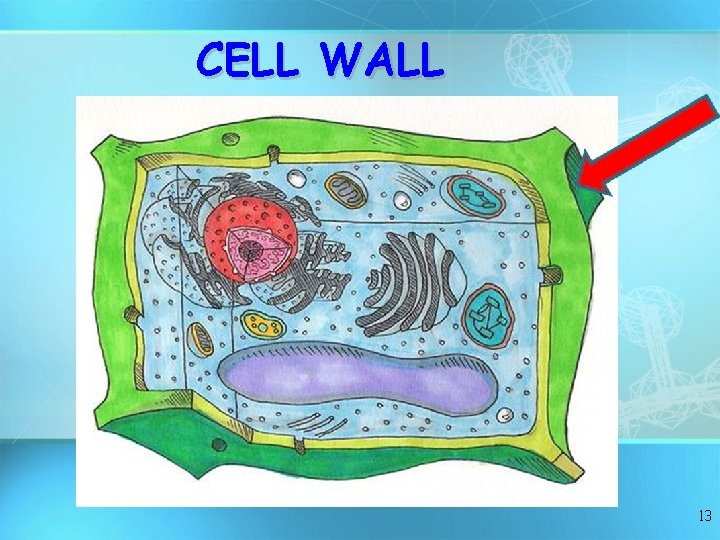

CELL WALL 13

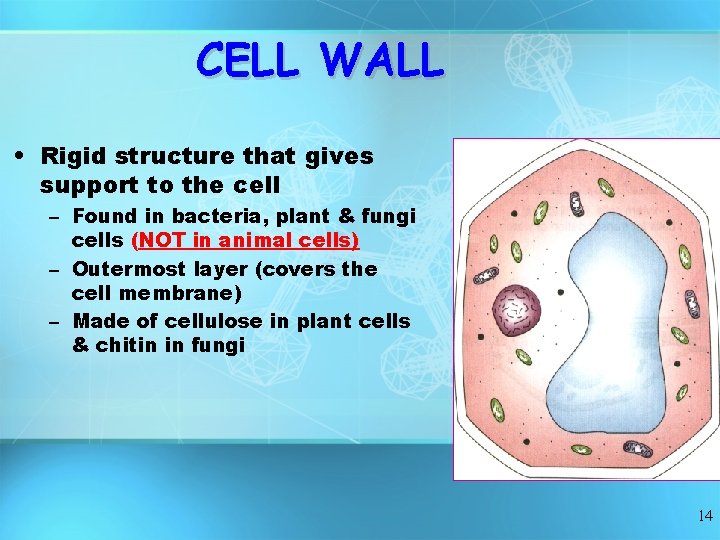

CELL WALL • Rigid structure that gives support to the cell – Found in bacteria, plant & fungi cells (NOT in animal cells) – Outermost layer (covers the cell membrane) – Made of cellulose in plant cells & chitin in fungi 14

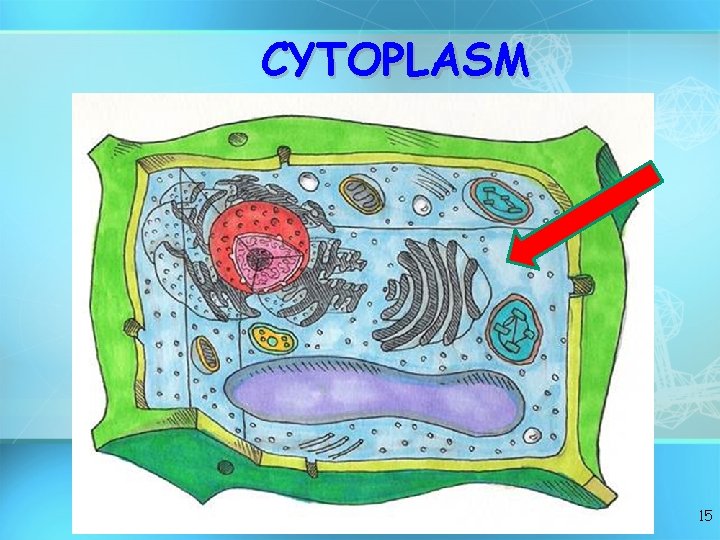

CYTOPLASM 15

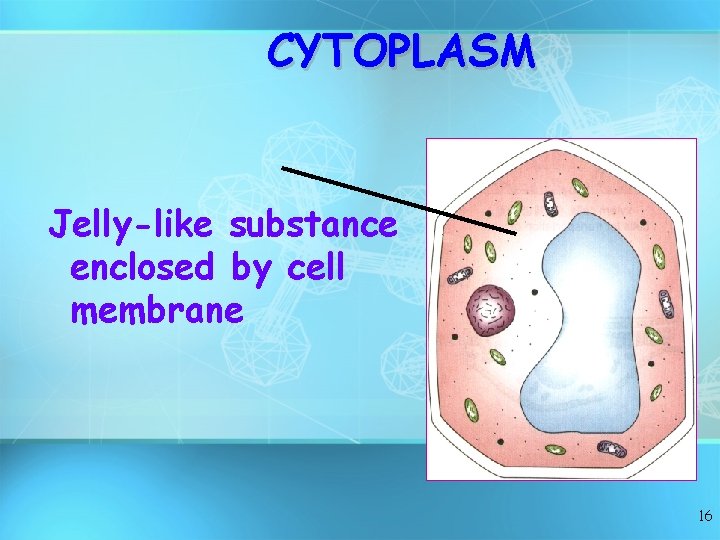

CYTOPLASM Jelly-like substance enclosed by cell membrane 16

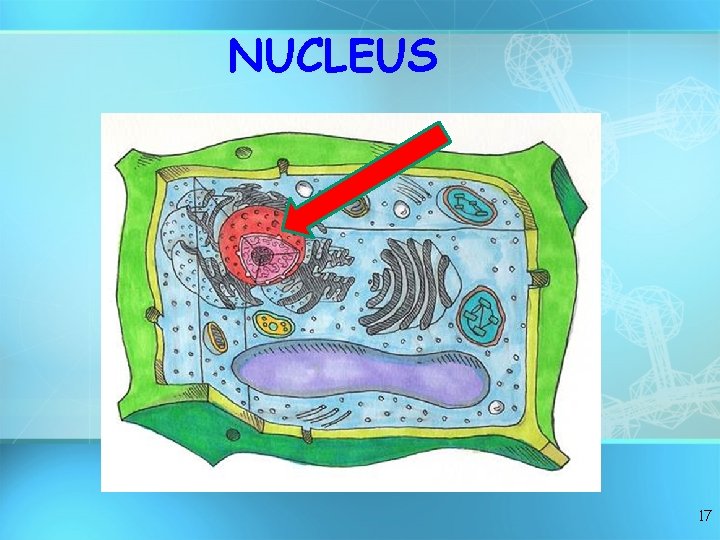

NUCLEUS 17

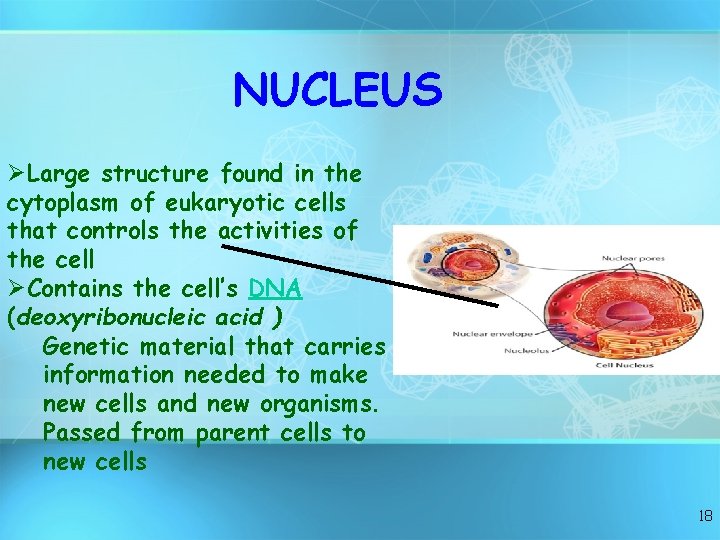

NUCLEUS ØLarge structure found in the cytoplasm of eukaryotic cells that controls the activities of the cell ØContains the cell’s DNA (deoxyribonucleic acid ) Genetic material that carries information needed to make new cells and new organisms. Passed from parent cells to new cells 18

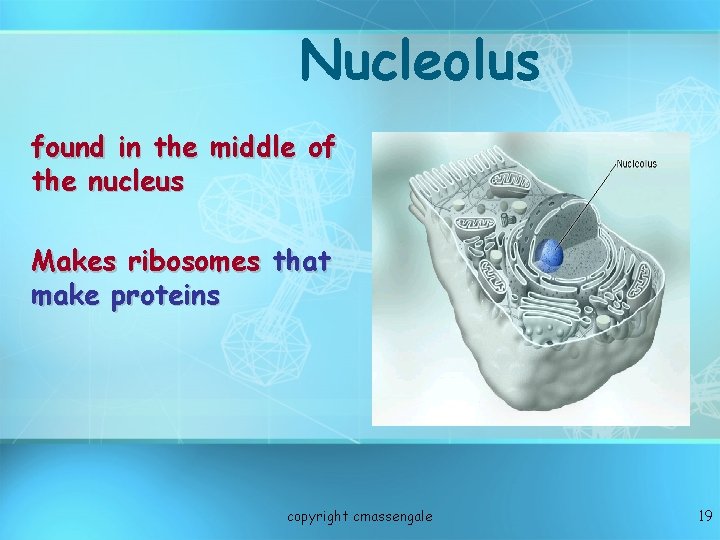

Nucleolus found in the middle of the nucleus Makes ribosomes that make proteins copyright cmassengale 19

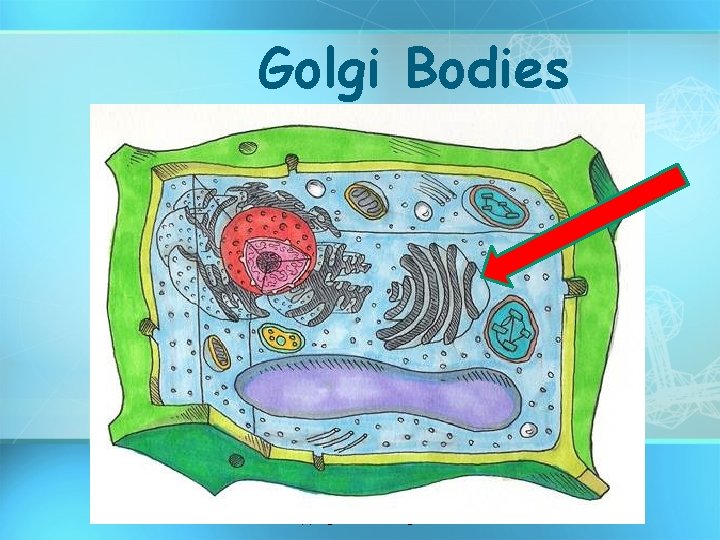

Golgi Bodies copyright cmassengale

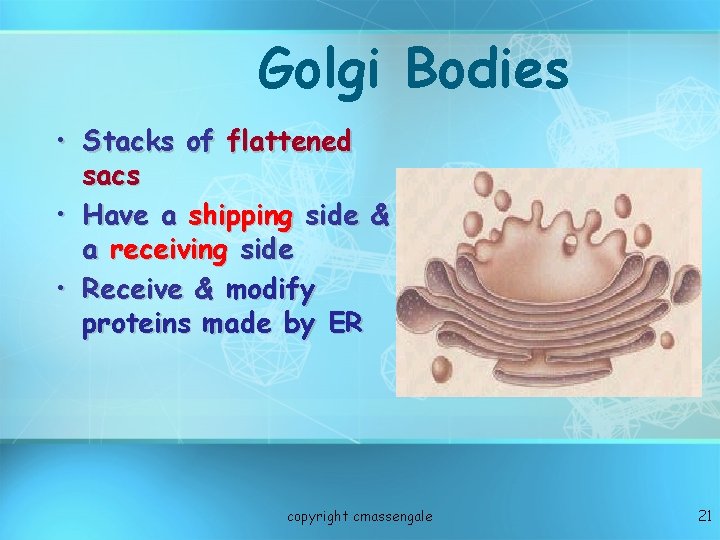

Golgi Bodies • Stacks of flattened sacs • Have a shipping side & a receiving side • Receive & modify proteins made by ER copyright cmassengale 21

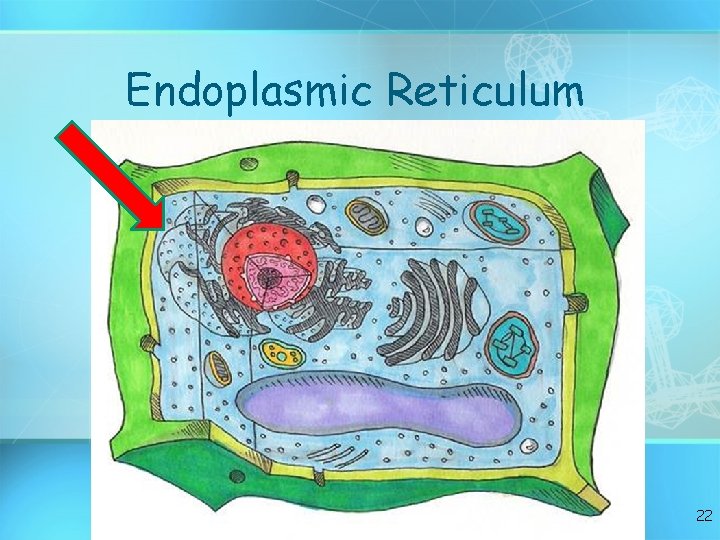

Endoplasmic Reticulum 22

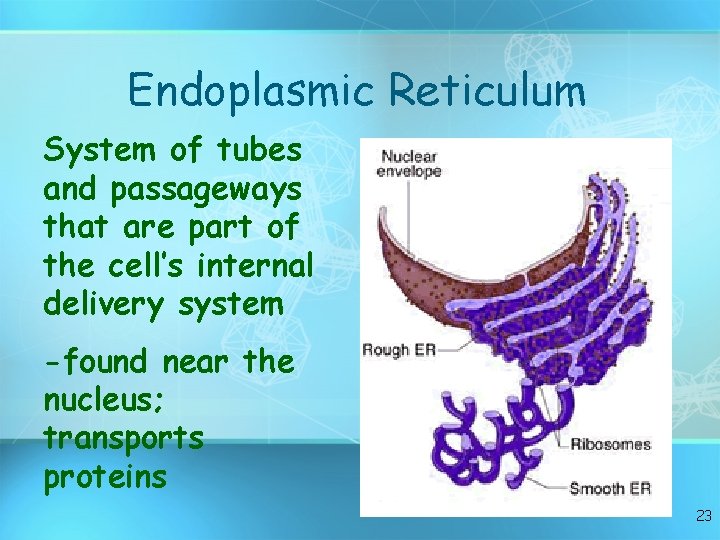

Endoplasmic Reticulum System of tubes and passageways that are part of the cell’s internal delivery system -found near the nucleus; transports proteins 23

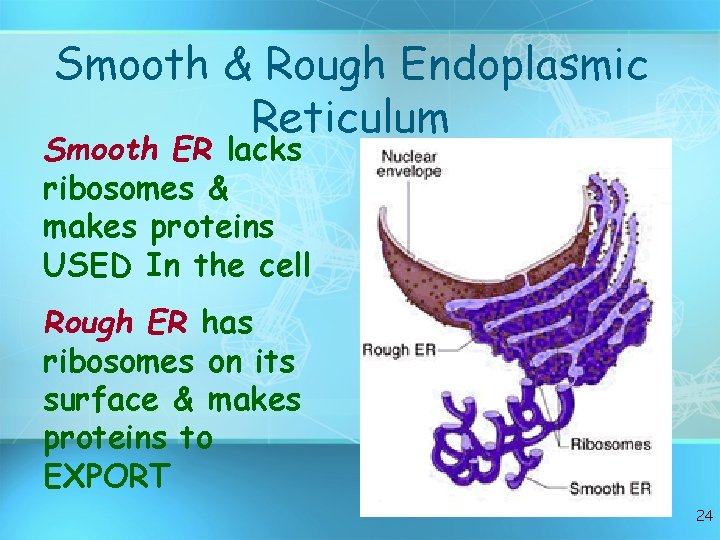

Smooth & Rough Endoplasmic Reticulum Smooth ER lacks ribosomes & makes proteins USED In the cell Rough ER has ribosomes on its surface & makes proteins to EXPORT 24

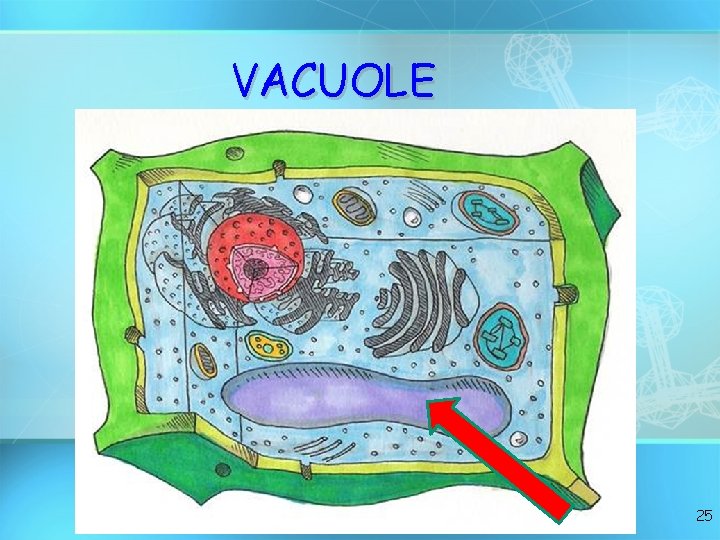

VACUOLE 25

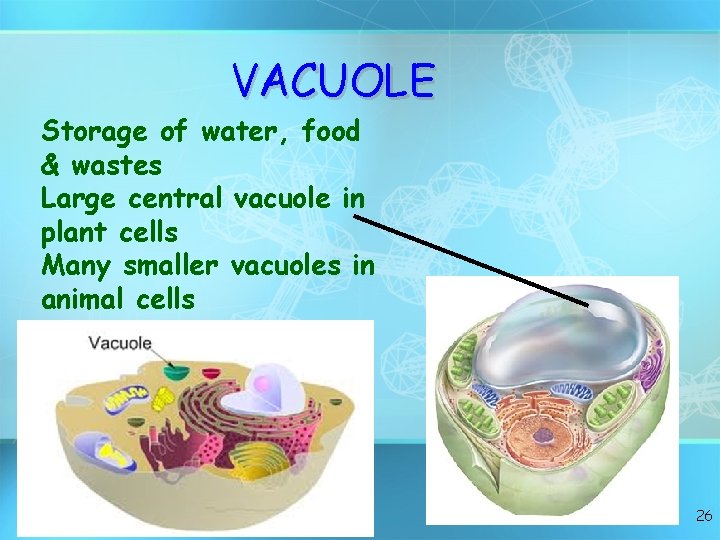

VACUOLE Storage of water, food & wastes Large central vacuole in plant cells Many smaller vacuoles in animal cells 26

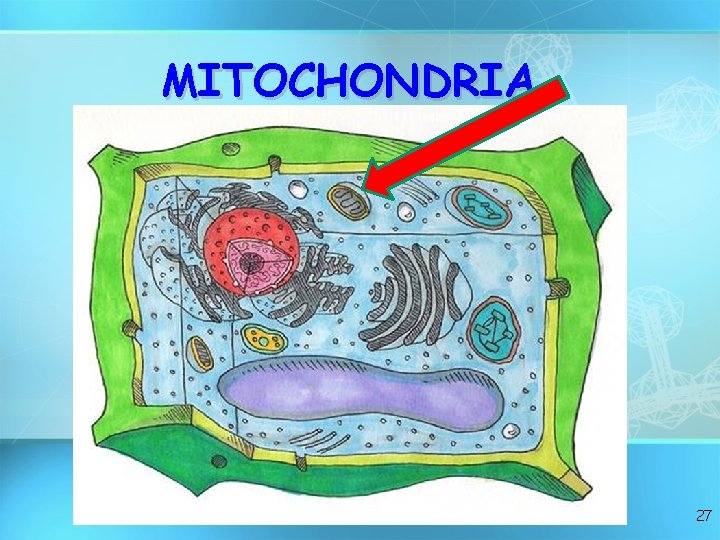

MITOCHONDRIA 27

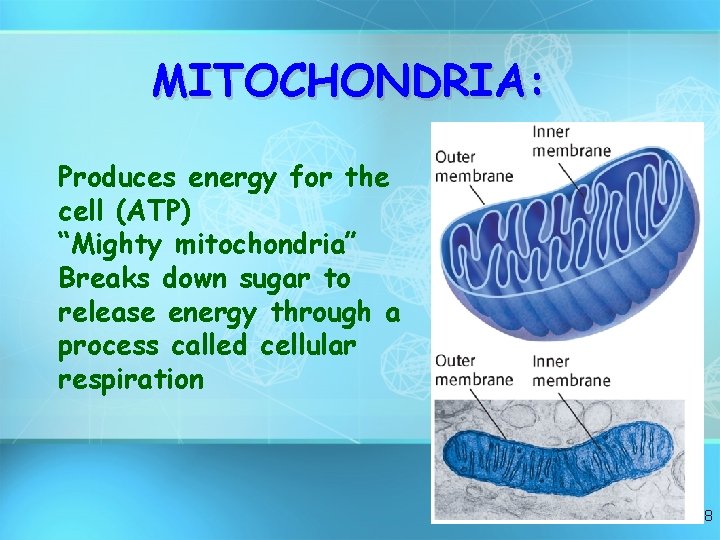

MITOCHONDRIA: Produces energy for the cell (ATP) “Mighty mitochondria” Breaks down sugar to release energy through a process called cellular respiration 28

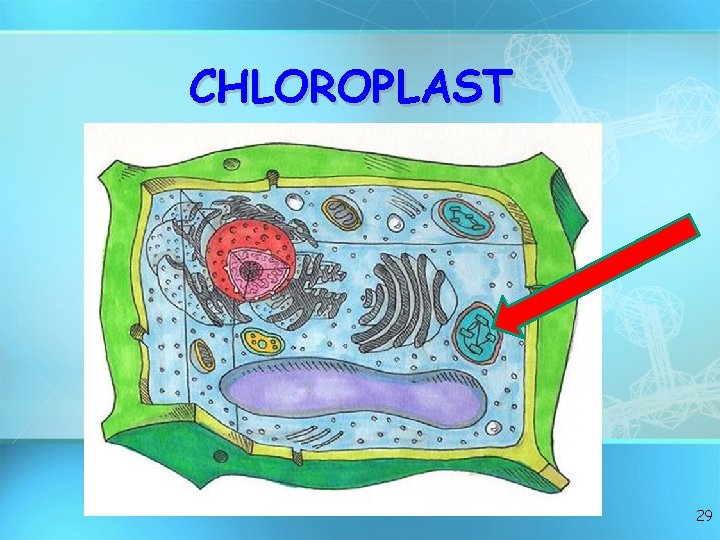

CHLOROPLAST 29

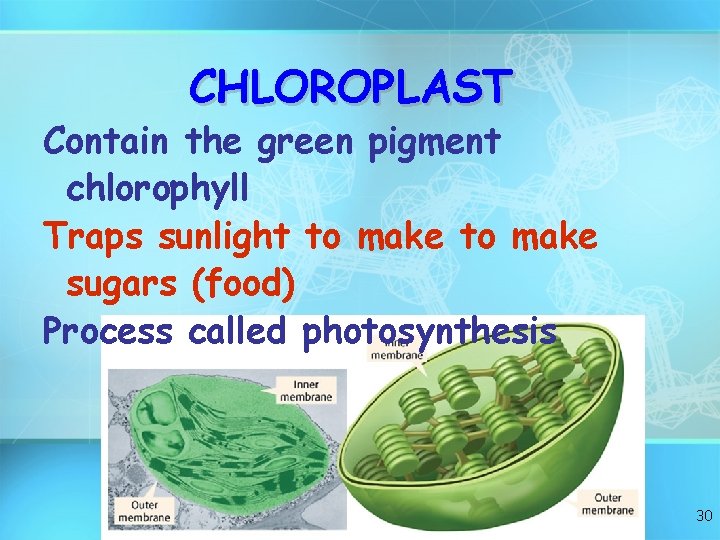

CHLOROPLAST Contain the green pigment chlorophyll Traps sunlight to make sugars (food) Process called photosynthesis 30

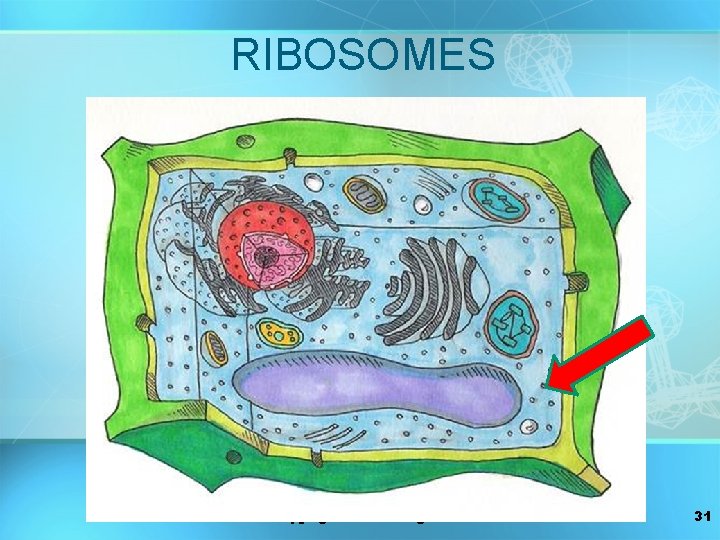

RIBOSOMES copyright cmassengale 31

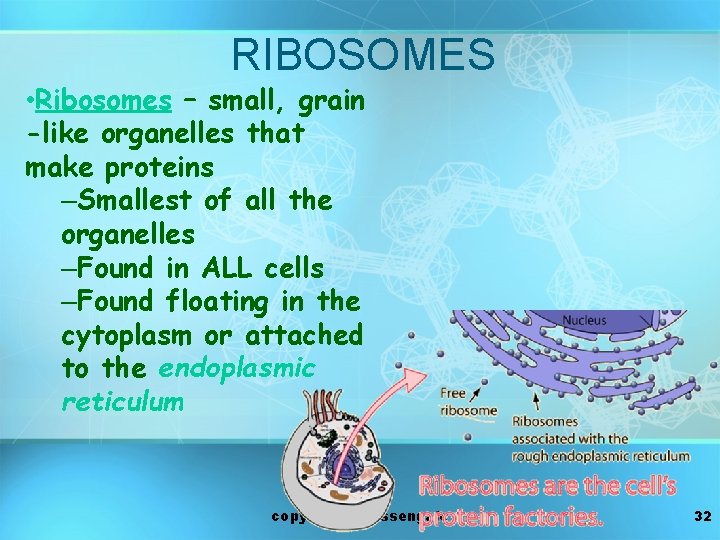

RIBOSOMES • Ribosomes – small, grain -like organelles that make proteins –Smallest of all the organelles –Found in ALL cells –Found floating in the cytoplasm or attached to the endoplasmic reticulum copyright cmassengale 32

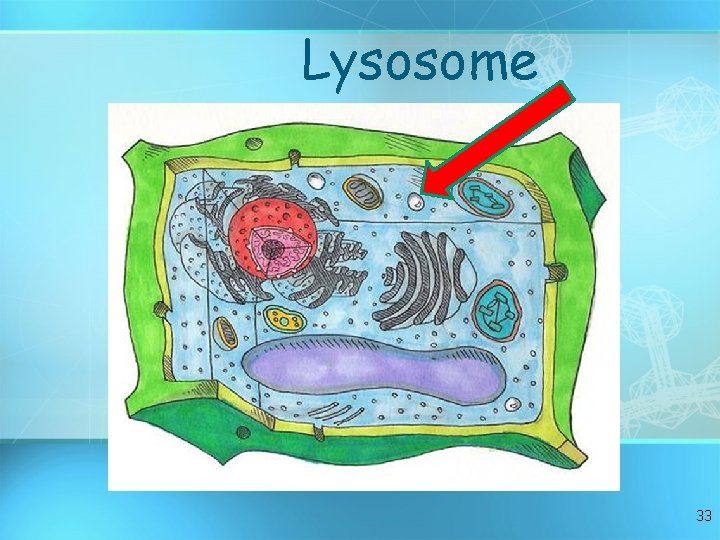

Lysosome 33

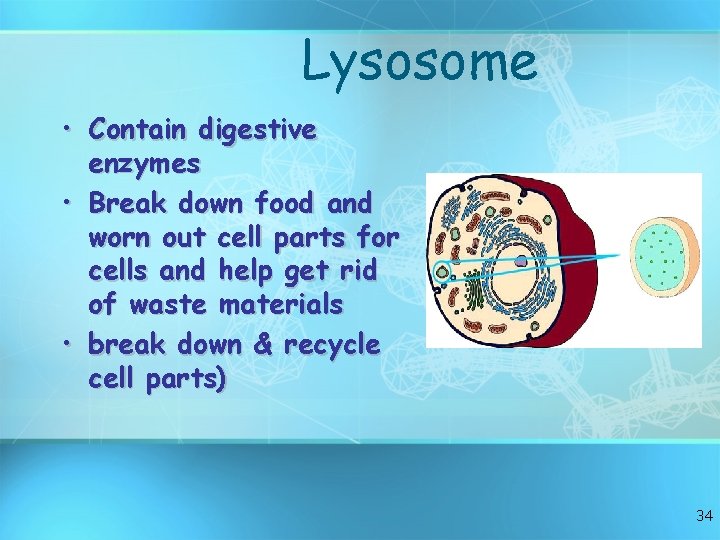

Lysosome • Contain digestive enzymes • Break down food and worn out cell parts for cells and help get rid of waste materials • break down & recycle cell parts) 34

Different kinds of animal cells white blood cell Amoeba red blood cell muscle cell cheek cells sperm nerve cell Paramecium 35

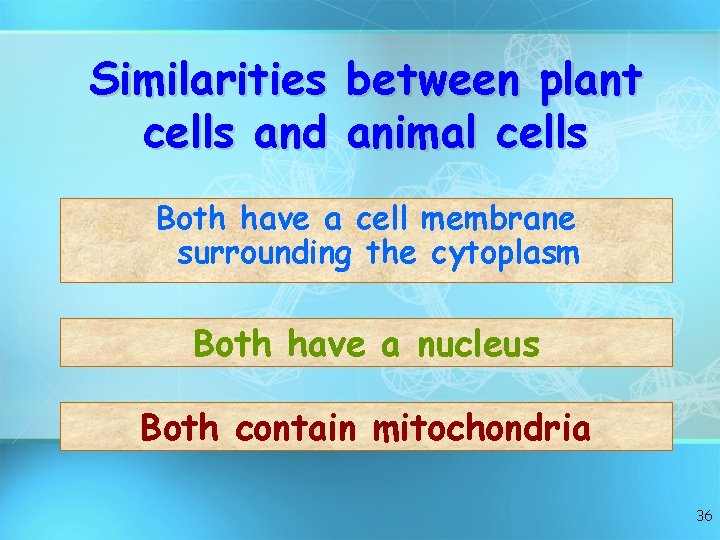

Similarities cells and between plant animal cells Both have a cell membrane surrounding the cytoplasm Both have a nucleus Both contain mitochondria 36

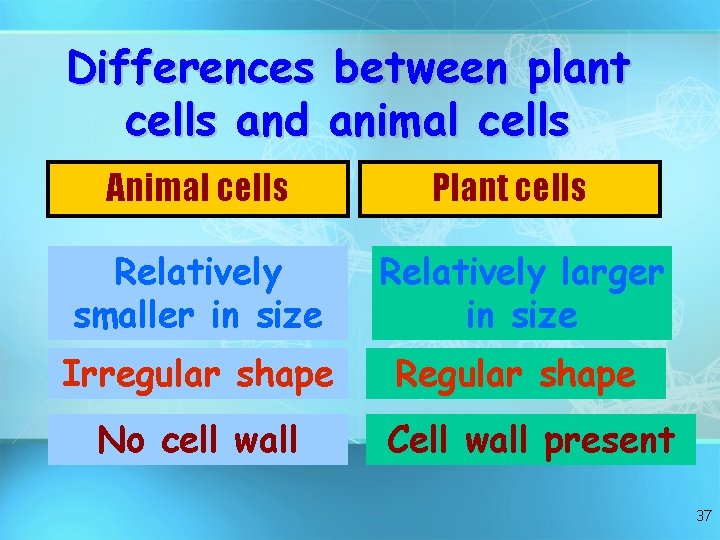

Differences between plant cells and animal cells Animal cells Plant cells Relatively smaller in size Relatively larger in size Irregular shape Regular shape No cell wall Cell wall present 37

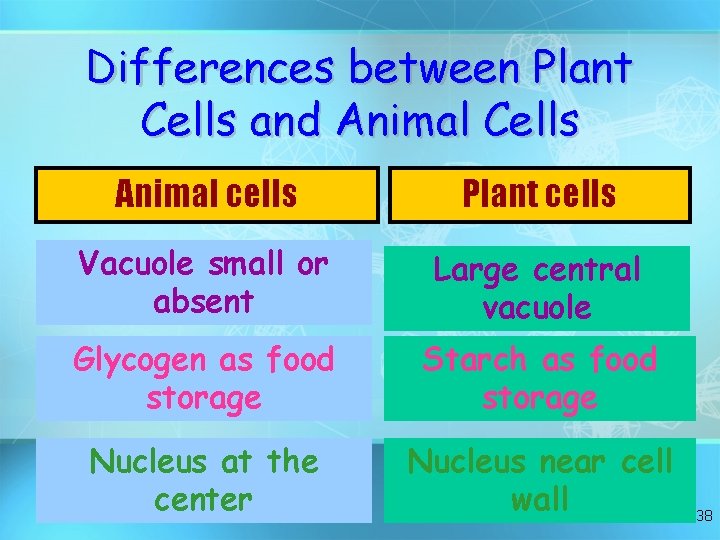

Differences between Plant Cells and Animal Cells Animal cells Plant cells Vacuole small or absent Large central vacuole Glycogen as food storage Starch as food storage Nucleus at the center Nucleus near cell wall 38

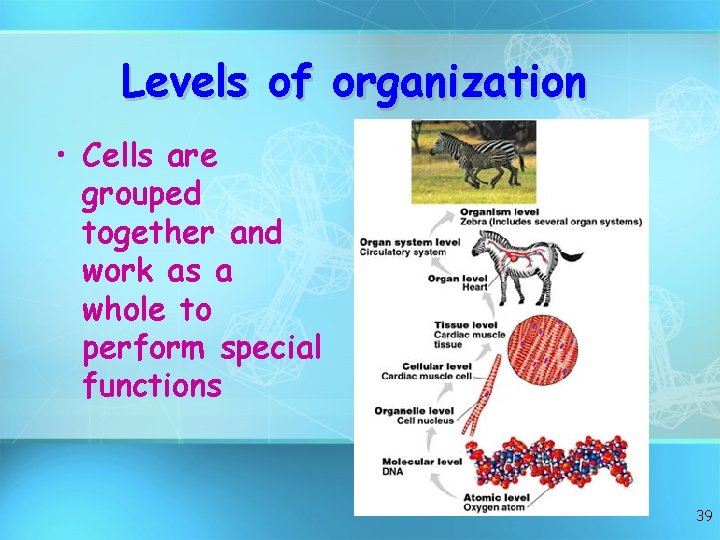

Levels of organization • Cells are grouped together and work as a whole to perform special functions 39

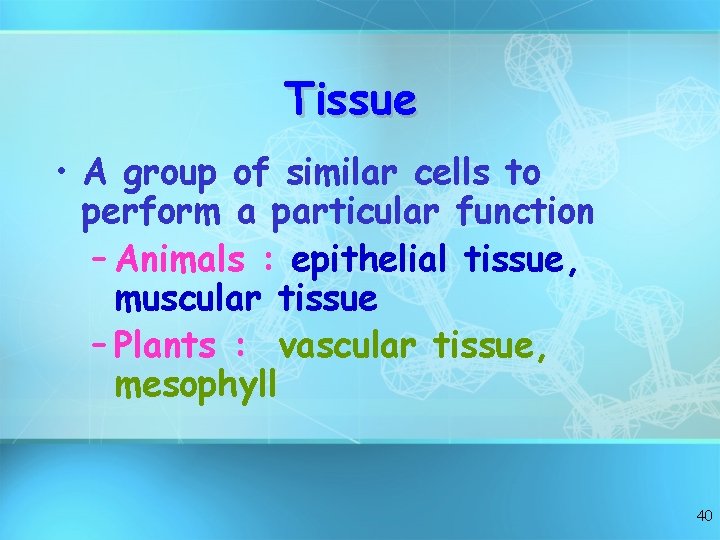

Tissue • A group of similar cells to perform a particular function – Animals : epithelial tissue, muscular tissue – Plants : vascular tissue, mesophyll 40

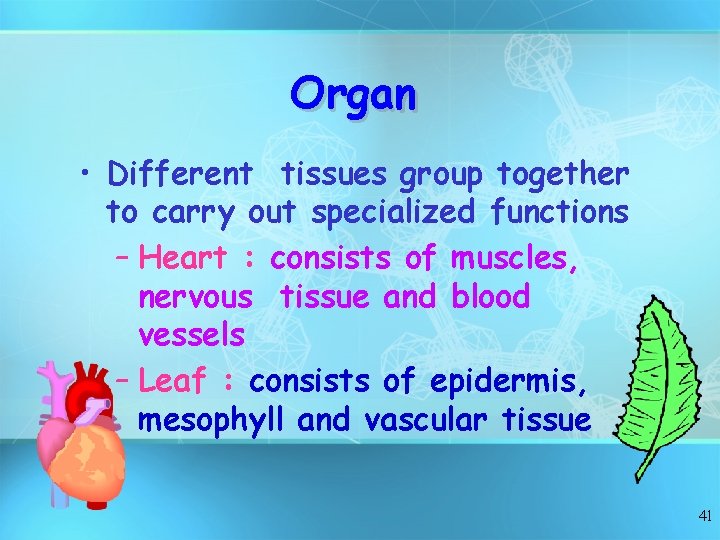

Organ • Different tissues group together to carry out specialized functions – Heart : consists of muscles, nervous tissue and blood vessels – Leaf : consists of epidermis, mesophyll and vascular tissue 41

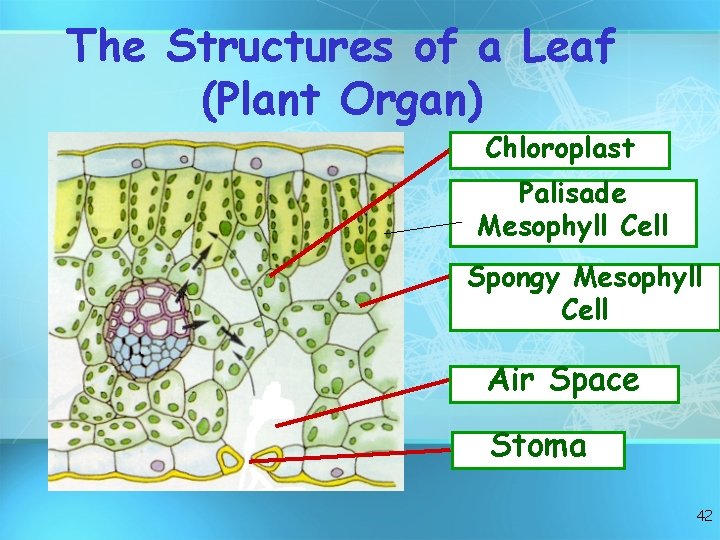

The Structures of a Leaf (Plant Organ) Chloroplast Palisade Mesophyll Cell Spongy Mesophyll Cell Air Space Stoma 42

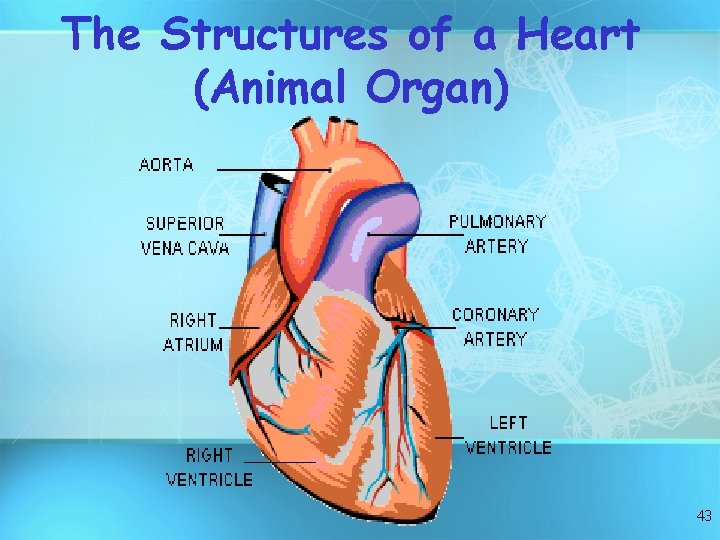

The Structures of a Heart (Animal Organ) 43

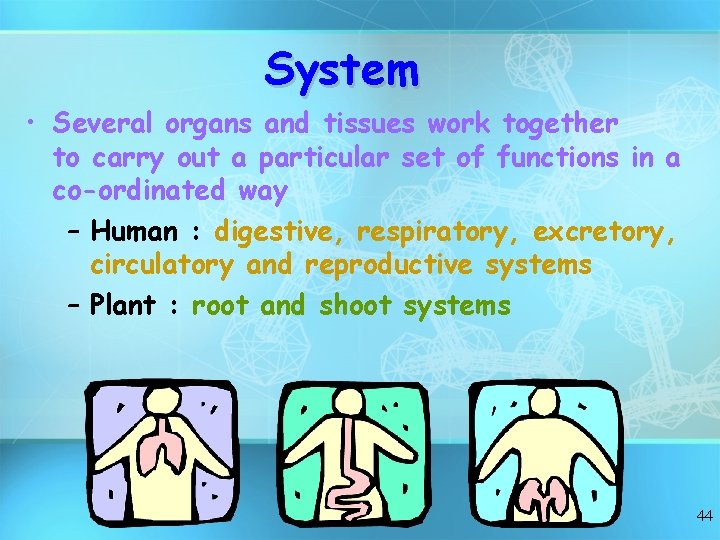

System • Several organs and tissues work together to carry out a particular set of functions in a co-ordinated way – Human : digestive, respiratory, excretory, circulatory and reproductive systems – Plant : root and shoot systems 44

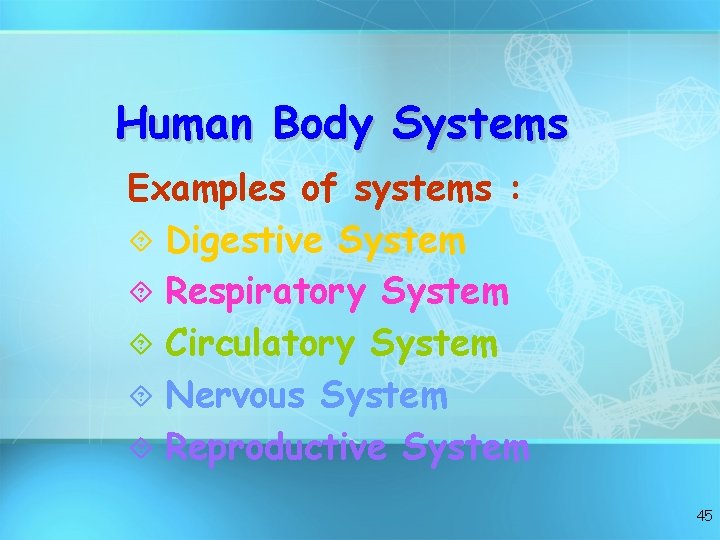

Human Body Systems Examples of systems : ´ Digestive System ´ Respiratory System ´ Circulatory System ´ Nervous System ´ Reproductive System 45

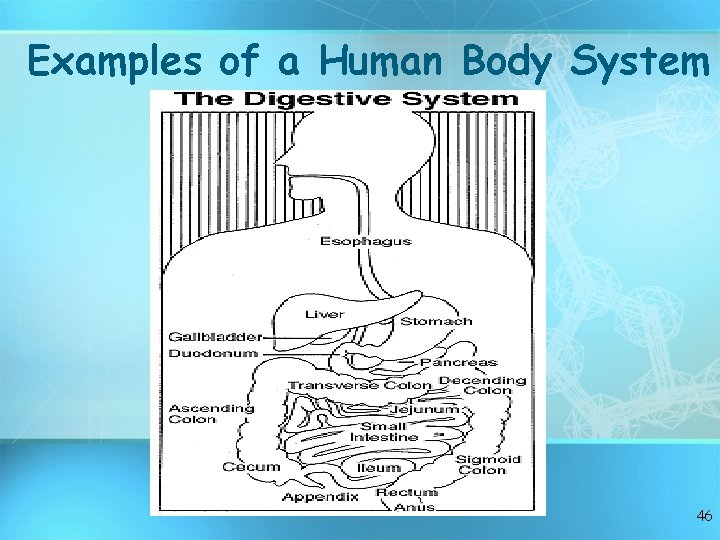

Examples of a Human Body System 46

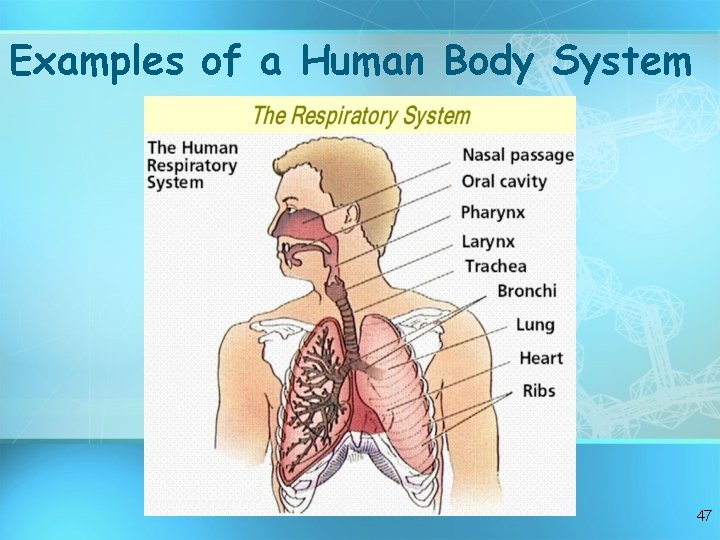

Examples of a Human Body System 47

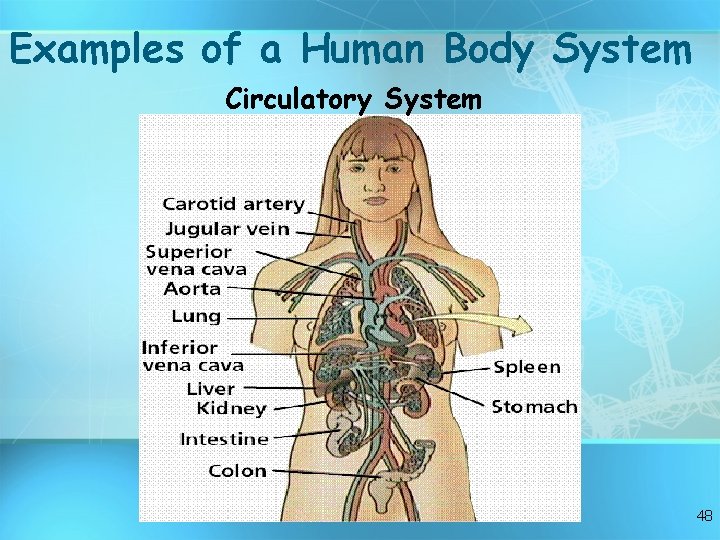

Examples of a Human Body System Circulatory System 48

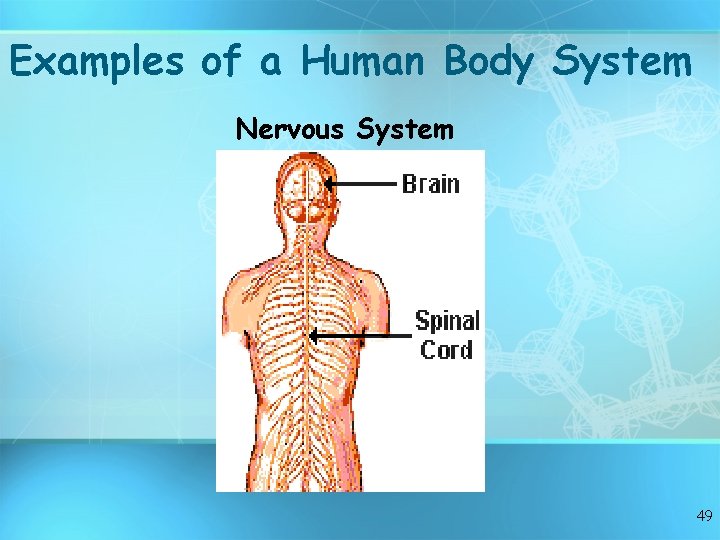

Examples of a Human Body System Nervous System 49

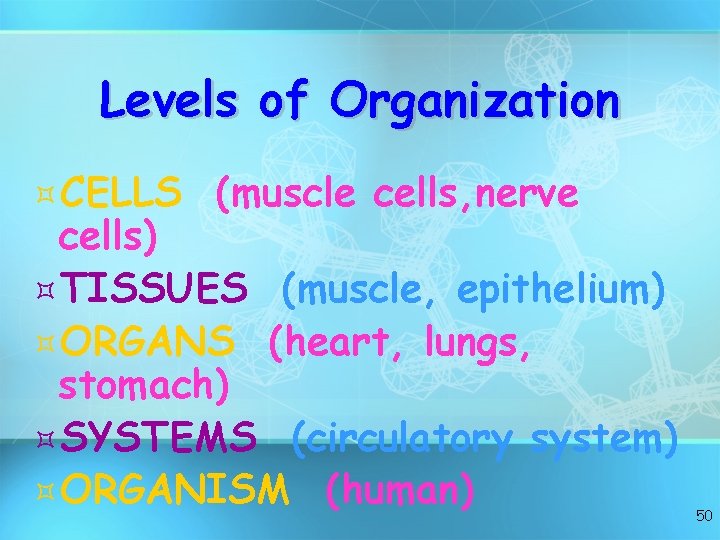

Levels of Organization ³CELLS (muscle cells, nerve cells) ³TISSUES (muscle, epithelium) ³ORGANS (heart, lungs, stomach) ³SYSTEMS (circulatory system) ³ORGANISM (human) 50

It’s You! 51
