Basic Router Configuration Honolulu Community College Cisco Academy

Basic Router Configuration Honolulu Community College Cisco Academy Training Center Semester 2 Version 2. 1

Overview 1. This chapter covers general information about the router. 2. Elements of the Router. 3. Cisco Discovery Protocol. 4. Remotely accessing a router - telnet. 5. Testing network connectivity: ping trace debug

Configuration Sources n Router can be configured from: u console terminal (initial configuration). u via modem using AUX port. u virtual terminal (telnet), once configured. u TFTP server on network.

Internal Configuration Components n RAM/DRAM u Routing tables. u ARP cache. u Packet buffering u Packet queues. u Running configuration. n RAM contents lost when power is lost. n NVRAM - nonvolatile. u Backup n configuration, (startup config). NVRAM retains data when power is turned off.

Internal Configuration Components (cont) n Flash - erasable, reprogrammable ROM. u OS image & microcode. u Can have multiple copies of IOS. n n Flash contents are retained when power is turned off. ROM - read only memory. u POST (power on self test). u Bootstrap program. u Operating system software.

Internal Configuration Components n Interfaces - network connections thru which packets enter and exit the router.

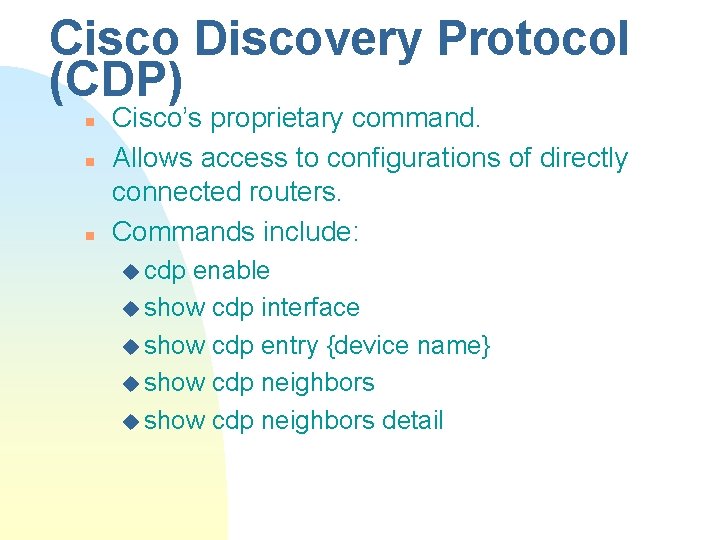

Cisco Discovery Protocol (CDP) n n n Cisco’s proprietary command. Allows access to configurations of directly connected routers. Commands include: u cdp enable u show cdp interface u show cdp entry {device name} u show cdp neighbors detail

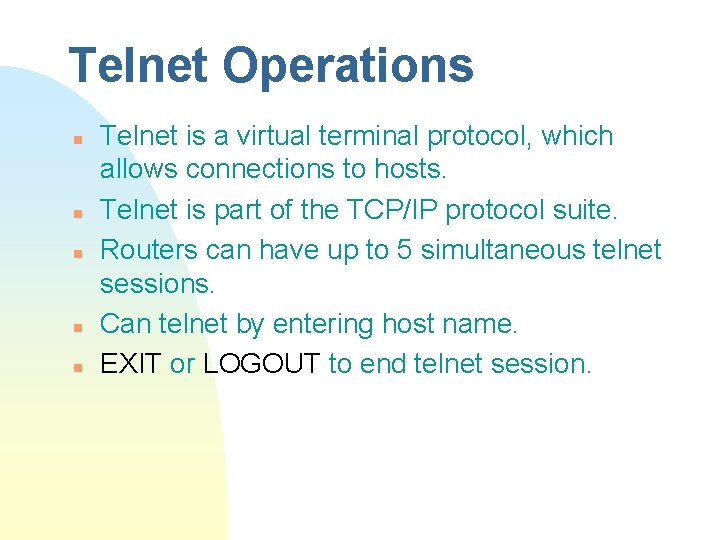

Telnet Operations n n n Telnet is a virtual terminal protocol, which allows connections to hosts. Telnet is part of the TCP/IP protocol suite. Routers can have up to 5 simultaneous telnet sessions. Can telnet by entering host name. EXIT or LOGOUT to end telnet session.

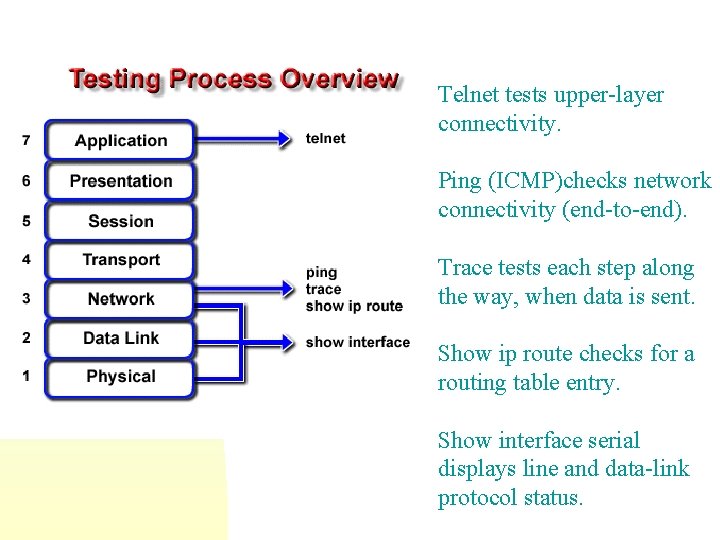

Telnet tests upper-layer connectivity. Ping (ICMP)checks network connectivity (end-to-end). Trace tests each step along the way, when data is sent. Show ip route checks for a routing table entry. Show interface serial displays line and data-link protocol status.

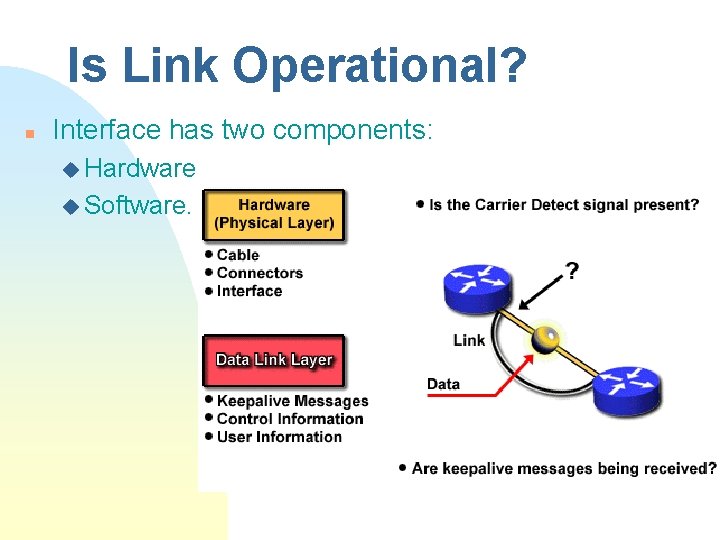

Is Link Operational? n Interface has two components: u Hardware. u Software.

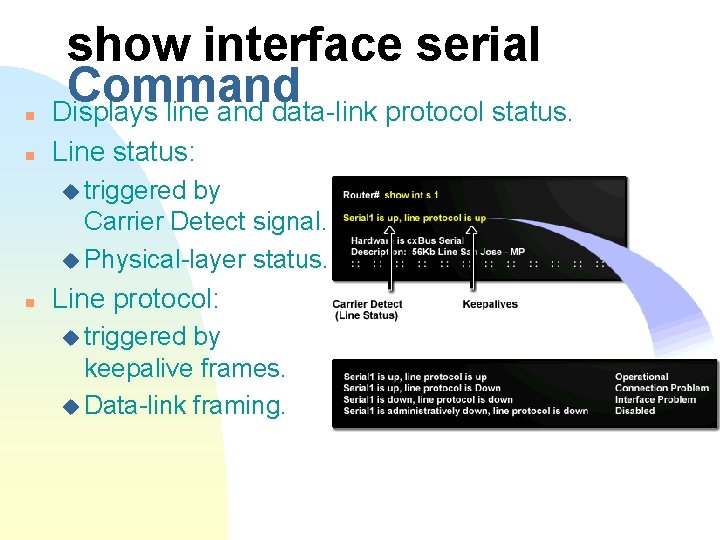

n show interface serial Command Displays line and data-link protocol status. n Line status: u triggered by Carrier Detect signal. u Physical-layer status. n Line protocol: u triggered by keepalive frames. u Data-link framing.

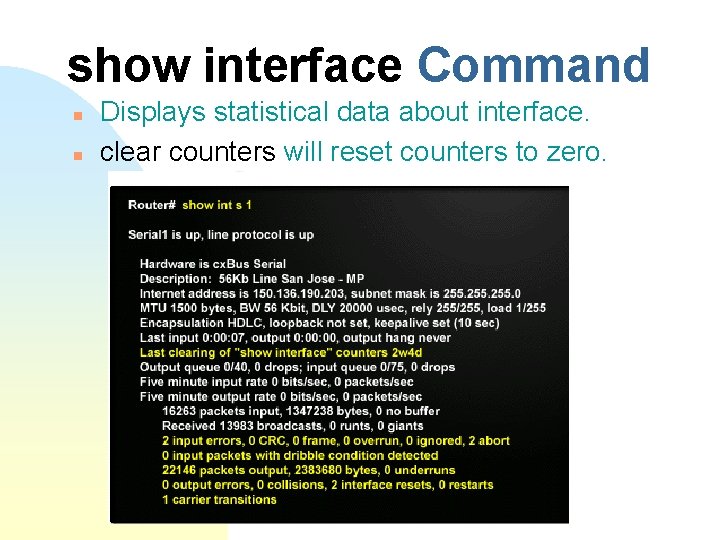

show interface Command n n Displays statistical data about interface. clear counters will reset counters to zero.

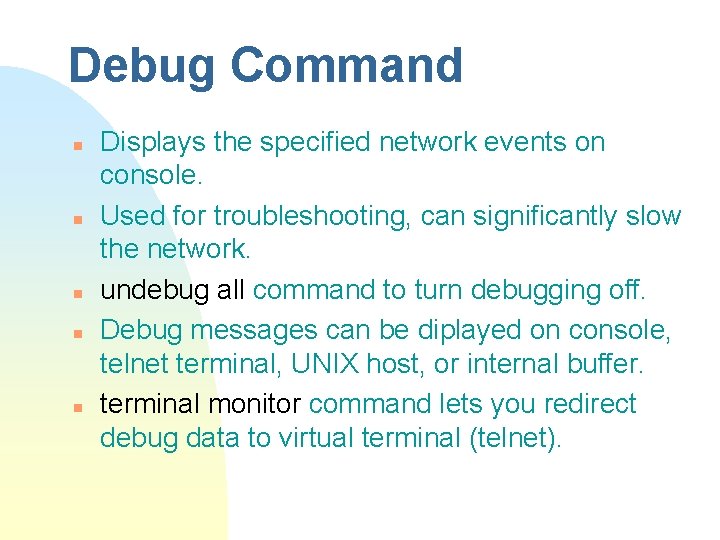

Debug Command n n n Displays the specified network events on console. Used for troubleshooting, can significantly slow the network. undebug all command to turn debugging off. Debug messages can be diplayed on console, telnet terminal, UNIX host, or internal buffer. terminal monitor command lets you redirect debug data to virtual terminal (telnet).

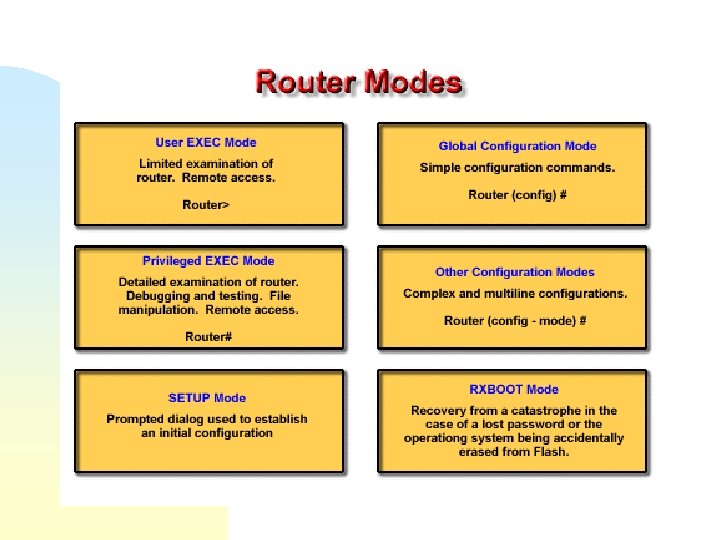

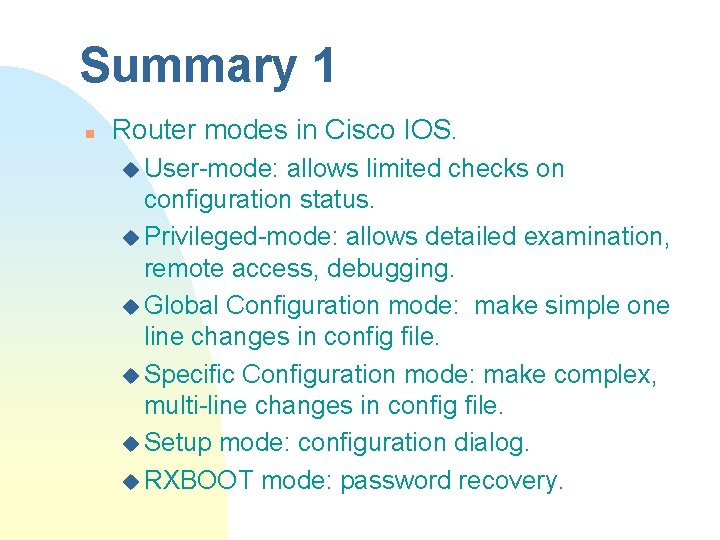

Summary 1 n Router modes in Cisco IOS. u User-mode: allows limited checks on configuration status. u Privileged-mode: allows detailed examination, remote access, debugging. u Global Configuration mode: make simple one line changes in config file. u Specific Configuration mode: make complex, multi-line changes in config file. u Setup mode: configuration dialog. u RXBOOT mode: password recovery.

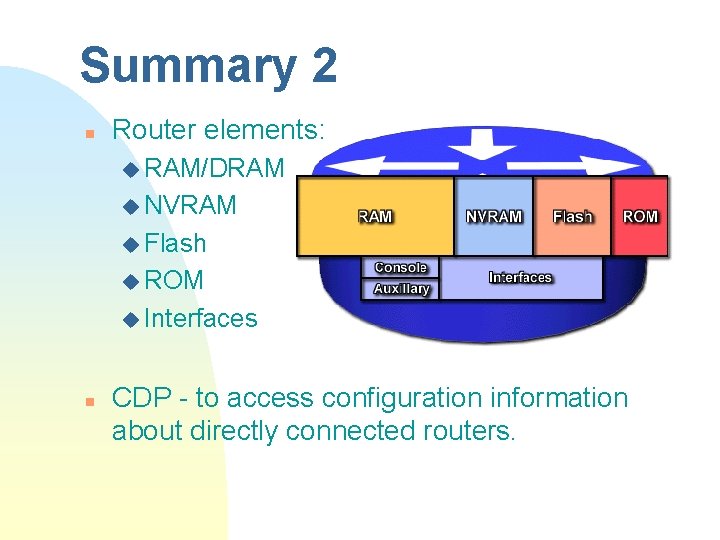

Summary 2 n Router elements: u RAM/DRAM u NVRAM u Flash u ROM u Interfaces n CDP - to access configuration information about directly connected routers.

Summary 3 n Testing: u Telnet - layer 7, can router be accessed? u Ping - layer 3, are protocol packets being routed? (end-to-end) u Trace - tests each step along the way. u Show ip route - looks at routing table for target network table entry. n n Show interface serial - checks line and protocol status. Debug.
