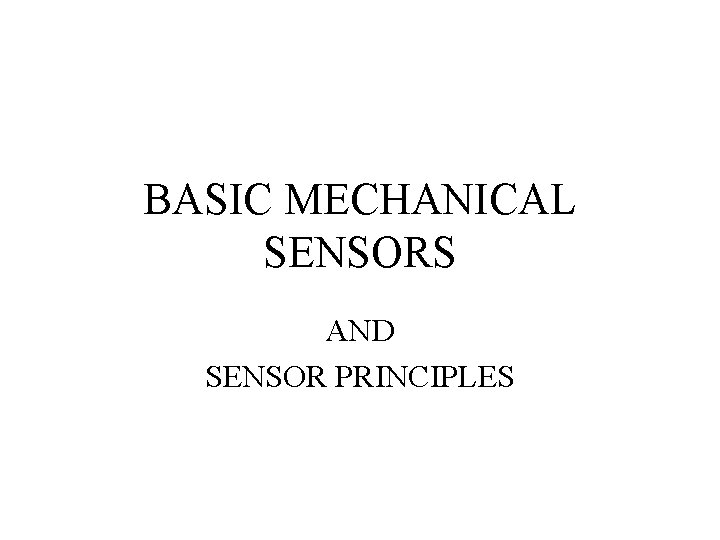

BASIC MECHANICAL SENSORS AND SENSOR PRINCIPLES Definitions Transducer

BASIC MECHANICAL SENSORS AND SENSOR PRINCIPLES

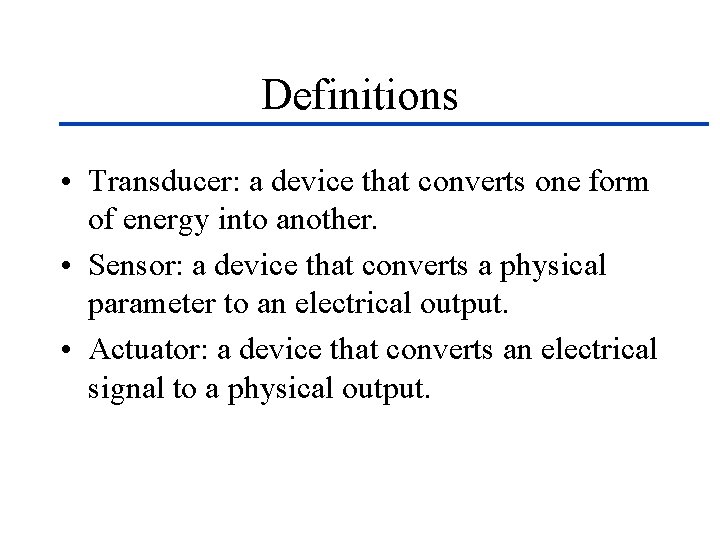

Definitions • Transducer: a device that converts one form of energy into another. • Sensor: a device that converts a physical parameter to an electrical output. • Actuator: a device that converts an electrical signal to a physical output.

Sensors : definition and principles

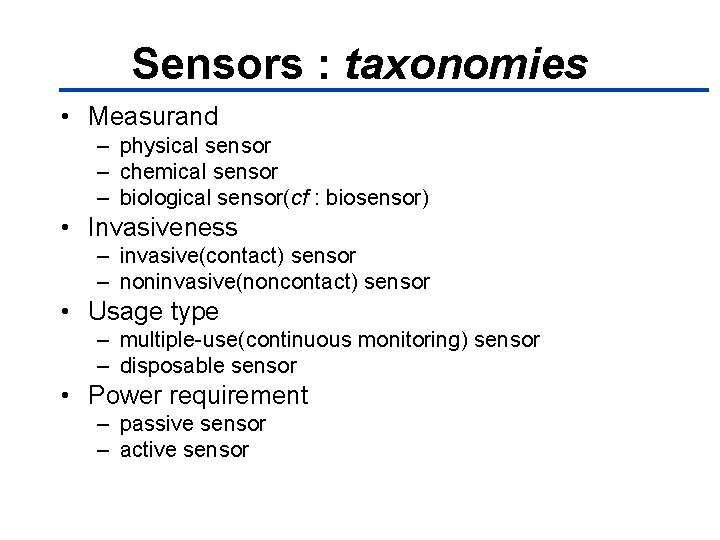

Sensors : taxonomies • Measurand – physical sensor – chemical sensor – biological sensor(cf : biosensor) • Invasiveness – invasive(contact) sensor – noninvasive(noncontact) sensor • Usage type – multiple-use(continuous monitoring) sensor – disposable sensor • Power requirement – passive sensor – active sensor

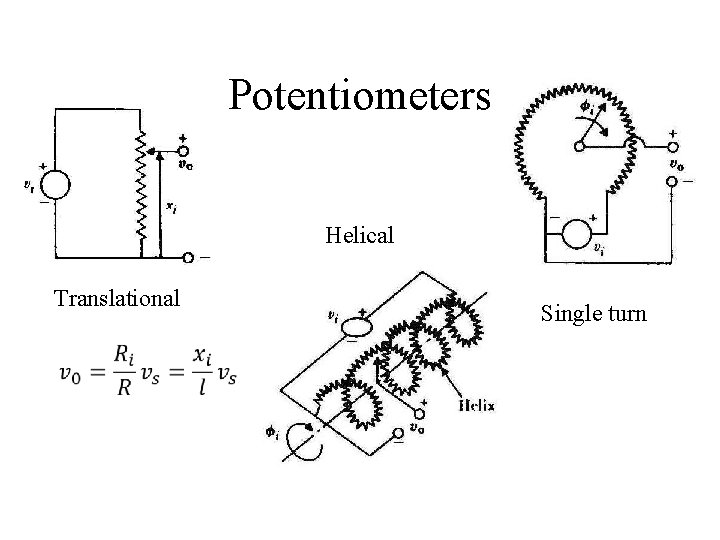

Potentiometers Helical Translational Single turn

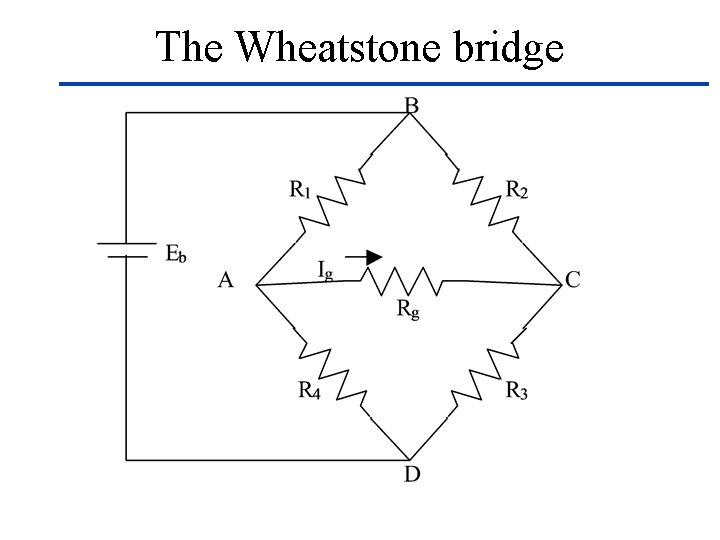

The Wheatstone bridge

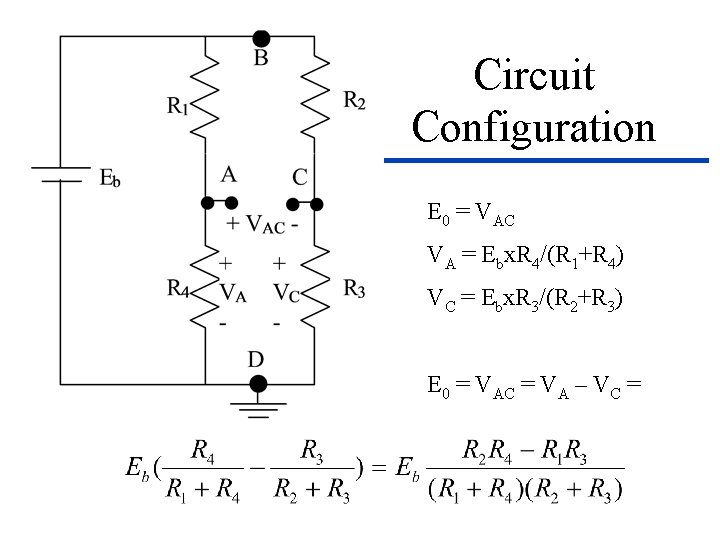

Circuit Configuration E 0 = VAC VA = Ebx. R 4/(R 1+R 4) VC = Ebx. R 3/(R 2+R 3) E 0 = VAC = VA – VC =

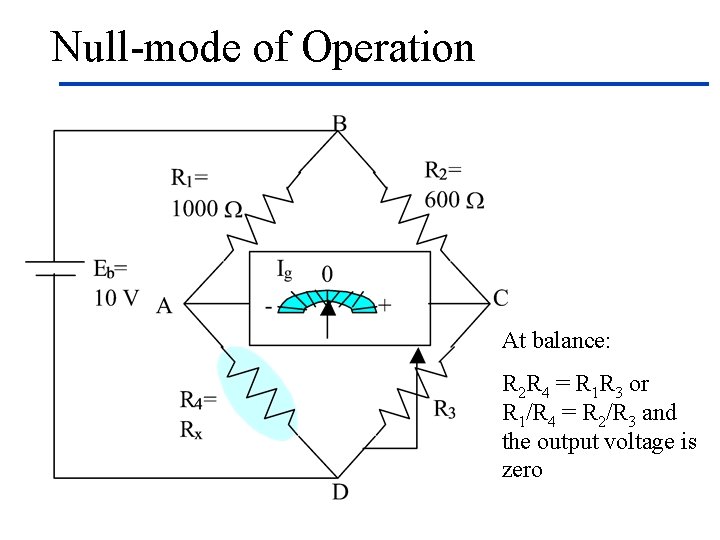

Null-mode of Operation At balance: R 2 R 4 = R 1 R 3 or R 1/R 4 = R 2/R 3 and the output voltage is zero

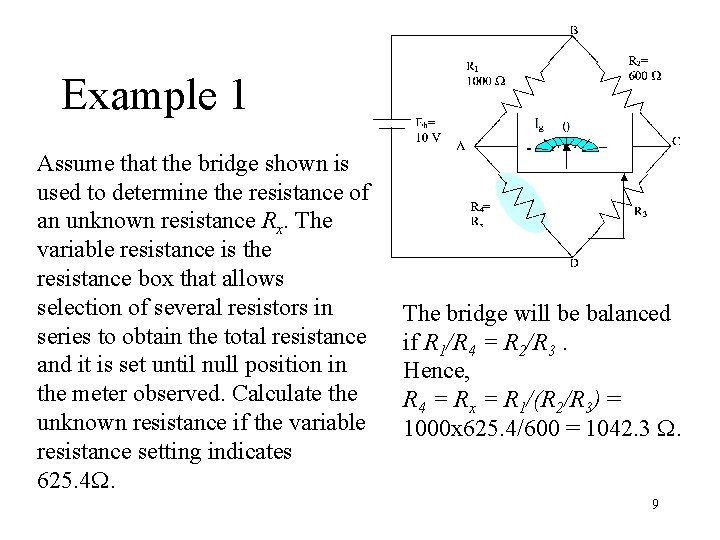

Example 1 Assume that the bridge shown is used to determine the resistance of an unknown resistance Rx. The variable resistance is the resistance box that allows selection of several resistors in series to obtain the total resistance and it is set until null position in the meter observed. Calculate the unknown resistance if the variable resistance setting indicates 625. 4. The bridge will be balanced if R 1/R 4 = R 2/R 3. Hence, R 4 = Rx = R 1/(R 2/R 3) = 1000 x 625. 4/600 = 1042. 3 . 9

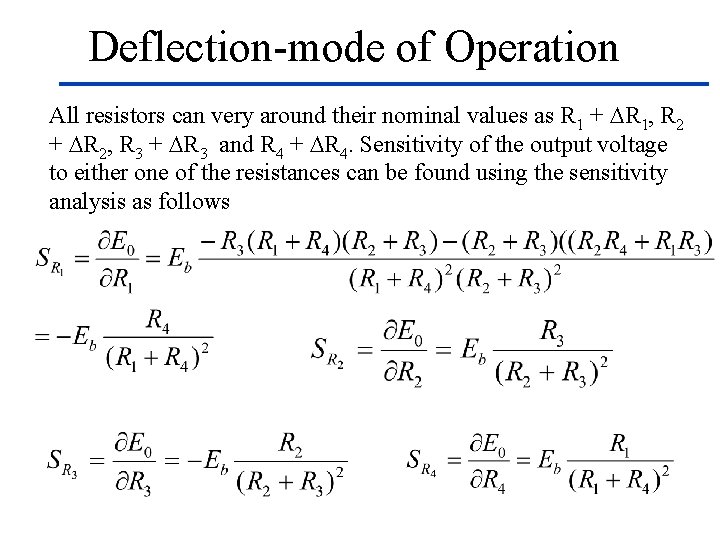

Deflection-mode of Operation All resistors can very around their nominal values as R 1 + R 1, R 2 + R 2, R 3 + R 3 and R 4 + R 4. Sensitivity of the output voltage to either one of the resistances can be found using the sensitivity analysis as follows

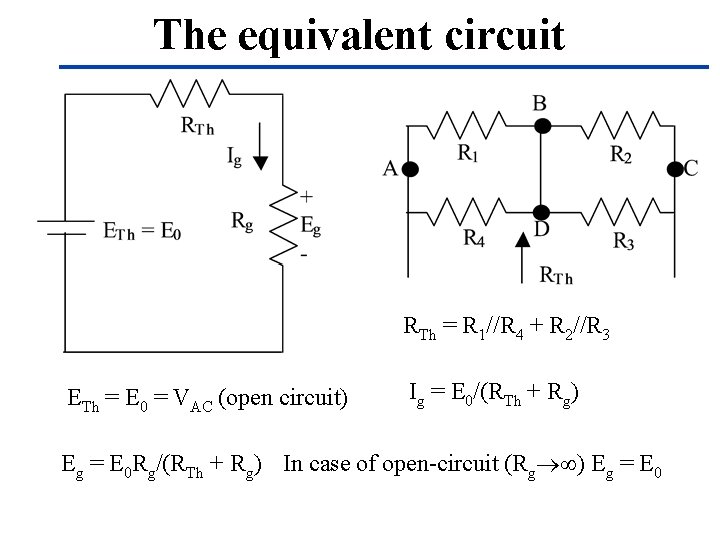

The equivalent circuit RTh = R 1//R 4 + R 2//R 3 ETh = E 0 = VAC (open circuit) Ig = E 0/(RTh + Rg) Eg = E 0 Rg/(RTh + Rg) In case of open-circuit (Rg ) Eg = E 0

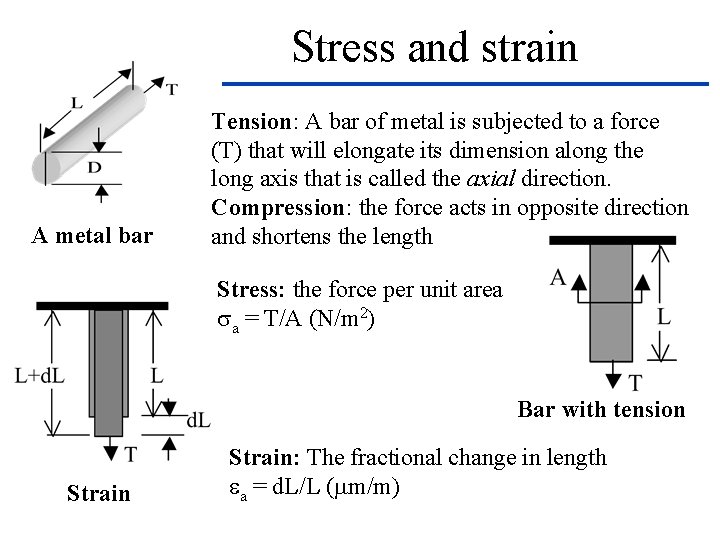

Stress and strain A metal bar Tension: A bar of metal is subjected to a force (T) that will elongate its dimension along the long axis that is called the axial direction. Compression: the force acts in opposite direction and shortens the length Stress: the force per unit area a = T/A (N/m 2) Bar with tension Strain: The fractional change in length a = d. L/L ( m/m)

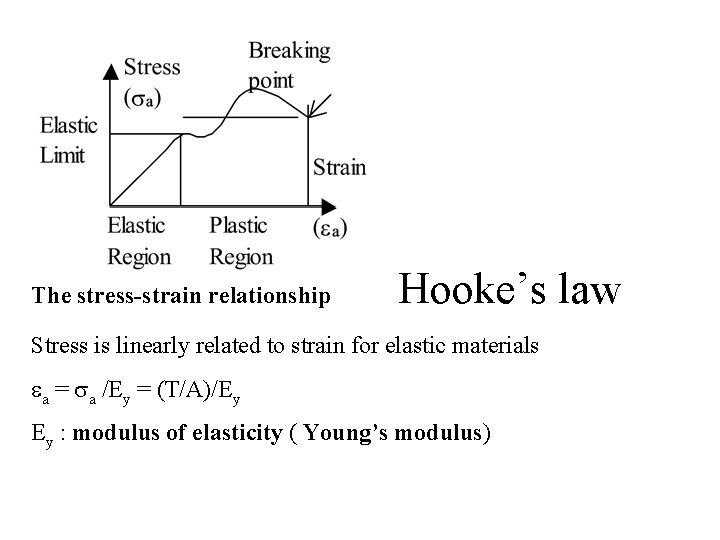

The stress-strain relationship Hooke’s law Stress is linearly related to strain for elastic materials a = a /Ey = (T/A)/Ey Ey : modulus of elasticity ( Young’s modulus)

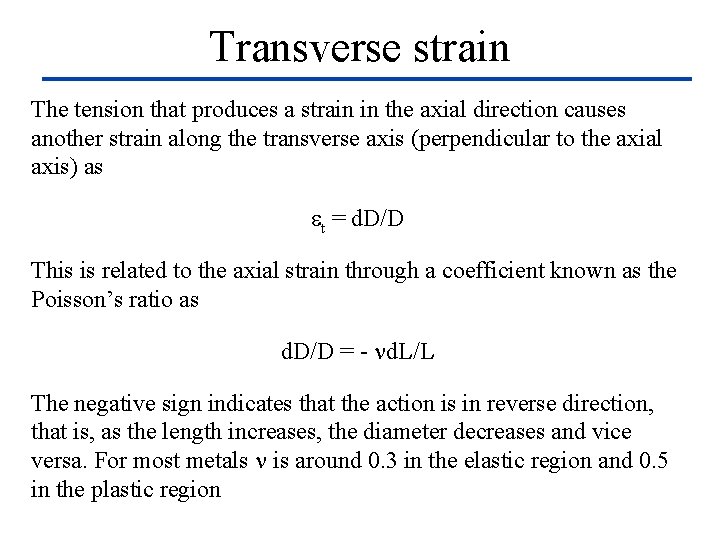

Transverse strain The tension that produces a strain in the axial direction causes another strain along the transverse axis (perpendicular to the axial axis) as t = d. D/D This is related to the axial strain through a coefficient known as the Poisson’s ratio as d. D/D = - d. L/L The negative sign indicates that the action is in reverse direction, that is, as the length increases, the diameter decreases and vice versa. For most metals is around 0. 3 in the elastic region and 0. 5 in the plastic region

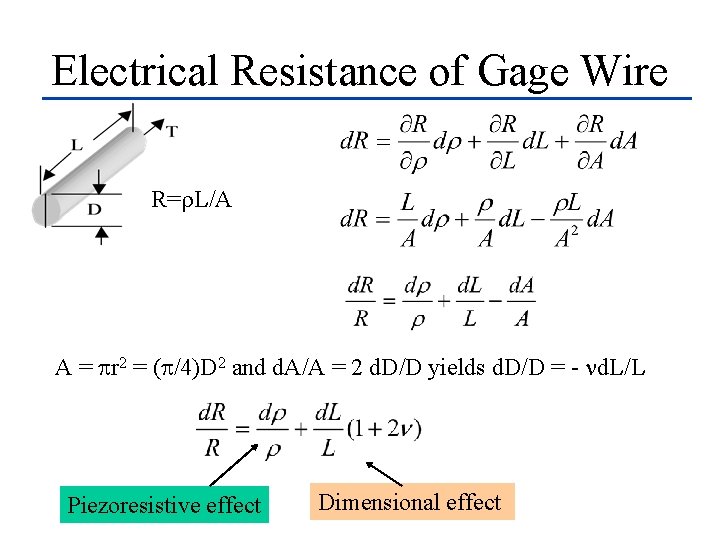

Electrical Resistance of Gage Wire R= L/A A = r 2 = ( /4)D 2 and d. A/A = 2 d. D/D yields d. D/D = - d. L/L Piezoresistive effect Dimensional effect

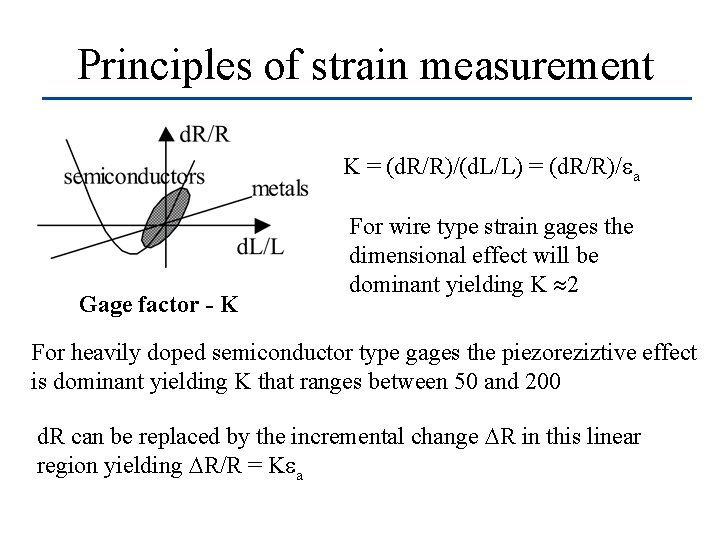

Principles of strain measurement K = (d. R/R)/(d. L/L) = (d. R/R)/ a Gage factor - K For wire type strain gages the dimensional effect will be dominant yielding K 2 For heavily doped semiconductor type gages the piezoreziztive effect is dominant yielding K that ranges between 50 and 200 d. R can be replaced by the incremental change R in this linear region yielding R/R = K a

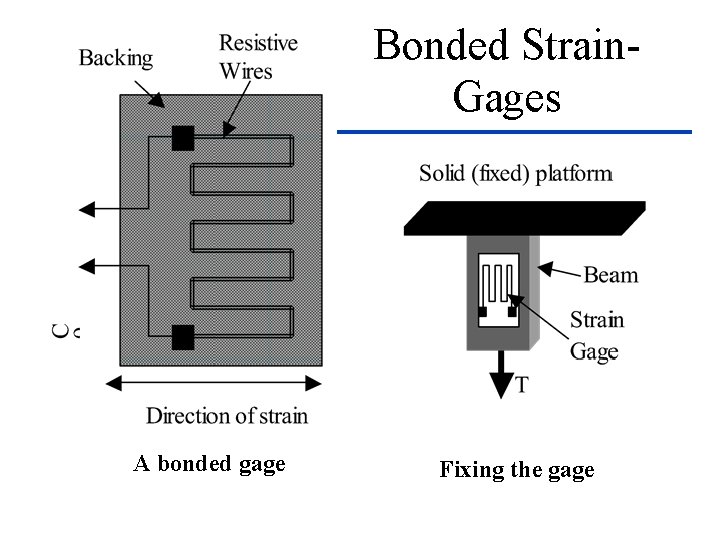

Bonded Strain. Gages A bonded gage Fixing the gage

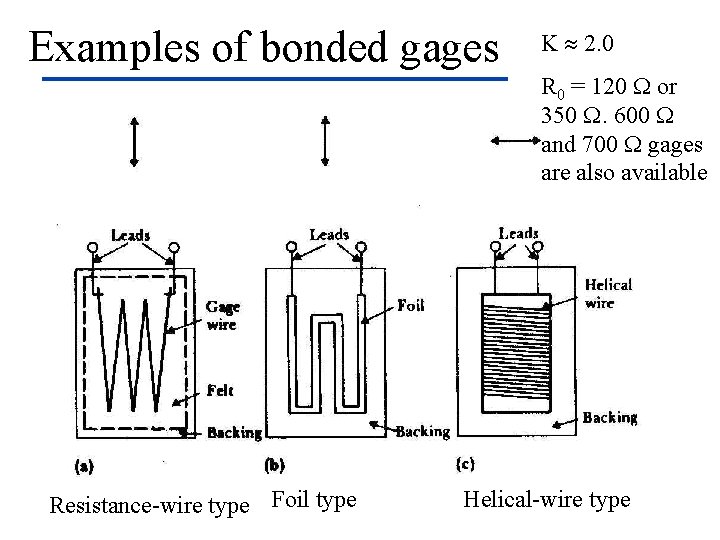

Examples of bonded gages Resistance-wire type Foil type K 2. 0 R 0 = 120 or 350 . 600 and 700 gages are also available Helical-wire type

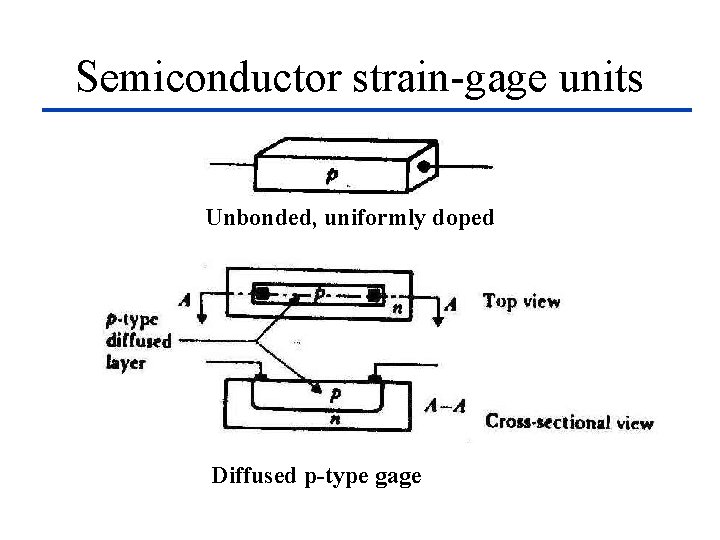

Semiconductor strain-gage units Unbonded, uniformly doped Diffused p-type gage

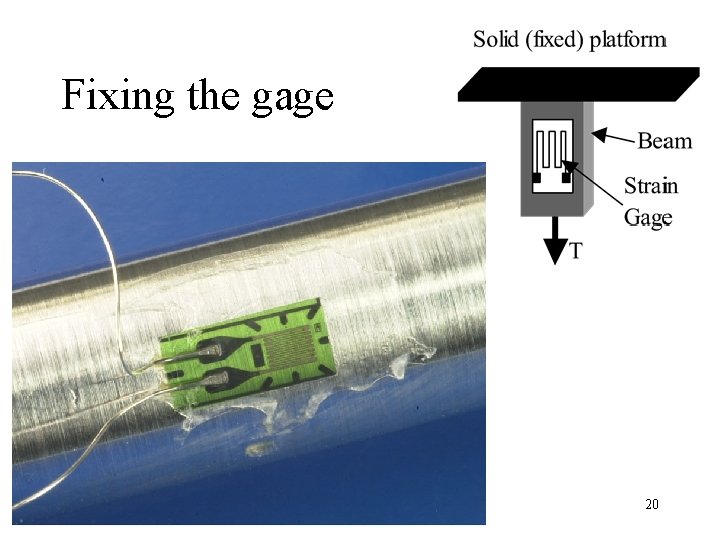

Fixing the gage 20

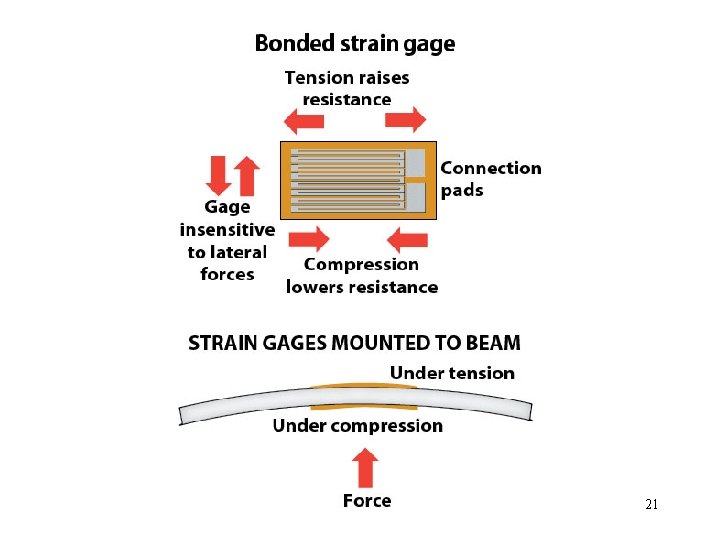

21

Strain gage on a specimen 22

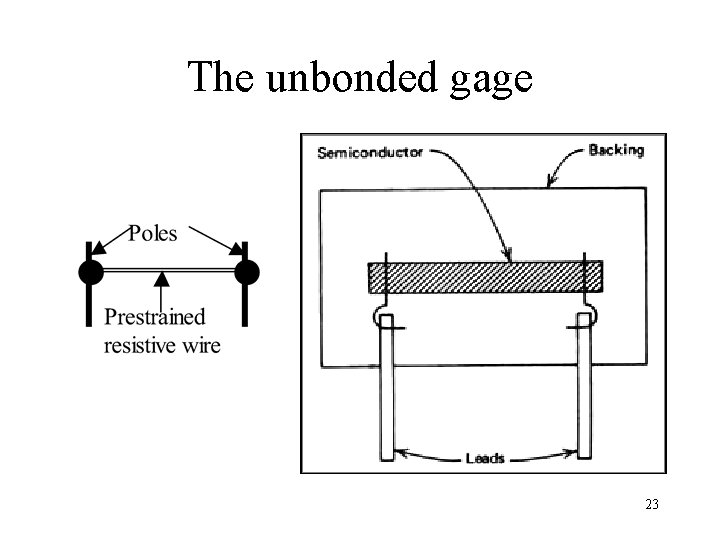

The unbonded gage 23

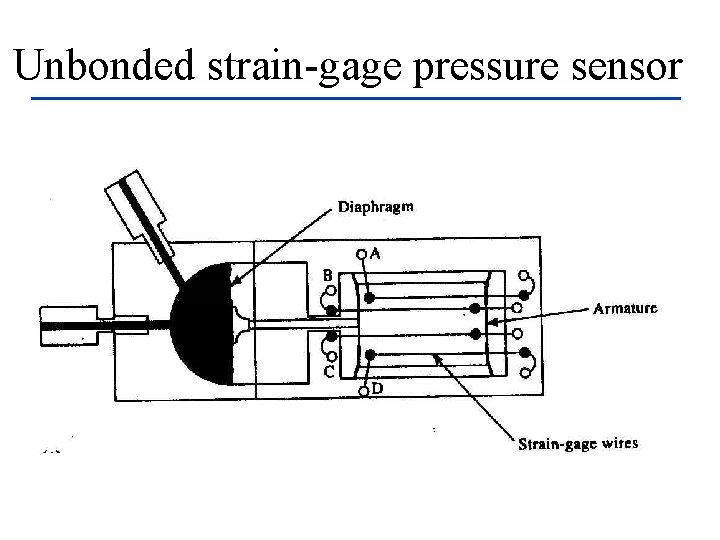

Unbonded strain-gage pressure sensor

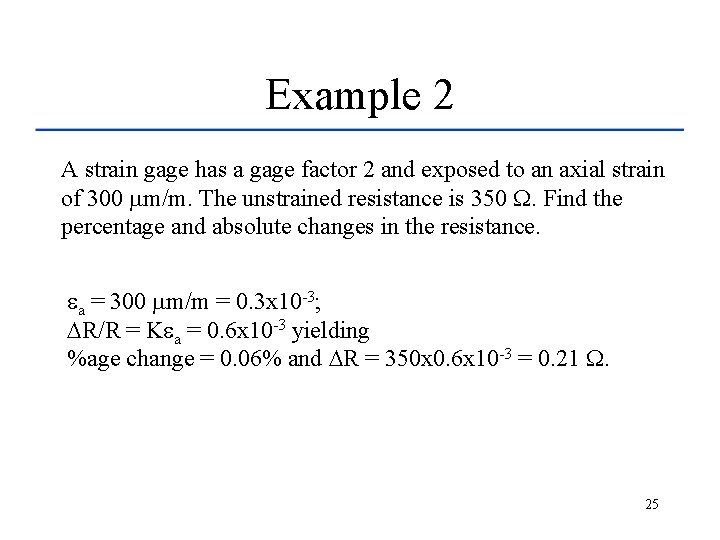

Example 2 A strain gage has a gage factor 2 and exposed to an axial strain of 300 m/m. The unstrained resistance is 350 . Find the percentage and absolute changes in the resistance. a = 300 m/m = 0. 3 x 10 -3; R/R = K a = 0. 6 x 10 -3 yielding %age change = 0. 06% and R = 350 x 0. 6 x 10 -3 = 0. 21 . 25

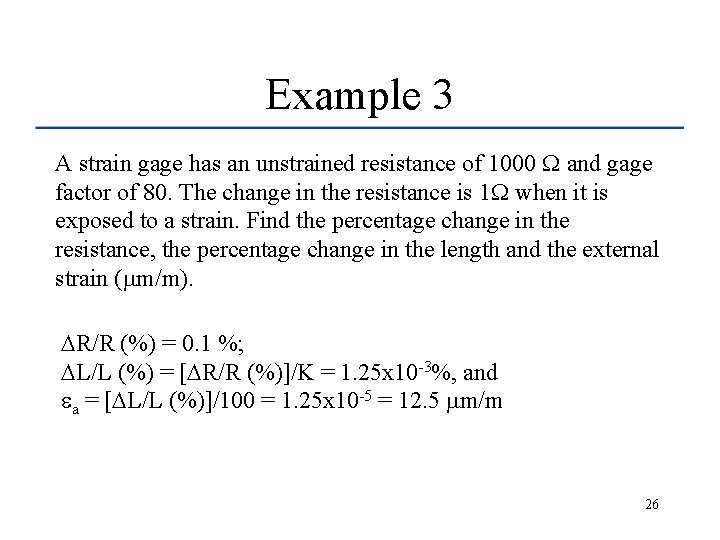

Example 3 A strain gage has an unstrained resistance of 1000 and gage factor of 80. The change in the resistance is 1 when it is exposed to a strain. Find the percentage change in the resistance, the percentage change in the length and the external strain ( m/m). R/R (%) = 0. 1 %; L/L (%) = [ R/R (%)]/K = 1. 25 x 10 -3%, and a = [ L/L (%)]/100 = 1. 25 x 10 -5 = 12. 5 m/m 26

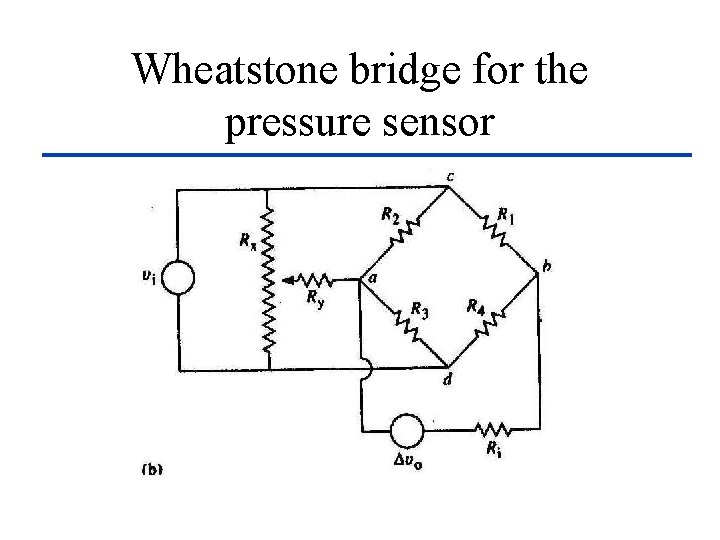

Wheatstone bridge for the pressure sensor

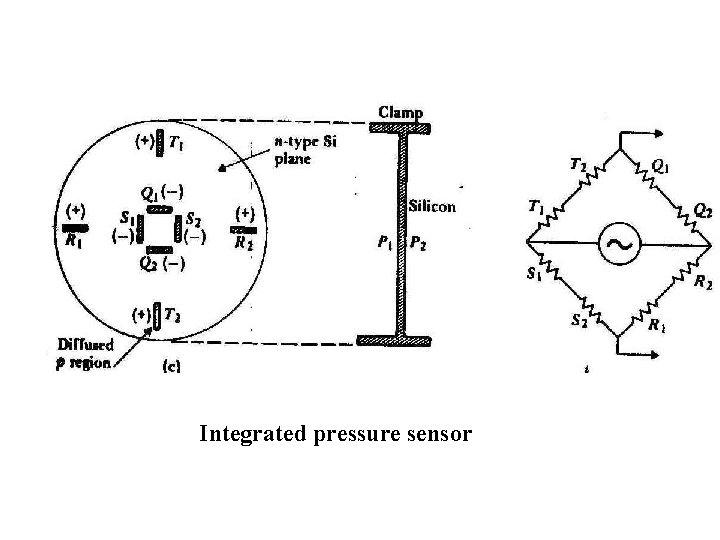

Integrated pressure sensor

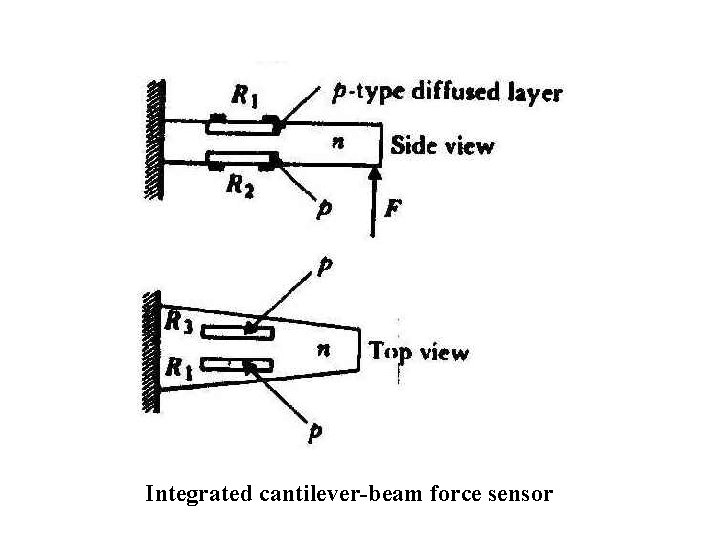

Integrated cantilever-beam force sensor

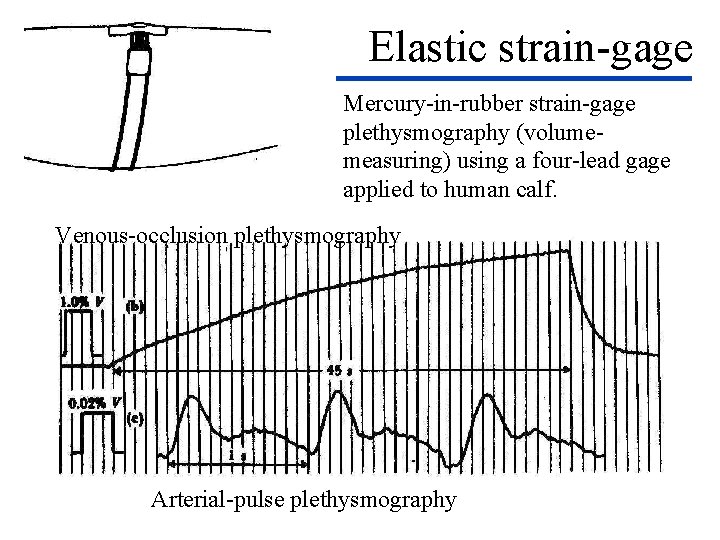

Elastic strain-gage Mercury-in-rubber strain-gage plethysmography (volumemeasuring) using a four-lead gage applied to human calf. Venous-occlusion plethysmography Arterial-pulse plethysmography

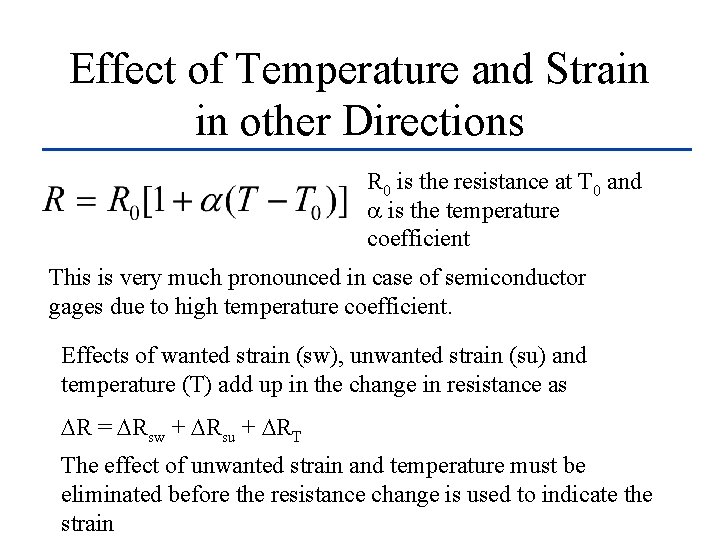

Effect of Temperature and Strain in other Directions R 0 is the resistance at T 0 and is the temperature coefficient This is very much pronounced in case of semiconductor gages due to high temperature coefficient. Effects of wanted strain (sw), unwanted strain (su) and temperature (T) add up in the change in resistance as R = Rsw + Rsu + RT The effect of unwanted strain and temperature must be eliminated before the resistance change is used to indicate the strain

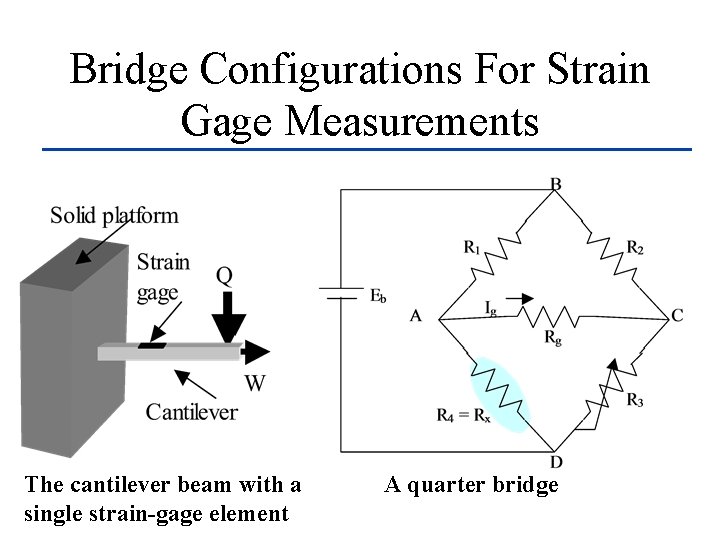

Bridge Configurations For Strain Gage Measurements The cantilever beam with a single strain-gage element A quarter bridge

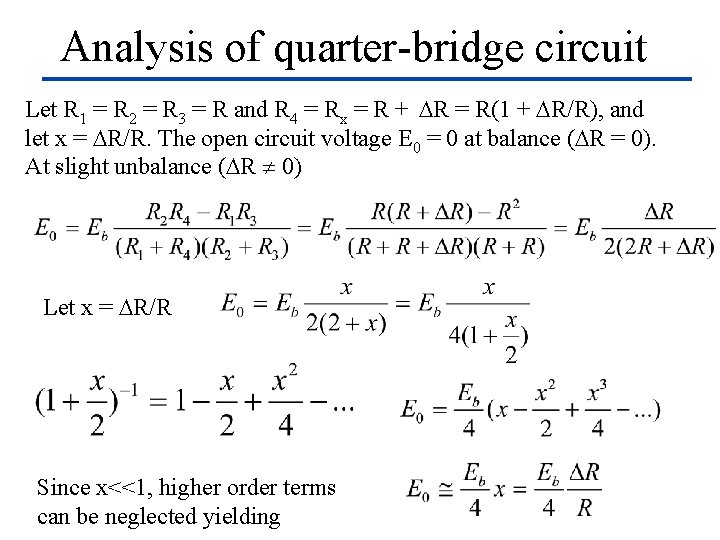

Analysis of quarter-bridge circuit Let R 1 = R 2 = R 3 = R and R 4 = Rx = R + R = R(1 + R/R), and let x = R/R. The open circuit voltage E 0 = 0 at balance ( R = 0). At slight unbalance ( R 0) Let x = R/R Since x<<1, higher order terms can be neglected yielding

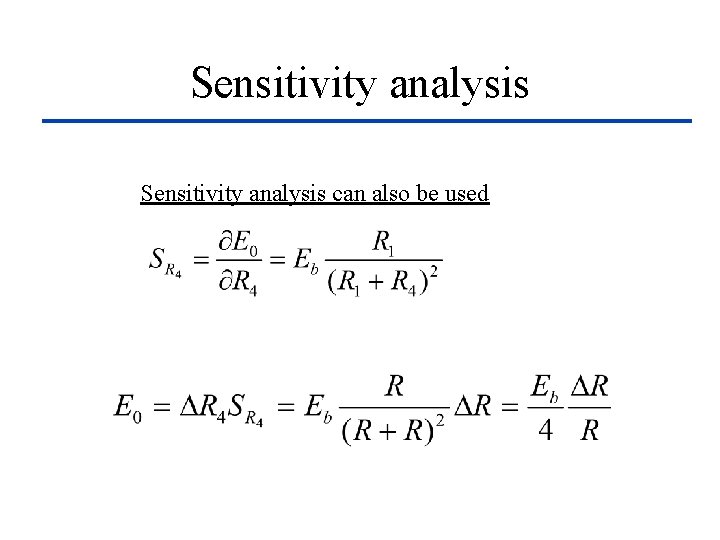

Sensitivity analysis can also be used

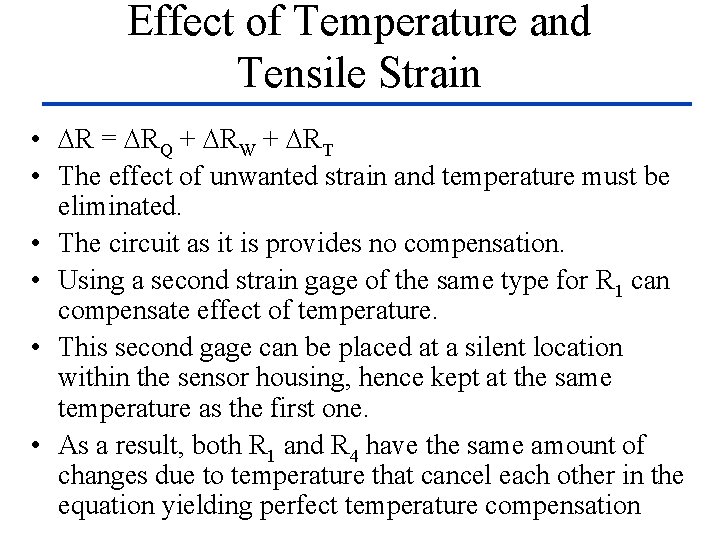

Effect of Temperature and Tensile Strain • R = RQ + RW + RT • The effect of unwanted strain and temperature must be eliminated. • The circuit as it is provides no compensation. • Using a second strain gage of the same type for R 1 can compensate effect of temperature. • This second gage can be placed at a silent location within the sensor housing, hence kept at the same temperature as the first one. • As a result, both R 1 and R 4 have the same amount of changes due to temperature that cancel each other in the equation yielding perfect temperature compensation

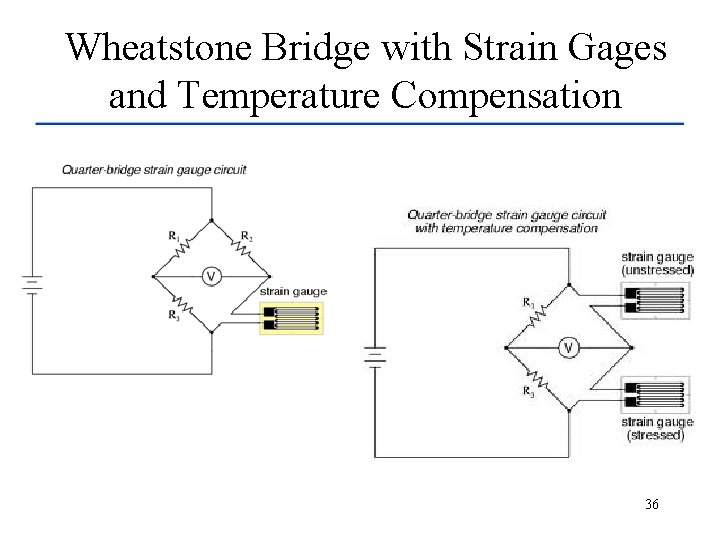

Wheatstone Bridge with Strain Gages and Temperature Compensation 36

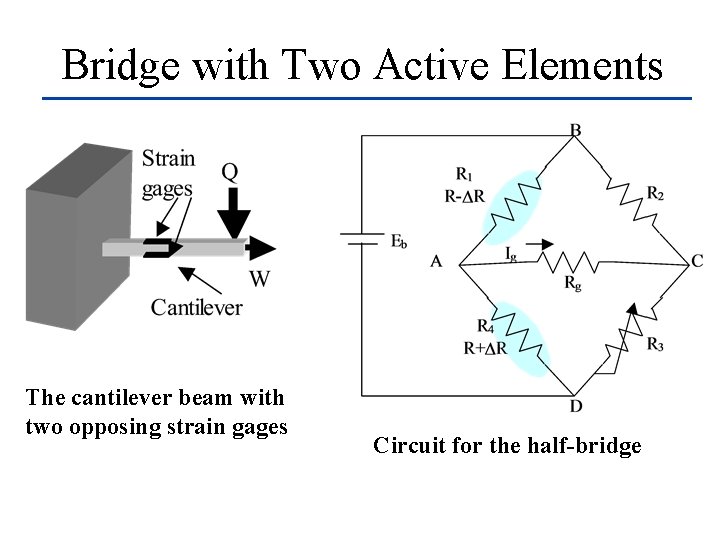

Bridge with Two Active Elements The cantilever beam with two opposing strain gages Circuit for the half-bridge

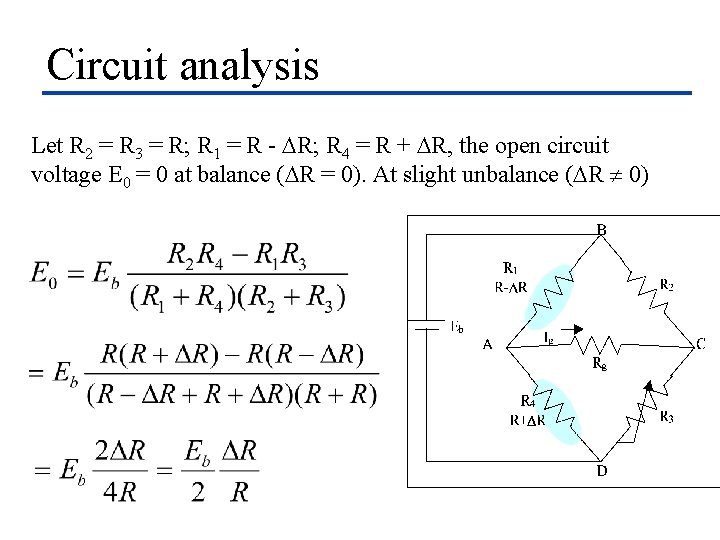

Circuit analysis Let R 2 = R 3 = R; R 1 = R - R; R 4 = R + R, the open circuit voltage E 0 = 0 at balance ( R = 0). At slight unbalance ( R 0)

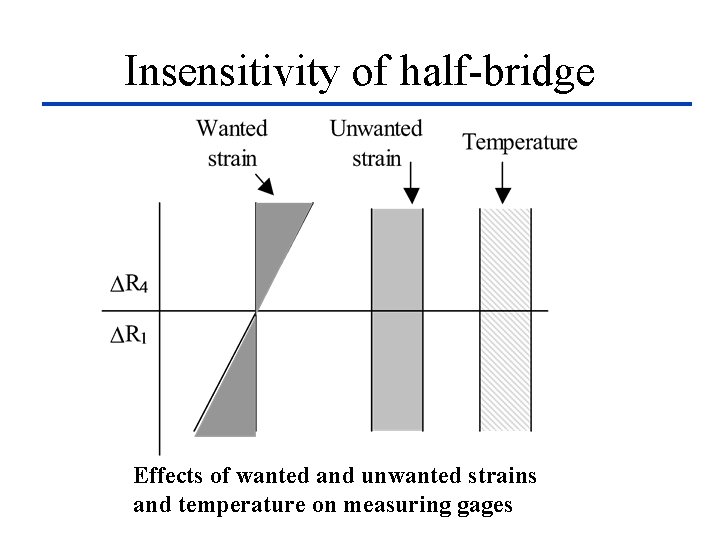

Insensitivity of half-bridge Effects of wanted and unwanted strains and temperature on measuring gages

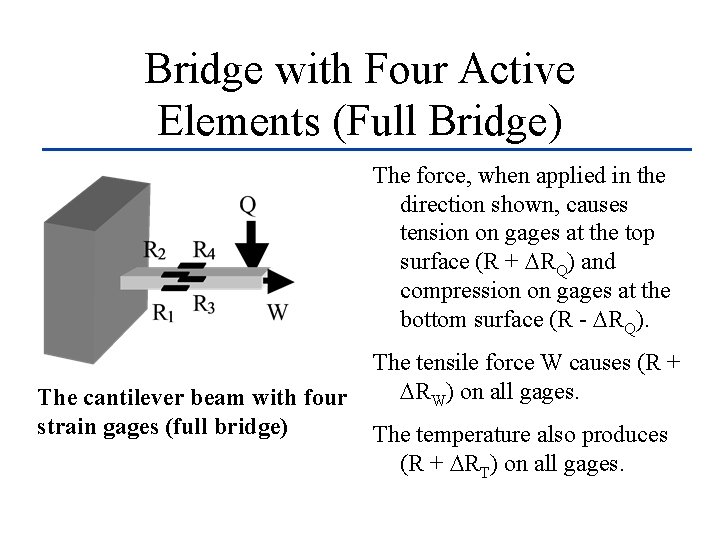

Bridge with Four Active Elements (Full Bridge) The force, when applied in the direction shown, causes tension on gages at the top surface (R + RQ) and compression on gages at the bottom surface (R - RQ). The cantilever beam with four strain gages (full bridge) The tensile force W causes (R + RW) on all gages. The temperature also produces (R + RT) on all gages.

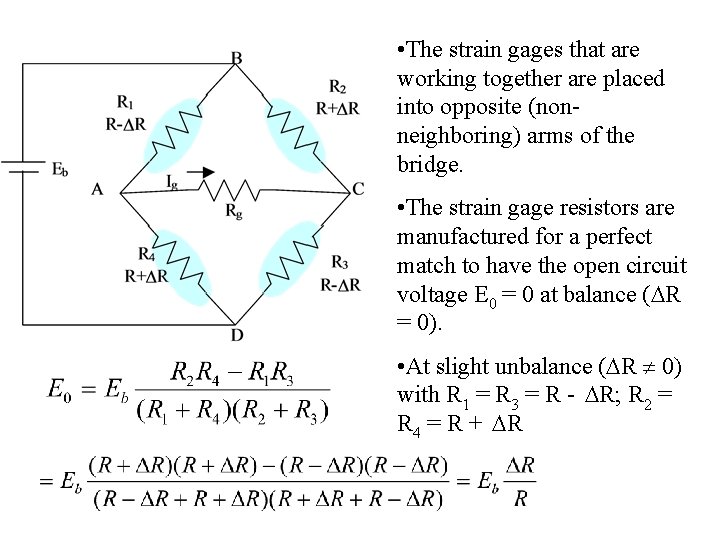

• The strain gages that are working together are placed into opposite (nonneighboring) arms of the bridge. • The strain gage resistors are manufactured for a perfect match to have the open circuit voltage E 0 = 0 at balance ( R = 0). • At slight unbalance ( R 0) with R 1 = R 3 = R - R; R 2 = R 4 = R + R

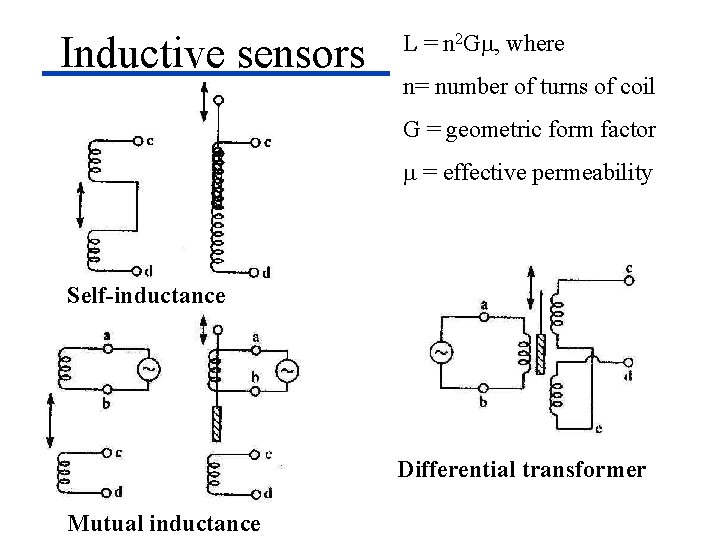

Inductive sensors L = n 2 G , where n= number of turns of coil G = geometric form factor = effective permeability Self-inductance Differential transformer Mutual inductance

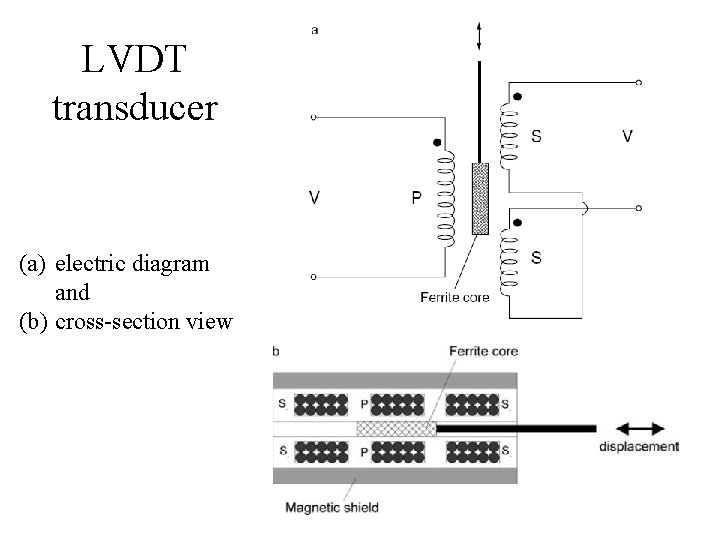

LVDT transducer (a) electric diagram and (b) cross-section view

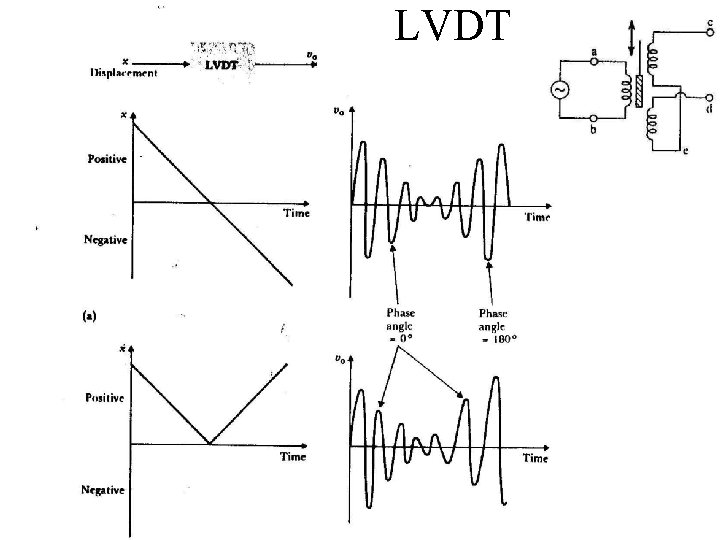

LVDT

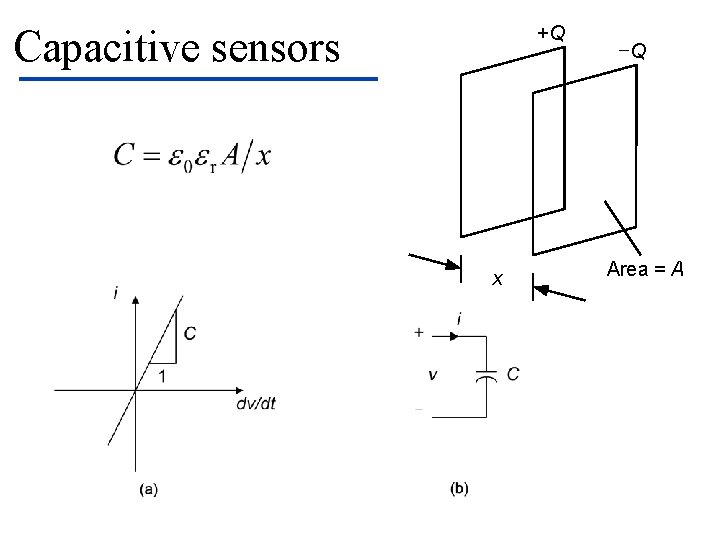

+Q Capacitive sensors x -Q Area = A

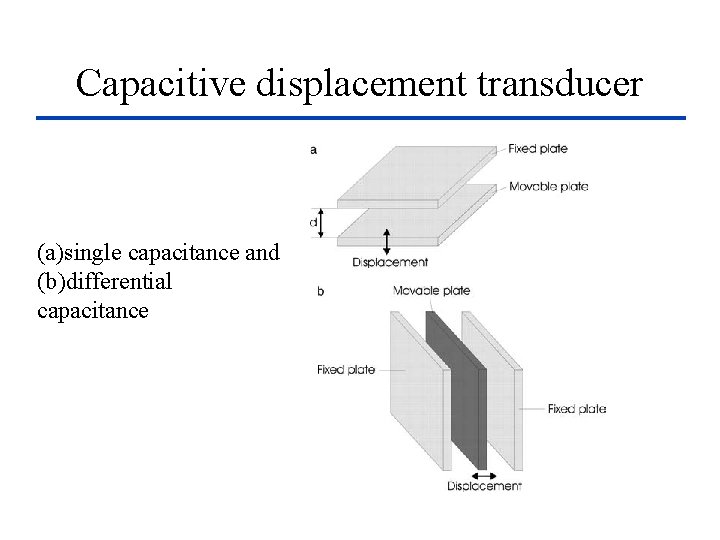

Capacitive displacement transducer (a)single capacitance and (b)differential capacitance

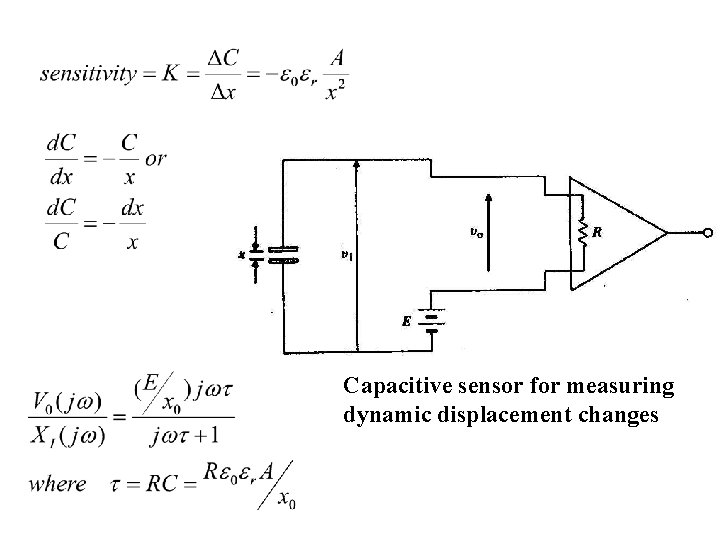

Capacitive sensor for measuring dynamic displacement changes

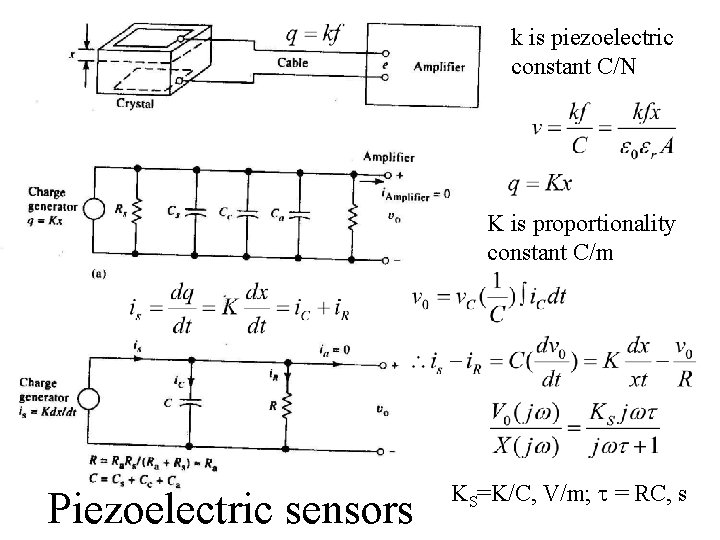

k is piezoelectric constant C/N K is proportionality constant C/m Piezoelectric sensors KS=K/C, V/m; = RC, s

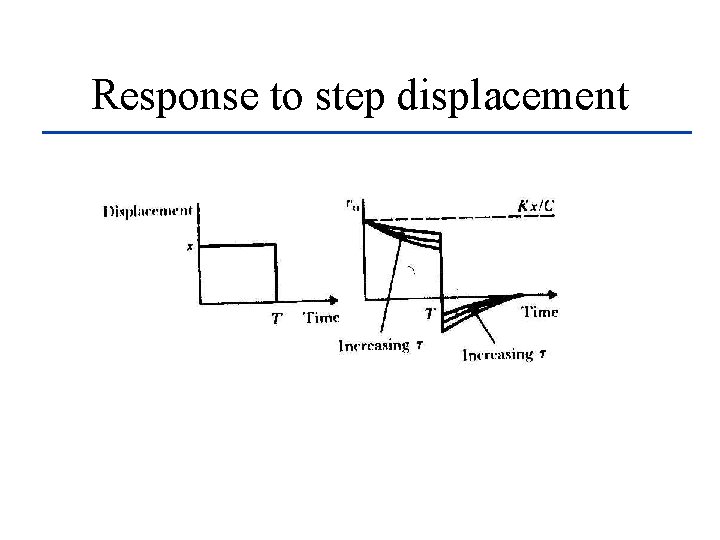

Response to step displacement

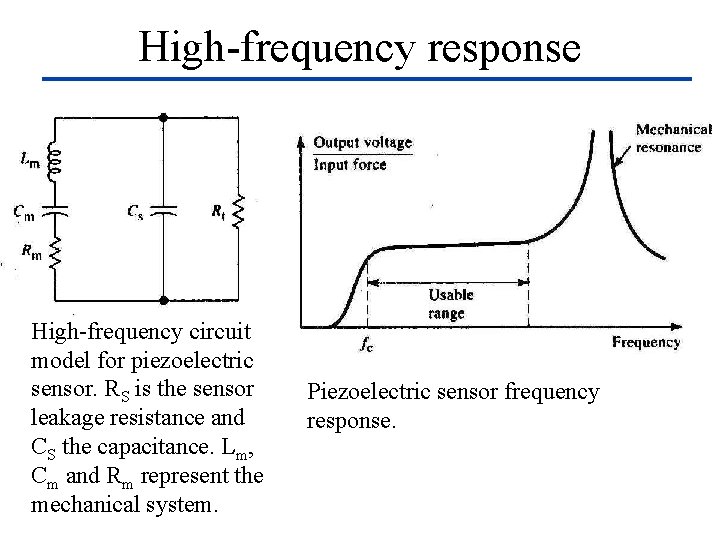

High-frequency response High-frequency circuit model for piezoelectric sensor. RS is the sensor leakage resistance and CS the capacitance. Lm, Cm and Rm represent the mechanical system. Piezoelectric sensor frequency response.

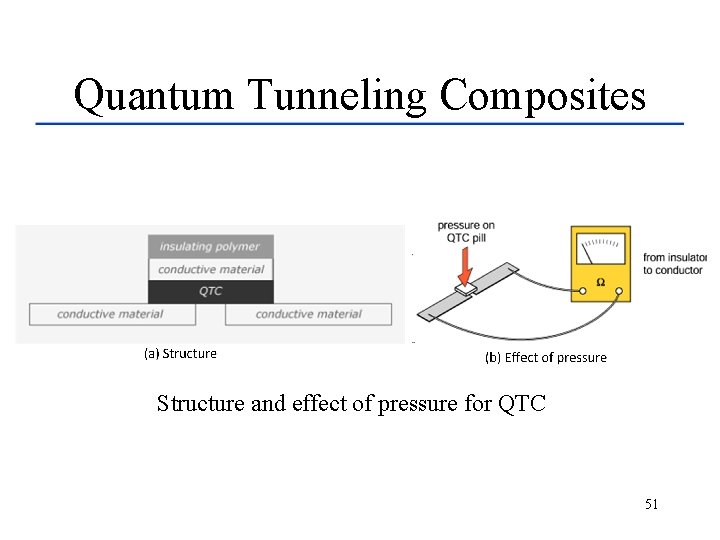

Quantum Tunneling Composites Structure and effect of pressure for QTC 51

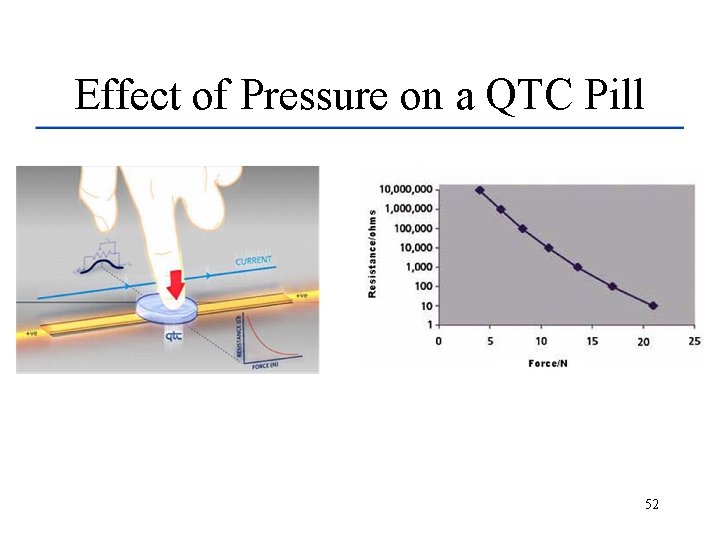

Effect of Pressure on a QTC Pill 52

QTC as a Pressure Sensor 53
