Basic Hand Power Tools Hand Tool Safety Carry

Basic Hand Power Tools Hand Tool Safety • Carry with sharp point downward • Pass handle first • Wear eye protection with striking tools • Do not use broken tools Model Agricultural Core Curriculum: Supplement University of California, Davis • Keep tools properly sharpened • Pull wrenches, don’t push them • Keep tools and material off the floor 911. T 1

Basic Hand Power Tools Electric Power Tool Safety • Keep cord and tool dry at all times • Be sure switch is off before plugging the tool in • Remove chuck key from drills immediately after use Model Agricultural Core Curriculum: Supplement University of California, Davis • Wear eye protection • If conditions are dusty, wear a dust mask • After turning machine off hold it firmly until it comes to a dead stop • Keep cord away from blades and moving parts 911. T 1

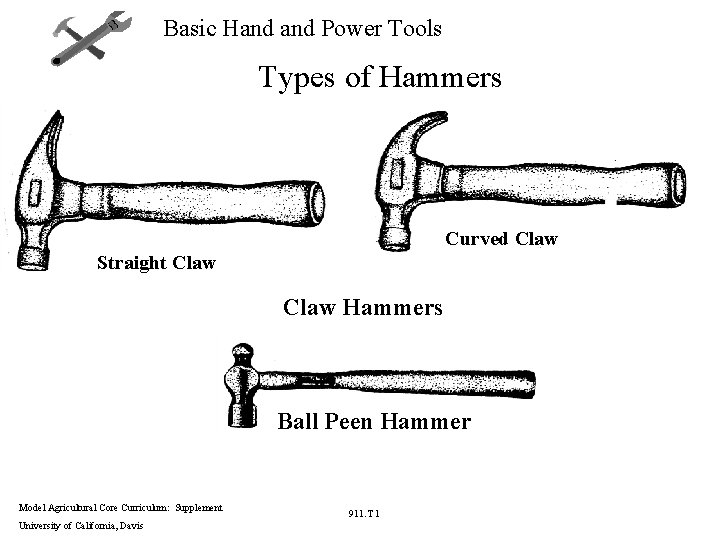

Basic Hand Power Tools Types of Hammers Curved Claw Straight Claw Hammers Ball Peen Hammer Model Agricultural Core Curriculum: Supplement University of California, Davis 911. T 1

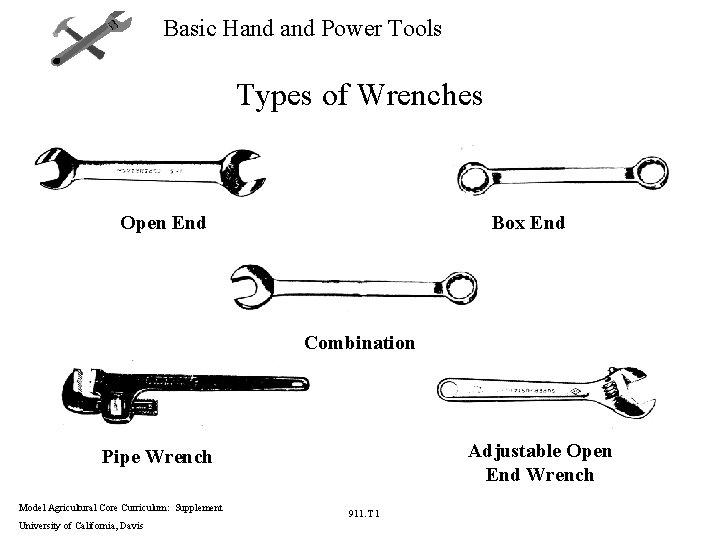

Basic Hand Power Tools Types of Wrenches Open End Box End Combination Adjustable Open End Wrench Pipe Wrench Model Agricultural Core Curriculum: Supplement University of California, Davis 911. T 1

Basic Hand Power Tools Cutting With a Hacksaw Model Agricultural Core Curriculum: Supplement University of California, Davis 911. T 1

Basic Hand Power Tools Cold Chisels Model Agricultural Core Curriculum: Supplement University of California, Davis 911. T 1

Basic Hand Power Tools Types of Screw Drivers Standard Phillips Screw Driver Bit Model Agricultural Core Curriculum: Supplement University of California, Davis Offset Screw Driver 911. T 1

Basic Hand Power Tools Selecting Screw Drivers Tip Should be Square Tip should be correct Marred screw head proper width size for screw Correct phillips tip Model Agricultural Core Curriculum: Supplement University of California, Davis Tip too wide Tip curved 911. T 1 Screw driver too small for screw

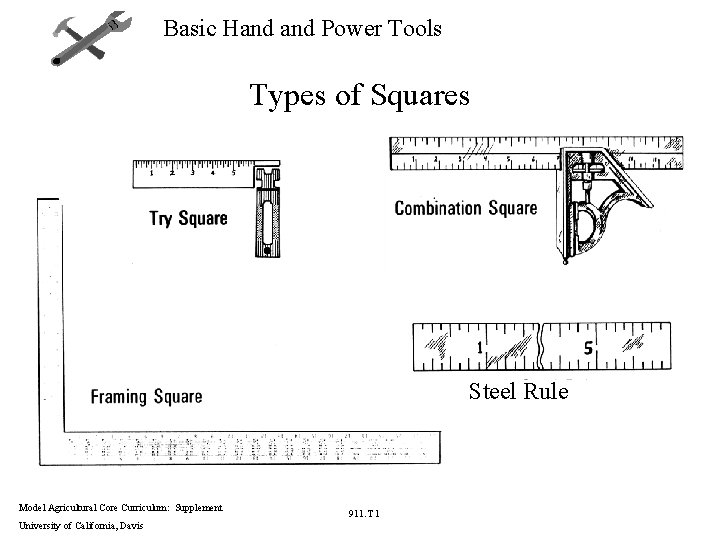

Basic Hand Power Tools Types of Squares Steel Rule Model Agricultural Core Curriculum: Supplement University of California, Davis 911. T 1

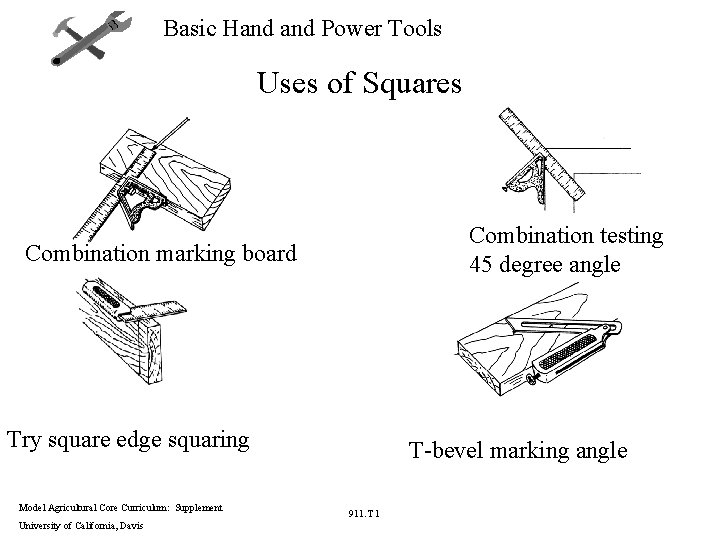

Basic Hand Power Tools Uses of Squares Combination testing 45 degree angle Combination marking board Try square edge squaring Model Agricultural Core Curriculum: Supplement University of California, Davis T-bevel marking angle 911. T 1

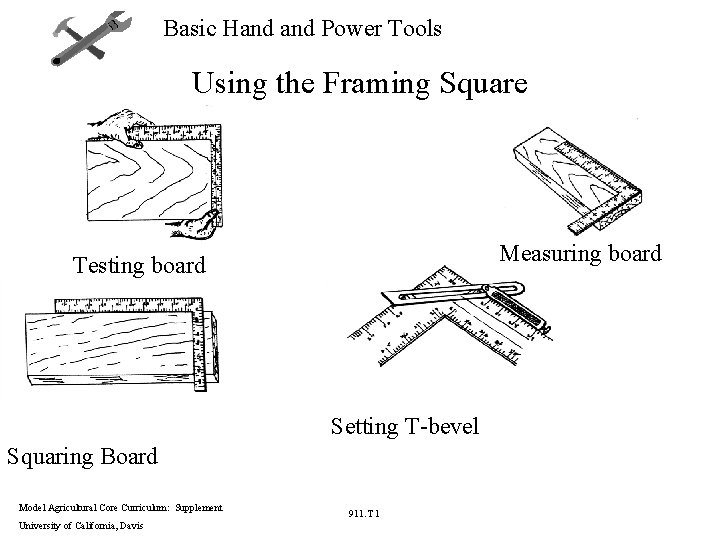

Basic Hand Power Tools Using the Framing Square Measuring board Testing board Setting T-bevel Squaring Board Model Agricultural Core Curriculum: Supplement University of California, Davis 911. T 1

Basic Hand Power Tools Parts of the Circular Saw A. Brush assembly B. Blade C. Handle with switch D. Motor E. Guard F. Depth adjustment G. Bevel adjustment H. 3 -wire cord I. Saw blade Model Agricultural Core Curriculum: Supplement University of California, Davis 911. T 1 J. Rip guide bracket

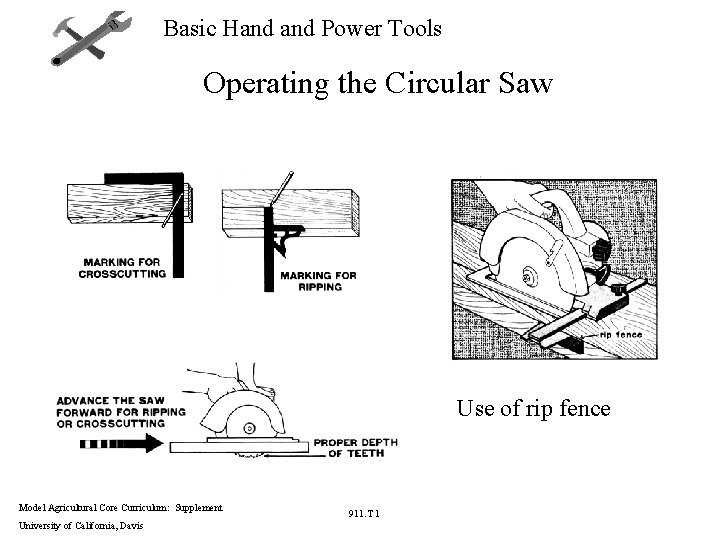

Basic Hand Power Tools Operating the Circular Saw Use of rip fence Model Agricultural Core Curriculum: Supplement University of California, Davis 911. T 1

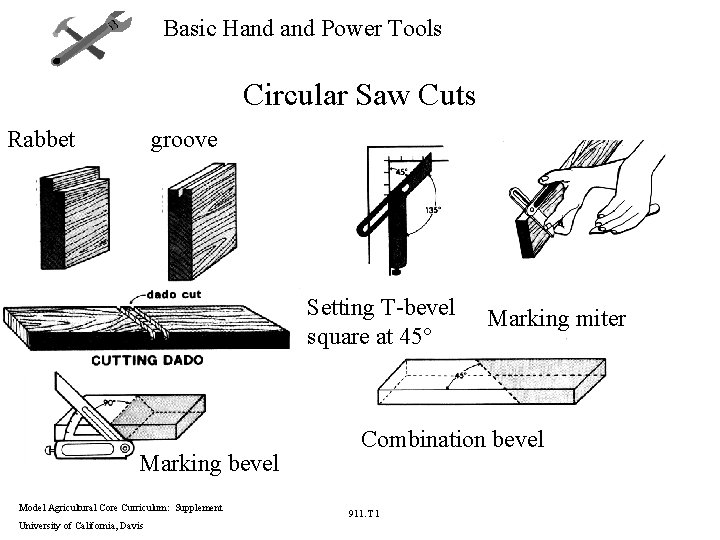

Basic Hand Power Tools Circular Saw Cuts Rabbet groove Setting T-bevel square at 45° Marking bevel Model Agricultural Core Curriculum: Supplement University of California, Davis Marking miter Combination bevel 911. T 1

Basic Hand Power Tools Types of Drill Bits Multi-spur Wood Countersink Spur Rose Countersink Wood screw pilot Model Agricultural Core Curriculum: Supplement University of California, Davis Twist Reamer Expansive Circle cutter power wood 911. T 1

Basic Hand Power Tools Common Garden Tools Shovel Hand Trowel Model Agricultural Core Curriculum: Supplement University of California, Davis Garden Rake Post-hole digger 911. T 1 Hoe Hand shears
