Basic Fundamentals of Solar Cell Semiconductor Physics Review

Basic Fundamentals of Solar Cell Semiconductor Physics

Review Topics

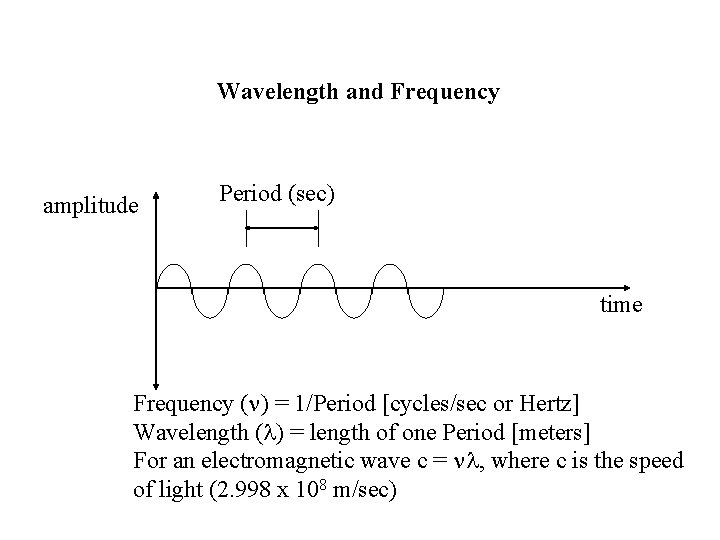

Wavelength and Frequency amplitude Period (sec) time Frequency (n) = 1/Period [cycles/sec or Hertz] Wavelength (l) = length of one Period [meters] For an electromagnetic wave c = nl, where c is the speed of light (2. 998 x 108 m/sec)

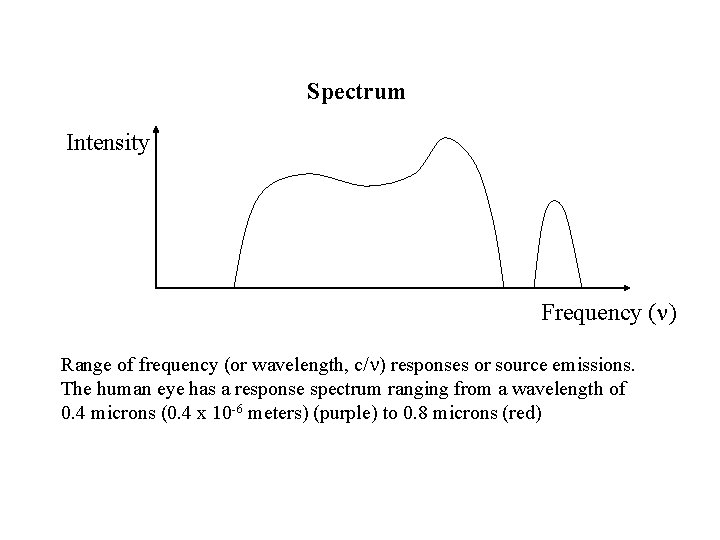

Spectrum Intensity Frequency (n) Range of frequency (or wavelength, c/n) responses or source emissions. The human eye has a response spectrum ranging from a wavelength of 0. 4 microns (0. 4 x 10 -6 meters) (purple) to 0. 8 microns (red)

Solar Spectrum at Earth Surface (noon time) 925 W/m 2 E (e. V) = hc/l l = hc/E Visable range. 75 mm (red) -. 4 mm (purple) 1. 6 e. V - 3. 1 e. V Solar Spectrum at Earth Surface. 5 e. V - 3. 6 e. V 2. 6 mm (infrared) - 0. 34 mm (ultraviolet) visible inrfared ultraviolet Solar Spectrum at Earth Surface (noon time)

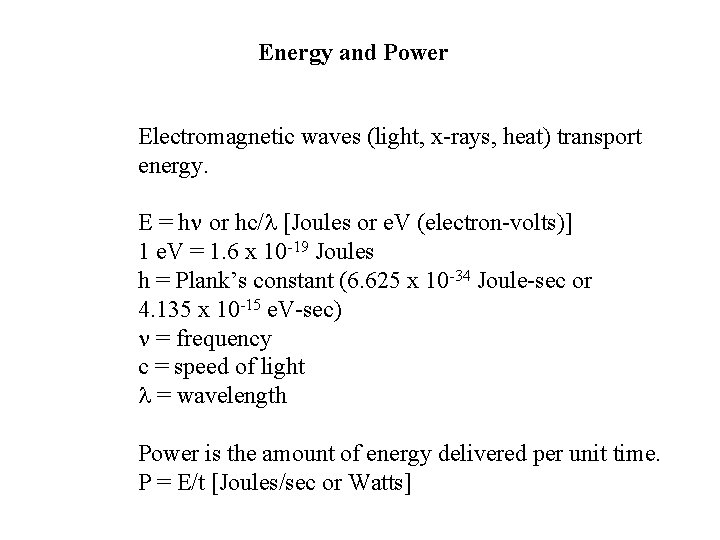

Energy and Power Electromagnetic waves (light, x-rays, heat) transport energy. E = hn or hc/l [Joules or e. V (electron-volts)] 1 e. V = 1. 6 x 10 -19 Joules h = Plank’s constant (6. 625 x 10 -34 Joule-sec or 4. 135 x 10 -15 e. V-sec) n = frequency c = speed of light l = wavelength Power is the amount of energy delivered per unit time. P = E/t [Joules/sec or Watts]

Photons A light particle having energy. Sunlight is a spectrum of photons. X-rays and heat are photons also. Photon Energy E = hn or hc/l [Joules or e. V (electron-volts)] (higher frequency = higher energy) (lower energy)

Irradiance Amount of power over a given area, Watts/m 2 4 red photons every second Area = 2. 00 m 2 Energy of 1 red photon = hc/l = (6. 63 x 10 -34 J-s)(2. 99 x 108 m/s)/(0. 80 x 10 -6 meters) = 2. 48 x 10 -19 J = 1. 55 e. V Irradiance = Power/Area = (4 photons/sec)(Energy of 1 photon)/2. 00 m 2 = 4. 96 x 10 -19 W/m 2 Typical sunlight irradiance is 0. 093 W/cm 2 = 930 W/m 2 at l =. 55 mm

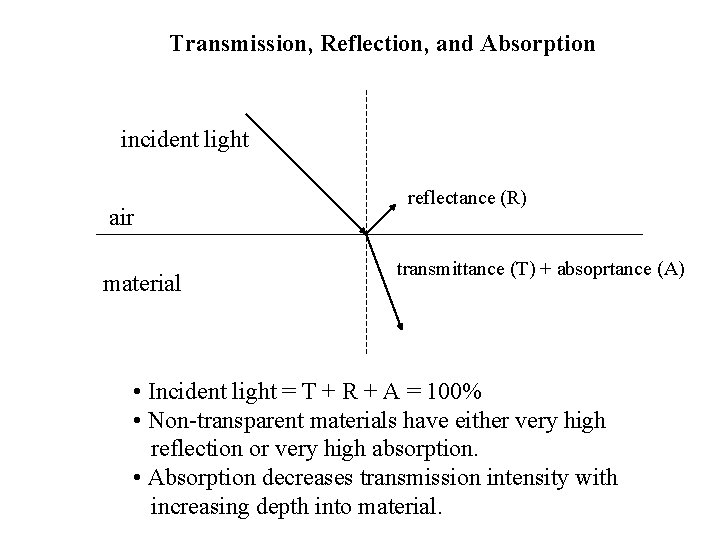

Transmission, Reflection, and Absorption incident light air material reflectance (R) transmittance (T) + absoprtance (A) • Incident light = T + R + A = 100% • Non-transparent materials have either very high reflection or very high absorption. • Absorption decreases transmission intensity with increasing depth into material.

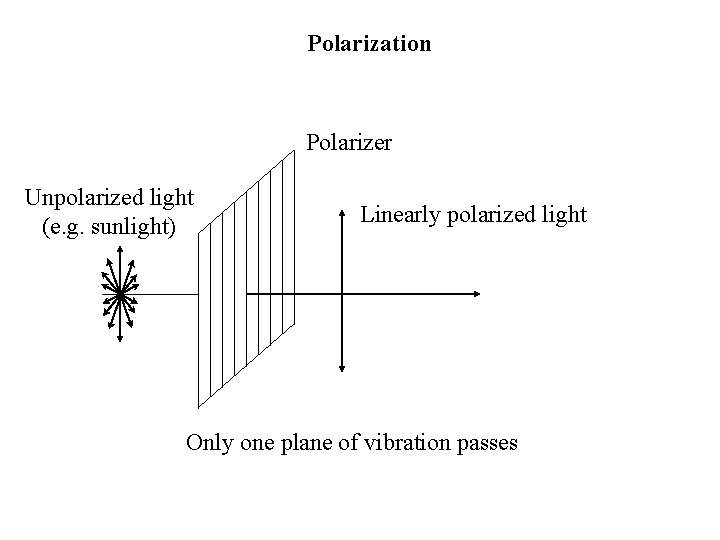

Polarization Polarizer Unpolarized light (e. g. sunlight) Linearly polarized light Only one plane of vibration passes

Basics of Semiconductor Physics

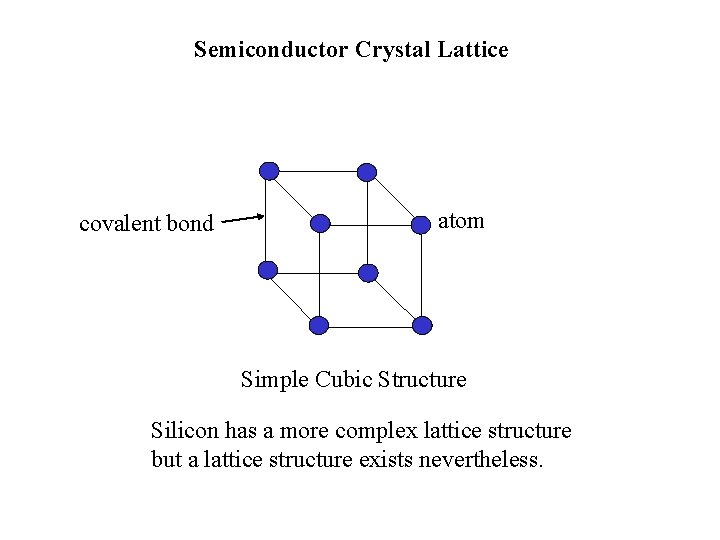

Semiconductor Crystal Lattice covalent bond atom Simple Cubic Structure Silicon has a more complex lattice structure but a lattice structure exists nevertheless.

Crystalline Silicon Bonds valance electrons Si atom (Group IV) = covalent bond (electron sharing)

Breaking of Covalent Bond Creating Electron-Hole Pair free electron moving e- through lattice covalent bond + created hole (missing electron) Si atom Photon (light, heat) Photon hits valance electron with enough energy to create a free electron and hole

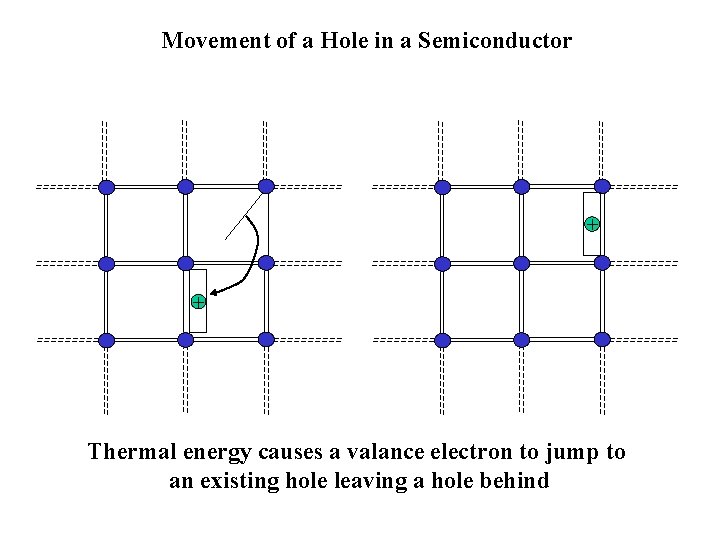

Movement of a Hole in a Semiconductor + + Thermal energy causes a valance electron to jump to an existing hole leaving a hole behind

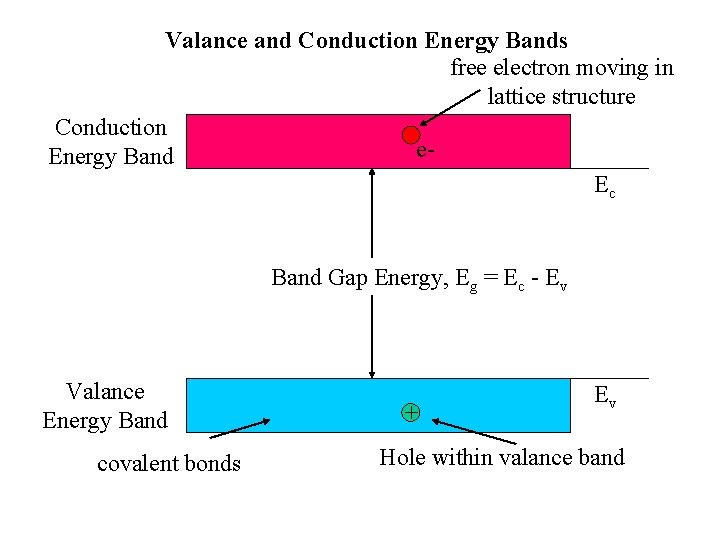

Valance and Conduction Energy Bands free electron moving in lattice structure Conduction e. Energy Band Ec Band Gap Energy, Eg = Ec - Ev Valance Energy Band covalent bonds + Ev Hole within valance band

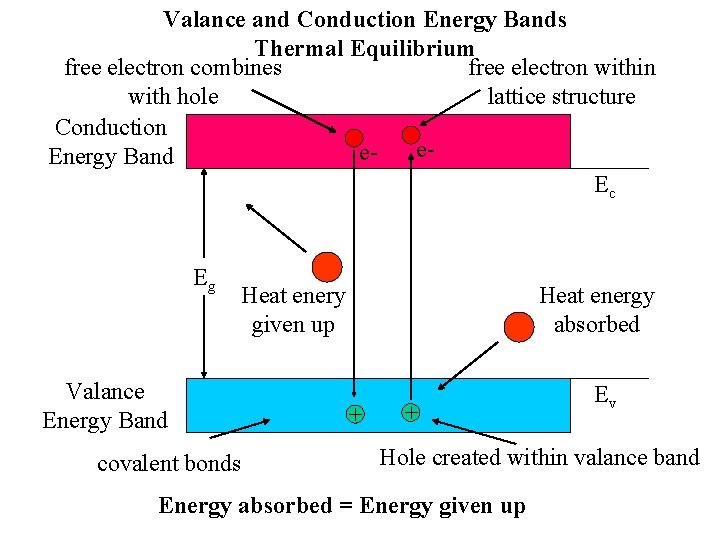

Valance and Conduction Energy Bands Thermal Equilibrium free electron combines free electron within with hole lattice structure Conduction ee. Energy Band Ec Eg Heat enery given up Valance Energy Band covalent bonds Heat energy absorbed + + Ev Hole created within valance band Energy absorbed = Energy given up

Intrinsic (pure) Silicon Electron-Hole Pairs Thermal Equalibrium ni = 1. 5 x 1010 cm-3 at 300° K Conduction e. Band Ec Eg = 1. 12 e. V hole density = electron density number of holes per cubic centimeter = number of free electrons per cubic centimeter pi = ni = 1. 5 x 1010 cm-3 pi = 1. 5 x 1010 cm-3 at 300° K Valance Band + Ev covalent bonds • Number of electron-hole pairs increase with increasing temperature

Creating a Semiconductor

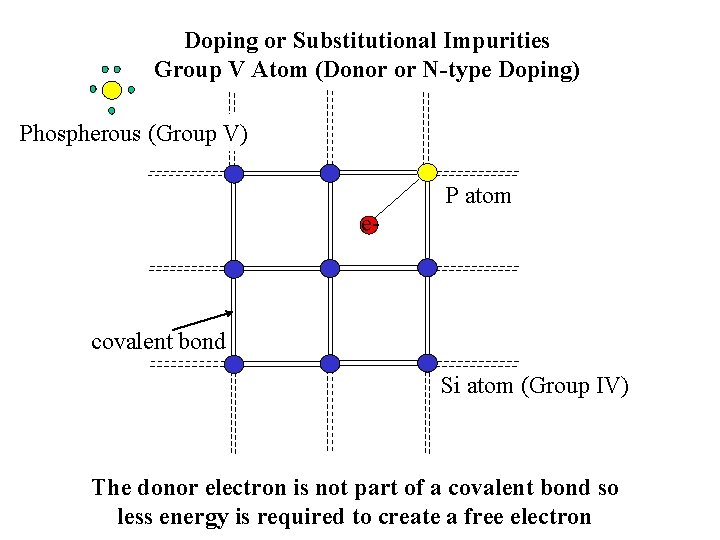

Doping or Substitutional Impurities Group V Atom (Donor or N-type Doping) Phospherous (Group V) P atom e- covalent bond Si atom (Group IV) The donor electron is not part of a covalent bond so less energy is required to create a free electron

Energy Band Diagram of Phospherous Doping intrinsic free electron Conduction Band donor free electron e- e. Ec Donor Electron Energy n > p (more electrons in conduction band) Eg Valance Band covalent bonds A small amount of thermal energy elevates the donor electron to the conduction band + intrinsic hole N-type Semiconductor Ev

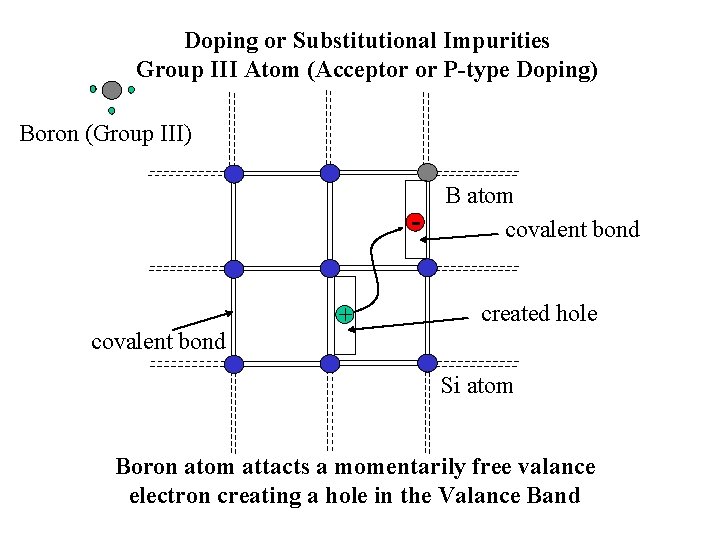

Doping or Substitutional Impurities Group III Atom (Acceptor or P-type Doping) Boron (Group III) - covalent bond + B atom covalent bond created hole Si atom Boron atom attacts a momentarily free valance electron creating a hole in the Valance Band

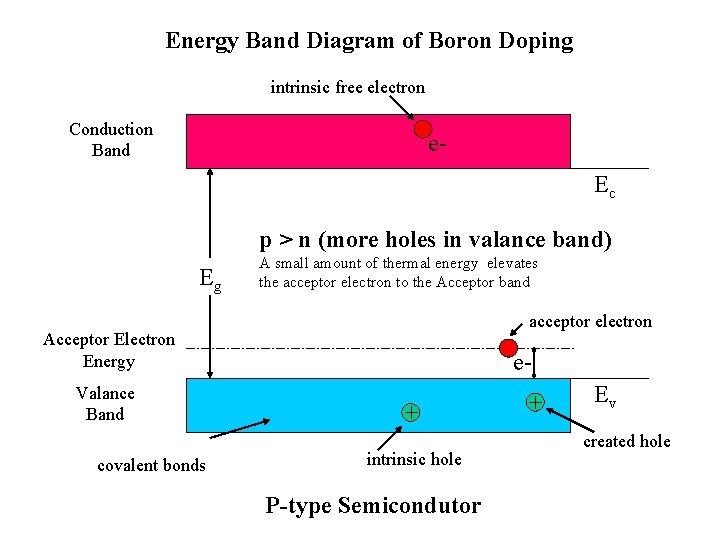

Energy Band Diagram of Boron Doping intrinsic free electron Conduction Band e. Ec p > n (more holes in valance band) Eg A small amount of thermal energy elevates the acceptor electron to the Acceptor band acceptor electron Acceptor Electron Energy Valance Band covalent bonds e+ intrinsic hole P-type Semicondutor + Ev created hole

Formation and Basic Physics of PN Junctions

PN Junction Formation Masking Barrier Boron Atom Doping Phophorous Atom Doping Intrinsic Silicon Wafer • Doping Atoms are accelerated towards Silicon Wafer • Doping Atoms are implanted into Silicon Wafer • Wafer is heated to provide necessary energy for Doping Atoms to become part of Silicon lattice structure

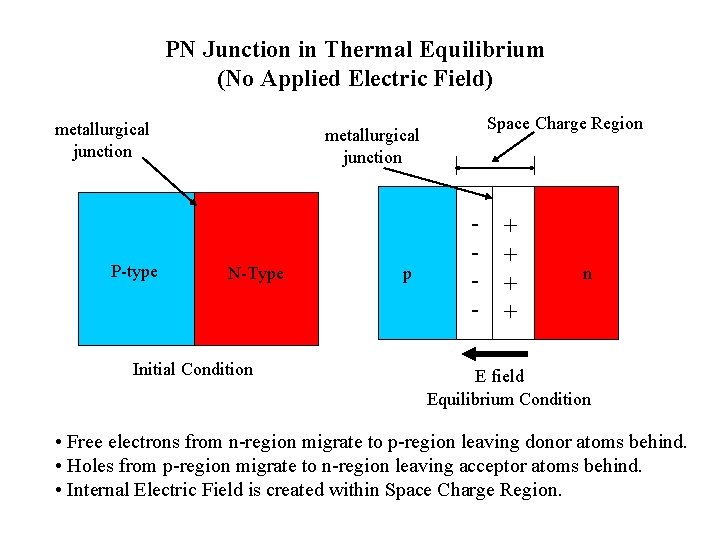

PN Junction in Thermal Equilibrium (No Applied Electric Field) metallurgical junction P-type Space Charge Region metallurgical junction N-Type Initial Condition p - + + n E field Equilibrium Condition • Free electrons from n-region migrate to p-region leaving donor atoms behind. • Holes from p-region migrate to n-region leaving acceptor atoms behind. • Internal Electric Field is created within Space Charge Region.

Solar Cell Basic Operation

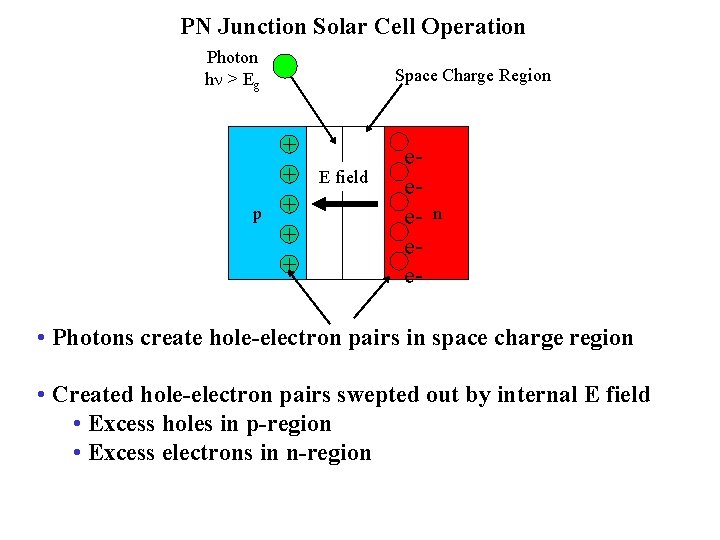

PN Junction Solar Cell Operation Photon hn > Eg p Space Charge Region + + + E field eeeee- n • Photons create hole-electron pairs in space charge region • Created hole-electron pairs swepted out by internal E field • Excess holes in p-region • Excess electrons in n-region

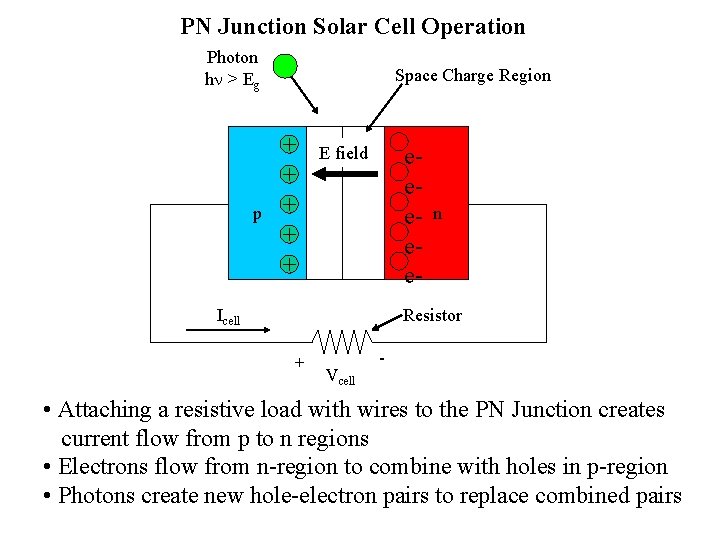

PN Junction Solar Cell Operation Photon hn > Eg p Space Charge Region + + + eeeee- E field Icell n Resistor + Vcell - • Attaching a resistive load with wires to the PN Junction creates current flow from p to n regions • Electrons flow from n-region to combine with holes in p-region • Photons create new hole-electron pairs to replace combined pairs

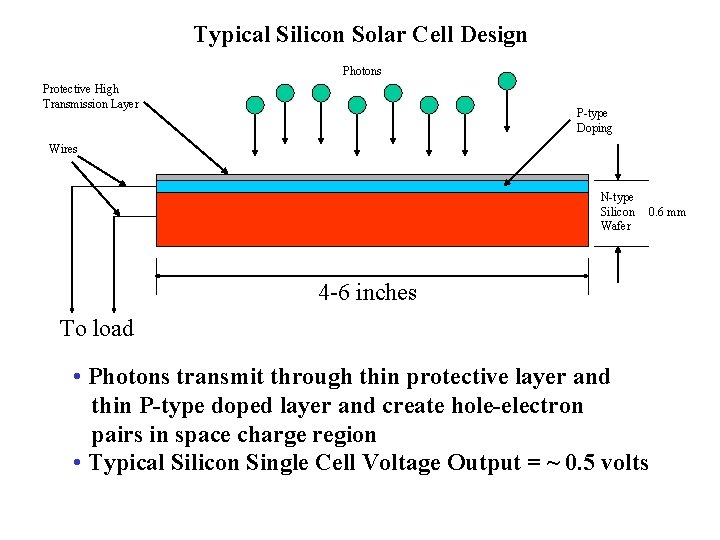

Typical Silicon Solar Cell Design Photons Protective High Transmission Layer P-type Doping Wires N-type Silicon Wafer 0. 6 mm 4 -6 inches To load • Photons transmit through thin protective layer and thin P-type doped layer and create hole-electron pairs in space charge region • Typical Silicon Single Cell Voltage Output = ~ 0. 5 volts

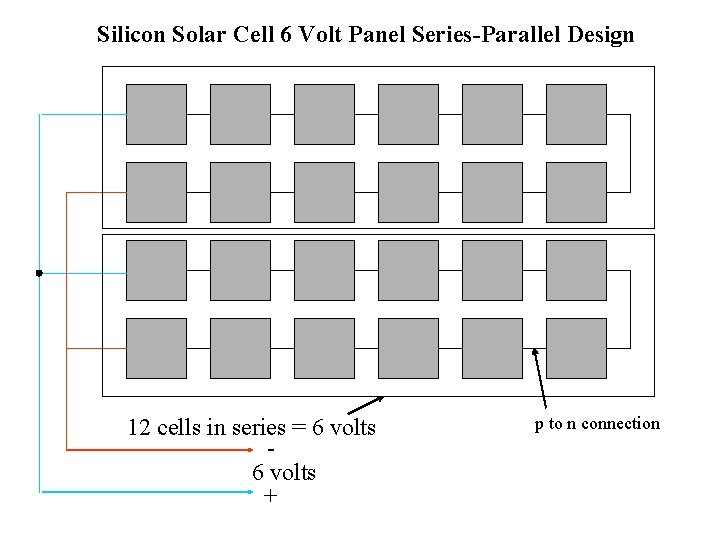

Silicon Solar Cell 6 Volt Panel Series-Parallel Design 12 cells in series = 6 volts + p to n connection

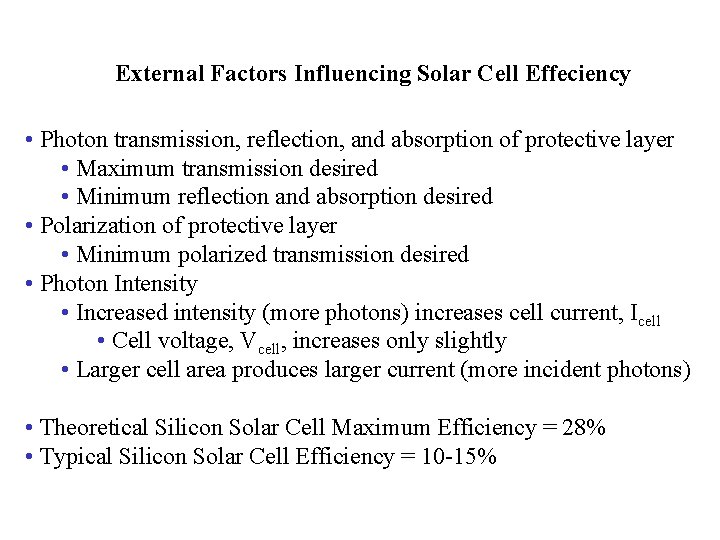

External Factors Influencing Solar Cell Effeciency • Photon transmission, reflection, and absorption of protective layer • Maximum transmission desired • Minimum reflection and absorption desired • Polarization of protective layer • Minimum polarized transmission desired • Photon Intensity • Increased intensity (more photons) increases cell current, Icell • Cell voltage, Vcell, increases only slightly • Larger cell area produces larger current (more incident photons) • Theoretical Silicon Solar Cell Maximum Efficiency = 28% • Typical Silicon Solar Cell Efficiency = 10 -15%
