Basic Environmental Technology Water Supply, Waste Management, and Pollution Control SIXTH EDITION CHAPTER 12 Hazardous Waste Management Basic Environmental Technology, Sixth Edition Jerry A. Nathanson | Richard A. Schneider Copyright © 2015 by Pearson Education, Inc. All Rights Reserved
FIGURE 12 -1 Improper storage of hazardous waste material. (Courtesy of New Jersey Department of Environmental Protection. ) Basic Environmental Technology, Sixth Edition Jerry A. Nathanson | Richard A. Schneider Copyright © 2015 by Pearson Education, Inc. All Rights Reserved
FIGURE 12 -2 A synthetic bottom liner installed at a hazardous waste landfill site; a layer of soil covers the liner to protect it from damage by construction equipment. See Figures 12 -9 and 12 -10 for details. (Courtesy of GSE Environmental LLC. ) Basic Environmental Technology, Sixth Edition Jerry A. Nathanson | Richard A. Schneider Copyright © 2015 by Pearson Education, Inc. All Rights Reserved
TABLE 12 -1 Maximum Concentration of Contaminants for the TCLPa Basic Environmental Technology, Sixth Edition Jerry A. Nathanson | Richard A. Schneider Copyright © 2015 by Pearson Education, Inc. All Rights Reserved
FIGURE 12 -3 Hazardous waste “cradle-to-grave” manifest system. (From G. F. Bennett, et al. , Hazardous Materials Spills Handbook, Mc. Graw-Hill, New York, 1983. Reproduced with permission of The Mc. Graw-Hill Companies. ) Basic Environmental Technology, Sixth Edition Jerry A. Nathanson | Richard A. Schneider Copyright © 2015 by Pearson Education, Inc. All Rights Reserved
FIGURE 12 -4 A typical liquid injection incinerator. (Courtesy of U. S. Environmental Protection Agency. ) Basic Environmental Technology, Sixth Edition Jerry A. Nathanson | Richard A. Schneider Copyright © 2015 by Pearson Education, Inc. All Rights Reserved

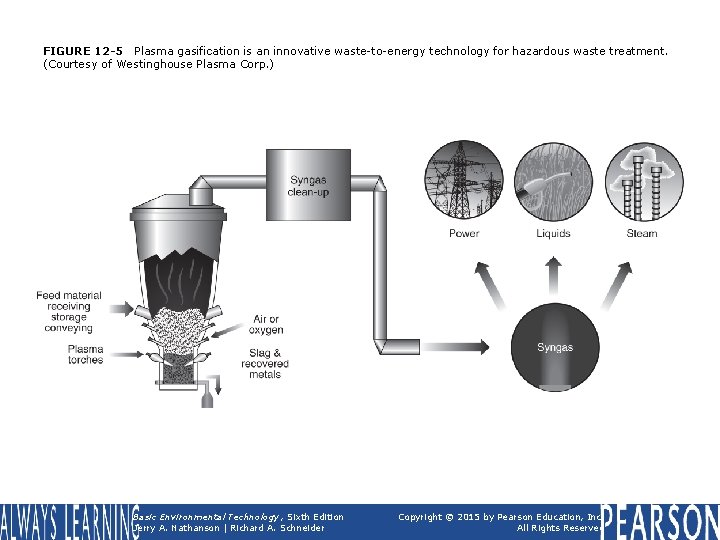

FIGURE 12 -5 Plasma gasification is an innovative waste-to-energy technology for hazardous waste treatment. (Courtesy of Westinghouse Plasma Corp. ) Basic Environmental Technology, Sixth Edition Jerry A. Nathanson | Richard A. Schneider Copyright © 2015 by Pearson Education, Inc. All Rights Reserved
FIGURE 12 -6 Bioreactor for treatment of hazardous waste. (Reprinted by permission of Waveland Press, Inc. From M. D. La. Grega, et al. , Hazardous Waste Management, 2 nd ed. (Long Grove, IL); Waveland Press, Inc. , 2001 [reissued 2010]. All rights reserved. ) Basic Environmental Technology, Sixth Edition Jerry A. Nathanson | Richard A. Schneider Copyright © 2015 by Pearson Education, Inc. All Rights Reserved
FIGURE 12 -7 Leak-detection alternatives include automatic monitors to detect loss of volume, vapors from leaked petroleum products, and leaked liquids. Surrounding soil, as well as the interstitial space between the tank and secondary liner or barrier, is monitored. (Courtesy of U. S. Environmental Protection Agency. ) Basic Environmental Technology, Sixth Edition Jerry A. Nathanson | Richard A. Schneider Copyright © 2015 by Pearson Education, Inc. All Rights Reserved
FIGURE 12 -8 Cross section view of a surface impoundment for liquid hazardous waste. Basic Environmental Technology, Sixth Edition Jerry A. Nathanson | Richard A. Schneider Copyright © 2015 by Pearson Education, Inc. All Rights Reserved
FIGURE 12 -9 Cross section of a typical secure landfill. (From P. Montague, “Hazardous waste landfills: Some lessons from New Jersey, ” Civil Engineering, September 1982, with permission from the American Society of Civil Engineers. ) Basic Environmental Technology, Sixth Edition Jerry A. Nathanson | Richard A. Schneider Copyright © 2015 by Pearson Education, Inc. All Rights Reserved
FIGURE 12 -10 Section view of a double liner and leachate collection system for a secure landfill. (Reprinted by permission of Waveland Press, Inc. From M. D. La. Grega, et al. , Hazardous Waste Management, 2 nd ed. (Long Grove, IL); Waveland Press, Inc. , 2001 [reissued 2010]. All rights reserved. ) Basic Environmental Technology, Sixth Edition Jerry A. Nathanson | Richard A. Schneider Copyright © 2015 by Pearson Education, Inc. All Rights Reserved
FIGURE 12 -11 A network diagram and schedule may be used to help manage the many activities for a hazardous site remediation project. More than 1 year is typically needed for investigation and planning before cleanup and confinement work can actually begin. Additional borings, sampling, and testing activities are frequently required throughout the project to accurately define the limits of soil, sediment, and groundwater contamination. (Activities on the “critical path control the duration of the project. ) Basic Environmental Technology, Sixth Edition Jerry A. Nathanson | Richard A. Schneider Copyright © 2015 by Pearson Education, Inc. All Rights Reserved
FIGURE 12 -12 Primary components of a groundwater monitoring well. (Courtesy of Georgia Department of Natural Resources www. gaepd. org/Files_PDF/HSRAGuide/MWDiagram. pdf. ) Basic Environmental Technology, Sixth Edition Jerry A. Nathanson | Richard A. Schneider Copyright © 2015 by Pearson Education, Inc. All Rights Reserved
FIGURE 12 -13 An example of good safety procedure— a technician wearing protective clothing (Level C) while collecting samples of groundwater at a waste landfill site. (Courtesy of Chris Venezia. ) Basic Environmental Technology, Sixth Edition Jerry A. Nathanson | Richard A. Schneider Copyright © 2015 by Pearson Education, Inc. All Rights Reserved
FIGURE 12 -14 Site work zones. Basic Environmental Technology, Sixth Edition Jerry A. Nathanson | Richard A. Schneider Copyright © 2015 by Pearson Education, Inc. All Rights Reserved
FIGURE 12 -15 Groundwater circulation wells extract groundwater, treat it in a partially buried vault, and return it to the aquifer via a separate portion of the extraction well. Basic Environmental Technology, Sixth Edition Jerry A. Nathanson | Richard A. Schneider Copyright © 2015 by Pearson Education, Inc. All Rights Reserved
FIGURE 12 -16 Slurry trench cutoff walls can be used to prevent the spread of polluted groundwater at an abandoned hazardous waste dump site. Basic Environmental Technology, Sixth Edition Jerry A. Nathanson | Richard A. Schneider Copyright © 2015 by Pearson Education, Inc. All Rights Reserved
FIGURE 12 -17 Excavation of a deep slurry trench cutoff wall. (Courtesy of Geo-Con, Inc. ) Basic Environmental Technology, Sixth Edition Jerry A. Nathanson | Richard A. Schneider Copyright © 2015 by Pearson Education, Inc. All Rights Reserved
FIGURE 12 -18 Air sparging. (Courtesy of U. S. Environmental Protection Agency. ) Basic Environmental Technology, Sixth Edition Jerry A. Nathanson | Richard A. Schneider Copyright © 2015 by Pearson Education, Inc. All Rights Reserved
