ELECTRONICS An electronics system has 3 parts – input , process , output www. assignmentpoint. com
ELECTRONICS Input Devices Mic-sound to electrical www. assignmentpoint. com
ELECTRONICS L. D. R. -Light to electrical Thermistor-heat to electrical www. assignmentpoint. com
ELECTRONICS Thermocouple-heat to electrical Switch Solar Cell-light to electrical www. assignmentpoint. com
ELECTRONICS Output Devices Loudspeaker-electrical to sound L. E. D. -electrical to light Bulb-electrical to light Buzzer electrical to sound www. assignmentpoint. com

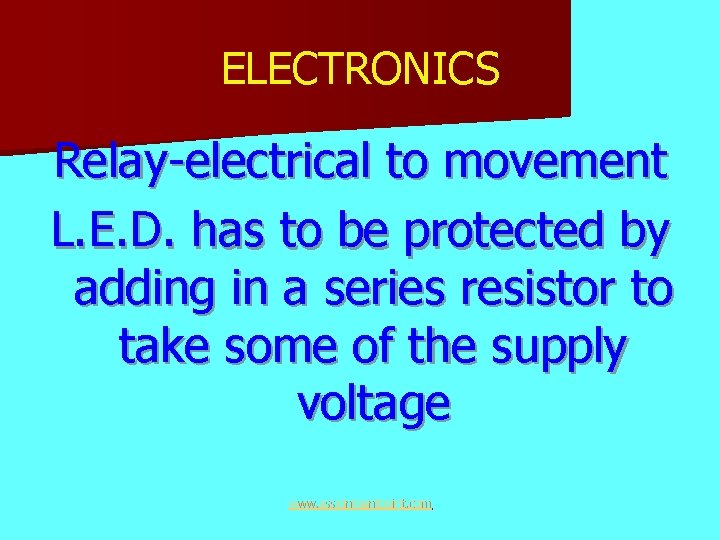

ELECTRONICS Relay-electrical to movement L. E. D. has to be protected by adding in a series resistor to take some of the supply voltage www. assignmentpoint. com
ELECTRONICS numbers in a 7 segment display can be produced by using 7 L. E. D. `s www. assignmentpoint. com
ELECTRONICS There are 3 process devices, The NOT gate The AND gate The OR gate www. assignmentpoint. com
ELECTRONICS n Frost Alarm www. assignmentpoint. com
ELECTRONICS When thermistor temp is high the resistance is low and the transistor is off. www. assignmentpoint. com

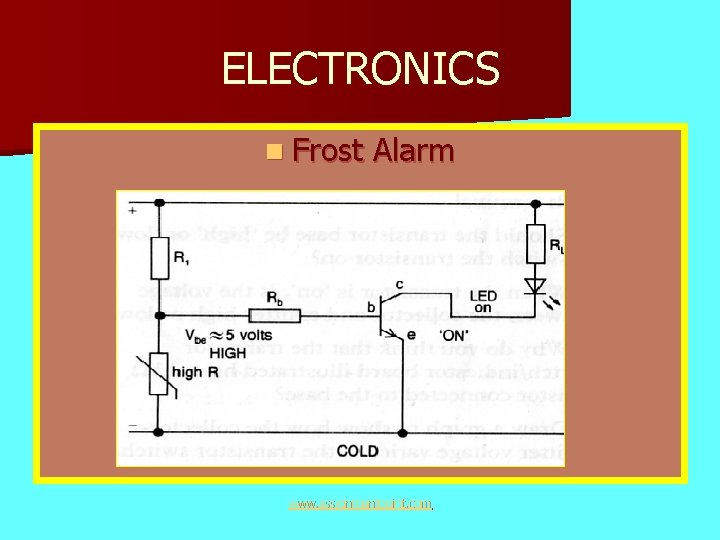

ELECTRONICS n Frost Alarm www. assignmentpoint. com
ELECTRONICS When thermistor temp is low , the resistance is high and the transistor switches on. www. assignmentpoint. com
ELECTRONICS n Fire Alarm www. assignmentpoint. com

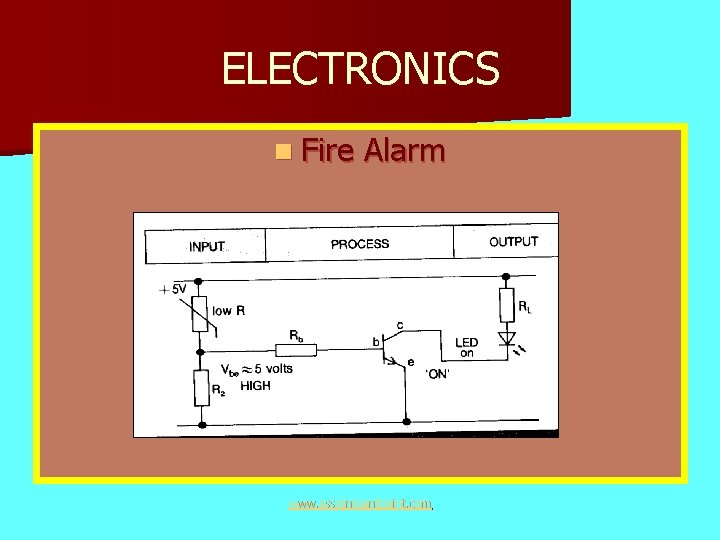

ELECTRONICS When the temp is hot thermistor resistance is low so it takes little voltage and so the resistor takes most of the voltage and so the transistor switches on. www. assignmentpoint. com
ELECTRONICS n Fire Alarm www. assignmentpoint. com
ELECTRONICS When the temp is cold thermistor takes most voltage and so the resistor takes little and the transistor is off. www. assignmentpoint. com
ELECTRONICS n Burglar Alarm www. assignmentpoint. com

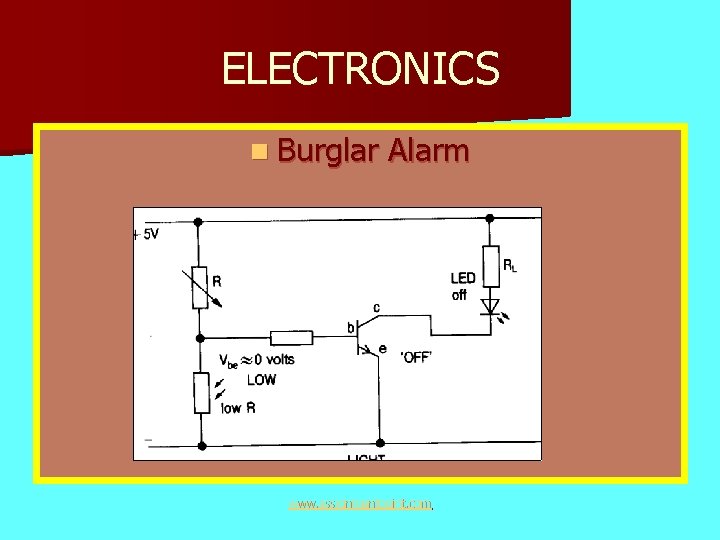

ELECTRONICS When the L. D. R. is in the light , the resistance is low so the voltage is low and the transistor is off www. assignmentpoint. com
ELECTRONICS n Burglar Alarm www. assignmentpoint. com

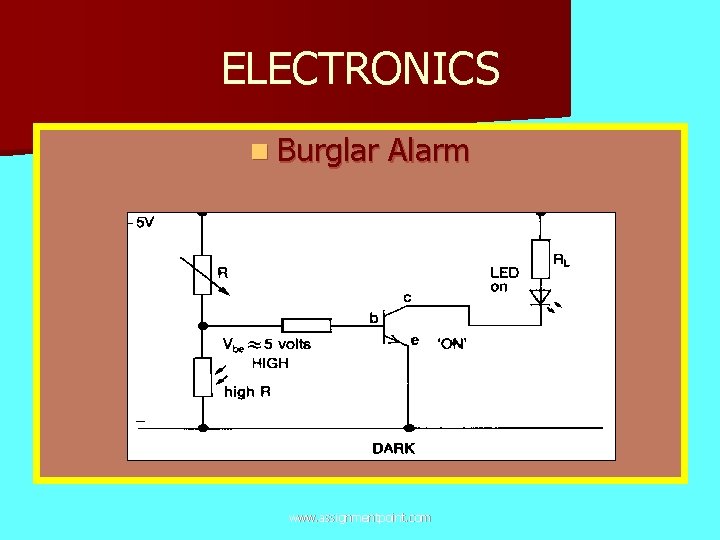

ELECTRONICS When the L. D. R. is in the dark its resistance is high and the transistor switches on. www. assignmentpoint. com
ELECTRONICS n Time Delay Circuit www. assignmentpoint. com
ELECTRONICS When the capacitor charges up to a certain voltage after a certain time , the transistor switches on. www. assignmentpoint. com
ELECTRONICS There are 3 process devices, The NOT gate The AND gate The OR gate www. assignmentpoint. com
