Basic Electrical Safety By Greg Bock PLU Electrician

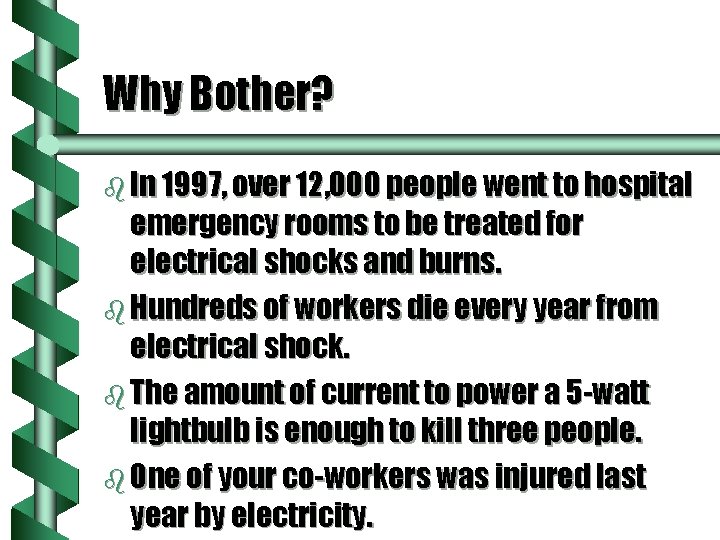

Why Bother? b In 1997, over 12, 000 people went to hospital emergency rooms to be treated for electrical shocks and burns. b Hundreds of workers die every year from electrical shock. b The amount of current to power a 5 -watt lightbulb is enough to kill three people. b One of your co-workers was injured last year by electricity.

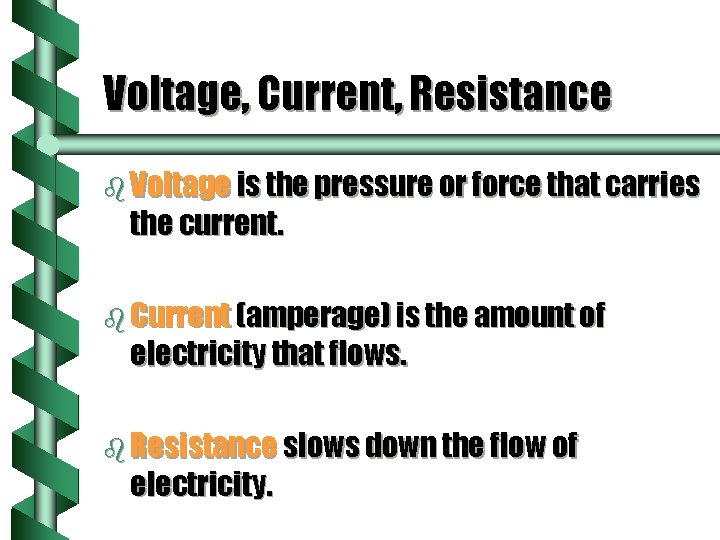

Voltage, Current, Resistance b Voltage is the pressure or force that carries the current. b Current (amperage) is the amount of electricity that flows. b Resistance slows down the flow of electricity.

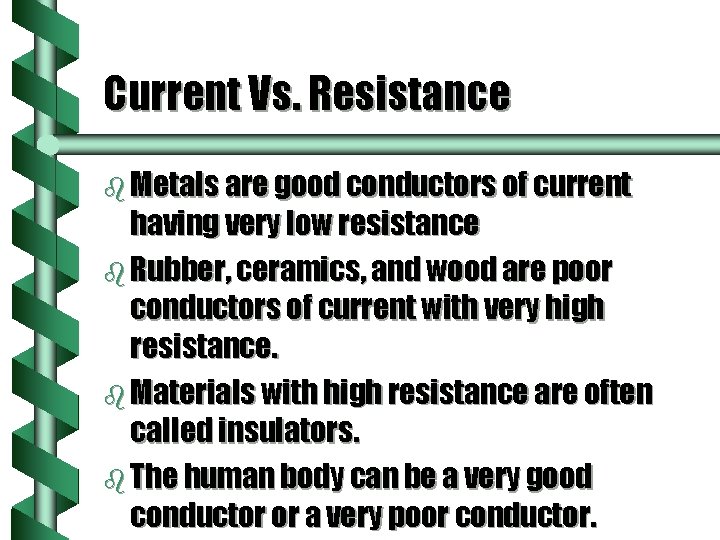

Current Vs. Resistance b Metals are good conductors of current having very low resistance b Rubber, ceramics, and wood are poor conductors of current with very high resistance. b Materials with high resistance are often called insulators. b The human body can be a very good conductor or a very poor conductor.

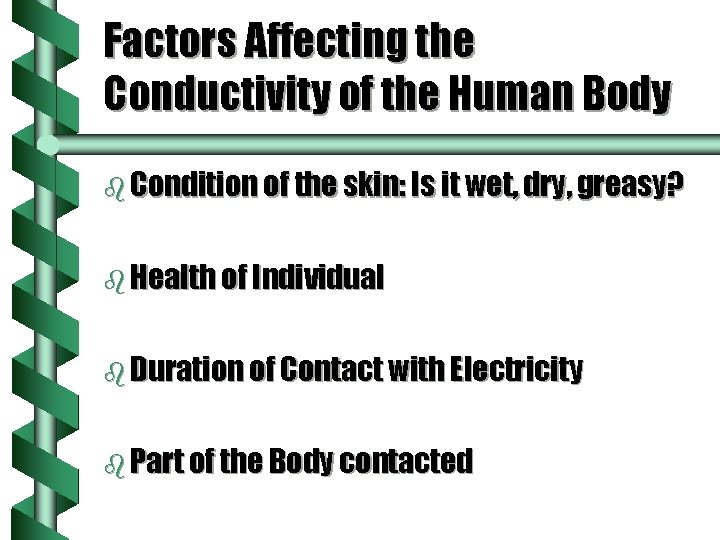

Factors Affecting the Conductivity of the Human Body b Condition of the skin: Is it wet, dry, greasy? b Health of Individual b Duration of Contact with Electricity b Part of the Body contacted

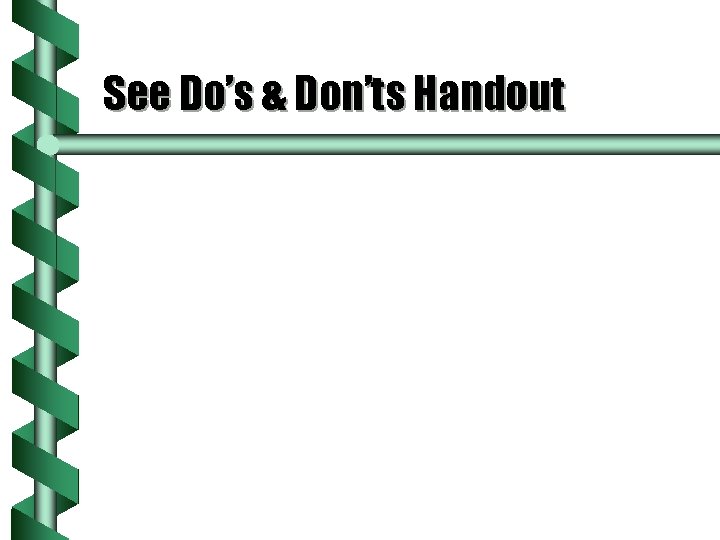

See Do’s & Don’ts Handout

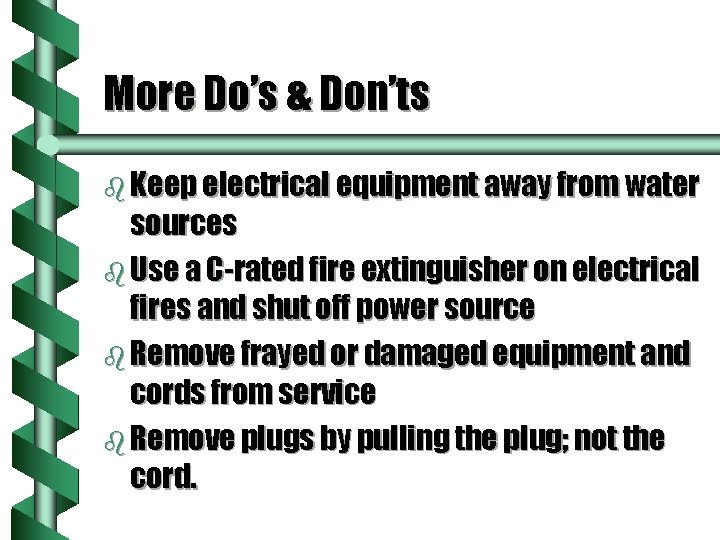

More Do’s & Don’ts b Keep electrical equipment away from water sources b Use a C-rated fire extinguisher on electrical fires and shut off power source b Remove frayed or damaged equipment and cords from service b Remove plugs by pulling the plug; not the cord.

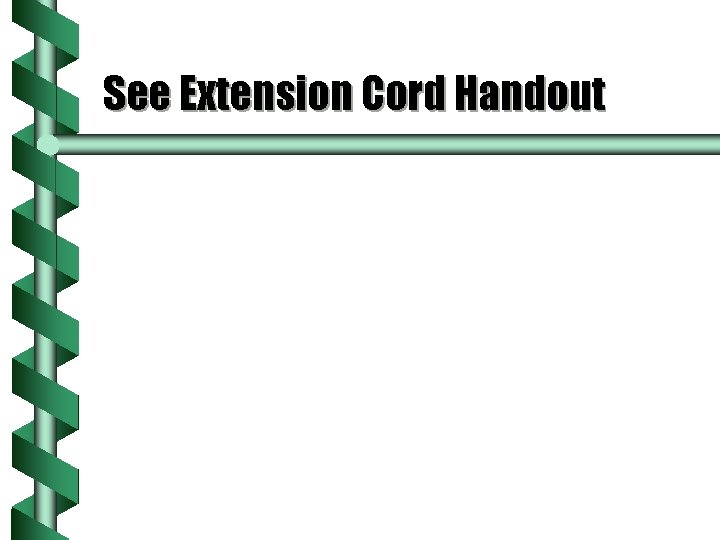

See Extension Cord Handout

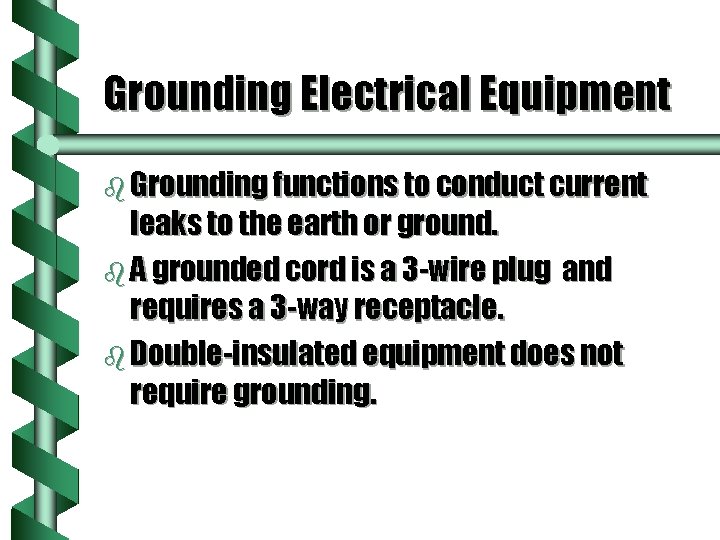

Grounding Electrical Equipment b Grounding functions to conduct current leaks to the earth or ground. b A grounded cord is a 3 -wire plug and requires a 3 -way receptacle. b Double-insulated equipment does not require grounding.

Electrical Shock Injury Amps Milliamps 1 1000 Injury Severe burns 0. 1 Irregular heart beat 100 (requires medical defibrillation) 0. 01 10 0. 001 1 Cannot release grip Threshold of sensation

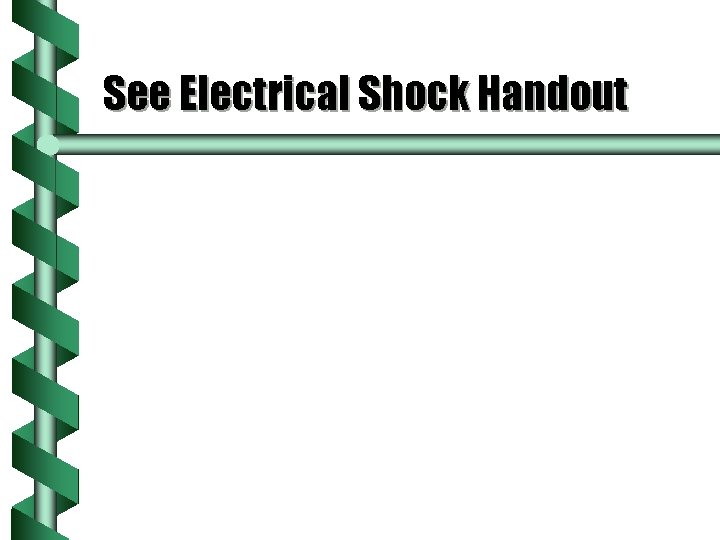

See Electrical Shock Handout

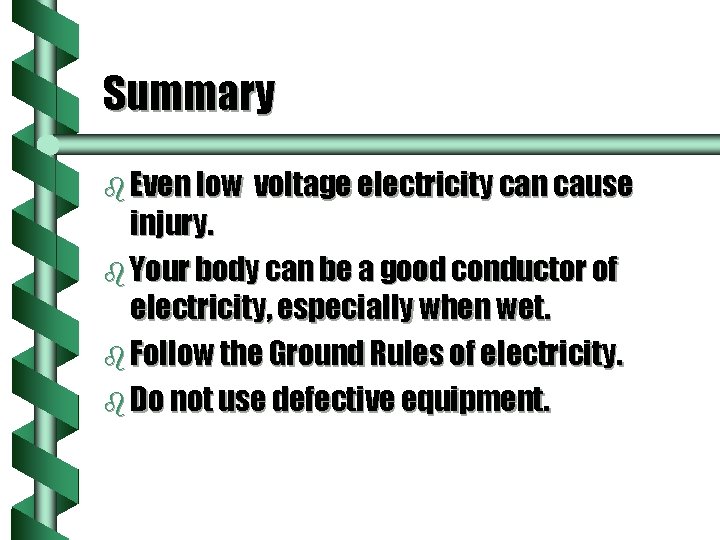

Summary b Even low voltage electricity can cause injury. b Your body can be a good conductor of electricity, especially when wet. b Follow the Ground Rules of electricity. b Do not use defective equipment.

Electrical Safety Quiz
