Basic Dysrhythmias Sinus Arrhythmias Basic Rhythm Strip Interpretation

Basic Dysrhythmias Sinus Arrhythmias

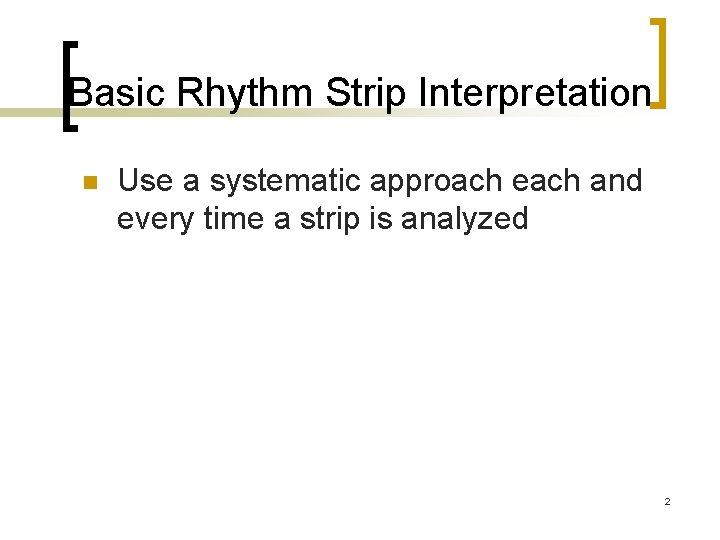

Basic Rhythm Strip Interpretation n Use a systematic approach each and every time a strip is analyzed 2

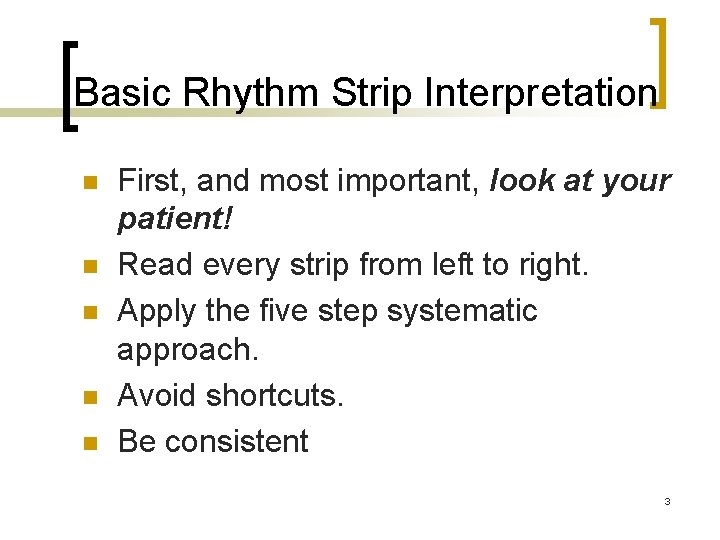

Basic Rhythm Strip Interpretation n n First, and most important, look at your patient! Read every strip from left to right. Apply the five step systematic approach. Avoid shortcuts. Be consistent 3

Basic Rhythm Strip Interpretation n n Step 1: Heart rate & Rhythm Step 2: P wave rate & Rhythm Step 3: PR Interval Step 4: QRS complex Step 5: Interpretation 4

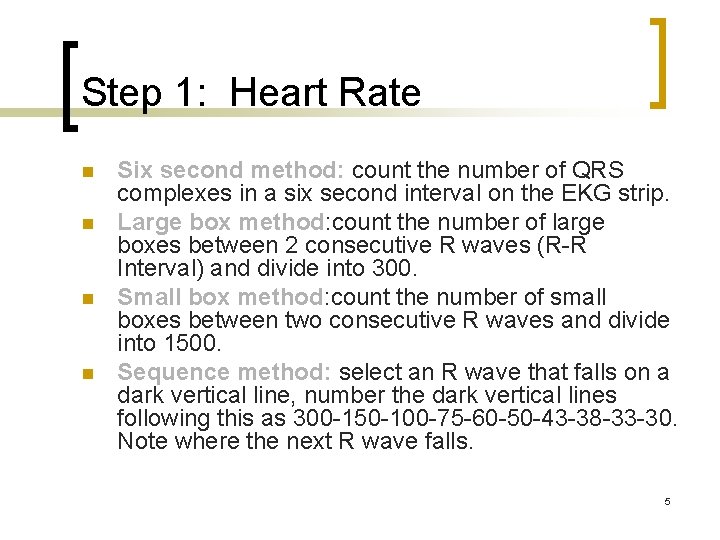

Step 1: Heart Rate n n Six second method: count the number of QRS complexes in a six second interval on the EKG strip. Large box method: count the number of large boxes between 2 consecutive R waves (R-R Interval) and divide into 300. Small box method: count the number of small boxes between two consecutive R waves and divide into 1500. Sequence method: select an R wave that falls on a dark vertical line, number the dark vertical lines following this as 300 -150 -100 -75 -60 -50 -43 -38 -33 -30. Note where the next R wave falls. 5

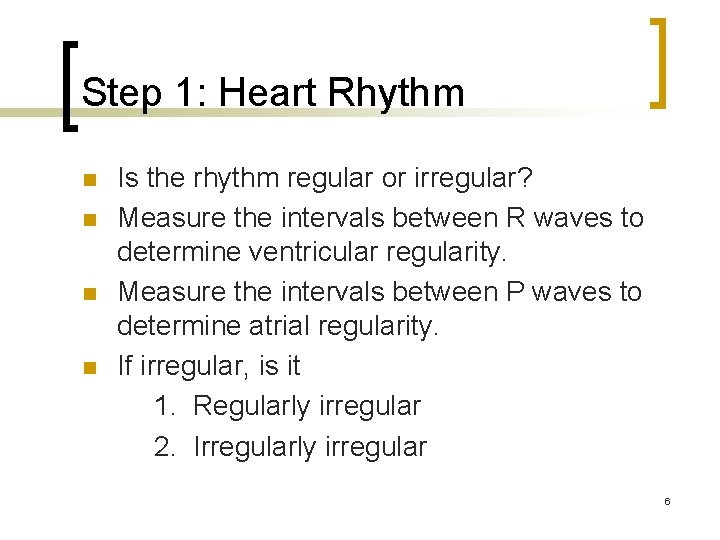

Step 1: Heart Rhythm n n Is the rhythm regular or irregular? Measure the intervals between R waves to determine ventricular regularity. Measure the intervals between P waves to determine atrial regularity. If irregular, is it 1. Regularly irregular 2. Irregularly irregular 6

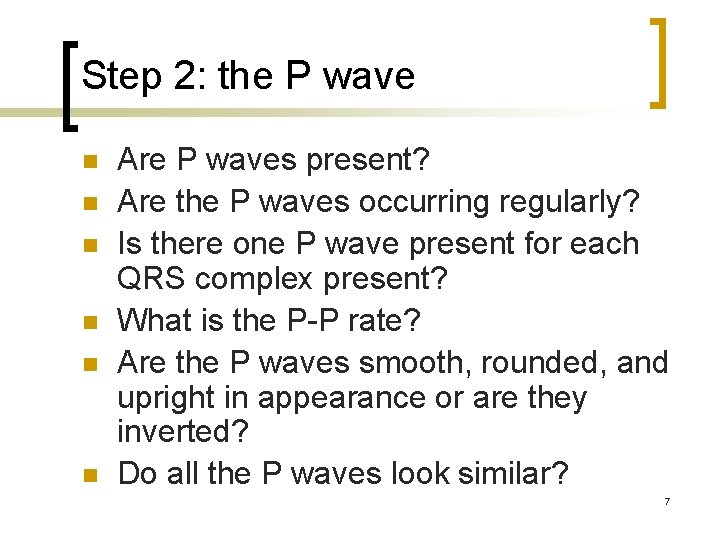

Step 2: the P wave n n n Are P waves present? Are the P waves occurring regularly? Is there one P wave present for each QRS complex present? What is the P-P rate? Are the P waves smooth, rounded, and upright in appearance or are they inverted? Do all the P waves look similar? 7

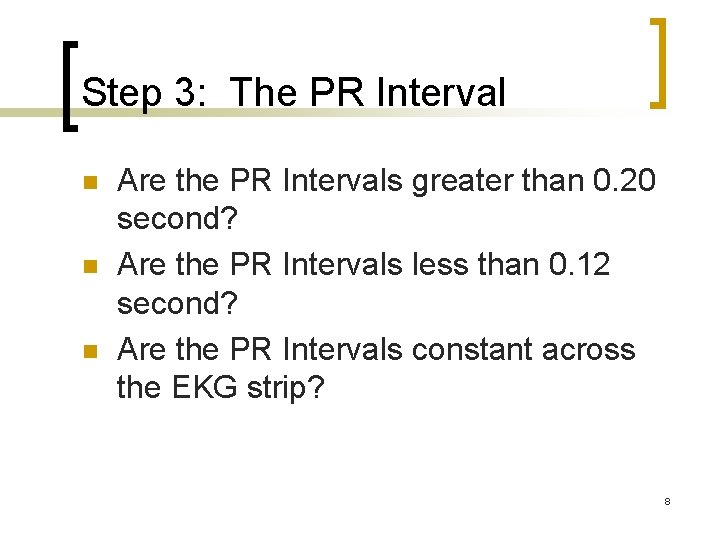

Step 3: The PR Interval n n n Are the PR Intervals greater than 0. 20 second? Are the PR Intervals less than 0. 12 second? Are the PR Intervals constant across the EKG strip? 8

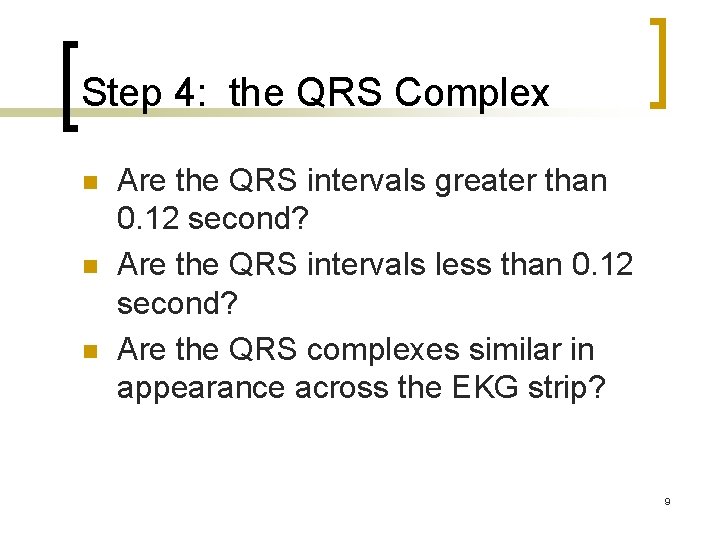

Step 4: the QRS Complex n n n Are the QRS intervals greater than 0. 12 second? Are the QRS intervals less than 0. 12 second? Are the QRS complexes similar in appearance across the EKG strip? 9

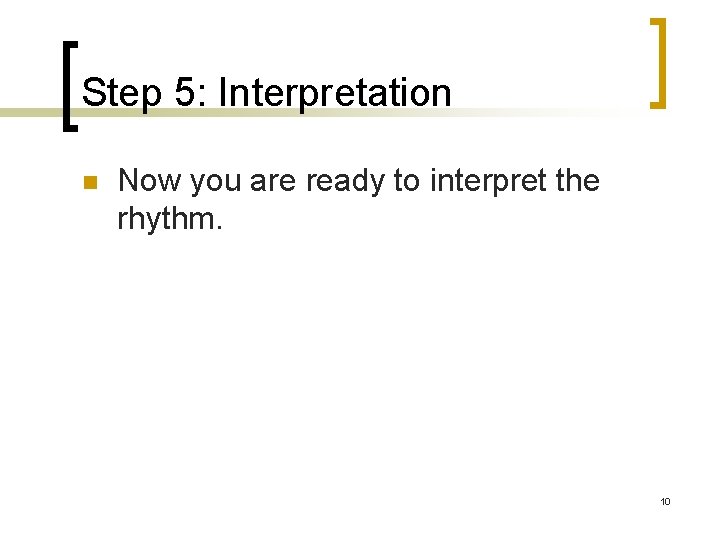

Step 5: Interpretation n Now you are ready to interpret the rhythm. 10

11

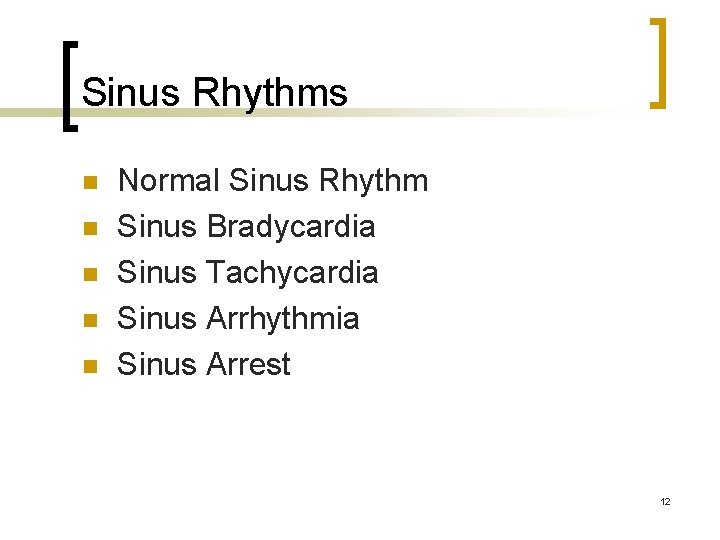

Sinus Rhythms n n n Normal Sinus Rhythm Sinus Bradycardia Sinus Tachycardia Sinus Arrhythmia Sinus Arrest 12

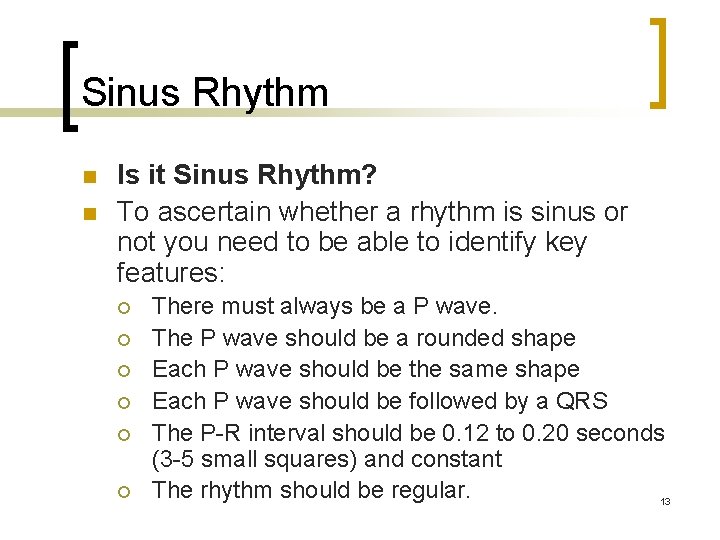

Sinus Rhythm n n Is it Sinus Rhythm? To ascertain whether a rhythm is sinus or not you need to be able to identify key features: ¡ ¡ ¡ There must always be a P wave. The P wave should be a rounded shape Each P wave should be the same shape Each P wave should be followed by a QRS The P-R interval should be 0. 12 to 0. 20 seconds (3 -5 small squares) and constant The rhythm should be regular. 13

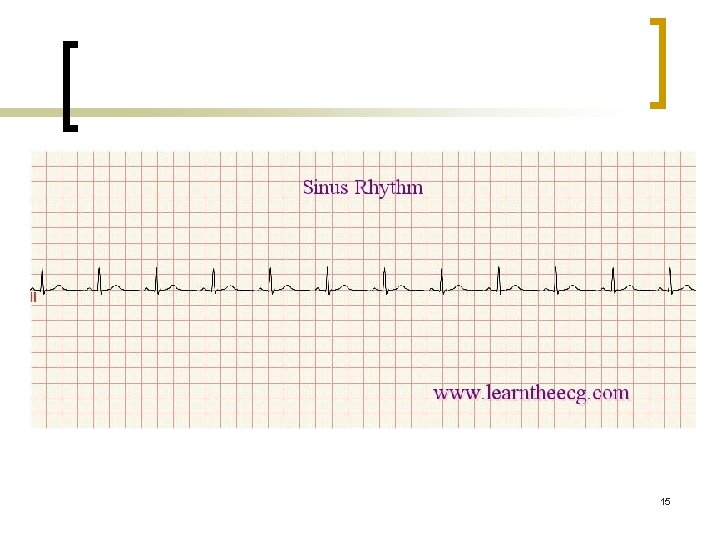

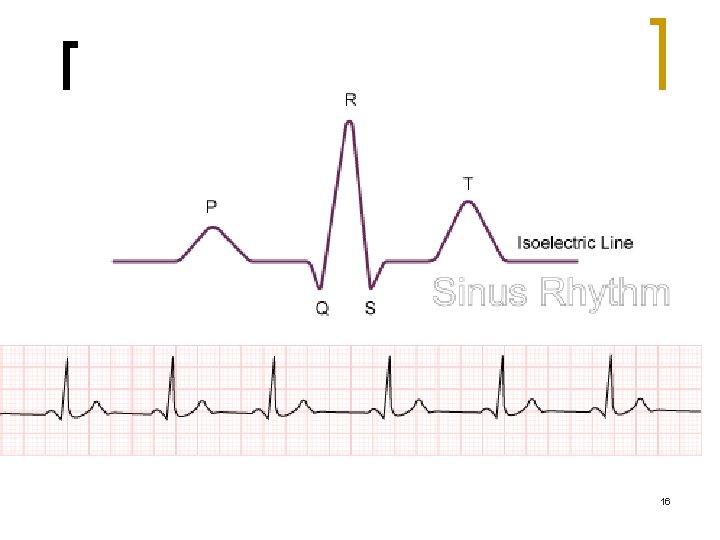

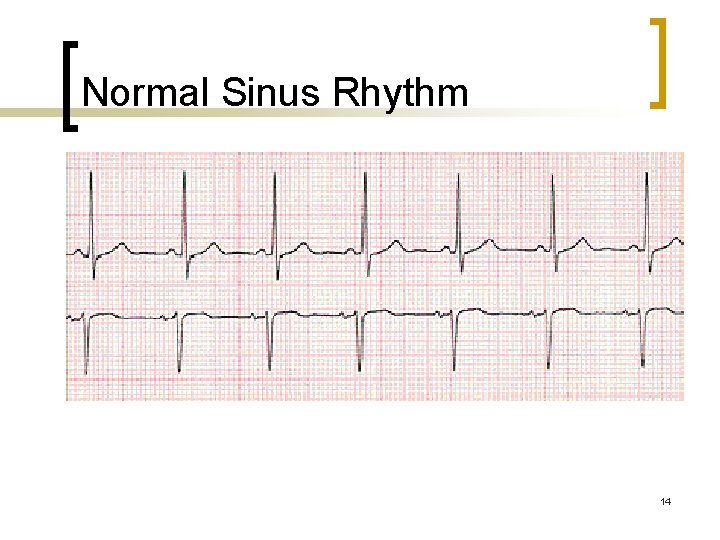

Normal Sinus Rhythm 14

15

16

17

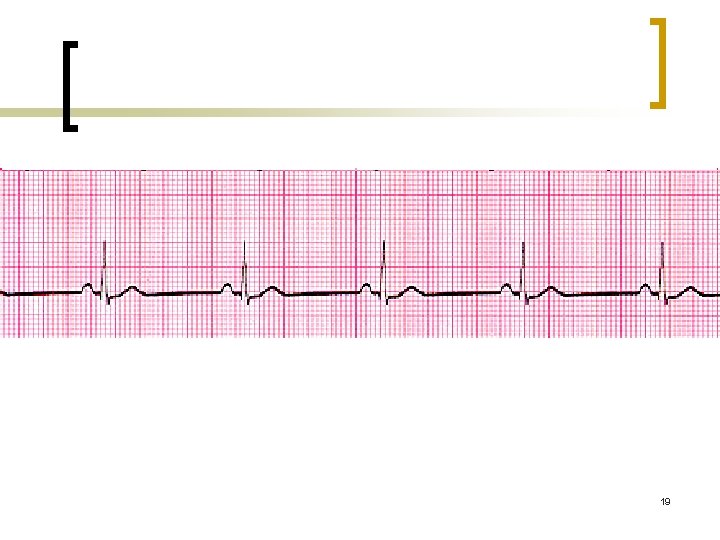

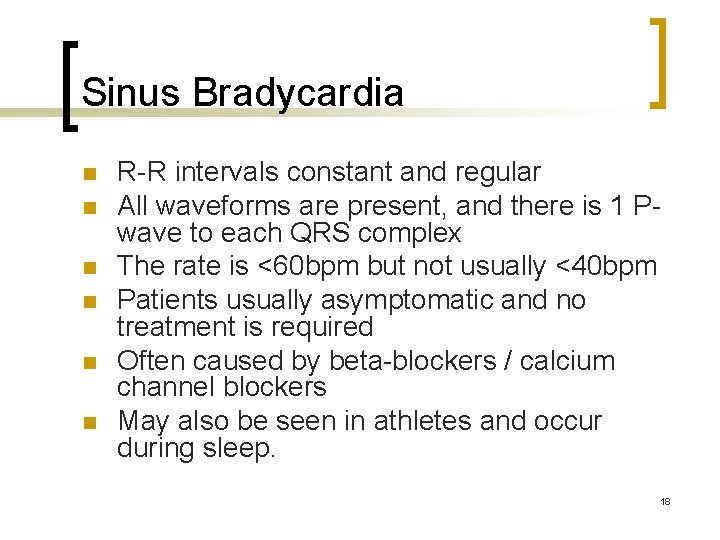

Sinus Bradycardia n n n R-R intervals constant and regular All waveforms are present, and there is 1 Pwave to each QRS complex The rate is <60 bpm but not usually <40 bpm Patients usually asymptomatic and no treatment is required Often caused by beta-blockers / calcium channel blockers May also be seen in athletes and occur during sleep. 18

19

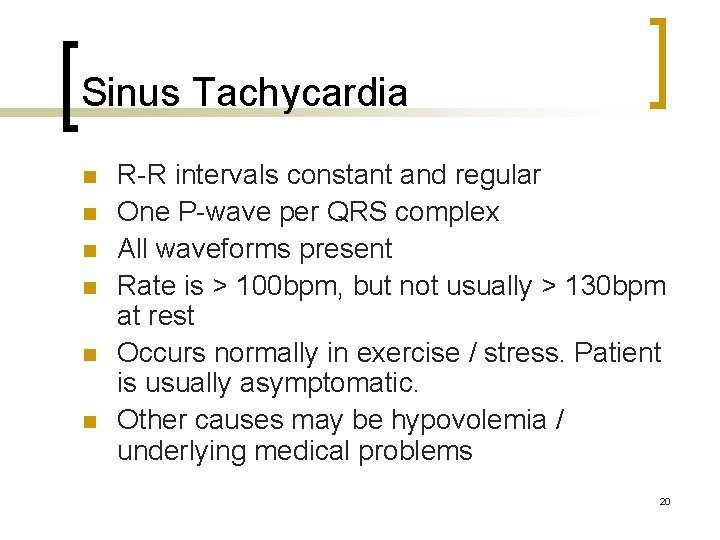

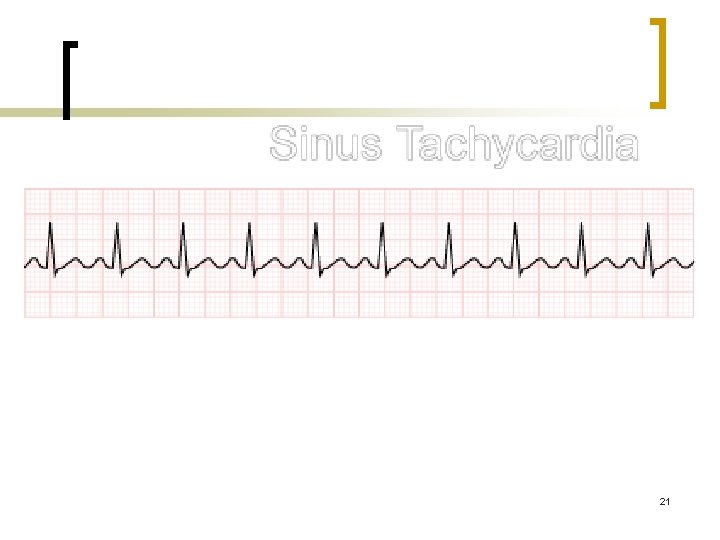

Sinus Tachycardia n n n R-R intervals constant and regular One P-wave per QRS complex All waveforms present Rate is > 100 bpm, but not usually > 130 bpm at rest Occurs normally in exercise / stress. Patient is usually asymptomatic. Other causes may be hypovolemia / underlying medical problems 20

21

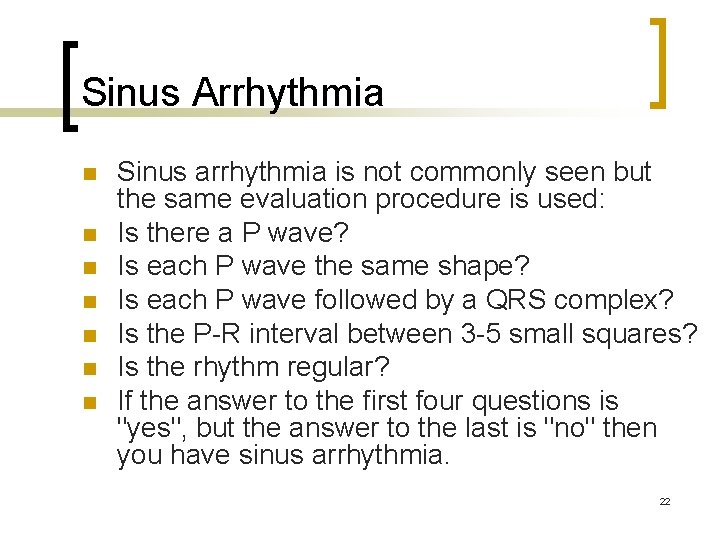

Sinus Arrhythmia n n n n Sinus arrhythmia is not commonly seen but the same evaluation procedure is used: Is there a P wave? Is each P wave the same shape? Is each P wave followed by a QRS complex? Is the P-R interval between 3 -5 small squares? Is the rhythm regular? If the answer to the first four questions is "yes", but the answer to the last is "no" then you have sinus arrhythmia. 22

23

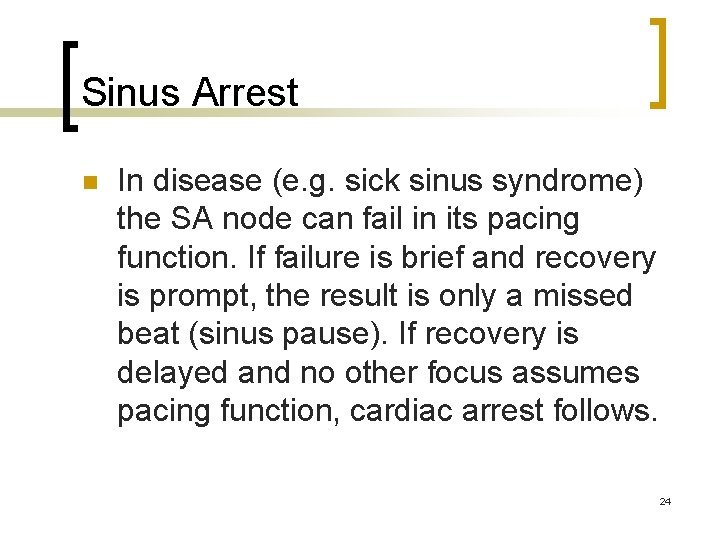

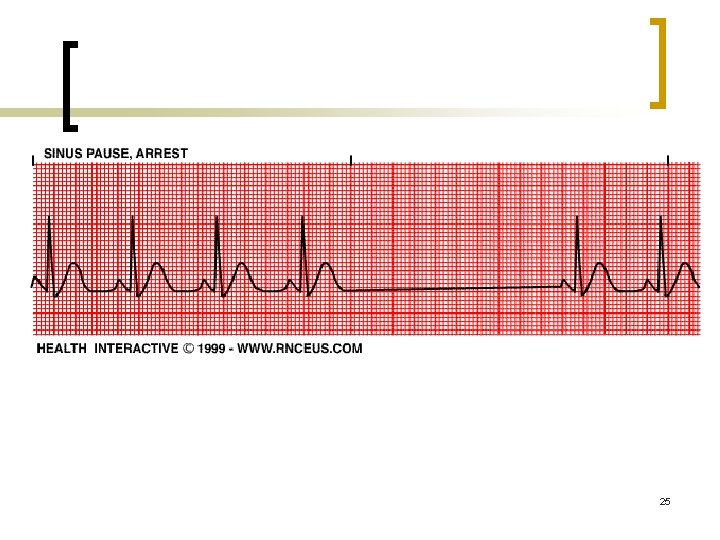

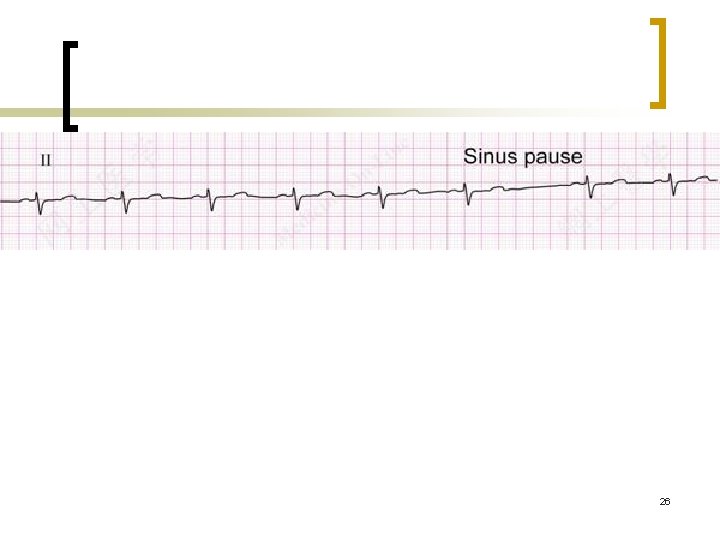

Sinus Arrest n In disease (e. g. sick sinus syndrome) the SA node can fail in its pacing function. If failure is brief and recovery is prompt, the result is only a missed beat (sinus pause). If recovery is delayed and no other focus assumes pacing function, cardiac arrest follows. 24

25

26

27

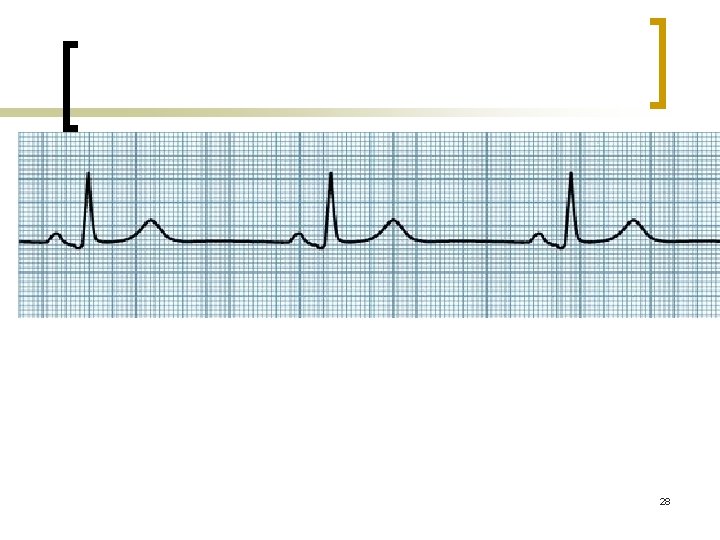

28

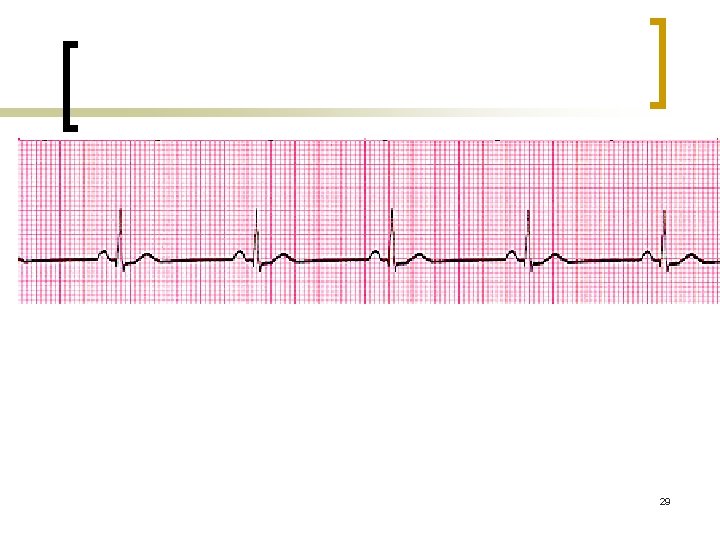

29

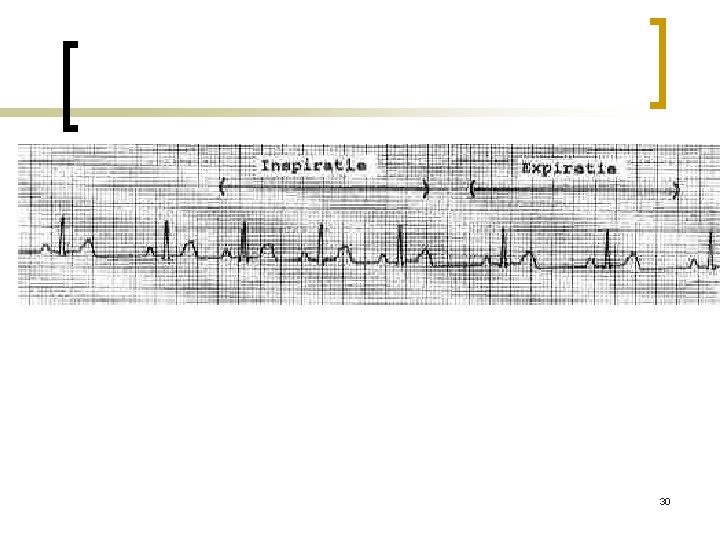

30

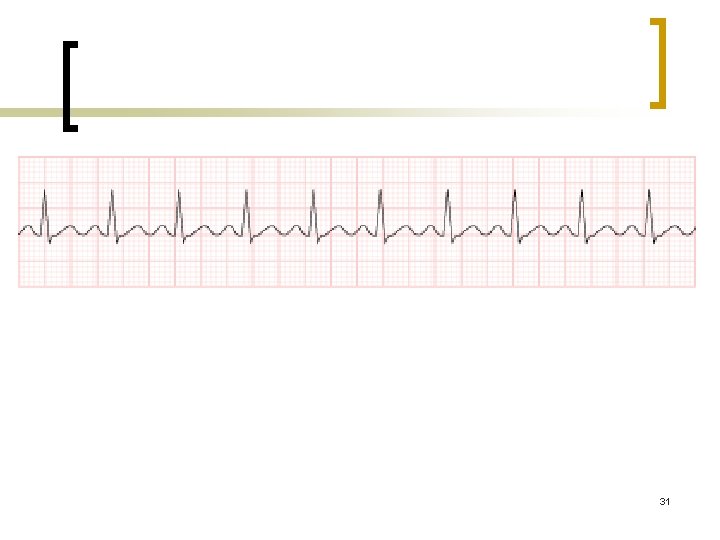

31

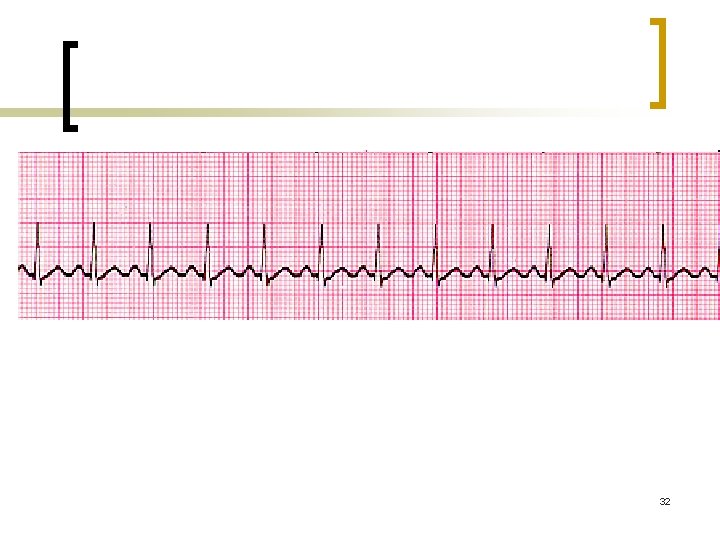

32

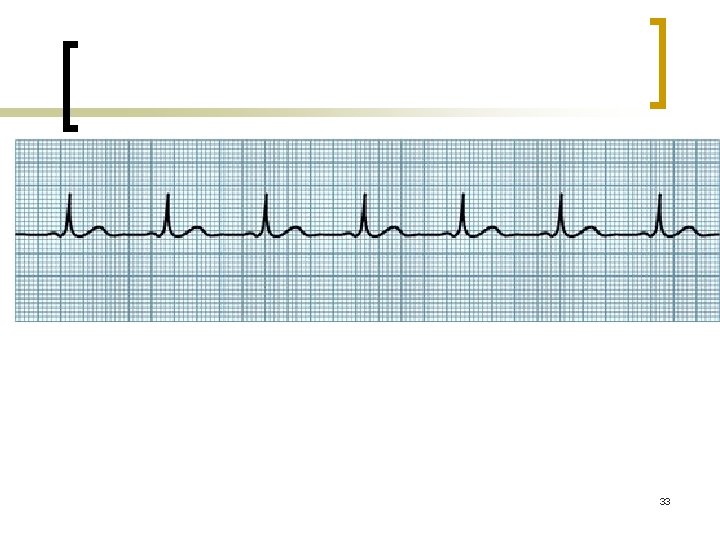

33

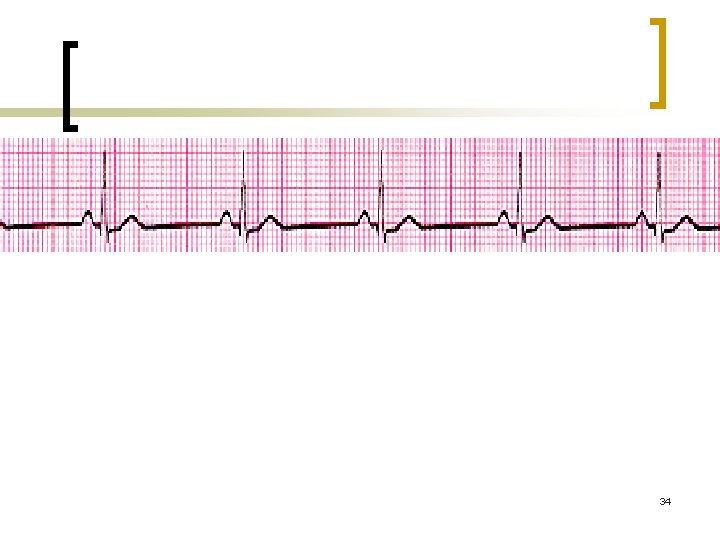

34

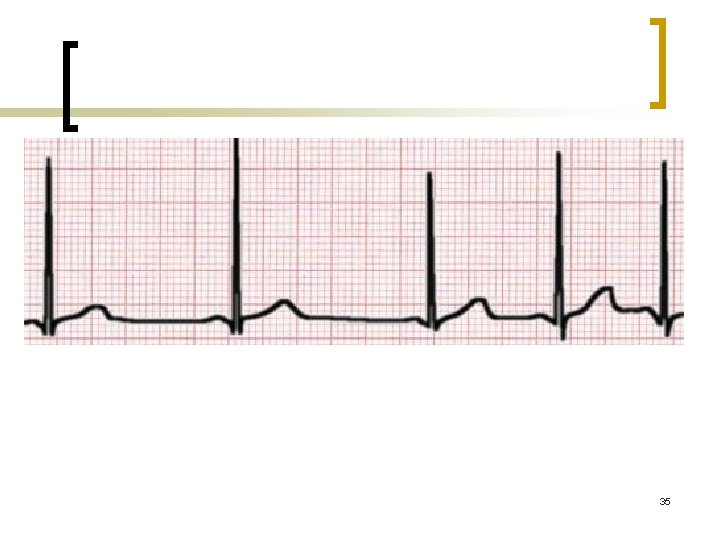

35

36

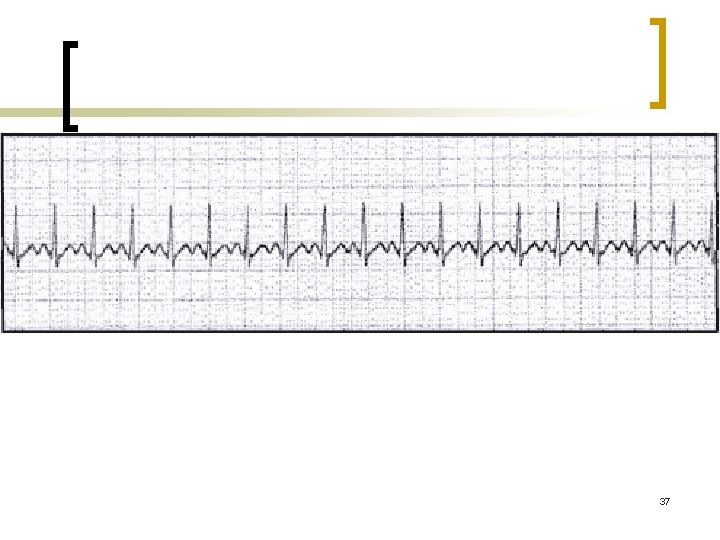

37

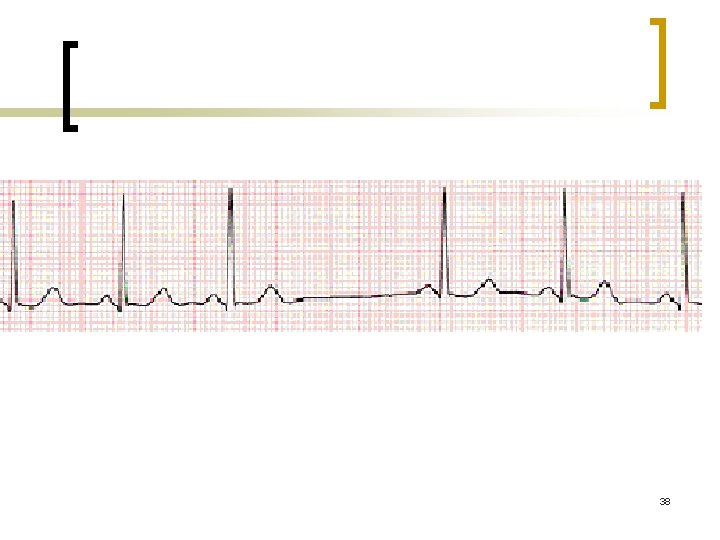

38

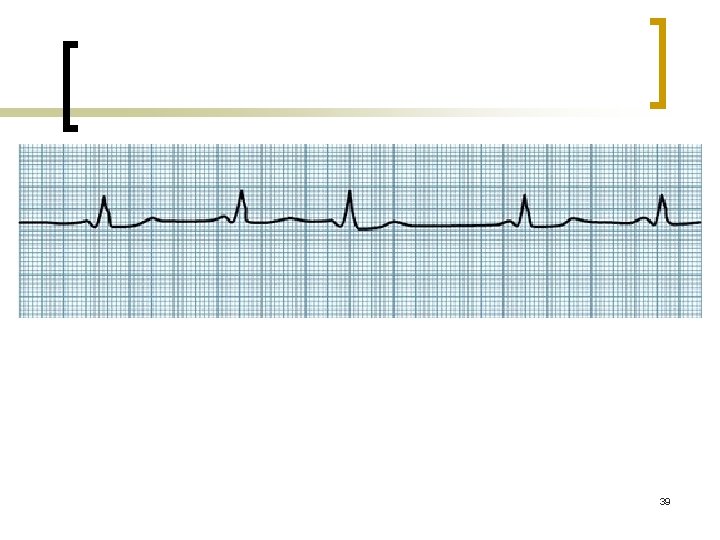

39

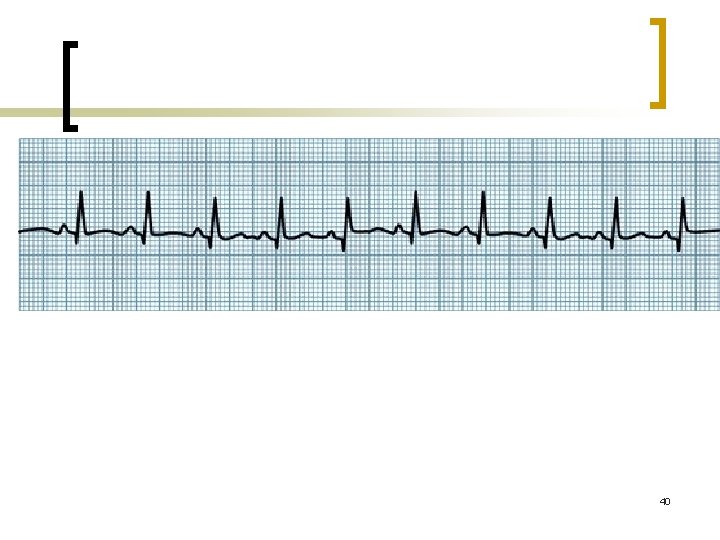

40

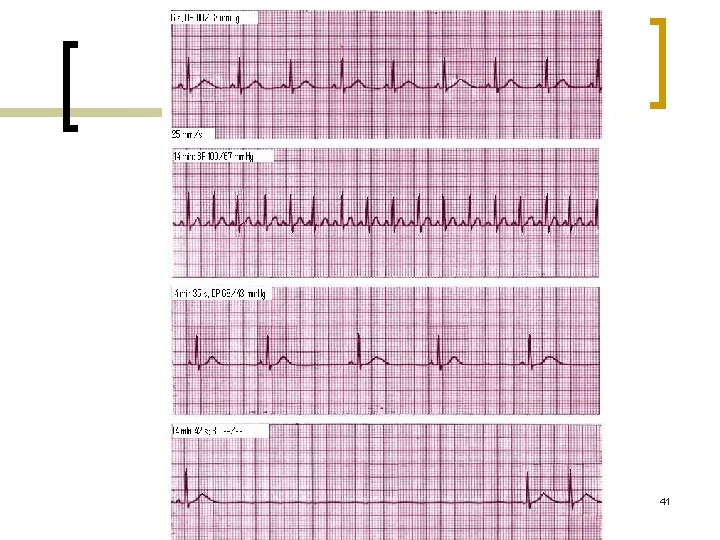

41
