Basic Digital Camera Concepts How a digital camera

Basic Digital Camera Concepts How a digital camera works

The Sensor

Additive Primary RGB Secondary Primary CYM

RGB Channels

The Sensor

The Bayer Pattern Color Filter BGBGBGBGBGBGBBGBGBG GRGRGRGRGRGRGRG

Interpolation The process of interpolating is called “demosaicing”

Note: Dirty Sensor

NOTE: B&W vs. GRAYSCALE Technically, in digital photography we make grayscale images, AKA Black & White conversions, using the color channels during the conversion.

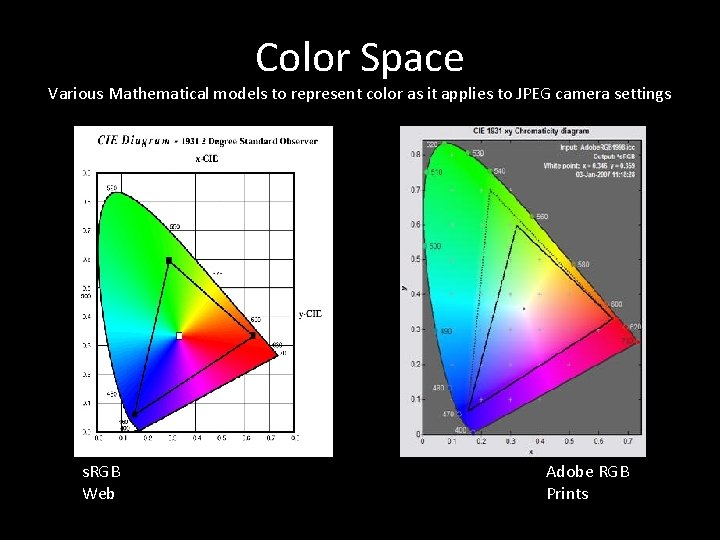

Color Space Various Mathematical models to represent color as it applies to JPEG camera settings s. RGB Web Adobe RGB Prints

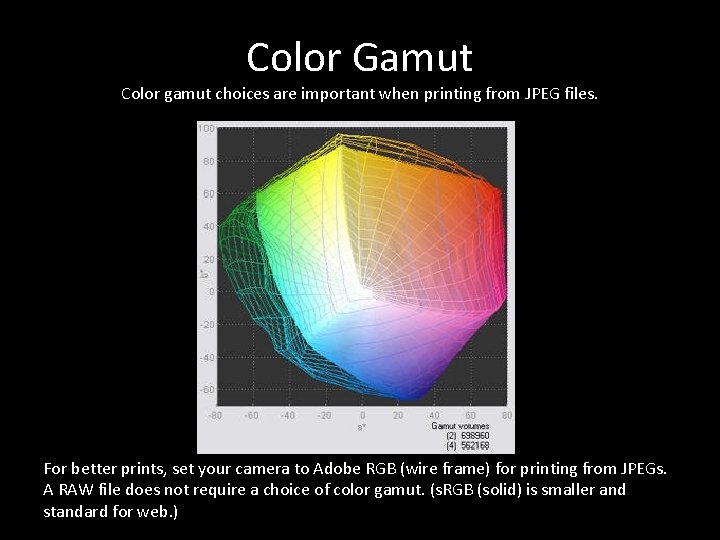

Color Gamut Color gamut choices are important when printing from JPEG files. For better prints, set your camera to Adobe RGB (wire frame) for printing from JPEGs. A RAW file does not require a choice of color gamut. (s. RGB (solid) is smaller and standard for web. )

JPEG & RAW Applies s. RGB Or Adobe RGB Camera processed JPEG Unprocessed RAW

JPEG & RAW JPEG No corrections JPEG Auto corrections RAW unprocessed RAW auto processed

RAW File as shot RAW File processed RAW File B&W Conversion

RAW FILES Are not compressed Are larger & take up more memory Are processed and converted by you (not your camera) Are proprietary (not universal like JPEGs) i. e. NEF & CR 2 Are at least 8 -bits in color Are NOT restricted by s. RGB or Adobe RGB color spaces Have more latitude for adjustments in the highlight and shadows • (Are sometimes admissible in a court of law, forensics) • Are what you will be shooting with after the first assignment • •
