BASIC DESIGN AND TECHNOLOGY JUNIOR HIGH SCHOOLONE TOPIC

BASIC DESIGN AND TECHNOLOGY

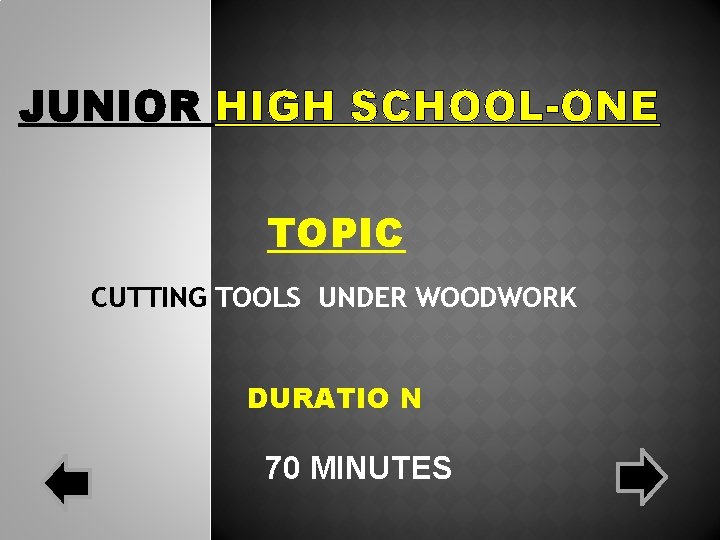

JUNIOR HIGH SCHOOL-ONE TOPIC CUTTING TOOLS UNDER WOODWORK DURATIO N 70 MINUTES

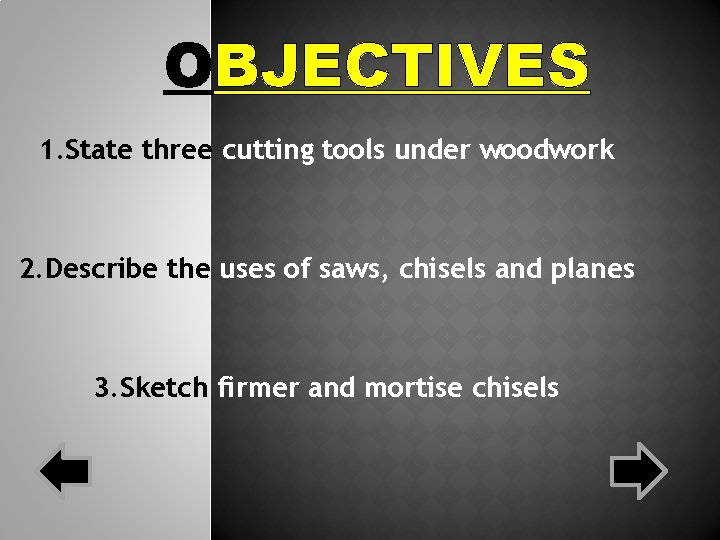

OBJECTIVES 1. State three cutting tools under woodwork 2. Describe the uses of saws, chisels and planes 3. Sketch firmer and mortise chisels

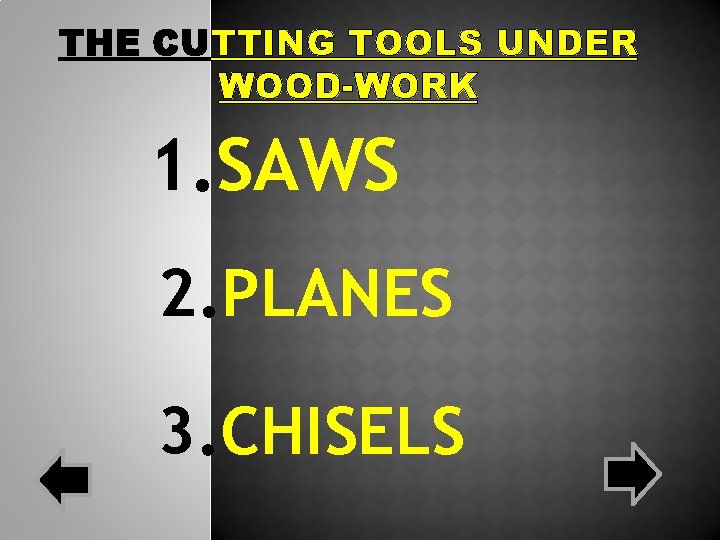

THE CUTTING TOOLS UNDER WOOD-WORK 1. SAWS 2. PLANES 3. CHISELS

SAWS Sawing is the process of cutting along and across the grain of timber TYPES OF SAWS RIP SAW It is used to cut along the grain of timber. It has a length of 700 mm , it has 4 -6 teethper 25 mm Handle M 700 M Blade Teeth

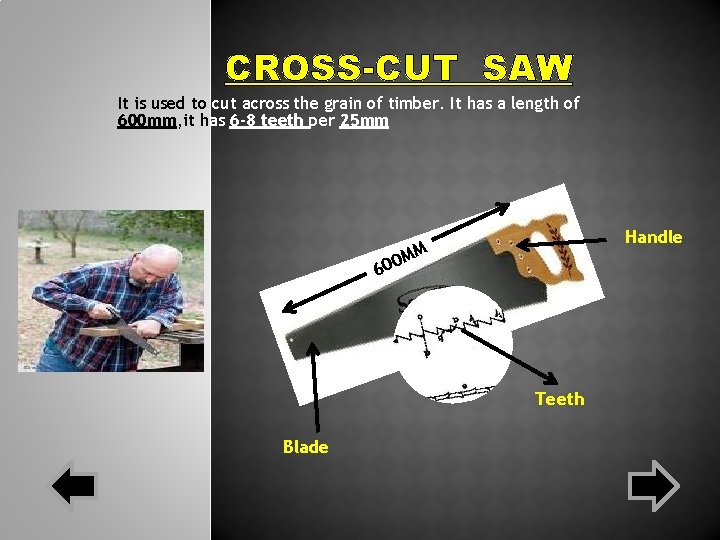

CROSS-CUT SAW It is used to cut across the grain of timber. It has a length of 600 mm, it has 6 -8 teeth per 25 mm 6 Handle M M 00 Teeth Blade

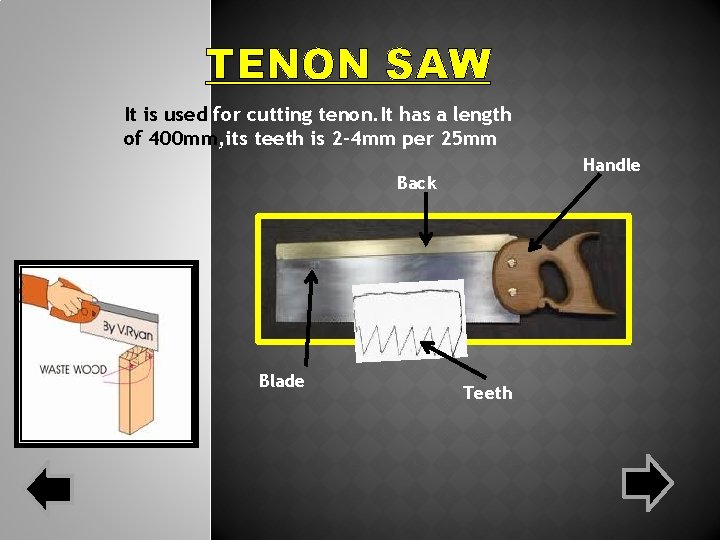

TENON SAW It is used for cutting tenon. It has a length of 400 mm, its teeth is 2 -4 mm per 25 mm Handle Back Blade Teeth

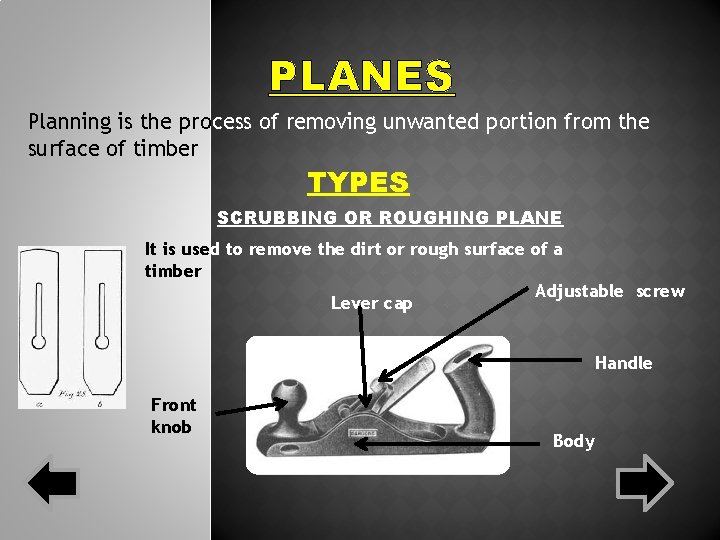

PLANES Planning is the process of removing unwanted portion from the surface of timber TYPES SCRUBBING OR ROUGHING PLANE It is used to remove the dirt or rough surface of a timber Adjustable screw Lever cap Handle Front knob Body

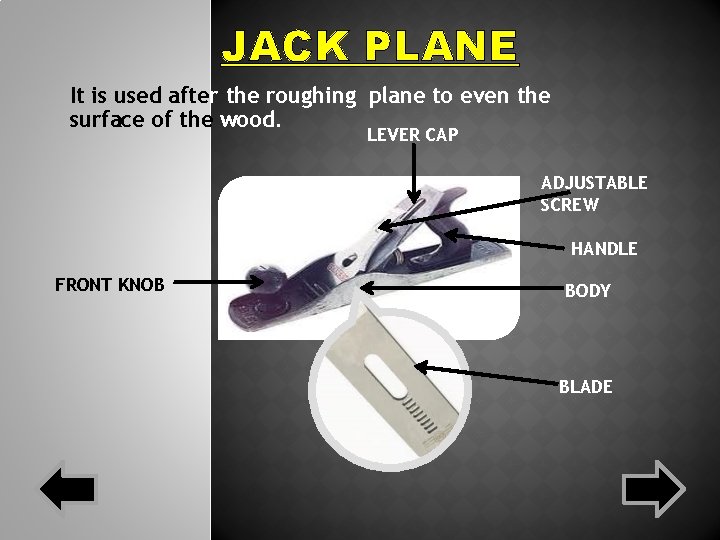

JACK PLANE It is used after the roughing plane to even the surface of the wood. LEVER CAP ADJUSTABLE SCREW HANDLE FRONT KNOB BODY BLADE

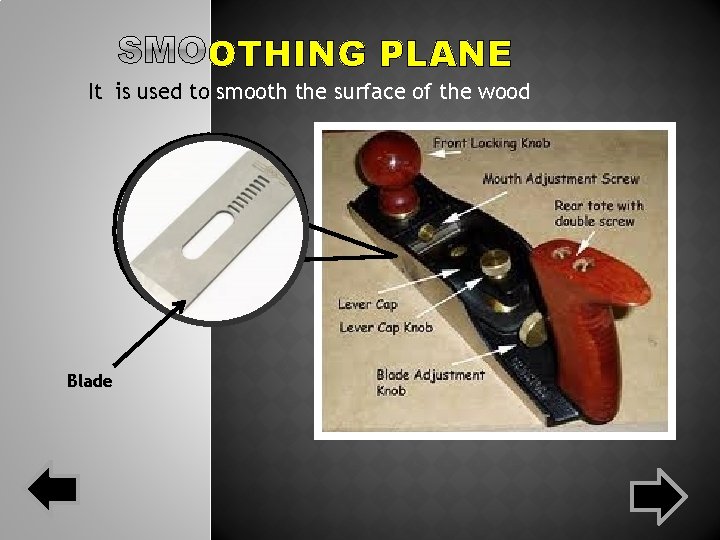

OTHING PLANE It is used to smooth the surface of the wood Blade

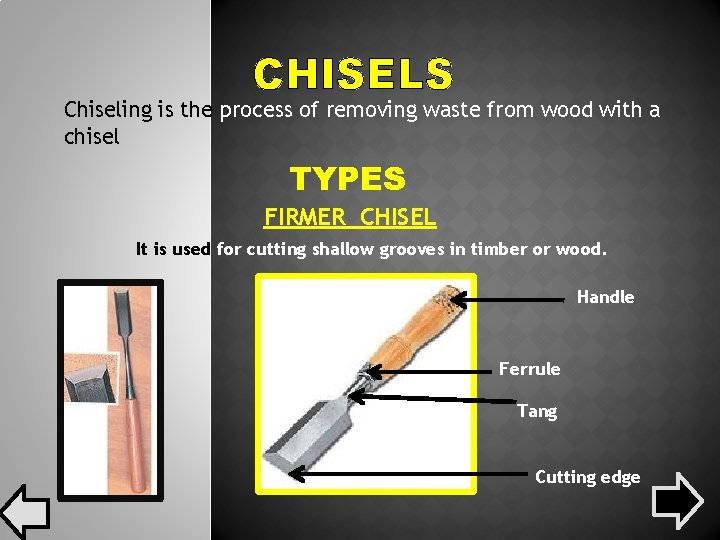

CHISELS Chiseling is the process of removing waste from wood with a chisel TYPES FIRMER CHISEL It is used for cutting shallow grooves in timber or wood. Handle Ferrule Tang Cutting edge

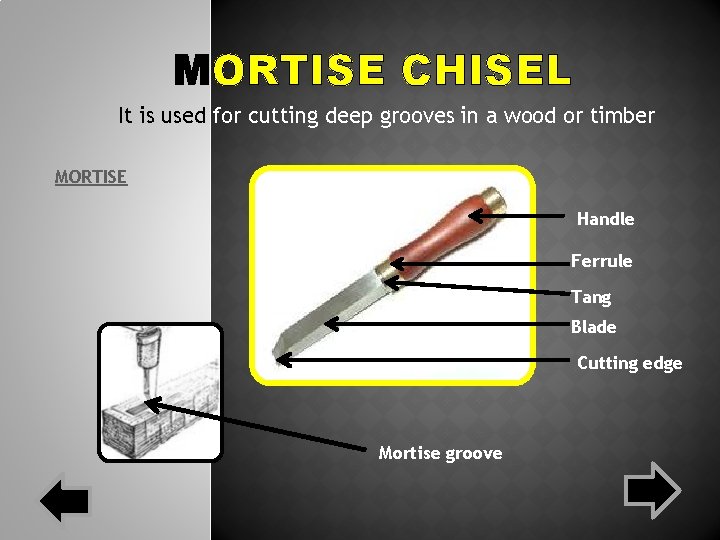

MORTISE CHISEL It is used for cutting deep grooves in a wood or timber MORTISE Handle Ferrule Tang Blade Cutting edge Mortise groove

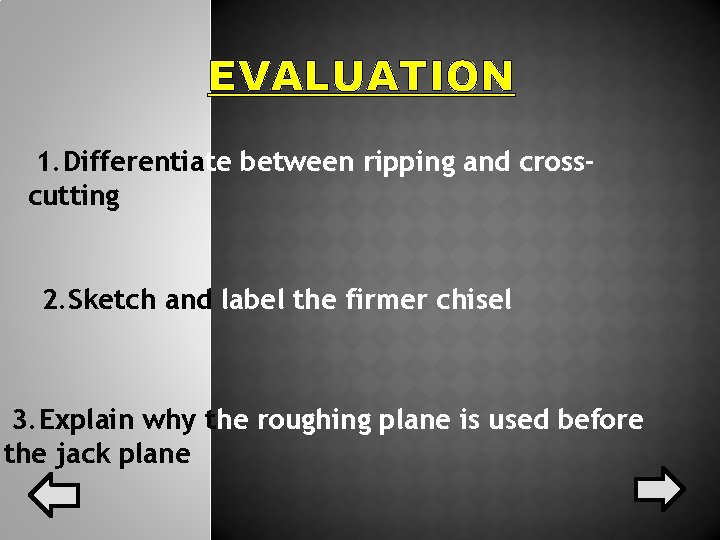

EVALUATION 1. Differentiate between ripping and crosscutting 2. Sketch and label the firmer chisel 3. Explain why the roughing plane is used before the jack plane
