Basic Crystallography 13 January 2017 Three general types

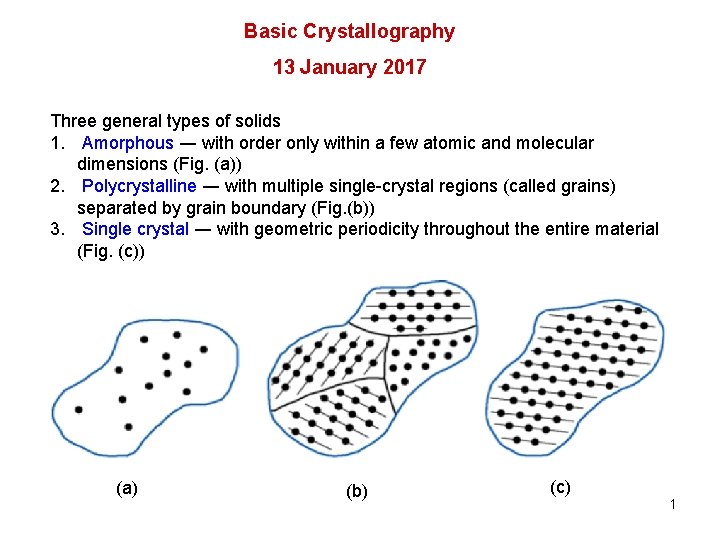

Basic Crystallography 13 January 2017 Three general types of solids 1. Amorphous ― with order only within a few atomic and molecular dimensions (Fig. (a)) 2. Polycrystalline ― with multiple single-crystal regions (called grains) separated by grain boundary (Fig. (b)) 3. Single crystal ― with geometric periodicity throughout the entire material (Fig. (c)) (a) (b) (c) 1

DIMENSIONS AND UNITS è è è è 1 micrometer (1 mm) = 10 -6 m = 10 -4 cm 1 Å = 10 -10 m = 10 -8 cm (Å =Angstrom) 10, 000 Å = 1 mm = 1000 nm 1 nanometer (1 nm) = 10 -9 m = 10 Å Wavelength of visible light 0. 4 mm(violet) to 0. 7 mm(red) {400 nm to 700 nm, 4, 000 Å to 7, 000 Å } 1 mil = 0. 001 inch = 25. 4 mm Sheet of notebook paper about 4 mils = 100 mm 1 human hair = 75 mm to 100 mm = 75, 000 -100, 000 nm Atomic spacing in a crystal ~ 3 to 5 Å Fingernail growth rate about 1 -3 mm/hour (Not personally verified) Aggressive production minimum feature sizes, tens of nm, 20 nm used in the i. Phone 6 A 8 microprocessor, 14 nm in state-of-the-art memory from Micron Speed of Light c= 3 x 108 m/sec = 300 m/μsec = 0. 3 m/nsec (About 1 foot/nsec) T = 0. 33 nsec Signal or Photon Travels About 4 inches 3 GHz clock speed

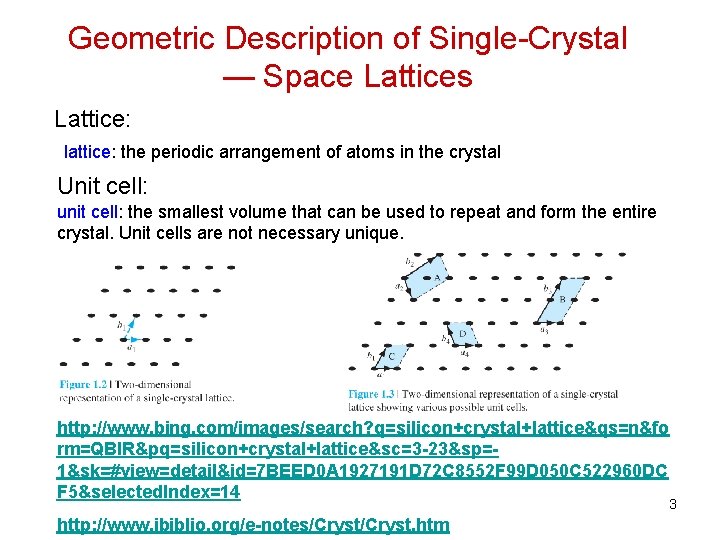

Geometric Description of Single-Crystal — Space Lattices Lattice: lattice: the periodic arrangement of atoms in the crystal Unit cell: unit cell: the smallest volume that can be used to repeat and form the entire crystal. Unit cells are not necessary unique. http: //www. bing. com/images/search? q=silicon+crystal+lattice&qs=n&fo rm=QBIR&pq=silicon+crystal+lattice&sc=3 -23&sp=1&sk=#view=detail&id=7 BEED 0 A 1927191 D 72 C 8552 F 99 D 050 C 522960 DC F 5&selected. Index=14 3 http: //www. ibiblio. org/e-notes/Cryst. htm

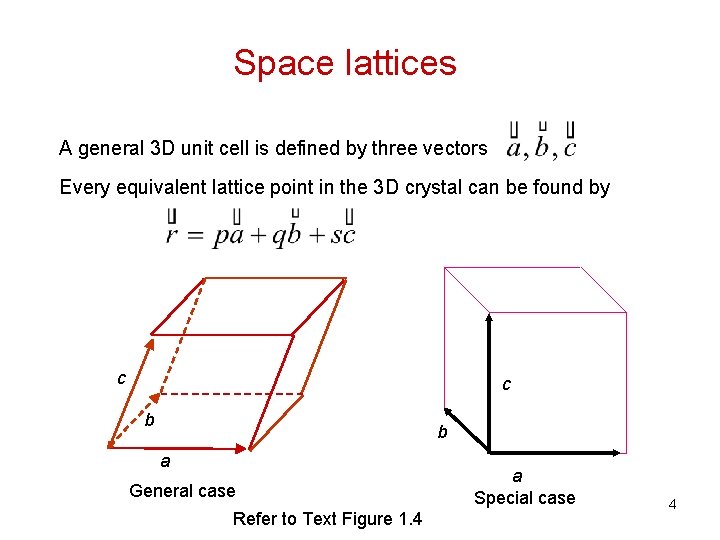

Space lattices A general 3 D unit cell is defined by three vectors Every equivalent lattice point in the 3 D crystal can be found by c c b b a General case Refer to Text Figure 1. 4 a Special case 4

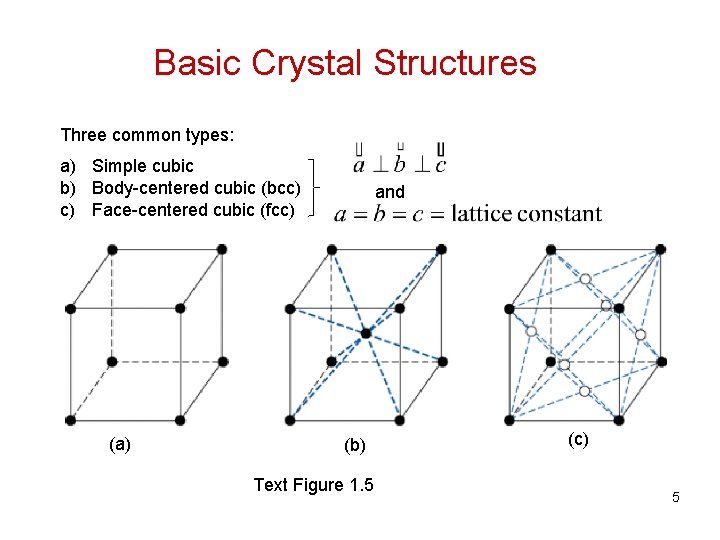

Basic Crystal Structures Three common types: a) Simple cubic b) Body-centered cubic (bcc) c) Face-centered cubic (fcc) (a) and (b) Text Figure 1. 5 (c) 5

Volume Density of Atoms • Volume density Number of atoms per unit volume = Total number of atoms / volume occupied by these atoms = number of atoms per unit cell/volume of the unit cell Unit: m-3 or (cm)-3 Preferred Important Numbers for Si • Example For Silicon -8 a= 5. 43 Å = 5. 43 x 10 cm Volume density = 6

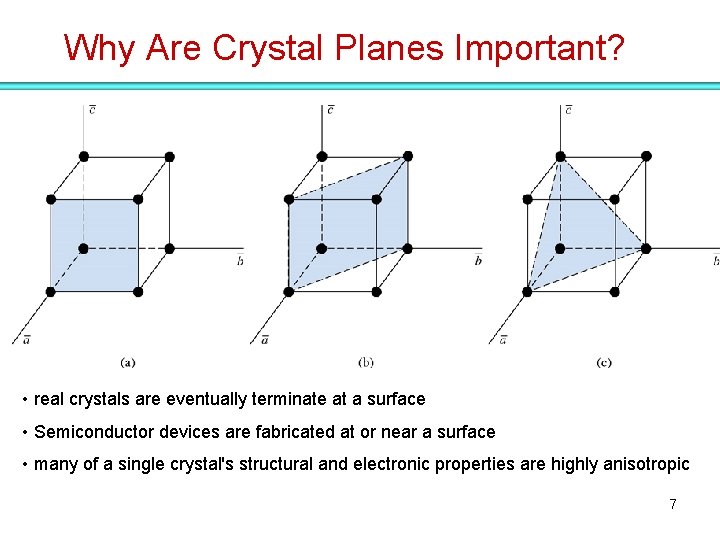

Why Are Crystal Planes Important? • real crystals are eventually terminate at a surface • Semiconductor devices are fabricated at or near a surface • many of a single crystal's structural and electronic properties are highly anisotropic 7

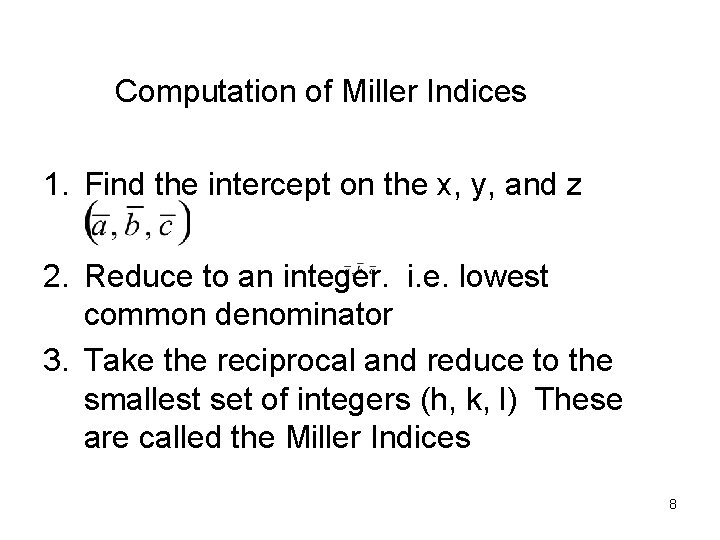

Computation of Miller Indices 1. Find the intercept on the x, y, and z 2. Reduce to an integer. i. e. lowest common denominator 3. Take the reciprocal and reduce to the smallest set of integers (h, k, l) These are called the Miller Indices 8

INDICES 9

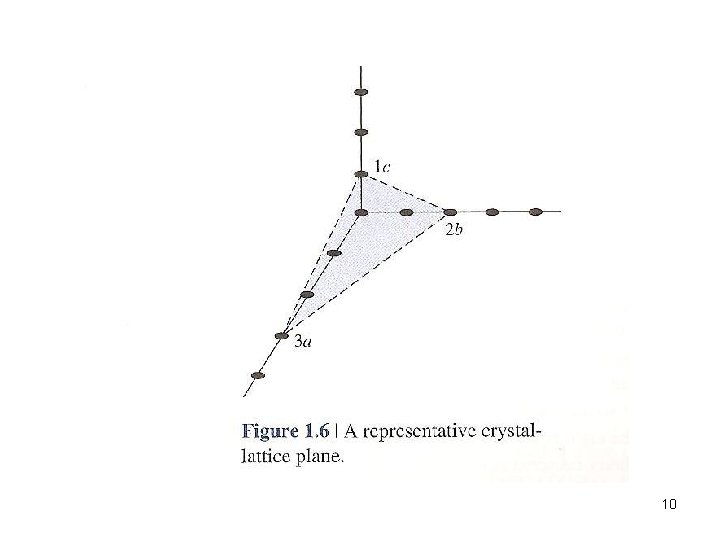

10

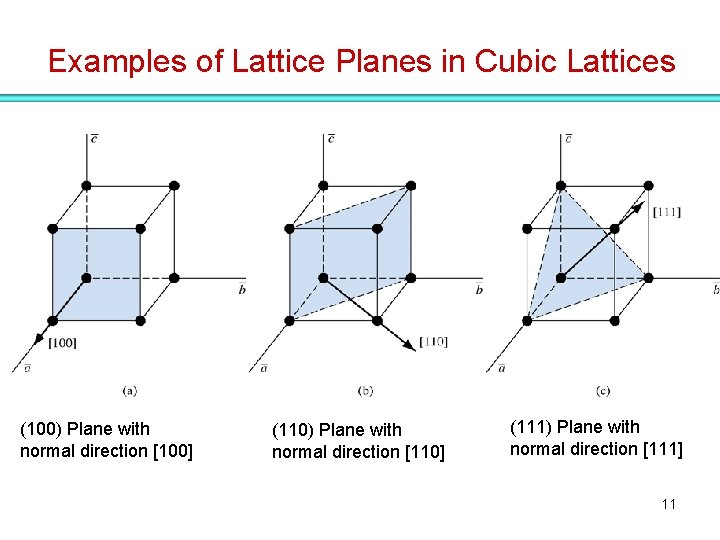

Examples of Lattice Planes in Cubic Lattices (100) Plane with normal direction [100] (110) Plane with normal direction [110] (111) Plane with normal direction [111] 11

Set of Planes (001) (010) Due to the high degree of symmetry in simple cubic, bcc and fcc, the axis can be rotated or parallel shift in each of three dimensions, and a set of plane can be entirely equivalent. {100} set of planes: (100), (010), (001) Similarly, {110} set of planes: (110), (101), (011) 12

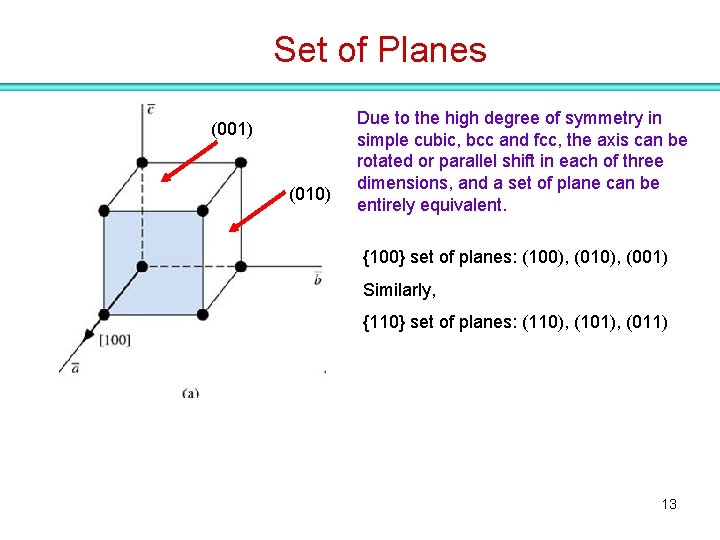

Set of Planes (001) (010) Due to the high degree of symmetry in simple cubic, bcc and fcc, the axis can be rotated or parallel shift in each of three dimensions, and a set of plane can be entirely equivalent. {100} set of planes: (100), (010), (001) Similarly, {110} set of planes: (110), (101), (011) 13

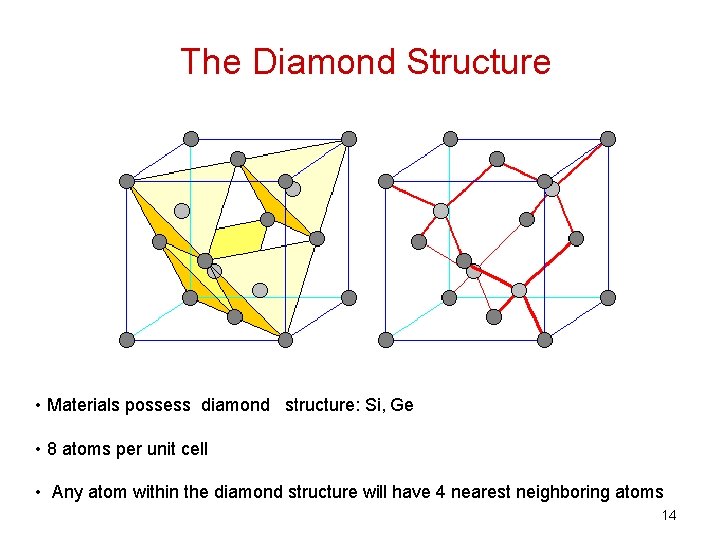

The Diamond Structure • Materials possess diamond structure: Si, Ge • 8 atoms per unit cell • Any atom within the diamond structure will have 4 nearest neighboring atoms 14

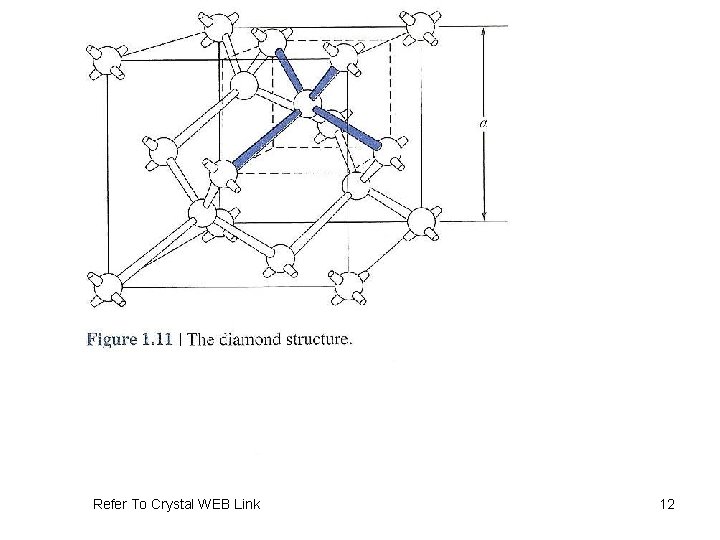

Refer To Crystal WEB Link 12

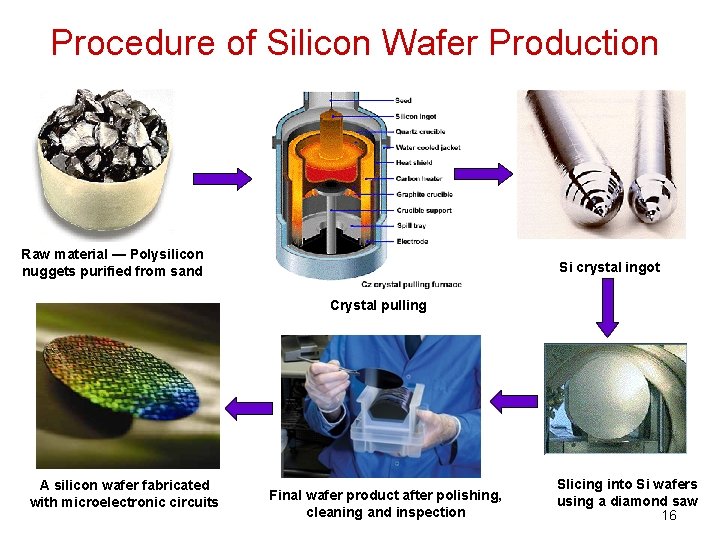

Procedure of Silicon Wafer Production Raw material ― Polysilicon nuggets purified from sand Si crystal ingot Crystal pulling A silicon wafer fabricated with microelectronic circuits Final wafer product after polishing, cleaning and inspection Slicing into Si wafers using a diamond saw 16

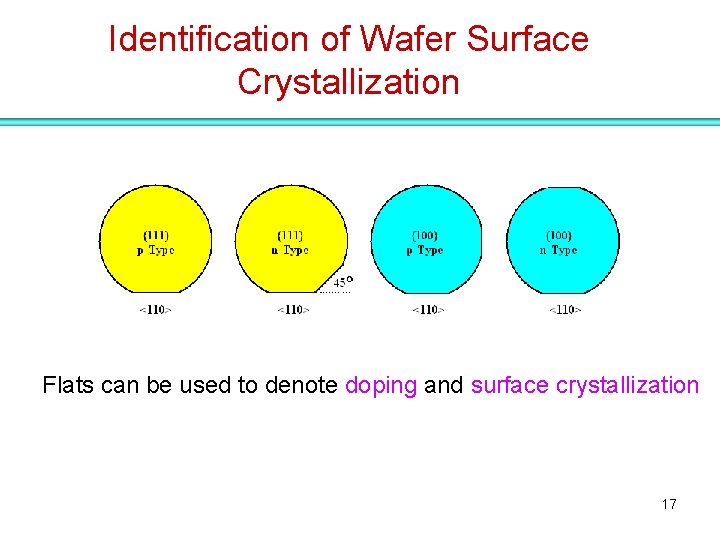

Identification of Wafer Surface Crystallization Flats can be used to denote doping and surface crystallization 17
