Basic concept of Submarine Cable International route and
Basic concept of Submarine Cable International route and maintenance systems www. assignmentpoint. com
Sub-Sea Make Up
High fiber counts possible 876 fibers Fiber ribbons Dielectric central member Filled buffer tube Water-blocking material Outer strength members

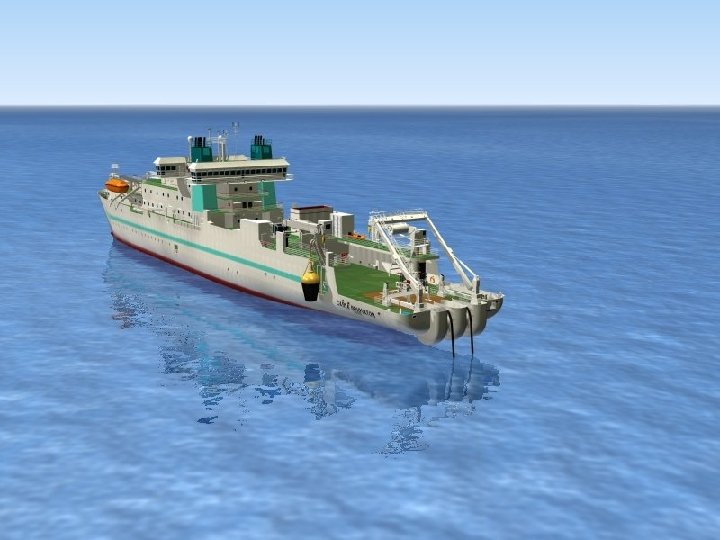

Special Equipments for Construction (Cableship Segero) Main Particulars - Launch : 1998. 4 - Gross Ton : 8, 300 T - Length : 115. 8 m - Beam : 20 m - Accommodation: 63 - Endurance : 12, 000 nm
Special Equipments for Construction (Plough) The Plough is designed for the installation and burial submarine cables at same time to protect the cable
Special Equipments for Construction (ROV) Remotely operated vehicles (ROV), plough typed vehicle, can be used for the difficult working area like the junction of cables and of re-burial working after repairing the present cables.
Pacific Rim Connection
Eastern Africa Submarine Cable System (EASSy) Zanzibar Mahajanga Mtunzini
Malaba Zanzibar
Global Connectivity 1 2 3 4 SEA ME WE 3 5 6 7 16 23 8 17 9 25 10 22 24 21 20 11 SAT-3/WASC 19 15 14 18 13 12 SAFE
Strategic Global Coverage Germany 56 Countries Portugal ATLANTIS-2 (6 Countries) Japan SEA-ME-WE-3 (35 Countries) Egypt India Malaysia Senegal EASSy (11 Countries) Brazil SAT-3 / WASC (11 Countries) Australia South Africa SAFE (5 Countries)
International Submarine Cables in North East Asia
Korea-Japan Cable Network KJCN Map
