Basic Computer Organization Design 1 BASIC COMPUTER ORGANIZATION

Basic Computer Organization & Design 1 BASIC COMPUTER ORGANIZATION AND DESIGN • Instruction Codes • Computer Registers • Computer Instructions • Timing and Control • Instruction Cycle • Memory Reference Instructions • Input-Output and Interrupt • Complete Computer Description • Design of Basic Computer • Design of Accumulator Logic Computer Organization Computer Architectures Lab

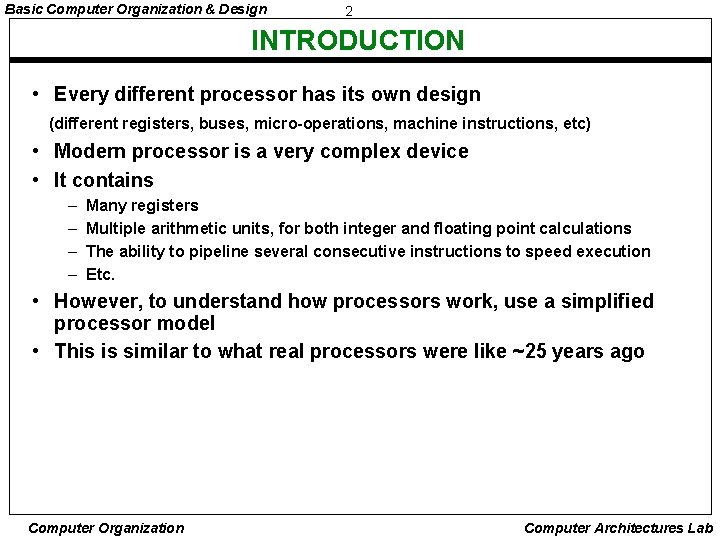

Basic Computer Organization & Design 2 INTRODUCTION • Every different processor has its own design (different registers, buses, micro-operations, machine instructions, etc) • Modern processor is a very complex device • It contains – – Many registers Multiple arithmetic units, for both integer and floating point calculations The ability to pipeline several consecutive instructions to speed execution Etc. • However, to understand how processors work, use a simplified processor model • This is similar to what real processors were like ~25 years ago Computer Organization Computer Architectures Lab

Basic Computer Organization & Design 3 THE BASIC COMPUTER • The Basic Computer has two components, a processor and memory • The memory has 4096 words in it – 4096 = 212, so it takes 12 bits to select a word in memory • Each word is 16 bits long RAM CPU 0 15 0 4095 Computer Organization Computer Architectures Lab

Basic Computer Organization & Design 4 Instruction codes INSTRUCTIONS • Program – A sequence of (machine) instructions • (Machine) Instruction – A group of bits that tell the computer to perform a specific operation (a sequence of micro-operation) • The instructions of a program, along with any needed data are stored in memory • The CPU reads the next instruction from memory • It is placed in an Instruction Register (IR) • Control circuitry in control unit then translates the instruction into the sequence of microoperations necessary to implement it Computer Organization Computer Architectures Lab

Basic Computer Organization & Design 5 Instruction codes INSTRUCTION FORMAT • A computer instruction is often divided into two parts – An opcode (Operation Code) that specifies the operation for that instruction – An address that specifies the registers and/or locations in memory to use for that operation • In the Basic Computer, since the memory contains 4096 (= 212) words, we needs 12 bit to specify which memory address this instruction will use • In the Basic Computer, bit 15 of the instruction specifies the addressing mode (0: direct addressing, 1: indirect addressing) • Since the memory words, and hence the instructions, are 16 bits long, that leaves 3 bits for the instruction’s opcode Instruction Format 15 14 12 11 Address I Opcode 0 Addressing mode Computer Organization Computer Architectures Lab

Basic Computer Organization & Design 6 Instruction codes ADDRESSING MODES • The address field of an instruction can represent either – Direct address: the address in memory of the data to use (the address of the operand), or – Indirect address: the address in memory of the data to use Indirect addressing Direct addressing 22 0 ADD 457 35 300 457 1 ADD 300 1350 Operand + + AC AC • Effective Address (EA) – The address, that can be directly used without modification to access an operand for a computation-type instruction, or as the target address for a branch-type instruction Computer Organization Computer Architectures Lab

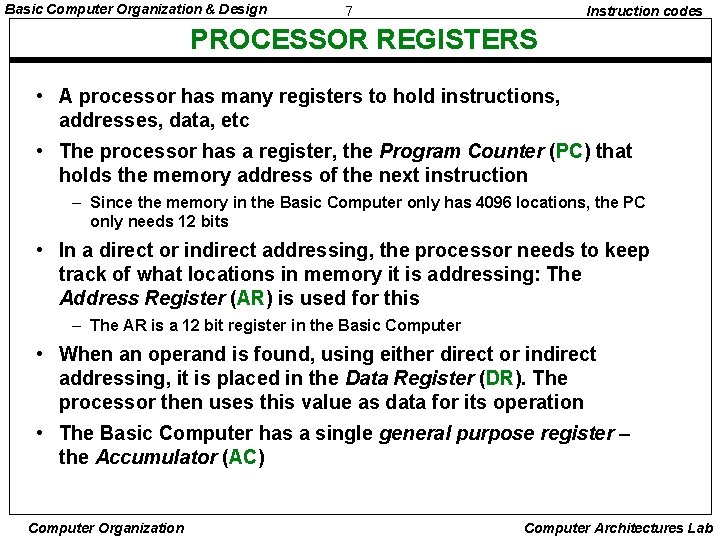

Basic Computer Organization & Design 7 Instruction codes PROCESSOR REGISTERS • A processor has many registers to hold instructions, addresses, data, etc • The processor has a register, the Program Counter (PC) that holds the memory address of the next instruction – Since the memory in the Basic Computer only has 4096 locations, the PC only needs 12 bits • In a direct or indirect addressing, the processor needs to keep track of what locations in memory it is addressing: The Address Register (AR) is used for this – The AR is a 12 bit register in the Basic Computer • When an operand is found, using either direct or indirect addressing, it is placed in the Data Register (DR). The processor then uses this value as data for its operation • The Basic Computer has a single general purpose register – the Accumulator (AC) Computer Organization Computer Architectures Lab

Basic Computer Organization & Design 8 Instruction codes PROCESSOR REGISTERS • The significance of a general purpose register is that it can be used for loading operands and storing results – e. g. load AC with the contents of a specific memory location; store the contents of AC into a specified memory location • Often a processor will need a scratch register to store intermediate results or other temporary data; in the Basic Computer this is the Temporary Register (TR) • The Basic Computer uses a very simple model of input/output (I/O) operations – Input devices are considered to send 8 bits of character data to the processor – The processor can send 8 bits of character data to output devices • The Input Register (INPR) holds an 8 bit character gotten from an input device • The Output Register (OUTR) holds an 8 bit character to be send to an output device Computer Organization Computer Architectures Lab

Basic Computer Organization & Design 9 Registers BASIC COMPUTER REGISTERS Registers in the Basic Computer 11 0 PC Memory 11 0 4096 x 16 AR 15 0 IR CPU 15 0 TR 7 0 OUTR DR 7 0 15 0 INPR AC List of Registers DR AR AC IR PC TR INPR OUTR 16 12 16 8 8 Computer Organization Data Register Address Register Accumulator Instruction Register Program Counter Temporary Register Input Register Output Register Holds memory operand Holds address for memory Processor register Holds instruction code Holds address of instruction Holds temporary data Holds input character Holds output character Computer Architectures Lab

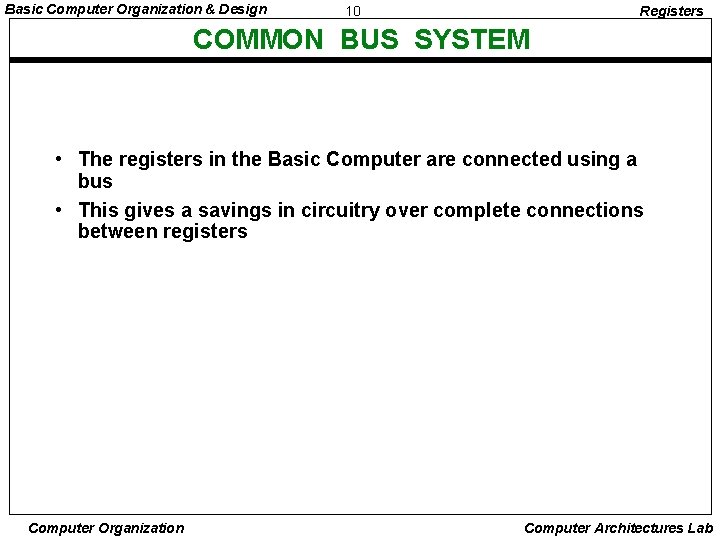

Basic Computer Organization & Design 10 Registers COMMON BUS SYSTEM • The registers in the Basic Computer are connected using a bus • This gives a savings in circuitry over complete connections between registers Computer Organization Computer Architectures Lab

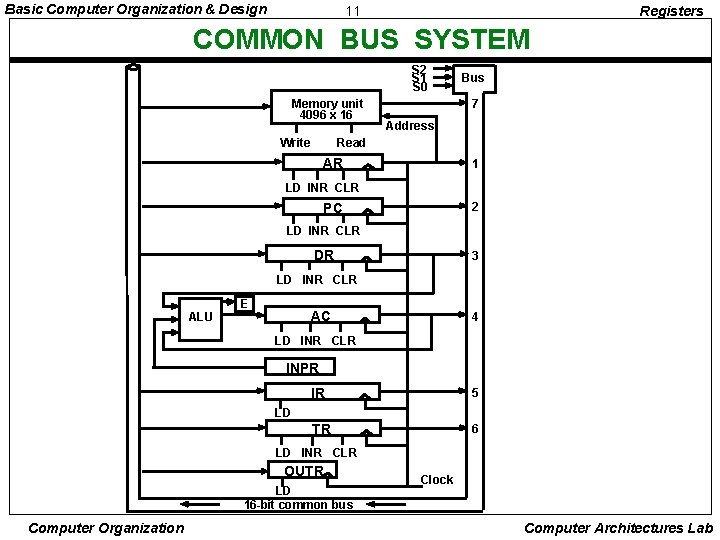

Basic Computer Organization & Design 11 Registers COMMON BUS SYSTEM S 2 S 1 S 0 Memory unit 4096 x 16 Write Bus 7 Address Read AR 1 LD INR CLR PC 2 LD INR CLR DR 3 LD INR CLR E AC ALU 4 LD INR CLR INPR IR 5 TR 6 LD LD INR CLR OUTR LD 16 -bit common bus Computer Organization Clock Computer Architectures Lab

Basic Computer Organization & Design 12 Registers COMMON BUS SYSTEM Read Memory 4096 x 16 INPR Write E Address ALU AC L I L I C C C L DR IR L I TR PC OUTR AR L I 7 1 C L C 2 3 4 5 6 16 -bit Common Bus S 0 S 1 S 2 Computer Organization Computer Architectures Lab

Basic Computer Organization & Design 13 Registers COMMON BUS SYSTEM • Three control lines, S 2, S 1, and S 0 control which register the bus selects as its input S 2 S 1 S 0 0 0 1 1 1 0 0 1 1 1 Register x AR PC DR AC IR TR Memory • Either one of the registers will have its load signal activated, or the memory will have its read signal activated – Will determine where the data from the bus gets loaded • The 12 -bit registers, AR and PC, have 0’s loaded onto the bus in the high order 4 bit positions • When the 8 -bit register OUTR is loaded from the bus, the data comes from the low order 8 bits on the bus Computer Organization Computer Architectures Lab

Basic Computer Organization & Design 14 Instructions BASIC COMPUTER INSTRUCTIONS • Basic Computer Instruction Format Memory-Reference Instructions 15 I 14 12 11 Opcode 0 Address Register-Reference Instructions 15 0 1 1 12 11 Register operation 1 Input-Output Instructions 15 1 1 Computer Organization 12 11 1 1 (OP-code = 000 ~ 110) (OP-code = 111, I = 0) 0 (OP-code =111, I = 1) 0 I/O operation Computer Architectures Lab

Basic Computer Organization & Design 15 Instructions BASIC COMPUTER INSTRUCTIONS Hex Code I=0 I=1 0 xxx 8 xxx 1 xxx 9 xxx 2 xxx Axxx 3 xxx Bxxx 4 xxx Cxxx 5 xxx Dxxx 6 xxx Exxx Description AND memory word to AC Add memory word to AC Load AC from memory Store content of AC into memory Branch unconditionally Branch and save return address Increment and skip if zero CLA CLE CMA CME CIR CIL INC SPA SNA SZE HLT 7800 7400 7200 7100 7080 7040 7020 7010 7008 7004 7002 7001 Clear AC Clear E Complement AC Complement E Circulate right AC and E Circulate left AC and E Increment AC Skip next instr. if AC is positive Skip next instr. if AC is negative Skip next instr. if AC is zero Skip next instr. if E is zero Halt computer INP OUT SKI SKO ION IOF F 800 F 400 F 200 F 100 F 080 F 040 Input character to AC Output character from AC Skip on input flag Skip on output flag Interrupt on Interrupt off Symbol AND ADD LDA STA BUN BSA ISZ Computer Organization Computer Architectures Lab

Basic Computer Organization & Design 16 Instructions INSTRUCTION SET COMPLETENESS Set of instructions using which user can construct machine language programs to evaluate any computable function. • Instruction Types Functional Instructions - Arithmetic, logic, and shift instructions - ADD, CMA, INC, CIR, CIL, AND, CLA (other than ADD/AND? ) Transfer Instructions - Data transfers between the main memory and the processor registers - LDA, STA Control Instructions - Program sequencing and control - BUN, BSA, ISZ Input/Output Instructions - Input and output - INP, OUT Computer Organization Computer Architectures Lab

Basic Computer Organization & Design 17 Instruction codes CONTROL UNIT • Control unit (CU) of a processor translates from machine instructions to the control signals (for the microoperations) that implement them • Control units are implemented in one of two ways • Hardwired Control – CU is made up of sequential and combinational circuits to generate the control signals • Microprogrammed Control – A control memory on the processor contains microprograms that activate the necessary control signals • We will consider a hardwired implementation of the control unit for the Basic Computer Organization Computer Architectures Lab

Basic Computer Organization & Design 18 Timing and control TIMING AND CONTROL Control unit of Basic Computer 15 Instruction register (IR) 14 13 12 11 - 0 Other inputs 3 x 8 decoder 7 6543 210 D 0 I D 7 Combinational Control logic Control signals T 15 T 0 15 14. . 2 1 0 4 x 16 decoder 4 -bit sequence counter (SC) Computer Organization Increment (INR) Clear (CLR) Clock Computer Architectures Lab

Basic Computer Organization & Design 19 Timing and control TIMING SIGNALS - Generated by 4 -bit sequence counter and 4 16 decoder - The SC can be incremented or cleared. - Example: T 0, T 1, T 2, T 3, T 4, T 0, T 1, . . . Assume: At time T 4, SC is cleared to 0 if decoder output D 3 is active. D 3 T 4: SC 0 Computer Organization Computer Architectures Lab

Basic Computer Organization & Design 20 INSTRUCTION CYCLE • In Basic Computer, a machine instruction is executed in the following cycle: 1. Fetch an instruction from memory 2. Decode the instruction and calculate effective address (EA) 3. Read the EA from memory if the instruction has an indirect address (Fetch operand) 1. Execute the instruction • After an instruction is executed, the cycle starts again at step 1, for the next instruction • Note: Every different processor has its own (different) instruction cycle Computer Organization Computer Architectures Lab

Basic Computer Organization & Design 21 Instruction Cycle FETCH and DECODE • Fetch and Decode T 0: AR PC (S 0 S 1 S 2=010, T 0=1) T 1: IR M [AR], PC + 1 (S 0 S 1 S 2=111, T 1=1) T 2: D 0, . . . , D 7 Decode IR(12 -14), AR IR(0 -11), I IR(15) T 1 S 2 T 0 S 1 Bus S 0 Memory unit 7 Address Read AR 1 LD PC 2 INR IR LD 5 Clock Common bus Computer Organization Computer Architectures Lab

Basic Computer Organization & Design 22 Instrction Cycle DETERMINE THE TYPE OF INSTRUCTION Start SC 0 AR PC T 0 IR M[AR], PC + 1 T 2 Decode Opcode in IR(12 -14), AR IR(0 -11), I IR(15) (Register or I/O) = 1 (I/O) = 1 I T 3 Execute input-output instruction SC 0 D'7 IT 3: D'7 I'T 3: D 7 IT 3: D 7 = 0 (Memory-reference) =>opcode ≠ 111 = 0 (register) (indirect) = 1 T 3 Execute register-reference instruction SC 0 T 3 AR M[AR] I = 0 (direct) T 3 Nothing Execute memory-reference instruction SC 0 T 4 AR M[AR] Nothing Execute a register-reference instr. Execute an input-output instr. Computer Organization Computer Architectures Lab

Basic Computer Organization & Design 23 Instruction Cycle REGISTER REFERENCE INSTRUCTIONS Register Reference Instructions are identified when - D 7 = 1, I = 0 - Register Ref. Instr. is specified in b 0 ~ b 11 of IR - Execution starts with timing signal T 3 r = D 7 I T 3 => Register Reference Instruction Bi = IR(i) , i=0, 1, 2, . . . , 11 CLA CLE CMA CME CIR CIL INC SPA SNA SZE HLT r: r. B 11: r. B 10: r. B 9: r. B 8: r. B 7: r. B 6: r. B 5: r. B 4: r. B 3: r. B 2: r. B 1: r. B 0: Computer Organization SC 0 AC 0 E 0 AC AC’ E E’ AC shr AC, AC(15) E, E AC(0) AC shl AC, AC(0) E, E AC(15) AC + 1 if (AC(15) = 0) then (PC PC+1) if (AC(15) = 1) then (PC PC+1) if (AC = 0) then (PC PC+1) if (E = 0) then (PC PC+1) S 0 (S is a start-stop flip-flop) Computer Architectures Lab

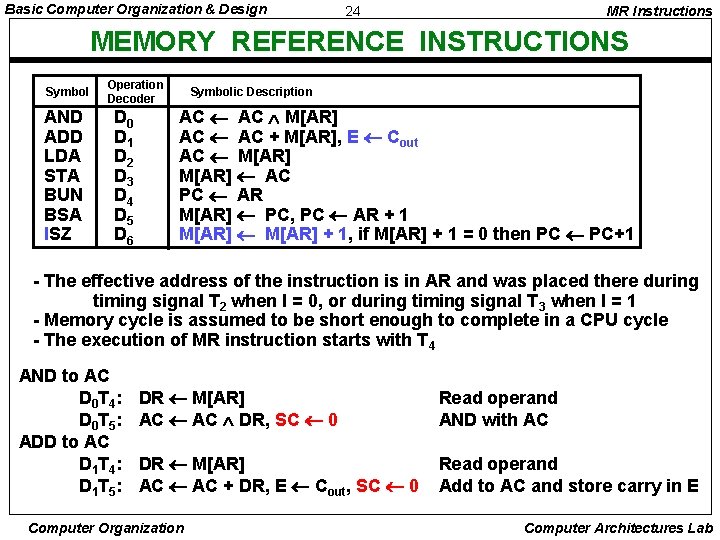

Basic Computer Organization & Design 24 MR Instructions MEMORY REFERENCE INSTRUCTIONS Symbol AND ADD LDA STA BUN BSA ISZ Operation Decoder D 0 D 1 D 2 D 3 D 4 D 5 D 6 Symbolic Description AC M[AR] AC + M[AR], E Cout AC M[AR] AC PC AR M[AR] PC, PC AR + 1 M[AR] + 1, if M[AR] + 1 = 0 then PC PC+1 - The effective address of the instruction is in AR and was placed there during timing signal T 2 when I = 0, or during timing signal T 3 when I = 1 - Memory cycle is assumed to be short enough to complete in a CPU cycle - The execution of MR instruction starts with T 4 AND to AC D 0 T 4 : D 0 T 5 : ADD to AC D 1 T 4 : D 1 T 5 : DR M[AR] AC DR, SC 0 Read operand AND with AC DR M[AR] AC + DR, E Cout, SC 0 Read operand Add to AC and store carry in E Computer Organization Computer Architectures Lab

Basic Computer Organization & Design 25 MEMORY REFERENCE INSTRUCTIONS LDA: Load to AC D 2 T 4: DR M[AR] D 2 T 5: AC DR, SC 0 STA: Store AC D 3 T 4: M[AR] AC, SC 0 BUN: Branch Unconditionally D 4 T 4: PC AR, SC 0 BSA: Branch and Save Return Address Memory, PC, AR at time T 4 20 PC = 21 0 BSA 135 Next instruction AR = 135 136 Subroutine 1 BUN Memory Computer Organization 135 Memory, PC after execution 20 0 BSA 135 21 Next instruction 135 21 Subroutine PC = 136 1 BUN 135 Memory Computer Architectures Lab

Basic Computer Organization & Design 26 MR Instructions MEMORY REFERENCE INSTRUCTIONS BSA: D 5 T 4: M[AR] PC, AR + 1 D 5 T 5: PC AR, SC 0 ISZ: Increment and Skip-if-Zero D 6 T 4: DR M[AR] D 6 T 5: DR + 1 D 6 T 4: M[AR] DR, if (DR = 0) then (PC PC + 1), SC 0 Computer Organization Computer Architectures Lab

Basic Computer Organization & Design 27 MR Instructions FLOWCHART FOR MEMORY REFERENCE INSTRUCTIONS Memory-reference instruction AND D 0 T 4 DR M[AR] ADD LDA D 1 T 4 DR M[AR] D 0 T 5 D 1 T 5 AC DR AC + DR SC 0 E Cout SC 0 BUN BSA STA D 2 T 4 DR M[AR] D 3 T 4 M[AR] AC SC 0 D 2 T 5 AC DR SC 0 ISZ D 4 T 4 D 5 T 4 D 6 T 4 PC AR M[AR] PC DR M[AR] SC 0 AR + 1 D 5 T 5 PC AR SC 0 D 6 T 5 DR + 1 D 6 T 6 M[AR] DR If (DR = 0) then (PC PC + 1) SC 0 Computer Organization Computer Architectures Lab

Basic Computer Organization & Design 28 I/O and Interrupt INPUT-OUTPUT AND INTERRUPT A Terminal with a keyboard and a Printer • Input-Output Configuration Input-output terminal Printer Serial communication interface Computer registers and flip-flops Receiver interface OUTR FGO AC INPR OUTR FGI FGO IEN Input register - 8 bits Output register - 8 bits Input flag - 1 bit Output flag - 1 bit Interrupt enable - 1 bit Keyboard Transmitter interface INPR FGI Serial Communications Path Parallel Communications Path - The terminal sends and receives serial information - The serial info. from the keyboard is shifted into INPR - The serial info. for the printer is stored in the OUTR - INPR and OUTR communicate with the terminal serially and with the AC in parallel. - The flags are needed to synchronize the timing difference between I/O device and the computer Computer Organization Computer Architectures Lab

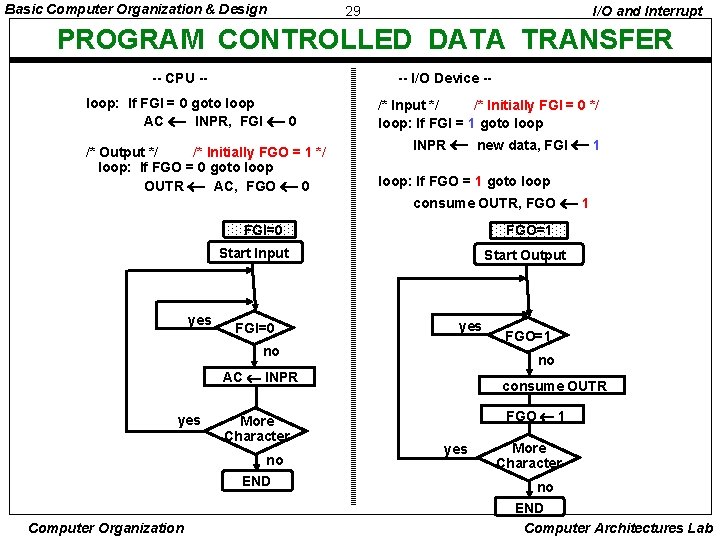

Basic Computer Organization & Design 29 I/O and Interrupt PROGRAM CONTROLLED DATA TRANSFER -- CPU -- -- I/O Device -- loop: If FGI = 0 goto loop AC INPR, FGI 0 /* Output */ /* Initially FGO = 1 */ loop: If FGO = 0 goto loop OUTR AC, FGO 0 /* Input */ /* Initially FGI = 0 */ loop: If FGI = 1 goto loop INPR new data, FGI 1 loop: If FGO = 1 goto loop consume OUTR, FGO 1 FGI=0 FGO=1 Start Input yes FGI=0 Start Output yes no no AC INPR yes More Character no END Computer Organization FGO=1 consume OUTR FGO 1 yes More Character no END Computer Architectures Lab

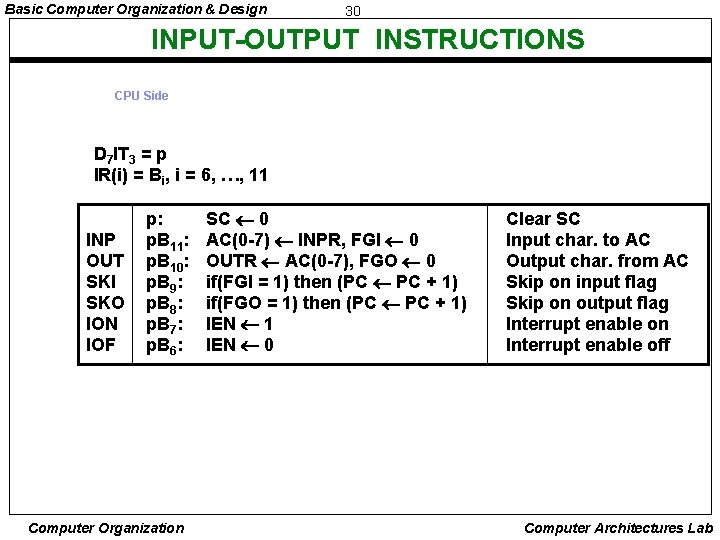

Basic Computer Organization & Design 30 INPUT-OUTPUT INSTRUCTIONS CPU Side D 7 IT 3 = p IR(i) = Bi, i = 6, …, 11 INP OUT SKI SKO ION IOF p: p. B 11: p. B 10: p. B 9: p. B 8: p. B 7: p. B 6: Computer Organization SC 0 AC(0 -7) INPR, FGI 0 OUTR AC(0 -7), FGO 0 if(FGI = 1) then (PC PC + 1) if(FGO = 1) then (PC PC + 1) IEN 1 IEN 0 Clear SC Input char. to AC Output char. from AC Skip on input flag Skip on output flag Interrupt enable on Interrupt enable off Computer Architectures Lab

Basic Computer Organization & Design 31 I/O and Interrupt PROGRAM-CONTROLLED INPUT/OUTPUT • Program-controlled I/O - Continuous CPU involvement I/O takes valuable CPU time - CPU slowed down to I/O speed - Simple - Least hardware Input LOOP SKI DEV BUN LOOP INP DEV Output LOOP LDA SKO BUN OUT Computer Organization DATA DEV LOOP DEV Computer Architectures Lab

Basic Computer Organization & Design 32 INTERRUPT INITIATED INPUT/OUTPUT - Open communication only when some data has to be passed --> interrupt. - The I/O interface, instead of the CPU, monitors the I/O device. - When the interface founds that the I/O device is ready for data transfer, it generates an interrupt request to the CPU - Upon detecting an interrupt, the CPU stops momentarily the task it is doing, branches to the service routine to process the data transfer, and then returns to the task it was performing. * IEN (Interrupt-enable flip-flop) - can be set and cleared by instructions - when cleared, the computer cannot be interrupted Computer Organization Computer Architectures Lab

Basic Computer Organization & Design 33 I/O and Interrupt FLOWCHART FOR INTERRUPT CYCLE R = Interrupt f/f Instruction cycle =0 IEN =1 =1 =1 FGI =0 FGO =0 =1 Interrupt cycle Store return address in location 0 M[0] PC Fetch and decode instructions Execute instructions R =0 Branch to location 1 PC 1 IEN 0 R 1 - The interrupt cycle is a HW implementation of a branch and save return address operation. - At the beginning of the next instruction cycle, the instruction that is read from memory is in address 1. - At memory address 1, the programmer must store a branch instruction that sends the control to an interrupt service routine - The instruction that returns the control to the original program is "indirect BUN 0" Computer Organization Computer Architectures Lab

Basic Computer Organization & Design 34 I/O and Interrupt REGISTER TRANSFER OPERATIONS IN INTERRUPT CYCLE Memory Before interrupt 0 1 0 BUN 1120 Main Program 255 PC = 256 1120 After interrupt cycle 0 PC = 1 0 Main Program 255 256 1120 I/O Program 1 BUN 256 BUN 1120 I/O Program 0 1 BUN 0 Register Transfer Statements for Interrupt Cycle - R F/F 1 if IEN (FGI + FGO)T 0 T 1 T 2 (IEN)(FGI + FGO): R 1 - The fetch and decode phases of the instruction cycle must be modified Replace T 0, T 1, T 2 with R'T 0, R'T 1, R'T 2 - The interrupt cycle : RT 0: AR 0, TR PC RT 1: M[AR] TR, PC 0 RT 2: PC + 1, IEN 0, R 0, SC 0 Computer Organization Computer Architectures Lab

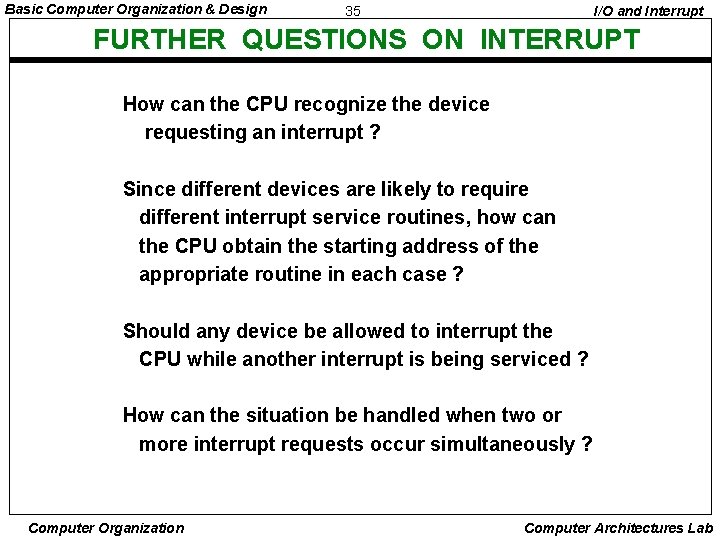

Basic Computer Organization & Design 35 I/O and Interrupt FURTHER QUESTIONS ON INTERRUPT How can the CPU recognize the device requesting an interrupt ? Since different devices are likely to require different interrupt service routines, how can the CPU obtain the starting address of the appropriate routine in each case ? Should any device be allowed to interrupt the CPU while another interrupt is being serviced ? How can the situation be handled when two or more interrupt requests occur simultaneously ? Computer Organization Computer Architectures Lab

Basic Computer Organization & Design 36 COMPLETE COMPUTER DESCRIPTION Description Flowchart of Operations start SC 0 =0(Instruction R Cycle) R’T 0 AR PC R’T 1 IR M[AR], PC + 1 R’T 2 AR IR(0~11), I IR(15) D 0. . . D 7 Decode IR(12 ~ 14) =1(Register or I/O) =1 (I/O) I D 7 IT 3 Execute I/O Instruction =0 (Register) D 7 I’T 3 Execute RR Instruction D 7 =1 (interrupt Cycle) RT 0 AR 0, TR PC RT 1 M[AR] TR, PC 0 RT 2 PC + 1, IEN 0 R 0, SC 0 =0(Memory Ref) =1(Indir) D 7’IT 3 AR <- M[AR] I =0(Dir) D 7’I’T 3 Idle Execute MR Instruction Computer Organization D 7’T 4 IEN =1 =1 =1 R 1 =0 FGI =0 FGO =0 Computer Architectures Lab

Basic Computer Organization & Design 37 Description COMPLETE COMPUTER DESCRIPTION Microoperations Fetch Decode R T 0: R T 1: R T 2: Indirect D 7 IT 3: Interrupt T 0 T 1 T 2 (IEN)(FGI + FGO): RT 0: RT 1: RT 2: Memory-Reference AND D 0 T 4: D 0 T 5: ADD D 1 T 4: D 1 T 5: LDA D 2 T 4: D 2 T 5: STA D 3 T 4: BUN D 4 T 4: BSA D 5 T 4: D 5 T 5: ISZ D 6 T 4: D 6 T 5: D 6 T 6: Computer Organization AR PC IR M[AR], PC + 1 D 0, . . . , D 7 Decode IR(12 ~ 14), AR IR(0 ~ 11), I IR(15) AR M[AR] R 1 AR 0, TR PC M[AR] TR, PC 0 PC + 1, IEN 0, R 0, SC 0 DR M[AR] AC DR, SC 0 DR M[AR] AC + DR, E Cout, SC 0 DR M[AR] AC DR, SC 0 M[AR] AC, SC 0 PC AR, SC 0 M[AR] PC, AR + 1 PC AR, SC 0 DR M[AR] DR + 1 M[AR] DR, if(DR=0) then (PC PC + 1), SC 0 Computer Architectures Lab

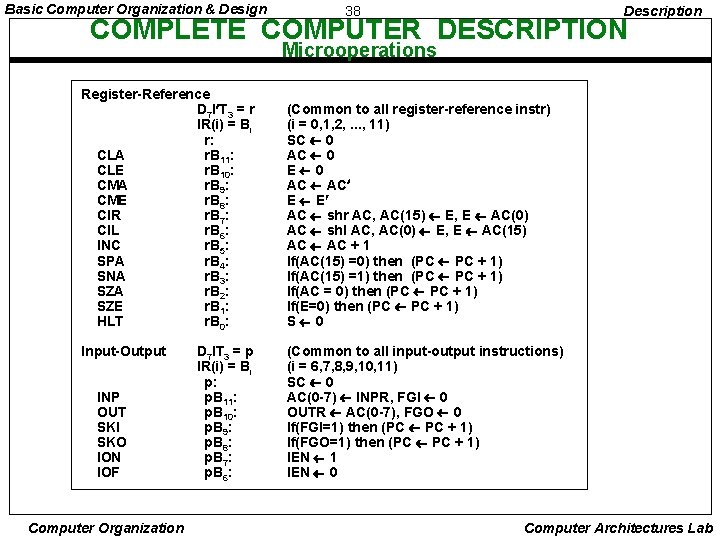

Basic Computer Organization & Design 38 Description COMPLETE COMPUTER DESCRIPTION Microoperations Register-Reference D 7 I T 3 = r IR(i) = Bi r: CLA r. B 11: CLE r. B 10: CMA r. B 9: CME r. B 8: CIR r. B 7: CIL r. B 6: INC r. B 5: SPA r. B 4: SNA r. B 3: SZA r. B 2: SZE r. B 1: HLT r. B 0: Input-Output INP OUT SKI SKO ION IOF Computer Organization D 7 IT 3 = p IR(i) = Bi p: p. B 11: p. B 10: p. B 9: p. B 8: p. B 7: p. B 6: (Common to all register-reference instr) (i = 0, 1, 2, . . . , 11) SC 0 AC 0 E 0 AC E E AC shr AC, AC(15) E, E AC(0) AC shl AC, AC(0) E, E AC(15) AC + 1 If(AC(15) =0) then (PC PC + 1) If(AC(15) =1) then (PC PC + 1) If(AC = 0) then (PC PC + 1) If(E=0) then (PC PC + 1) S 0 (Common to all input-output instructions) (i = 6, 7, 8, 9, 10, 11) SC 0 AC(0 -7) INPR, FGI 0 OUTR AC(0 -7), FGO 0 If(FGI=1) then (PC PC + 1) If(FGO=1) then (PC PC + 1) IEN 1 IEN 0 Computer Architectures Lab

Basic Computer Organization & Design 39 Design of Basic Computer DESIGN OF BASIC COMPUTER(BC) Hardware Components of BC A memory unit: 4096 x 16. Registers: AR, PC, DR, AC, IR, TR, OUTR, INPR, and SC Flip-Flops(Status): I, S, E, R, IEN, FGI, and FGO Decoders: a 3 x 8 Opcode decoder a 4 x 16 timing decoder Common bus: 16 bits Control logic gates: Adder and Logic circuit: Connected to AC Control Logic Gates - Input Controls of the nine registers - Read and Write Controls of memory - Set, Clear, or Complement Controls of the flip-flops - S 2, S 1, S 0 Controls to select a register for the bus - AC, and Adder and Logic circuit Computer Organization Computer Architectures Lab

Basic Computer Organization & Design 40 Design of Basic Computer CONTROL OF REGISTERS AND MEMORY Address Register; AR Scan all of the register transfer statements that change the content of AR: R’T 0: AR PC LD(AR) R’T 2: AR IR(0 -11) LD(AR) D’ 7 IT 3: AR M[AR] LD(AR) RT 0: AR 0 CLR(AR) D 5 T 4: AR + 1 INR(AR) LD(AR) = R'T 0 + R'T 2 + D'7 IT 3 CLR(AR) = RT 0 INR(AR) = D 5 T 4 T 2 D'7 I T 3 From bus 12 12 AR To bus Clock LD INR CLR R T 0 D T 4 Computer Organization Computer Architectures Lab

Basic Computer Organization & Design 41 Design of Basic Computer CONTROL OF FLAGS IEN: Interrupt Enable Flag p. B 7: IEN 1 (I/O Instruction) p. B 6: IEN 0 (I/O Instruction) RT 2: IEN 0 (Interrupt) p = D 7 IT 3 (Input/Output Instruction) D I 7 T 3 p B 7 B 6 J Q IEN K R T 2 Computer Organization Computer Architectures Lab

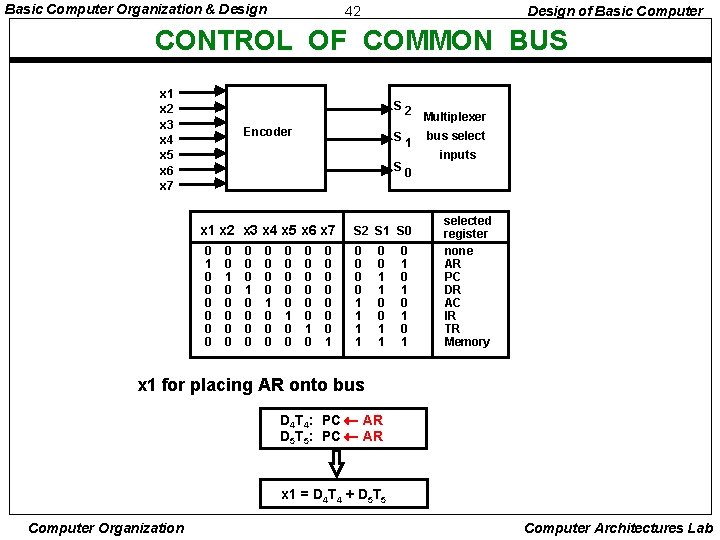

Basic Computer Organization & Design 42 Design of Basic Computer CONTROL OF COMMON BUS x 1 x 2 x 3 x 4 x 5 x 6 x 7 S 2 Encoder S 1 S 0 x 1 x 2 x 3 x 4 x 5 x 6 x 7 0 1 0 0 0 0 0 0 0 0 1 0 0 0 0 1 S 2 S 1 S 0 0 0 1 1 0 1 0 1 Multiplexer bus select inputs selected register none AR PC DR AC IR TR Memory x 1 for placing AR onto bus D 4 T 4: PC AR D 5 T 5: PC AR x 1 = D 4 T 4 + D 5 T 5 Computer Organization Computer Architectures Lab

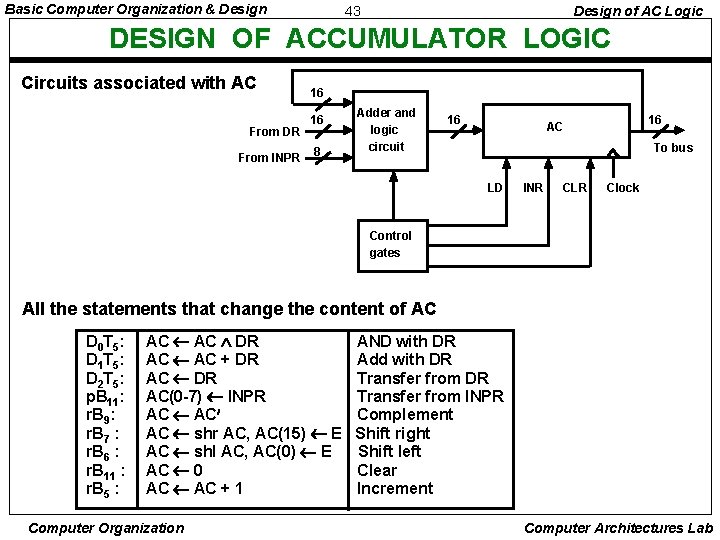

Basic Computer Organization & Design 43 Design of AC Logic DESIGN OF ACCUMULATOR LOGIC Circuits associated with AC From DR From INPR 16 16 8 Adder and logic circuit 16 16 AC To bus LD INR CLR Clock Control gates All the statements that change the content of AC D 0 T 5 : D 1 T 5 : D 2 T 5 : p. B 11: r. B 9: r. B 7 : r. B 6 : r. B 11 : r. B 5 : AC DR AC + DR AC(0 -7) INPR AC AC shr AC, AC(15) E AC shl AC, AC(0) E AC 0 AC + 1 Computer Organization AND with DR Add with DR Transfer from INPR Complement Shift right Shift left Clear Increment Computer Architectures Lab

Basic Computer Organization & Design 44 Design of AC Logic CONTROL OF AC REGISTER Gate structures for controlling the LD, INR, and CLR of AC From Adder and Logic D 0 T 5 D 1 AND D 2 T 5 p B 11 r B 9 DR B 7 B 6 B 5 ADD 16 16 AC To bus Clock LD INR CLR INPR COM SHR SHL INC CLR B 11 Computer Organization Computer Architectures Lab

Basic Computer Organization & Design 45 Design of AC Logic ALU (Adder & Logic Circuits) Computer Organization Computer Architectures Lab

Basic Computer Organization & Design Computer Organization 46 Computer Architectures Lab
