Basic Bench Oscilloscopes TBS 1000 Series TDS 2000

Basic Bench Oscilloscopes TBS 1000 Series, TDS 2000 Series, TPS 2000 and MSO/DPO 2000 Series

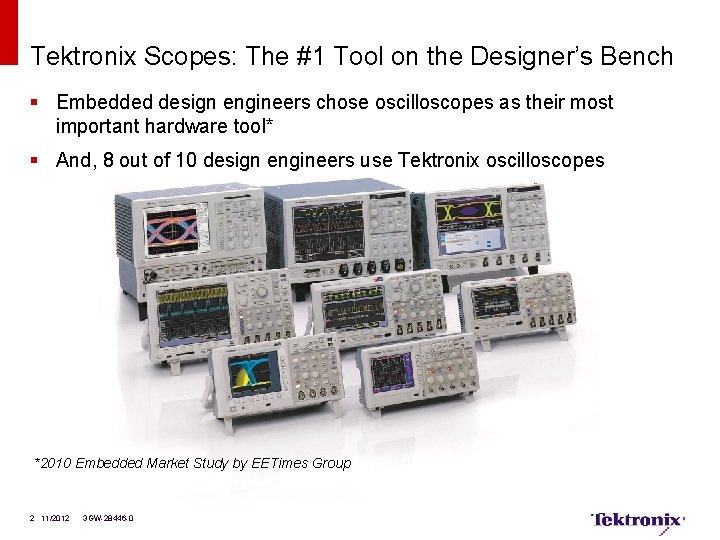

Tektronix Scopes: The #1 Tool on the Designer’s Bench § Embedded design engineers chose oscilloscopes as their most important hardware tool* § And, 8 out of 10 design engineers use Tektronix oscilloscopes *2010 Embedded Market Study by EETimes Group 2 11/2012 3 GW-28446 -0

Serving Basic Oscilloscope Application Needs Characterization and Design Debug Visualization and Troubleshooting Embedded Design Power Conversion Bench Test & Repair Classroom Education Consumer Electronics, Automotive, Industrial, Mil/Aero, Medical Power, Energy, Industrial, Automotive Depots, Contract Manufacturing, ODM & OEMs Universities, Technical Institutes, Community Colleges MSO and DPO Series TPS 2000 Series TDS 2000 Series TBS 1000 Series • 200 MHz to 70 MHz • Mixed Signal • Serial Decoding Support • 200 MHz to 100 MHz • Isolated Inputs • Bench/Battery Operation 3 11/2012 3 GW-28446 -0 • 200 MHz to 50 MHz • Digital Real-time • Lifetime Warranty • 150 MHz to 25 MHz • Digital Real-time • 5 year Warranty

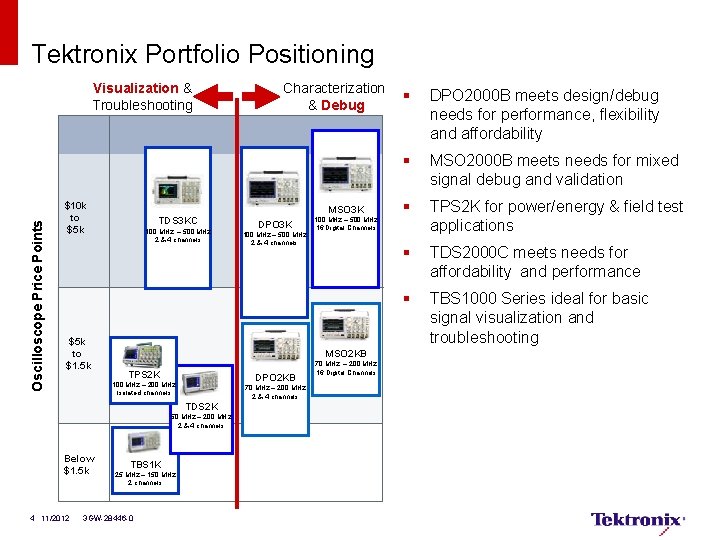

Tektronix Portfolio Positioning Oscilloscope Price Points Visualization & Troubleshooting $10 k to $5 k to $1. 5 k MSO 3 K TDS 3 KC 100 MHz – 500 MHz 2 & 4 channels TPS 2 K 100 MHz – 500 MHz 2 & 4 channels DPO 2 KB 70 MHz – 200 MHz 2 & 4 channels TDS 2 K 50 MHz – 200 MHz 2 & 4 channels 4 11/2012 DPO 3 K 100 MHz – 500 MHz 16 Digital Channels MSO 2 KB 100 MHz – 200 MHz Isolated channels Below $1. 5 k Characterization & Debug TBS 1 K 25 MHz – 150 MHz 2 channels 3 GW-28446 -0 70 MHz – 200 MHz 16 Digital Channels § DPO 2000 B meets design/debug needs for performance, flexibility and affordability § MSO 2000 B meets needs for mixed signal debug and validation § TPS 2 K for power/energy & field test applications § TDS 2000 C meets needs for affordability and performance § TBS 1000 Series ideal for basic signal visualization and troubleshooting

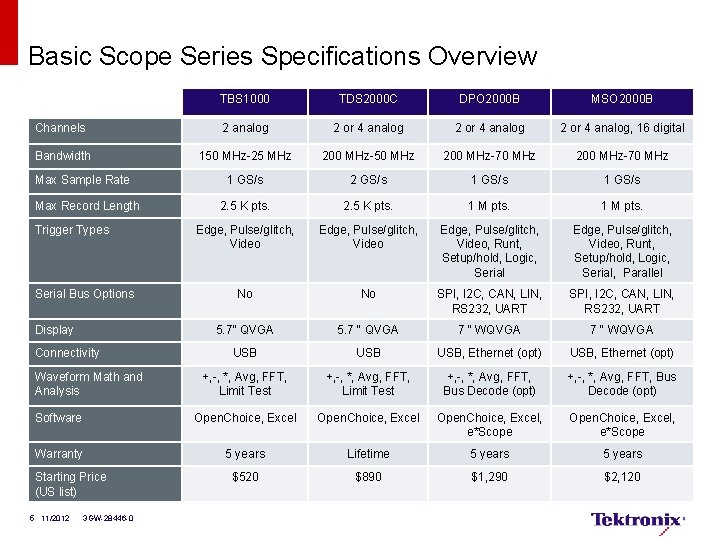

Basic Scope Series Specifications Overview TBS 1000 TDS 2000 C DPO 2000 B MSO 2000 B Channels 2 analog 2 or 4 analog, 16 digital Bandwidth 150 MHz-25 MHz 200 MHz-50 MHz 200 MHz-70 MHz 1 GS/s 2 GS/s 1 GS/s 2. 5 K pts. 1 M pts. Edge, Pulse/glitch, Video, Runt, Setup/hold, Logic, Serial, Parallel No No SPI, I 2 C, CAN, LIN, RS 232, UART 5. 7” QVGA 5. 7 “ QVGA 7 “ WQVGA USB USB, Ethernet (opt) +, -, *, Avg, FFT, Limit Test +, -, *, Avg, FFT, Bus Decode (opt) Software Open. Choice, Excel, e*Scope Warranty 5 years Lifetime 5 years $520 $890 $1, 290 $2, 120 Max Sample Rate Max Record Length Trigger Types Serial Bus Options Display Connectivity Waveform Math and Analysis Starting Price (US list) 5 11/2012 3 GW-28446 -0

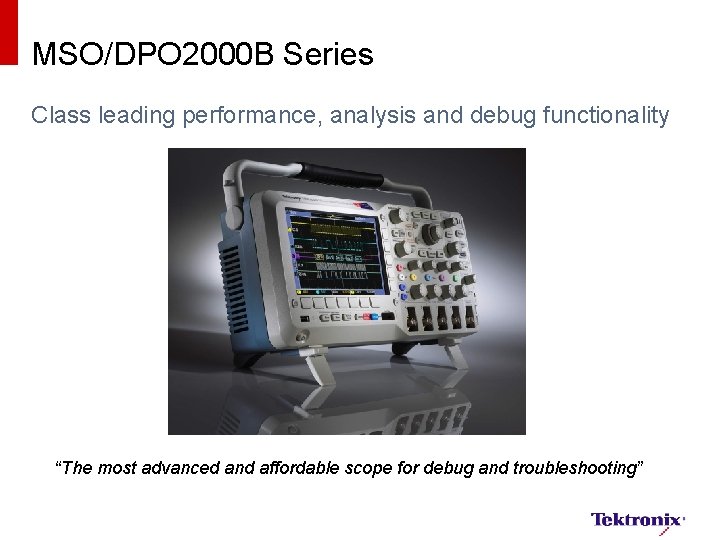

MSO/DPO 2000 B Series Class leading performance, analysis and debug functionality “The most advanced and affordable scope for debug and troubleshooting” 6

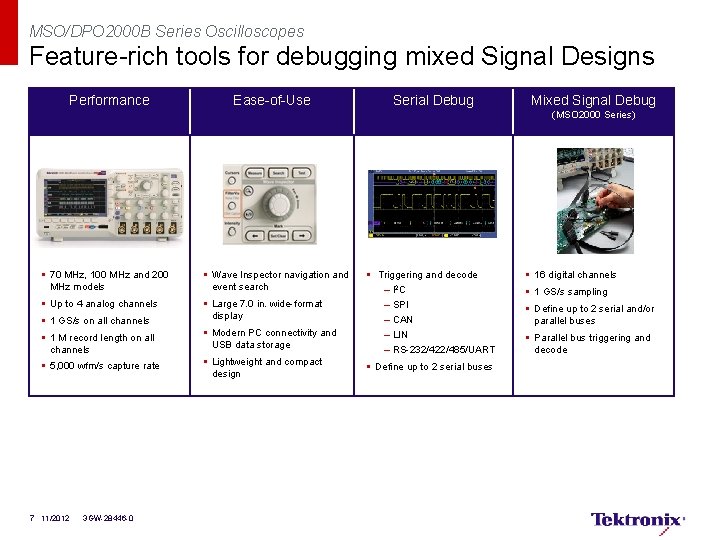

MSO/DPO 2000 B Series Oscilloscopes Feature-rich tools for debugging mixed Signal Designs Performance Ease-of-Use Serial Debug Mixed Signal Debug (MSO 2000 Series) § 70 MHz, 100 MHz and 200 MHz models § Wave Inspector navigation and event search § Up to 4 analog channels § 1 GS/s on all channels § Large 7. 0 in. wide-format display § 1 M record length on all channels § Modern PC connectivity and USB data storage § 5, 000 wfm/s capture rate § Lightweight and compact design 7 11/2012 3 GW-28446 -0 § Triggering and decode – I 2 C – SPI – CAN – LIN – RS-232/422/485/UART § Define up to 2 serial buses § 16 digital channels § 1 GS/s sampling § Define up to 2 serial and/or parallel buses § Parallel bus triggering and decode

Full-featured Bench Scope in a Compact Package Dedicated front-panel controls 4 analog Channels plus 16 digital channels 8 11/2012 3 GW-28446 -0 5. 3 inches (134 mm) deep

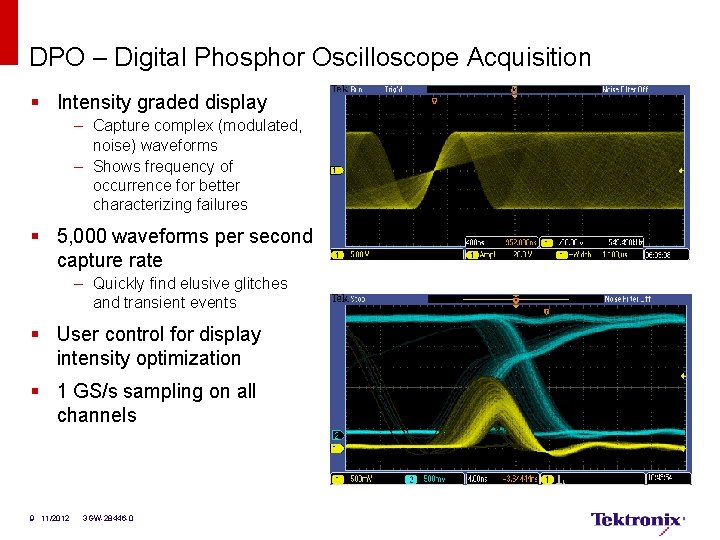

DPO – Digital Phosphor Oscilloscope Acquisition § Intensity graded display – Capture complex (modulated, noise) waveforms – Shows frequency of occurrence for better characterizing failures § 5, 000 waveforms per second capture rate – Quickly find elusive glitches and transient events § User control for display intensity optimization § 1 GS/s sampling on all channels 9 11/2012 3 GW-28446 -0

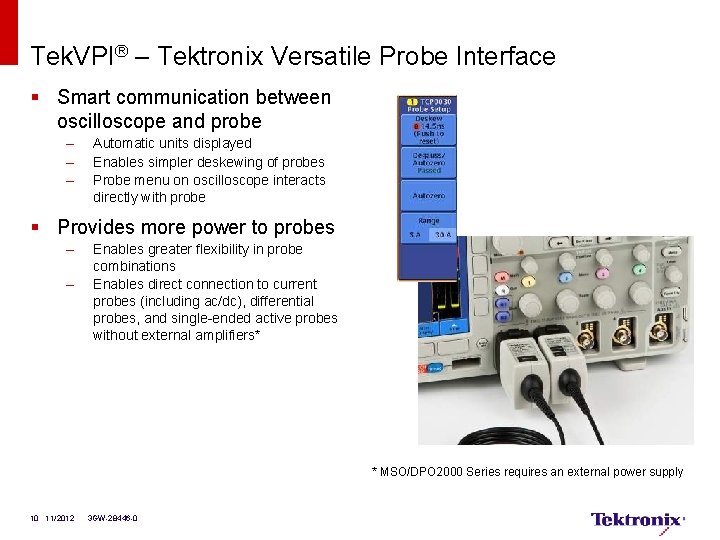

Tek. VPI® – Tektronix Versatile Probe Interface § Smart communication between oscilloscope and probe – – – Automatic units displayed Enables simpler deskewing of probes Probe menu on oscilloscope interacts directly with probe § Provides more power to probes – – Enables greater flexibility in probe combinations Enables direct connection to current probes (including ac/dc), differential probes, and single-ended active probes without external amplifiers* * MSO/DPO 2000 Series requires an external power supply 10 11/2012 3 GW-28446 -0

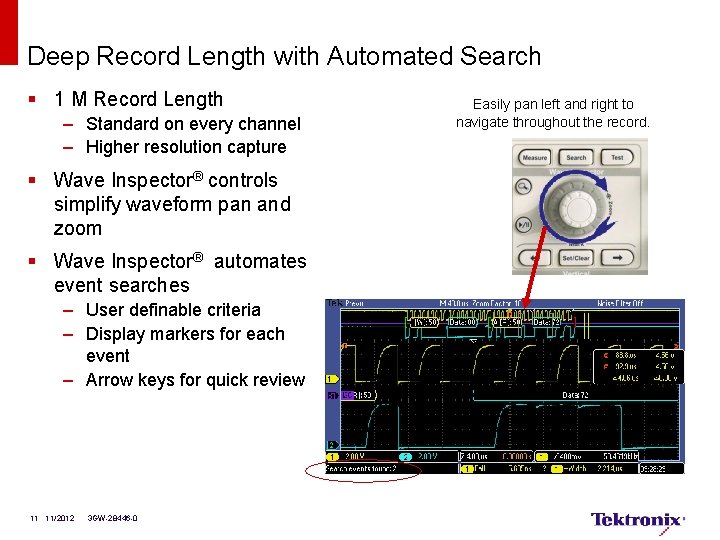

Deep Record Length with Automated Search § 1 M Record Length – Standard on every channel – Higher resolution capture § Wave Inspector® controls simplify waveform pan and zoom § Wave Inspector® automates event searches – User definable criteria – Display markers for each event – Arrow keys for quick review 11 11/2012 3 GW-28446 -0 Easily pan left and right to navigate throughout the record.

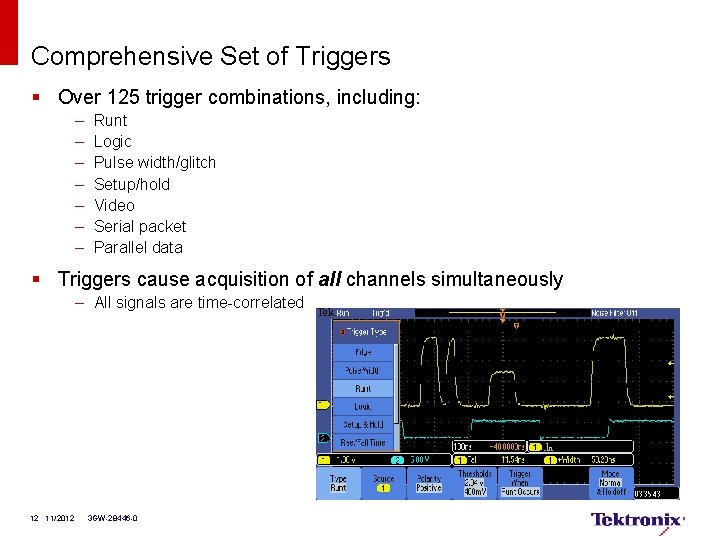

Comprehensive Set of Triggers § Over 125 trigger combinations, including: – – – – Runt Logic Pulse width/glitch Setup/hold Video Serial packet Parallel data § Triggers cause acquisition of all channels simultaneously – All signals are time-correlated 12 11/2012 3 GW-28446 -0

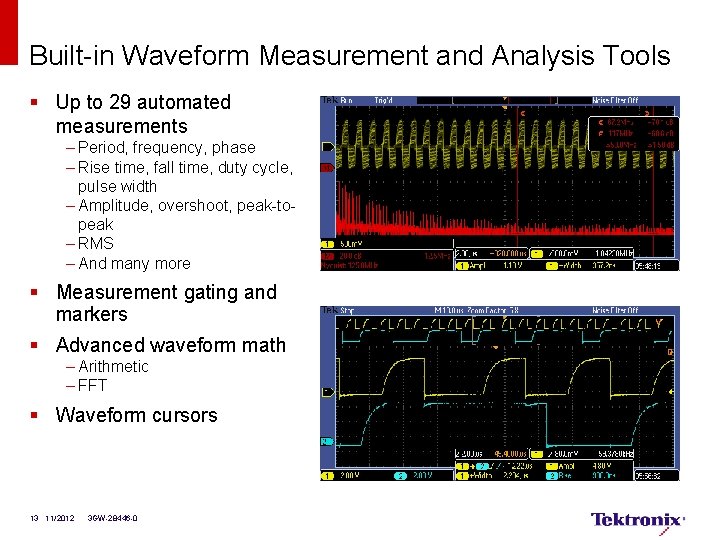

Built-in Waveform Measurement and Analysis Tools § Up to 29 automated measurements – Period, frequency, phase – Rise time, fall time, duty cycle, pulse width – Amplitude, overshoot, peak-topeak – RMS – And many more § Measurement gating and markers § Advanced waveform math – Arithmetic – FFT § Waveform cursors 13 11/2012 3 GW-28446 -0

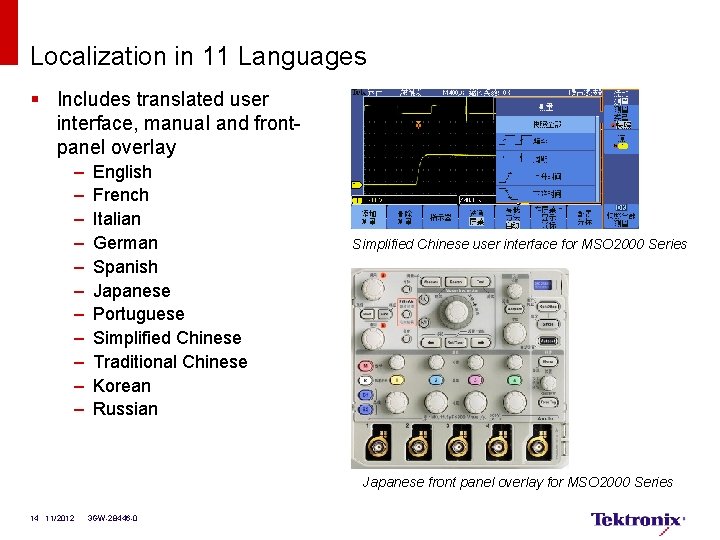

Localization in 11 Languages § Includes translated user interface, manual and frontpanel overlay – – – English French Italian German Spanish Japanese Portuguese Simplified Chinese Traditional Chinese Korean Russian Simplified Chinese user interface for MSO 2000 Series Japanese front panel overlay for MSO 2000 Series 14 11/2012 3 GW-28446 -0

Mixed Signal and Serial Bus Design

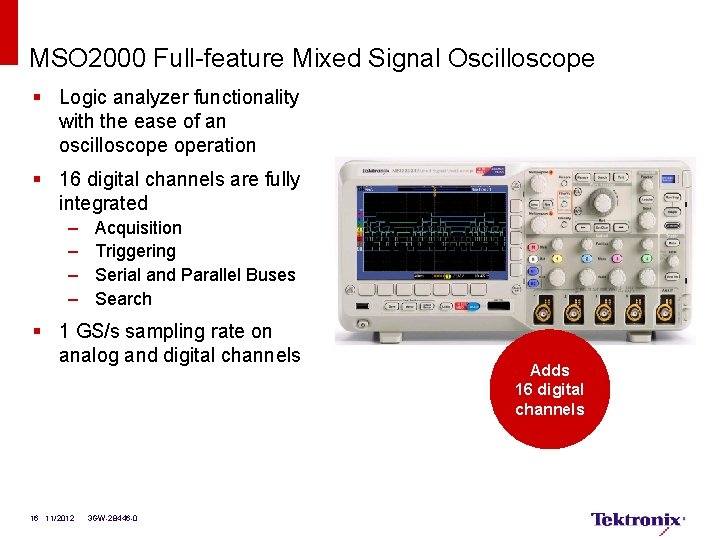

MSO 2000 Full-feature Mixed Signal Oscilloscope § Logic analyzer functionality with the ease of an oscilloscope operation § 16 digital channels are fully integrated – – Acquisition Triggering Serial and Parallel Buses Search § 1 GS/s sampling rate on analog and digital channels 16 11/2012 3 GW-28446 -0 Adds 16 digital channels

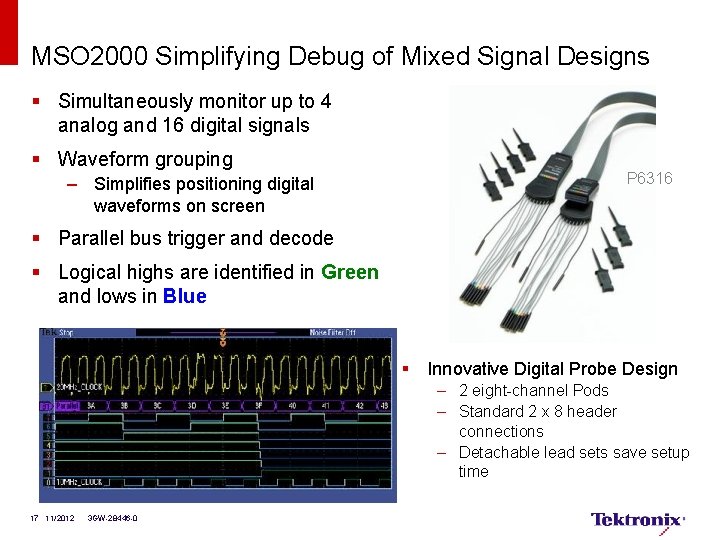

MSO 2000 Simplifying Debug of Mixed Signal Designs § Simultaneously monitor up to 4 analog and 16 digital signals § Waveform grouping P 6316 – Simplifies positioning digital waveforms on screen § Parallel bus trigger and decode § Logical highs are identified in Green and lows in Blue § Innovative Digital Probe Design – 2 eight-channel Pods – Standard 2 x 8 header connections – Detachable lead sets save setup time 17 11/2012 3 GW-28446 -0

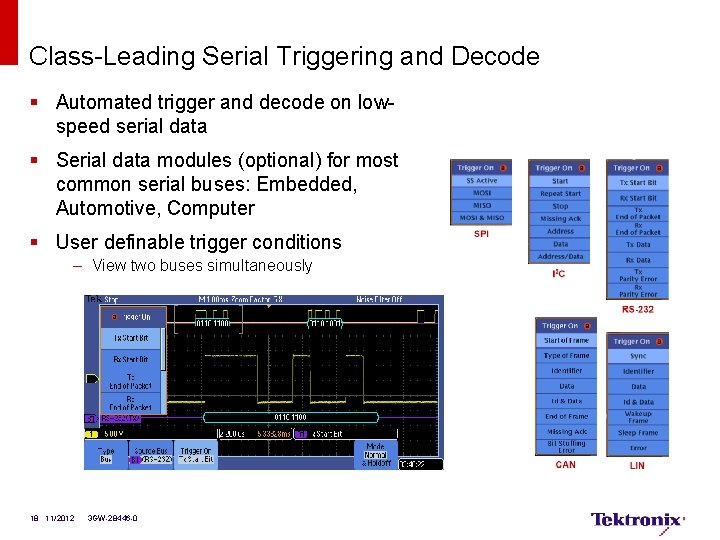

Class-Leading Serial Triggering and Decode § Automated trigger and decode on lowspeed serial data § Serial data modules (optional) for most common serial buses: Embedded, Automotive, Computer § User definable trigger conditions – View two buses simultaneously 18 11/2012 3 GW-28446 -0

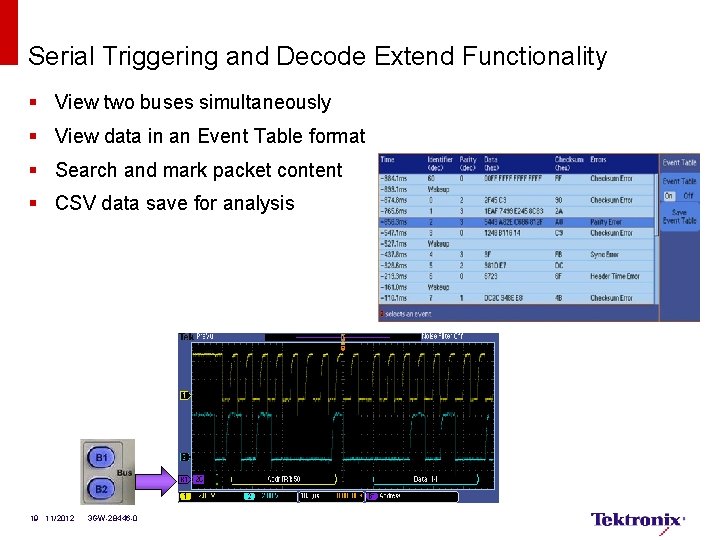

Serial Triggering and Decode Extend Functionality § View two buses simultaneously § View data in an Event Table format § Search and mark packet content § CSV data save for analysis 19 11/2012 3 GW-28446 -0

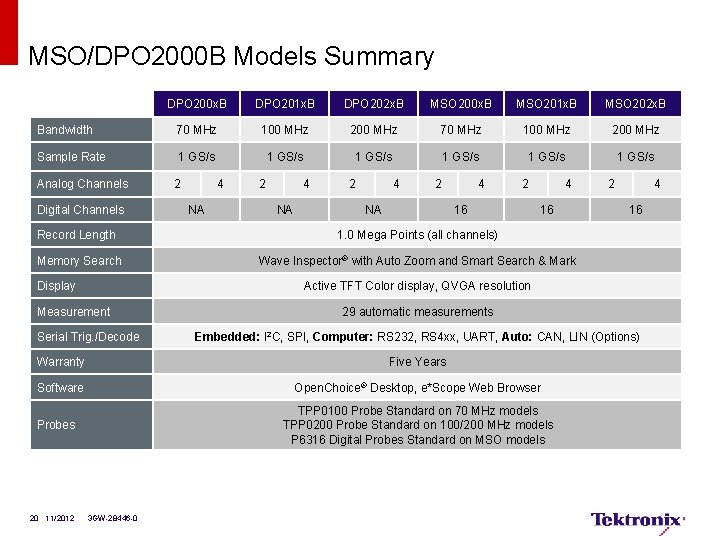

MSO/DPO 2000 B Models Summary DPO 200 x. B DPO 201 x. B DPO 202 x. B MSO 200 x. B MSO 201 x. B MSO 202 x. B Bandwidth 70 MHz 100 MHz 200 MHz Sample Rate 1 GS/s 1 GS/s Analog Channels Digital Channels 2 4 NA 2 4 2 NA 4 2 16 4 16 Record Length 1. 0 Mega Points (all channels) Memory Search Wave Inspector® with Auto Zoom and Smart Search & Mark Display 4 16 Active TFT Color display, QVGA resolution Measurement Serial Trig. /Decode 29 automatic measurements Embedded: I 2 C, SPI, Computer: RS 232, RS 4 xx, UART, Auto: CAN, LIN (Options) Warranty Five Years Software Open. Choice® Desktop, e*Scope Web Browser TPP 0100 Probe Standard on 70 MHz models TPP 0200 Probe Standard on 100/200 MHz models P 6316 Digital Probes Standard on MSO models Probes 20 11/2012 2 3 GW-28446 -0

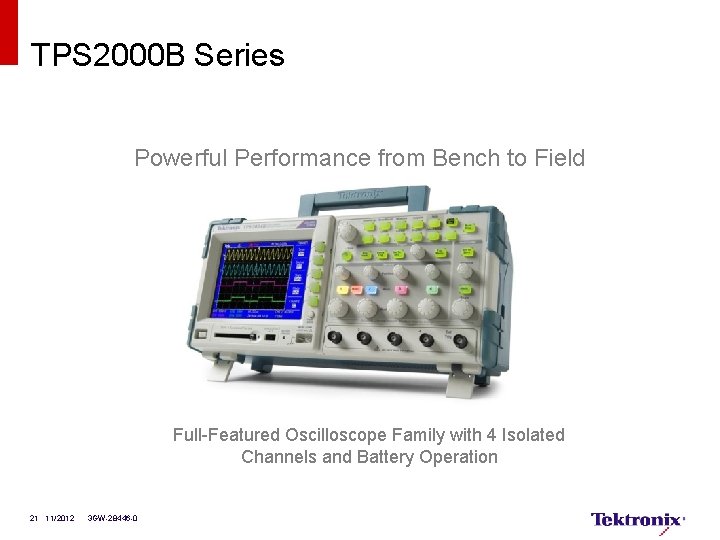

TPS 2000 B Series Powerful Performance from Bench to Field Full-Featured Oscilloscope Family with 4 Isolated Channels and Battery Operation 21 11/2012 3 GW-28446 -0

TPS 2000 B Series Oscilloscopes Flexible Performance from Bench to Field Performance Isolated Inputs Versatility Power Analysis § 100 & 200 MHz models § Isolcated input channels & trigger § AC or battery operation § Power quality measurements § 2 GS/s sampling on all channels § Rated up to 600 Vrms CAT II § Light weight and portable § Power supply measurements § Proprietary digit realtime technology § 2 or 4 channels § Compact. Flash mass storage § Waveform analysis 22 11/2012 3 GW-28446 -0

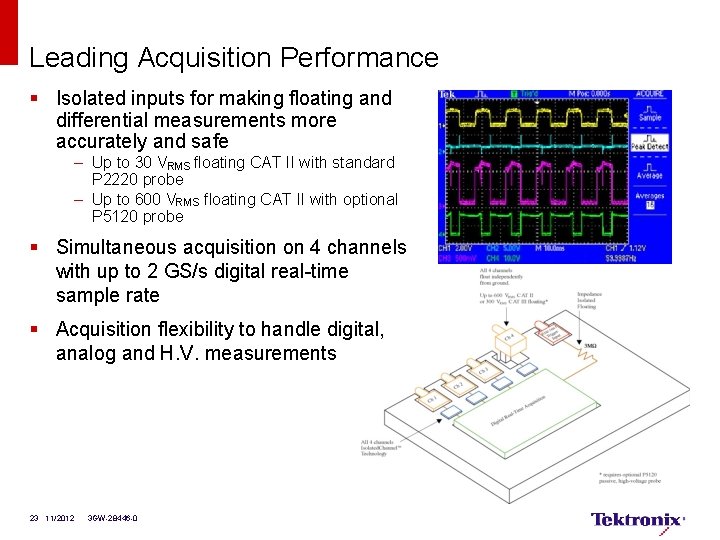

Leading Acquisition Performance § Isolated inputs for making floating and differential measurements more accurately and safe – Up to 30 VRMS floating CAT II with standard P 2220 probe – Up to 600 VRMS floating CAT II with optional P 5120 probe § Simultaneous acquisition on 4 channels with up to 2 GS/s digital real-time sample rate § Acquisition flexibility to handle digital, analog and H. V. measurements 23 11/2012 3 GW-28446 -0

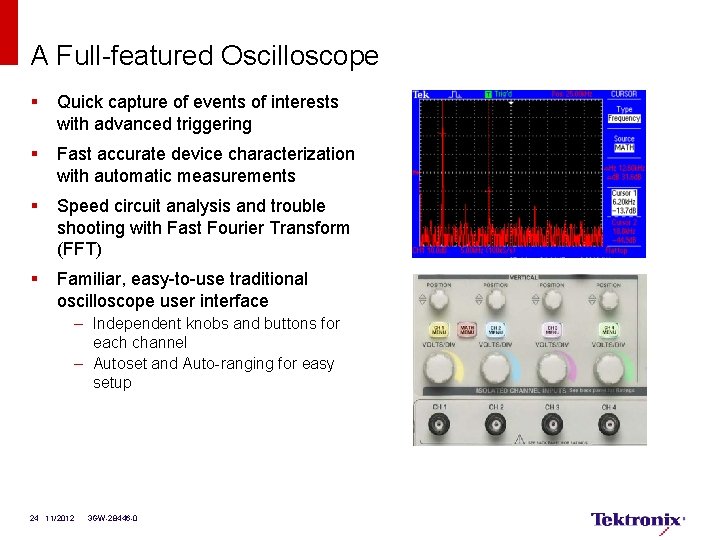

A Full-featured Oscilloscope § Quick capture of events of interests with advanced triggering § Fast accurate device characterization with automatic measurements § Speed circuit analysis and trouble shooting with Fast Fourier Transform (FFT) § Familiar, easy-to-use traditional oscilloscope user interface – Independent knobs and buttons for each channel – Autoset and Auto-ranging for easy setup 24 11/2012 3 GW-28446 -0

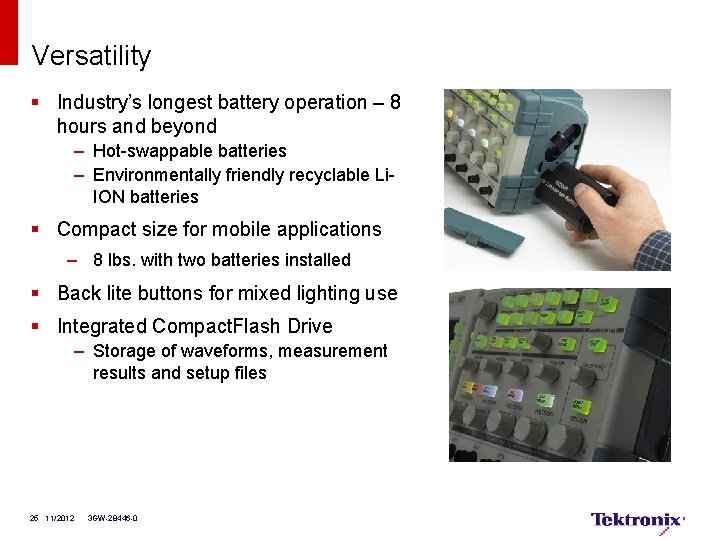

Versatility § Industry’s longest battery operation – 8 hours and beyond – Hot-swappable batteries – Environmentally friendly recyclable Li. ION batteries § Compact size for mobile applications – 8 lbs. with two batteries installed § Back lite buttons for mixed lighting use § Integrated Compact. Flash Drive – Storage of waveforms, measurement results and setup files 25 11/2012 3 GW-28446 -0

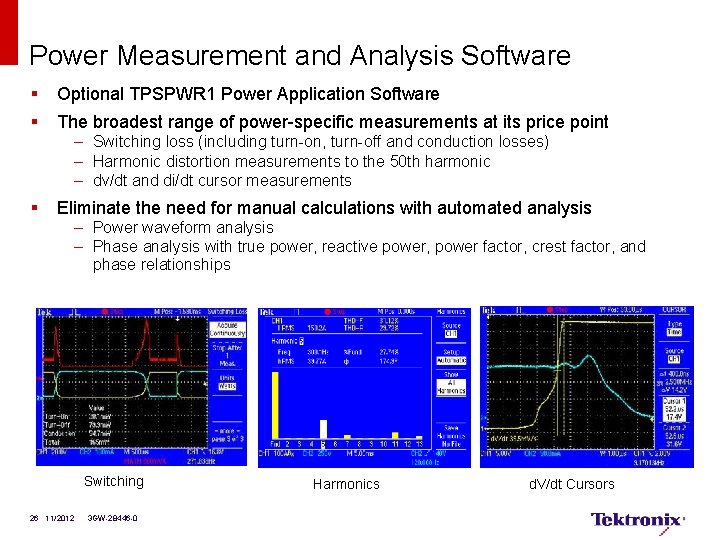

Power Measurement and Analysis Software § Optional TPSPWR 1 Power Application Software § The broadest range of power-specific measurements at its price point – Switching loss (including turn-on, turn-off and conduction losses) – Harmonic distortion measurements to the 50 th harmonic – dv/dt and di/dt cursor measurements § Eliminate the need for manual calculations with automated analysis – Power waveform analysis – Phase analysis with true power, reactive power, power factor, crest factor, and phase relationships Switching 26 11/2012 3 GW-28446 -0 Harmonics d. V/dt Cursors

TPS 2000 B Product Summary Bandwidth TPS 2012 B TPS 2014 B TPS 2024 B 100 MHz 200 MHz Sample Rate Analog Channels 1 GS/s 2 2 GS/s 4 Isolated Inputs All channel and trigger input Record Length 2. 5 k points (all channels) Display 5. 7 -inch, QVGA active color display Measurements Application Analysis Battery 11 automatic measurements Power Analysis Module (optional) Up to 8 hours (2 Li. ON batteries) Software Open. Choice® Desktop Probes TPP 0 x 01 Warranty 27 11/2012 4 3 Years 3 GW-28446 -0 Alternative: THS 3000 200 & 100 MHz with 4 isolated channels in a handheld

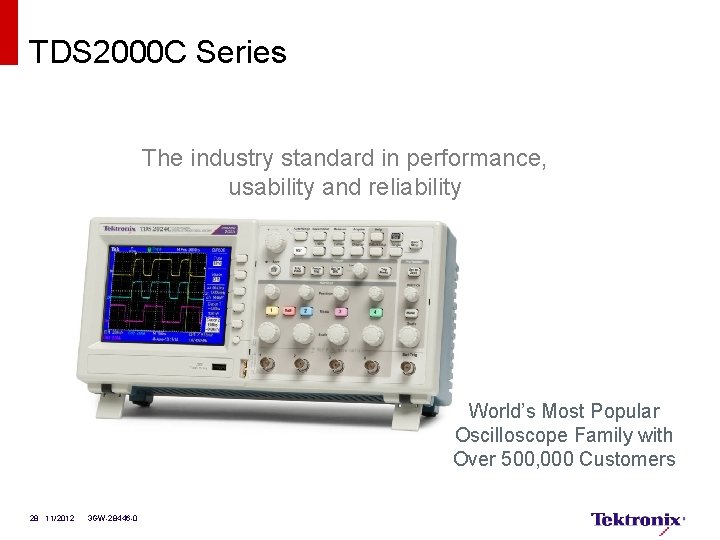

TDS 2000 C Series The industry standard in performance, usability and reliability World’s Most Popular Oscilloscope Family with Over 500, 000 Customers 28 11/2012 3 GW-28446 -0

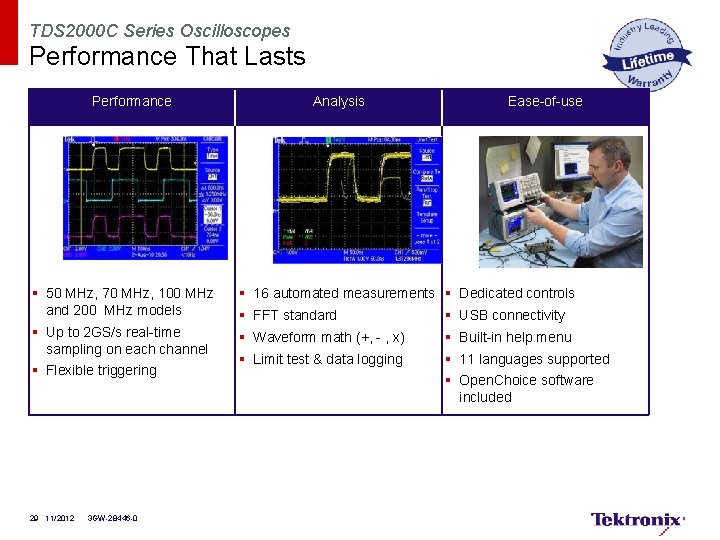

TDS 2000 C Series Oscilloscopes Performance That Lasts Performance Analysis Ease-of-use § 50 MHz, 70 MHz, 100 MHz and 200 MHz models § 16 automated measurements § Dedicated controls § FFT standard § USB connectivity § Up to 2 GS/s real-time sampling on each channel § Waveform math (+, - , x) § Built-in help menu § Limit test & data logging § 11 languages supported § Flexible triggering 29 11/2012 3 GW-28446 -0 § Open. Choice software included

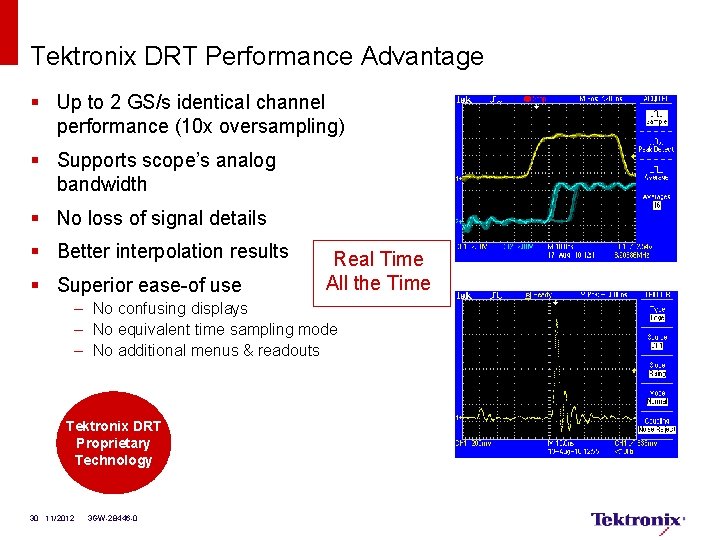

Tektronix DRT Performance Advantage § Up to 2 GS/s identical channel performance (10 x oversampling) § Supports scope’s analog bandwidth § No loss of signal details § Better interpolation results § Superior ease-of use Real Time All the Time – No confusing displays – No equivalent time sampling mode – No additional menus & readouts Tektronix DRT Proprietary Technology 30 11/2012 3 GW-28446 -0

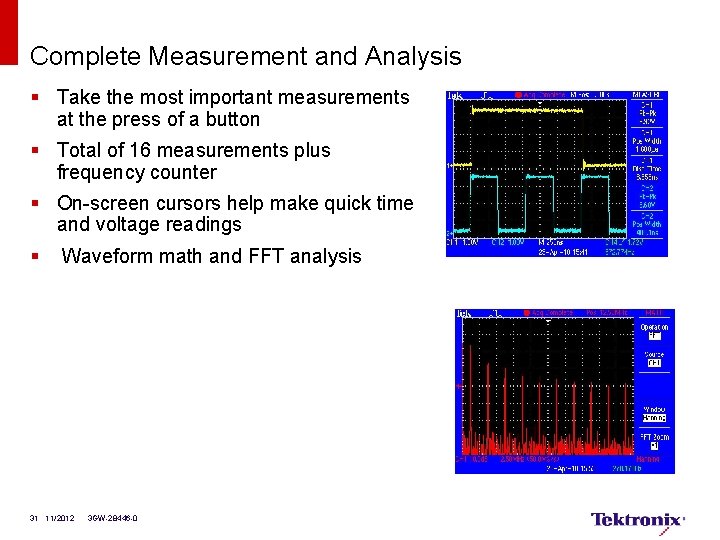

Complete Measurement and Analysis § Take the most important measurements at the press of a button § Total of 16 measurements plus frequency counter § On-screen cursors help make quick time and voltage readings § Waveform math and FFT analysis 31 11/2012 3 GW-28446 -0

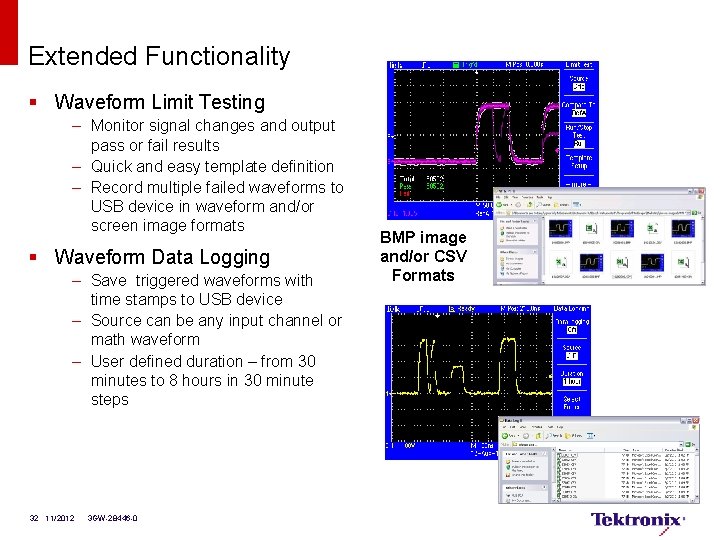

Extended Functionality § Waveform Limit Testing – Monitor signal changes and output pass or fail results – Quick and easy template definition – Record multiple failed waveforms to USB device in waveform and/or screen image formats § Waveform Data Logging – Save triggered waveforms with time stamps to USB device – Source can be any input channel or math waveform – User defined duration – from 30 minutes to 8 hours in 30 minute steps 32 11/2012 3 GW-28446 -0 BMP image and/or CSV Formats

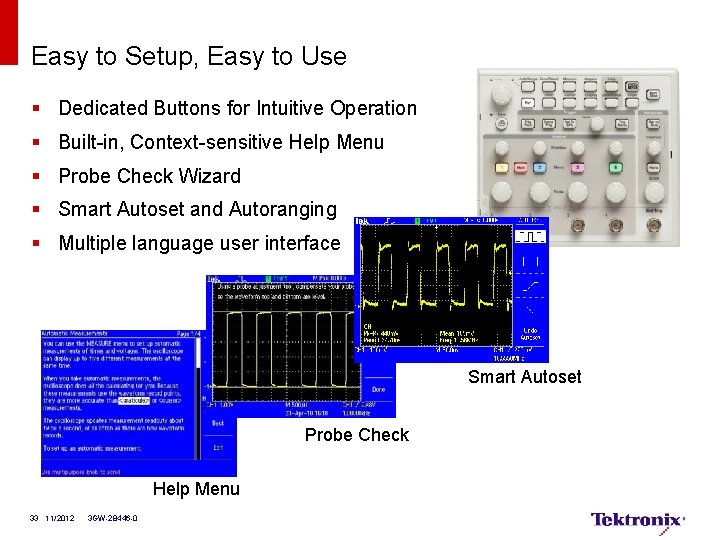

Easy to Setup, Easy to Use § Dedicated Buttons for Intuitive Operation § Built-in, Context-sensitive Help Menu § Probe Check Wizard § Smart Autoset and Autoranging § Multiple language user interface Smart Autoset Probe Check Help Menu 33 11/2012 3 GW-28446 -0

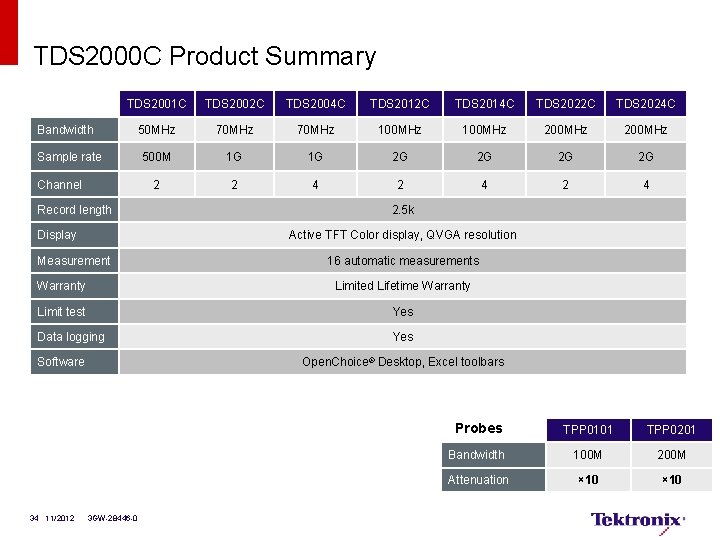

TDS 2000 C Product Summary Bandwidth TDS 2001 C TDS 2002 C TDS 2004 C TDS 2012 C TDS 2014 C TDS 2022 C TDS 2024 C 50 MHz 70 MHz 100 MHz 200 MHz 500 M 1 G 1 G 2 G 2 G 2 2 4 2 4 Sample rate Channel Record length Display 2. 5 k Active TFT Color display, QVGA resolution Measurement 16 automatic measurements Warranty Limited Lifetime Warranty Limit test Yes Data logging Yes Software 34 11/2012 Open. Choice® Desktop, Excel toolbars 3 GW-28446 -0 Probes TPP 0101 TPP 0201 Bandwidth 100 M 200 M Attenuation × 10

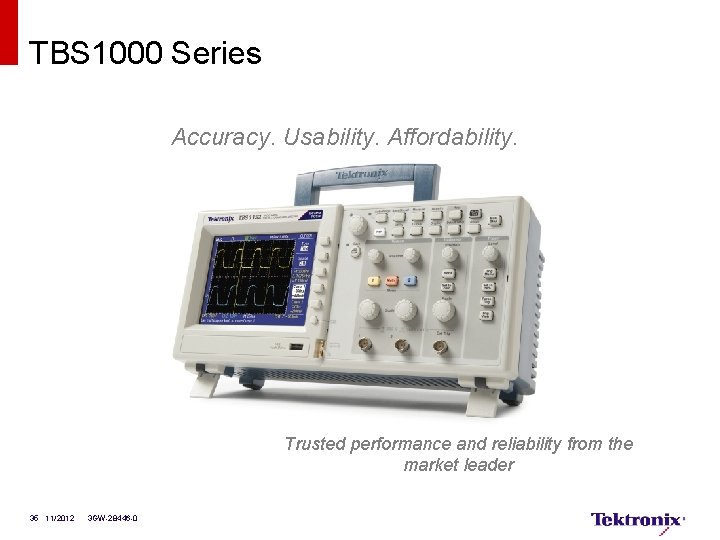

TBS 1000 Series Accuracy. Usability. Affordability. Trusted performance and reliability from the market leader 35 11/2012 3 GW-28446 -0

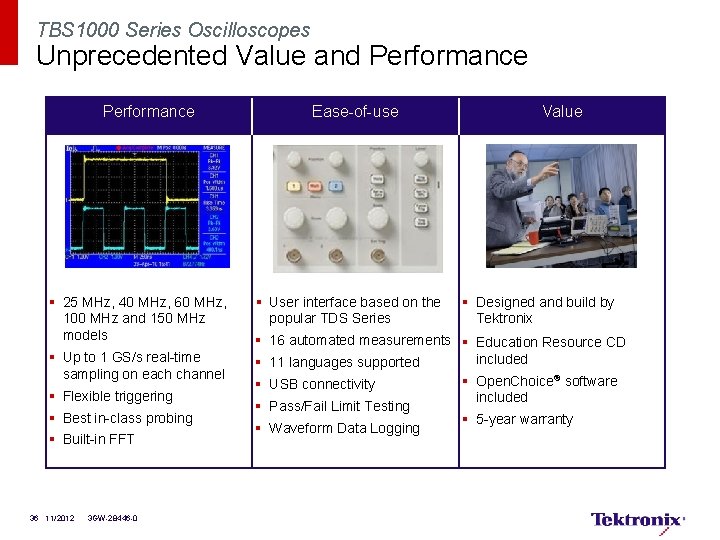

TBS 1000 Series Oscilloscopes Unprecedented Value and Performance § 25 MHz, 40 MHz, 60 MHz, 100 MHz and 150 MHz models § Up to 1 GS/s real-time sampling on each channel § Flexible triggering § Best in-class probing § Built-in FFT 36 11/2012 3 GW-28446 -0 Ease-of-use § User interface based on the popular TDS Series Value § Designed and build by Tektronix § 16 automated measurements § Education Resource CD included § 11 languages supported § Open. Choice® software § USB connectivity included § Pass/Fail Limit Testing § 5 -year warranty § Waveform Data Logging

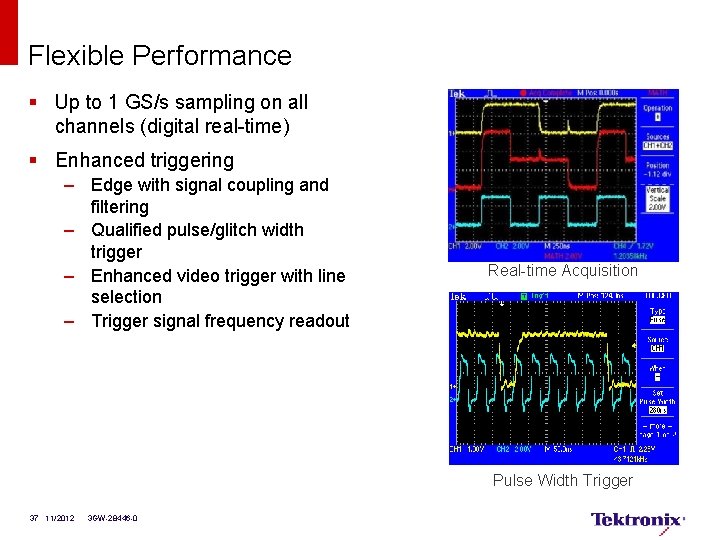

Flexible Performance § Up to 1 GS/s sampling on all channels (digital real-time) § Enhanced triggering – Edge with signal coupling and filtering – Qualified pulse/glitch width trigger – Enhanced video trigger with line selection – Trigger signal frequency readout Real-time Acquisition Pulse Width Trigger 37 11/2012 3 GW-28446 -0

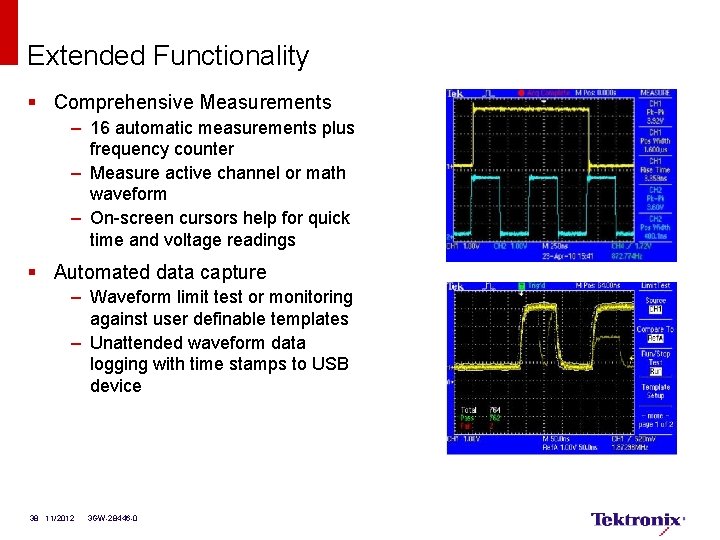

Extended Functionality § Comprehensive Measurements – 16 automatic measurements plus frequency counter – Measure active channel or math waveform – On-screen cursors help for quick time and voltage readings § Automated data capture – Waveform limit test or monitoring against user definable templates – Unattended waveform data logging with time stamps to USB device 38 11/2012 3 GW-28446 -0

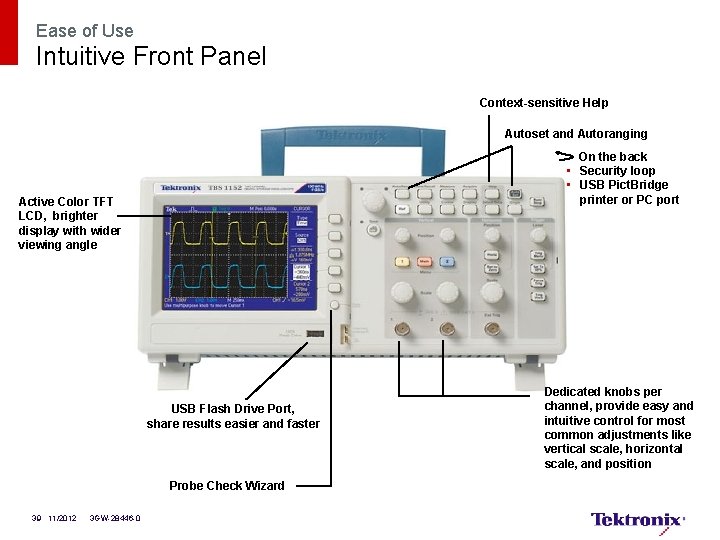

Ease of Use Intuitive Front Panel Context-sensitive Help Autoset and Autoranging On the back • Security loop • USB Pict. Bridge printer or PC port Active Color TFT LCD, brighter display with wider viewing angle USB Flash Drive Port, share results easier and faster Probe Check Wizard 39 11/2012 3 GW-28446 -0 Dedicated knobs per channel, provide easy and intuitive control for most common adjustments like vertical scale, horizontal scale, and position

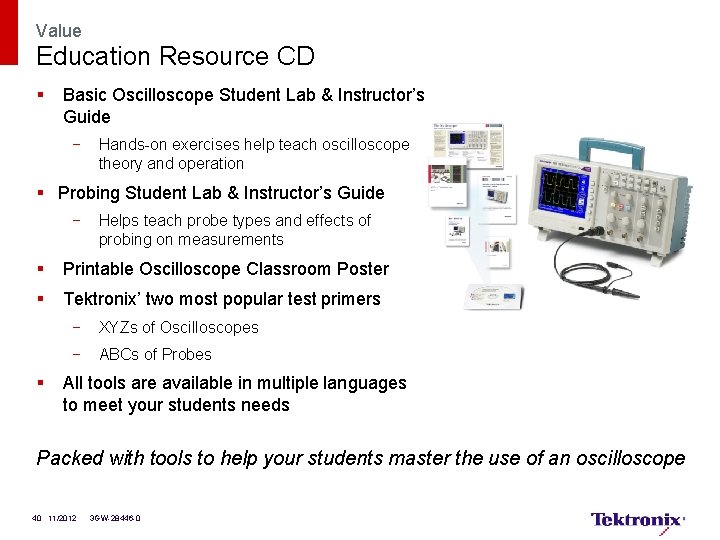

Value Education Resource CD § Basic Oscilloscope Student Lab & Instructor’s Guide − Hands-on exercises help teach oscilloscope theory and operation § Probing Student Lab & Instructor’s Guide − § Helps teach probe types and effects of probing on measurements Printable Oscilloscope Classroom Poster § Tektronix’ two most popular test primers − XYZs of Oscilloscopes − ABCs of Probes § All tools are available in multiple languages to meet your students needs Packed with tools to help your students master the use of an oscilloscope 40 11/2012 3 GW-28446 -0

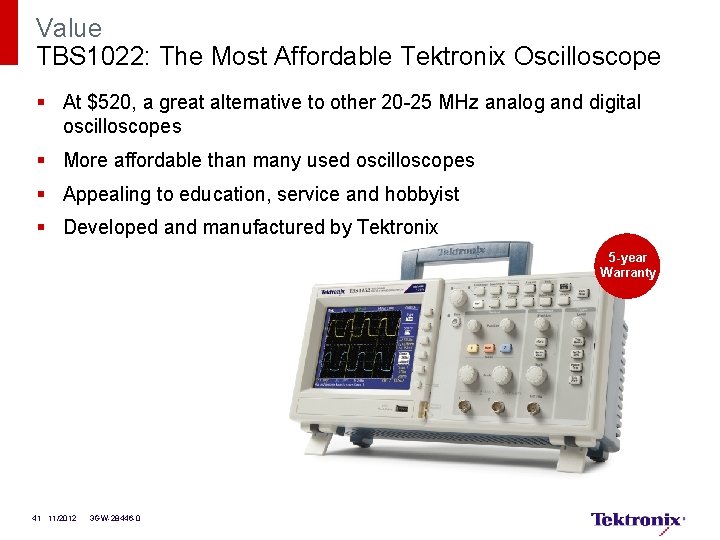

Value TBS 1022: The Most Affordable Tektronix Oscilloscope § At $520, a great alternative to other 20 -25 MHz analog and digital oscilloscopes § More affordable than many used oscilloscopes § Appealing to education, service and hobbyist § Developed and manufactured by Tektronix 5 -year Warranty 41 11/2012 3 GW-28446 -0

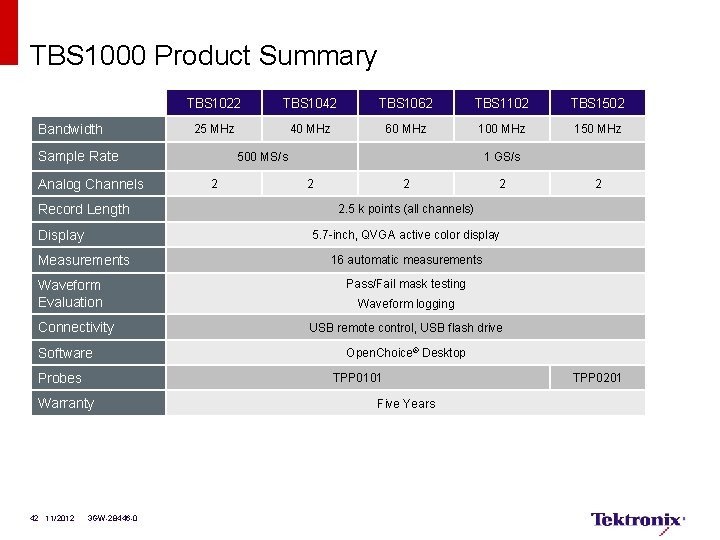

TBS 1000 Product Summary Bandwidth TBS 1022 TBS 1042 TBS 1062 TBS 1102 TBS 1502 25 MHz 40 MHz 60 MHz 100 MHz 150 MHz Sample Rate Analog Channels Record Length Display Waveform Evaluation Connectivity Software Probes 2 2 2. 5 k points (all channels) 16 automatic measurements Pass/Fail mask testing Waveform logging USB remote control, USB flash drive Open. Choice® Desktop TPP 0101 Warranty 42 11/2012 2 1 GS/s 5. 7 -inch, QVGA active color display Measurements 42 500 MS/s 3 GW-28446 -0 Five Years TPP 0201

A Complete Solution

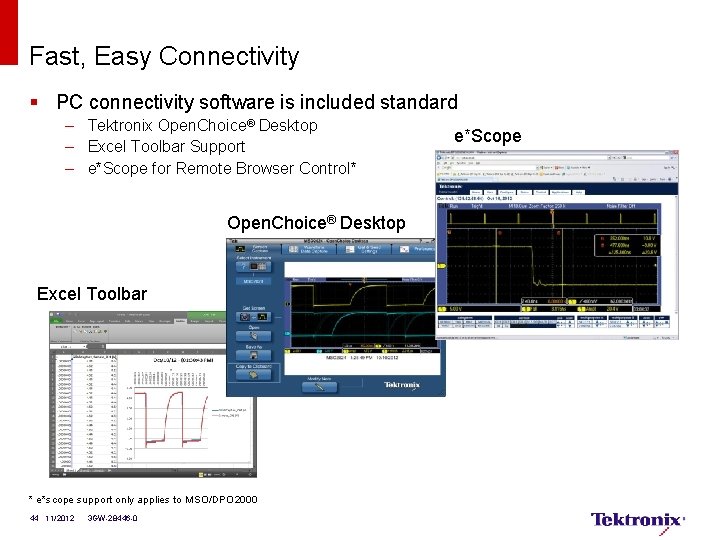

Fast, Easy Connectivity § PC connectivity software is included standard – Tektronix Open. Choice® Desktop – Excel Toolbar Support – e*Scope for Remote Browser Control* Open. Choice® Desktop Excel Toolbar * e*scope support only applies to MSO/DPO 2000 44 11/2012 3 GW-28446 -0 e*Scope

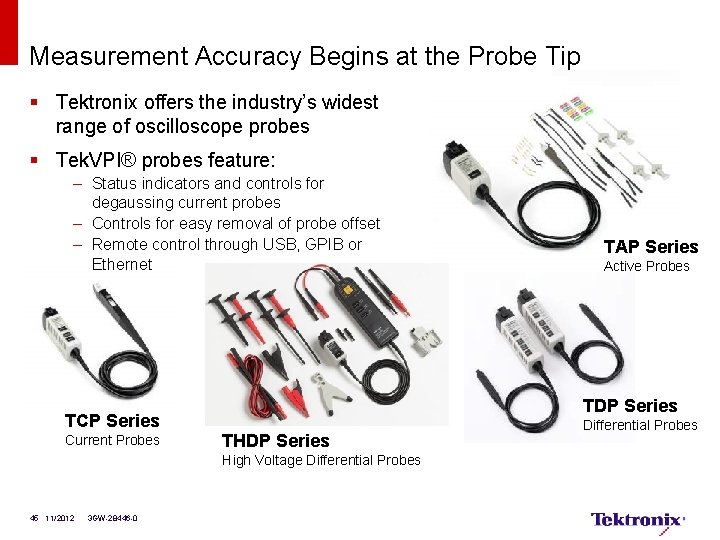

Measurement Accuracy Begins at the Probe Tip § Tektronix offers the industry’s widest range of oscilloscope probes § Tek. VPI® probes feature: – Status indicators and controls for degaussing current probes – Controls for easy removal of probe offset – Remote control through USB, GPIB or Ethernet THDP Series High Voltage Differential Probes 45 11/2012 3 GW-28446 -0 Active Probes TDP Series TCP Series Current Probes TAP Series Differential Probes
