Basic Antenna Theory and Concepts ICS 620 Communication

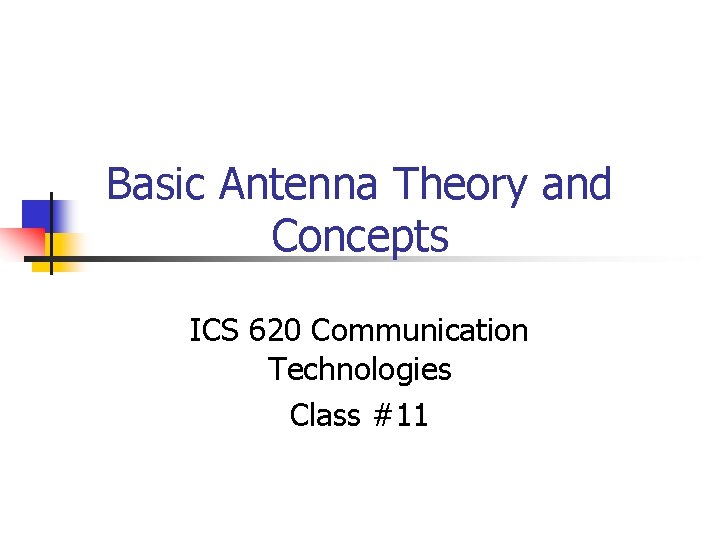

Basic Antenna Theory and Concepts ICS 620 Communication Technologies Class #11

Introduction n An antenna is an electrical conductor or system of conductors n n n Transmission - radiates electromagnetic energy into space Reception - collects electromagnetic energy from space In two-way communication, the same antenna can be used for transmission and reception

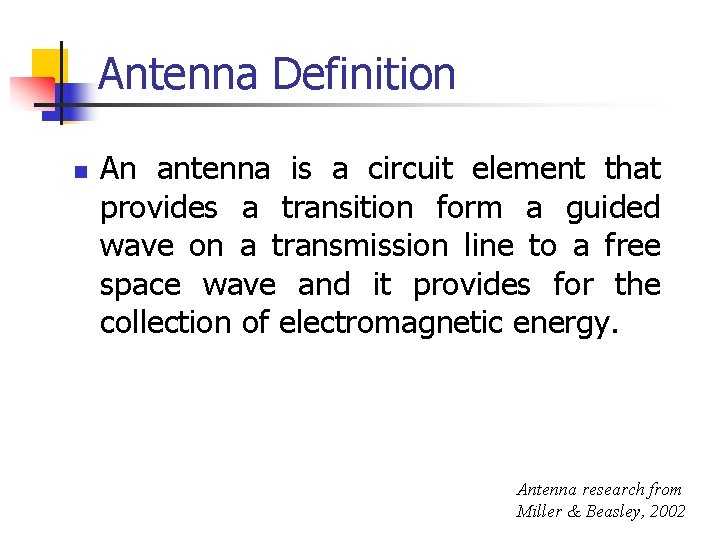

Antenna Definition n An antenna is a circuit element that provides a transition form a guided wave on a transmission line to a free space wave and it provides for the collection of electromagnetic energy. Antenna research from Miller & Beasley, 2002

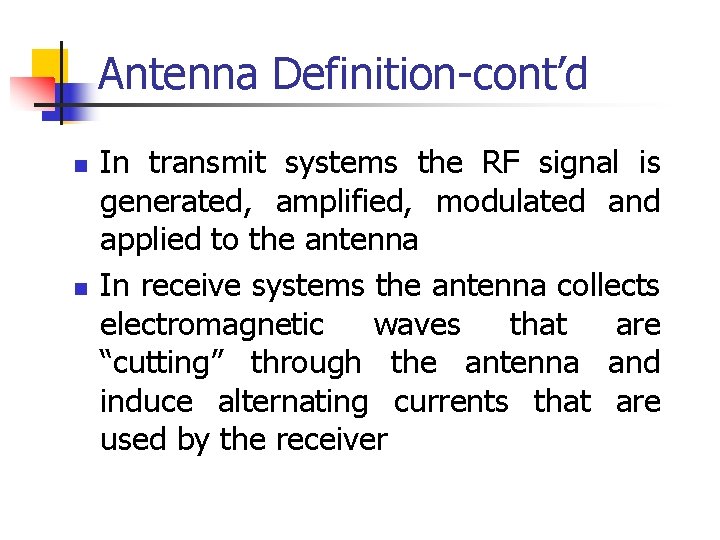

Antenna Definition-cont’d n n In transmit systems the RF signal is generated, amplified, modulated and applied to the antenna In receive systems the antenna collects electromagnetic waves that are “cutting” through the antenna and induce alternating currents that are used by the receiver

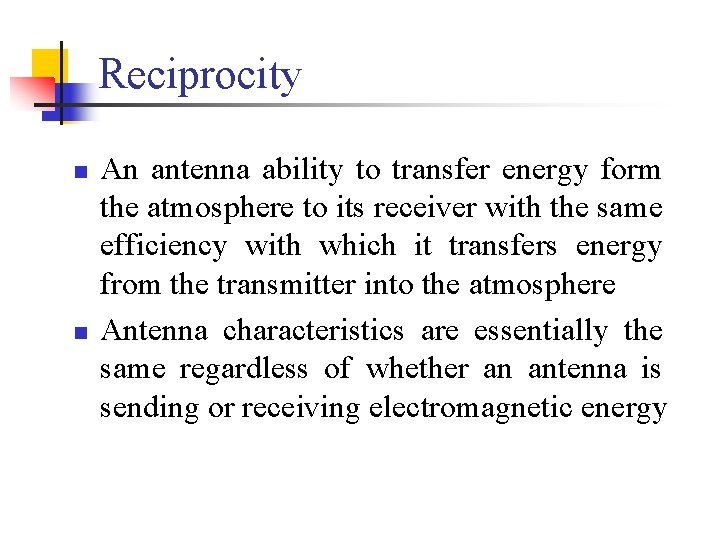

Reciprocity n n An antenna ability to transfer energy form the atmosphere to its receiver with the same efficiency with which it transfers energy from the transmitter into the atmosphere Antenna characteristics are essentially the same regardless of whether an antenna is sending or receiving electromagnetic energy

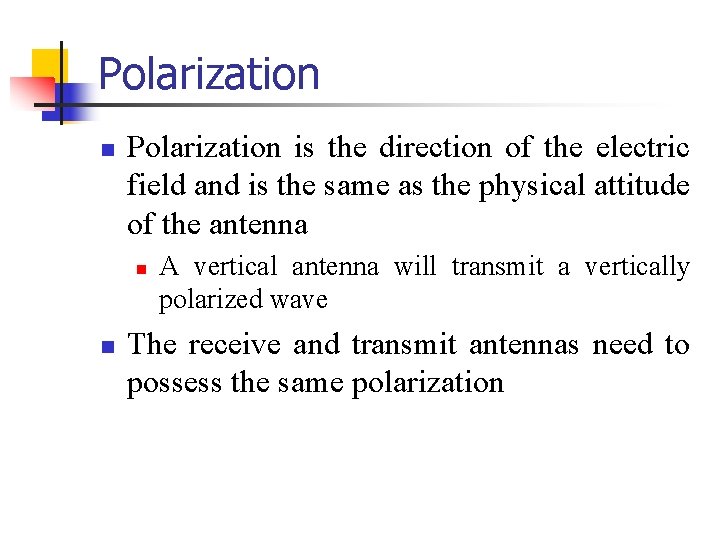

Polarization n Polarization is the direction of the electric field and is the same as the physical attitude of the antenna n n A vertical antenna will transmit a vertically polarized wave The receive and transmit antennas need to possess the same polarization

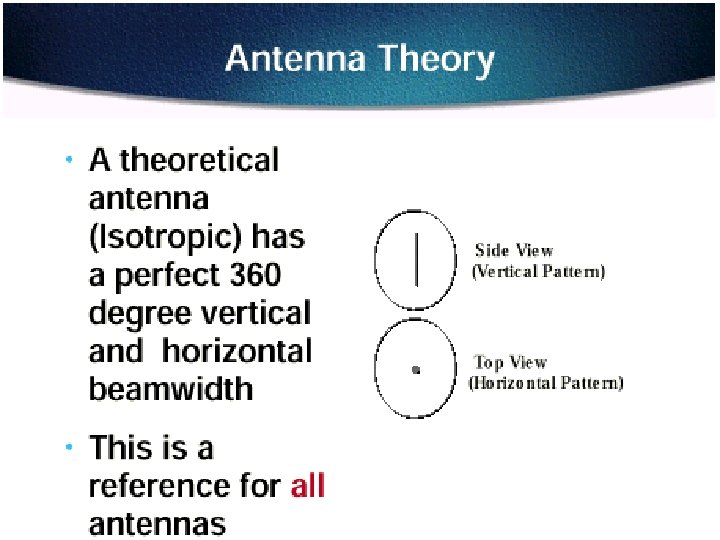

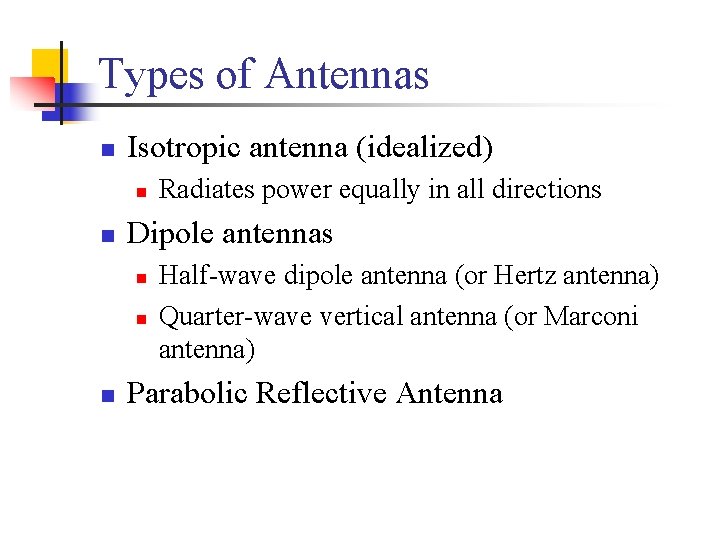

Types of Antennas n Isotropic antenna (idealized) n n Dipole antennas n n n Radiates power equally in all directions Half-wave dipole antenna (or Hertz antenna) Quarter-wave vertical antenna (or Marconi antenna) Parabolic Reflective Antenna

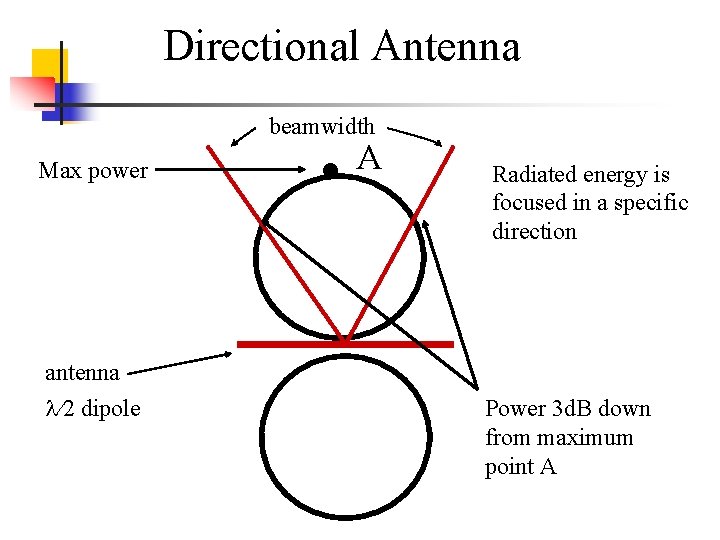

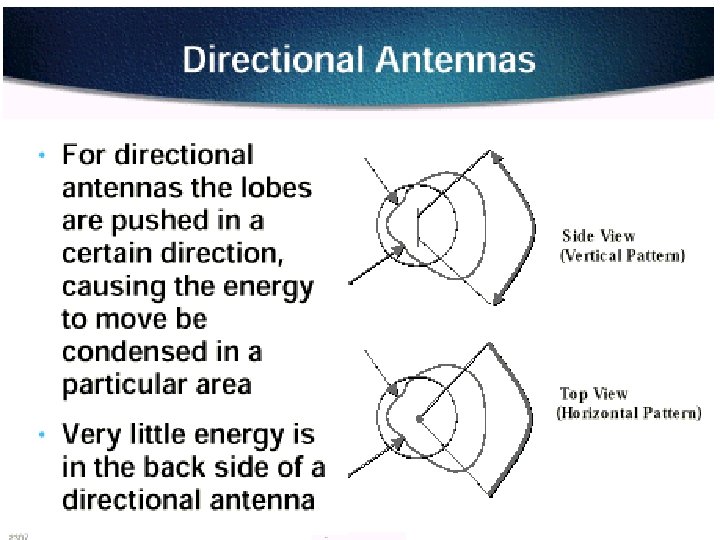

Directional Antenna beamwidth Max power antenna 2 dipole • A Radiated energy is focused in a specific direction Power 3 d. B down from maximum point A

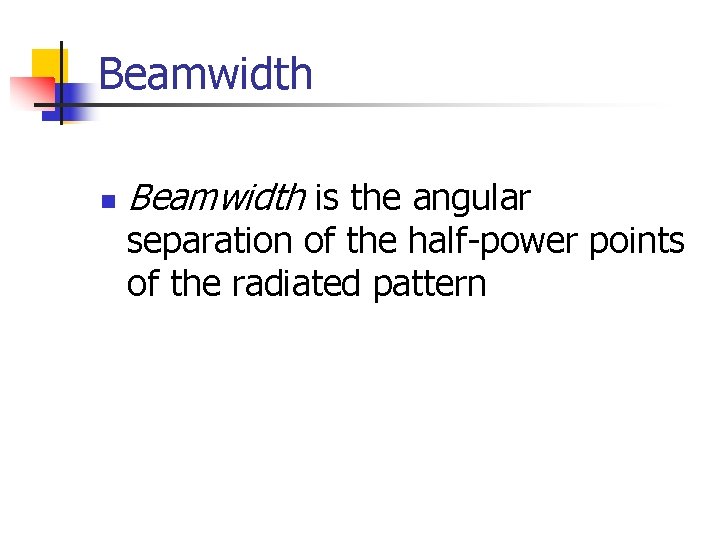

Beamwidth n Beamwidth is the angular separation of the half-power points of the radiated pattern

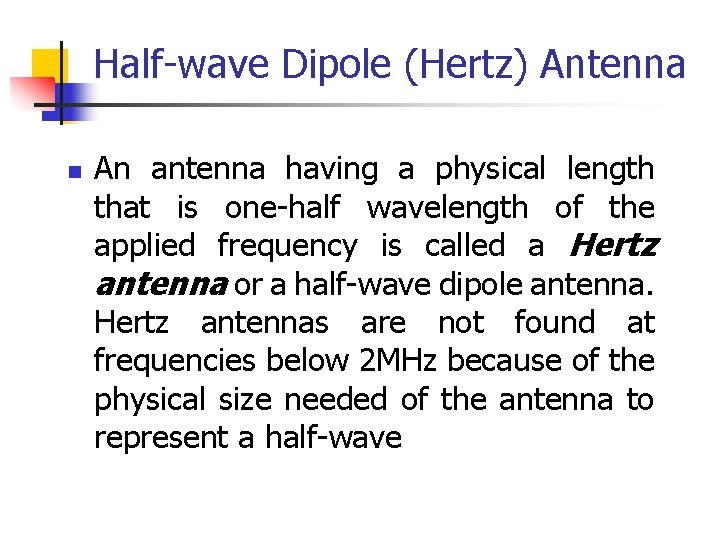

Half-wave Dipole (Hertz) Antenna n An antenna having a physical length that is one-half wavelength of the applied frequency is called a Hertz antenna or a half-wave dipole antenna. Hertz antennas are not found at frequencies below 2 MHz because of the physical size needed of the antenna to represent a half-wave

Vertical (Marconi) Antenna n Vertical Antennas are used for frequencies under 2 MHz. It uses a conducting path to ground that acts as ¼ wavelength portion the antenna above the ground. The above ground structure represents a /4 wavelength

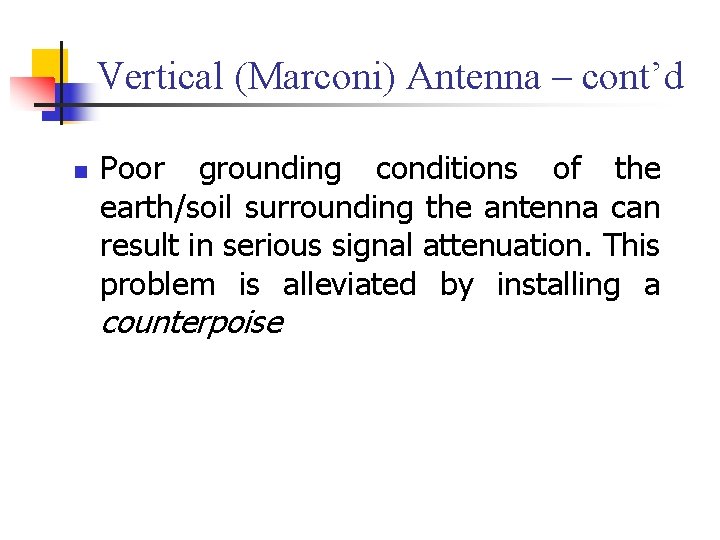

Vertical (Marconi) Antenna – cont’d n Poor grounding conditions of the earth/soil surrounding the antenna can result in serious signal attenuation. This problem is alleviated by installing a counterpoise

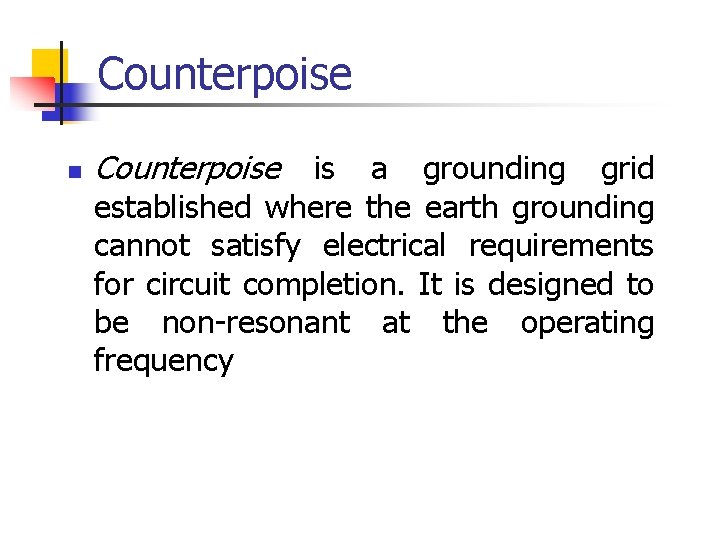

Counterpoise n Counterpoise is a grounding grid established where the earth grounding cannot satisfy electrical requirements for circuit completion. It is designed to be non-resonant at the operating frequency

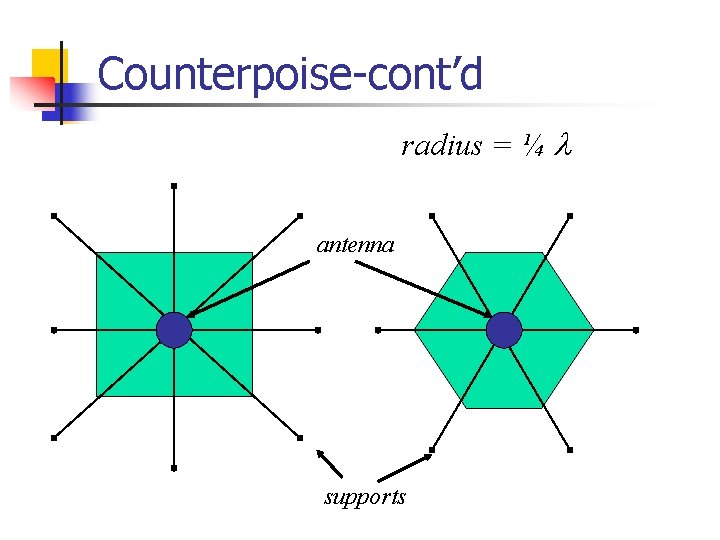

Counterpoise-cont’d radius = ¼ antenna supports

Antenna Array n Antenna array is a group of antennas or antenna elements arranged to provide the desired directional characteristics. Generally any combination of elements can form an array. However, equal elements in a regular geometry are usually used.

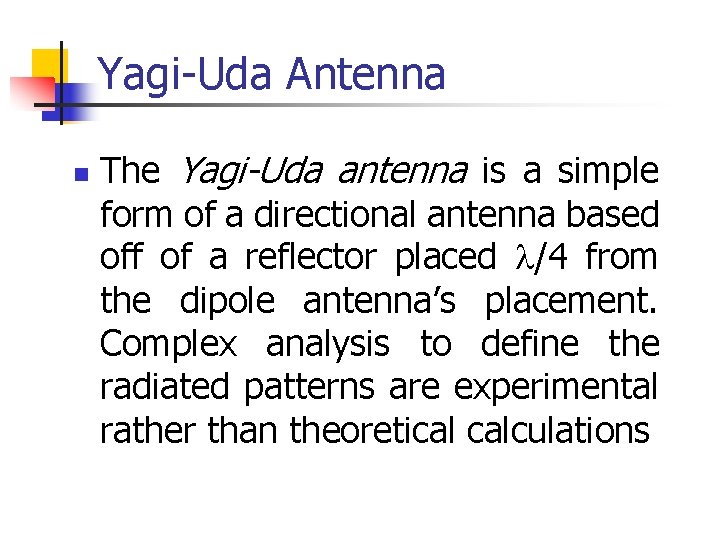

Yagi-Uda Antenna n The Yagi-Uda antenna is a simple form of a directional antenna based off of a reflector placed /4 from the dipole antenna’s placement. Complex analysis to define the radiated patterns are experimental rather than theoretical calculations

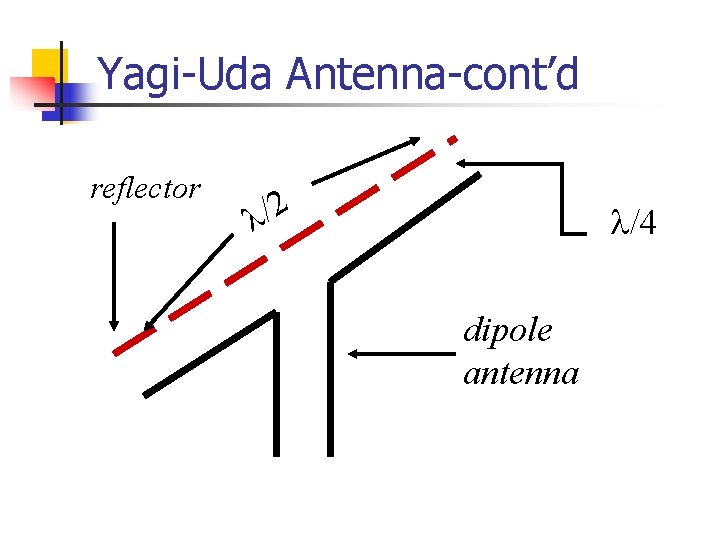

Yagi-Uda Antenna-cont’d reflector 2 / /4 dipole antenna

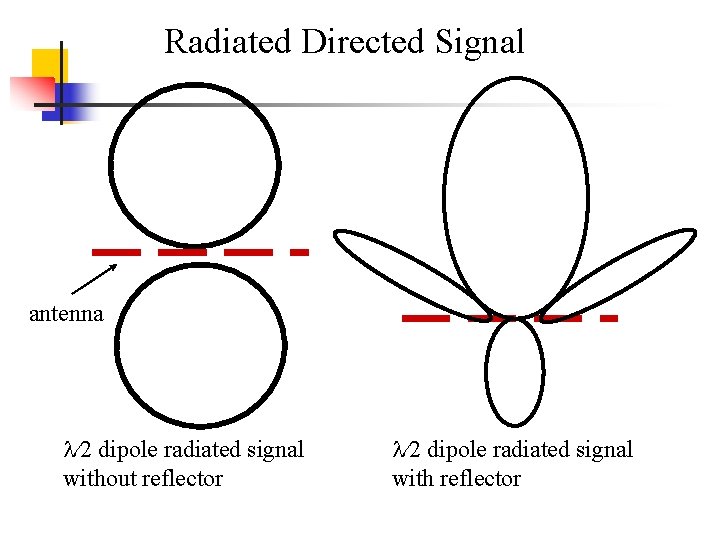

Radiated Directed Signal antenna 2 dipole radiated signal without reflector 2 dipole radiated signal with reflector

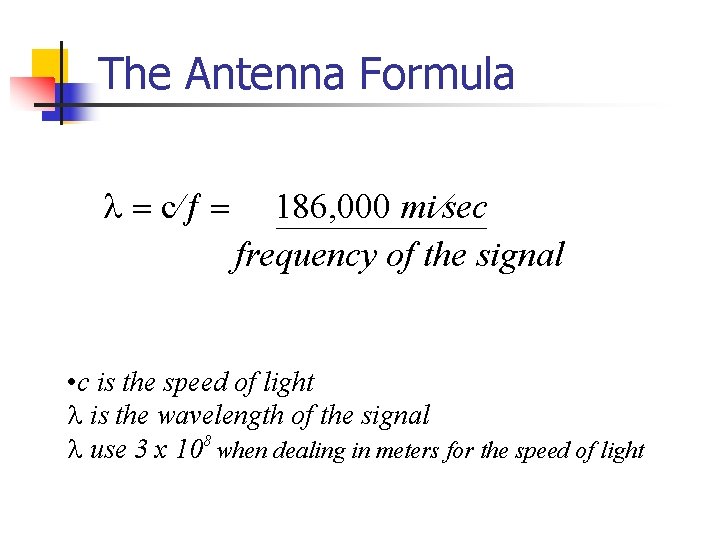

The Antenna Formula c 186, 000 mi sec frequency of the signal • c is the speed of light is the wavelength of the signal use 3 x 108 when dealing in meters for the speed of light

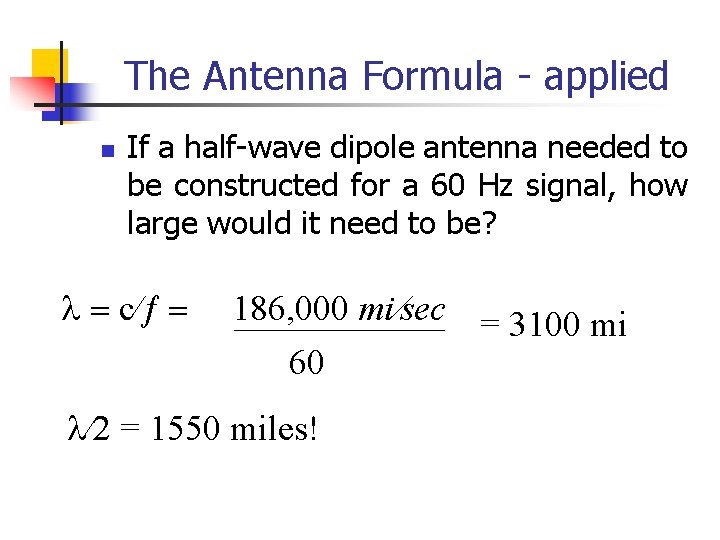

The Antenna Formula - applied n If a half-wave dipole antenna needed to be constructed for a 60 Hz signal, how large would it need to be? c 186, 000 mi sec = 3100 mi 60 2 = 1550 miles!

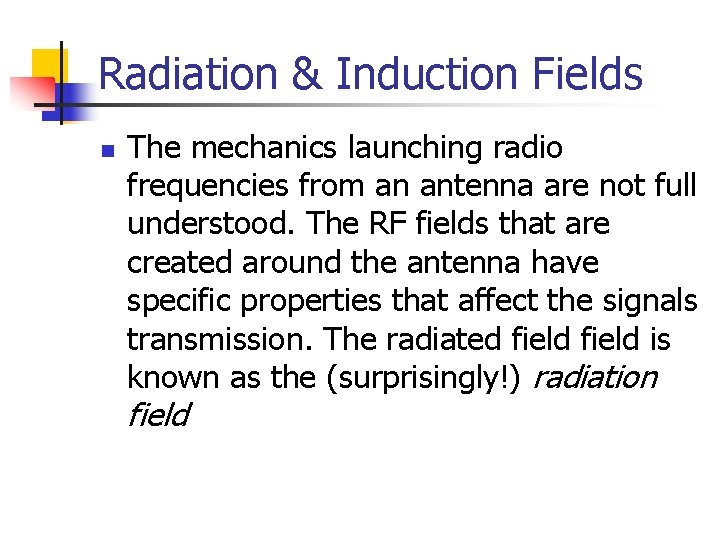

Radiation & Induction Fields n The mechanics launching radio frequencies from an antenna are not full understood. The RF fields that are created around the antenna have specific properties that affect the signals transmission. The radiated field is known as the (surprisingly!) radiation field

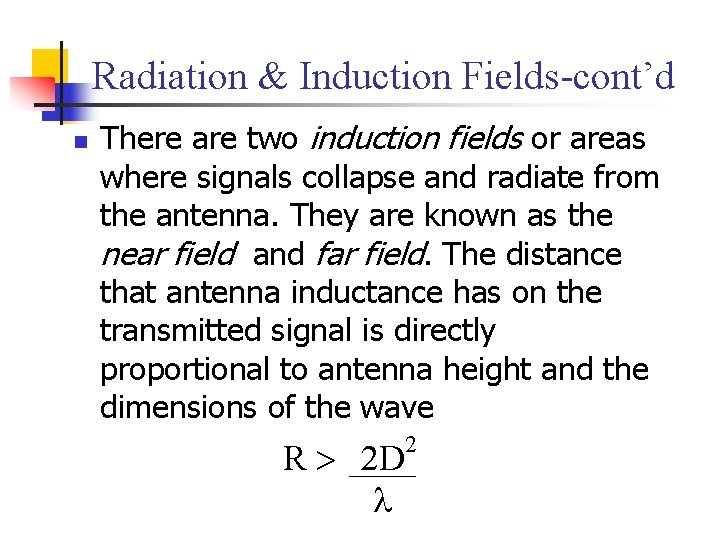

Radiation & Induction Fields-cont’d n There are two induction fields or areas where signals collapse and radiate from the antenna. They are known as the near field and far field. The distance that antenna inductance has on the transmitted signal is directly proportional to antenna height and the dimensions of the wave R 2 D 2

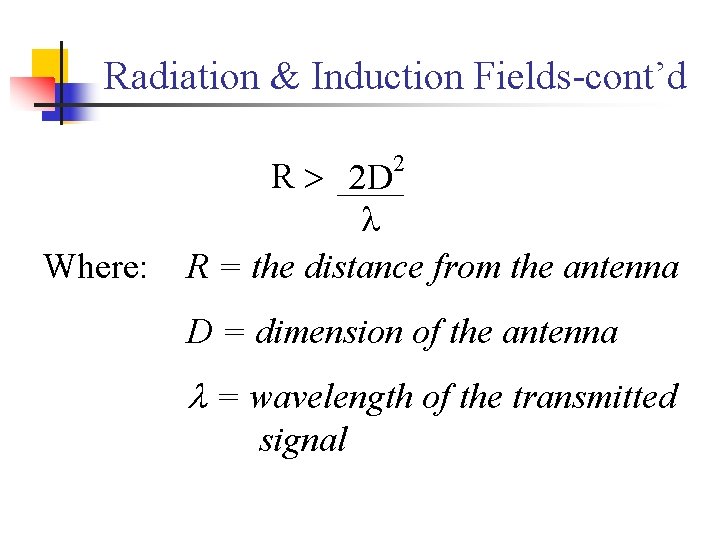

Radiation & Induction Fields-cont’d 2 Where: R 2 D R = the distance from the antenna D = dimension of the antenna = wavelength of the transmitted signal

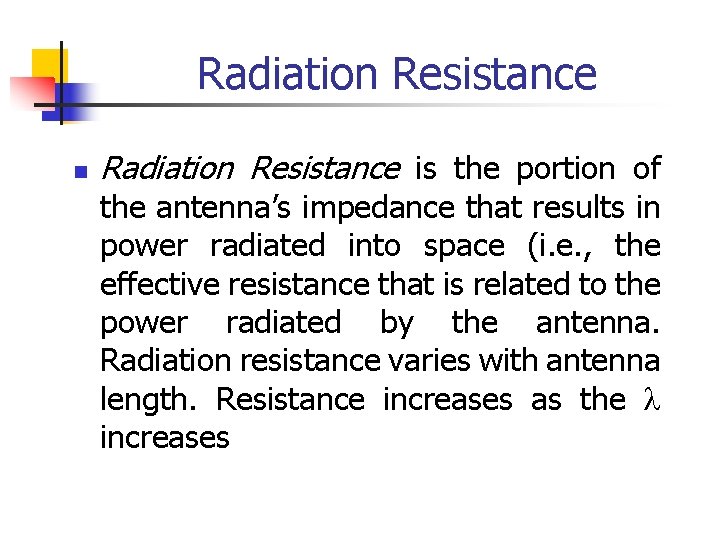

Radiation Resistance n Radiation Resistance is the portion of the antenna’s impedance that results in power radiated into space (i. e. , the effective resistance that is related to the power radiated by the antenna. Radiation resistance varies with antenna length. Resistance increases as the increases

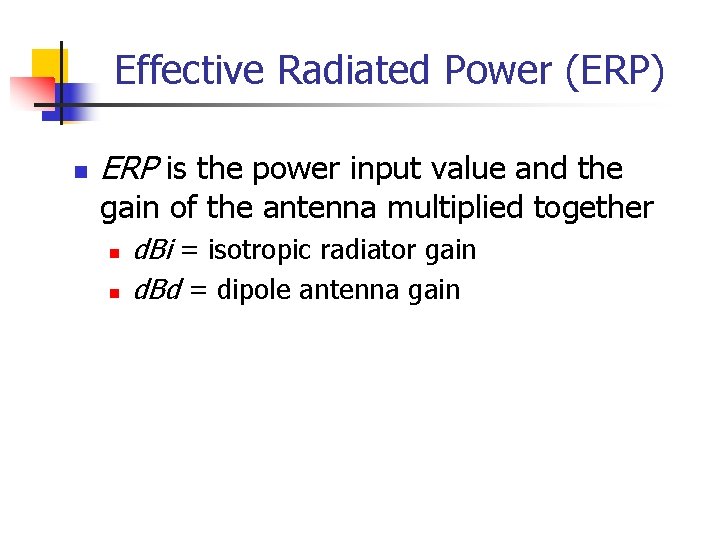

Effective Radiated Power (ERP) n ERP is the power input value and the gain of the antenna multiplied together n n d. Bi = isotropic radiator gain d. Bd = dipole antenna gain

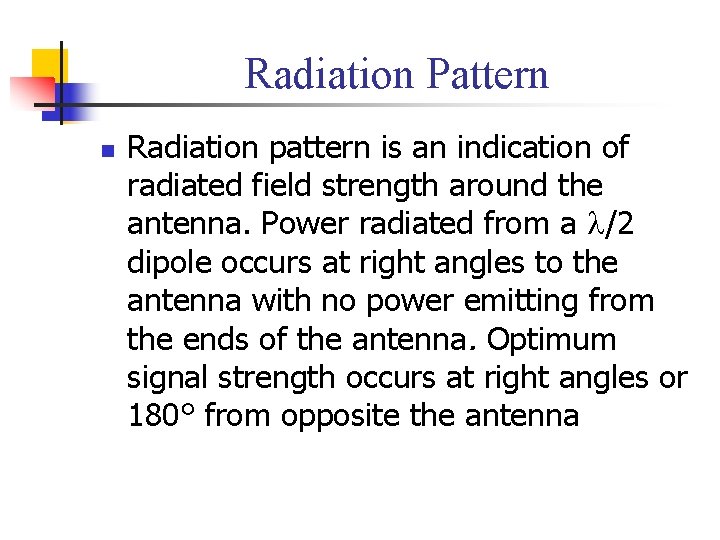

Radiation Pattern n Radiation pattern is an indication of radiated field strength around the antenna. Power radiated from a /2 dipole occurs at right angles to the antenna with no power emitting from the ends of the antenna. Optimum signal strength occurs at right angles or 180° from opposite the antenna

Radiation Patterns n n n Radiation pattern n Graphical representation of radiation properties of an antenna n Depicted as two-dimensional cross section Beam width (or half-power beam width) n Measure of directivity of antenna Reception pattern n Receiving antenna’s equivalent to radiation pattern

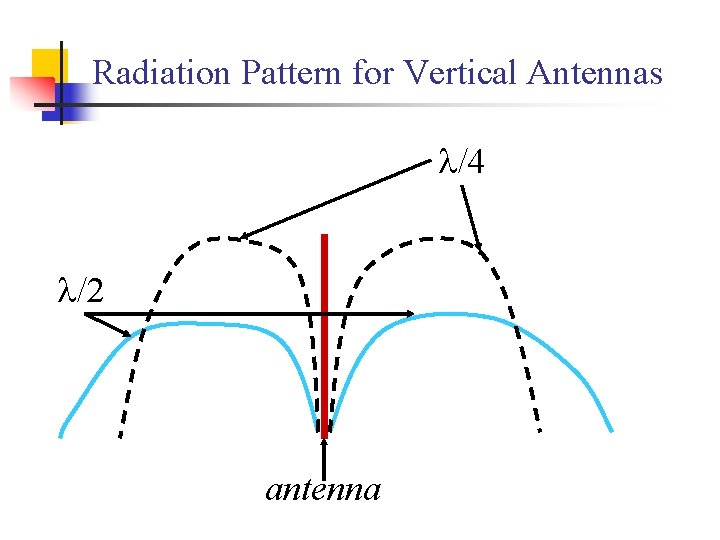

Radiation Pattern for Vertical Antennas /4 /2 antenna

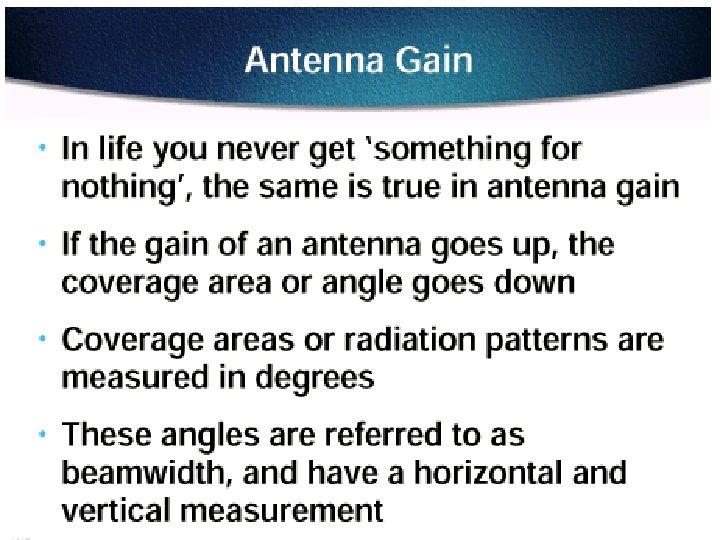

Antenna Gain n Antenna gain n n Power output, in a particular direction, compared to that produced in any direction by a perfect omnidirectional antenna (isotropic antenna) Effective area n Related to physical size and shape of antenna

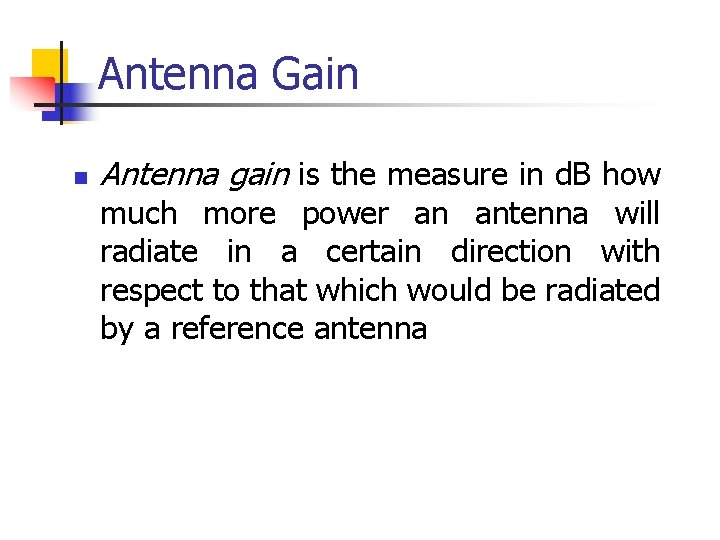

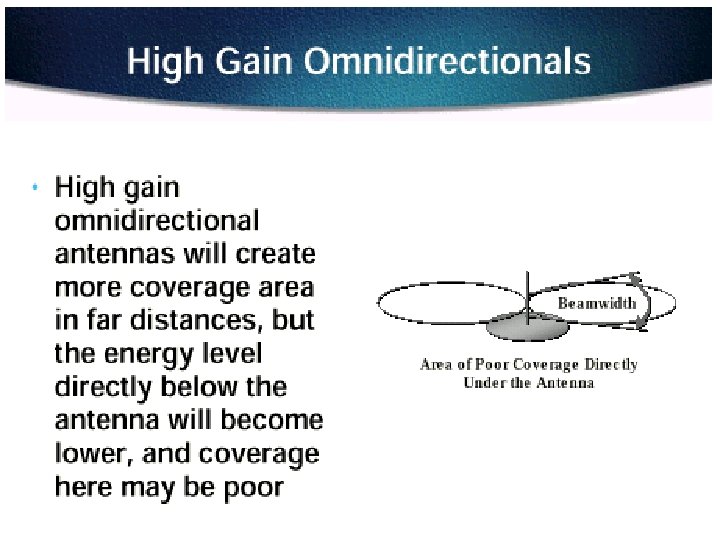

Antenna Gain n Antenna gain is the measure in d. B how much more power an antenna will radiate in a certain direction with respect to that which would be radiated by a reference antenna

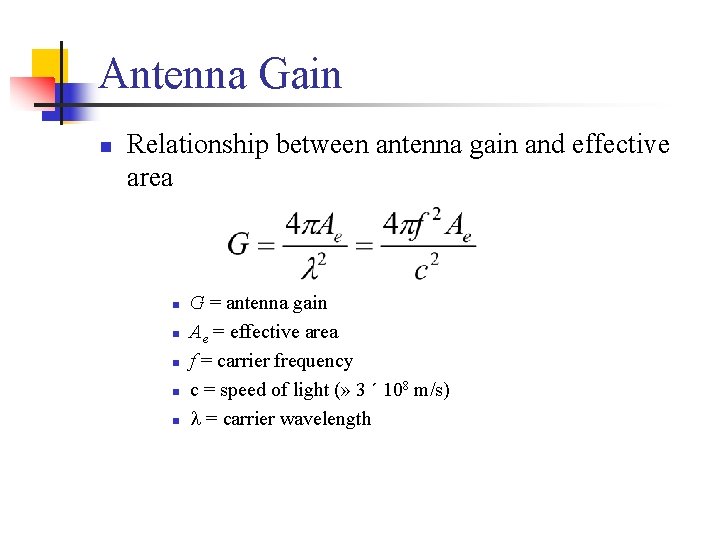

Antenna Gain n Relationship between antenna gain and effective area n n n G = antenna gain Ae = effective area f = carrier frequency c = speed of light (» 3 ´ 108 m/s) = carrier wavelength

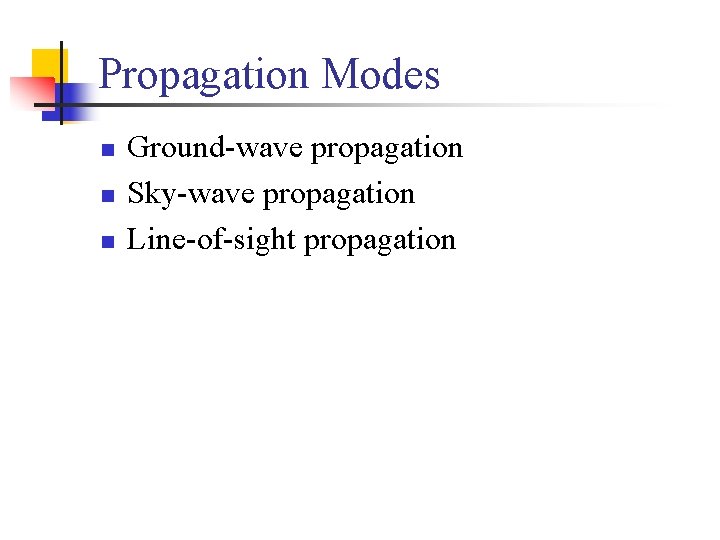

Propagation Modes n n n Ground-wave propagation Sky-wave propagation Line-of-sight propagation

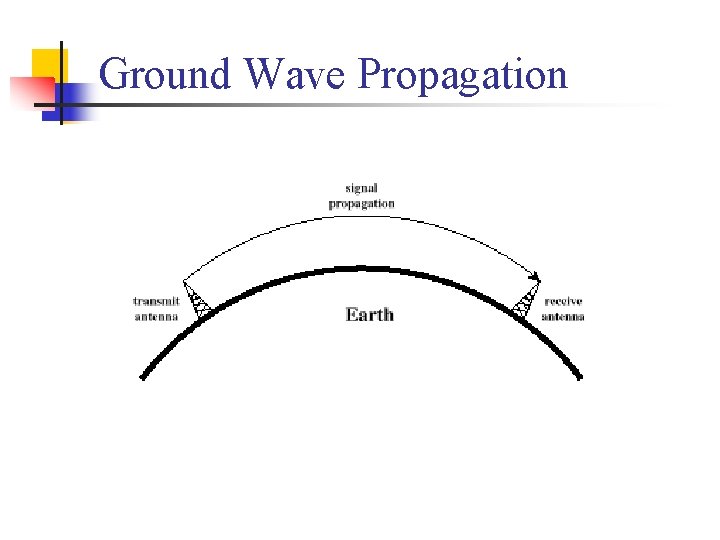

Ground Wave Propagation

Ground Wave Propagation n n Follows contour of the earth Can Propagate considerable distances Frequencies up to 2 MHz Example n AM radio

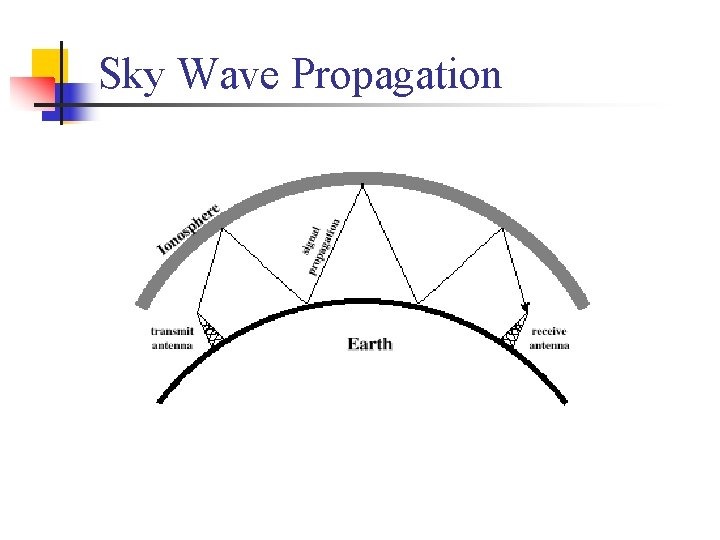

Sky Wave Propagation

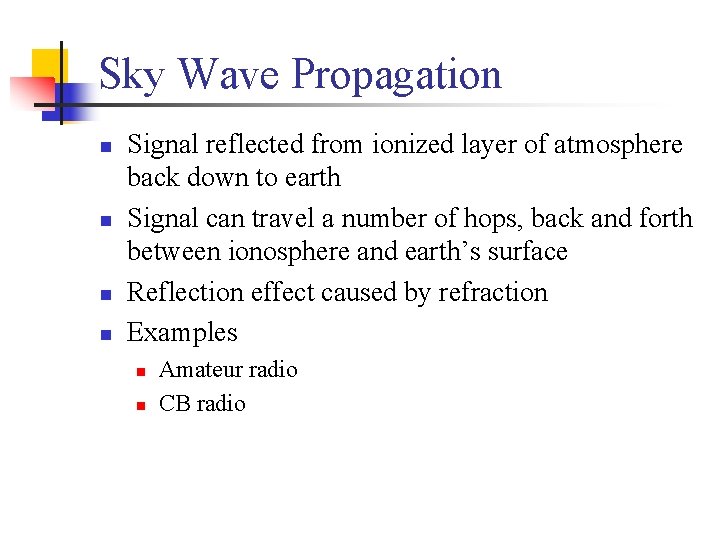

Sky Wave Propagation n n Signal reflected from ionized layer of atmosphere back down to earth Signal can travel a number of hops, back and forth between ionosphere and earth’s surface Reflection effect caused by refraction Examples n n Amateur radio CB radio

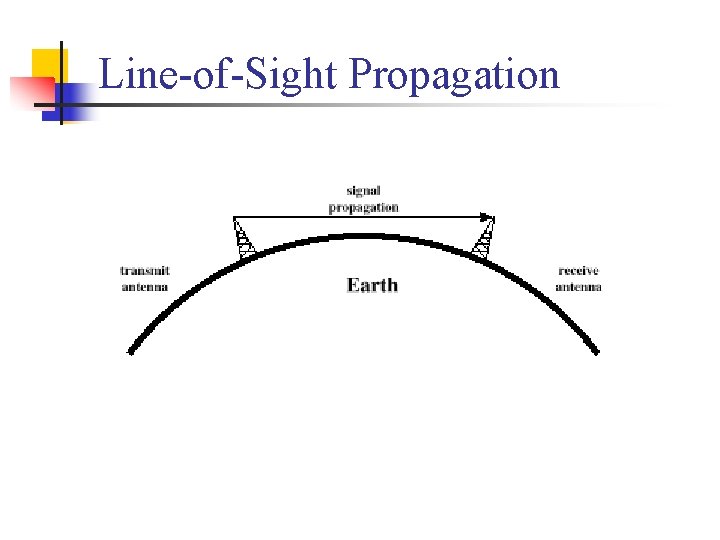

Line-of-Sight Propagation

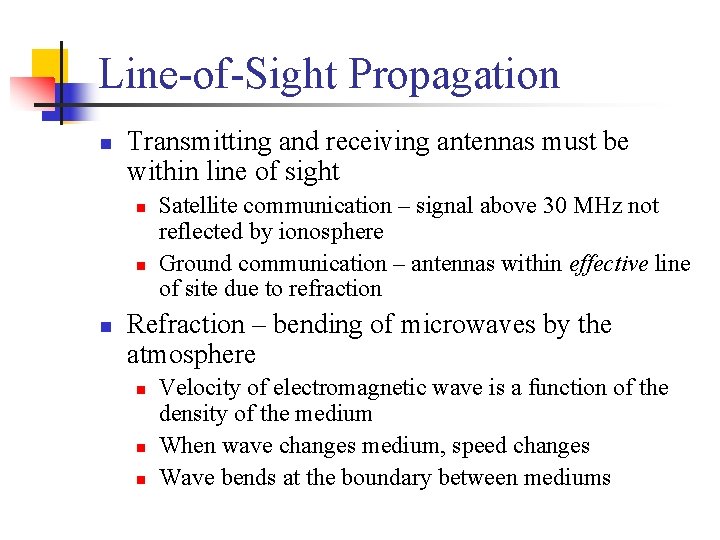

Line-of-Sight Propagation n Transmitting and receiving antennas must be within line of sight n n n Satellite communication – signal above 30 MHz not reflected by ionosphere Ground communication – antennas within effective line of site due to refraction Refraction – bending of microwaves by the atmosphere n n n Velocity of electromagnetic wave is a function of the density of the medium When wave changes medium, speed changes Wave bends at the boundary between mediums

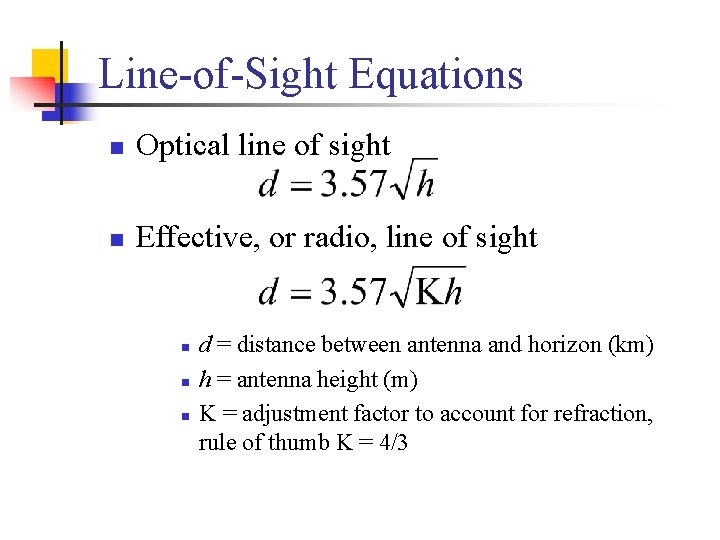

Line-of-Sight Equations n Optical line of sight n Effective, or radio, line of sight n n n d = distance between antenna and horizon (km) h = antenna height (m) K = adjustment factor to account for refraction, rule of thumb K = 4/3

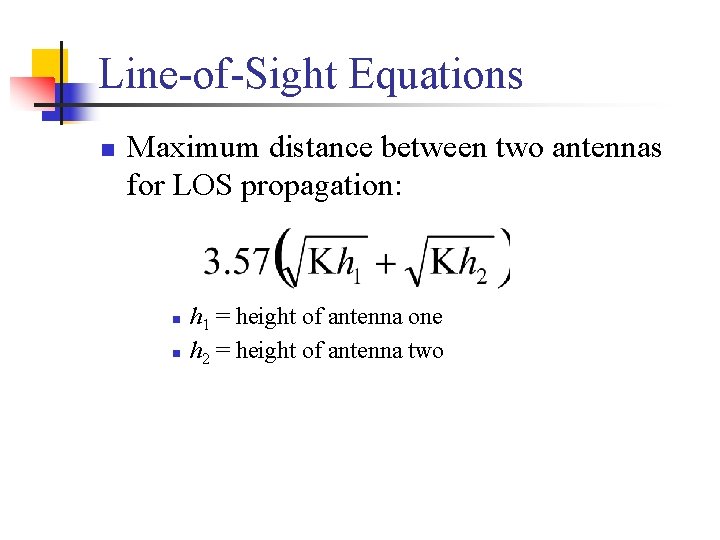

Line-of-Sight Equations n Maximum distance between two antennas for LOS propagation: n n h 1 = height of antenna one h 2 = height of antenna two

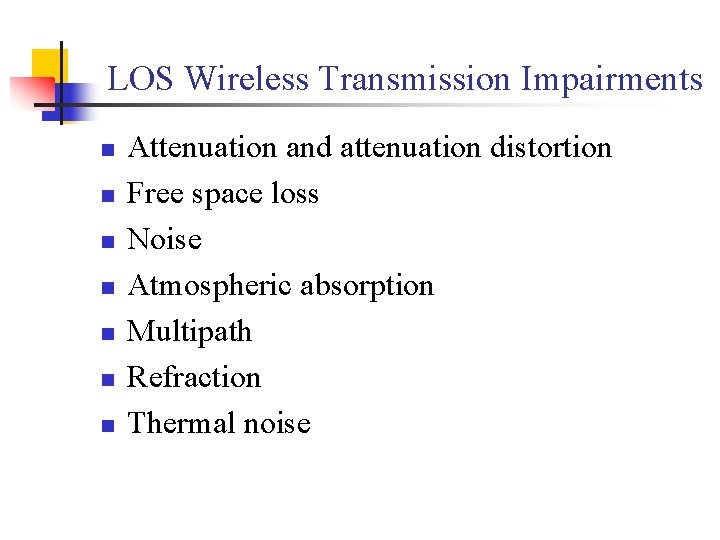

LOS Wireless Transmission Impairments n n n n Attenuation and attenuation distortion Free space loss Noise Atmospheric absorption Multipath Refraction Thermal noise

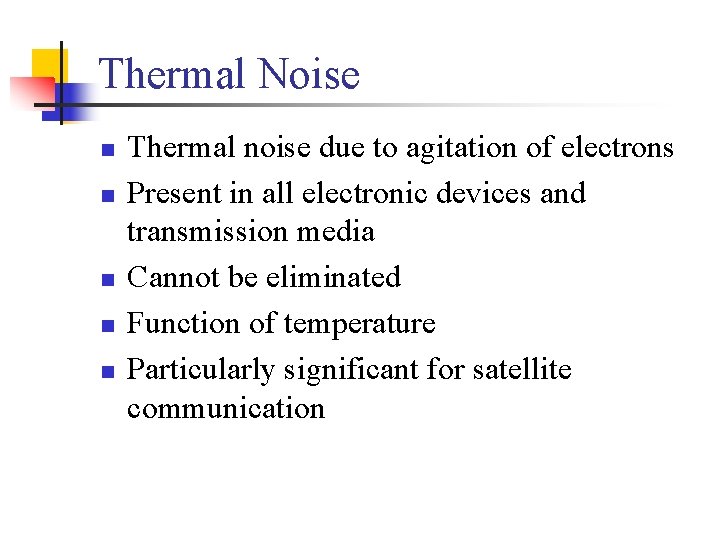

Thermal Noise n n n Thermal noise due to agitation of electrons Present in all electronic devices and transmission media Cannot be eliminated Function of temperature Particularly significant for satellite communication

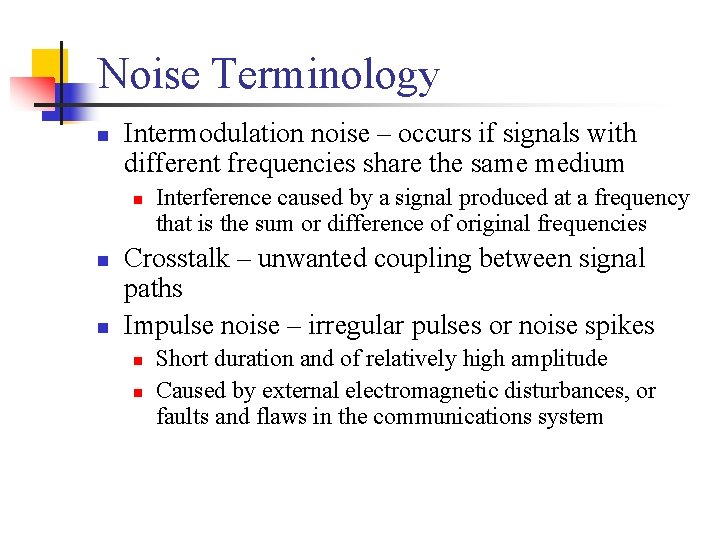

Noise Terminology n Intermodulation noise – occurs if signals with different frequencies share the same medium n n n Interference caused by a signal produced at a frequency that is the sum or difference of original frequencies Crosstalk – unwanted coupling between signal paths Impulse noise – irregular pulses or noise spikes n n Short duration and of relatively high amplitude Caused by external electromagnetic disturbances, or faults and flaws in the communications system

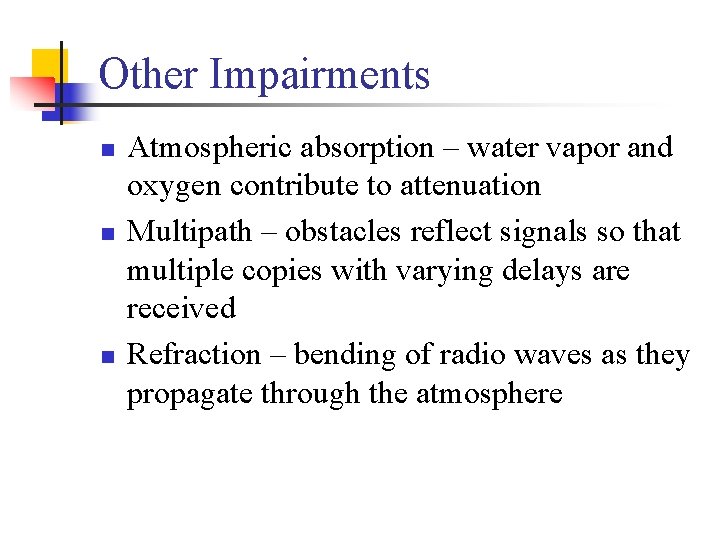

Other Impairments n n n Atmospheric absorption – water vapor and oxygen contribute to attenuation Multipath – obstacles reflect signals so that multiple copies with varying delays are received Refraction – bending of radio waves as they propagate through the atmosphere

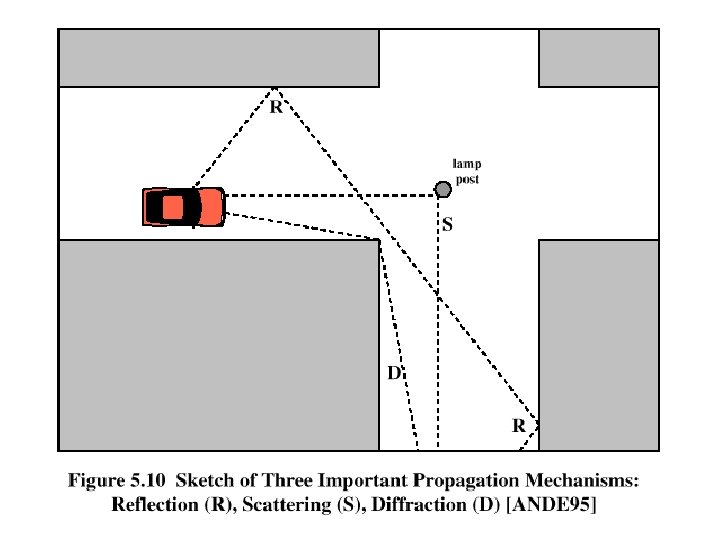

Multipath Propagation

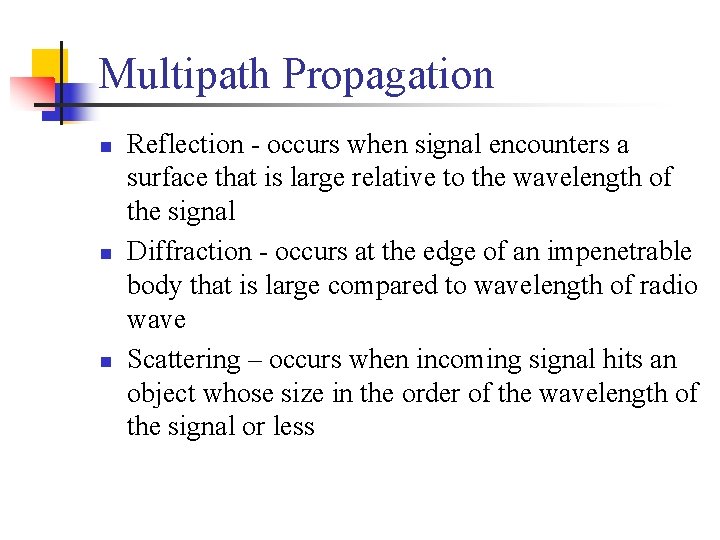

Multipath Propagation n Reflection - occurs when signal encounters a surface that is large relative to the wavelength of the signal Diffraction - occurs at the edge of an impenetrable body that is large compared to wavelength of radio wave Scattering – occurs when incoming signal hits an object whose size in the order of the wavelength of the signal or less

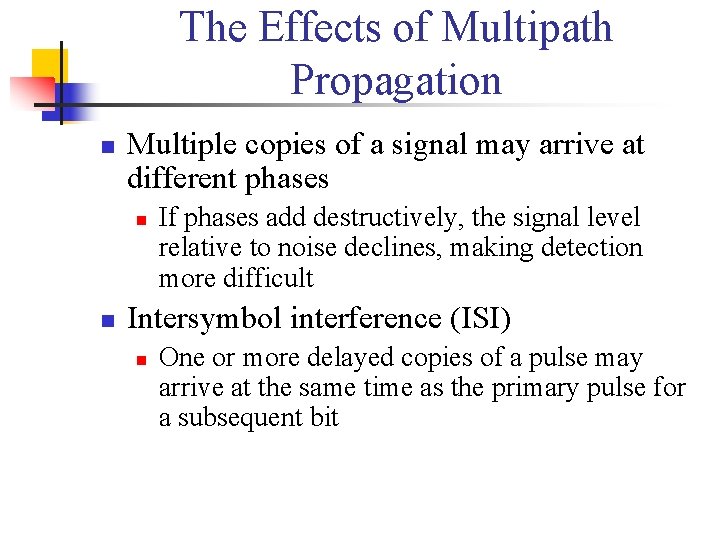

The Effects of Multipath Propagation n Multiple copies of a signal may arrive at different phases n n If phases add destructively, the signal level relative to noise declines, making detection more difficult Intersymbol interference (ISI) n One or more delayed copies of a pulse may arrive at the same time as the primary pulse for a subsequent bit

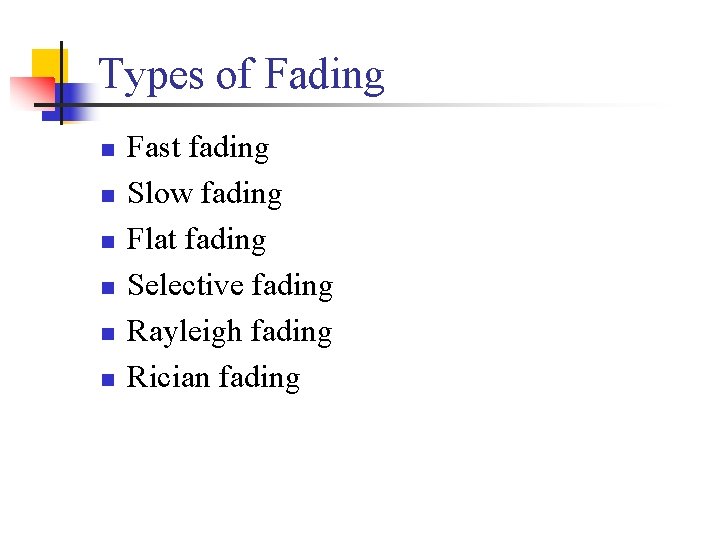

Types of Fading n n n Fast fading Slow fading Flat fading Selective fading Rayleigh fading Rician fading

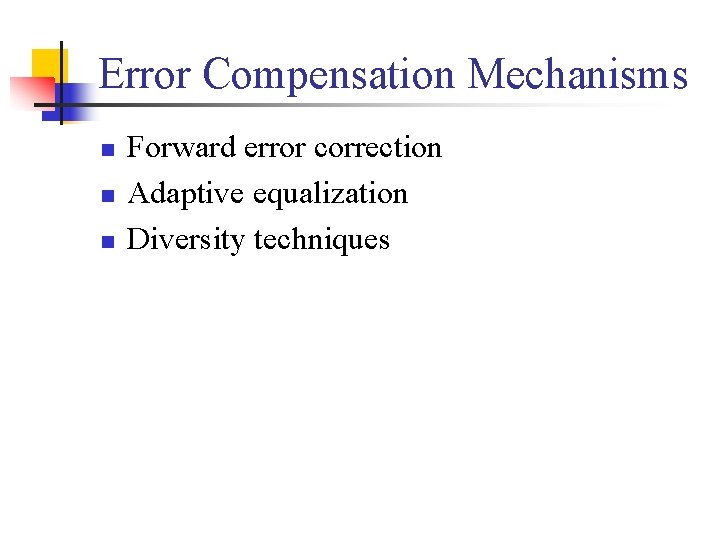

Error Compensation Mechanisms n n n Forward error correction Adaptive equalization Diversity techniques

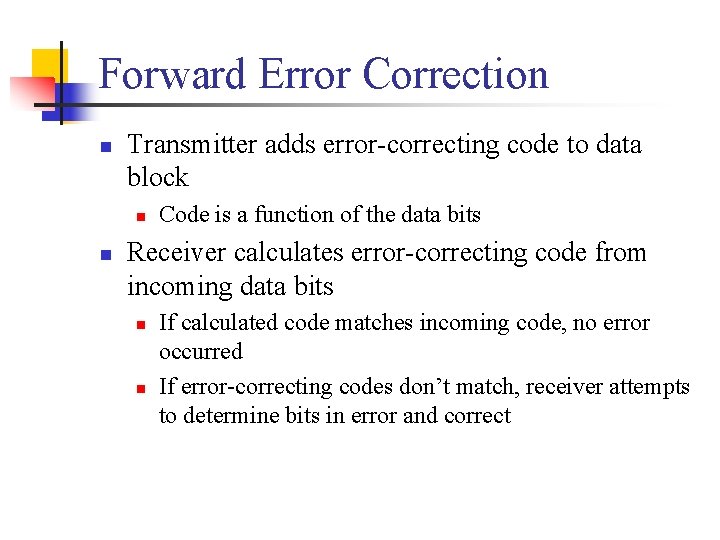

Forward Error Correction n Transmitter adds error-correcting code to data block n n Code is a function of the data bits Receiver calculates error-correcting code from incoming data bits n n If calculated code matches incoming code, no error occurred If error-correcting codes don’t match, receiver attempts to determine bits in error and correct

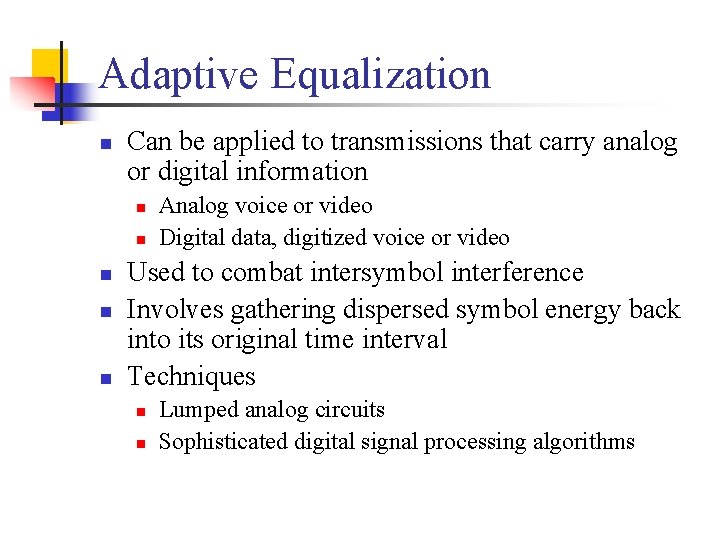

Adaptive Equalization n Can be applied to transmissions that carry analog or digital information n n Analog voice or video Digital data, digitized voice or video Used to combat intersymbol interference Involves gathering dispersed symbol energy back into its original time interval Techniques n n Lumped analog circuits Sophisticated digital signal processing algorithms

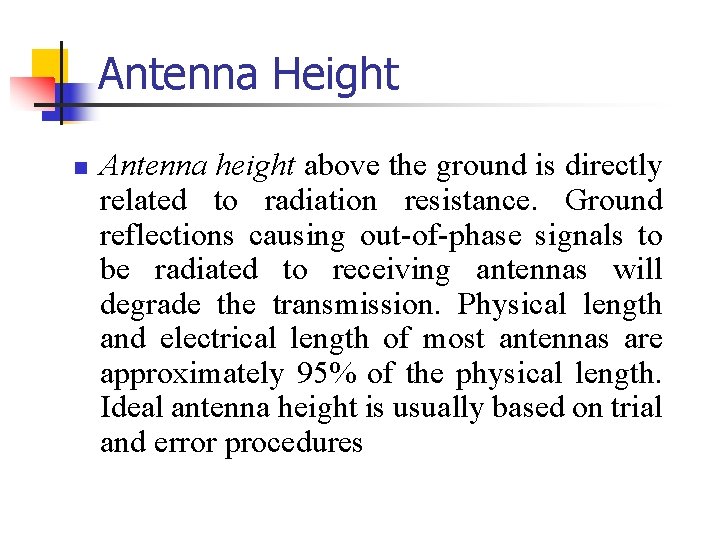

Antenna Height n Antenna height above the ground is directly related to radiation resistance. Ground reflections causing out-of-phase signals to be radiated to receiving antennas will degrade the transmission. Physical length and electrical length of most antennas are approximately 95% of the physical length. Ideal antenna height is usually based on trial and error procedures

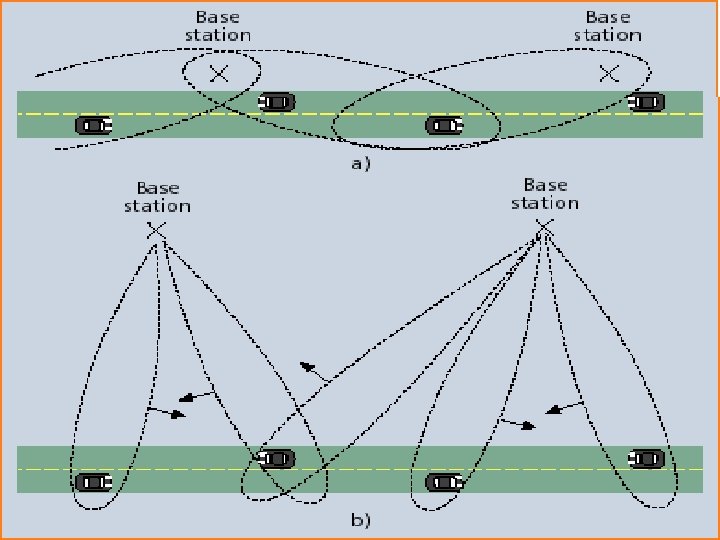

Smart Antennas

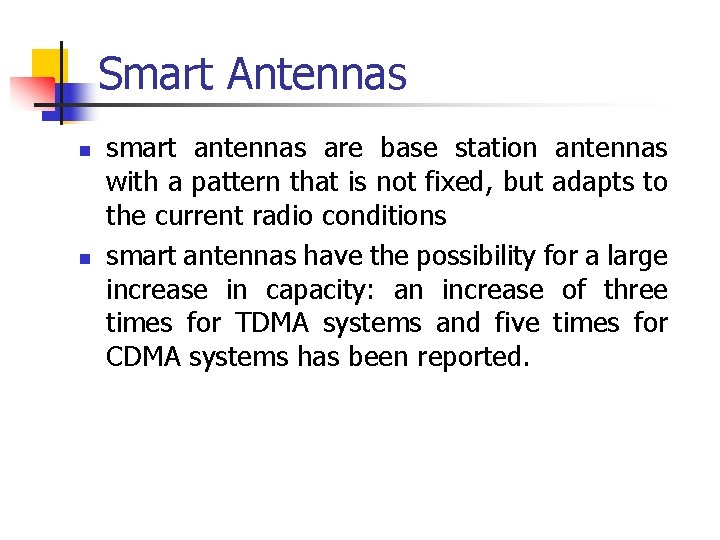

Smart Antennas n n smart antennas are base station antennas with a pattern that is not fixed, but adapts to the current radio conditions smart antennas have the possibility for a large increase in capacity: an increase of three times for TDMA systems and five times for CDMA systems has been reported.

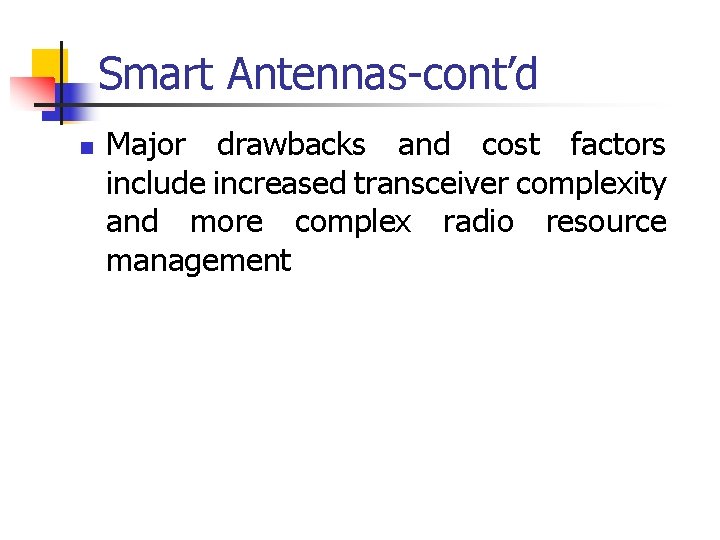

Smart Antennas-cont’d n Major drawbacks and cost factors include increased transceiver complexity and more complex radio resource management

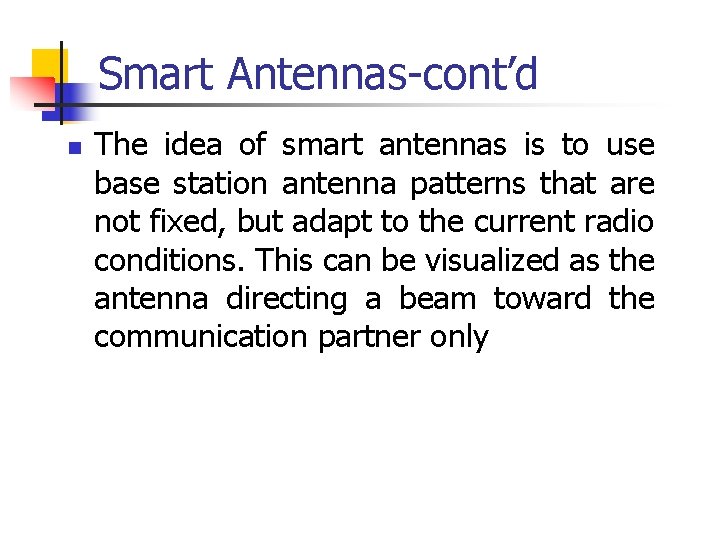

Smart Antennas-cont’d n The idea of smart antennas is to use base station antenna patterns that are not fixed, but adapt to the current radio conditions. This can be visualized as the antenna directing a beam toward the communication partner only

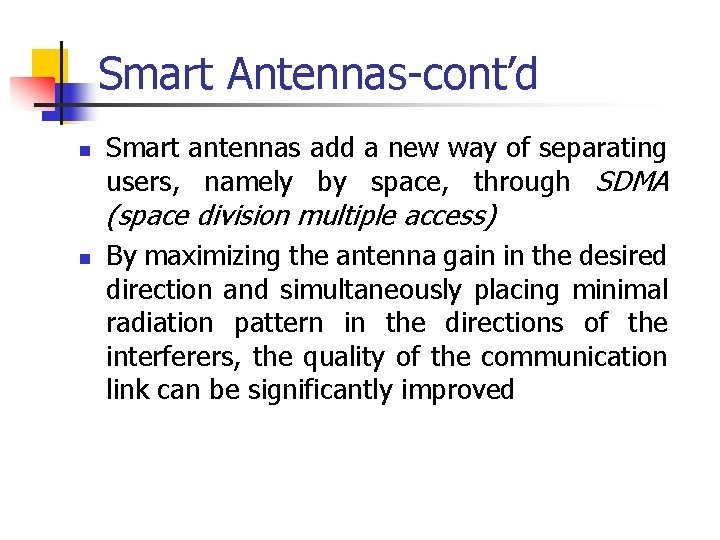

Smart Antennas-cont’d n Smart antennas add a new way of separating users, namely by space, through SDMA (space division multiple access) n By maximizing the antenna gain in the desired direction and simultaneously placing minimal radiation pattern in the directions of the interferers, the quality of the communication link can be significantly improved

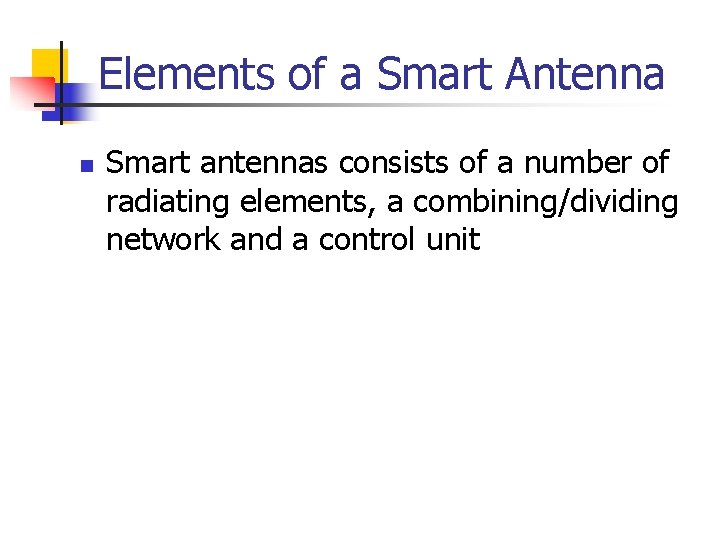

Elements of a Smart Antenna n Smart antennas consists of a number of radiating elements, a combining/dividing network and a control unit

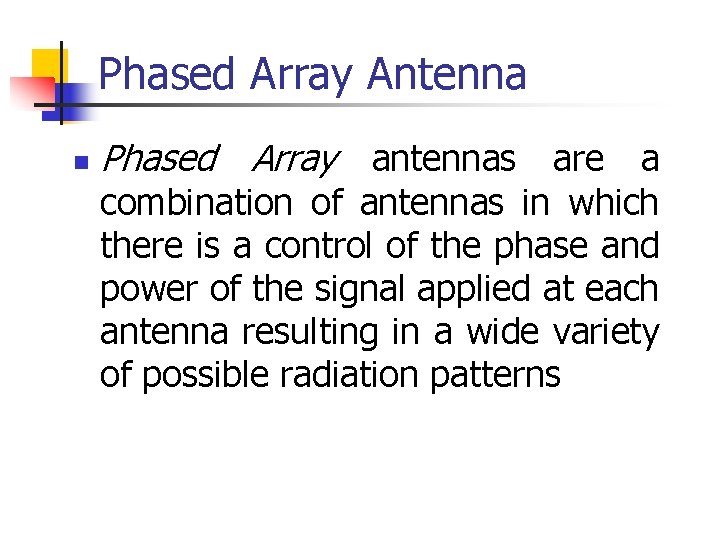

Phased Array Antenna n Phased Array antennas are a combination of antennas in which there is a control of the phase and power of the signal applied at each antenna resulting in a wide variety of possible radiation patterns

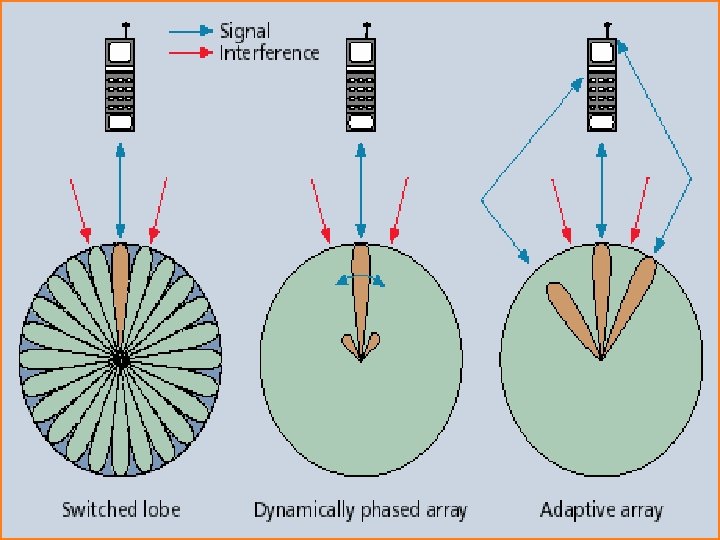

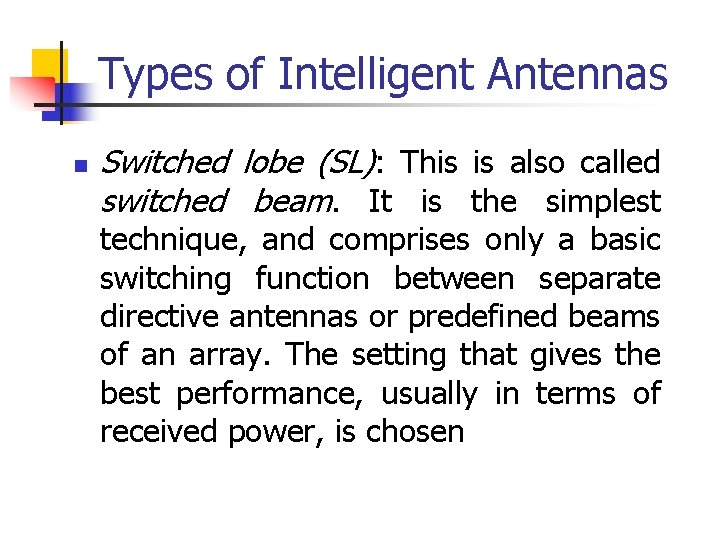

Types of Intelligent Antennas n Switched lobe (SL): This is also called switched beam. It is the simplest technique, and comprises only a basic switching function between separate directive antennas or predefined beams of an array. The setting that gives the best performance, usually in terms of received power, is chosen

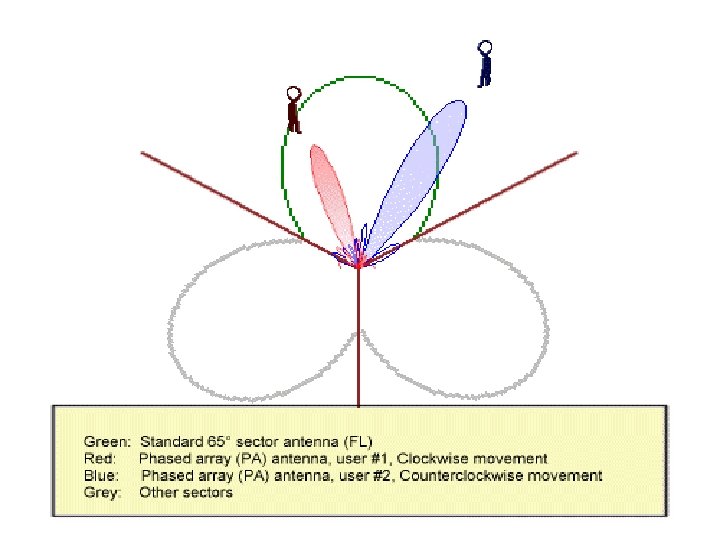

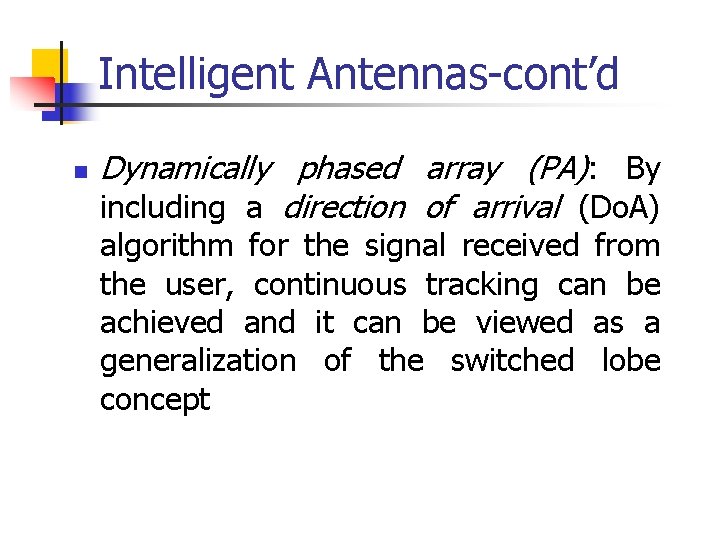

Intelligent Antennas-cont’d n Dynamically phased array (PA): By including a direction of arrival (Do. A) algorithm for the signal received from the user, continuous tracking can be achieved and it can be viewed as a generalization of the switched lobe concept

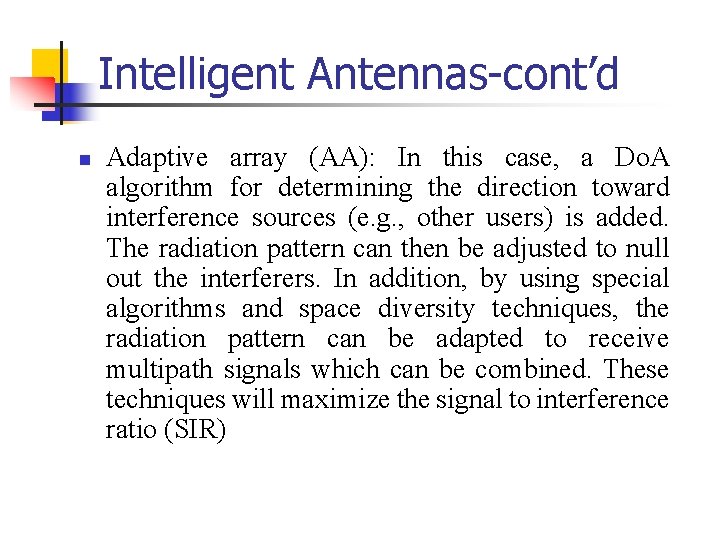

Intelligent Antennas-cont’d n Adaptive array (AA): In this case, a Do. A algorithm for determining the direction toward interference sources (e. g. , other users) is added. The radiation pattern can then be adjusted to null out the interferers. In addition, by using special algorithms and space diversity techniques, the radiation pattern can be adapted to receive multipath signals which can be combined. These techniques will maximize the signal to interference ratio (SIR)

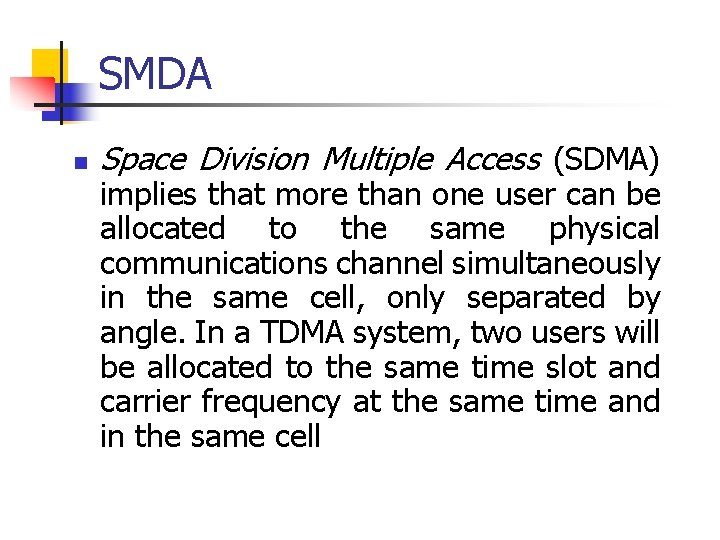

SMDA n Space Division Multiple Access (SDMA) implies that more than one user can be allocated to the same physical communications channel simultaneously in the same cell, only separated by angle. In a TDMA system, two users will be allocated to the same time slot and carrier frequency at the same time and in the same cell

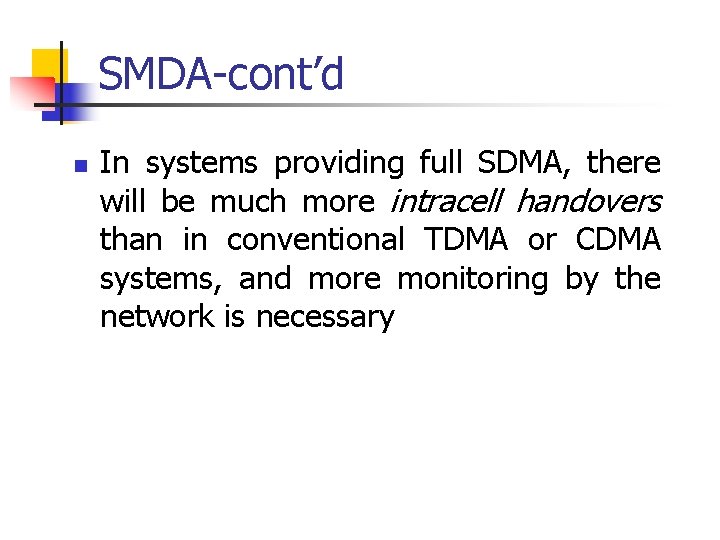

SMDA-cont’d n In systems providing full SDMA, there will be much more intracell handovers than in conventional TDMA or CDMA systems, and more monitoring by the network is necessary

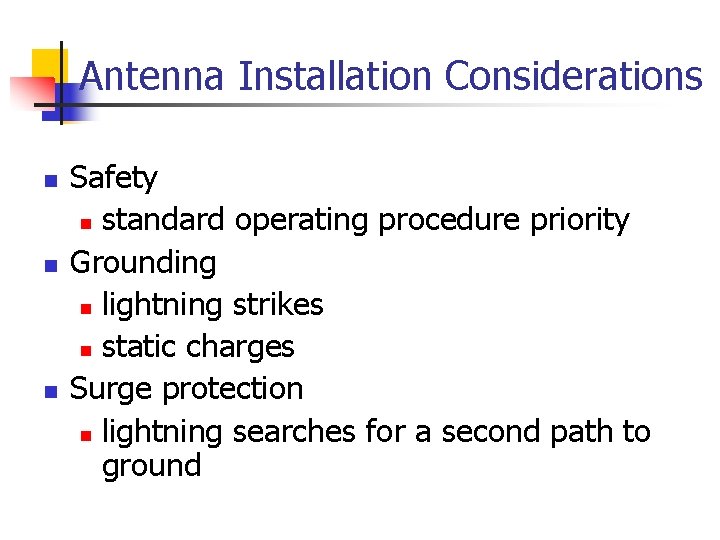

Antenna Installation Considerations n n n Safety n standard operating procedure priority Grounding n lightning strikes n static charges Surge protection n lightning searches for a second path to ground

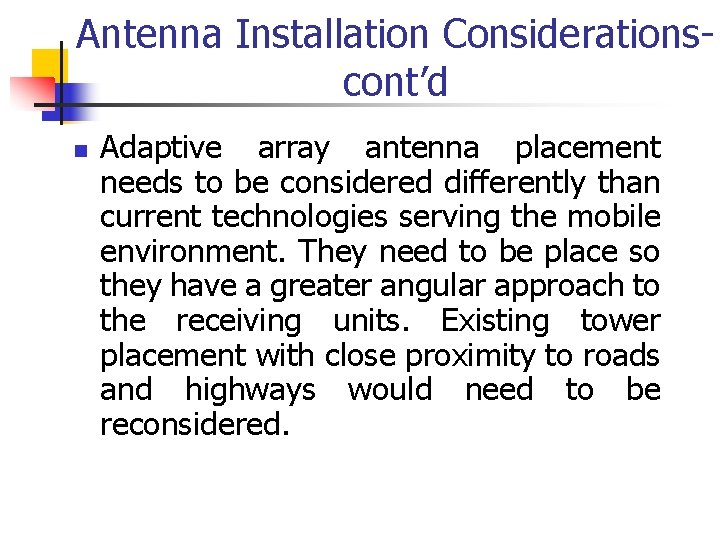

Antenna Installation Considerationscont’d n Adaptive array antenna placement needs to be considered differently than current technologies serving the mobile environment. They need to be place so they have a greater angular approach to the receiving units. Existing tower placement with close proximity to roads and highways would need to be reconsidered.

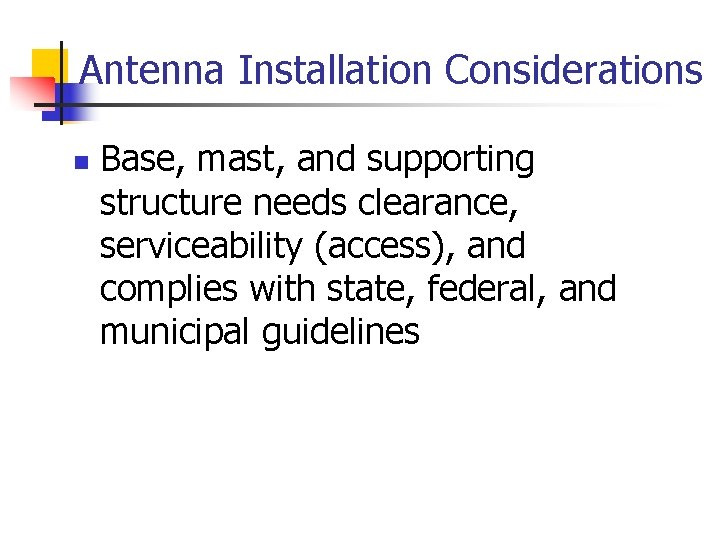

Antenna Installation Considerations n Base, mast, and supporting structure needs clearance, serviceability (access), and complies with state, federal, and municipal guidelines
