Basel Accords History of Bank Regulation Pre1988 BIS

Basel Accords

History of Bank Regulation • • • Pre-1988: BIS Accord (Basel I) 1996: Amendment to BIS Accord 1999: Basel II first proposed Basel III in response to the recent global financial crisis

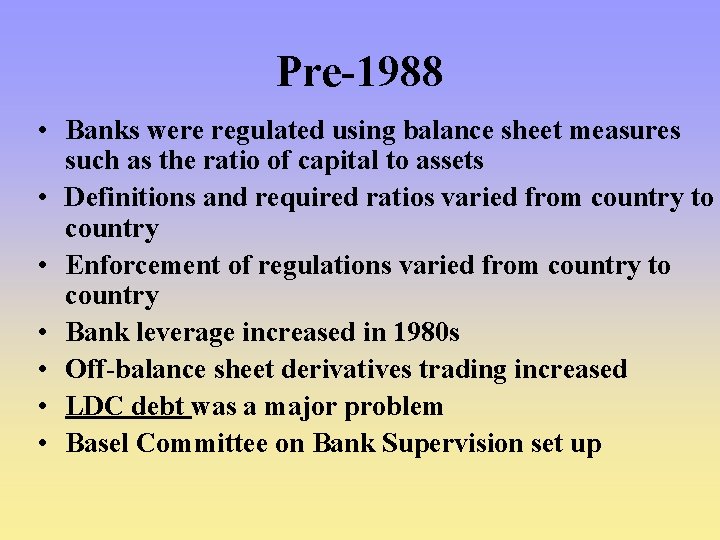

Pre-1988 • Banks were regulated using balance sheet measures such as the ratio of capital to assets • Definitions and required ratios varied from country to country • Enforcement of regulations varied from country to country • Bank leverage increased in 1980 s • Off-balance sheet derivatives trading increased • LDC debt was a major problem • Basel Committee on Bank Supervision set up

1988: BIS Accord • Capital regulations under Basel I came into effect in December 1992 (after development and consultations since 1988). • The aims were: – to require banks to maintain enough capital to absorb losses without causing systemic problems, – to level the playing field internationally (to avoid competitiveness conflicts).

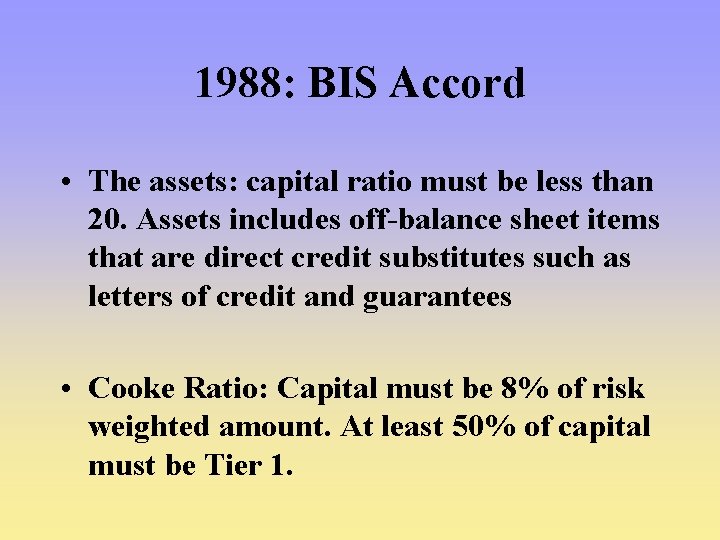

1988: BIS Accord • The assets: capital ratio must be less than 20. Assets includes off-balance sheet items that are direct credit substitutes such as letters of credit and guarantees • Cooke Ratio: Capital must be 8% of risk weighted amount. At least 50% of capital must be Tier 1.

Types of Capital • Tier 1 Capital: common equity, noncumulative perpetual preferred shares • Tier 2 Capital: cumulative preferred stock, certain types of 99 -year debentures, subordinated debt with an original life of more than 5 years

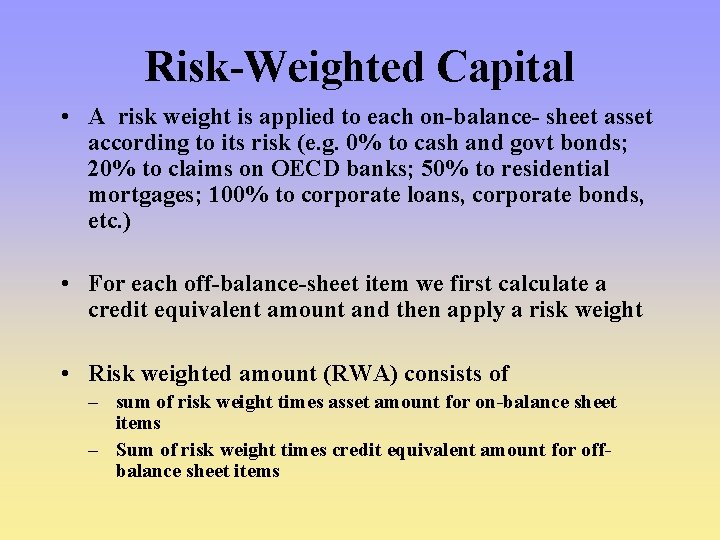

Risk-Weighted Capital • A risk weight is applied to each on-balance- sheet asset according to its risk (e. g. 0% to cash and govt bonds; 20% to claims on OECD banks; 50% to residential mortgages; 100% to corporate loans, corporate bonds, etc. ) • For each off-balance-sheet item we first calculate a credit equivalent amount and then apply a risk weight • Risk weighted amount (RWA) consists of – sum of risk weight times asset amount for on-balance sheet items – Sum of risk weight times credit equivalent amount for offbalance sheet items

Credit Equivalent Amount • The credit equivalent amount is calculated as the current replacement cost (if positive) plus an add on factor • The add on amount varies from instrument to instrument (e. g. 0. 5% for a 1 -5 year swap; 5. 0% for a 1 -5 year foreign currency swap)

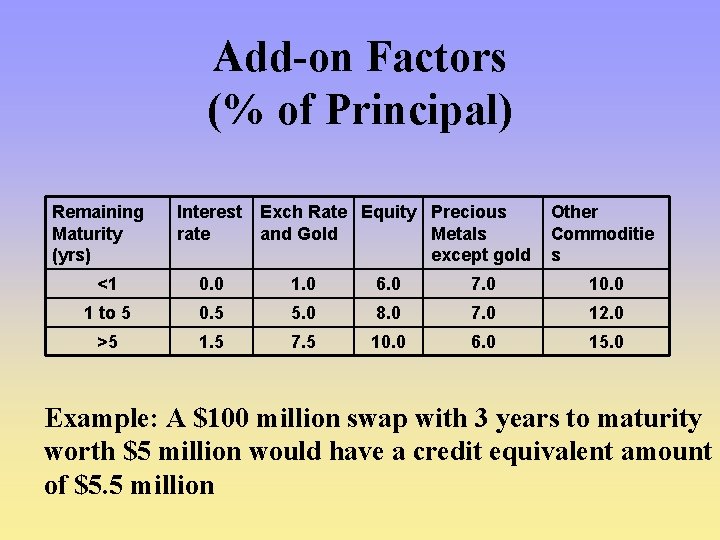

Add-on Factors (% of Principal) Remaining Maturity (yrs) Interest rate Exch Rate Equity Precious and Gold Metals except gold Other Commoditie s <1 0. 0 1. 0 6. 0 7. 0 10. 0 1 to 5 0. 5 5. 0 8. 0 7. 0 12. 0 >5 1. 5 7. 5 10. 0 6. 0 15. 0 Example: A $100 million swap with 3 years to maturity worth $5 million would have a credit equivalent amount of $5. 5 million

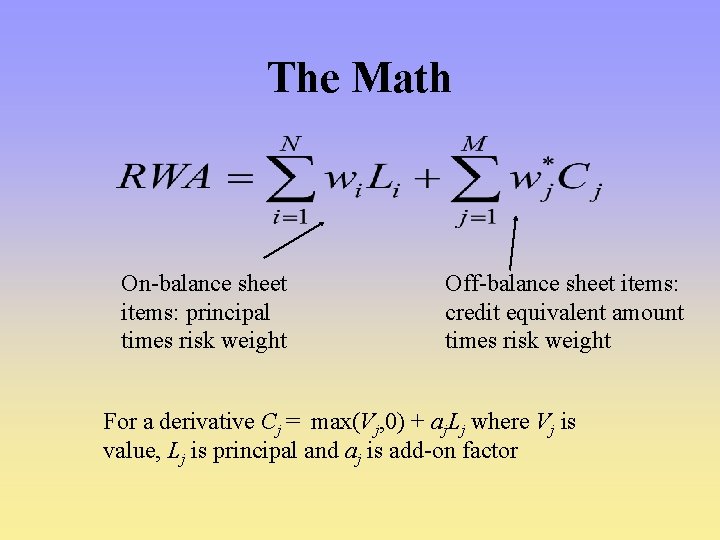

The Math On-balance sheet items: principal times risk weight Off-balance sheet items: credit equivalent amount times risk weight For a derivative Cj = max(Vj, 0) + aj. Lj where Vj is value, Lj is principal and aj is add-on factor

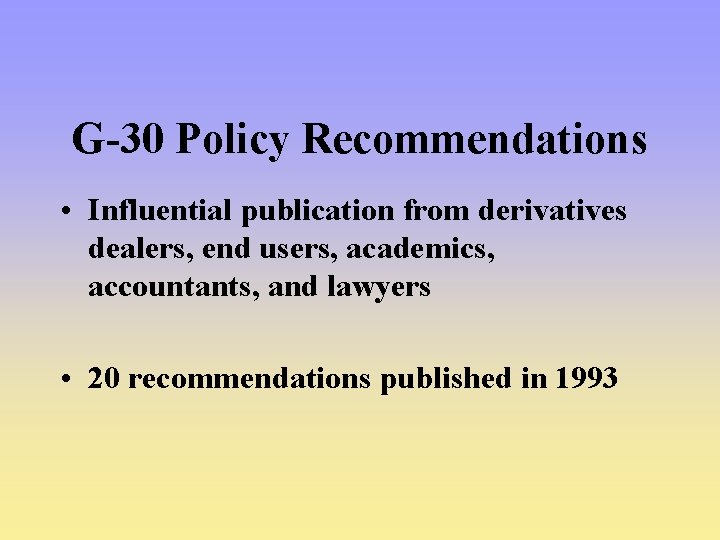

G-30 Policy Recommendations • Influential publication from derivatives dealers, end users, academics, accountants, and lawyers • 20 recommendations published in 1993

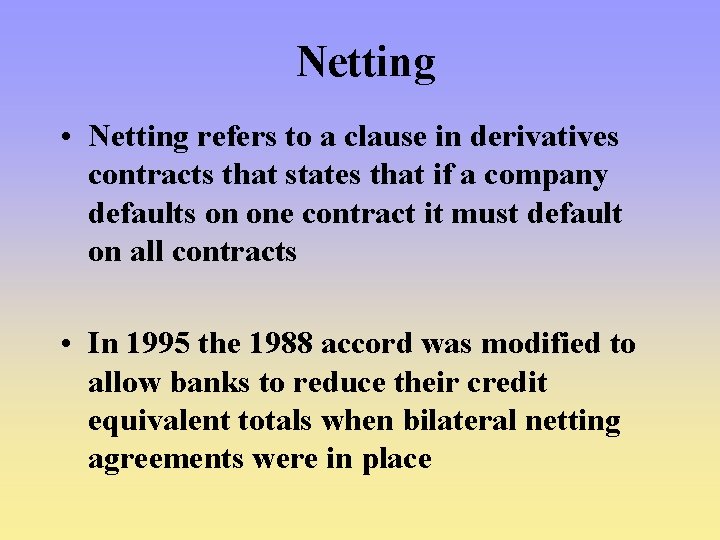

Netting • Netting refers to a clause in derivatives contracts that states that if a company defaults on one contract it must default on all contracts • In 1995 the 1988 accord was modified to allow banks to reduce their credit equivalent totals when bilateral netting agreements were in place

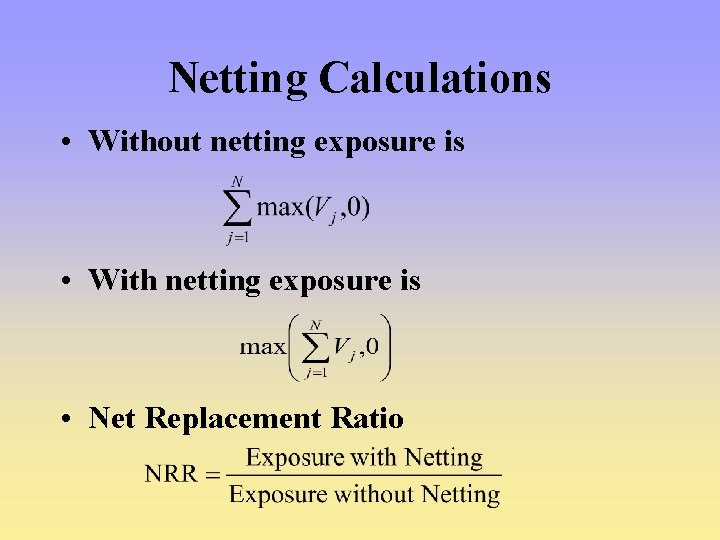

Netting Calculations • Without netting exposure is • With netting exposure is • Net Replacement Ratio

Netting Calculations continued • Credit equivalent amount modified from • To

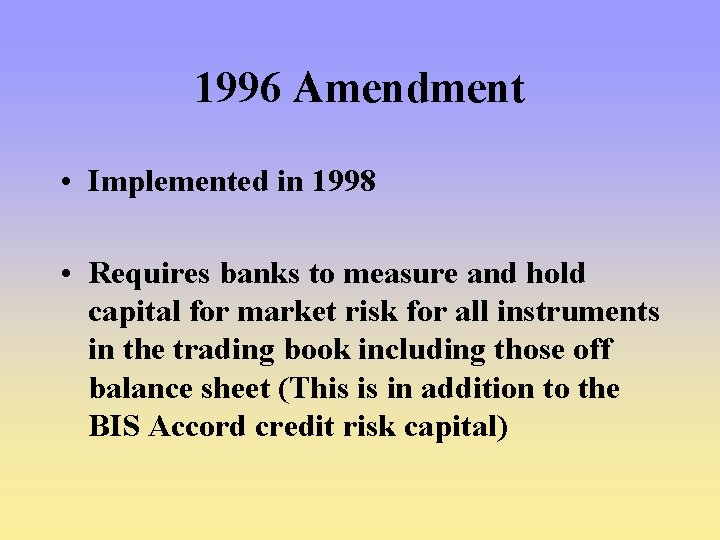

1996 Amendment • Implemented in 1998 • Requires banks to measure and hold capital for market risk for all instruments in the trading book including those off balance sheet (This is in addition to the BIS Accord credit risk capital)

The Market Risk Capital • The capital requirement is • Where k is a multiplicative factor chosen by regulators (at least 3), Va. R is the 99% 10 -day value at risk, and SRC is the specific risk charge for idiosyncratic risk related to specific companies

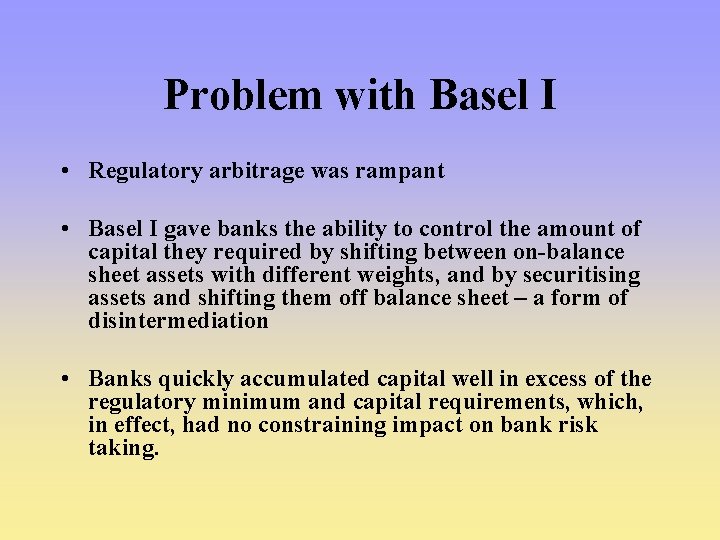

Problem with Basel I • Regulatory arbitrage was rampant • Basel I gave banks the ability to control the amount of capital they required by shifting between on-balance sheet assets with different weights, and by securitising assets and shifting them off balance sheet – a form of disintermediation • Banks quickly accumulated capital well in excess of the regulatory minimum and capital requirements, which, in effect, had no constraining impact on bank risk taking.

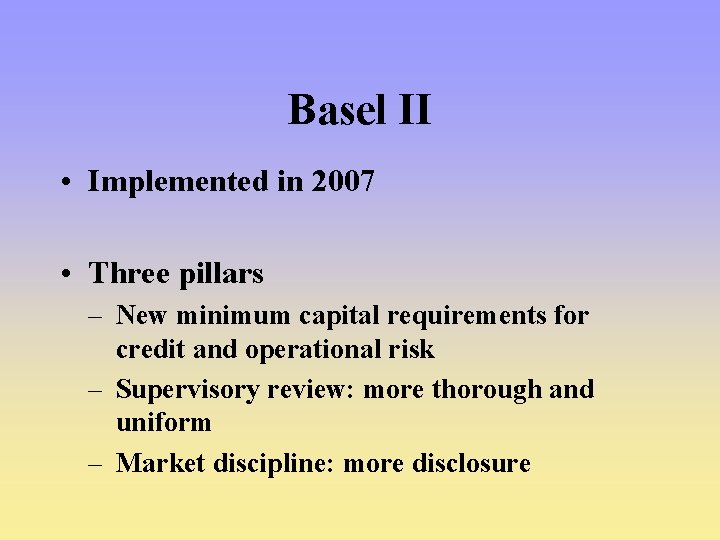

Basel II • Implemented in 2007 • Three pillars – New minimum capital requirements for credit and operational risk – Supervisory review: more thorough and uniform – Market discipline: more disclosure

New Capital Requirements • Risk weights based on either external credit rating (standardized approach) or a bank’s own internal credit ratings (IRB approach) • Recognition of credit risk mitigants • Separate capital charge for operational risk

Basel II: Pillar 1 • Pillar 1 of the Basel II system defines minimum capital to buffer unexpected losses. • Total RWA (risk weighted assets) are based on a complex system of risk weighting that applies to – ‘credit’ – ‘market’ (MR) – ‘operational’ risk (OR) • These risks are calculated separately and then added: RWA= {12. 5(OR+MR) + 1. 06 w(i)A(i)}

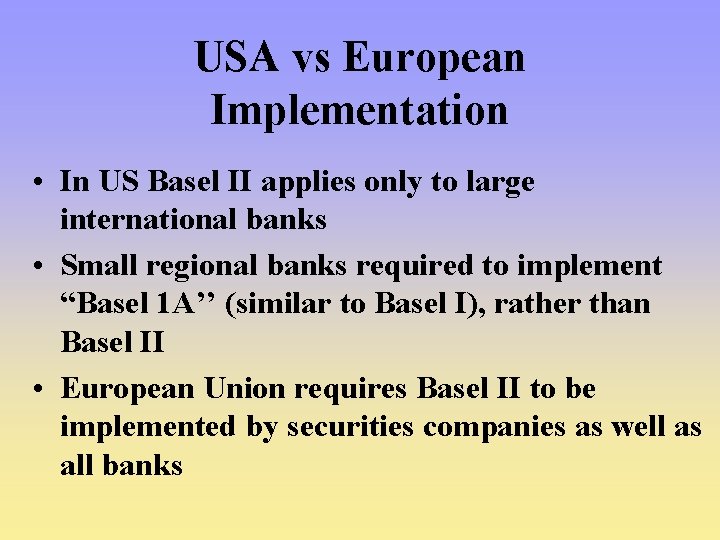

USA vs European Implementation • In US Basel II applies only to large international banks • Small regional banks required to implement “Basel 1 A’’ (similar to Basel I), rather than Basel II • European Union requires Basel II to be implemented by securities companies as well as all banks

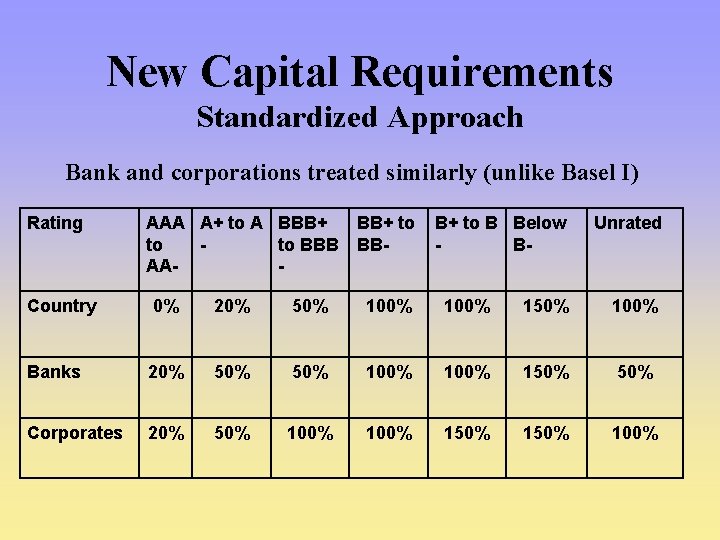

New Capital Requirements Standardized Approach Bank and corporations treated similarly (unlike Basel I) Rating AAA A+ to A BBB+ to to to BBB BBAA- B+ to B Below B- Unrated Country 0% 20% 50% 100% 150% 100% Banks 20% 50% 100% 150% Corporates 20% 50% 100% 150% 100%

New Capital Requirements IRB Approach for corporate, banks and sovereign exposures • Basel II provides a formula for translating PD (probability of default), LGD (loss given default), EAD (exposure at default), and M (effective maturity) into a risk weight • Under the Advanced IRB approach banks estimate PD, LGD, EAD, and M • Under the Foundation IRB approach banks estimate only PD and the Basel II guidelines determine the other variables for the formula

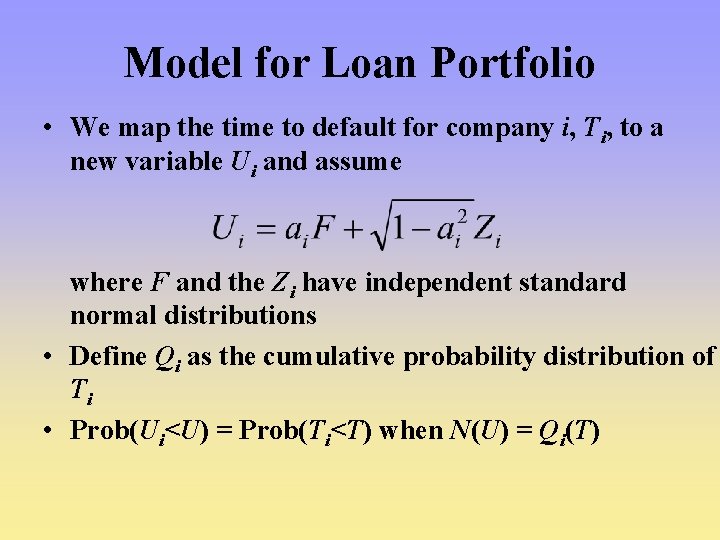

Model for Loan Portfolio • We map the time to default for company i, Ti, to a new variable Ui and assume where F and the Zi have independent standard normal distributions • Define Qi as the cumulative probability distribution of Ti • Prob(Ui<U) = Prob(Ti<T) when N(U) = Qi(T)

The Model continued

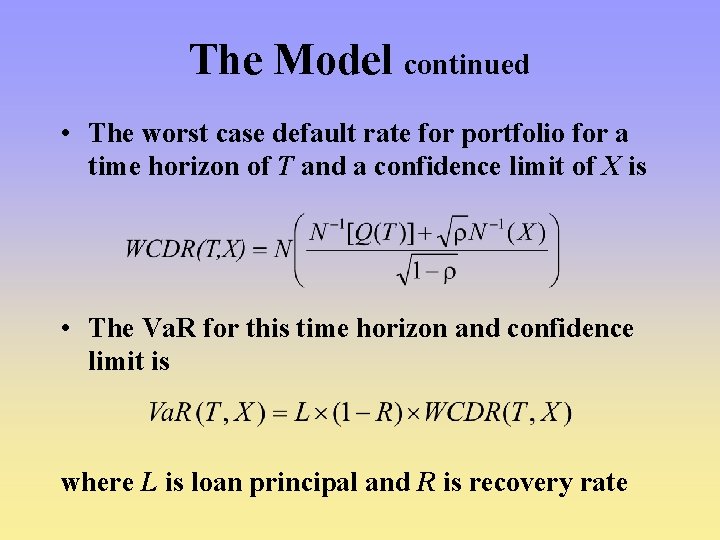

The Model continued • The worst case default rate for portfolio for a time horizon of T and a confidence limit of X is • The Va. R for this time horizon and confidence limit is where L is loan principal and R is recovery rate

Key Model in Basel II IRB (Gaussian Copula) • The 99. 9% worst case default rate is PD – probability of default • We are 99. 9% certain not to exceed WCRD next year

The Loss on the Portfolio • There is 99. 9% chance that the loss on the portfolio will be less than – EADi – exposure given default, i. e. the dollar amount that is expected to be owed by the ith counterparty at the time of default – LGDi – loss given default, i. e. the percentage of EAD expected to be lost at default

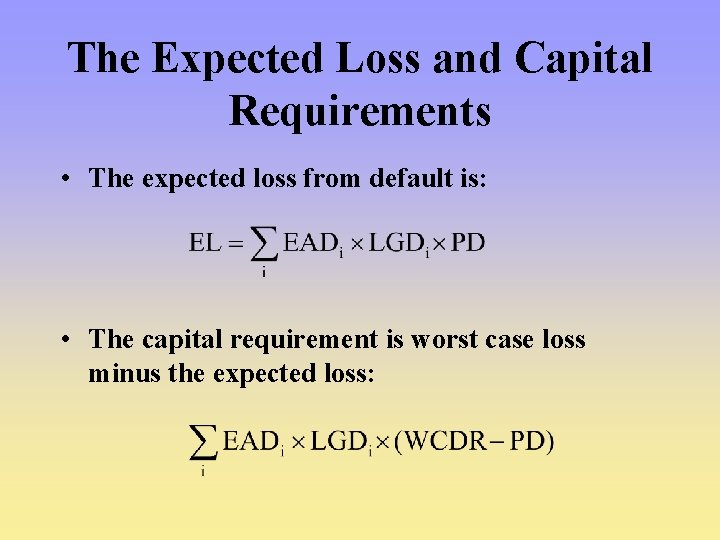

The Expected Loss and Capital Requirements • The expected loss from default is: • The capital requirement is worst case loss minus the expected loss:

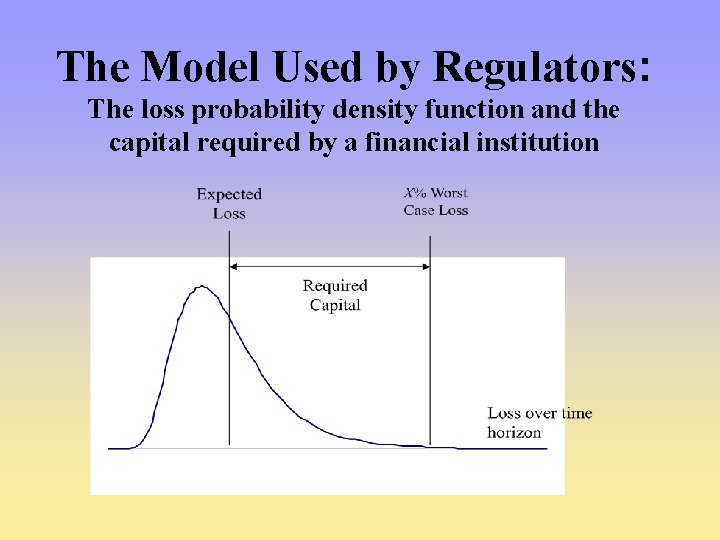

The Model Used by Regulators: The loss probability density function and the capital required by a financial institution

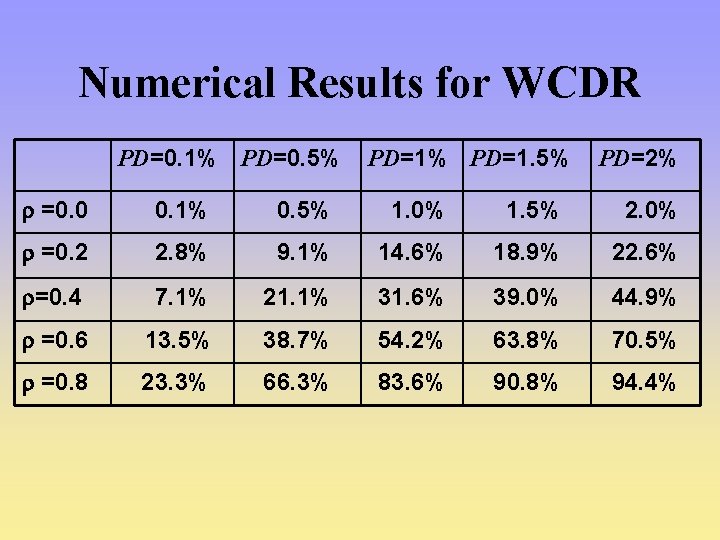

Numerical Results for WCDR PD=0. 1% PD=0. 5% PD=1. 5% PD=2% =0. 0 0. 1% 0. 5% 1. 0% 1. 5% 2. 0% =0. 2 2. 8% 9. 1% 14. 6% 18. 9% 22. 6% =0. 4 7. 1% 21. 1% 31. 6% 39. 0% 44. 9% =0. 6 13. 5% 38. 7% 54. 2% 63. 8% 70. 5% =0. 8 23. 3% 66. 3% 83. 6% 90. 8% 94. 4%

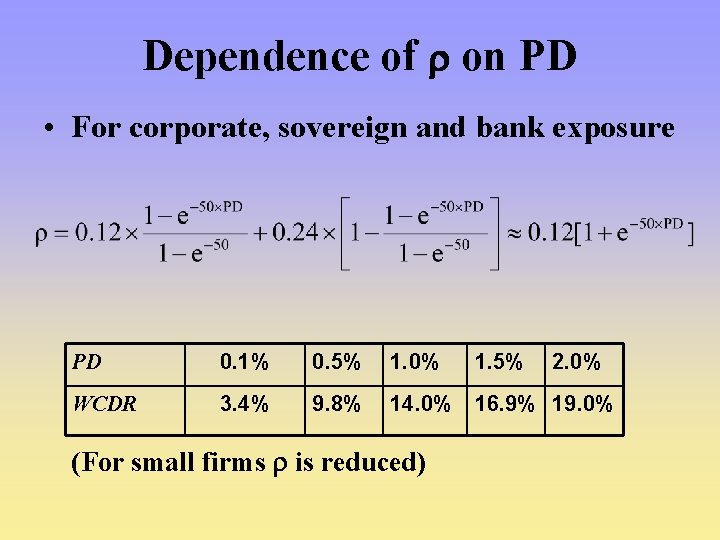

Dependence of on PD • For corporate, sovereign and bank exposure PD 0. 1% 0. 5% 1. 0% WCDR 3. 4% 9. 8% 14. 0% 16. 9% 19. 0% (For small firms is reduced) 1. 5% 2. 0%

Capital Requirements

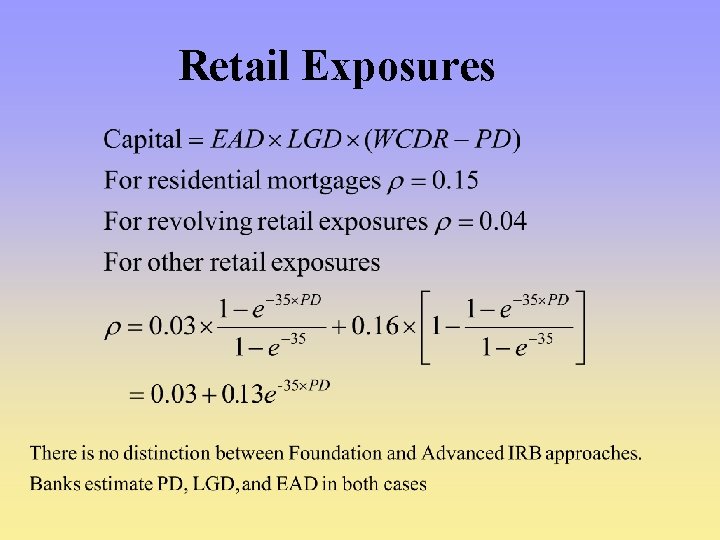

Retail Exposures

Two Types of Losses and Two Types of Capital under Basel II • Expected Loss (EL) • Unexpected losses (UL) UL(T) = Va. R( , T) –EL(T) • Regulatory capital (Tier 1 and 2) is applied to EL which are expected to occur but are of smaller consequence. • Economic capital is for UL which are low frequency but have significant magnitude. UL is very sensitive to the shape of the loss distribution.

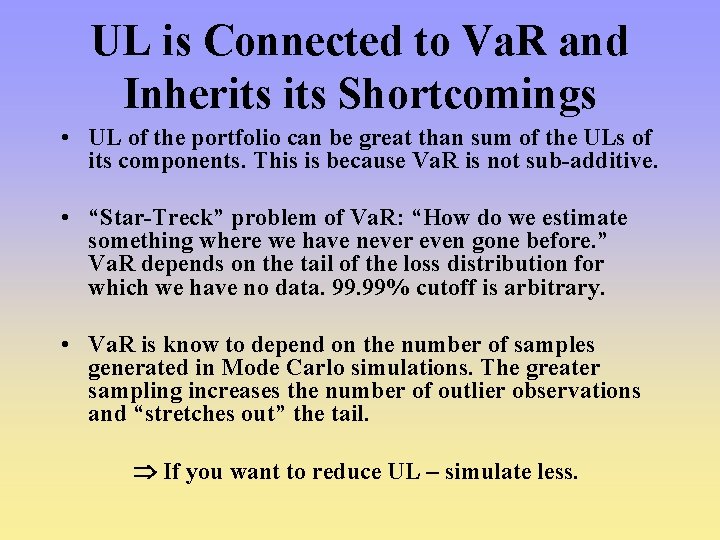

UL is Connected to Va. R and Inherits Shortcomings • UL of the portfolio can be great than sum of the ULs of its components. This is because Va. R is not sub-additive. • “Star-Treck” problem of Va. R: “How do we estimate something where we have never even gone before. ” Va. R depends on the tail of the loss distribution for which we have no data. 99% cutoff is arbitrary. • Va. R is know to depend on the number of samples generated in Mode Carlo simulations. The greater sampling increases the number of outlier observations and “stretches out” the tail. If you want to reduce UL – simulate less.

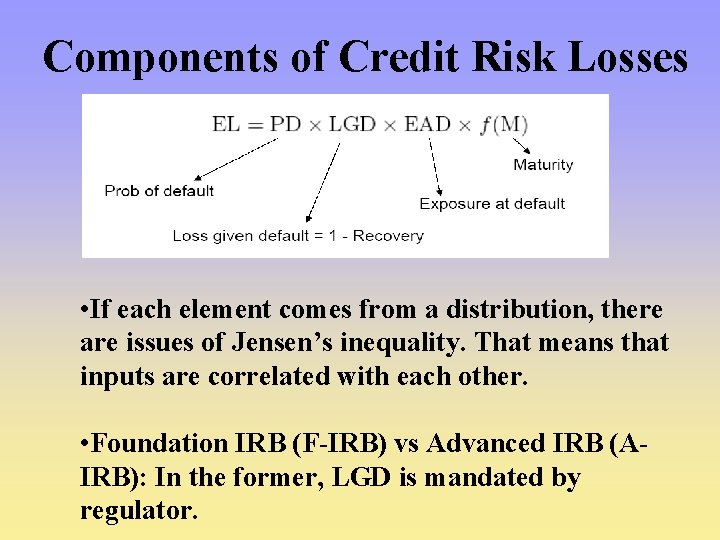

Components of Credit Risk Losses • If each element comes from a distribution, there are issues of Jensen’s inequality. That means that inputs are correlated with each other. • Foundation IRB (F-IRB) vs Advanced IRB (AIRB): In the former, LGD is mandated by regulator.

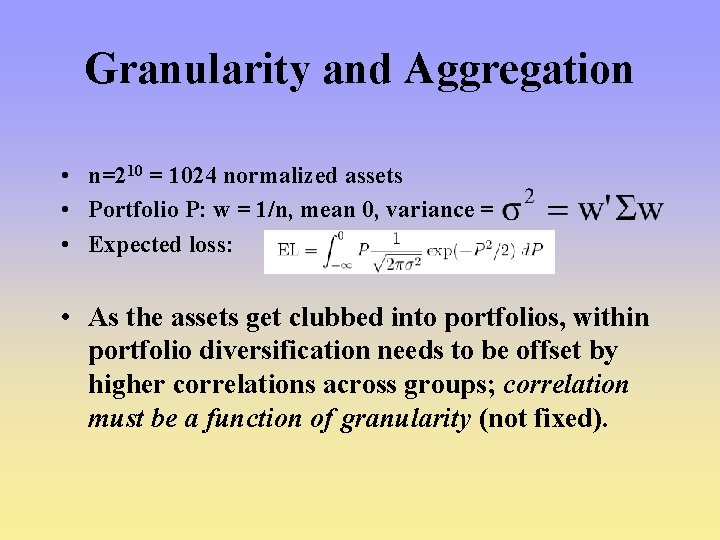

Granularity and Aggregation • n=210 = 1024 normalized assets • Portfolio P: w = 1/n, mean 0, variance = • Expected loss: • As the assets get clubbed into portfolios, within portfolio diversification needs to be offset by higher correlations across groups; correlation must be a function of granularity (not fixed).

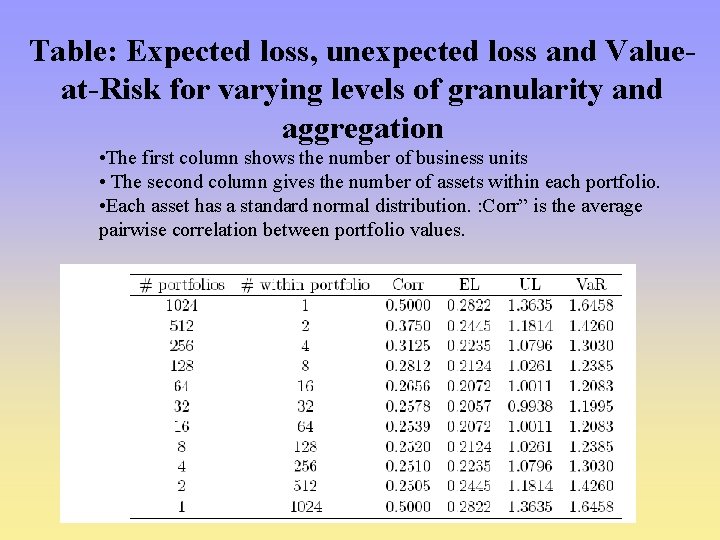

Table: Expected loss, unexpected loss and Valueat-Risk for varying levels of granularity and aggregation • The first column shows the number of business units • The second column gives the number of assets within each portfolio. • Each asset has a standard normal distribution. : Corr” is the average pairwise correlation between portfolio values.

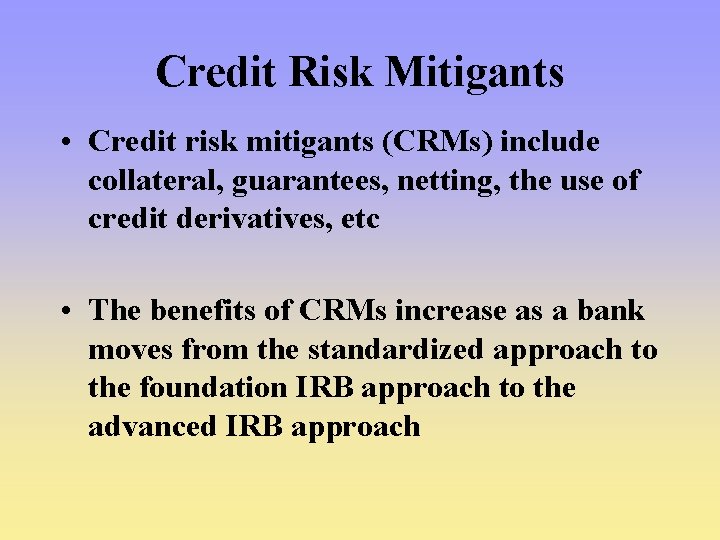

Credit Risk Mitigants • Credit risk mitigants (CRMs) include collateral, guarantees, netting, the use of credit derivatives, etc • The benefits of CRMs increase as a bank moves from the standardized approach to the foundation IRB approach to the advanced IRB approach

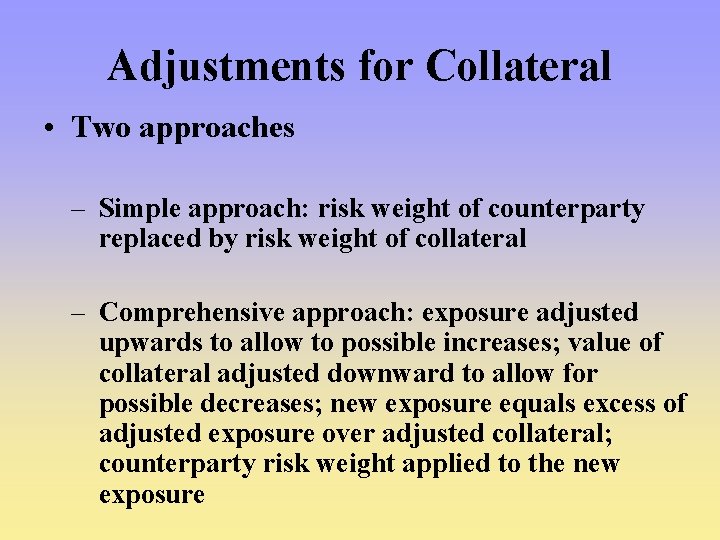

Adjustments for Collateral • Two approaches – Simple approach: risk weight of counterparty replaced by risk weight of collateral – Comprehensive approach: exposure adjusted upwards to allow to possible increases; value of collateral adjusted downward to allow for possible decreases; new exposure equals excess of adjusted exposure over adjusted collateral; counterparty risk weight applied to the new exposure

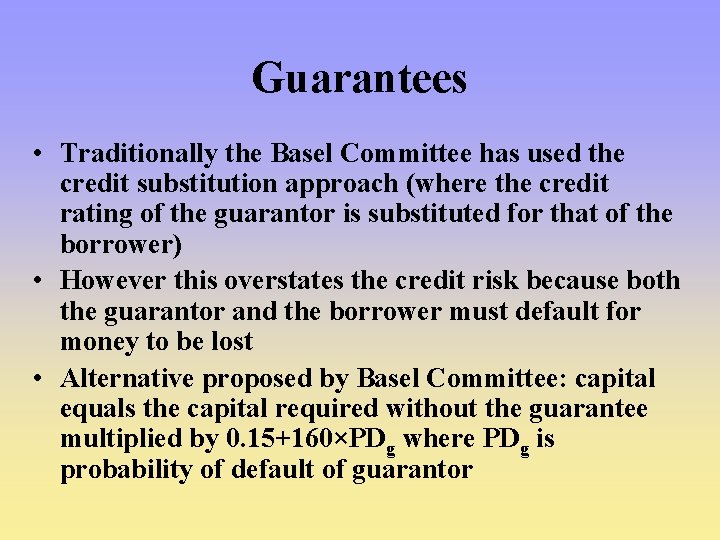

Guarantees • Traditionally the Basel Committee has used the credit substitution approach (where the credit rating of the guarantor is substituted for that of the borrower) • However this overstates the credit risk because both the guarantor and the borrower must default for money to be lost • Alternative proposed by Basel Committee: capital equals the capital required without the guarantee multiplied by 0. 15+160×PDg where PDg is probability of default of guarantor

Operational Risk Capital • Basic Indicator Approach: 15% of gross income • Standardized Approach: different multiplicative factor for gross income arising from each business line • Internal Measurement Approach: assess 99. 9% worst case loss over one year.

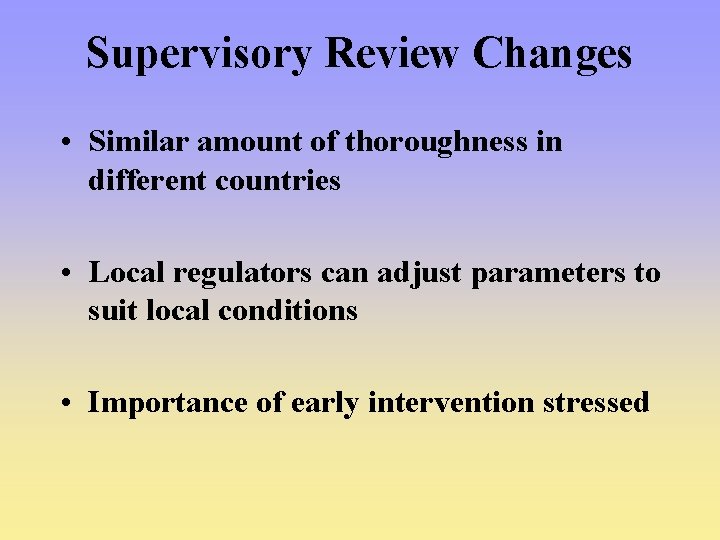

Supervisory Review Changes • Similar amount of thoroughness in different countries • Local regulators can adjust parameters to suit local conditions • Importance of early intervention stressed

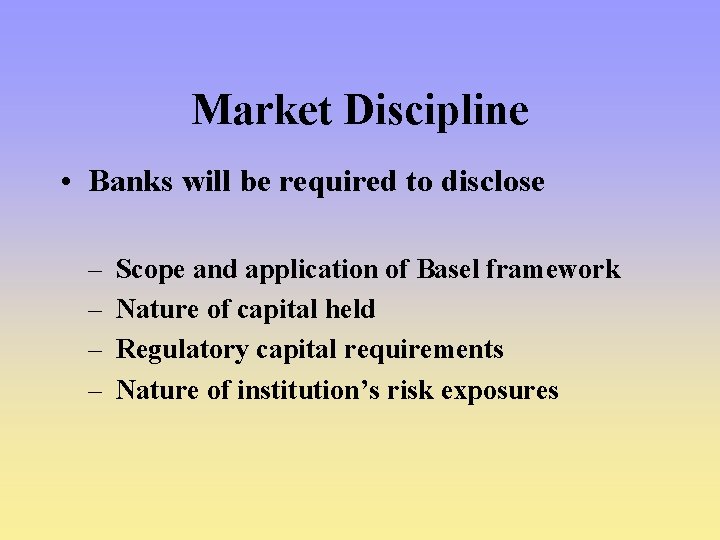

Market Discipline • Banks will be required to disclose – – Scope and application of Basel framework Nature of capital held Regulatory capital requirements Nature of institution’s risk exposures

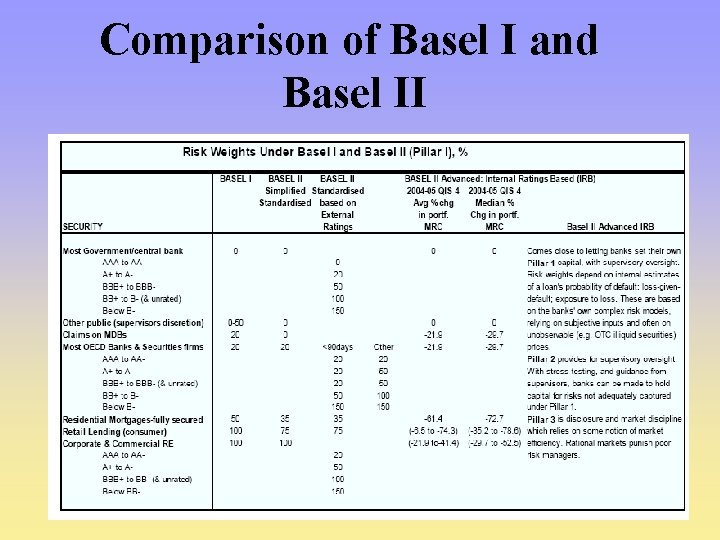

Comparison of Basel I and Basel II

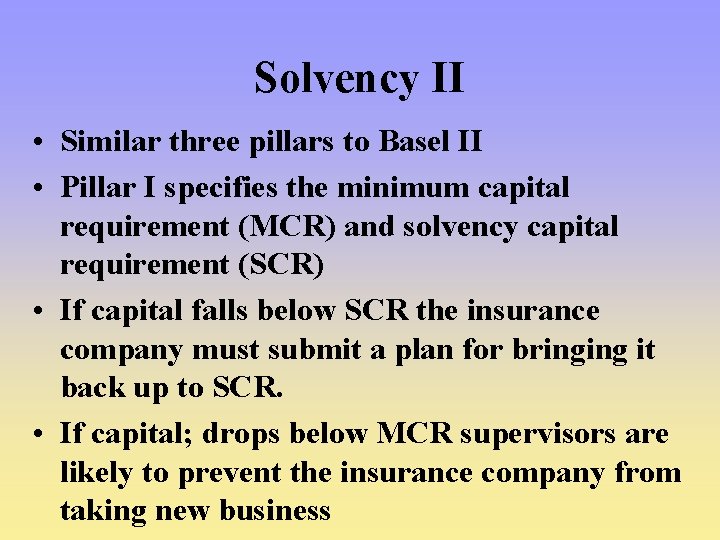

Solvency II • Similar three pillars to Basel II • Pillar I specifies the minimum capital requirement (MCR) and solvency capital requirement (SCR) • If capital falls below SCR the insurance company must submit a plan for bringing it back up to SCR. • If capital; drops below MCR supervisors are likely to prevent the insurance company from taking new business

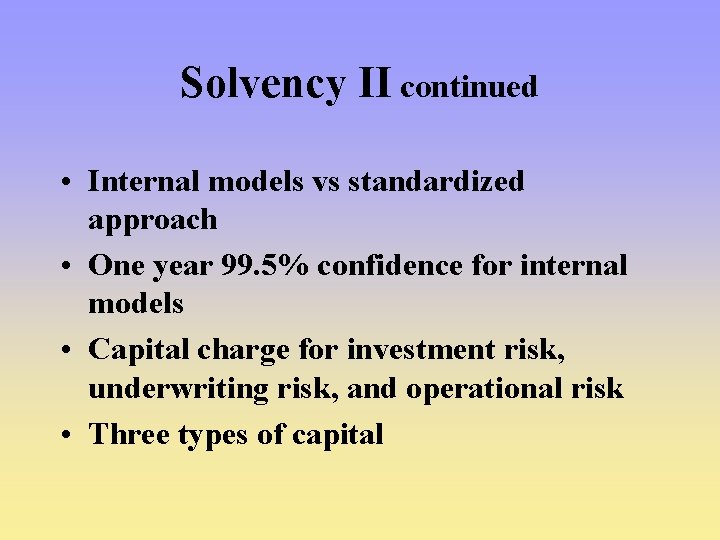

Solvency II continued • Internal models vs standardized approach • One year 99. 5% confidence for internal models • Capital charge for investment risk, underwriting risk, and operational risk • Three types of capital

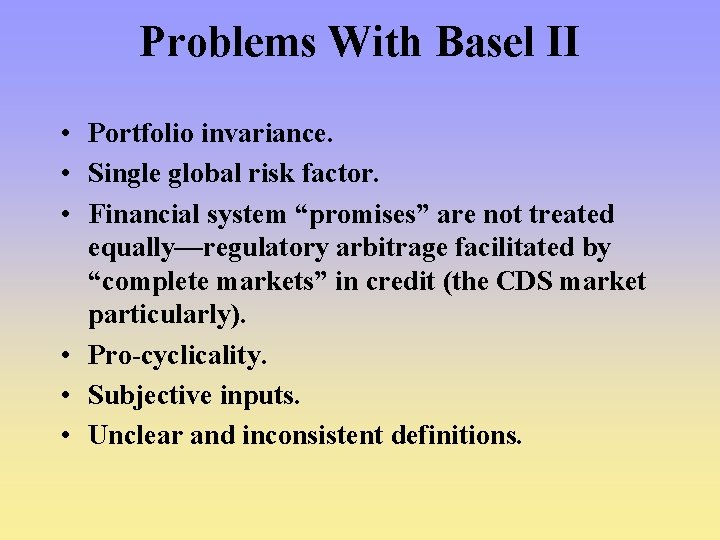

Problems With Basel II • Portfolio invariance. • Single global risk factor. • Financial system “promises” are not treated equally—regulatory arbitrage facilitated by “complete markets” in credit (the CDS market particularly). • Pro-cyclicality. • Subjective inputs. • Unclear and inconsistent definitions.

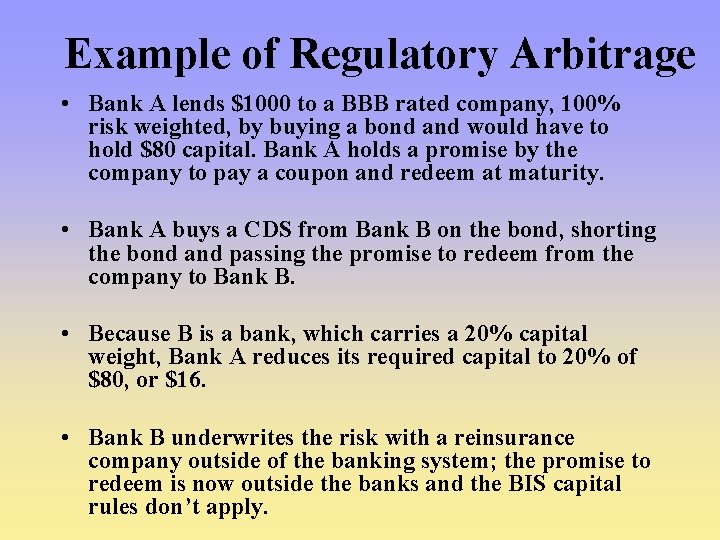

Example of Regulatory Arbitrage • Bank A lends $1000 to a BBB rated company, 100% risk weighted, by buying a bond and would have to hold $80 capital. Bank A holds a promise by the company to pay a coupon and redeem at maturity. • Bank A buys a CDS from Bank B on the bond, shorting the bond and passing the promise to redeem from the company to Bank B. • Because B is a bank, which carries a 20% capital weight, Bank A reduces its required capital to 20% of $80, or $16. • Bank B underwrites the risk with a reinsurance company outside of the banking system; the promise to redeem is now outside the banks and the BIS capital rules don’t apply.

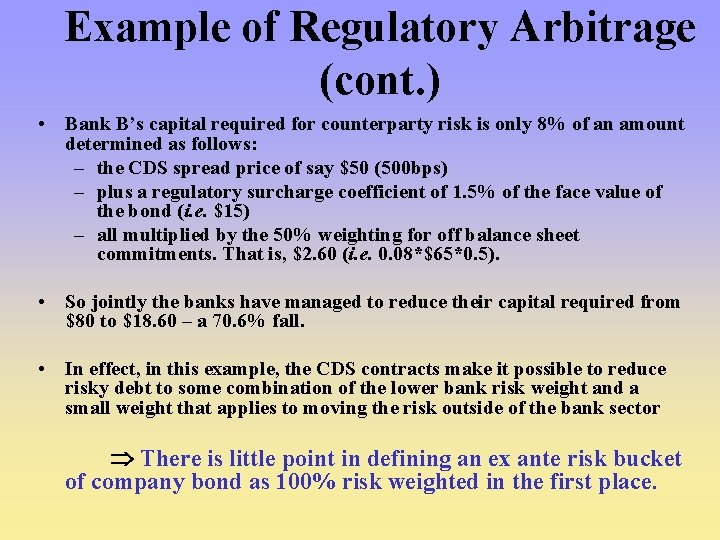

Example of Regulatory Arbitrage (cont. ) • Bank B’s capital required for counterparty risk is only 8% of an amount determined as follows: – the CDS spread price of say $50 (500 bps) – plus a regulatory surcharge coefficient of 1. 5% of the face value of the bond (i. e. $15) – all multiplied by the 50% weighting for off balance sheet commitments. That is, $2. 60 (i. e. 0. 08*$65*0. 5). • So jointly the banks have managed to reduce their capital required from $80 to $18. 60 – a 70. 6% fall. • In effect, in this example, the CDS contracts make it possible to reduce risky debt to some combination of the lower bank risk weight and a small weight that applies to moving the risk outside of the bank sector There is little point in defining an ex ante risk bucket of company bond as 100% risk weighted in the first place.

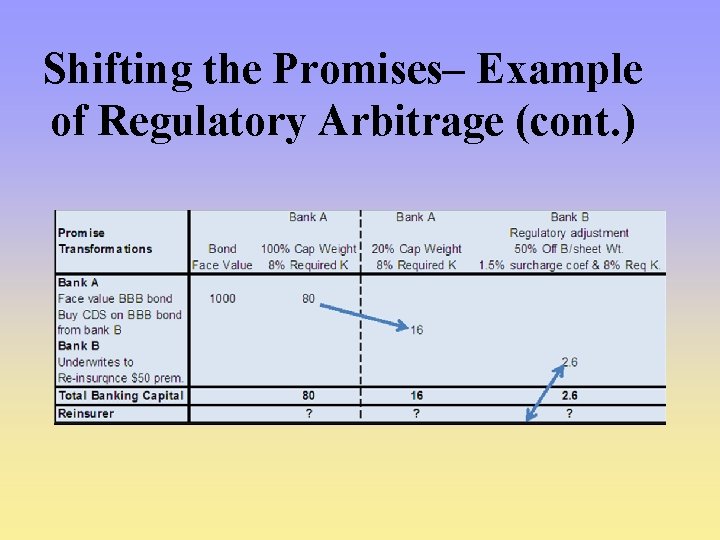

Shifting the Promises– Example of Regulatory Arbitrage (cont. )
