Basal Ganglia Principles of neural sciences 5 th

Basal Ganglia Principles of neural sciences 5 th ed. The human brain: an introduction to its functional anatomy 6 th ed. 林永煬 國立陽明大學 腦科學研究所

Basal ganglia and surrounding structures, as seen in an axial section

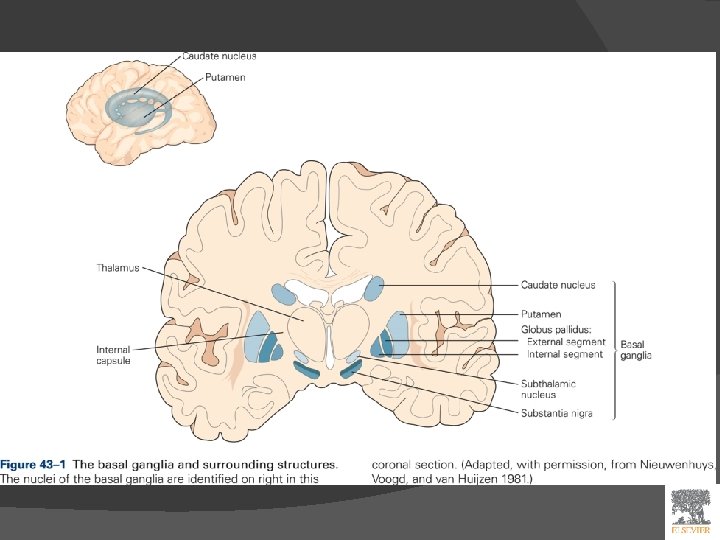

Basal ganglia and surrounding structures, as seen in coronal sections

The compact (SNc) and reticular (SNr) parts of the substantia nigra

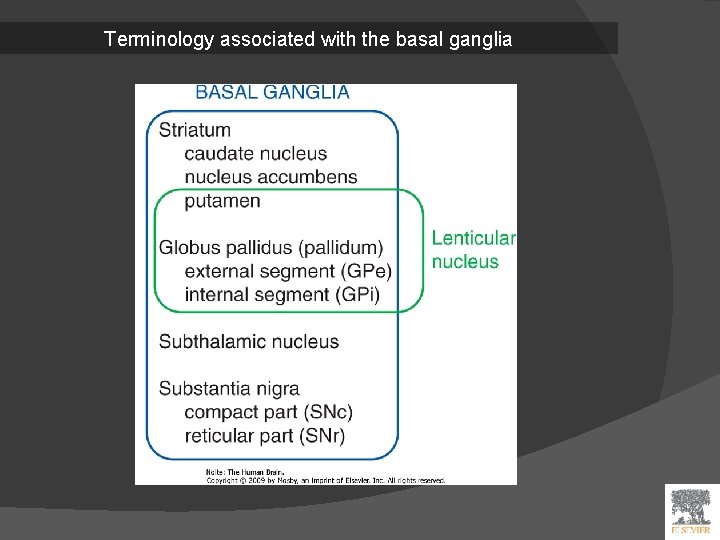

Terminology associated with the basal ganglia

Parasagittal section showing how the striatum got its name

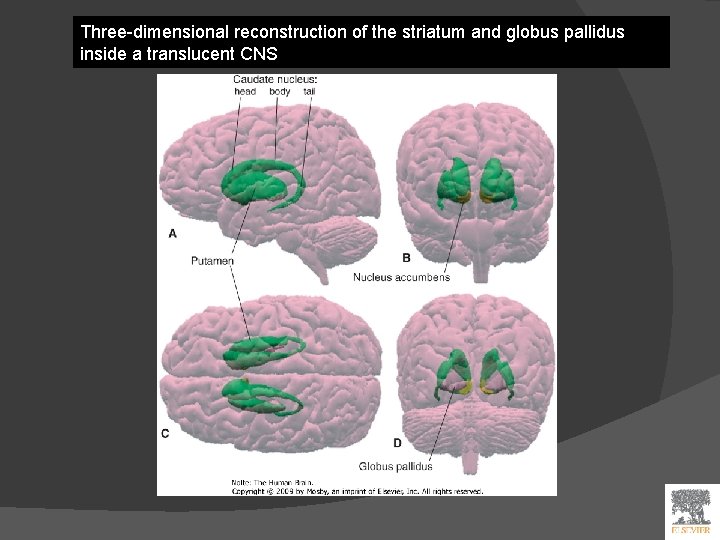

Three-dimensional reconstruction of the striatum and globus pallidus inside a translucent CNS

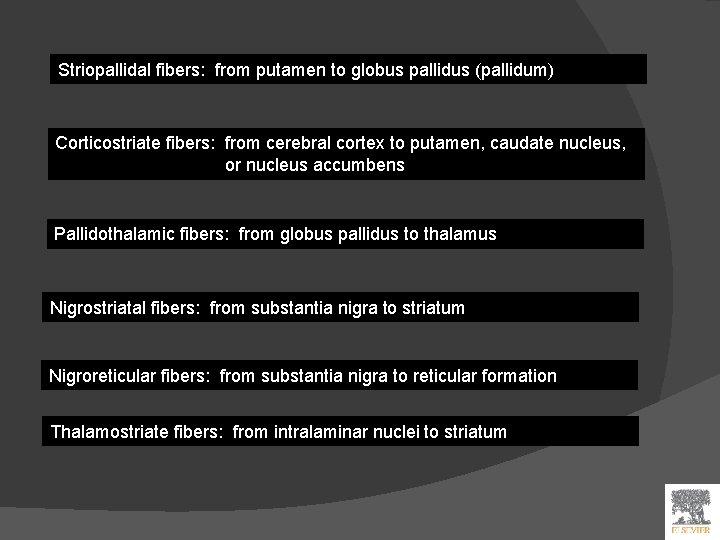

Striopallidal fibers: from putamen to globus pallidus (pallidum) Corticostriate fibers: from cerebral cortex to putamen, caudate nucleus, or nucleus accumbens Pallidothalamic fibers: from globus pallidus to thalamus Nigrostriatal fibers: from substantia nigra to striatum Nigroreticular fibers: from substantia nigra to reticular formation Thalamostriate fibers: from intralaminar nuclei to striatum

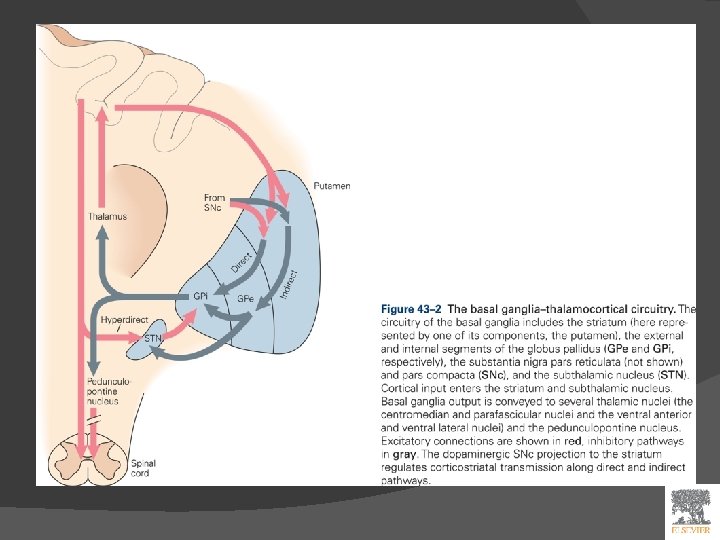

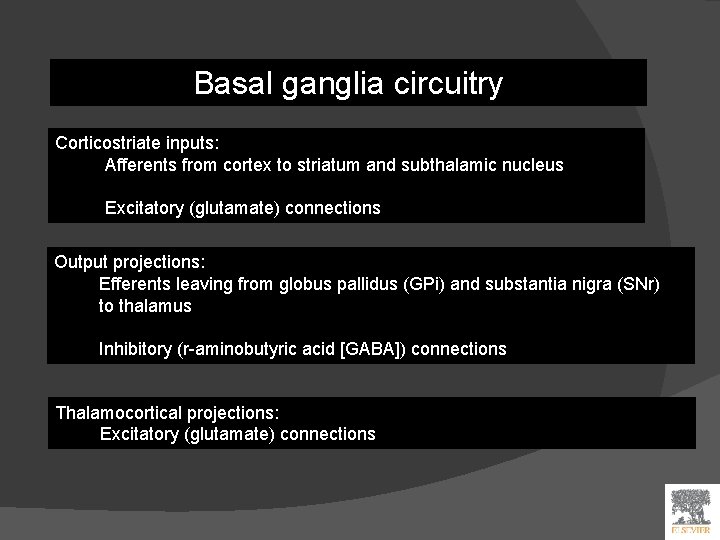

Basal ganglia circuitry Corticostriate inputs: Afferents from cortex to striatum and subthalamic nucleus Excitatory (glutamate) connections Output projections: Efferents leaving from globus pallidus (GPi) and substantia nigra (SNr) to thalamus Inhibitory (r-aminobutyric acid [GABA]) connections Thalamocortical projections: Excitatory (glutamate) connections

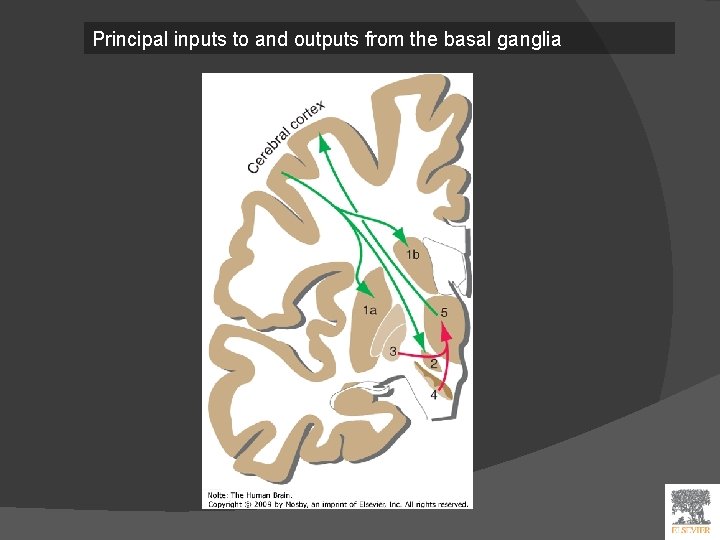

Principal inputs to and outputs from the basal ganglia

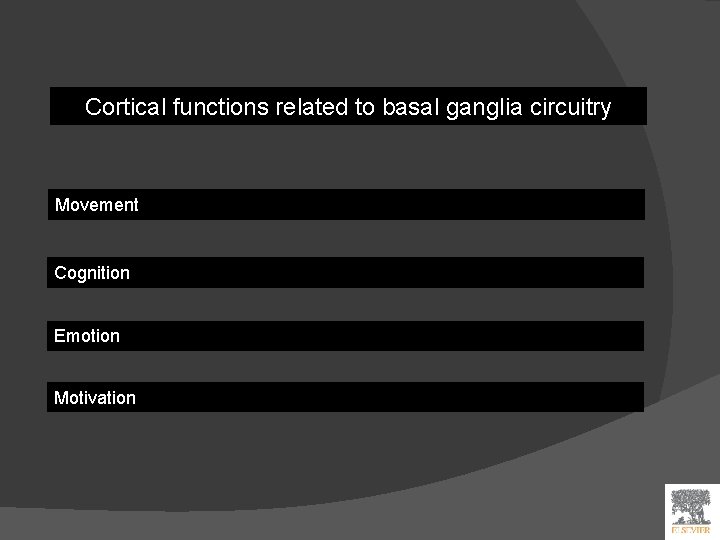

Cortical functions related to basal ganglia circuitry Movement Cognition Emotion Motivation

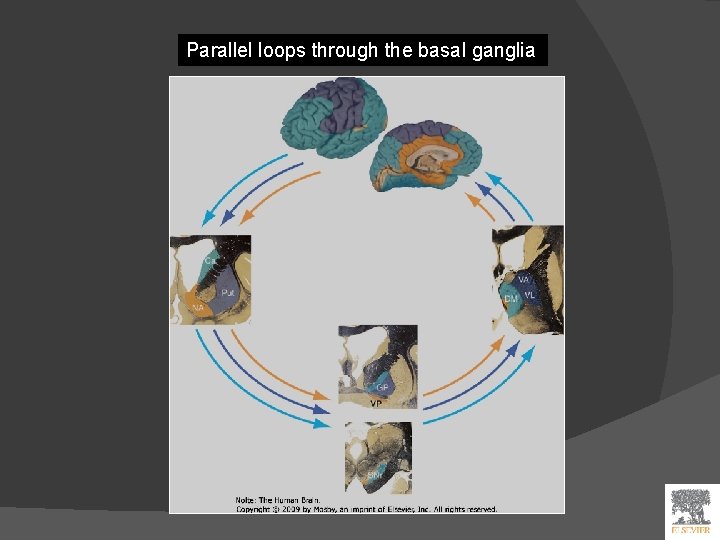

Parallel loops through the basal ganglia

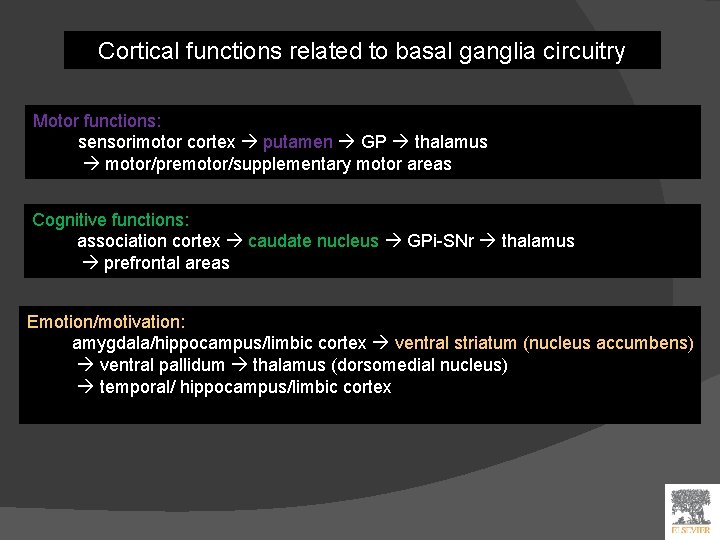

Cortical functions related to basal ganglia circuitry Motor functions: sensorimotor cortex putamen GP thalamus motor/premotor/supplementary motor areas Cognitive functions: association cortex caudate nucleus GPi-SNr thalamus prefrontal areas Emotion/motivation: amygdala/hippocampus/limbic cortex ventral striatum (nucleus accumbens) ventral pallidum thalamus (dorsomedial nucleus) temporal/ hippocampus/limbic cortex

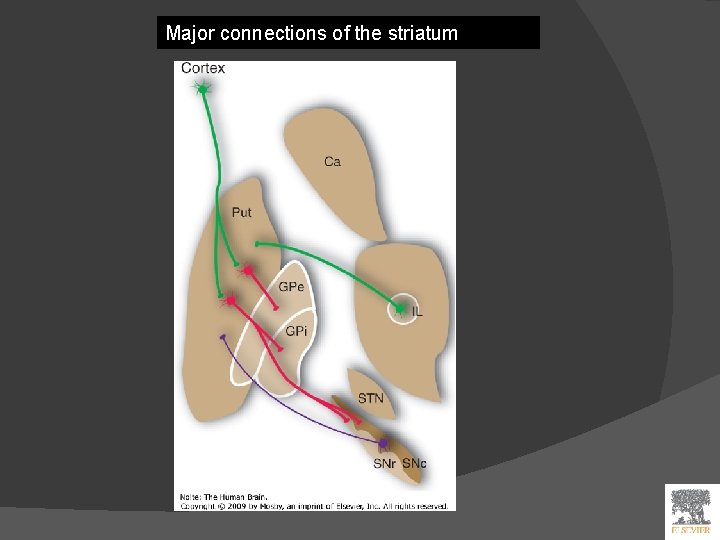

Major connections of the striatum

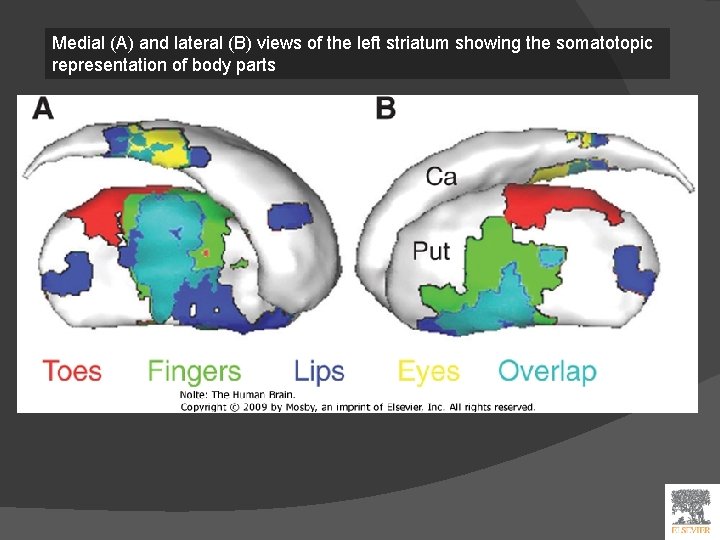

Medial (A) and lateral (B) views of the left striatum showing the somatotopic representation of body parts

Chemical compartmentalization of the striatum * * CN IC P A P=putamen, CN=caudate nucleus, IC=internal capsule, A=nucleus accumbens Acetylcholinesterase (ACh. E)-rich background (matrix) with embedded ACh. E-poor regions (striosomes *) Caudate nucleus stained for enkephalin Caudate nucleus stained for ACh. E High enkephalin levels are found in the peripheries of striosomes.

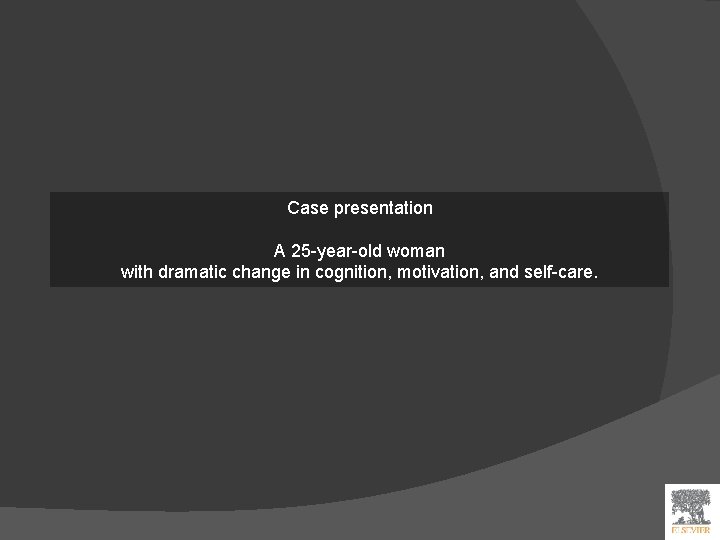

Case presentation A 25 -year-old woman with dramatic change in cognition, motivation, and self-care.

Contrast-enhanced computed tomography scans of a 25 -year-old woman with dramatic change in cognition, motivation, and self-care. Acute stage 8 months later

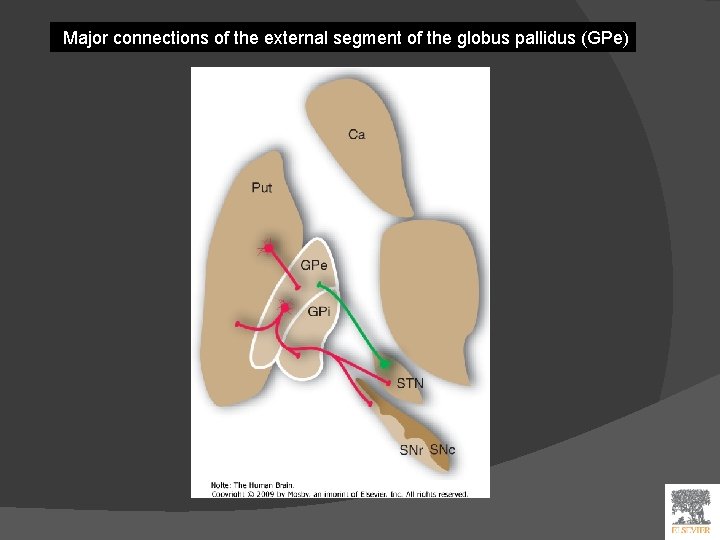

Major connections of the external segment of the globus pallidus (GPe)

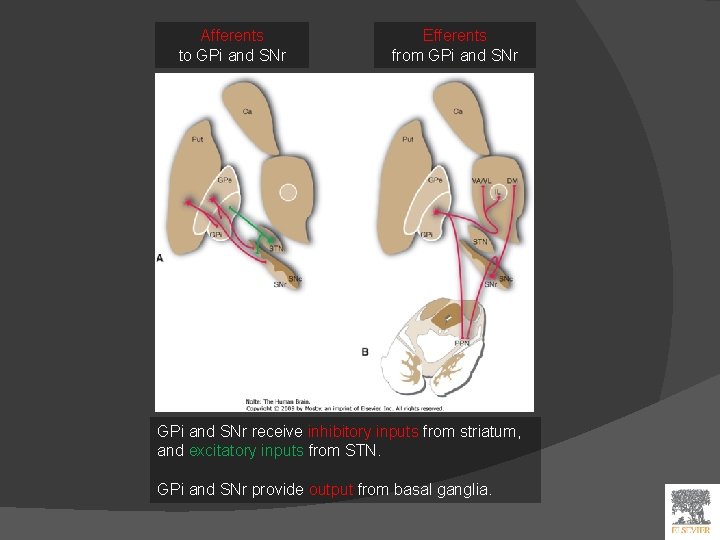

Afferents to GPi and SNr Efferents from GPi and SNr receive inhibitory inputs from striatum, and excitatory inputs from STN. GPi and SNr provide output from basal ganglia.

Subthalamic fasciculus interconnecting STN and GPi

Major connections of STN provides a powerful excitatory input to GPi and SNr. Major inputs to STN arise not only from GP but also from cerebral cortex. Different sectors of STN deal with motor, cognitive, affective functions.

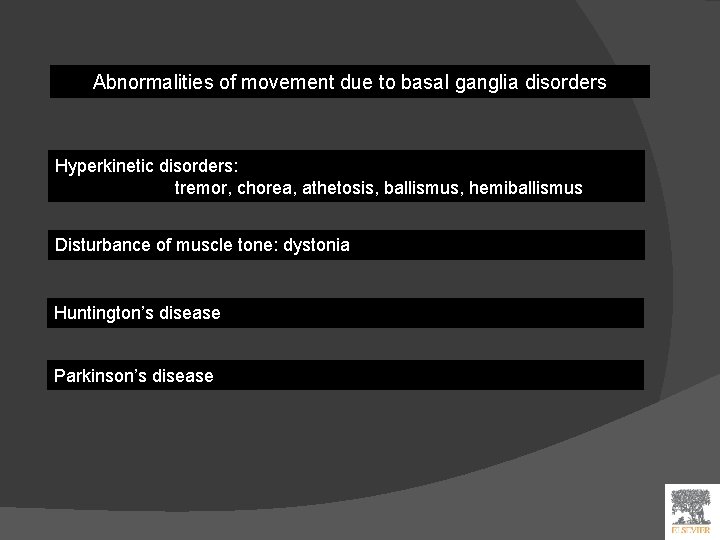

Abnormalities of movement due to basal ganglia disorders Hyperkinetic disorders: tremor, chorea, athetosis, ballismus, hemiballismus Disturbance of muscle tone: dystonia Huntington’s disease Parkinson’s disease

Hemiballismus Video show s/s: wild flailing movements of one arm and leg Lesion location in contralateral STN Most often seen in older people with a stroke involving a ganglionic branch of posterior cerebral artery

Contrast-enhanced mass in left STN of a 65 y/o male HIV-positive patient with unintentional, forceful flinging movements of right limbs. Longitudinal slice of a normal brain

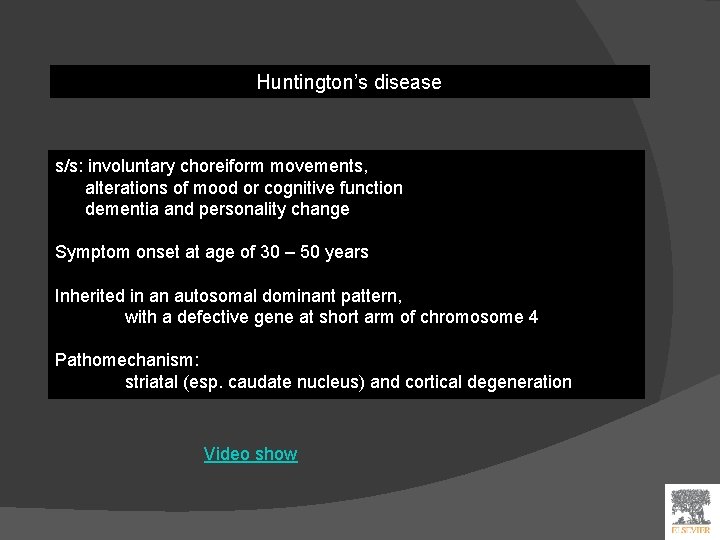

Huntington’s disease s/s: involuntary choreiform movements, alterations of mood or cognitive function dementia and personality change Symptom onset at age of 30 – 50 years Inherited in an autosomal dominant pattern, with a defective gene at short arm of chromosome 4 Pathomechanism: striatal (esp. caudate nucleus) and cortical degeneration Video show

MRI scan in a 29 y/o man with Huntington's disease MRI scan in a normal individual Dorsal-ventral degeneration gradient (red > blue)

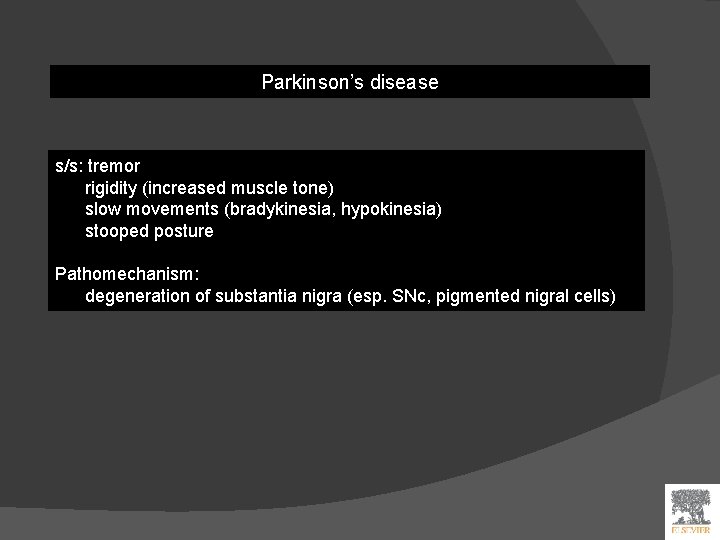

Parkinson’s disease s/s: tremor rigidity (increased muscle tone) slow movements (bradykinesia, hypokinesia) stooped posture Pathomechanism: degeneration of substantia nigra (esp. SNc, pigmented nigral cells)

The midbrain of a patient with Parkinson's disease, showing loss of pigmentation in the compact part of the substantia nigra (*)

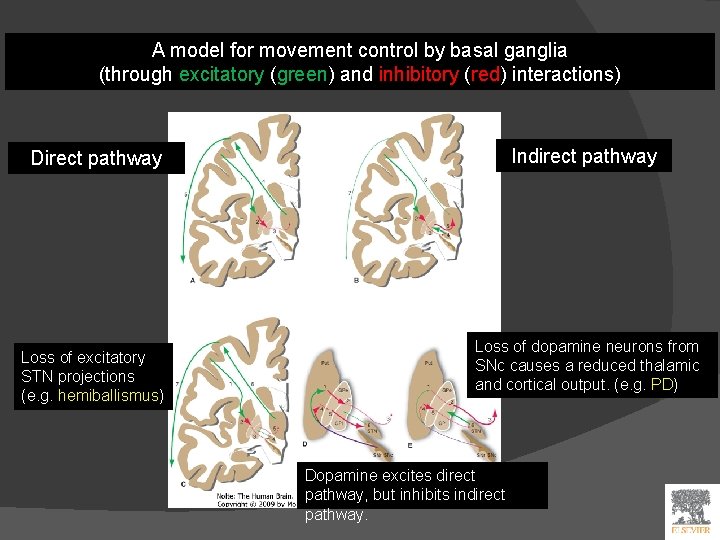

A model for movement control by basal ganglia (through excitatory (green) and inhibitory (red) interactions) Indirect pathway Direct pathway Loss of excitatory STN projections (e. g. hemiballismus) Loss of dopamine neurons from SNc causes a reduced thalamic and cortical output. (e. g. PD) Dopamine excites direct pathway, but inhibits indirect pathway.

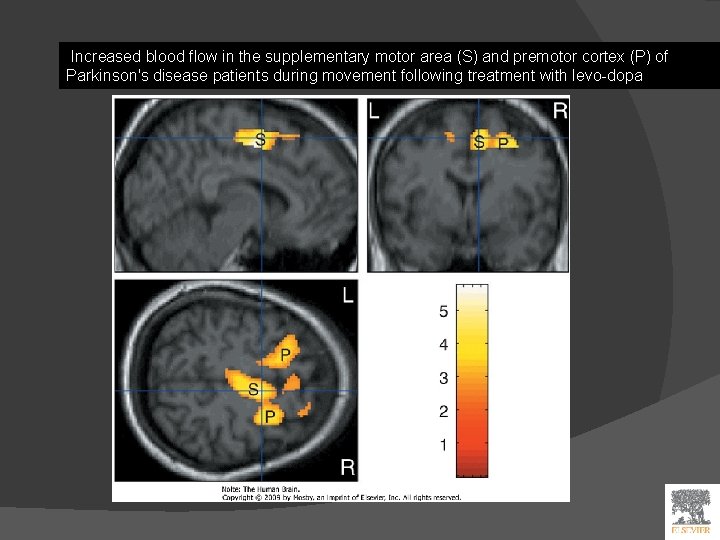

Increased blood flow in the supplementary motor area (S) and premotor cortex (P) of Parkinson's disease patients during movement following treatment with levo-dopa

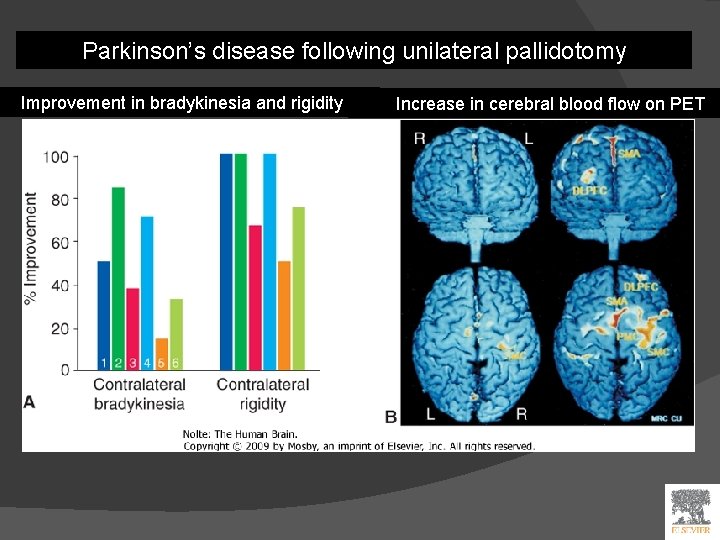

Parkinson’s disease following unilateral pallidotomy Improvement in bradykinesia and rigidity Increase in cerebral blood flow on PET
