Basal Ganglia Dr G R Leichnetz Basal Ganglia

Basal Ganglia Dr. G. R. Leichnetz

Basal Ganglia The group of subcortical nuclei collectively known as the “basal ganglia” are involved in orchestrating automated patterns of movement, such as walking, driving a car, riding a bicycle. The term includes: caudate nucleus, putamen, globus pallidus, subthalamic nucleus, and substantia nigra.

Caudate nucleus The basal ganglia include: Caudate Striatum Putamen Globus pallidus Subthalamic nucleus Putamen Subthalamic nucleus Globus pallidus Substantia nigra Burt Substantia nigra

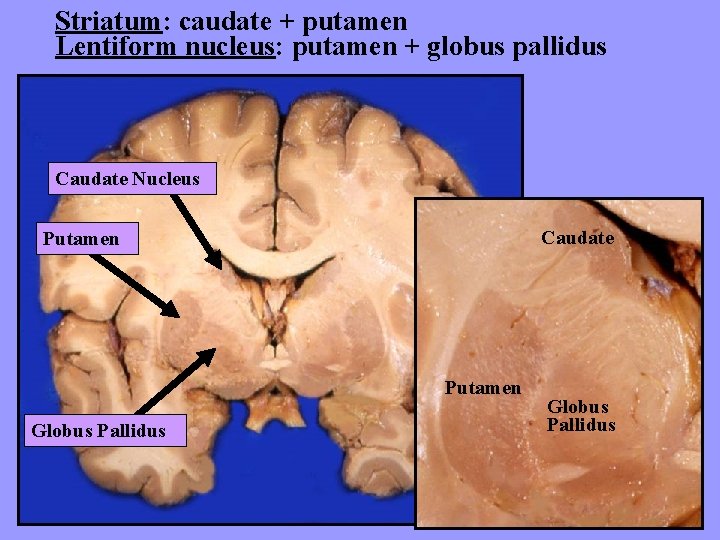

Striatum: caudate + putamen Lentiform nucleus: putamen + globus pallidus Caudate Nucleus Caudate Putamen Globus Pallidus

Supplementary Motor Cortex These structures have extensive interconnections, but ultimately their major output flows from the internal segment of the globus pallidus to the motor thalamus (VA/VL), and then is conveyed to the supplementary motor cortex (M-II) (which is involved in the planning and programming of movements). Motor thalamus Globus Subthalamic pallidus, nucleus GPi Substantia nigra Striatum From Kandel, et al.

Striatum

Striatum: Caudate and Putamen Caudate Nucleus Putamen GP Globus Pallidus In a Nissl-stained section the caudate and putamen are seen as histologically the same structure, separated by the anterior limb of the internal capsule.

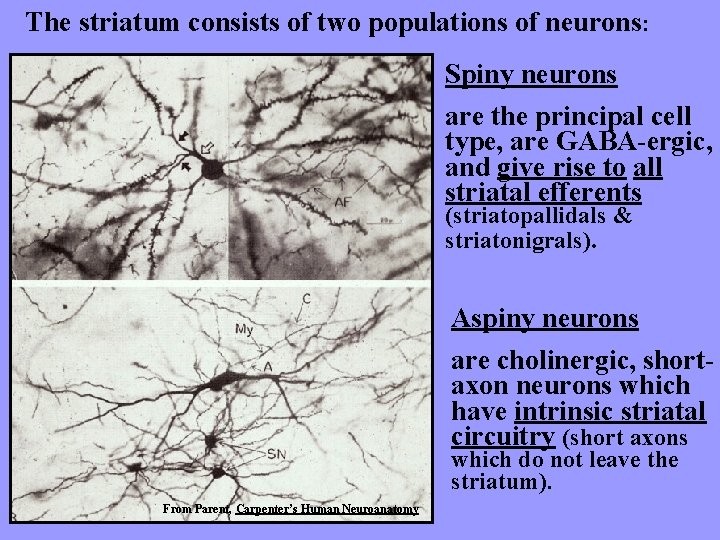

The striatum consists of two populations of neurons: Spiny neurons are the principal cell type, are GABA-ergic, and give rise to all striatal efferents (striatopallidals & striatonigrals). Aspiny neurons are cholinergic, shortaxon neurons which have intrinsic striatal circuitry (short axons which do not leave the striatum). From Parent, Carpenter’s Human Neuroanatomy

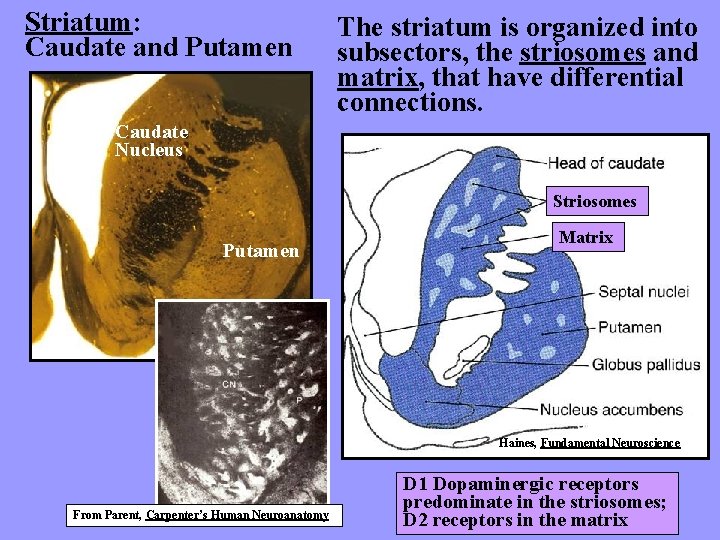

Striatum: Caudate and Putamen The striatum is organized into subsectors, the striosomes and matrix, that have differential connections. Caudate Nucleus Striosomes Putamen Matrix Haines, Fundamental Neuroscience From Parent, Carpenter’s Human Neuroanatomy D 1 Dopaminergic receptors predominate in the striosomes; D 2 receptors in the matrix

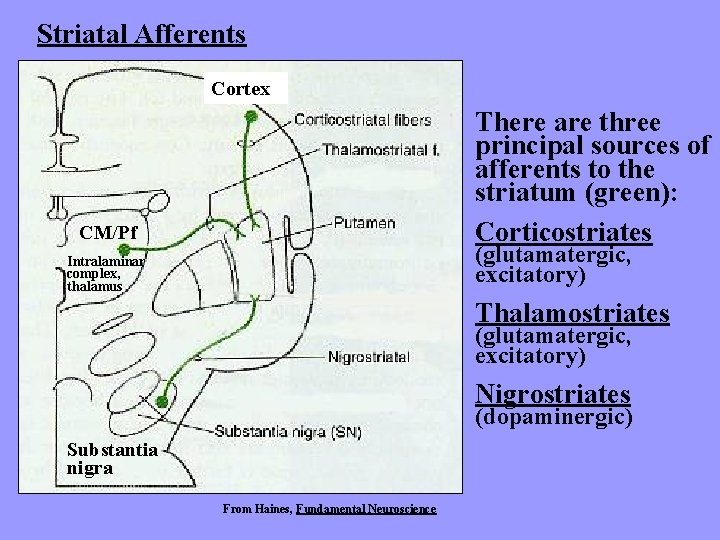

Striatal Afferents Cortex There are three principal sources of afferents to the striatum (green): Corticostriates CM/Pf (glutamatergic, excitatory) Intralaminar complex, thalamus Thalamostriates (glutamatergic, excitatory) Nigrostriates (dopaminergic) Substantia nigra From Haines, Fundamental Neuroscience

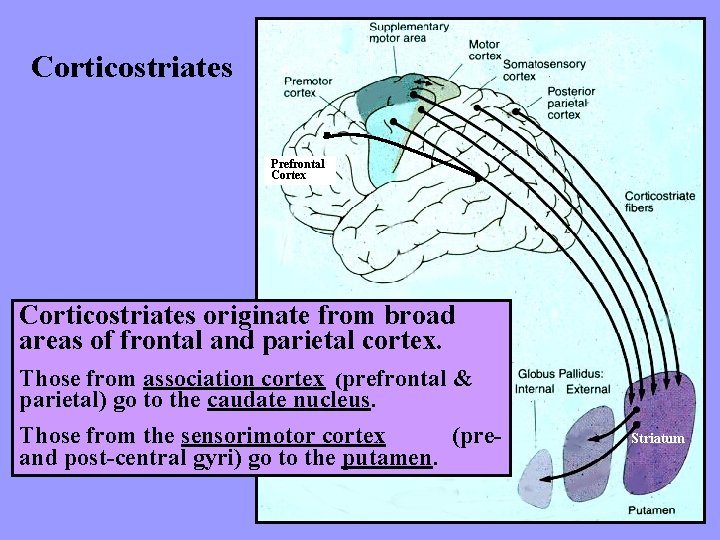

Corticostriates Prefrontal Cortex Corticostriates originate from broad areas of frontal and parietal cortex. Those from association cortex (prefrontal & parietal) go to the caudate nucleus. Those from the sensorimotor cortex (preand post-central gyri) go to the putamen. Striatum

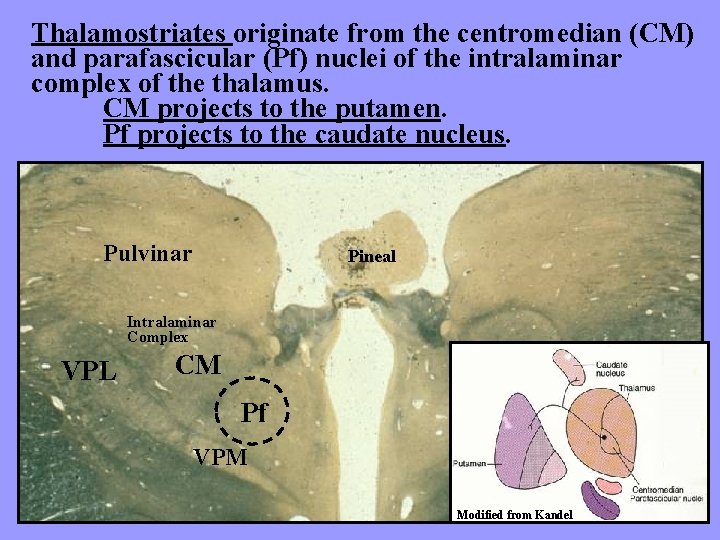

Thalamostriates originate from the centromedian (CM) and parafascicular (Pf) nuclei of the intralaminar complex of the thalamus. CM projects to the putamen. Pf projects to the caudate nucleus. Pulvinar Pineal Intralaminar Complex VPL CM Pf VPM Modified from Kandel

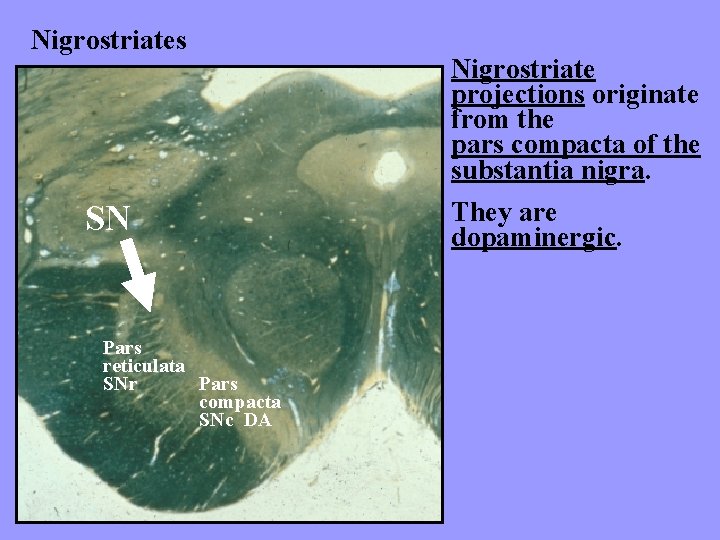

Nigrostriates SN Pars reticulata Pars SNr compacta SNc DA Nigrostriate projections originate from the pars compacta of the substantia nigra. They are dopaminergic.

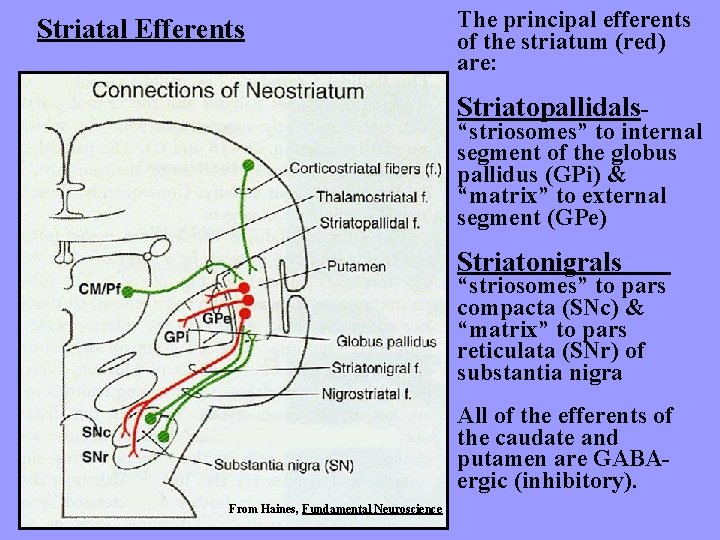

Striatal Efferents The principal efferents of the striatum (red) are: Striatopallidals- “striosomes” to internal segment of the globus pallidus (GPi) & “matrix” to external segment (GPe) Striatonigrals “striosomes” to pars compacta (SNc) & “matrix” to pars reticulata (SNr) of substantia nigra All of the efferents of the caudate and putamen are GABAergic (inhibitory). From Haines, Fundamental Neuroscience

The direct pathway facilitates movement, while the indirect pathway inhibits movement. D 1 receptors predominate in striosomes (patches) and project directly to the GPi (direct pathway). D 2 receptors predominate in the matrix and project to the GPe (indirect pathway).

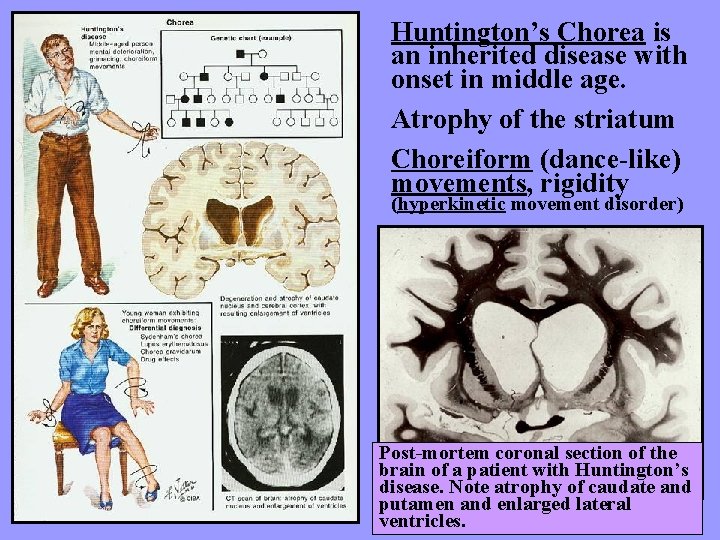

Huntington’s Chorea is an inherited disease with onset in middle age. Atrophy of the striatum Choreiform (dance-like) movements, rigidity (hyperkinetic movement disorder) Post-mortem coronal section of the brain of a patient with Huntington’s disease. Note atrophy of caudate and putamen and enlarged lateral ventricles.

Globus Pallidus

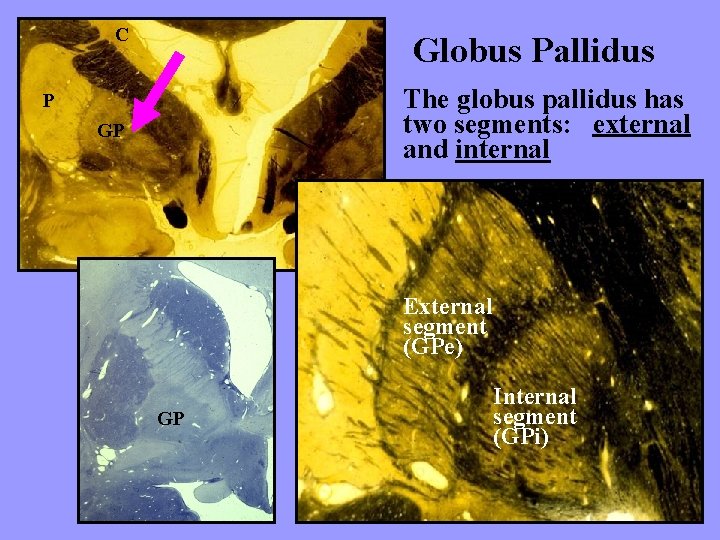

C Globus Pallidus The globus pallidus has two segments: external and internal P GP External segment (GPe) GP Internal segment (GPi)

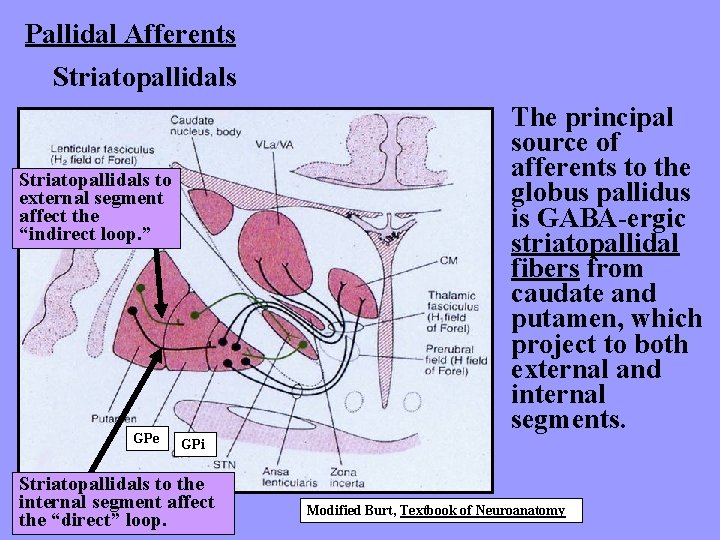

Pallidal Afferents Striatopallidals The principal source of afferents to the globus pallidus is GABA-ergic striatopallidal fibers from caudate and putamen, which project to both external and internal segments. Striatopallidals to external segment affect the “indirect loop. ” GPe GPi Striatopallidals to the internal segment affect the “direct” loop. Modified Burt, Textbook of Neuroanatomy

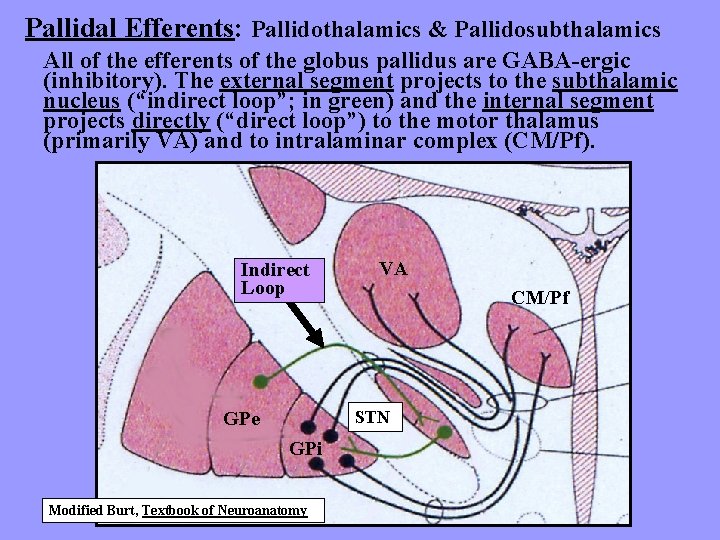

Pallidal Efferents: Pallidothalamics & Pallidosubthalamics All of the efferents of the globus pallidus are GABA-ergic (inhibitory). The external segment projects to the subthalamic nucleus (“indirect loop”; in green) and the internal segment projects directly (“direct loop”) to the motor thalamus (primarily VA) and to intralaminar complex (CM/Pf). Indirect Loop VA CM/Pf STN GPe GPi Modified Burt, Textbook of Neuroanatomy

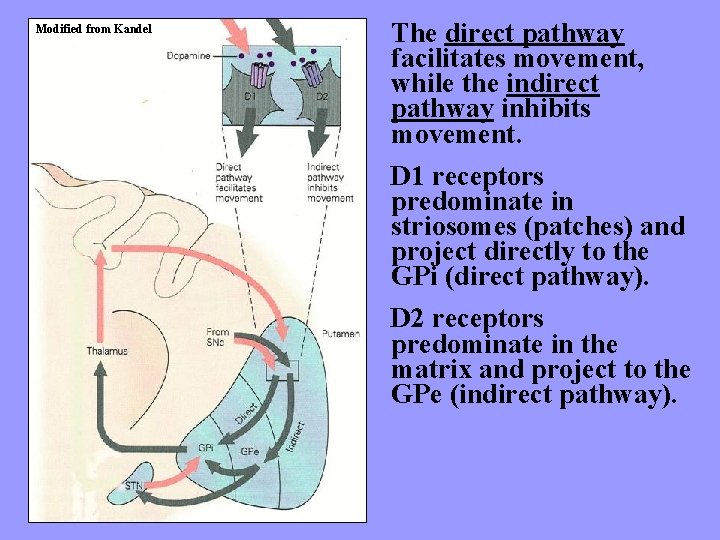

Modified from Kandel The direct pathway facilitates movement, while the indirect pathway inhibits movement. D 1 receptors predominate in striosomes (patches) and project directly to the GPi (direct pathway). D 2 receptors predominate in the matrix and project to the GPe (indirect pathway).

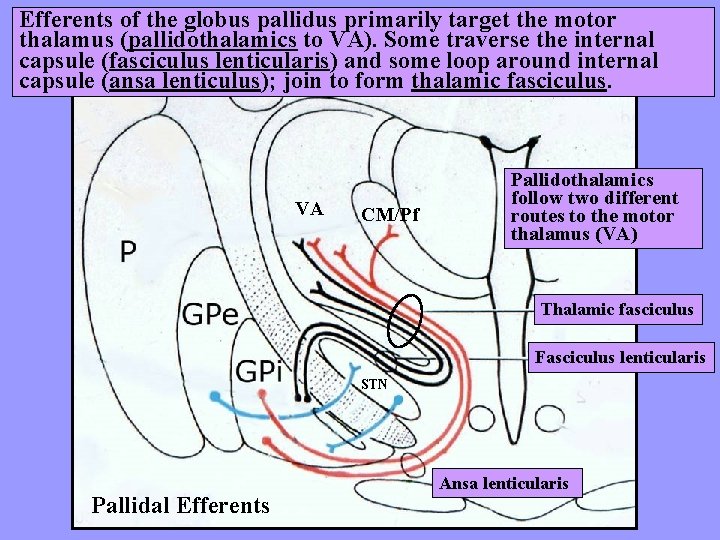

Efferents of the globus pallidus primarily target the motor thalamus (pallidothalamics to VA). Some traverse the internal capsule (fasciculus lenticularis) and some loop around internal capsule (ansa lenticulus); join to form thalamic fasciculus. VA CM/Pf Pallidothalamics follow two different routes to the motor thalamus (VA) Thalamic fasciculus Fasciculus lenticularis STN Pallidal Efferents Ansa lenticularis

Subthalamic Nucleus

Subthalamic Nucleus The subthalamic nucleus is part of the subthalamus. H 1 Prerubral Fields STN ZI H H 2

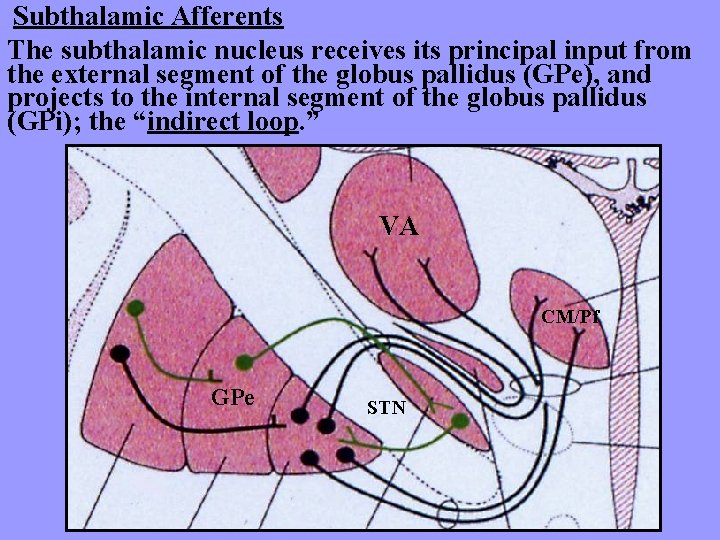

Subthalamic Afferents The subthalamic nucleus receives its principal input from the external segment of the globus pallidus (GPe), and projects to the internal segment of the globus pallidus (GPi); the “indirect loop. ” VA CM/Pf GPe STN

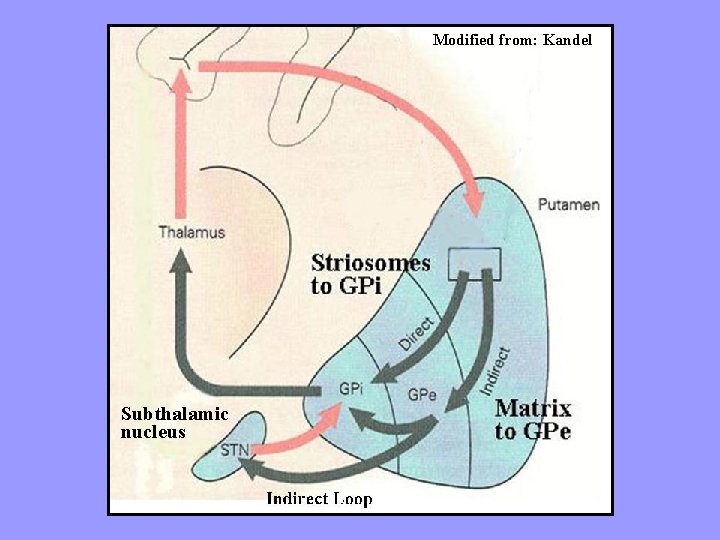

Modified from: Kandel Subthalamic nucleus

A lesion of the subthalamic nucleus results in contralateral hemiballism. Ballism- violent, large amplitude, proximal limb movements result from a lesion of the subthalamic nucleus. Huntington’s disease and hemiballism are hyperkinetic disorders (excessive motor activity)

Substantia Nigra

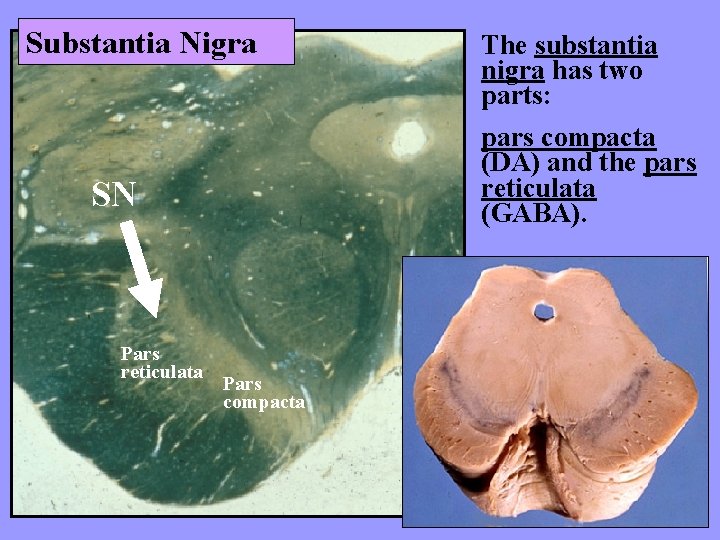

Substantia Nigra pars compacta (DA) and the pars reticulata (GABA). SN Pars reticulata The substantia nigra has two parts: Pars compacta

Substantia Nigra Afferents Striatonigrals: from caudate & putamen, GABA-ergic Striosomes- to pars compacta, SN (SNc) Matrix- to pars reticulata, SN (SNr) Caudate Putamen SNr SNc From Haines, Fundamental Neuroscience

Nigral Efferents: Nigrostriatals (DA)from SNc to caudate and putamen Nigrothalamics- from SNr to motor thalamus (VA/VL) (GABA-ergic) Nigrotectals- from SNr to superior colliculus -ergic) Modified from Haines, Fundamental Neuroscience (GABA

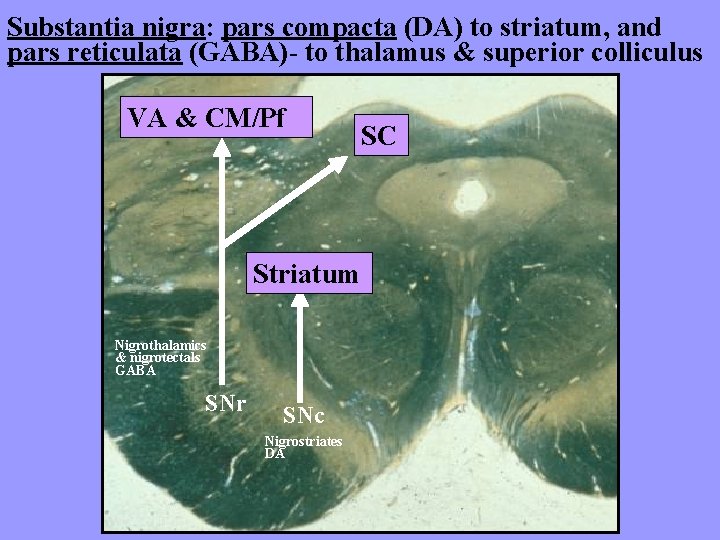

Substantia nigra: pars compacta (DA) to striatum, and pars reticulata (GABA)- to thalamus & superior colliculus VA & CM/Pf Striatum Nigrothalamics & nigrotectals GABA SNr SNc Nigrostriates DA SC

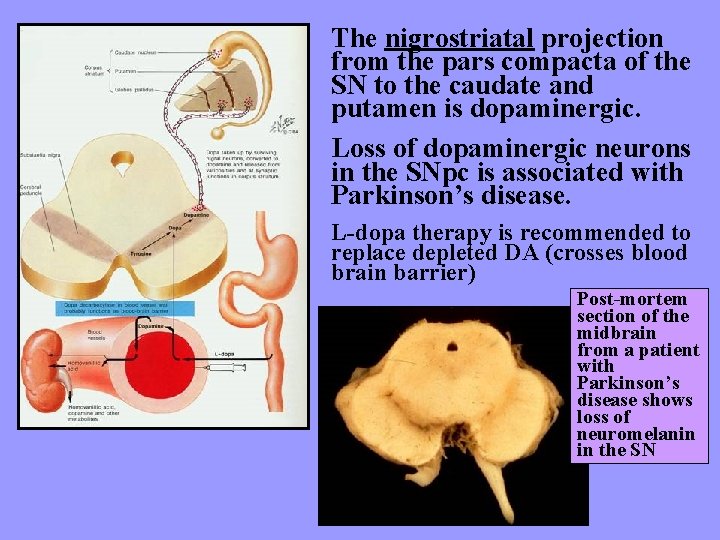

The nigrostriatal projection from the pars compacta of the SN to the caudate and putamen is dopaminergic. Loss of dopaminergic neurons in the SNpc is associated with Parkinson’s disease. L-dopa therapy is recommended to replace depleted DA (crosses blood brain barrier) Post-mortem section of the midbrain from a patient with Parkinson’s disease shows loss of neuromelanin in the SN

Parkinson’s Disease Resting tremor Bradykinesia Festinating Gait- baby steps “Freezing”(inertia)difficulty initiating movements Rigidity Masked face Parkinson’s disease is a hypokinetic disorder (deficient motor activity)

Basal Ganglia Loop With Ipsilateral Cortex

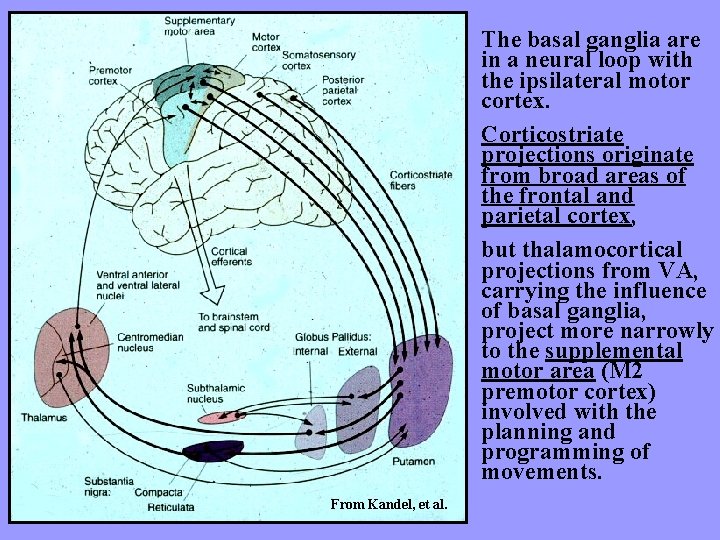

The basal ganglia are in a neural loop with the ipsilateral motor cortex. Corticostriate projections originate from broad areas of the frontal and parietal cortex, but thalamocortical projections from VA, carrying the influence of basal ganglia, project more narrowly to the supplemental motor area (M 2 premotor cortex) involved with the planning and programming of movements. From Kandel, et al.

Motor cortex The basal ganglia are connected in a loop with the ipsilateral motor cortex From: Niewenhuys, The Human Nervous System Therefore, if lesioned, the dysfunction affects the ipsilateral motor cortex, and deficits (thru the pyramidal system) are expressed on the contralateral side of the body.
