Bank Statement Processing – BSP The Working process SAP Business One Version 9. 0 INTE RNA L

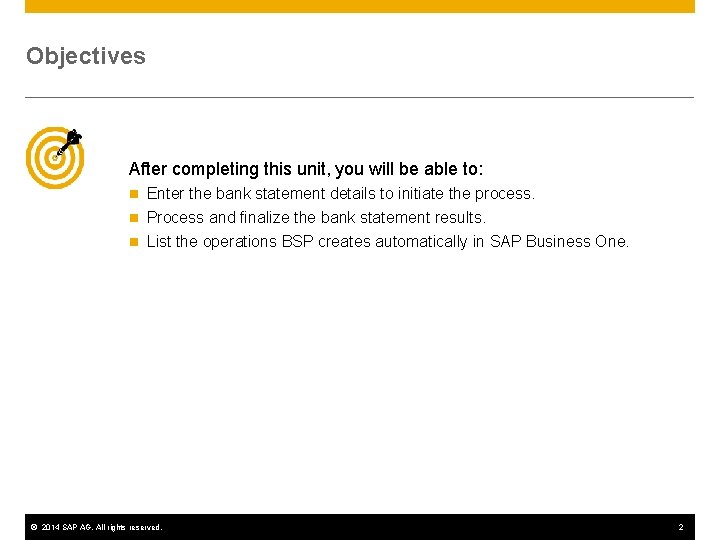

Objectives After completing this unit, you will be able to: n Enter the bank statement details to initiate the process. n Process and finalize the bank statement results. n List the operations BSP creates automatically in SAP Business One. © 2014 SAP AG. All rights reserved. 2
The Working Process with BSP After SAP Business One has been configured, you can start working with the bank statement processing: n Enter the relevant information in marketing invoices. n Record your bank statement details. n Process the Bank Statement. © 2014 SAP AG. All rights reserved. 3
Enter the Relevant Information in Marketing Invoices n © 2014 SAP AG. All rights reserved. In those cases where you have defined the BP Reference No. parameter as matching criteria rule, you need to ensure that the user enters the reference number in the Customer/ Vendor Ref. No. field when creating marketing documents. 4
Record the Bank Statement Details n On a regular basis, Maria the accountant at OEC Computers records the bank statement details as received from the company house bank. Banking Bank Statement and External Reconciliation Bank Statement Processing n To automatically import the bank statement choose the Import from File button. © 2014 SAP AG. All rights reserved. 5
Record the Bank Statement Details n © 2014 SAP AG. All rights reserved. The Import from File button is activated only if you selected the Imported Bank Statement box for this bank in the House Bank Accounts – Setup window. 6
Import from File n The bank statement information appears in the Bank Statement Details window. n This is the. txt bank file that was imported. © 2014 SAP AG. All rights reserved. 7
Import from File n Each line begins with a line header; a two digit number. This designates the type of information present in the line. © 2014 SAP AG. All rights reserved. 8

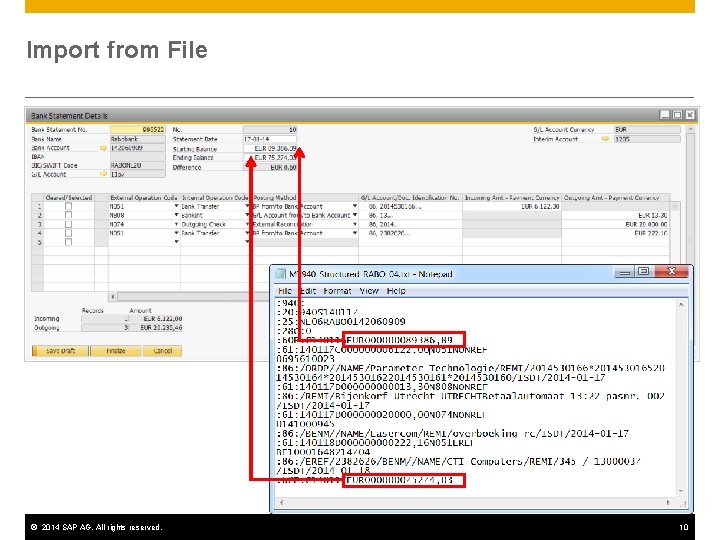

Import from File © 2014 SAP AG. All rights reserved. 9
Import from File © 2014 SAP AG. All rights reserved. 10
Import from File n The set of external codes used for the bank account is defined in the bank definition. n If an internal code value has been assigned, it will be automatically populated. © 2014 SAP AG. All rights reserved. 11
Import from File n The amount for each row will appear as an incoming amount when the letter C precedes the amount in the bank file and as an outgoing amount when D precedes the amount. © 2014 SAP AG. All rights reserved. 12

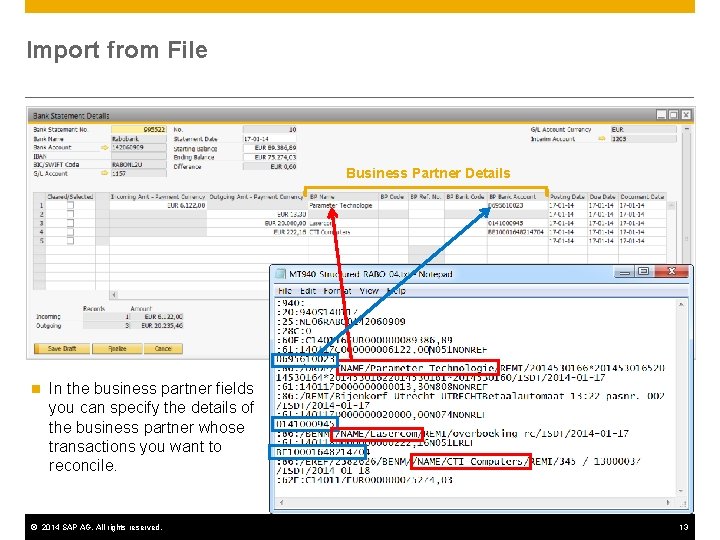

Import from File Business Partner Details n In the business partner fields you can specify the details of the business partner whose transactions you want to reconcile. © 2014 SAP AG. All rights reserved. 13

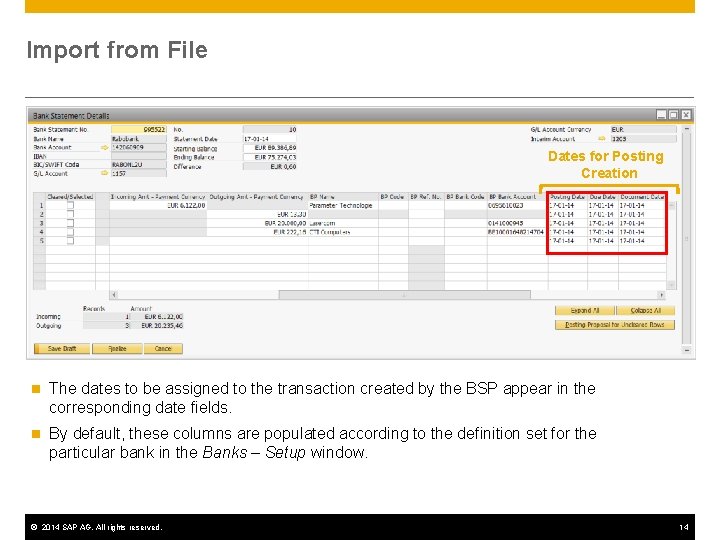

Import from File Dates for Posting Creation n The dates to be assigned to the transaction created by the BSP appear in the corresponding date fields. n By default, these columns are populated according to the definition set for the particular bank in the Banks – Setup window. © 2014 SAP AG. All rights reserved. 14
Record the Bank Statement Details n While reviewing the import results, you can enter missing data and update existing data. n After you enter all required transaction rows in the Bank Statement Details window, you can begin to reconcile the bank statement. n Or, you can save the bank statement as a draft and process it at a later time. © 2014 SAP AG. All rights reserved. 15
Demo – Record the Bank Statement Details © 2014 SAP AG. All rights reserved. 16

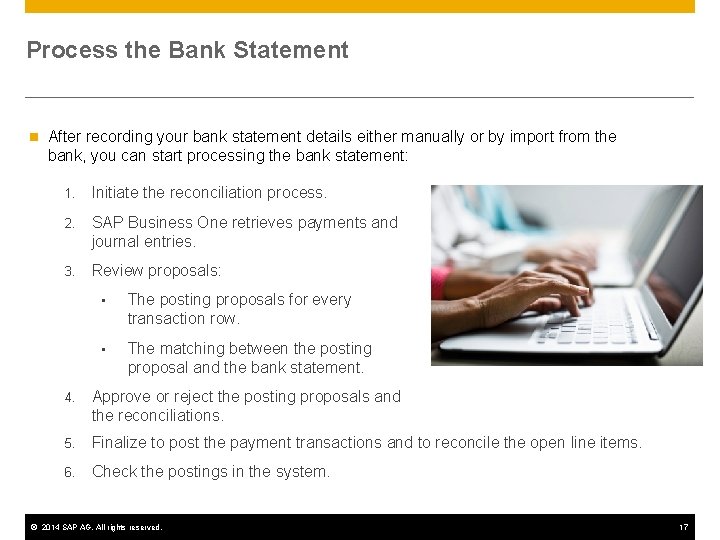

Process the Bank Statement n After recording your bank statement details either manually or by import from the bank, you can start processing the bank statement: 1. Initiate the reconciliation process. 2. SAP Business One retrieves payments and journal entries. 3. Review proposals: • The posting proposals for every transaction row. • The matching between the posting proposal and the bank statement. 4. Approve or reject the posting proposals and the reconciliations. 5. Finalize to post the payment transactions and to reconcile the open line items. 6. Check the postings in the system. © 2014 SAP AG. All rights reserved. 17
1. Initiate the Reconciliation Process SAP Business One prepares posting proposals for the transaction rows in the bank statement based on the matching criteria. © 2014 SAP AG. All rights reserved. 18

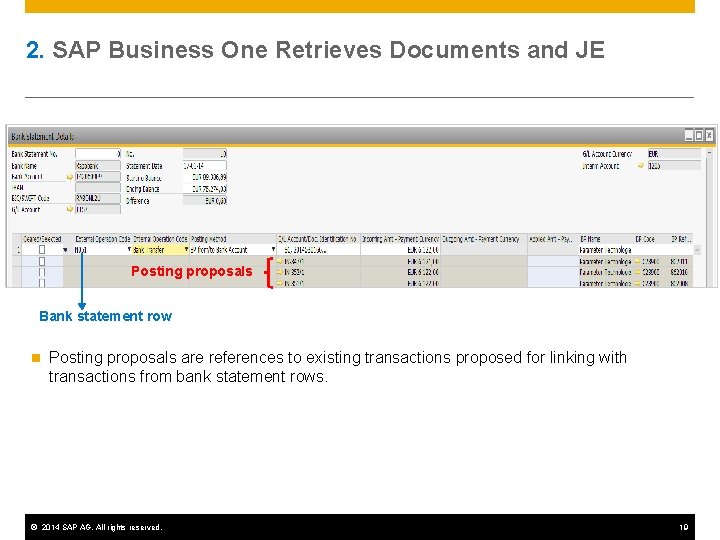

2. SAP Business One Retrieves Documents and JE Posting proposals Bank statement row n Posting proposals are references to existing transactions proposed for linking with transactions from bank statement rows. © 2014 SAP AG. All rights reserved. 19
2. SAP Business One Retrieves Documents and JE n The objective is to clear all bank statement rows. n When a proposed transaction has a full match with a transaction row, they are both selected. © 2014 SAP AG. All rights reserved. 20
3. Review Proposals © 2014 SAP AG. All rights reserved. 21
3. Review Proposals n © 2014 SAP AG. All rights reserved. The results of the G/L Account from/to Bank Account posting method. 22
3. Review Proposals © 2014 SAP AG. All rights reserved. 23
3. Review Proposals n While reviewing the proposals generated by the system use the Matching Criteria Log column to see the round in which the matching was found. © 2014 SAP AG. All rights reserved. 24
4. Approve/ Reject Posting Proposals and Reconciliations © 2014 SAP AG. All rights reserved. 25

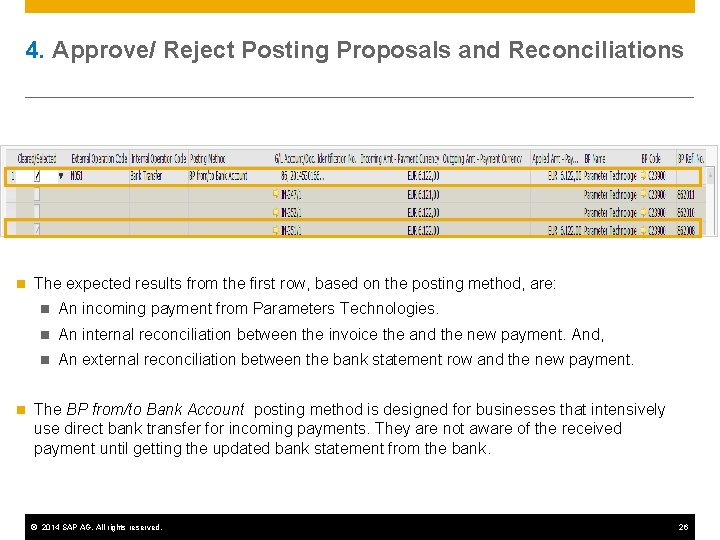

4. Approve/ Reject Posting Proposals and Reconciliations n n The expected results from the first row, based on the posting method, are: n An incoming payment from Parameters Technologies. n An internal reconciliation between the invoice the and the new payment. And, n An external reconciliation between the bank statement row and the new payment. The BP from/to Bank Account posting method is designed for businesses that intensively use direct bank transfer for incoming payments. They are not aware of the received payment until getting the updated bank statement from the bank. © 2014 SAP AG. All rights reserved. 26
4. Approve/ Reject Posting Proposals and Reconciliations © 2014 SAP AG. All rights reserved. 27

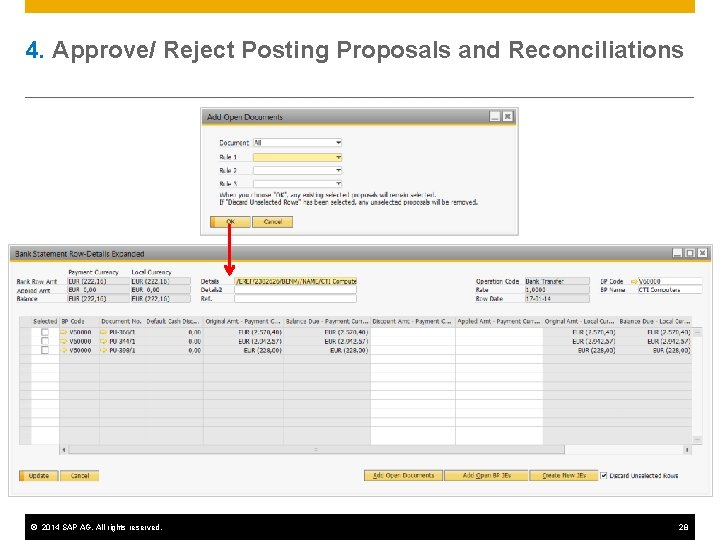

4. Approve/ Reject Posting Proposals and Reconciliations © 2014 SAP AG. All rights reserved. 28

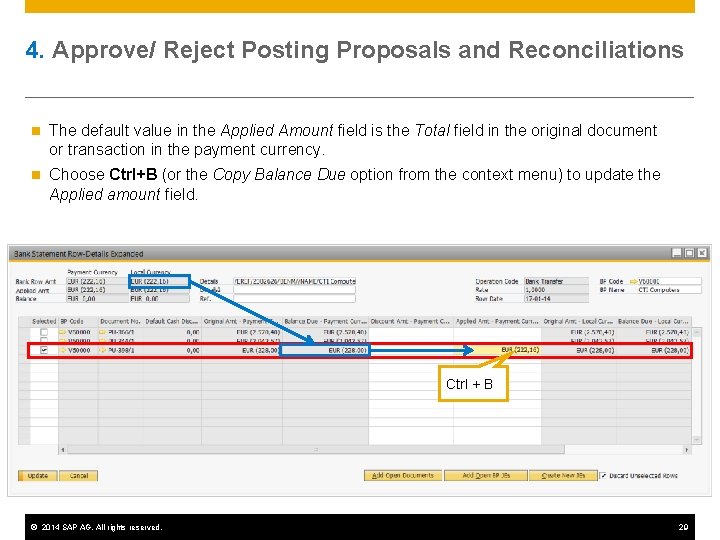

4. Approve/ Reject Posting Proposals and Reconciliations n The default value in the Applied Amount field is the Total field in the original document or transaction in the payment currency. n Choose Ctrl+B (or the Copy Balance Due option from the context menu) to update the Applied amount field. Ctrl + B © 2014 SAP AG. All rights reserved. 29
4. Approve/ Reject Posting Proposals and Reconciliations n Now the reconciliation is balanced and the Balance field at the top of the window is set to zero. n Note that if the difference between the documents total amount is within the allowed payment difference, it will go to the underpayment/overpayment account and the invoice will be closed. © 2014 SAP AG. All rights reserved. 30

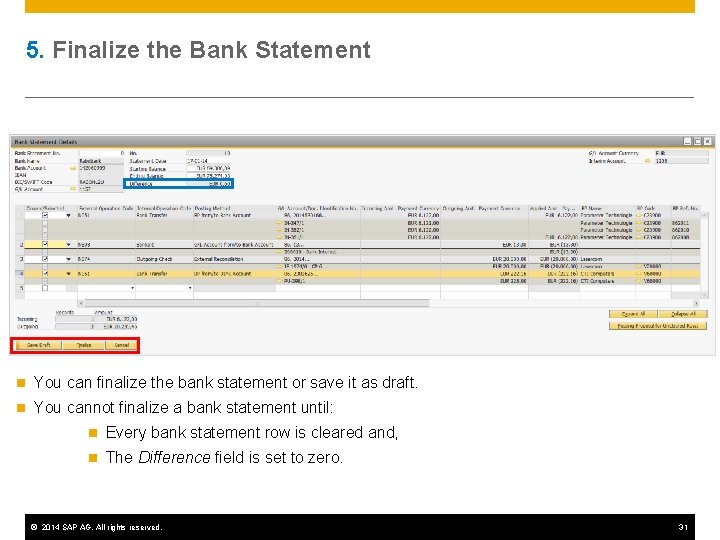

5. Finalize the Bank Statement n You can finalize the bank statement or save it as draft. n You cannot finalize a bank statement until: n Every bank statement row is cleared and, n The Difference field is set to zero. © 2014 SAP AG. All rights reserved. 31
5. Finalize the Bank Statement Starting Balance: 89. 386, 89 Ending Balance: 75. 274, 03 Difference: 0, 60 Incoming: 6. 122, 00 Outgoing: 20. 235, 46 Difference = 0, 60 © 2014 SAP AG. All rights reserved. Starting balance + Total incoming amount Total outgoing amount Ending balance 89. 386, 89 + 6. 122, 00 20. 235, 46 75. 274, 03 32

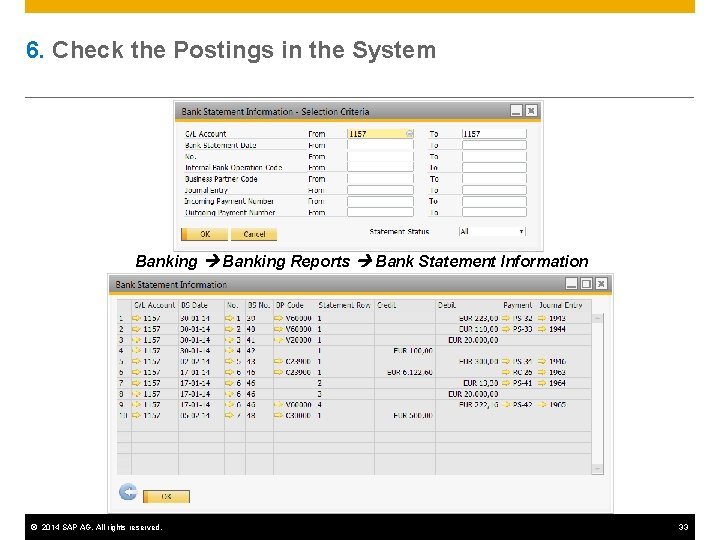

6. Check the Postings in the System Banking Reports Bank Statement Information © 2014 SAP AG. All rights reserved. 33
Demo – Process the Bank Statement © 2014 SAP AG. All rights reserved. 34
Outgoing Payment Created by the Payment Wizard n The transaction row represents a payment created by the payment wizard using an interim account. The posting method is Interim Account from/to Bank Account. n For each house bank you can specify a G/L account to be used as an interim account when a payment run takes place. © 2014 SAP AG. All rights reserved. 35
The Payment Wizard in SAP Business One Payment Wizard Incoming Payments: § Bank Transfer Bank Account Outgoing Payments: § Checks § Bank Transfer © 2014 SAP AG. All rights reserved. Payment File 36
The Payment Wizard in SAP Business One Administration Setup Banking Payment Methods The transactions created by the payment run are posted to the interim account and not to the house bank G/L account. © 2014 SAP AG. All rights reserved. 37

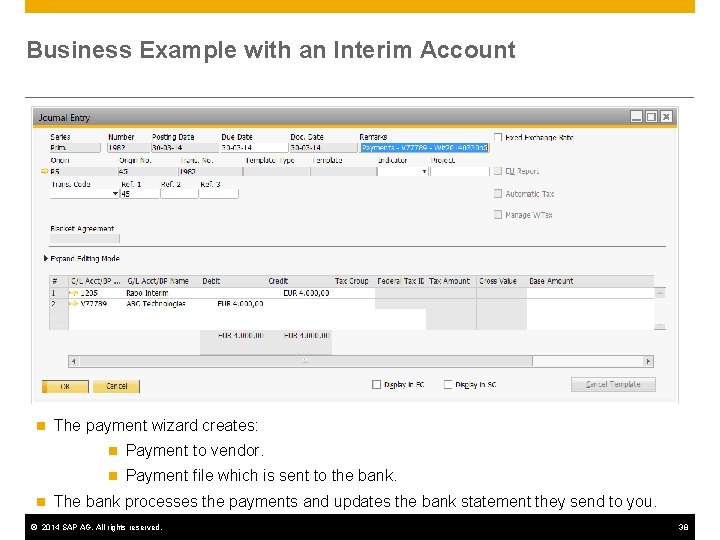

Business Example with an Interim Account n n The payment wizard creates: n Payment to vendor. n Payment file which is sent to the bank. The bank processes the payments and updates the bank statement they send to you. © 2014 SAP AG. All rights reserved. 38

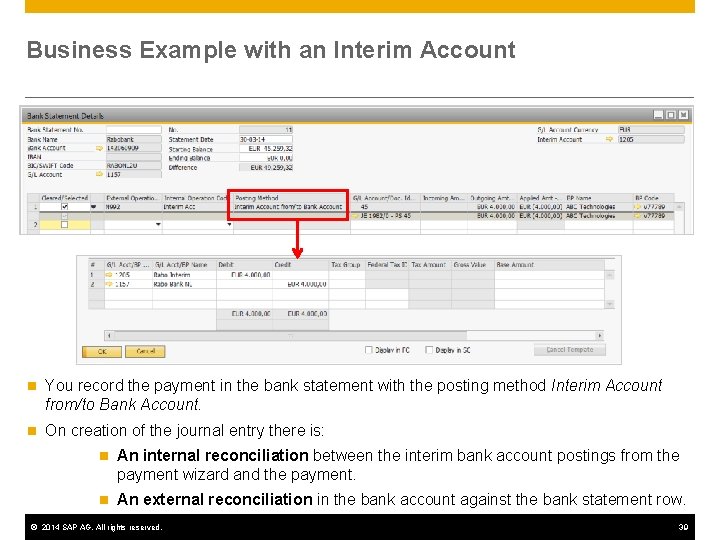

Business Example with an Interim Account n You record the payment in the bank statement with the posting method Interim Account from/to Bank Account. n On creation of the journal entry there is: n An internal reconciliation between the interim bank account postings from the payment wizard and the payment. n An external reconciliation in the bank account against the bank statement row. © 2014 SAP AG. All rights reserved. 39
Thanks You have completed the BSP working process topic Thank you for your time! © 2014 SAP AG. All rights reserved. 40
