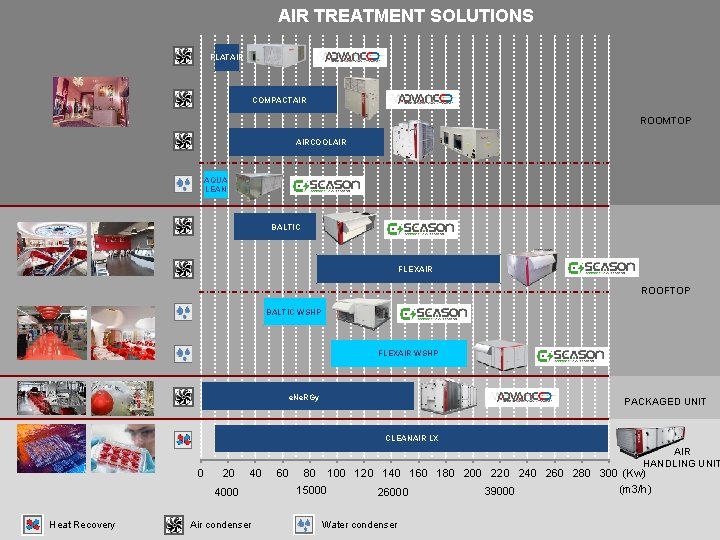

AIR TREATMENT SOLUTIONS FLATAIR COMPACTAIR ROOMTOP AIRCOOLAIR AQUA LEAN BALTIC FLEXAIR ROOFTOP BALTIC WSHP FLEXAIR WSHP e. Ne. RGy PACKAGED UNIT CLEANAIR LX 0 20 40 4000 Heat Recovery Air condenser 60 AIR HANDLING UNIT 100 120 140 160 180 200 220 240 260 280 300 (Kw) (m 3/h) 15000 39000 26000 80 Water condenser

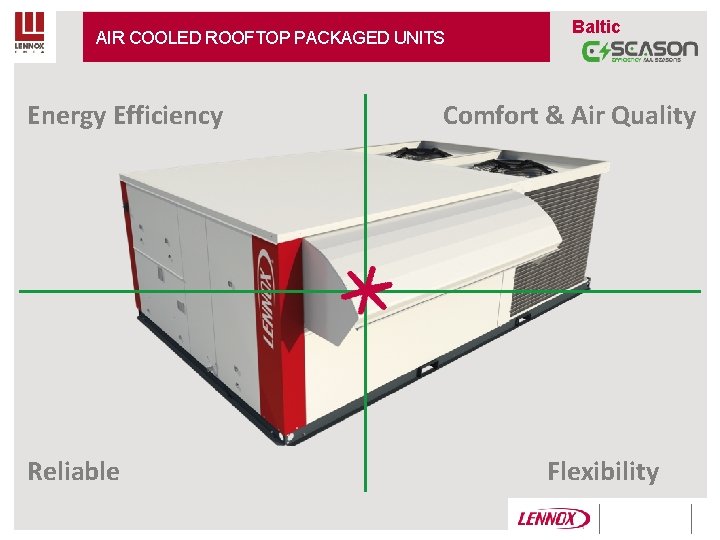

AIR COOLED ROOFTOP PACKAGED UNITS Energy Efficiency Reliable Baltic Comfort & Air Quality Flexibility

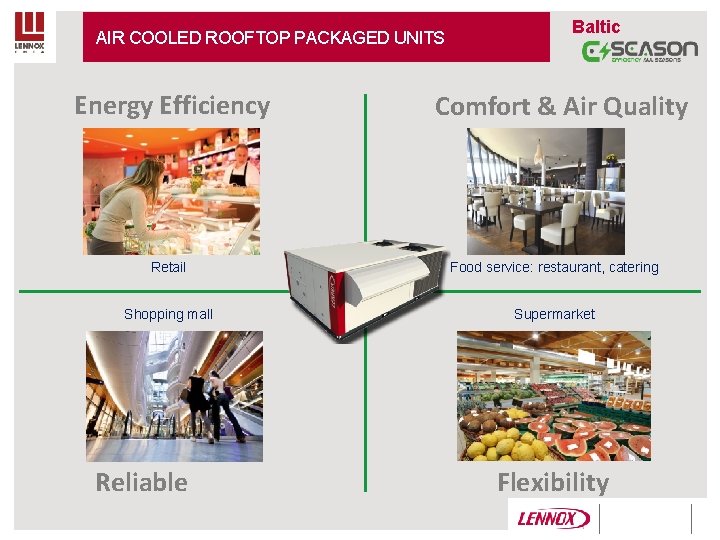

AIR COOLED ROOFTOP PACKAGED UNITS Energy Efficiency Baltic Comfort & Air Quality Retail Food service: restaurant, catering Shopping mall Supermarket Reliable Flexibility

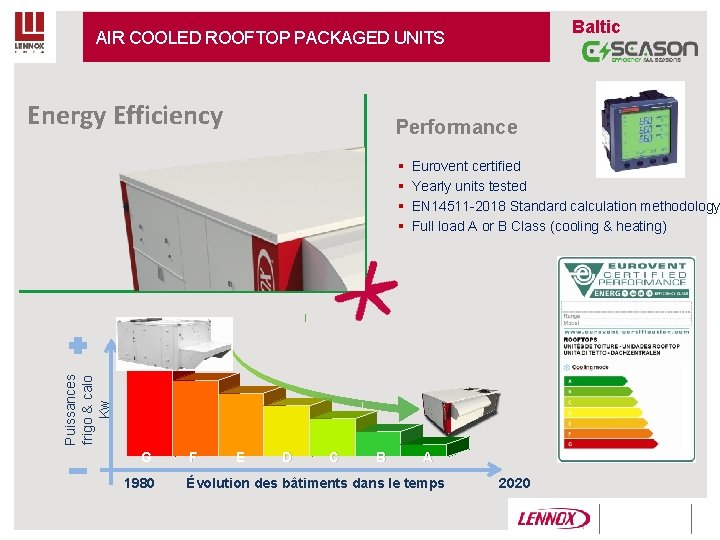

AIR COOLED ROOFTOP PACKAGED UNITS Energy Efficiency Performance Eurovent certified Yearly units tested EN 14511 -2018 Standard calculation methodology Full load A or B Class (cooling & heating) Puissances frigo & calo Kw § § G F Baltic E D C B A 1980 Évolution des bâtiments dans le temps 2020

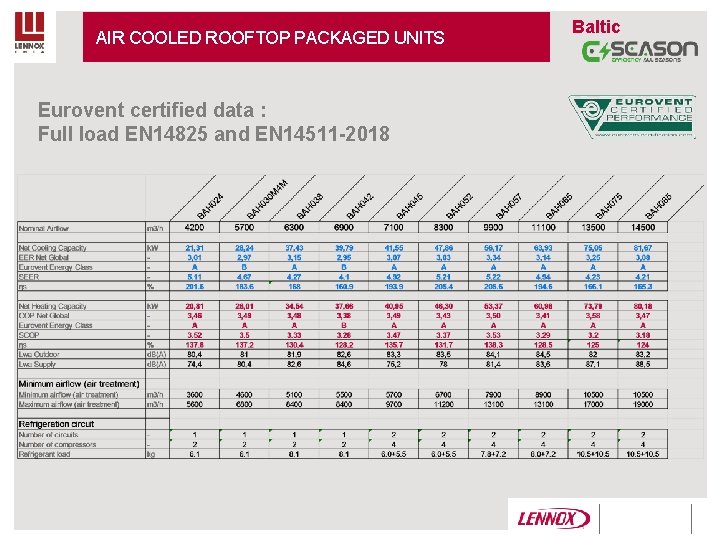

AIR COOLED ROOFTOP PACKAGED UNITS Eurovent certified data : Full load EN 14825 and EN 14511 -2018 Baltic

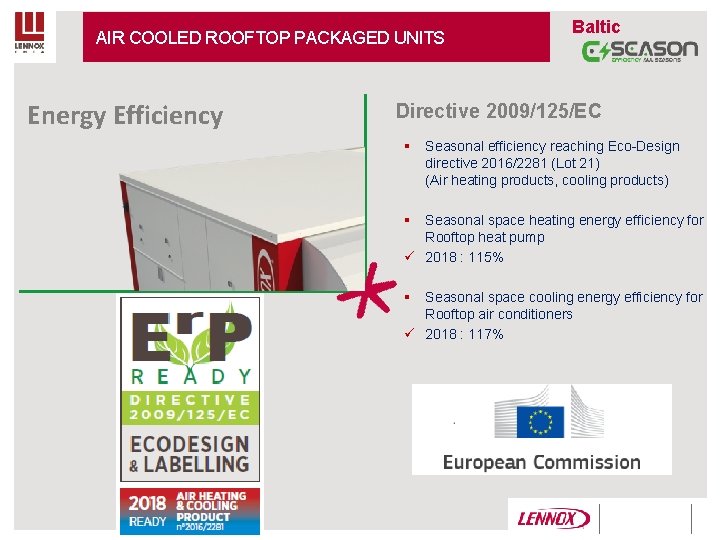

AIR COOLED ROOFTOP PACKAGED UNITS Energy Efficiency Baltic Directive 2009/125/EC § Seasonal efficiency reaching Eco-Design directive 2016/2281 (Lot 21) (Air heating products, cooling products) § Seasonal space heating energy efficiency for Rooftop heat pump ü 2018 : 115% § Seasonal space cooling energy efficiency for Rooftop air conditioners ü 2018 : 117%

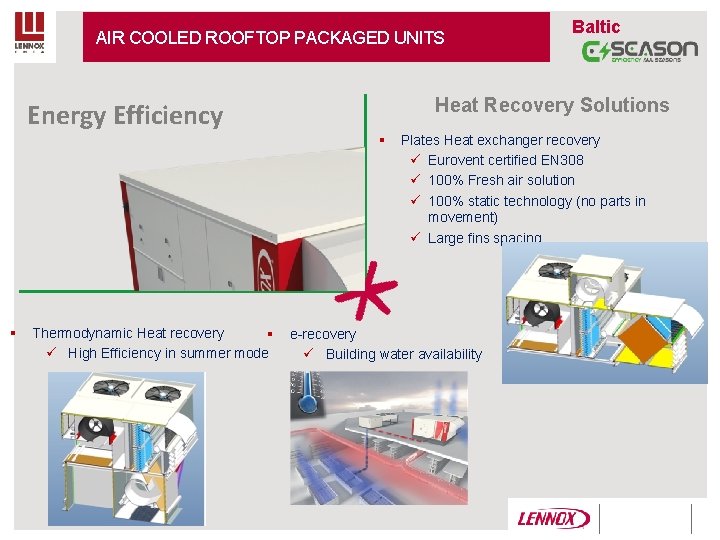

AIR COOLED ROOFTOP PACKAGED UNITS Heat Recovery Solutions Energy Efficiency § § Thermodynamic Heat recovery § ü High Efficiency in summer mode Baltic Plates Heat exchanger recovery ü Eurovent certified EN 308 ü 100% Fresh air solution ü 100% static technology (no parts in movement) ü Large fins spacing e-recovery ü Building water availability

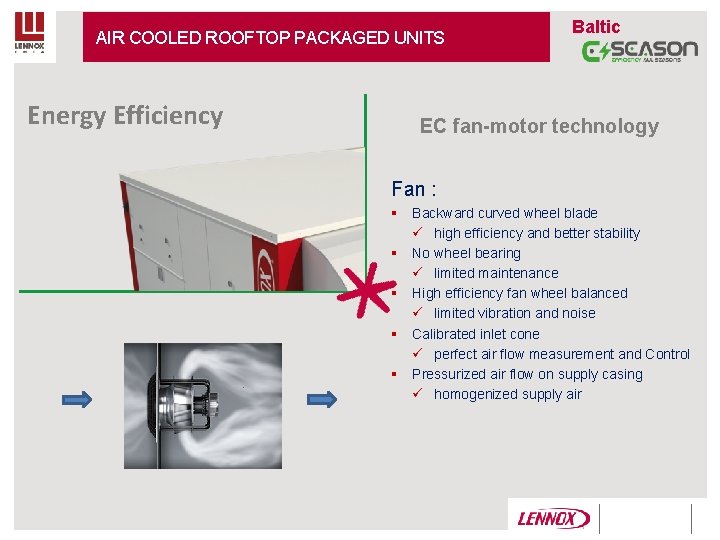

AIR COOLED ROOFTOP PACKAGED UNITS Energy Efficiency Baltic EC fan-motor technology Fan : § Backward curved wheel blade ü high efficiency and better stability § No wheel bearing ü limited maintenance § High efficiency fan wheel balanced ü limited vibration and noise § Calibrated inlet cone ü perfect air flow measurement and Control § Pressurized air flow on supply casing ü homogenized supply air

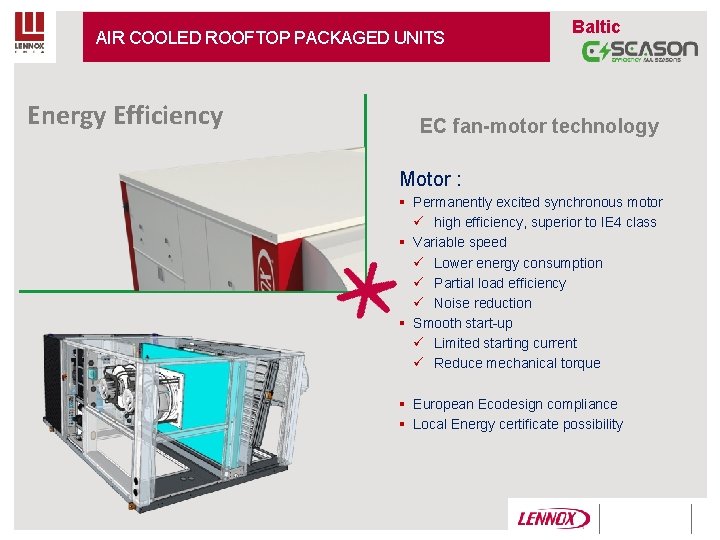

AIR COOLED ROOFTOP PACKAGED UNITS Energy Efficiency Baltic EC fan-motor technology Motor : § Permanently excited synchronous motor ü high efficiency, superior to IE 4 class § Variable speed ü Lower energy consumption ü Partial load efficiency ü Noise reduction § Smooth start-up ü Limited starting current ü Reduce mechanical torque § European Ecodesign compliance § Local Energy certificate possibility

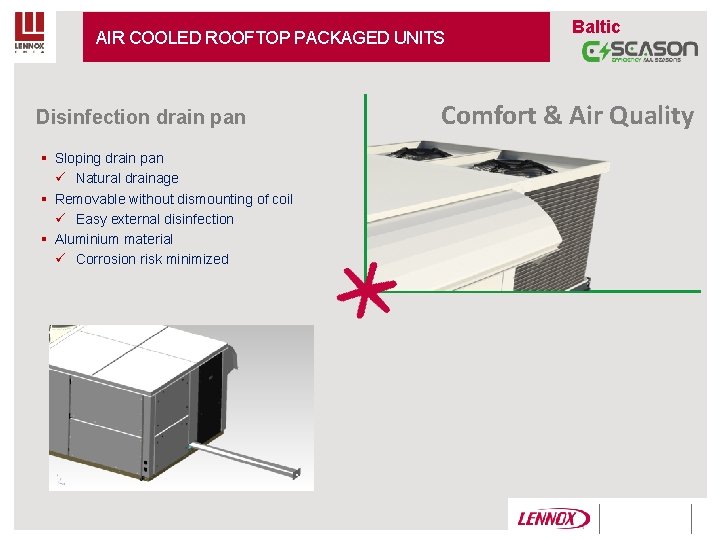

AIR COOLED ROOFTOP PACKAGED UNITS Disinfection drain pan § Sloping drain pan ü Natural drainage § Removable without dismounting of coil ü Easy external disinfection § Aluminium material ü Corrosion risk minimized Baltic Comfort & Air Quality

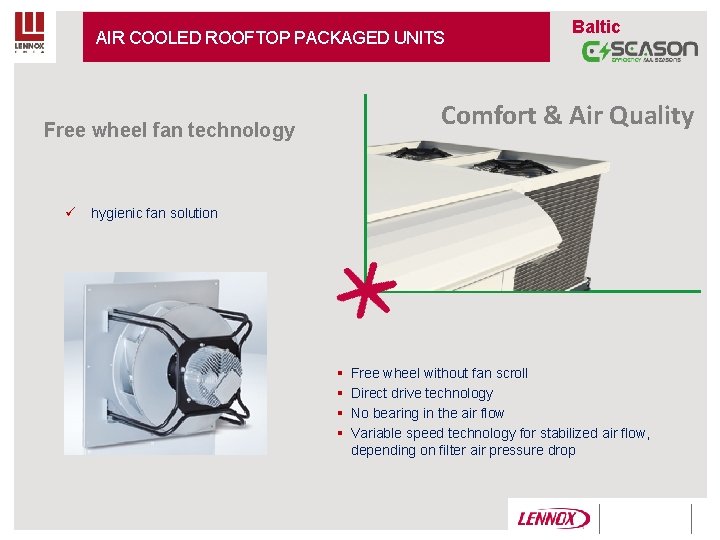

AIR COOLED ROOFTOP PACKAGED UNITS Baltic Comfort & Air Quality Free wheel fan technology ü hygienic fan solution § § Free wheel without fan scroll Direct drive technology No bearing in the air flow Variable speed technology for stabilized air flow, depending on filter air pressure drop

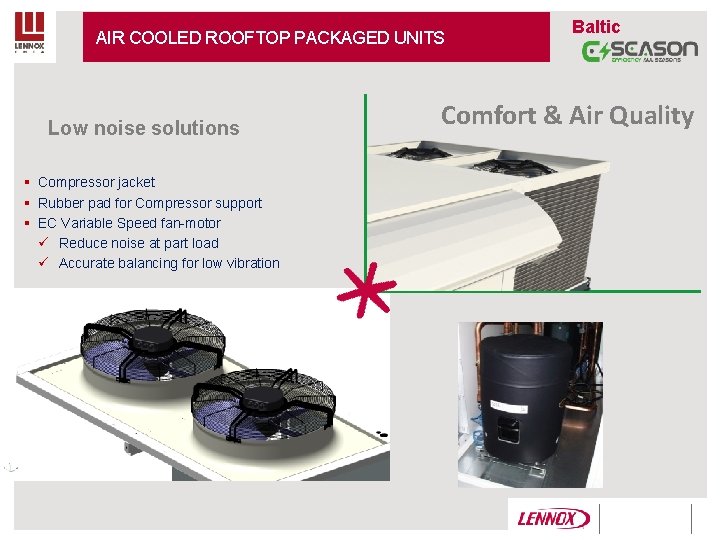

AIR COOLED ROOFTOP PACKAGED UNITS Low noise solutions § Compressor jacket § Rubber pad for Compressor support § EC Variable Speed fan-motor ü Reduce noise at part load ü Accurate balancing for low vibration Baltic Comfort & Air Quality

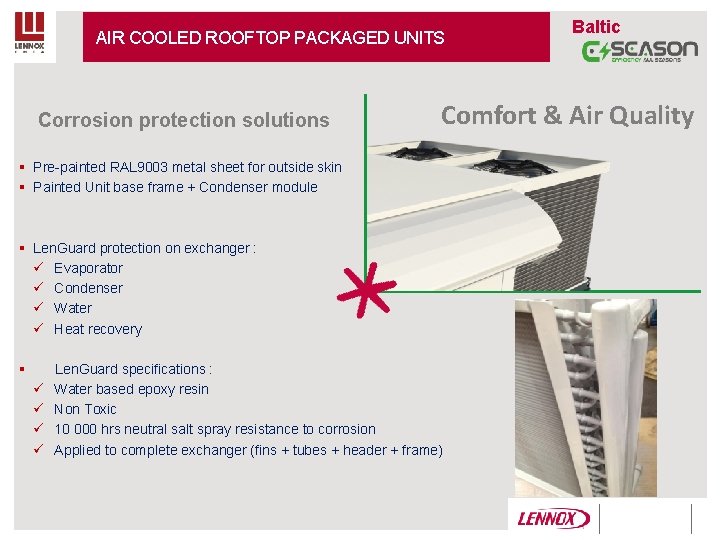

AIR COOLED ROOFTOP PACKAGED UNITS Corrosion protection solutions Comfort & Air Quality § Pre-painted RAL 9003 metal sheet for outside skin § Painted Unit base frame + Condenser module § Len. Guard protection on exchanger : ü Evaporator ü Condenser ü Water ü Heat recovery § ü ü Baltic Len. Guard specifications : Water based epoxy resin Non Toxic 10 000 hrs neutral salt spray resistance to corrosion Applied to complete exchanger (fins + tubes + header + frame)

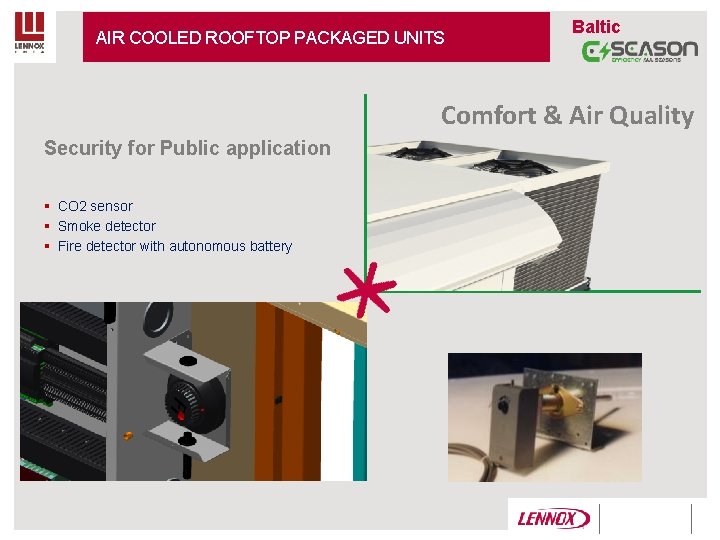

AIR COOLED ROOFTOP PACKAGED UNITS Baltic Comfort & Air Quality Security for Public application § CO 2 sensor § Smoke detector § Fire detector with autonomous battery

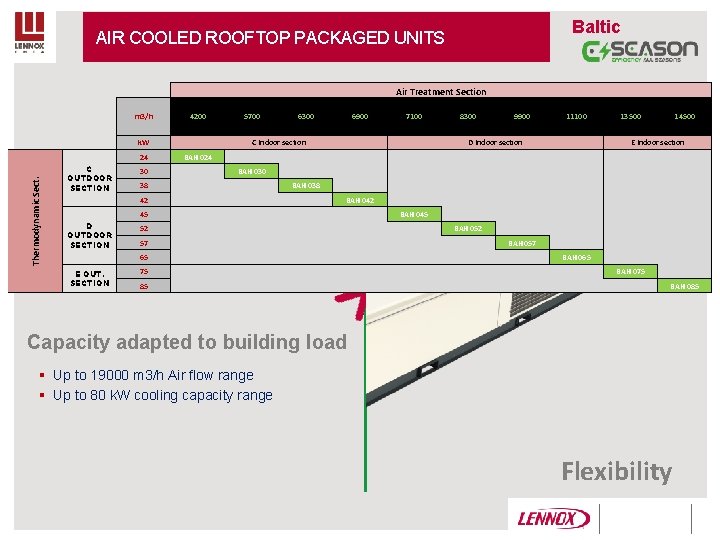

Baltic AIR COOLED ROOFTOP PACKAGED UNITS Air Treatment Section m 3/h 4200 5700 6900 7100 8300 24 BAH 024 30 BAH 030 38 42 BAH 038 BAH 042 45 52 57 Thermodynamic Sect. k. W C OUTDOOR SECTION D OUTDOOR SECTION 65 E OUT. SECTION 75 85 6300 C Indoor section 9900 11100 13500 D Indoor section E Indoor section BAH 045 BAH 052 BAH 057 14500 BAH 065 BAH 075 BAH 085 Capacity adapted to building load § Up to 19000 m 3/h Air flow range § Up to 80 k. W cooling capacity range Flexibility

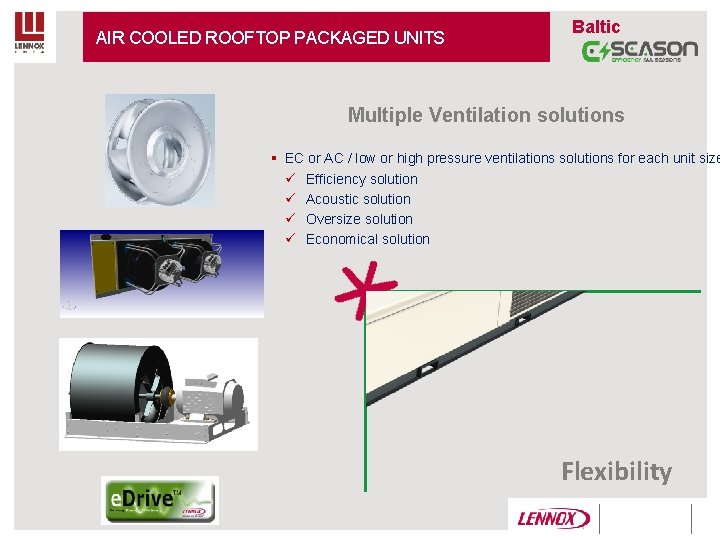

AIR COOLED ROOFTOP PACKAGED UNITS Baltic Multiple Ventilation solutions § EC or AC / low or high pressure ventilations solutions for each unit size ü Efficiency solution ü Acoustic solution ü Oversize solution ü Economical solution Flexibility

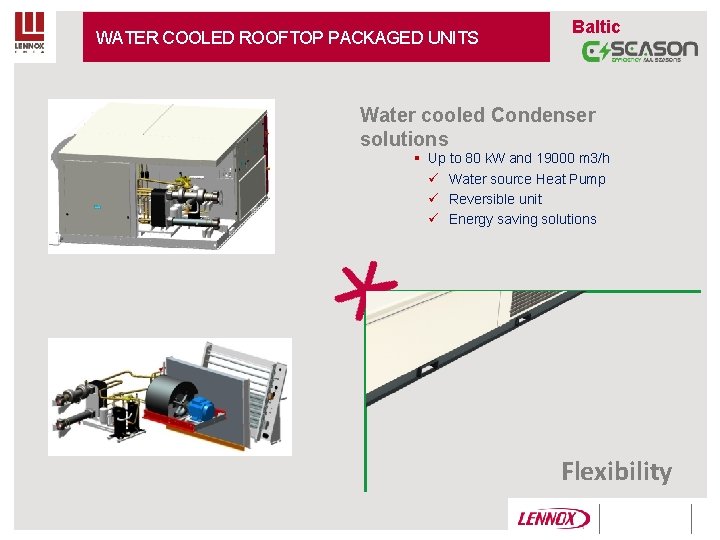

WATER COOLED ROOFTOP PACKAGED UNITS Baltic Water cooled Condenser solutions § Up to 80 k. W and 19000 m 3/h ü Water source Heat Pump ü Reversible unit ü Energy saving solutions Flexibility

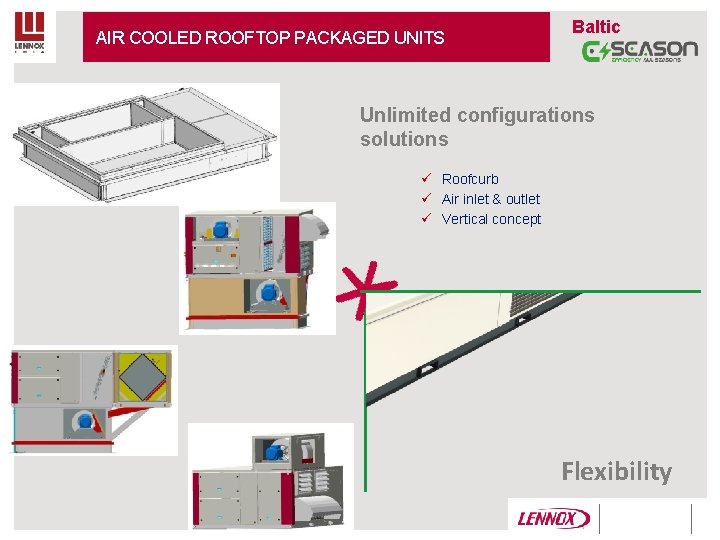

AIR COOLED ROOFTOP PACKAGED UNITS Baltic Unlimited configurations solutions ü Roofcurb ü Air inlet & outlet ü Vertical concept Flexibility

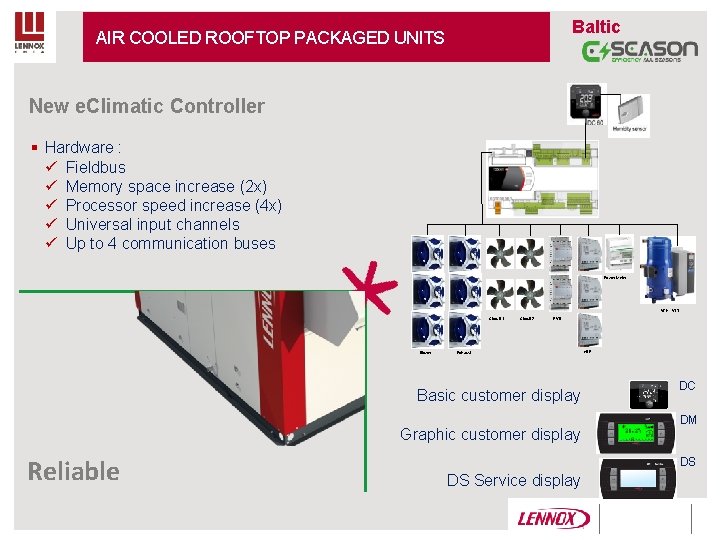

Baltic AIR COOLED ROOFTOP PACKAGED UNITS New e. Climatic Controller § Hardware : ü Fieldbus ü Memory space increase (2 x) ü Processor speed increase (4 x) ü Universal input channels ü Up to 4 communication buses Power Meter VZH - VLT Circuit 1 Blower Circuit 2 EVD Exhaust Basic customer display Graphic customer display Reliable e. BE DC DM DS DS Service display

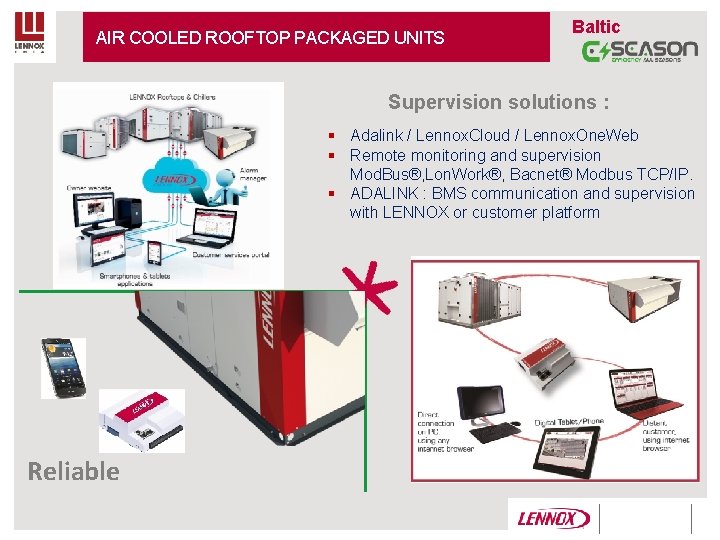

AIR COOLED ROOFTOP PACKAGED UNITS Baltic Supervision solutions : § Adalink / Lennox. Cloud / Lennox. One. Web § Remote monitoring and supervision Mod. Bus®, Lon. Work®, Bacnet® Modbus TCP/IP. § ADALINK : BMS communication and supervision with LENNOX or customer platform Reliable

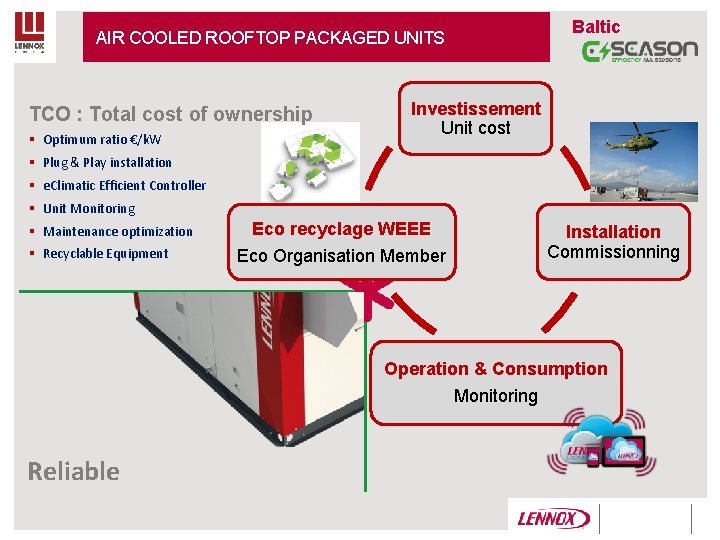

Baltic AIR COOLED ROOFTOP PACKAGED UNITS TCO : Total cost of ownership § Optimum ratio €/k. W Investissement Unit cost § Plug & Play installation § e. Climatic Efficient Controller § Unit Monitoring § Maintenance optimization § Recyclable Equipment Eco recyclage WEEE Installation Commissionning Eco Organisation Member Operation & Consumption Monitoring Reliable

AIR COOLED ROOFTOP PACKAGED UNITS Reliable Baltic
