Balanced Search Trees l BST efficient lookup insertion
Balanced Search Trees l BST: efficient lookup, insertion , deletion Ø Average case: O(log n) for all operations since find is O(log n) [complexity of insert after find is O(1), why? ] Ø Worst case is bad, what's big-Oh? What's the tree shape? Ø If we can guarantee log n in worst case, why might this be preferable to hashing? Properties of search tree? l Balanced Search trees Ø Use rotations to maintain balance, different implementations rotate/rebalance at different times Ø AVL tree is conceptually simple, bookkeeping means coefficient for big-Oh is higher than other ideas Ø Red-black tree harder to code but good performance: basis for Java map classes and most C++ map classes CPS 100 8. 1
Balance trees we won't study l B-trees are used when data is both in memory and on disk Ø File systems, really large data sets Ø Rebalancing guarantees good performance both asymptotically and in practice. Differences between cache, memory, disk are important l Splay trees rebalance during insertion and during search, nodes accessed often more closer to root Ø Other nodes can move further from root, consequences? • Performance for some nodes gets better, for others … Ø CPS 100 No guarantee running time for a single operation, but guaranteed good performance for a sequence of operations, this is good amortized cost (vector push_back) 8. 2
Balanced trees we will study l l l Both kinds have worst-case O(log n) time for tree operations AVL (Adel’son-Velskii and Landis), 1962 Ø Nodes are “height-balanced”, subtree heights differ by 1 Ø Rebalancing requires per-node bookkeeping of height Ø http: //www. seanet. com/users/arsen/avltree. html Red-black tree uses same rotations, but can rebalance in one pass, contrast to AVL tree Ø In AVL case, insert, calculate balance factors, rebalance Ø In Red-black tree can rebalance on the way down, code is more complex, but doable Ø STL in C++ uses red-black tree for map and set classes Ø Standard java. util. Tree. Map/Tree. Set use red-black CPS 100 8. 3
Rotations and balanced trees l l Height-balanced trees Ø For every node, left and right subtree heights differ by at most 1 Ø After insertion/deletion need to rebalance Ø Every operation leaves tree in a balanced state: invariant property of tree Find deepest node that’s unbalanced then make sure: Ø On path from root to inserted/deleted node Ø Rebalance at this unbalanced point only CPS 100 Are these trees heightbalanced? 8. 4
Rotation to rebalance N l N C A B C When a node N (root) is unbalanced height differs by 2 (must be more than one) Ø Change N->left • do. Left Ø Change N->left->right • do. Left. Right Ø Change N->right->left Tree * do. Left(Tree * root) • do. Right. Left { Tree * new. Root = root->left; Ø Change N->right • do. Right root->left = new. Root->right; new. Root->right = root; l First/last cases are symmetric return new. Root; l Middle cases require two rotations } Ø First of the two puts tree into do. Left or do. Right CPS 100 8. 5
Rotation up close (do. Left) l Why is this called do. Left? Ø N will no longer be root, new value in left->left subtree Ø Left child becomes new root l Rotation isn’t “to the left”, but rather “brings left child up” Ø do. Left. Child. Rotate? N N C A B C Tree * do. Left(Tree * root) { Tree * new. Root = root->left; root->left = new. Root->right; new. Root->right = root; return new. Root; } CPS 100 8. 6

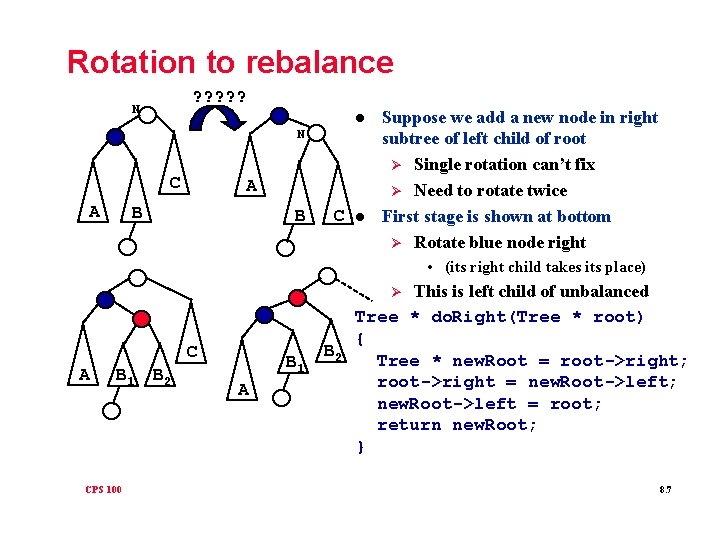

Rotation to rebalance ? ? ? N l N C A A B B C l Suppose we add a new node in right subtree of left child of root Ø Single rotation can’t fix Ø Need to rotate twice First stage is shown at bottom Ø Rotate blue node right • (its right child takes its place) This is left child of unbalanced Tree * do. Right(Tree * root) { Tree * new. Root = root->right; root->right = new. Root->left; new. Root->left = root; return new. Root; } Ø C A B 1 CPS 100 B 2 B 1 A B 2 8. 7
Double rotation complete l Calculate where to rotate and what case, do the rotations Tree * do. Right(Tree * root) { Tree * new. Root = root->right; root->right = new. Root->left; new. Root->left = root; return new. Root; } Tree * do. Left(Tree * root) { Tree * new. Root = root->left; root->left = new. Root->right; new. Root->right = root; return new. Root; } CPS 100 C A B 1 B 2 C A B 1 A B 2 C 8. 8
AVL tree practice Insert into AVL tree: Ø 18 10 16 12 6 3 8 13 14 Ø After adding 16: do. Left. Rightdo. Left l 18 18 10 do. Right 16 10 10 18 16 16 10 10 18 6 18 12 10 After 16 3, do. Left on 16 10 10 6 16 16 10 Ø 18 18 12 6 3 6 16 12 18 3 16 8 12 18 3 CPS 100 8. 9

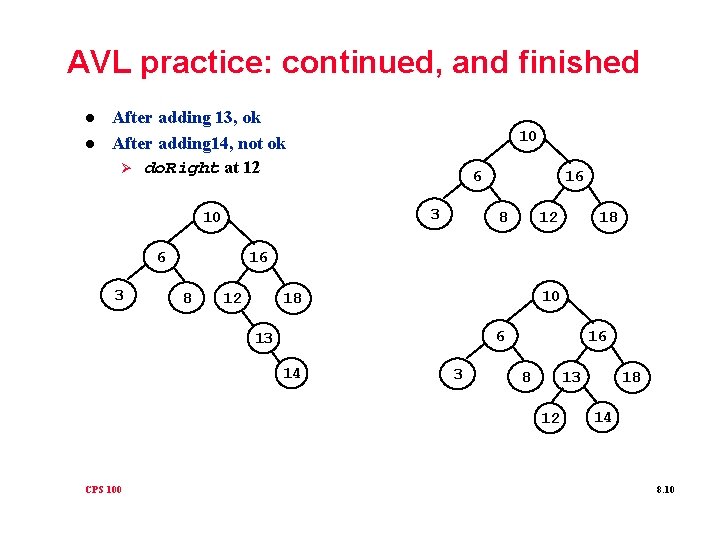

AVL practice: continued, and finished l l After adding 13, ok After adding 14, not ok Ø do. Right at 12 6 3 10 16 8 12 10 18 6 13 14 3 16 8 13 12 CPS 100 18 18 14 8. 10
Trie: efficient search of words/suffixes l A trie (from retrieval, but pronounced “try”) supports Ø Insertion: a word into the trie (delete and look up) Ø These operations are O(size of string) regardless of how many strings are stored in the trie! Guaranteed! l In some ways a trie is like a 128 (or 26 or alphabet-size) tree, one branch/edge for each character/letter Ø Node stores branches to other nodes Ø Node stores whether it ends the string from root to it l Extremely useful in DNA/string processing Ø monkeys and typewriter simulation which is similar to some methods used in Natural Language understanding (n-gram methods) CPS 100 8. 11
Trie picture and code (see trie. cpp) l l To add string Ø Start at root, for each char create node as needed, go down tree, mark last node To find string Ø Start at root, follow links a c s n h a r a s t r p a c d o • If NULL, not found Check word flag at end To print all nodes Ø Visit every node, build string as nodes traversed What about union and intersection? Ø l l CPS 100 Indicates word ends here 8. 12
Boggle: Tries, backtracking, structure Find words on 4 x 4 grid l Adjacent letters: Ø f g h i j m l No re-use in same word k l Two approaches to find all words l Try to form every word on board Ø Look up prefix as you go • Trie is useful for prefixes l l H E S I W L B D A B I M Z E V S Look up every word in dictionary Ø For each word: on board? ZEAL and SMILES CPS 100 8. 13
Search board for word: trieboggle. cpp void search(int row, int col, Trie. Node * t, string so. Far) // pre: row, col are on board, so. Far is valid prefix, // string constructed on board during current search // t represents the path in the trie of so. Far { if (!legal(row, col) || is. Visited(row, col) ) return; char ch = my. Board[row][col]; // check if still a prefix Node * child = t->links[ch]; if (child == 0) return; // NOT a prefix, stop // still prefix, continue mark. Visited(row, col); // don’t revisit string new. Prefix = word + ch; if (child->is. Word) cout << new. Prefix << endl; } CPS 100 do. Find(row-1, col-1, child, new. Prefix); do. Find(row-1, col+1, child, new. Prefix); un. Visit(row, col); // // up-left straight up still 5 more calls now ok to revisit 8. 14
Search for all words: boggle. cpp bool word. Found(const string& s, const Point& p) // pre: s is suffix of word searched for, prefix so far // is found and last letter of found prefix at p(row, col) { if (s. length() == 0) return true; // no more suffix, done tvector<Point> points = my. Points. For(s[0]); } for(int k=0; k < points. size(); k++) { Point next. P = points[k]; if (Is. Adjacent(p, next. P) && ! is. Visited(next. P)) { mark. Visited(next. P); // don’t visit again if (word. Found(s. substr(1, s. length()-1), next. P)) { return true; } un. Visit(next. P); // ok to visit again } } return false; // tried to find s, failed in all attempts CPS 100 8. 15
