Balanced Search Trees • Balanced search tree: A search-tree data structure for which a height of O(lg n) is guaranteed when implementing a dynamic set of n items. • Examples: • • AVL trees 2 -3 trees B-trees Red-black trees • Treaps and Randomized Binary Search Trees
Red-black trees • A binary search tree with an extra bit of storage per node: it’s color • Color can be red or black • Tree is approximately balanced such that no path is more than twice as long as any other • Properties: • • • Every node is red or black The root is black Leaves are nil nodes that are black If a node is red then both its children are black For each node, all simple paths from the node to descendant leaves contain the same number of black nodes

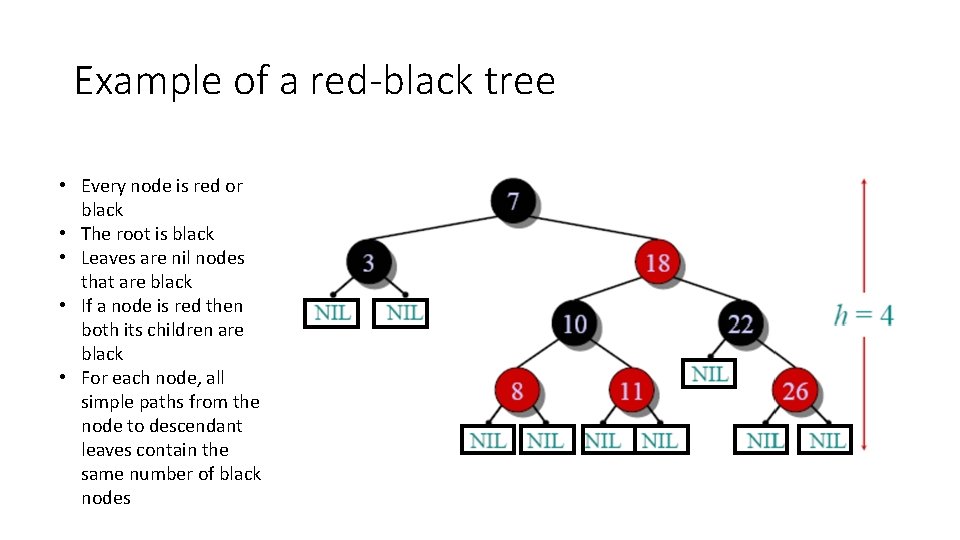

Example of a red-black tree • Every node is red or black • The root is black • Leaves are nil nodes that are black • If a node is red then both its children are black • For each node, all simple paths from the node to descendant leaves contain the same number of black nodes
Height of a red-black tree • Theorem • A red-black tree with n internal nodes (non-nil, nodes with keys) has height h <= 2 lg(n+1) • Intuitive argument: Merge red nodes into their black parents
Height of a red-black tree • Resulting tree is a 2 -3 -4 tree where each node has 2, 3, or 4 children • The 2 -3 -4 tree has uniform depth h’ of leaves
Height of a red-black tree • Since at most half of the leaves on any path are red we must have • h’ >= h/2 • Note that the number of leaves in each tree is n+1 • n+1 >= 2 h’ (from the black height of each node) • lg(n+1) >= h’ >= h/2 • h < 2 lg(n+1)

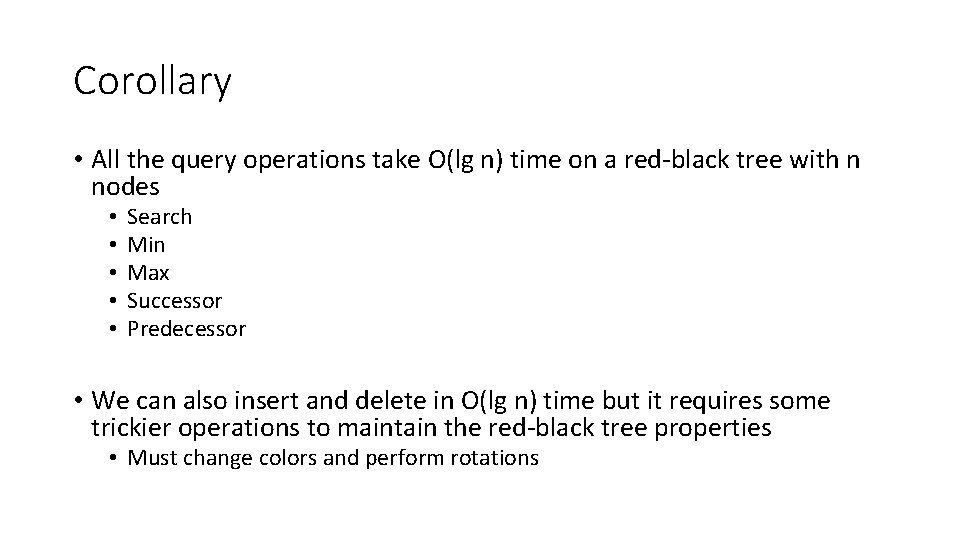

Corollary • All the query operations take O(lg n) time on a red-black tree with n nodes • • • Search Min Max Successor Predecessor • We can also insert and delete in O(lg n) time but it requires some trickier operations to maintain the red-black tree properties • Must change colors and perform rotations

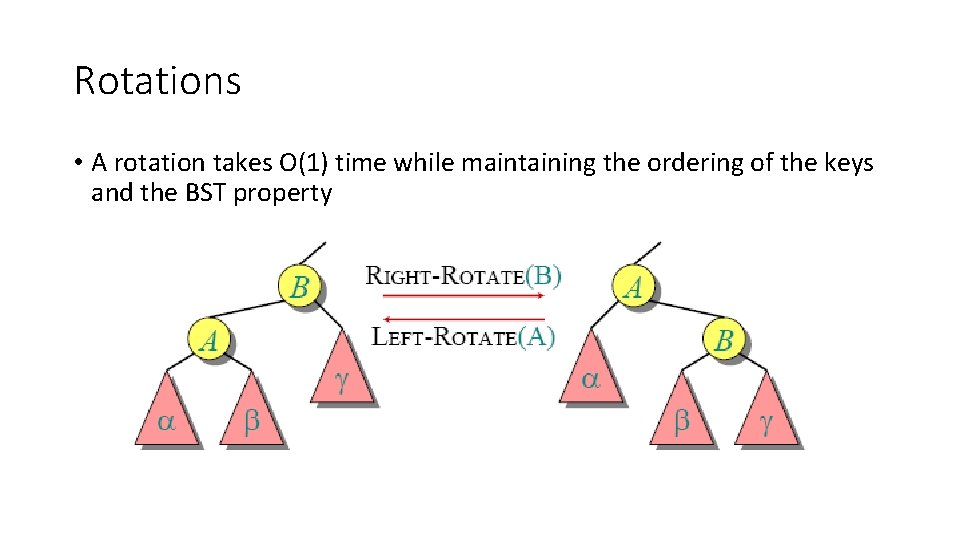

Rotations • A rotation takes O(1) time while maintaining the ordering of the keys and the BST property

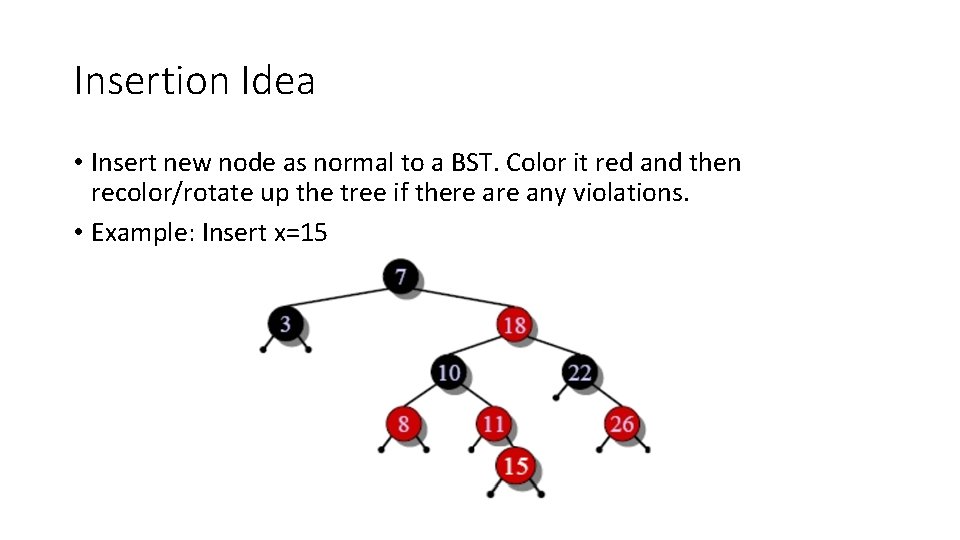

Insertion Idea • Insert new node as normal to a BST. Color it red and then recolor/rotate up the tree if there any violations. • Example: Insert x=15

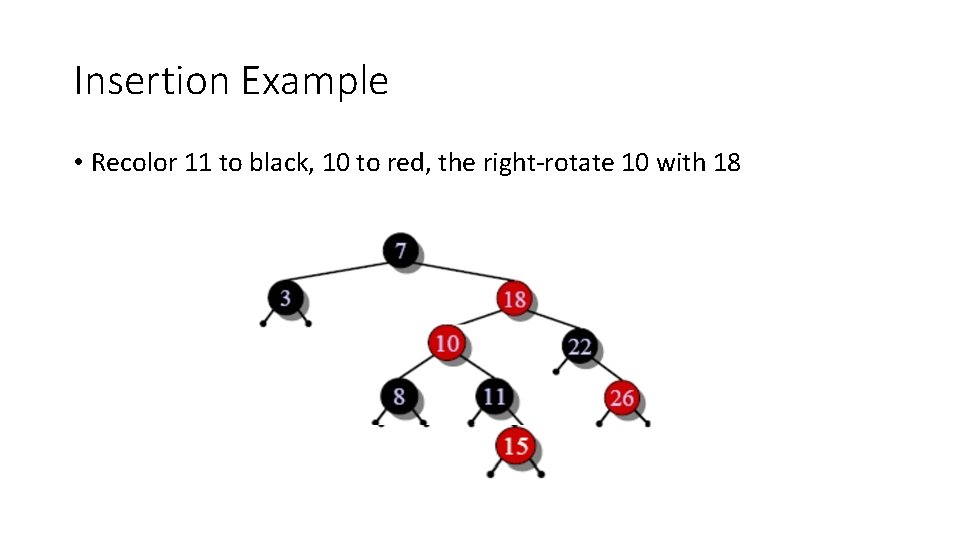

Insertion Example • Recolor 11 to black, 10 to red, the right-rotate 10 with 18
Insertion Example • Recolor, left-rotate 10 with 7 and recolor
Final Tree
Analysis • Code is a bit messy with special cases – see online for details • Can perform O(1) rotations moving up the tree for O(lg n) insertions • Overall O(lg n) runtime • Deletion also O(lg n) time • Similar special cases to consider
Randomized Data Structures • If we have random input data then we get expected good performance on binary search trees • BUT on particular inputs we can get bad behavior • Idea: • When you can’t randomize the input, randomize the data structure • Gives expected random behavior, which is O(lg n) for BST, on any input!

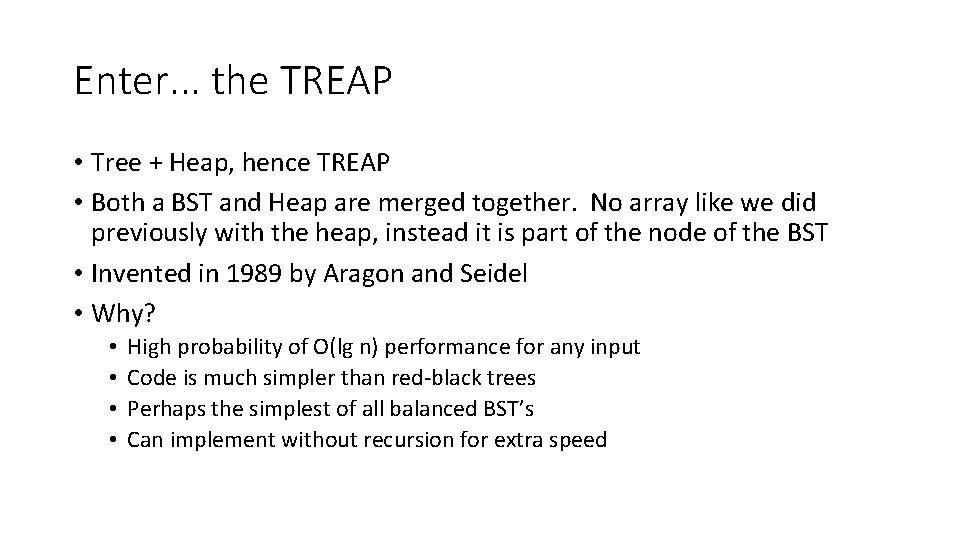

Enter. . . the TREAP • Tree + Heap, hence TREAP • Both a BST and Heap are merged together. No array like we did previously with the heap, instead it is part of the node of the BST • Invented in 1989 by Aragon and Seidel • Why? • • High probability of O(lg n) performance for any input Code is much simpler than red-black trees Perhaps the simplest of all balanced BST’s Can implement without recursion for extra speed

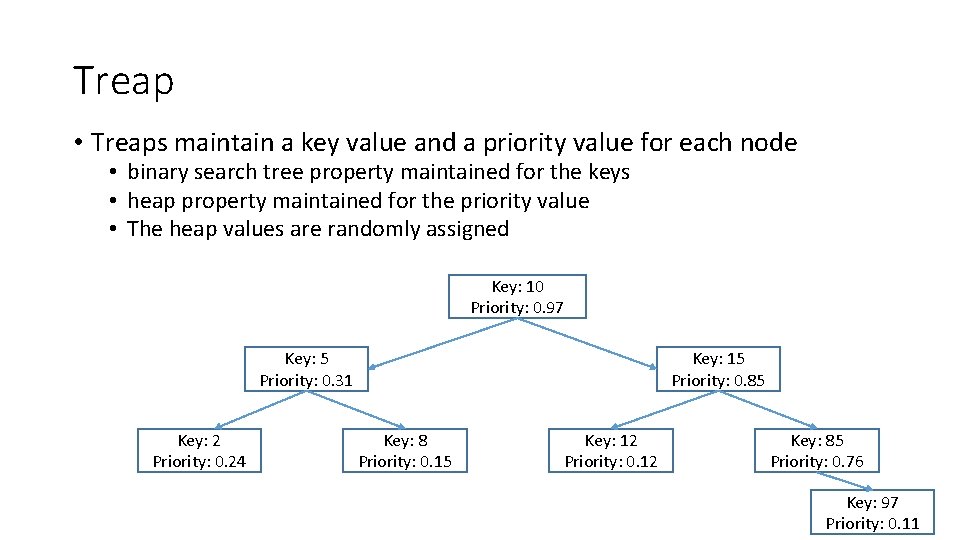

Treap • Treaps maintain a key value and a priority value for each node • binary search tree property maintained for the keys • heap property maintained for the priority value • The heap values are randomly assigned Key: 10 Priority: 0. 97 Key: 5 Priority: 0. 31 Key: 2 Priority: 0. 24 Key: 15 Priority: 0. 85 Key: 8 Priority: 0. 15 Key: 12 Priority: 0. 12 Key: 85 Priority: 0. 76 Key: 97 Priority: 0. 11
Treap Insert • Choose a random priority (in our example between 0 -1) • Insert like normal into the BST • Rotate up until heap order is restored • Note that rotations preserve the heap property AND the BST property! • Example, insert key=20, priority=0. 5 Key: 5 Priority: 0. 31 Key: 2 Priority: 0. 24 Key: 4 Priority: 0. 13 Key: 8 Priority: 0. 15 Key: 20 Priority: 0. 5

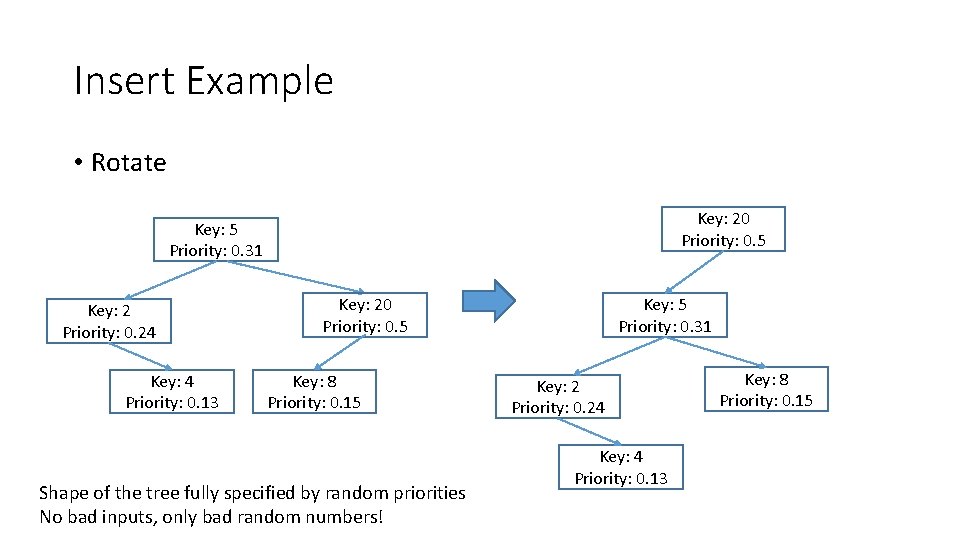

Insert Example • Rotate Key: 20 Priority: 0. 5 Key: 5 Priority: 0. 31 Key: 2 Priority: 0. 24 Key: 4 Priority: 0. 13 Key: 5 Priority: 0. 31 Key: 20 Priority: 0. 5 Key: 8 Priority: 0. 15 Shape of the tree fully specified by random priorities No bad inputs, only bad random numbers! Key: 2 Priority: 0. 24 Key: 4 Priority: 0. 13 Key: 8 Priority: 0. 15
Delete • To delete a node: • • Find the node X to delete via BST search If X is a leaf, just delete it If X has only one child, rotate the child up and delete X If X has two children, rotate with child that has the largest priority, maintaining the BST property with the key, and then recursively delete X
Delete Example • Delete Key 15 Key: 10 Priority: 0. 97 Key: 5 Priority: 0. 31 Key: 2 Priority: 0. 24 Key: 15 Priority: 0. 85 Key: 8 Priority: 0. 15 Key: 12 Priority: 0. 10 Key: 85 Priority: 0. 76 Key: 97 Priority: 0. 11 Rotate with Key 85 Priority 0. 76

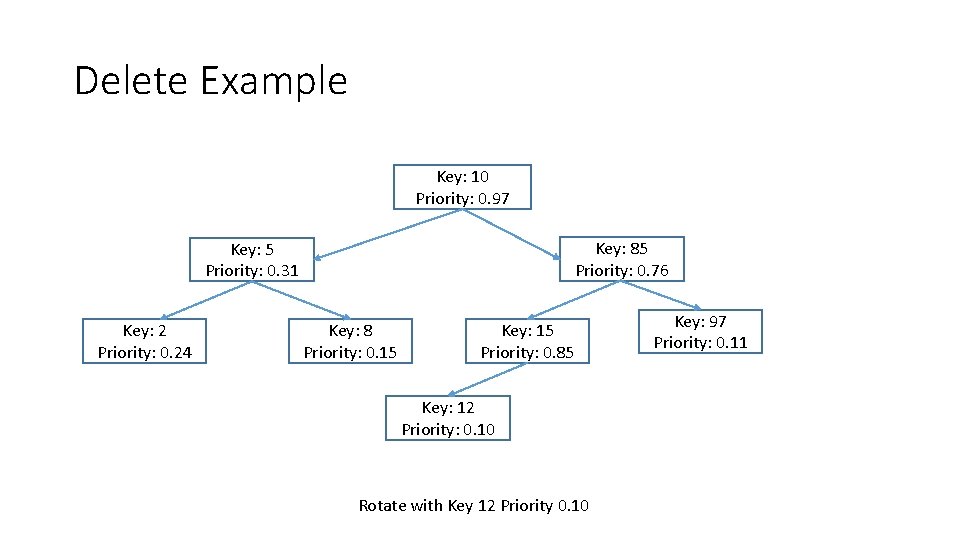

Delete Example Key: 10 Priority: 0. 97 Key: 85 Priority: 0. 76 Key: 5 Priority: 0. 31 Key: 2 Priority: 0. 24 Key: 8 Priority: 0. 15 Key: 15 Priority: 0. 85 Key: 12 Priority: 0. 10 Rotate with Key 12 Priority 0. 10 Key: 97 Priority: 0. 11

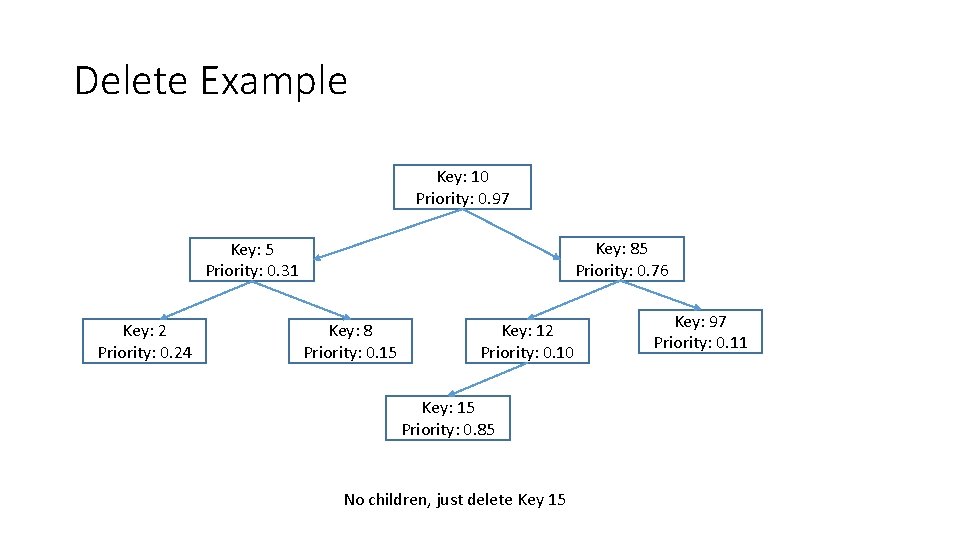

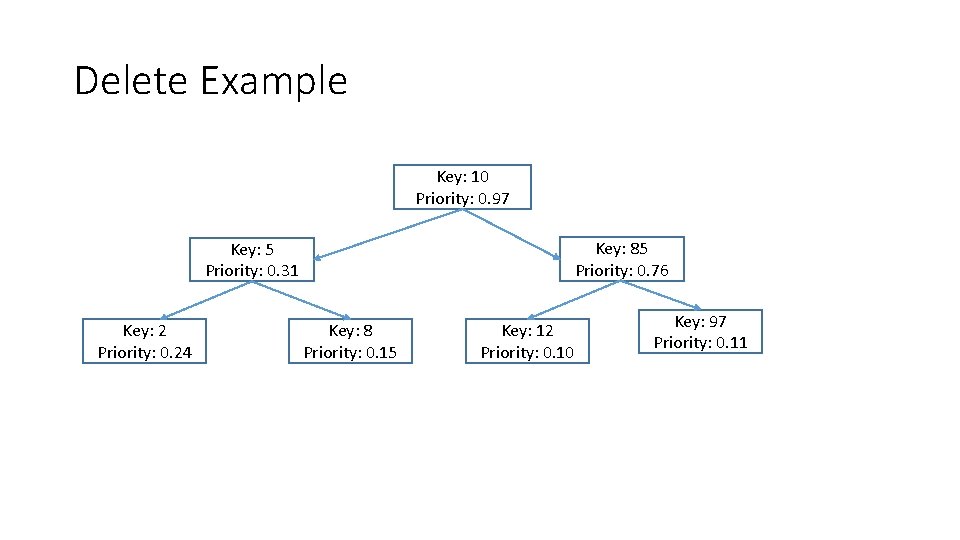

Delete Example Key: 10 Priority: 0. 97 Key: 85 Priority: 0. 76 Key: 5 Priority: 0. 31 Key: 2 Priority: 0. 24 Key: 8 Priority: 0. 15 Key: 12 Priority: 0. 10 Key: 15 Priority: 0. 85 No children, just delete Key 15 Key: 97 Priority: 0. 11
Delete Example Key: 10 Priority: 0. 97 Key: 85 Priority: 0. 76 Key: 5 Priority: 0. 31 Key: 2 Priority: 0. 24 Key: 8 Priority: 0. 15 Key: 12 Priority: 0. 10 Key: 97 Priority: 0. 11
Treap Applet • https: //www. ibr. cs. tu-bs. de/courses/ss 98/audii/applets/BST/Treap. Example. html • Java applet so kind of hard to run nowadays (could still run in IE after editing Java Console permissions)
Treap Summary • Implements Binary Search Tree • At a more abstract level, a Dictionary – fast to insert, retrieve, delete • Insert, Delete, and Find in expected O(log n) time • Worst case O(n) but extremely unlikely • Memory use O(1) per node • Relatively simple to implement, much less overhead than red-black or AVL trees
