Balanced and Unbalanced Forces What is a force

Balanced and Unbalanced Forces

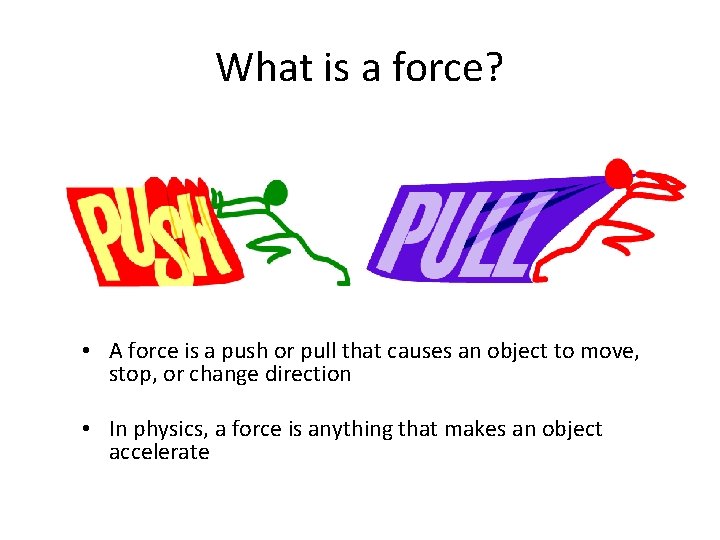

What is a force? • A force is a push or pull that causes an object to move, stop, or change direction • In physics, a force is anything that makes an object accelerate

Balanced and Unbalanced Forces • Forces occur in pairs and they can be either balanced or unbalanced

What unit is used? ! NEWTONS (N) Thank you, Sir Isaac Newton!

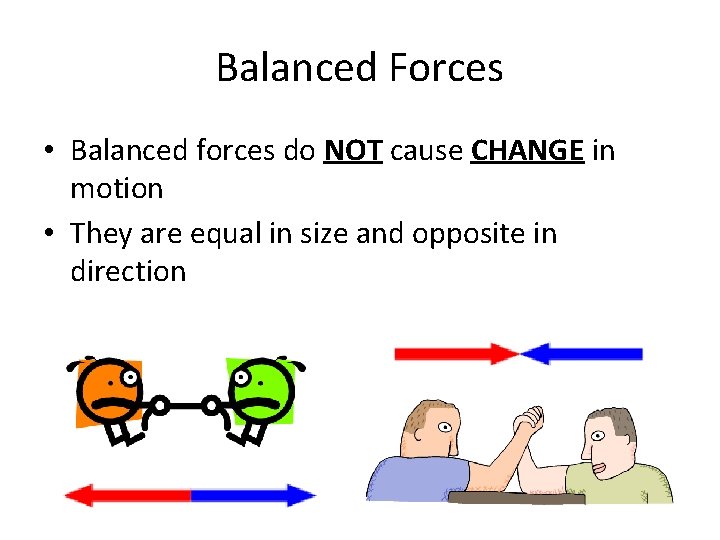

Balanced Forces • Balanced forces do NOT cause CHANGE in motion • They are equal in size and opposite in direction

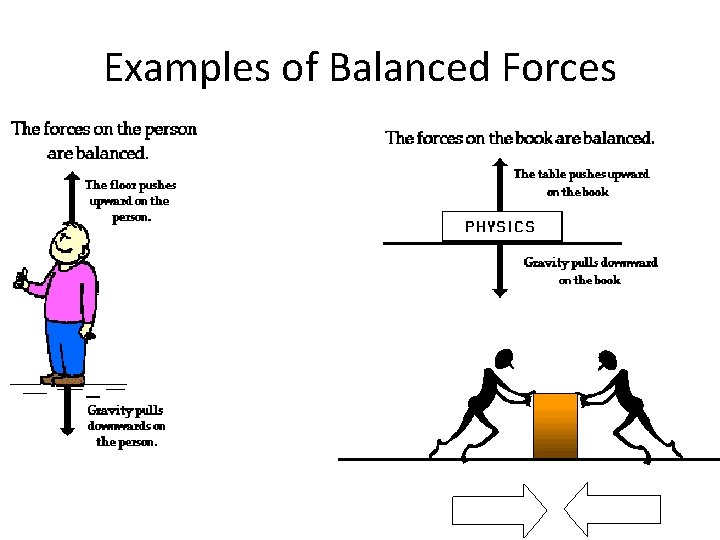

Examples of Balanced Forces

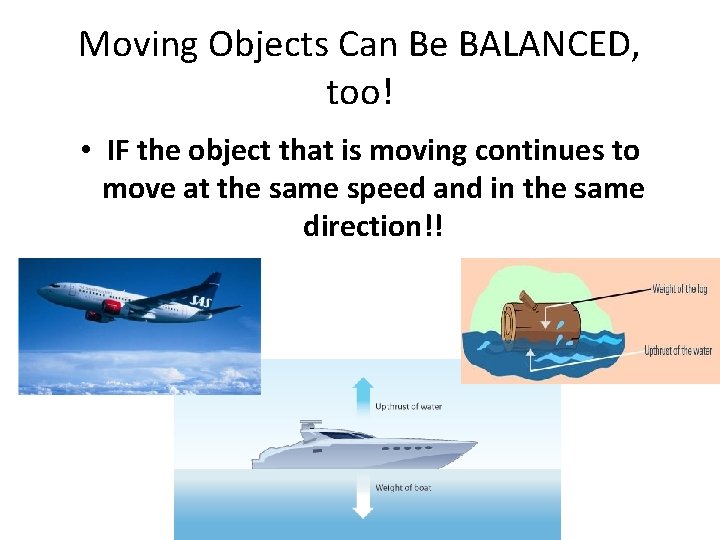

Moving Objects Can Be BALANCED, too! • IF the object that is moving continues to move at the same speed and in the same direction!!

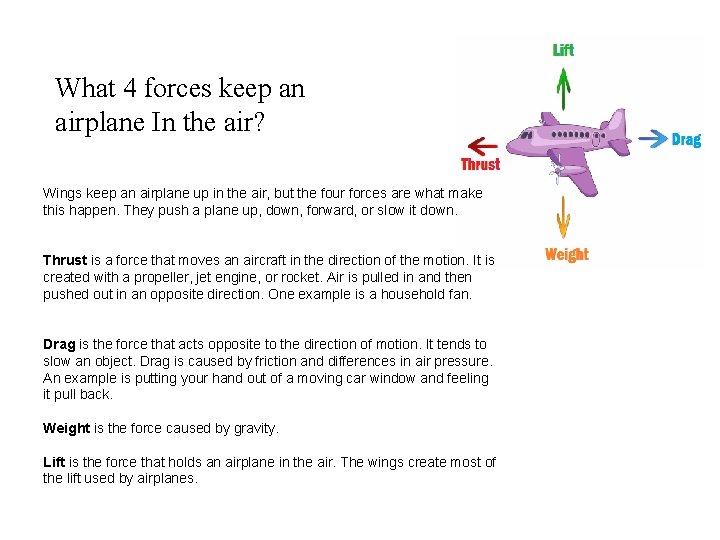

What 4 forces keep an airplane In the air? Wings keep an airplane up in the air, but the four forces are what make this happen. They push a plane up, down, forward, or slow it down. Thrust is a force that moves an aircraft in the direction of the motion. It is created with a propeller, jet engine, or rocket. Air is pulled in and then pushed out in an opposite direction. One example is a household fan. Drag is the force that acts opposite to the direction of motion. It tends to slow an object. Drag is caused by friction and differences in air pressure. An example is putting your hand out of a moving car window and feeling it pull back. Weight is the force caused by gravity. Lift is the force that holds an airplane in the air. The wings create most of the lift used by airplanes.

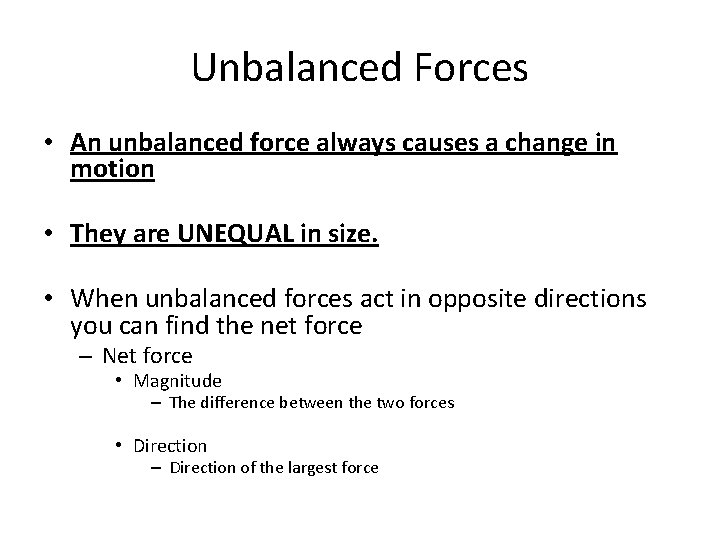

Unbalanced Forces • An unbalanced force always causes a change in motion • They are UNEQUAL in size. • When unbalanced forces act in opposite directions you can find the net force – Net force • Magnitude – The difference between the two forces • Direction – Direction of the largest force

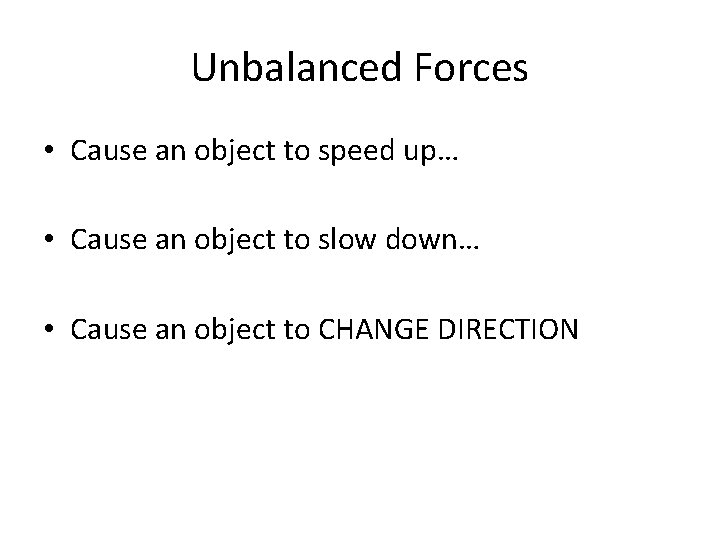

Unbalanced Forces • Cause an object to speed up… • Cause an object to slow down… • Cause an object to CHANGE DIRECTION

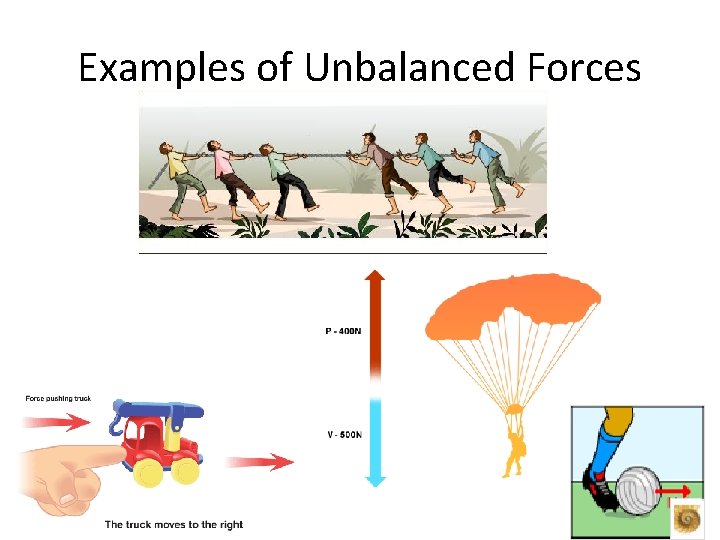

Examples of Unbalanced Forces

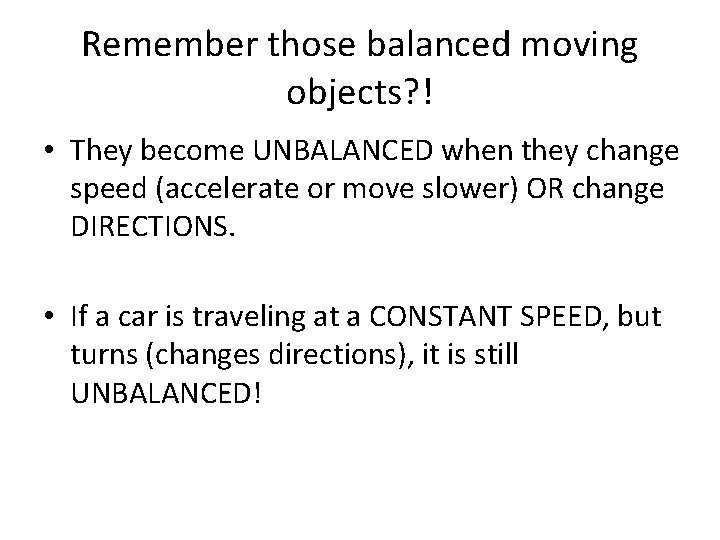

Remember those balanced moving objects? ! • They become UNBALANCED when they change speed (accelerate or move slower) OR change DIRECTIONS. • If a car is traveling at a CONSTANT SPEED, but turns (changes directions), it is still UNBALANCED!

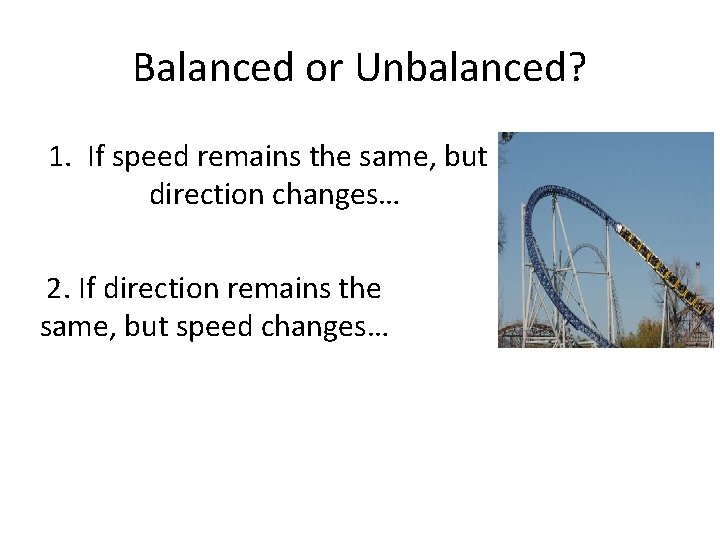

Balanced or Unbalanced? 1. If speed remains the same, but direction changes… 2. If direction remains the same, but speed changes…

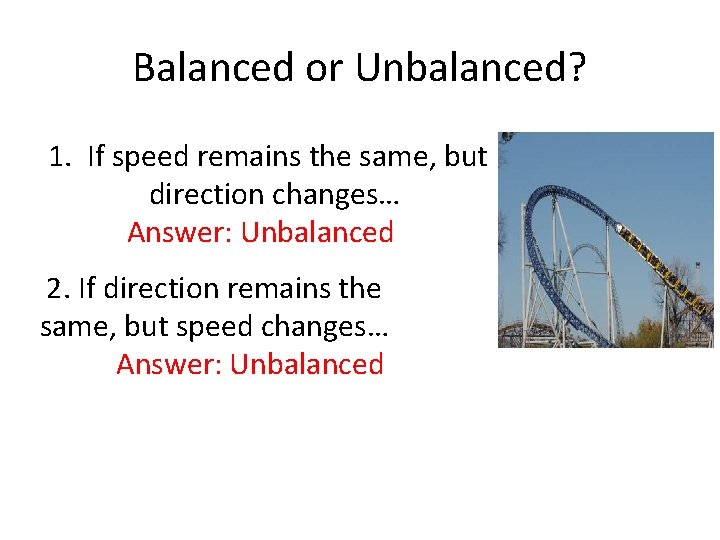

Balanced or Unbalanced? 1. If speed remains the same, but direction changes… Answer: Unbalanced 2. If direction remains the same, but speed changes… Answer: Unbalanced

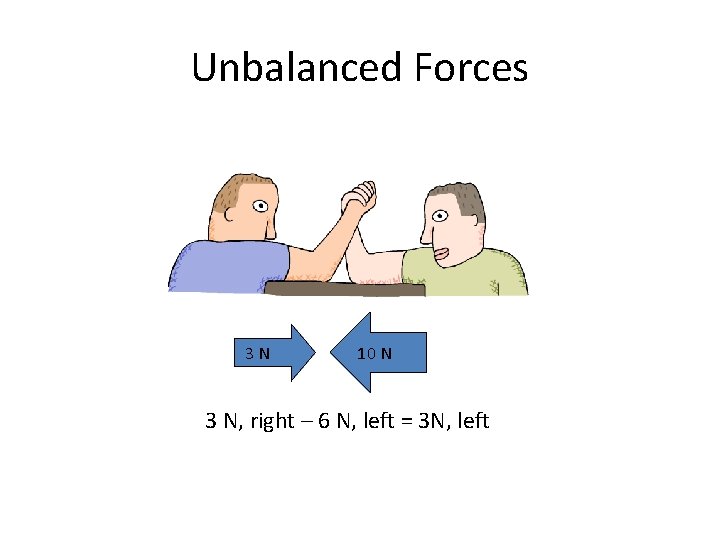

Unbalanced Forces 3 N 10 N 3 N, right – 6 N, left = 3 N, left

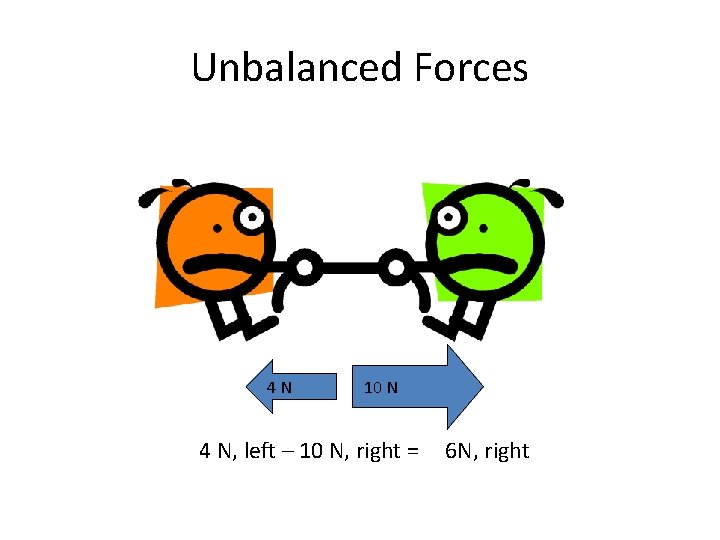

Unbalanced Forces 4 N 10 N 4 N, left – 10 N, right = 6 N, right

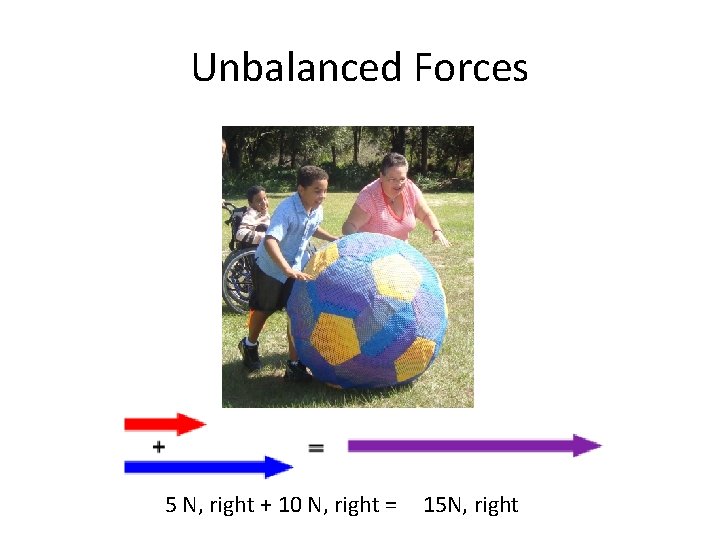

Unbalanced Forces 5 N, right + 10 N, right = 15 N, right

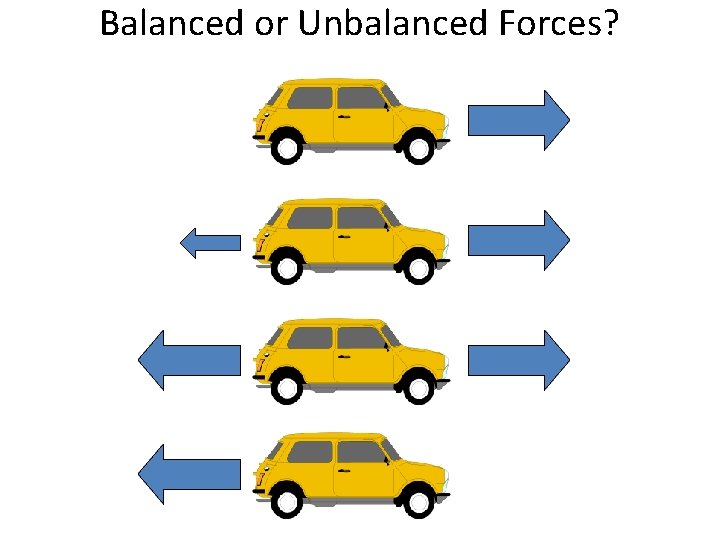

Balanced or Unbalanced Forces?
