Balanced and Unbalanced Forces

Here’s Tim & Mobey on Force o Brainpop

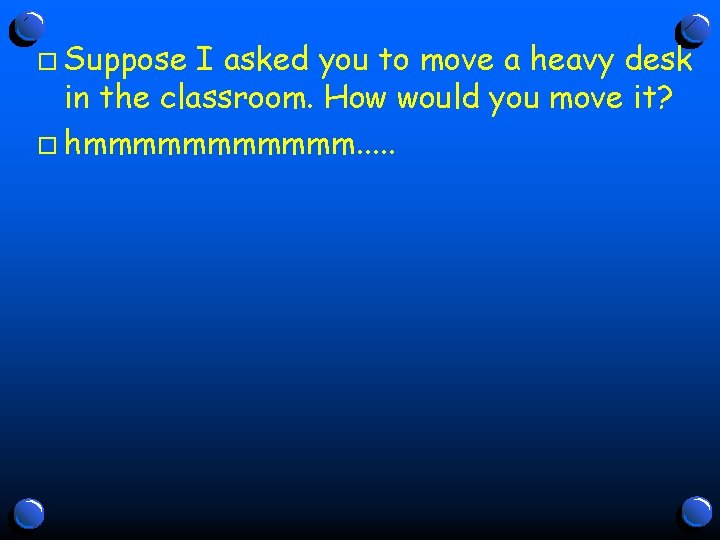

o Suppose I asked you to move a heavy desk in the classroom. How would you move it? o hmmmmmm. . .

You might get on one side of the desk and start pushing, Or you might grab the legs and start pulling. o Either way, you would be using a force. o Any push or pull is a force. o The force you use in pushing or pulling the desk has a size. o You could use a small amount of force or a lot of force. Forces differ in size. o Another way forces differ is in direction. o A force can be left or right, up or down. o

o The desk will not move by itself. o We need to remember an object at rest tends to stay at rest and an object in motion tends to stay in motion with the same speed and in the same direction unless acted upon by an unbalanced force. o A force is needed to put the desk in motion.

o But what exactly is meant by the phrase unbalanced force? o What is an unbalanced force? o In pursuit of an answer, we will first consider a physics book at rest on a table top.

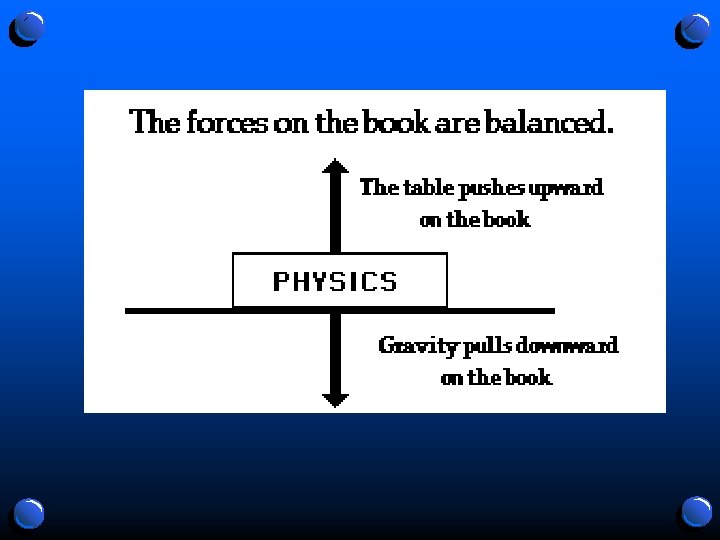

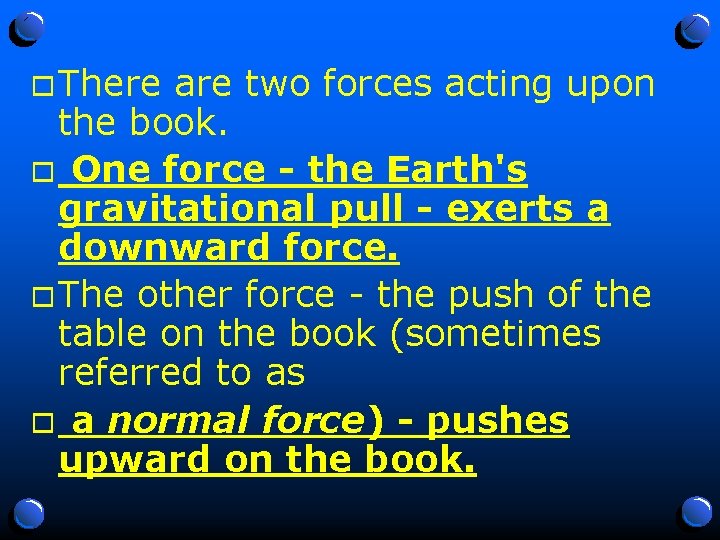

o There are two forces acting upon the book. o One force - the Earth's gravitational pull - exerts a downward force. o The other force - the push of the table on the book (sometimes referred to as o a normal force) - pushes upward on the book.

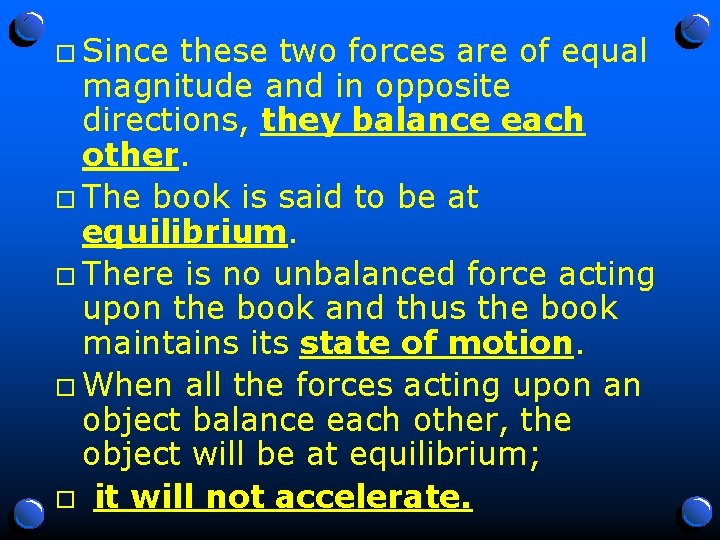

o Since these two forces are of equal magnitude and in opposite directions, they balance each other. o The book is said to be at equilibrium. o There is no unbalanced force acting upon the book and thus the book maintains its state of motion. o When all the forces acting upon an object balance each other, the object will be at equilibrium; o it will not accelerate.

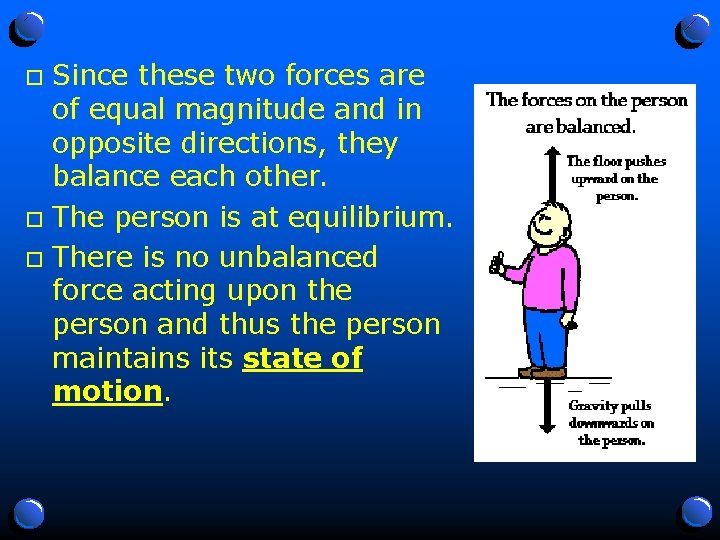

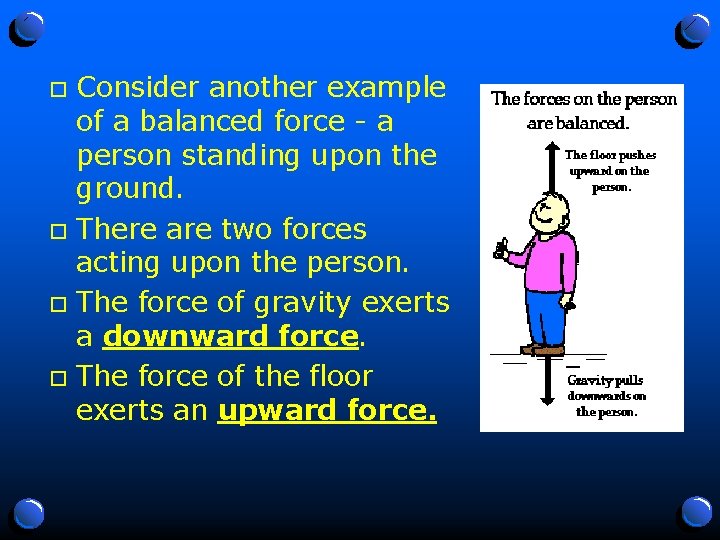

Consider another example of a balanced force - a person standing upon the ground. o There are two forces acting upon the person. o The force of gravity exerts a downward force. o The force of the floor exerts an upward force. o

Since these two forces are of equal magnitude and in opposite directions, they balance each other. o The person is at equilibrium. o There is no unbalanced force acting upon the person and thus the person maintains its state of motion. o

Now consider a book sliding from left to right across a table top. o Sometime in the prior history of the book, it may have been given a shove and set in motion from a rest position. o Or perhaps it acquired its motion by sliding down an incline from an elevated position. o

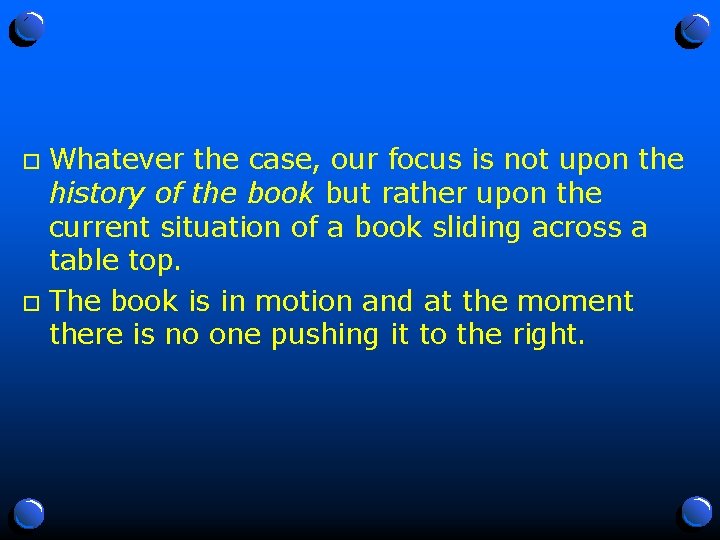

Whatever the case, our focus is not upon the history of the book but rather upon the current situation of a book sliding across a table top. o The book is in motion and at the moment there is no one pushing it to the right. o

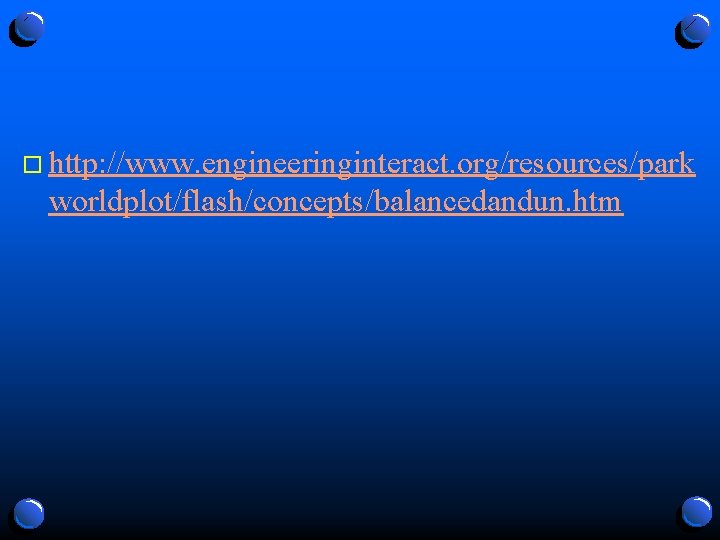

o http: //www. engineeringinteract. org/resources/park worldplot/flash/concepts/balancedandun. htm

o (Remember: a force is not needed to keep a moving object moving to the right. )

o The force of gravity pulling downward and the force of the table pushing upwards on the book are of equal magnitude and opposite directions. o These two forces balance each other.

o. Yet there is no force present to balance the force of friction.

o As the book moves to the right, friction acts to the left to slow the book down. o There is an unbalanced force; and as such, the book changes its state of motion.

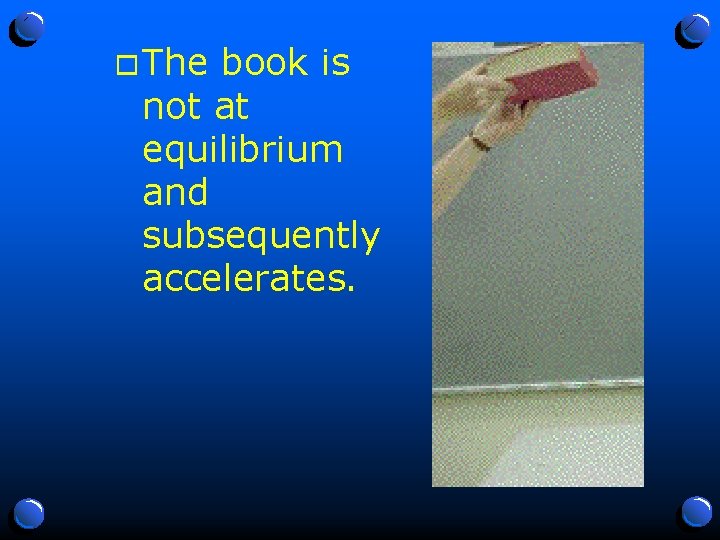

o The book is not at equilibrium and subsequently accelerates.

o Unbalanced forces cause accelerations. o In this case, since the unbalanced force is directed opposite the object's motion, it will cause a deceleration (a slowing down of the object). o To determine if the forces acting upon an object is balanced or unbalanced, an analysis must first be conducted to determine what forces are acting upon the object and in what direction.

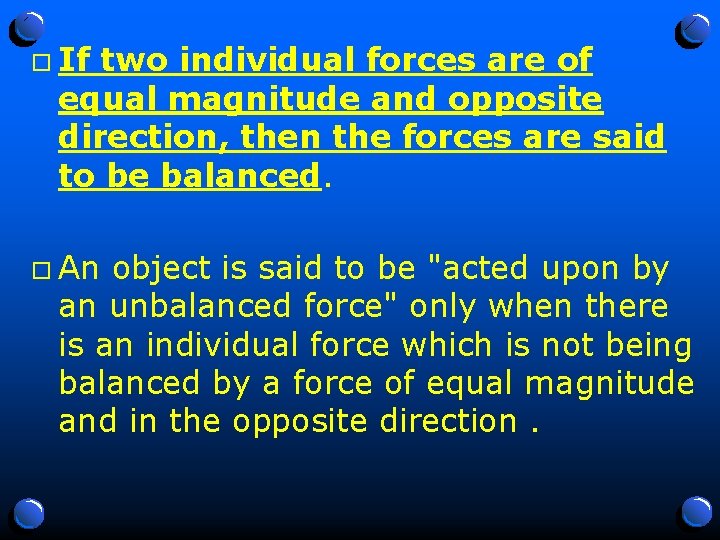

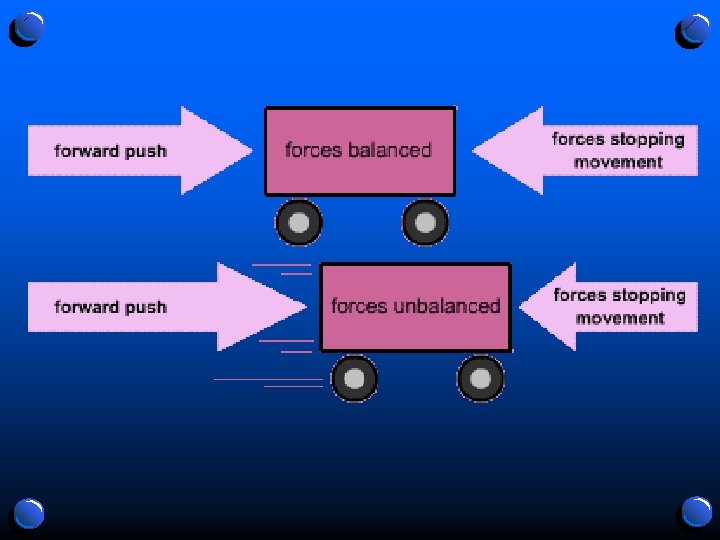

o If two individual forces are of equal magnitude and opposite direction, then the forces are said to be balanced. o An object is said to be "acted upon by an unbalanced force" only when there is an individual force which is not being balanced by a force of equal magnitude and in the opposite direction.

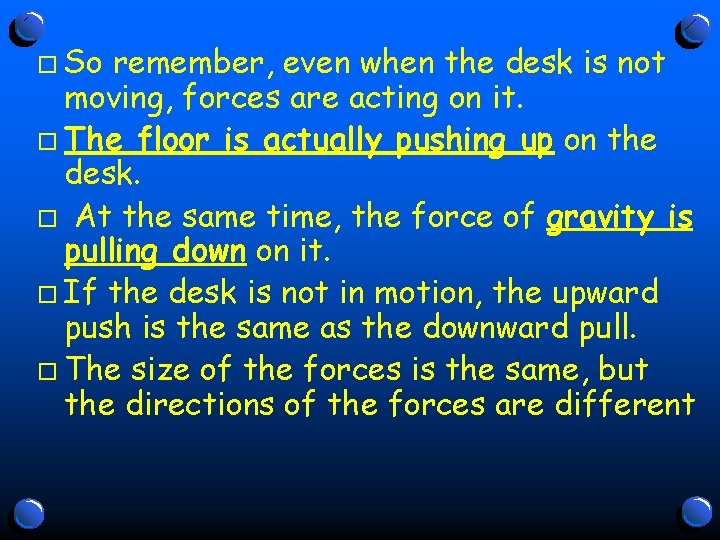

o So remember, even when the desk is not moving, forces are acting on it. o The floor is actually pushing up on the desk. o At the same time, the force of gravity is pulling down on it. o If the desk is not in motion, the upward push is the same as the downward pull. o The size of the forces is the same, but the directions of the forces are different

o. Whenever forces are the same in size but opposite in direction, o they are balanced forces. o An object that is NOT in motion will never move if balanced forces act on it.

o How can you move the desk? o You can move it because you unbalance the forces. o The size of your force is greater than the forces of air pushing on the other side of the desk. o Unbalanced forces act on an object, o the object will always move in the direction of the greater force.

Forces & Motion
