Local Cuisine One evening during a trip to Indonesia to study the recent sightings of a coelacanth, Dr. Marshall Westwood from the Montana Technical Institute a meal of pufferfish. 2

Within an hour of returning to his hotel room, he: • felt numbness in his lips and tongue – which quickly spread to his face and neck. • began to feel pains in his stomach and throat – which produced feelings of nausea and eventually severe vomiting. 3

Dr. Westwood called a local hospital. Numbness in his lips and face made it almost impossible for him to communicate, but the hospital staff sent an ambulance. 4

As Dr. Westwood was rushed to the hospital, he had: – trouble breathing; – signs of paralysis in his upper body and arms. 5

The Physicians… • kept his airway open. • administered drugs to bring his heart back to a normal rhythm. • put a mixture of charcoal into his stomach to help absorb any chemicals that might still be there. 6

Within a few hours, Dr. Westwood's condition improved and he was on his way to a full recovery. After discussing his case with his physician, he learned that he had probably been the victim of a pufferfish poisoning. 7

POISONED! • The active toxin in the tissues of this fish is a chemical called tetrodotoxin. • Tetrodotoxin is a neurotoxin - it affects nerve cells (neurons). • Specifically, tetrodotoxin blocks voltage-gated sodium ion channels. 8

CQ#1: The symptoms Dr. Westwood suffered included all of the following EXCEPT: A. Fever and chills B. Numbness C. Paralysis D. Difficulty breathing E. Nausea and vomiting 9

CQ#2: According to what you know so far, voltage-gated sodium ion channels are found in: A. Cells of pufferfish B. All living cells C. Epithelial cells D. Nerve cells E. None of the above 10

A. Part A B. Part B C. Part C D. Part D E. Part E Membrane Voltage (m. V) CQ#3: If tetrodotoxin (TXX) blocks voltagegated sodium ion channels, which part of the action potential graph would be impacted? 30 C D 0 B -55 -70 E A TIME 11

The Charge Across Cell Membranes • All cells have an electrical potential difference across their plasma membrane. – Called a MEMBRANE POTENTIAL • The cell’s inside is negative relative to the outside. • Sodium (Na+) potassium (K+) and large anions (A -) are important in maintaining the membrane potential. Na+ K+ Na+ Extracellular K+ Na+ Na+ Neuron Cell Membrane K+ A- Intracellular AK+ AA- K+ Na+ K+ K+ K+ AAAAK+ AAAA 12

The Charge Across Cell Membranes • The interior of a cell’s membrane is hydrophobic and repels ions and molecules with charge. • In order for an ion to cross the membrane, it must use a channel that facilitates its movement. Na+ K+ Na+ Extracellular Na+ K+ Na+ Na+ Na+ K+ K+ Na+ Neuron Cell Membrane Na+ AK+ A- Intracellular AK+ AA- K+ Na+ K+ K+ K+ AAAAK+ AAAA 13

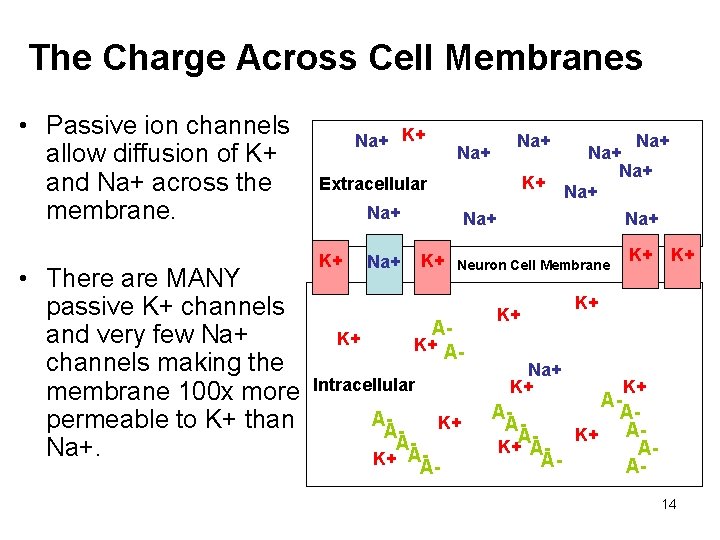

The Charge Across Cell Membranes • Passive ion channels allow diffusion of K+ and Na+ across the membrane. Na+ K+ Extracellular Na+ K+ Na+ Na+ Na+ K+ Neuron Cell Membrane • There are MANY passive K+ channels Aand very few Na+ K+ K+ Achannels making the membrane 100 x more Intracellular Apermeable to K+ than K+ AANa+. K+ AA- Na+ K+ K+ K+ AAAAK+ AAAA 14

CQ#4: The movement of charged ions based on concentration gradients when the nerve is at rest…. Examine the figure to the right and predict the direction Na+ and K+ will move via diffusion based on concentration if all ion channels are open. A. Both Na+ and K+ will move OUT of the cell. B. Both Na+ and K+ will move INTO the cell. C. Na+ will move OUT and K+ will move INTO the cell. D. Na+ will move IN and K+ will move OUT of the cell. E. Neither Na+ nor K+ will move across the cell membrane via diffusion. Extracellular Na+ K+ 150 m. M 5 m. M Neuron Cell Membrane A 110 m. M Na+ 15 m. M K+ 150 m. M Intracellular 15

Resting Potential in Neurons Diffusion of K+ (and less Na+) leads to a separation of charges across the membrane, and the resting potential. – Remember: There are MANY K+ and very few Na+ channels, thus membrane permeability is 100 x for K+ than Na+. – Movement of K+ increases Thus an ELECTRICAL the positive charge outside gradient is formed that the membrane relative to can also influence ion flow. the inside. 16

Maintaining the Resting Potential: the Sodium-Potassium Pump • The pump moves three sodium (Na+) ions out of the cell for every two potassium (K+) ions that it brings in. • This helps the cell maintain a separation of charges. 17

Resting Potential Membrane Voltage (m. V) 30 At Resting Potential, the inside of the neuron is negative relative to the outside and is thus polarized. (-70 Mv). 0 -55 -70 TIME 18

Action Potentials: How Nerves Communicate • Neurons are specialized to use changes in membrane potential for fast communication- called an ACTION POTENTIAL. • Neurons have special gated ion channels, that open or close in response to stimuli. • Membrane potential may change in response to stimuli that open or close those channels. 19

If a cell starts at resting potential (-70 mv), and then is stimulated: A. The membrane voltage will become < -70 m. V, because Na+ will move OUT of the cell B. The membrane voltage will become >-70 m. V, because Na+ will move OUT of the cell. C. The membrane voltage will become < -70 m. V because Na+ will move INTO the cell D. The membrane voltage will become >-70 m. V because Na+ will move INTO the cell. Membrane Voltage (m. V) CQ#5: When a neuron is stimulated, the area of the membrane at the point of stimulation becomes more permeable to Na+. 30 0 -55 -70 TIME 20

Action Potential: Part 1 – DEPOLARIZATION 30 Membrane Voltage (m. V) • For an action potential (nerve firing) to occur, the cell membrane potential must reach a threshold value of … ~ -55 m. V • When this threshold is reached, the voltagegated Na+ channels open, allowing more Na+ to diffuse rapidly into the cell. 0 -55 -70 TIME 21

CQ#6: At the peak of the action potential, Na+ voltage-gated channels close, and K+ voltage-gated channels open in response to positive membrane potential. To return the cell to its negative resting potential quickly: 30 Membrane Voltage (m. V) A. K+ will diffuse along its concentration gradient INTO the cell. B. K+ will diffuse along its concentration gradient OUT of the cell. C. Na+ will reverse its direction of diffusion OUT of the cell. D. The sodium-potassium pump will move Na+ OUT of the cell and K+ INTO the cell. E. None of the above would return the cell to its negative resting potential quickly. 0 -55 -70 TIME 22

CQ#7: Dr. Westwood ate a meal of pufferfish and rice. As a result, he was a victim of pufferfish poisoning that caused his life-threatening symptoms of numbness, paralysis, irregular heartbeat, and difficulty breathing. Tetrodotoxin (TXX), found in pufferfish flesh, is a molecule that: A. B. C. D. E. Causes the flesh of pufferfish to go bad. Causes an incurable illness in humans. Blocks voltage-gated sodium ion channels. Blocks neurotoxins. Affects the immune system. 23

A. B. C. D. E. Part A Part B Part C Part D Part E Membrane Voltage (m. V) CQ#8: If tetrodotoxin (TXX) blocks voltagegated sodium ion channels, which part of the action potential would be impacted? 30 C D 0 B -55 -70 E A TIME 24

CQ#9: Dr. Westwood experienced numbness after eating the pufferfish meal because TXX causes: A. Motor neurons to fire continuously, overloading the brain with signals, resulting in numbness. B. Motor neurons to stop firing, preventing communication with the brain, resulting in numbness. C. Sensory neurons to stop firing preventing communication with the brain, resulting in numbness. D. Sensory neurons to fire continuously, overloading the brain with signals, resulting in numbness. E. None of the above explain why Dr. Westwood experienced numbness after his pufferfish meal. 25

CQ#10: Why did Dr. Westwood experience paralysis after eating the pufferfish meal? A. TXX causes motor neurons to fire continuously, overloading the brain with signals, resulting in paralysis. B. TXX causes motor neurons to stop firing, preventing communication with the muscles, resulting in paralysis. C. TXX causes sensory neurons to stop firing preventing communication with the brain, resulting in paralysis. D. TXX causes sensory neurons to fire continuously, overloading the brain with signals, resulting in paralysis. E. None of the above explain why Dr. Westwood experienced numbness after his pufferfish meal. 26

After recovering from his TTX poisoning, Dr. Marshall Westwood took a vacation. An avid birder, he went to Papua New Guinea with Bill Whitlatch, an ornithologist and friend. 27

Three days into their trip, Bill netted a bird with an orange body and black wings and head. Dr. Westwood was very curious and looked closely at the bird. 28

After handling the bird and later touching his mouth with his hand, Dr. Westwood noticed that his fingers and lips were going numb. His mind immediately flashed back to the disastrous trip to Indonesia and he began to panic. Luckily, the symptoms faded. 29

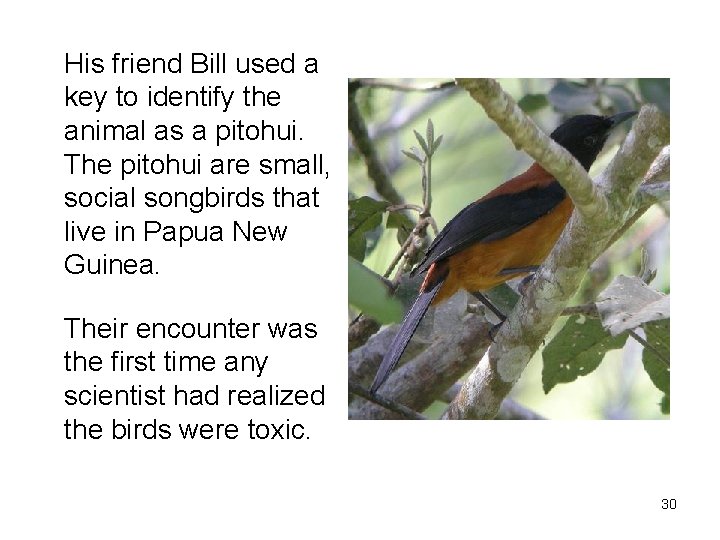

His friend Bill used a key to identify the animal as a pitohui. The pitohui are small, social songbirds that live in Papua New Guinea. Their encounter was the first time any scientist had realized the birds were toxic. 30

Dr. Westwood collected feather and tissue samples to bring back to the lab. After returning to Montana, he isolated the toxic compound that he was active in the feathers of the pitohui. It appeared that the active ingredient was a homobatrachotoxin. 31

• Homobatrachotoxin is a steroidal alkaloid that is similar to batrachotoxin, the toxic principle of the Central American poison arrow frog Phyllobates aurotaenia. • Batrachotoxin and homobatrachotoxin are both known to act on voltage-sensitive sodium channels in excitable tissues. 32

CQ#11: What symptoms did Dr. Westwood experience after both his pufferfish meal and after handling the new bird species? A. B. C. D. E. Nausea Numbness Paralysis Difficulty breathing More than one of the above 33

CQ#12: The toxin found in the bird feathers: A. Is used by the birds to deter predators. B. Is found in birds that have eaten poison arrow frogs. C. Is the same toxin found in pufferfish flesh. D. Affects voltage sensitive ion channels. E. Affects voltage sensitive potassium channels. 34

Dr. Westwood has asked you to help elucidate the mechanism of action of this new toxic compound. • In your first experiment, you generated action potentials in axons of large neurons obtained from squid in the presence of this new toxin. You found after depolarizing, the membrane potential remained positive for an extended length of time and the repolarization was often extremely delayed. • Draw a graph showing membrane potential vs. time to illustrate this effect. 35

B 30 0 -55 -70 Membrane potential (m. V) A Membrane potential (m. V) CQ#13: Choose the graph below that most closely matches the graph you just created: 30 0 -55 -70 Time D 30 0 -55 -70 Time Membrane potential (m. V) C Membrane potential (m. V) Time 30 0 -55 -70 Time 36

CQ#14: You experiment with higher concentrations of toxin and find cases when the cell could not repolarize at all or, if it began to repolarize, it immediately depolarized again. This tells you that the toxin: A. Prevents voltage-gated K+ channels from opening. B. Increases the speed that Na+ ion channels open. C. Prevents Na+ ion channels from closing. D. Makes Na+ ion channels close too soon. E. Doesn’t affect the Na+ ion channels at all, it affects the sodium-potassium pump instead. 37

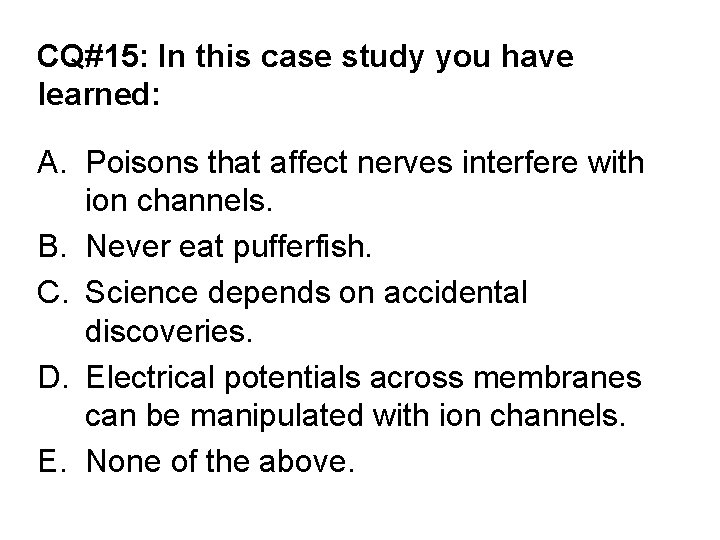

CQ#15: In this case study you have learned: A. Poisons that affect nerves interfere with ion channels. B. Never eat pufferfish. C. Science depends on accidental discoveries. D. Electrical potentials across membranes can be manipulated with ion channels. E. None of the above.
